Cimo Mz1000 User manual

cimo®

cimo Release 1 User Guide

cimo User Guide
RealWear(shanghai) intelligent Co,.Ltd. Copyright 2021 realwear.com.cn
Table of Contents
CONNECTED INTELLIGENCE FOR MOBILITY .............................................................................................................. 2
CIMO FEATURES......................................................................................................................................................................................3
CIMO PRODUCT SPECIFICATIONS..........................................................................................................................................................4
CIMO OVERVIEW ....................................................................................................................................................................................6
CIMO SAFETY GUIDELINES.....................................................................................................................................................................8
SAFETY AND USAGE GUIDELINES..........................................................................................................................................................9
CIMO CONNECTIVITY .......................................................................................................................................................................... 10
CIMO BOX CONTENTS ........................................................................................................................................................................ 10
CIMO DEVICE OVERVIEW.................................................................................................................................................................... 11
CIMO DEVICE OVERVIEW –DETAILS.................................................................................................................................................. 12
CIMO SETUP GUIDE ........................................................................................................................................................14
WEARING THE CIMO ........................................................................................................................................................................... 14
DETERMINING EYE DOMINANCE ....................................................................................................................................................... 16
HEADWEAR WITH CIMO DEVICES....................................................................................................................................................... 17
USING THE CIMO WITH A HARD HAT................................................................................................................................................ 17
WEARING CIMO WITH EYE PROTECTION........................................................................................................................................... 17
CIMO CHARGING BASICS.................................................................................................................................................................... 18
CONFIGURING YOUR CIMO................................................................................................................................................................. 19
SETTING UP SCREEN LOCK................................................................................................................................................................. 20
UNLOCKING THE CIMO ....................................................................................................................................................................... 22
SELECTING CIMO INTERFACE LANGUAGE .......................................................................................................................................... 23
CIMO DEVICE CARE............................................................................................................................................................................. 24
STORING THE CIMO............................................................................................................................................................................. 24
CLEANING THE CIMO DEVICE.............................................................................................................................................................. 25
CIMO INTERACTION MODES .............................................................................................................................................................. 26
SPEECH KEYBOARD ............................................................................................................................................................................. 26
VOICE CONTROL................................................................................................................................................................................. 27
ALTERNATE SPEECH RECOGNITION ................................................................................................................................................... 28
CIMO SOFTWARE OVERVIEW ......................................................................................................................................29
HOME SCREEN .................................................................................................................................................................................... 29
MORE APPS......................................................................................................................................................................................... 31
FILE BROWSER...................................................................................................................................................................................... 32
DOCUMENTS FOLDER ......................................................................................................................................................................... 33
MEDIA PLAYER .................................................................................................................................................................................... 35
CAMERA............................................................................................................................................................................................... 36
BARCODE READER............................................................................................................................................................................... 38
SETTING UP BLUETOOTH MASTER/SLAVE SWITCH.......................................................................................................................... 39
VIEW REGULATORY LABELS................................................................................................................................................................ 40
CIMO OWNERSHIP INFORMATION............................................................................................................................42
CIMO REGULATORY AND COMPLIANCE STATEMENTS ..................................................................................................................... 43







cimo User Guide

Connected Intelligence for Mobility

The RealWear cimo is a hands-free Android™ tablet class wearable computer for industrial workers.

The RealWear cimo provides the foundation for Connected Worker programs.

Use it in wet, dusty, hot, dangerous, and loud industrial environments.

A fully rugged head-mounted device, it optionally snaps into safety helmets or attaches to bump caps and can be

used with safety glasses or corrective eyewear.

The high-resolution micro display fits just below your line of sight and views like a 7” tablet. It’s an industrial

dashboard: Be there when you need it and out of your way when you don’t.

The cimo works with powerful software applications from our solution partners in four core categories, each

optimized for completely hands-free voice control. That means no scrolling, swiping, or tapping - just simple

voice commands.

Use it for remote mentor video calling, document navigation, guided workflow, mobile forms and industrial IoT

data visualization.

cimo User Guide

cimo Features

100% Hands Free

Voice based operating system with local speech recognition in loud areas.

Powerful Audio

Integrated speaker and 3.5mm audio jack for use with hearing protection.

Unmatched Noise Cancellation

The cimo uses four microphones and advanced algorithms to perform noise cancellation prior to voice recognition.

PPE Compatible

Designed to work with standard hard helmets, bump caps and safety glasses.

Full-Shift Working Time

Both Standalone and attach to external battery module

Outdoor Display

Viewable in bright sunlight.

Water Proof

IP66 –Protected against heavy seas or powerful jets of water.

Dust Tight

IP66 –Complete protection against the ingress of micro particles.

Drop Proof

Resistant to 1.5-meter drops onto concrete from any angle.

Built Rugged

Fully operational from -20°C to +50°C.

Fingerprint

Account security, fast device authentication

cimo User Guide

cimo Product Specifications

Core Platform & Functions

Chipset

2.0 GHz 8-core Qualcomm® Snapdragon™ 662 with Adreno 610 GPU - OpenGL ES 3.1 & OpenCL 2.0

Included Applications

File Browser, Camera, Barcode Reader, Media Player, Settings, Language Selector

Languages Supported

English, Mandarin Chinese

Memory

32 GB Internal Storage / 3 GB RAM

Operating System

Android 10 + Infinity OS hands-free interface

Connectivity & Sensors

Bluetooth

BT 5.0 LE (Low Energy)

Wi-Fi

802.11 a/b/g/n/ac –2.4GHz and 5GHz

IMU

9-DOF (3-axis accelerometer, magnetometer, and gyroscope), software enhanced stabilization

Battery

Capacity

750 mAh Li-Ion, rechargeable，support additional battery pack or 4G dongle

Battery Life

Full shift (3 hours) with typical use

Physical Characteristics

Weight

155 g

Ruggedization

IP66, MIL-STD-810G, 1.5-meter drop test

Dedicated Keys

power and finger print key，direction key（up，down，left，right）

cimo User Guide

Ports

3.5mm audio，Type-C USB 3.0

Boom Arm

Adjust six ways for all head sizes, left or right eye compatible, display flips out of way when not in use，foldable

to pocket, easy for carrying on

Display

Type

20°field-of-view, 1-meter fixed focus 24-bit color LCD, 0.33-inch diagonal, outdoor visible

Resolution

WVGA (854x480)

Audio

Microphone

4 digital microphones with active noise cancellation Accurate voice recognition even in 95 dBA of typical

industrial noise

Speaker

Internal 91 dB loudspeaker

Multimedia

Camera

16 MP, PDAF with LED flashlight and laser

Front camera

8 MP，real 1st field view, see through view

Video

Up to 1080p @30fps. Codecs: VP8, VP9 and hardware encoding support for H.264, H.265 HEVC

Accessories

Included

USB Type-C data and charging cable

Option

Charger, Hard hat clips, Bump Cap, Lightweight universal head band, Modular Headband, Ear Bud Hearing

Protection Headphone rated at 33dB noise reduction rating (NRR), Semi Rigid Carrying Case, Portable battery,

cimo User Guide

cimo Overview

Purpose-built hands-free secure software for increased productivity.

Safer. Faster. Smarter.

cimo Release 10 - powered by Android 10 - is the only software purpose-built for harsh or dangerous environments

where workers use their hands for more connected and secure work. Release 10 is optimized for safe and secure

jobs, taking hands-free to new heights of productivity and connectivity.

cimo Release 10 lays the groundwork for RealWear UEM Cloud Services, improving your overall hands-free

experience while keeping you securely connected to the data in your cloud.

Enhanced Usability

Redesigned user interface, keyboard and file management system, focused on ease of use and productivity.

Core Functions

Operating System

Android 10

Smart Camera System

My Camera App 1.0

Usability

Enhanced UI

The new UI utilizes head movement for easy scrolling left to right. The new My Controls

menu and speech keyboard allow the user to look left or right and make selections

using their voice.

Improved user experience with better screen layout and colors and a more consistent

philosophy overall design.

Better access to core Android capabilities such as Notifications.

Gestures

Better leverage head gestures when doing so is more effective than voice commands

Customization

White label design can be branded just for your business needs

Keyboard

Fully redesigned hands-free keyboard with gestures and voice including:

Standard keyboard

Secure Entry mode enables hands-free password entry without speaking the characters

aloud

Full dictation for improved productivity

cimo User Guide

Security

Android 10 Security

Security patch Level

Security patch updates targeted within 90 days

Compliance with current enterprise IT security policies

Regular software updates from RealWear

Fingerprint

Account Security

Customization and Configuration

Centralized Infinity OS

OS level and App level customization and configuration. Default values and preferences

can be stored in a common configuration space and updated, refreshed, or managed

configuration

for easier deployment and support

Cloud Services

Fully manageable by Mozione UEM Cloud

Language

Dynamic and individual language strings can be adjusted or improved by administrators

More languages

2 languages

Languages can be updated over the air (OTA)

Most Advanced Camera System for Harsh Environments

Hands-free for industry

Command and control all features while keeping your hands free for work

Preview

Instant preview of photos and videos

Smoother experience

Seamless experience from ‘MY CAMERA’ to ‘MY PHOTOS’ and ‘MY MEDIA’

Low Light Performance

Improved performance in low light settings and situations

Field of View (FOV)

Wide angle range or standard range

Image and Video

More usable footage when work is being done and image and video accuracy is required

Stabilization

for compliance, inspections and remote mentoring

Flashlight

Flashlight functionality can be controlled directly from the camera app

Camera

Photo preview.

Zoom level 1-5

cimo User Guide

cimo Safety Guidelines

Battery Performance

A inside rechargeable battery powers your device. The full performance of a new battery is achieved only after 3 to 4

complete charge and discharge cycles. The battery can be charged and discharged for multiple cycles, but it will

eventually wear out. Unplug the charger from the electrical plug and the device when not in use. Ensure that you do

not leave the fully charged battery connected to the charger. If left unused, a fully charged battery will lose its charge

over time.

Warning: There is a risk of explosion while charging if a battery other than the specified model is used.

Battery Replacement

If the cimo battery can’t work anymore, please contact RealWear technical support team.

Avoid High Temperatures

Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions, will reduce the

capacity and lifetime of the battery. For the best results, try to keep the battery between -10°C and +50°C (+14°F

and 122°F). A device with a hot or cold battery may not work temporarily, even when the battery is fully charged.

Battery performance is particularly limited in temperatures well below freezing.

Battery Disposal

Do not dispose of batteries in a fire as they may explode. Batteries may also explode if damaged. Dispose of

batteries according to local regulations and recycle when possible. Do not dispose as household waste. Do not

dismantle, open or shred cells or batteries. In the event of a battery leak, do not allow the liquid to come into contact

with the skin or eyes. In the event of leak or a hazard seek medical help immediately.

Child Safety

Do not allow children to play with your device or its accessories. Keep it out of their reach. They could hurt

themselves or others or could accidentally damage the device or accessories. Your device and its accessories may

contain small parts, which could be detached and create a choking hazard.

Health and Safety Warnings

Stop using RealWear cimo or its display immediately if you experience a headache, vertigo, dizziness or nausea.

Do not use the cimo display while operating any vehicle. Move the boom arm completely out of your line of sight

when not using the display. Maintain situational awareness of your surroundings while using the cimo.

cimo User Guide

Safety and Usage Guidelines

•Do not use cimo while driving

•Always wear cimo with eye protection.

•Always use your dominant eye for comfortable viewing.

Disposal of Old Electrical and Electronic Equipment

The symbol of the crossed-out wheeled bin indicates that within the countries in the European Union, this product,

and any enhancements marked with this symbol, cannot be disposed as unsorted waste but must be taken to

separate collection at their end-of-life.

Disposal of Battery

Please check local regulations for disposal of batteries. The battery should never be placed in municipal waste.

Use a battery disposal facility if available.

Guideline for Headphone and Earphone

To prevent possible hearing damage, do not listen at high volume levels for long periods.

過度使用恐傷害視力

Charger Use Safety Instructions

Warning: To use the charger follow these instructions:

•Use only safety certified adapter or the one in our optional accessories. Adapter shall be installed near the

equipment.

•Make sure that the cable plug is properly connected.

•Keep the charger away from liquids.

•In case of any strange smell or noise from the charger, disconnect it and contact support.

•Before cleaning the cable or charger, disconnect from power supply.

•When using an extension cable, check the integrity of the ground conductor.

•Disconnect the charger from cimo once the battery is fully charged.

•Do not use this charger in wet areas This charger is for indoor use only.

•Do not insert or remove the plug with wet hands.

•Do not open the charger. For any issues, contact support.

•Do not cut, break or bend the cable in a knot.

•Do not put any objects on the cable that may let it overheat. It may damage the cable and cause fire

or electrocution.

•Do not use any cable other than the original cable as it may cause short circuit or electrocution.

•Hereby, [RealWear (Shanghai) Intelligent Technology Co., Ltd.] declares that the radio equipment type [MZ1000]

is in compliance with Directive 2014/53/EU.

•The full text of the EU declaration of conformity is available at the following internet address:

https://www.realwear.com.cn/

cimo User Guide

cimo Connectivity

Operating Frequency Bands for RealWear cimo

Wi-Fi operating frequency band(s) details are as follows:

2.4G（2400-2483.5MHz）: 14.54 dBm

5G（5150-5250MHz）: 12.26 dBm

5G（5250-5350MHz）: 12.92 dBm

5G（5470-5725MHz）: 14.87 dBm

5G（5725-5850MHz）: 12.95 dBm

5G Wi-Fi Connection Information

Operations in the 5.15 —5.35GHz band are restricted to indoor use only.

Bluetooth

BT 5.0 LE (Low Energy) (2400-2483.5MHz): 13.26 dBm

cimo Box Contents

The list of items in the RealWear cimo box are:

RealWear cimo

•USB 3.0 cable type C

•cimo Quick Start Guide

cimo User Guide

cimo Device Overview

Front View

Camera

Navigation buttons

Finger ID

Display pod

Foldable arm

Type-C & Audio port

cimo User Guide

cimo Device Overview –Details

Power/Fingerprint Button

There are 5 buttons on the opposite side of the boom arm side of the device. The square button in the middle is

the power button. Later you will learn how to use this button to select the highlighted option to turn the device on,

off, or wake it up or put it into sleep mode.

Direction Button

There are two buttons on the left and right sides of the power button, which are left and right keys and up and

down keys respectively. Tap these four buttons to toggle highlighting options. Long press the up and down keys

to adjust the speaker volume. Long press the left key and right key to turn on and off the laser light and flash

lamp respectively.

Main Camera

The main camera is located at the front of the fuselage.

It can take 16mp photos and 1080p videos. It is also

equipped with a built-in flash that can be controlled by

voice and a laser pen that can be controlled by long

pressing the left key.

Front Camera

The front camera is located on the outside of the display

module in the same direction as when the eyes look at

the display. It can take 8mp photos and 480p videos.

Details Continued

cimo User Guide

Boom Arm

The Boom Arm allows the user to adjust the

positioning of the Display Pod and allows for 6

degrees of freedom, which means it can be

adjusted up and down, left and right, and forward

and back. It is comprised of a Shoulder, Elbow, and

Wrist joint (imagine the human arm). Its orientation

can be inverted to allow use by left or right eye

dominant users.

Display pod

The Display Pod can be rotated and adjusted

so the user can see the display clearly. The

Display itself is an 854x480p 24-bit LCD

Display with 20-degree field-of-view and 1-

meter focal depth, meaning that it appears like

a 7in. Tablet at arm’s length.

Microphone Array

There are two sets of two microphones on the cimo. The Primary Microphones handle user input, while the reference

microphones cancel external noise. The front microphones, active by default, are located on the display pod. The

Primary Mic is downward-facing, close to the user’s mouth, and the reference mic is upward-facing to pick up and

remove background noise.

The rear microphones are located on the side of the device opposite from the boom arm. These should be used

only when communicating when the boom arm is flipped back and out of your field of view.

Speakers

There is a 91 dB loudspeaker that sits above the ear when worn on either

side.

USB-C Port and Auxiliary Jack (Headphones)

USB-C port is used for fast charging and data communication (double

headed type-C full-function USB cable specially customized in accessories is

required). The port is located on the back end of the device.

Headphones can be connected to the cimo via this jack. We recommend

using RealWear 33 dB noise-reduction earbuds with your cimo. This jack is

located beside the USB-C port.

cimo User Guide

cimo Setup Guide

Wearing the cimo

This article will walk you through how to wear your cimo device and ensure the best possible experience.

Step 1 - Determining Left- or Right-Eye Configuration

The cimo can be set up so that the display and camera are aligned with the left or right side of your head.

First, it is important to determine your dominant eye, to do so, follow the simple instructions in this linked article.

Viewing the HMT's display with your dominant eye will allow for the most clear and comfortable use of the device.

Step 2 - Get the cimo Ready

Before wearing, hold the cimo level with the boom-arm/display on the left or right, whichever is your dominant eye side.

Bend the boom so it forms a slight "Z" shape as shown below.

cimo User Guide

Step 3 - Ensure proper head-mounting accessories are in place.

These can include the hardhat with clips, bump cap, or baseball cap with mounting kit. See the article on mounting

accessories for instructions on how to attach the device to your chosen mounting option.

Step 4 - Putting on the cimo

Start by positioning the device on your head so that it is roughly level with ground. The head strap should be

positioned vertically, not at an angle, resting over the top part of your head.

Step 5 - Fitting the HMT- Lite

Adjust the head strap or mounted headwear so that the device is not hanging too low - it should be positioned

right along your temple area, above your ears.

Next, move the display pod into position. For the optimal experience it is recommended that the display is close to

the center line of your face, in front of and close to your eye.

Step 6 - Adjusting the fit

Ensure that the display pod is not positioned too far to the outside or too far in front of your eye.

Move the display towards the center line by pushing from the outside inward.

Then holding the boom arm with one hand and holding the back of the cimo with the other, push the display pod

inward so that it is close to, in front of and slightly below your eye.

Step 7 - Turning on the HMT- Lite

Before putting the cimo on your head, press and hold down the power button for about three seconds then release

the power button. The power button is the round silver button on the same side of the cimo as the boom arm/display.

In about ten to fifteen seconds you will hear a sound as the start-up sequence completes. The cimo is now powered

on and ready to wear. You should now be able to see the screen.

Step 8 - Fine tuning

It is best to tilt and rotate the display pod to make minor adjustments.

cimo User Guide

Make sure that the display pod is rotated so that all four corners of the screen are clearly visible to your eye. With

your cimo powered on, and the display pod positioned correctly, you will see the entire cimo Home Screen.

Warning: If you are not able to clearly see what is on screen, review how your device and display setup - double check the

fitting of the strap or headwear and if your display is correctly setup for your dominant eye.

Determining Eye Dominance

Eye dominance is the tendency to prefer visual input from one eye to the other. It is best to use your dominant

eye when viewing the display.

Eye dominance is not related to right- or left-handedness.

To determine which eye is dominant:

1. Form a triangle with your hands placed together at arm’s length.

2. With both eyes open, focus on any distant object centered in the triangle (such as a light bulb or door knob).

3. Maintaining focus on the object centered in the triangle and - keeping your head and both hands still - close

your right eye.

4. If the object is still in the triangle, you are left-eye dominant.

5. Maintaining focus on the object centered in the triangle and - keeping your head and both hands

still - close your left eye.

6. If the object is still in the triangle, you are right-eye dominant

cimo User Guide

7. If the object is in the triangle with either eye, then you are dominant eye neutral.

Headwear with cimo Devices

(Check RealWear Website for specific model availability.)

cimo devices are equipped standard with a Removable Head Strap.

Compliant with your PPE, HMTs can be mounted several other ways in order to increase stability, comfort, and safety.

Mounting with Hardhat and optional accessory clips.

Using the cimo with a Hard Hat

To get hard hat clips, visit shop.RealWear.com.cn.

Wearing cimo with Eye Protection

If you wear eye-glasses to operate a computer, or eye protection for your work, continue to wear the same glasses

or eye protection while using cimo. While cimo devices are designed to work well with or without eye-glasses or

eye protection, RealWear recommends wearing eye protection while using an cimo.

cimo User Guide

cimo Charging Basics

cimo Direct Charging

To charge the cimo battery while installed in the cimo, use the

included Wall Charger and USB-C cable.

To recharge the battery:

1. Connect the USB Type-C charging cable to the Type-C USB

port located under the rubber lid on the rear of the boom-side

housing. Using the USB-C cable and USB C port will ensure the

shortest charging time.

2. Connect the charging cable to the wall charger.

3. Plug the wall charger into an electrical outlet. The power button LED will blink throughout the charging cycle,

changing color from Red to Yellow to Green, depending on the amount the battery has charged. Green

signifies a full charge.

A Red light means the battery is extremely low or dead.

A Blue light means the battery is less than 90% and charging.

A Green light means the battery is full.

The battery icon will 'fill up' indicating

its state of charge.

cimo User Guide

Configuring your cimo

Settings

You can access Settings in applications list. Say ‘MORE APPS’, then say 'SETTINGS'.

‘Scroll down' to see more options.

Settings provides access to important system level controls and capabilities. Each of the following Settings options

can be select by speaking the corresponding commands:

•Network and Internet

•Connected devices

•Apps and notifications

•Battery

•Display

•Sound

•Storage

•Privacy

•Location

•Security

•Accounts

•Accessibility

•Moziware

•System

•About phone

Table of contents

Popular Tablet manuals by other brands

Prestigio

Prestigio MULTIPAD WIZE 34084G user manual

Motorola

Motorola XOOM user manual

Fujitsu

Fujitsu Point 1600 user guide

Philips

Philips PI3900B2/85 user manual

Samsung

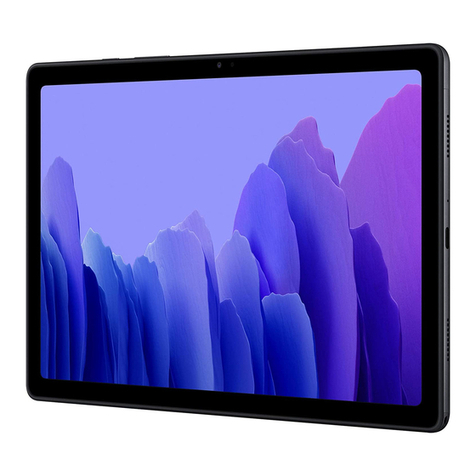

Samsung SM-T503 user manual

Huawei

Huawei MatePad Pro 5G user guide

Blu

Blu M10L user manual

jp.ik

jp.ik MOVE S102 user guide

XPLORE TECHNOLOGIES

XPLORE TECHNOLOGIES iX101B1 User handbook

Samsung

Samsung Galaxy Tab GT-P5100 manual

Samsung

Samsung Galaxy Tab A 8.0" user manual

Huawei

Huawei MatePad 11 user guide

Asus

Asus ZenPad 7.0 E-manual

Fujitsu

Fujitsu STYLISTIC Q508 manual

Billow

Billow X100 Series user guide

DT Research

DT Research DT395CR Basic operation guide

Sungale

Sungale ID706WTA quick start guide

iDeaUSA

iDeaUSA CT10 quick start guide

Cimo MZ1000 User manual

Popular Tablet manuals by other brands
