Cine Gears Ghost Ey 600M Product guide

GHOST EYE WIRELESS HDMI/SDI
VIDEO TRANSMISSION SYSTEM
600M/1000M/800T/800TC
MANUAL BOOK
© 2017 Cine Gears INC. All Rights Reserved.
GHOST EYE

Contents
Cautions
Ghost Eye Wireless Video Transmission Systems
Specifications
M-Series Transmitter
M-Series Receiver
T-Series Transmitter
T-Series Receiver
Product Features
User Manual
Setting Up the Unit
Fan Motor Controls
Channel Settings
Setting Up the Intercom (800T and (800TC)
Troubleshooting
Disclaimers
About Cinegears
© 2017 Cine Gears INC. All Rights Reserved. 1
2
3
4
6
10
13
17
21
22
28
22
24
23
26
25
30

Cautions
© 2017 Cine Gears INC. All Rights Reserved. 2
Please read this user introduction manual to become familiar with the features of the Ghost-Eye series
products before operation. Failure to operate the product correctly can result in damage to the product,
or interference with other devices. This is a sophisticated product which must be operated with caution and
common sense. Failure to operate this product properly might result in disturbing other film equipment on set.
This product is not intended for use bychildren without direct adult supervision. Do not use with incompatible
components, or alter this product in any way outside of the documents provided by Ghost-Eye. These safety
guidelines contain instructions for installation, operation, and maintenance. It is essential to read and follow
all of the instruction in the manual, and all the notices and warnings regarding Ghost-Eye series products
prior to assembly, setup, or use to prevent any damage or interference.
1. Do not use this product in extreme heat, cold, dusty, or humid environments.
2. Prevent friction against hard objects.
3. Prevent jarring, such as from falling from high places, or from improper packaging during transportation.
4. These products are not waterproof; prevent moisture from getting in, on, or around the unit(s).
5. Do not dismantle, assemble, or otherwise alter the product(s) arbitrarily.
1. When this device is sharing a power supply or battery with other equipment, please make sure all signal
and power cables are well connected before turning on the Ghost-Eye unit power.
2. When this device is sharing a power supply or battery with other equipment, please make cables from the
Ghost-Eye unit.
3. When this device is sharing a power supply or battery with other equipment, please check the polarity of
the power connectors of all equipment to ensure the inside conductor is positive. If the polarity of the power
connector is unknown, please check the user manual to make sure the outer conductor of the SDI or HDMI
connector is connected to the negative of the power supply. Otherwise, the equipment will not be able to
share the same power supply withthe Ghost-Eye unit.
Warning
Electrical Considerations

Ghost Eye Wireless Video Transmission Systems
© 2017 Cine Gears INC. All Rights Reserved. 3
Here at Cine Gears Inc., we supply some of the best wireless HD video transmitters and receivers available.
During the development of Ghost-Eye units, we subjected our prototypes to rigorous testing on set with
professional film crews, and took customer feedback and suggestions into serious consideration. After careful
consideration, Ghost-Eye products have integrated all the in-demand wireless video transmission features
recommended by you, the user. The fruit of our efforts are catalogued below in the form of our unique
Ghost-Eye Wireless Video Transmission kits, across the affordable price range spectrum.
Ghost Eye wireless video transmission kits each fit a different set of wireless HD video transmission needs.
The most powerful video transmitters and receivers will satisfy even the most high end profesional film crew,
and our lightweight models fit a more versatile brand of film set. Ghost-Eye transmission kits transmit and
receive 10 bit, 4:4:4 video, support both HD and SD, and can broadcast with less than 1ms latency.

Specifications
© 2017 Cine Gears INC. All Rights Reserved. 4
ITEM SPECIFICATION
Frequency range
5.1-5.9(GHz)*Subject to different RF
regulations in different regions.
2.4-2.483GHz with ISM band
Modulation method and
Bandwidth
OFDM/40MHz for video
GFSK/1MHz for intercom system
Video Formats
Supported
1080p 23.98/24/25/30/50/60
1080psf 23.98/24/25
1080i 50/59.94/60
720p 50/59.94/60
576p 576i 480p 480i
Audio Formats
Supported PCM, DTS-HD, Dolby TrueHD
Time Code SMPTE-12M
Transmission Range
Transmitter
Antenna External Antenna 5G × 2pcs
External Antenna 2.4G x1pcs
Transmission Power 18dBm
Functional Interface
HDMI Input; SDI Input; SDI Loop Output; Mini
USB; LEMO Power IN; Antenna RPSMA
Socket; Power ON/OFF,3.5mm HP/MIC socket
TALLY output for Wrist
Mounting Structure 1/4” Hot-shoe connection
OLED Display Channel Info; Video status; Battery capacity;
Status Menu, Audio Volume
Power Source 9-18V for DC input, F550/F970 battery
Power Consumption 7.5-8.5W
600M: 600 meters (2000ft)
1000M: 1000 meters (3250ft)
800T: 800 meters (2500ft)
800TC: 800 meters (2500ft)
(T series)
(Line of Sight)

Specifications
© 2017 Cine Gears INC. All Rights Reserved. 5
Net Weight(with
antenna) 400g
Dimensions
142.5×76×24.3mm
Temperature -10-50(Operating); -40-80(Storage)
Receiver
Antenna
External Antenna 5G × 5pcs
External Antenna 2G x1pcs
Receiving Sensitivity -70dBm
Functional Interface
SDI Dual Output; HDMI Output; Mini USB;
LEMO Power IN; Antenna RPSMA Socket;
Power ON/OFF
,
3.5mm HP/MIC socket;3.5mm
TALLY socket; LEMO 6 needle
Locating Structure 1/4” Hot-shoe connection
OLED Display Channel Info; Signal Strength; Power Info;
TALLY indicator
Power Source 9-18V for DC input; SONY V-mount battery
Power Consumption
7.5-8.5W
Net Weight(with
antenna) 800g
Dimensions
169.5×122×25.2mm
Temperature -10-50(Operating); -40-80(Storage)
*Since the product’s improving process, all the performance, design and specifications
of our products are subject to minor change without prior notice.
*Information followed by “(T series)” indicates specification applies to 800T and 800TC
only.
800T and 800TC:
(T series)
(T series)

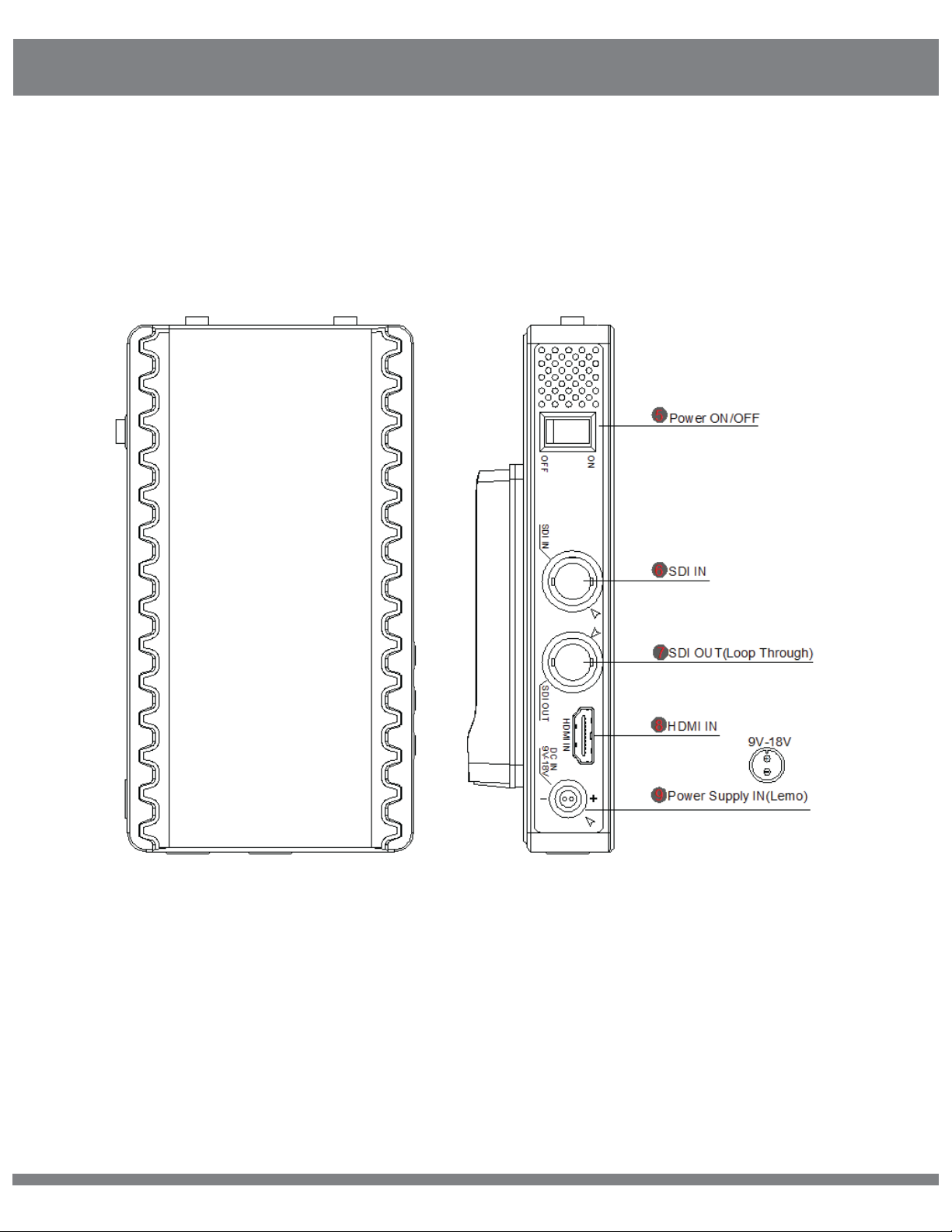

M-Series Transmitter
© 2017 Cine Gears INC. All Rights Reserved. 6

7
M-Series Transmitter
© 2017 Cine Gears INC. All Rights Reserved.

M-Series Transmitter
© 2017 Cine Gears INC. All Rights Reserved. 8
STRUCTURE
1
OLED Display
Displays information of channel, Video status and battery capacity.
2
UP Button
Channel +
3
DOWN Button
Channel -
4
MENU Button
Unlock the channel and Confirm the Selection
5
Power ON/OFF
Turn ON or OFF the transmitter
6
SDI IN
Connect to SDI Video Source
7
SDI OUT(Loop Through)
Connect to the your monitor or other
8
HDMI IN
Connect to HDMI Video source
9
DC IN(Lemo)
Support 9-18V
10
Antenna Connector x2
Fix antennas
11
Battery Clip
Battery compartment, for F550/F970 battery

9

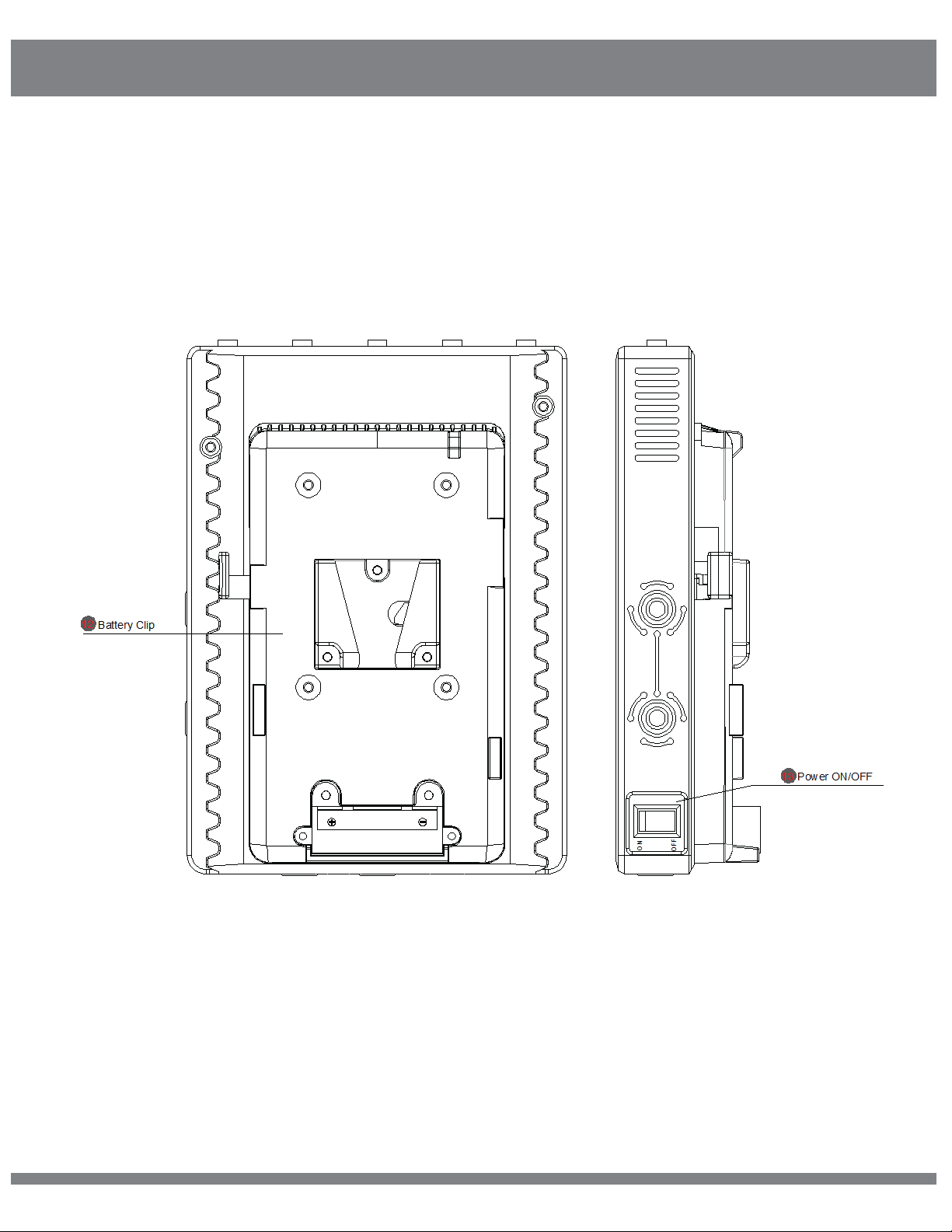

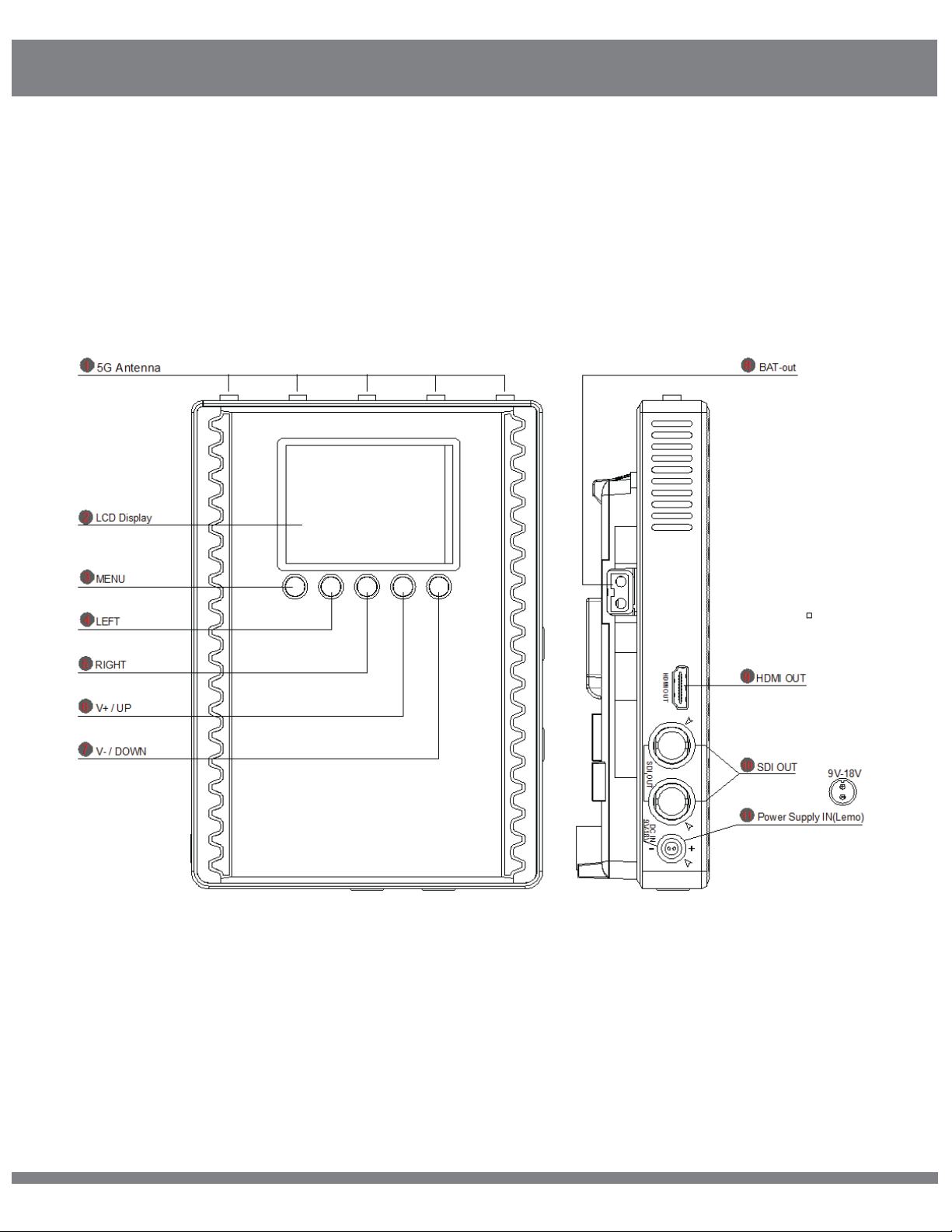

M-Series Receiver
© 2017 Cine Gears INC. All Rights Reserved.

M-Series Receiver
© 2017 Cine Gears INC. All Rights Reserved. 10

© 2017 Cine Gears INC. All Rights Reserved. 11
M-Series Receiver
STRUCTURE
1 Antenna Connector x5
RPSMA connectors for antennas
2 OLED Display
Displays information of channel, signal strength and battery capacity.
3 MENU Button
Unlock and Confirm the Selection
4 LEFT Button
Channel -
5 RIGHT/DOWN Button
Channel +
6 V+/UP Button
Volume +, not use on this version
7 V-/DOWN Button
Volume -, not use on this version
8 BAT-OUT
Provide DC power supply from the battery for external equipment
9 HDMI OUT
Connect to your HDMI monitor or other
10 SDI OUTx2

M-Series Receiver
© 2017 Cine Gears INC. All Rights Reserved. 12
Connect to your SDI monitor or other
11 DC IN(Lemo) *Support 9-18V
Support 9-18V
12 Battery Clip
Support V-Mount battery
13 Power ON/OFF
Power on or OFF the receiver

T-Series Transmitter
© 2017 Cine Gears INC. All Rights Reserved. 13

14
T-Series Transmitter
© 2017 Cine Gears INC. All Rights Reserved.

T-Series Transmitter
© 2017 Cine Gears INC. All Rights Reserved. 15
STRUCTURE
1
15mm Front TALLY indicator(Red/Yellow)
The indicator color will be same(RED/YELLOW) for Rear/ front
and external TALLY
2
2G Antenna Connector
SMA connector for 2.4G antenna
3
OLED Display
Displays information of channel, Video status, signal strength;
Battery voltage indicator, MENU information
4
VOL +/UP Button
Normally, it is a Volume +. It will be UP function when system is in
MENU mode
5
VOL -/DOWN Button
Normally, it is a Volume -. It will be DOWN function when system is
in MENU mode
6
MENU Button
MENU select, it is also be confirmed function when one MENU
was selected
7
Power ON/OFF
Power ON or OFF the Transmitter
8
3.5mm External TALLY Output Interface
Its maximum output current is 20mA, i.e, it can support LED
9
3.5mm MIC/HP Interface
Connect to an external CONVERTOR BOX
10 SDI IN

16
T-Series Transmitter
© 2017 Cine Gears INC. All Rights Reserved.
Connect to Video Source which supports 3G-SDI, HD-SDI,SD-SDI
11
SDI OUT(Loop Through)
Connect to other SDI equipment if need
12
HDMI IN
Connect to HDMI video source
13
DC power IN(Lemo)
Support 9-18V
14
5G Antenna Connectors
RPSMA connectors for 5G antennas
15
Battery Clip
Battery compartment, for F550/F970 battery
16
Rear TALLY(RED/YELLOW)
The indicator color will be same(RED/YELLOW) for Rear/ front
and external TALLY

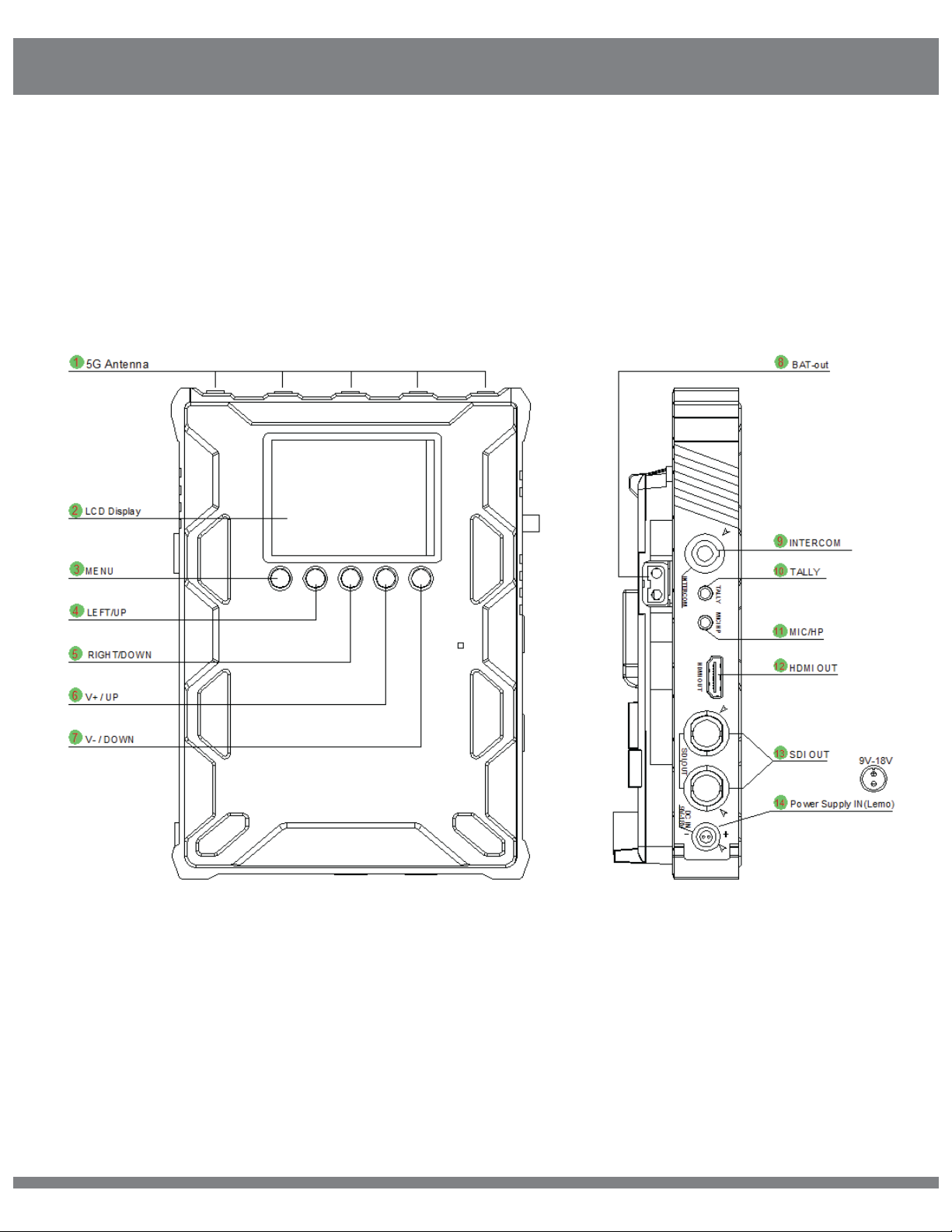

T-Series Receiver
© 2017 Cine Gears INC. All Rights Reserved. 17

© 2017 Cine Gears INC. All Rights Reserved. 18
T-Series Receiver

T-Series Receiver
© 2017 Cine Gears INC. All Rights Reserved. 19
STRUCTURE
1
5G Antenna Connectors
RPSMA connectors for antennas
2
OLED Display
Channel, signal strength, battery voltage, audio Volume and MENU.
3
MENU Button
Unlock and Confirm the Selection
4
LEFT/UP Button
Select Channels
5
RIGHT/DOWN Button
Select Channels
6
V+/UP Button
Volume +
7
V-/DOWN Button
Volume -
8
BAT-OUT
Provide DC power from the battery for external device
9
INTERCOM
6pin LEMO for Tally and Intercom system
10
3.5mm External TALLY Output Interface
Its maximum output current is 20mA, i.e, it just drive a LED
11 3.5mm MIC/HP Interface
