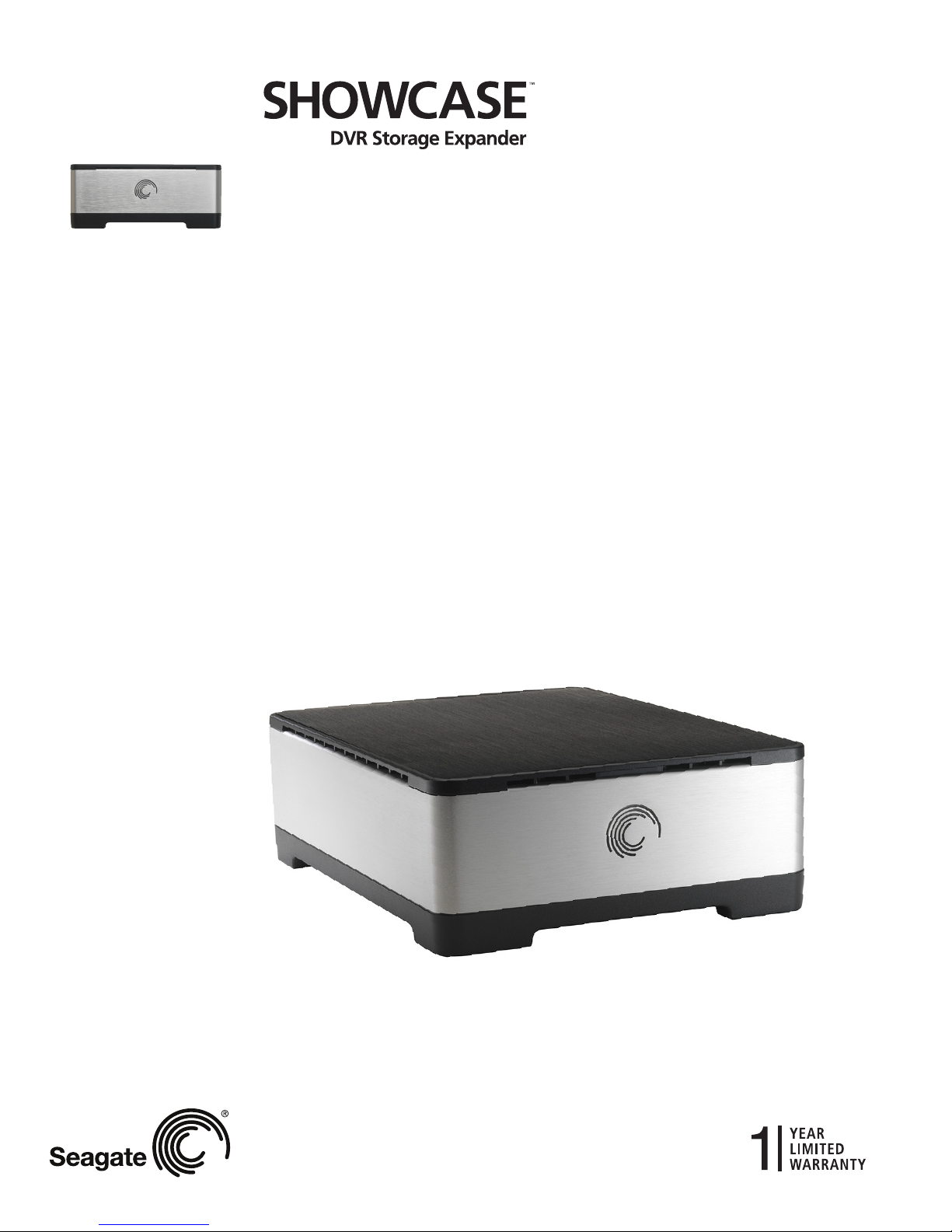

Seagate Showcase USB 2.0 1TB User manual

Perfect for when you need to:
• Expand your DVR’s storage
capacity
• Save more HDTV shows and
movies.
• Turn your Set-top-box into
a DVR
Interface USB 2.0: 500GB, 1TB
Capacities eSATA: 500GB, 1TB
Easy Add-On Storage for Your DVR — Save more of your favorite HDTV shows and movies
The Showcase™ DVR storage expander provides easy additional storage of up to 200 hours of HD or 1000
hours of standard denition content. With the Showcase DVR storage expander you can build your library of
video entertainment without having to gure out what TV shows and movies you have to delete to make room for
something new. It’s whisper-quiet, cool-running, and simple to setup. The Showcase storage expander lies at
or stands vertically to complement your home entertainment environment. With two interface models available,
please check with your local cable or satellite service provider to nd out which solution is right for you.
Choose between USB or eSATA interface models and simply plug the Showcase storage expander directly into
your DVR and begin recording more of your favorite TV shows and movies*. Your total recording capacity is
expanded and all your stored TV shows and movies are accessible just like before. The DVR treats the two-
device solution as if it were one pool of storage.
With the USB interface model, plug the showcase storage expander into an available USB port on your DVR and
you are ready to record more of your favorite TV shows and movies* Your total recording capacity is increased
and your DVR treats the Showcase storage expander as a second source of storage for older recordings.
Highlights
• Easy add-on storage for your DVR
• Up to 200 hours of HD or 1000 hours of standard denition TV shows and movies
• Lies at or stands vertically to t into your entertainment center.
• Whisper-quiet and cool operation
• Available in 500GB and 1TB capacities
• Choose between USB or eSATA interface model to integrate with your DVR
*Note: Your local cable or satellite service provider should be consulted before purchase to ensure
external storage readiness. Functionality and setup may vary depending on the service provider.
Port activation fees may apply. See our website for a list
of compatible devices. www.seagate.com

System Compatibility Host DVR or set-top-box needs to be capable of connecting to external storage through:
• USB - Compatible with select Dish Network ViP Series HD DVRs.
• eSATA - Tested for compatibility with a number of eSATA DVRs.
*Note: Check with your service provider to confirm compatibility and external storage readiness.
Product Dimensions 2.5 in H x 6.0 in W x 8.0 in L (63.5mm H x 152.4mm W x 203.3mm L)
Weight: 2.54lb (1.15kg)
Retail Packaging Specs Box dimensions: 5.63 in H x 9.13 in W x 10.63 in L (143.00 mm H x 231.90mm W x 270.00mm L)
Box weight: 4.5lbs / 2.04 kg
Master carton dimensions: 12.40 in H x 11.00 in W x 18.18 in L
(314.96mm H x 279.40mm W x 461.77mm L)
Master carton weight: 25.31lbs
Master carton quantity: 4
Master cartons per pallet: 24
Pallet dimensions: 42.90 in H x 40.00 in W x 48.00 in L (1089.66mm H x 1016.00mm W x 1219.20mm L)
Pallet weight: 538.80lbs
Pallet layers: 3
Performance • USB 2.0 max 480Mb/second
• eSATA max 3.0Gb/second burst
• Operating Temperature range: Up to 45oC ambient
• Acoustics: 28db
Software Requirements • Works with Windows Vista®, Windows® XP, or Mac OSX 10.4.8 or higher
Inside the Box • Seagate® Showcase™ DVR Storage Expander (USB or eSATA interface)
• USB or eSATA cable—1 meter in length
• A/C power adapter (Universal adapter with US plug provided, plugs for other regions available)
• Vertical stand
• Quick start guide (English and French)
• 1-year limited warranty
© 2009 Seagate Technology LLC. All rights reserved. Seagate, Seagate Technology, the Wave logo and Showcase are trademarks or registered
trademarks of Seagate Technology LLC or one of its afliated companies in the United States and/or other countries. All other trademarks or registered
trademarks are the property of their respective owners. When referring to hard drive capacity, one gigabyte, or GB, equals one billion bytes and one
terabyte, or TB, equals one thousand billion bytes. Your computer’s operating system may use a different standard of measurement and report a lower
capacity. In addition, some of the listed capacity is used for formatting and other functions and will not be available for data storage. Quantitative
usage examples for various applications are for illustrative purposes. Actual quantities will vary based on various factors, including le size, le format,
features and application software. Seagate reserves the right to change, without notice, product offerings or specications. Product may differ from
photography. DS1672.1-0904
Seagate Showcase DVR storage expander has been tested for compatibility with a number of eSATA DVRs. Check Seagate.com/Showcase for model
listings. If your DVR is not listed, check with your service provider to conrm external storage readiness. Not intended to be an archival or portable
storage device. Showcase is designed to expand the recording capacity of a single DVR.
Interface Capacity Model Number UPC Code Multi-Pack UPC
USB 2.0 500GB ST30500SCA101-RK 763649014608 10763649014605
USB 2.0 1TB ST31000SCA101-RK 763649014585 10763649014582
eSATA 500GB ST30500SCA109-RK 763649014615 10763649014612
eSATA 1TB ST31000SCA109-RK 763649014592 10763649014599
