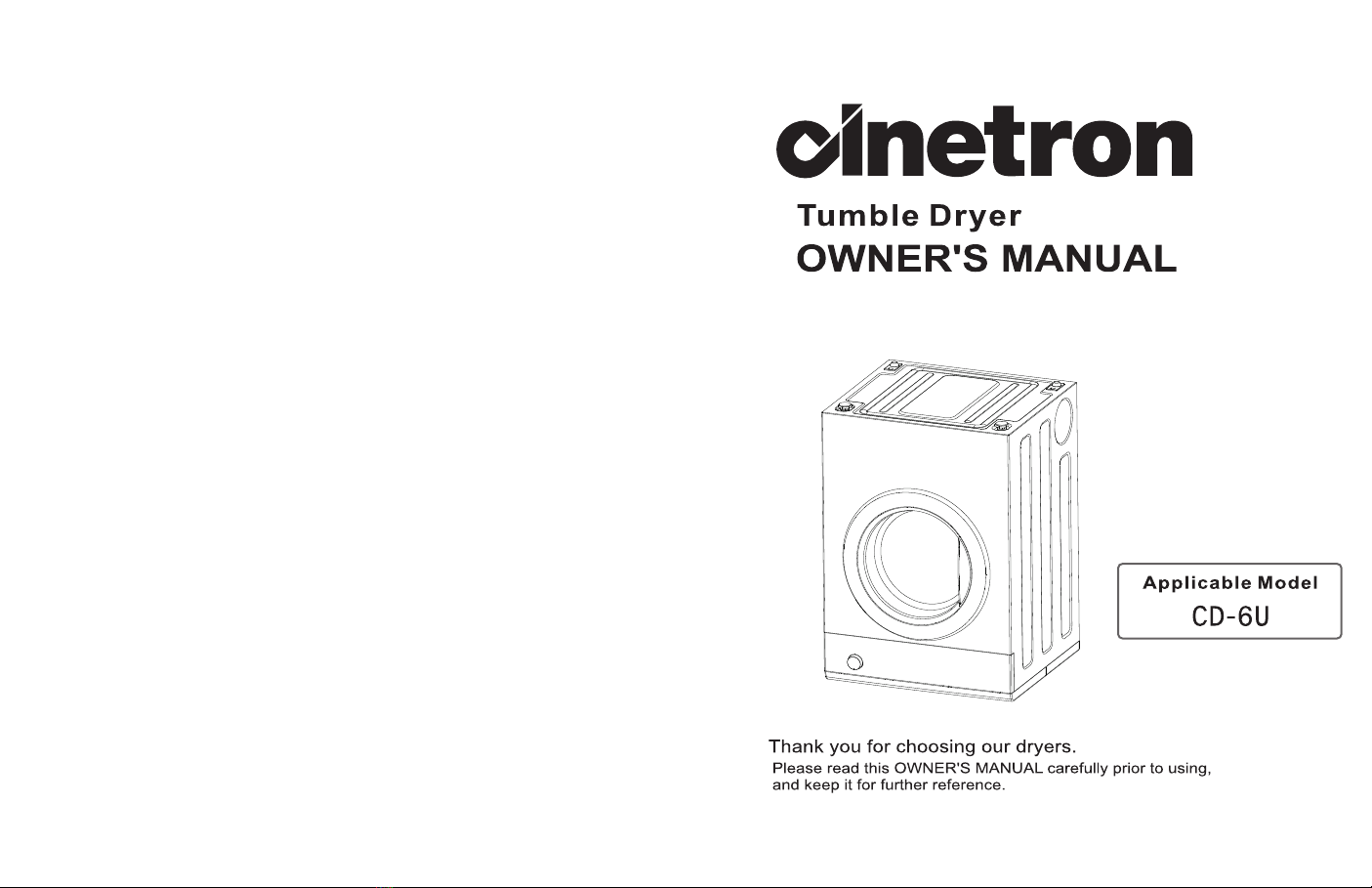

Cinetron CD-6U User manual

Safety information.......................................................1
Product description.....................................................4
Control panel..............................................................5
Use............................................................................6
Drying hints................................................................9
Drying programme......................................................11
Care and cleaning.....................................................12
Something not working...............................................13
Technical data...........................................................14
Installation................................................................15
Environment concerns...............................................18
Guarantee/Customer Service.....................................19
Electric diagram........................................................20

12
Possible electric shocks
The appliance can be used by children aged from 8 years and above persons
with reduced physical,sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use
of the appliance in a safe way and understand the hazards involved. Children
shall not paly with the appliance.cleaning and user maintenance shall not be
made by children without supervision.
Read and understand thoroughly this safety instructions
before use.The items indicated here are very important safety
precautions,which must be followed.Any failure and losses
caused by ignoring the above mentioned items and cautions
mentioned in the operation and installation instruction are not
covered by our warranty and any liability.
Gasoline
Petrol
Alcohol

3 4
1.Filter 2.Door 3.Control Panel 4.Vent Outlet
This appliance is designed for domestic use.It must not be used for purposes other than those for
which it was designed.
Only wash fabrics which are designed to be machine dried.Follow the instructions on each garment label
Any electrical work required to install this appliance should be carried out bya qualified electrician or
competent person.
If the machine is situated on a carpeted floor,please adjust the feet in order to allow air to circulate
freely under the appliance.
Do not climb onto the dryer or rest heavy objects/heating devices or items with water or liquid
leakage on the dryer,lest deformation of the face panel and the plastic component occur.
Any objects such as coins,safety pins,nails,screws,stones or any other hard,sharp material
can cause extensive damage and must not be placed into the machine.
After having installed the appliance,check that it is not pressing or standing on its electrical supply
cable,or vent hose.
Items such as foam rubber(latex foam),shower caps,waterproof textiles,rubber backed articles
and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
Always unplug the appliance after use,clean and maintenance.
Do not overload the appliance.See the relevant section in the user manual.
Clothes which are dripping wet should not be placed in the dryer.
Garments which have been in contact with volatile petroleum products should not be machine
dried.If volatile cleaning fluids are used,care should be taken to ensure that the fluid is removed
from the garment before placing in the machine.
Never use the tumble dryer if the power supply cable,the control panel,the working surface or the
base are damaged so that the inside of the tumble dryer is accessible.
The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
The lint must not to be allowed to accumulate around the tumble dryer.
Do not dry unwashed items in the tumble dryer.
Fabric softeners or similar products should be used as specified by the fabric softener instructions.
The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items
are left at a temperature that ensures that the items will not be damaged.
That exhaust air must not be discharged into a flue which is used for exhausting fumes from
appliances burning gas or other fuels.
That the appliance must not be installed behind a lockable door,a sliding door or a door with a
hinge on the opposite side to hat of the tumble dryer,in such a way that a full opening of the
tumble dryer door is restricted.
That adequate ventilation has to be provided to advoid the back flow of gases into the room
from appliances burning other fuels,including open fires.
The exhaust air must not be discharged into a fule which is used for exhausting fumes from
appliances burning gas or other fuels.
1
2
3
4

56
1.Programme Selector Dial
2.Sequence Indicator Lights
Drying
Cooling
End
Filter
3.Start/Pause
4.Delay Button and Lights
5.Delicate
6.Quick
Control Panel
Special
Tim e
Air Dry
Fresh en-up
Silk
Anti- Bac
Cottons
Synthetics
Heavy
Stron g
Stand ard
cotto n
Damp
Iron
Extra
Cupbo ard
Iron
Drying
Cooling
End
Filter
Quick
Delicate
Delay
(3h)
(12h)
(6h)
13
2456
The “standard cotton programme”is suitable to dry normal wet cotton laundry and it is the most
efficient programme in terms of energy consumption for drying wet cotton laundry.
Note:
Turn the programme selector dial to the required
programme.The corresponding lights starts to flash.
The programme will be switched off if you have
not pressed any button for 10 minutes.
The appliance detects the moisture in the load automatically adjust the drying time for optimal
drying.Just select the programme according to fabrics.This drying system holds good for cottons,
synthetics sections and Anti-Bacterial,silk programme.
Ensure that the electrical connections comply with the installation instructions.
Remove the polystryrene block and material from the drum.
Before using your tumble dryer for the first time,we recommend that you place a few damp cloths
inside the appliance and dry for 30 minutes.Threr may be dust inside a brand new tumble dryer.
Open the door
Place the laundry in the drum,one item at a time,
shaking them out as much as possible.
Close the door. Please check the laundry does not
get caught between the door and filter.
Special
Time
Air Dry
Freshen-up
Silk
Anti-Bac
Cottons
Synthetics
Heavy
Strong
Standard
cotton
Damp
Iron
Extra
Cupboard
Iron

78
.

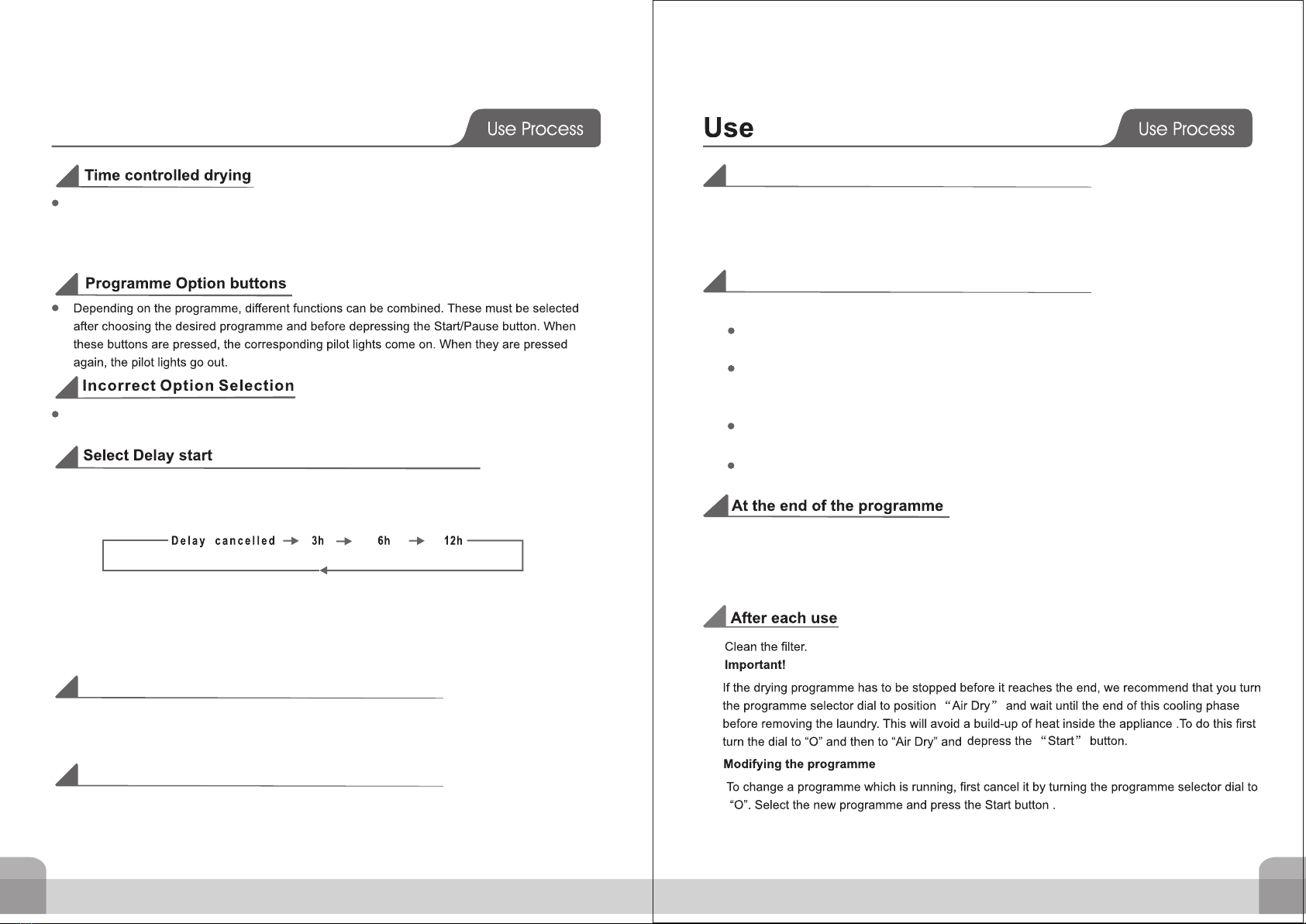

It can be selected in both cases before and after selecting option programme (Quick,Delicate).
The countdown begins after you have pressed the Start/Pause button and the corresponding light
illuminates.Press the button repeatedly to choose the programme 3,6 or 12 hours.If you have selected
a delay time by means of the relevant button,the display shows it.The countdown is calculated
automatically once you press the “Start/Pause” button,the appliance will start the delayed process.
This button allows you to delay the starting of the programme by 12 hours max.
This option must be selected after having selected the programme and before pressing
Start/Pause to start the programme.The program is for 3,6 or 12 hours.
If you select an option that is not compatible with the programme you have selected,the option
will not be selected.
Use
Can be used to finish off drying if necessary.Select the 60 or 90 minute programme for cottons or
30 minute programme for synthetics.To cancel a programme which is running,turn the programme
selector dial to “O”.At the end of drying.turn the selector dial to “O” to switch the machine off before
removing the laundry.
The option can be selected in the following sections: “Cottons”, “Synthetics”.Pressing this button
allows drying to be performed at a lower temperature,for delicate items,the corresponding pilot light
comes on.This function cannot be used with QUICK DRYING.
Select Quick
The option can be selected in the following programme: “Heavy”, “Strong”,“Standard cotton”.By
depressing this button the drying time will be reduced by 3-5 minutes.The corresponding light
illuminates.This option cannot be selected together with “Delicate” option.
Select Delicate
Press this button to start the dryer after having selected the programme and the options.If the door of the
appliance is opened while the programme is running,this button must be pressed again afrer closing the
door in order to restart the programme from the point at which it was interrupted.In this case the lights
flashes to remind you that the start button needs to be pressed again.
Select Start/Pause
Indicator Lights
These lights indicate the following functions:
“Drying” light
This light indicates that the appliance is in the drying phase.
“Cooling” light
This light indicates that the appliance is in the cooling phase.At the end of drying,
there is a 5 or 10 minutes cooling phase to cool the laundry.
“End of the programme” light
This light is on at the end of the cooling phase,during the anti-creasing phase.
“Filter” light
It comes on every cycle to remind you that the filter must be cleaned and at the end of the programme.
All drying programmes end with a 5 or 10 minutes cooling phase.If the laundry is not removed at the
end of the cycle,the dryer performs an anti-creasing phase (duration: 30 minutes maximum).If you do
not remove the laundry,the dryer will stop automatically at the end of the anti-creasing phase.The display
light “Filter”shows.Turn the programme selector dial to “O”,all lights go out.

10
9
Never tumble dry the following:Particularly delicate items such as net curtains,woollen,silk,fabrics
with metal trim ,nylon tights,bulky materials such as anoraks,blankets,eiderdowns,sleeping bags,
feather quilts and any items containing rubber foam or materials similar to rubber foam.
Close pillowcases and covers with fasteners to prevent small laundry items getting tangled inside
them.Close press studs,zips and hooks and tie belts and apron strings.Sort laundry according to
type and degree of drying required.
Do not over-dry laundry,this avoids creasing and saves energy.
Avoid drying dark clothes with light coloured fluffy items such as towels as they could attract the fluff.
The laundry must be thoroughly spun before tumble drying.
Easy-care items,too,e.g.shirts,should be briefly pre-spun before drying.
Knitted textiles (Knitted underwear) may shrink a little during drying.Please do not overdry items
of this type.It is advisable to allow for shrinkage when choosing the size of new purchases.
You can also put starched items into your dryer.However,to achieve the desired starched effect,
choose the programme “Iron dry”.To remove any starch residues,wipe out the internal drum after
drying with a moist cloth and then rub it dry.
To avoid a static charge when drying is completed,use either a fabric softener when you are
washing the laundry or a fabric conditioner specifically for tumble dryers.
Remove the laundry when the dryer has finished drying.
If individual items are still damp after drying,set a brief post-drying time,but at least 30 minutes.
This will be necessary particularly for multilayered items (e.g.collars,pockets,etc.).
Clothes that have been soiled with substances such as cooking oil,acetone,alcohol,petrol,
kerosene,spot removers,turpentine,waxes and wax removers should be washed in hot water
with an extra amount of detergent before being dried in the tumble dryer.
Remove all objects from pockets such as lighters and matches.
Make sure that no metal objects are left in the laundry (e.g. hair clips,pins)
Drying Hints

11 12

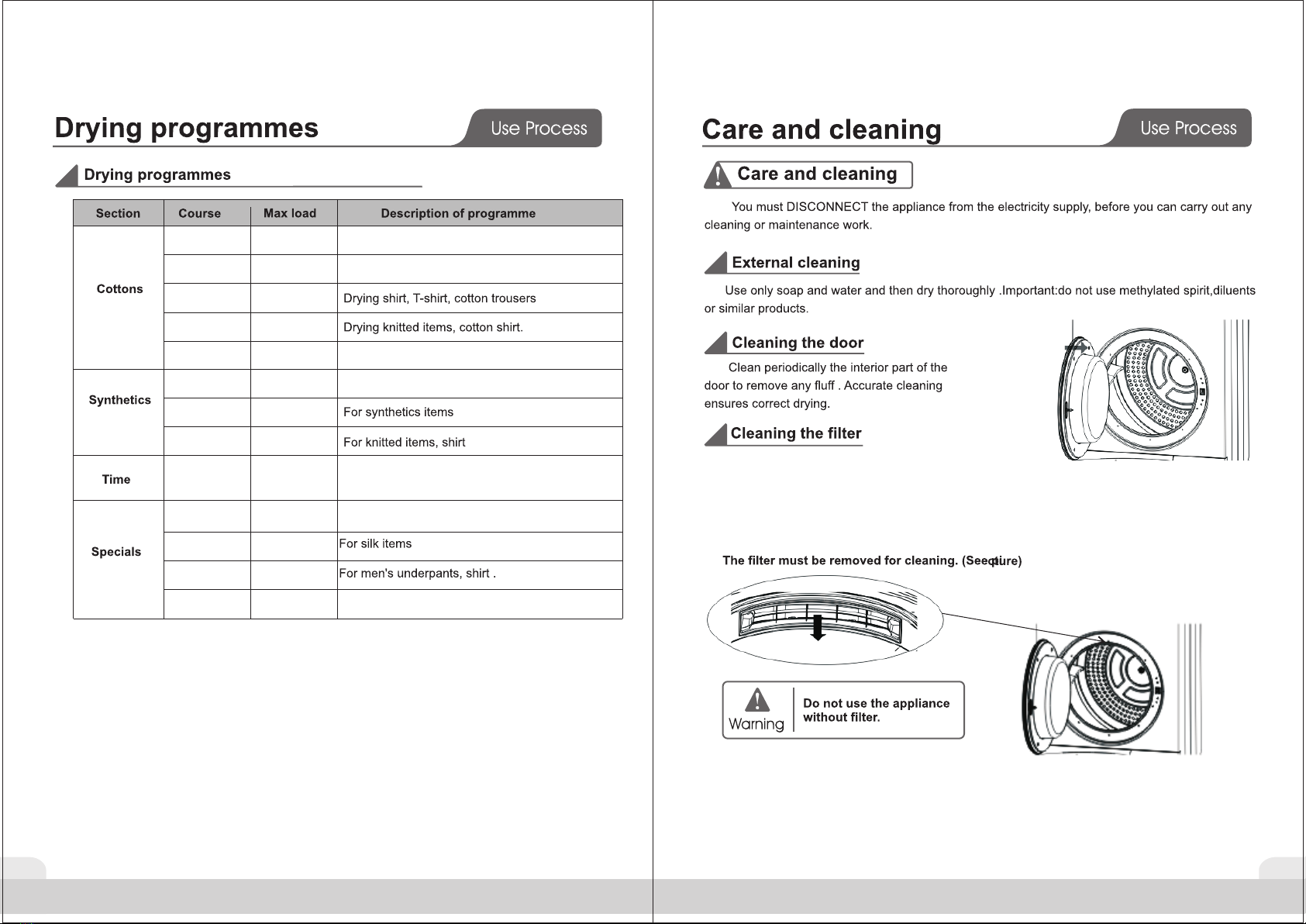

Drying thick or multi-layered textiles,
e.g.terry towelling items.For drying individual
items of laundry or for small volumes.
Extra
Cupboard
Iron
30’,60’,90’
Standard cotton
6kg
Damp 6kg
3kg
3kg
3kg
6kg
6kg Drying bathrobe,toweling towel,Jeans,work clothesHeavy
6kg
Strong Drying bathrobe,toweling towel,Jeans,work clothes
Iron 6kg Drying sheet,bed linen,table linen,starched laundry
For sheet,tablecloth,synthetics items.
Anti-Bacterial 3kg For men’s underpants,pantywaist,winter clothing
Silk 1.5kg
Freshen-up 3kg
Air Dry 2kg For refreshing or gently cleaning textiles.
If the weight of the laundry is less than 1kg,it is more efficient to dry to select “Time controlled Drying”
programme.
Your dryer will only function well if the filter is clean.
The filter collects all the fluff which accumulates during
drying and they must therefore be cleaned at the end
of each programme,before removing the laundry,with
a damp cloth.

13 14
Quantity
Vent Hose 1
1
Manual
Left Hanging Bracket
Right Hanging Bracket
Spacer Brackets
Plastic Plug
30mm Long Screws
1
1
2
8
8
595*555*850
Power(left-on mode)(W)
Power(off mode)(W)
Energy consuption at full load(kWh)
Programme time at full load(min)
0.42
0.41
3.32
133
Technical data

15 16
Use Process
Determine dryer position on wall and mark required bracket position.
Φ
Wall mounting
A minimum 100mm is needed between the top of the dryer and the ceiling for ease of installation.
If mounting above a washing machine, allow sufficient room to open the lid of the washer.
Tools required
Drill 8mm Bit
Head Screw Driver
Hammer
Helper to lift dryer onto wall
Tools & parts required for plaster 1
1
1
1
Wall Mounting Kit includes
Description 1
30mm Long Screws
Spacer Brackets 2
Plastic Plug 8
Left Hanging bracket
Right Hanging bracket 1
8
Φ
It is recommended that,for your convenience,the machine is positioned close to your washing
machine.Whilst drying,the tumble dryer will expel a certain amount of warm,very moist air,and this
should be removed from the room as quickly as possible to prevent condensation.In an extremely
well ventilated room or close to an open window,this may occur naturally.However,in general,it is
better to carry the dryer’s exhaust outside via the vent hose supplied with the appliance;ending either
temporarily at an open window,or permanently at a fixed ventilation grille,fitted to an exterior wall or
window.
The tumble dryer must be installed in a clean place,where dirt does not build up.Make sure
there are no obstructing items or material near the air-intake louvres provided at the back (e.g.paper,
rags etc.).To keep vibration and noise to a minimum when the dryer is in use,it should be placed on
a firm,level surface.
Mark the position on the wall according to the dimension as fig.1,then drill holes( 8) in the position.
Fix plastic plugs in the holes and fix the hanging bracket with screws on the wall.
Connect the hose to the vent outlet by pulling the ring nut (A) ,aligning arrows of the hose
and ring nut.fastening by screwing hose to the direction of arrow and pushing it firmly back into
place.
There is a vent outlet at the back (see picture).
Once connected to the dryer,run the vent hose to the desired outlet point.As to the outlet
itself,if you have decided on a fixed wall/window grille,a good local builder’s merchant
should be able to supply you with the necessary fittings and installation advice.
Fig.1
495mm 31mm
26mm
Fig.2
The hot air emitted by the tumble dryer can reach temperatures of up to 60°C.The appliance
must there not be installed in floors which are not resistant to high temperatures.
Push the spacer brackets to the hole of the back cover,push and turn it for 90°,With assistance,
mount dryer on hanging bracket as fig.2.

17 18
Installation
A cut off plug inserted into a socket is a serious safety (shock) hazard.
Ensure that the cut off plug is disposed of safely.
Permanent connection
In the case of permanent connection it is necessary that you install a
double pole switch .
The switch must not break the yellow and green earth cable at any point.
Warning
The materials marked with the symbol are recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be recycled by disposing of them properly in appropriate collection
containers.
Old machine
Use authorized disposal sites for your old appliance. Help to keep your country tidy!
The symbol on the product or on its packaging indicates that this product may not be
treated as household waste. Instead it should be taken to the appropriate collection point for the
recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences for the environment and human health,
which could otherwise be caused by inappropriate waste handling of this product. For more detailed
information about recycling of this product, please contact your local council, your household waste
disposal service or the shop where you purchased the product.
Packaging materials
Ecological hints
The Symbol mean: caution, risk of fire
Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a
tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat.
If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing
oilaffected items can prevent heat from escaping and so create a fire hazard.If it is unavoidable that
fabrics that contain vegetable or cooking oil or have been contaminated by hair care products be
placed in a tumble dryer they should first be washed in hot water with extra detergent - this will reduce,
but not eliminate, the hazard.
To save energy and to help protect the environment,we recommend that you follow these hints:
Try to load the maximum capacity of the machine as small loads are uneconomical.
Stacking kit
Door reversal
To make it easier to load or unload the laundry the door can be reversed. This operation must be
carried out by qualified personnel .Please contact the nearest our Service Centre. This will be a
chargeable option.
Any electrical work required to install this appliance should be carried out by a qualified electrician
or competent person.
Electrical connection
THIS APPLIANCE MUST BE EARTHED.
Warning
Before switching on, make sure the electricity supply voltage is the same as that indicated on the
appliance's rating plate.
Should the plug need to be replaced for any reason, proceed as described below.
The wires in the mains lead are coloured in accordance with the following code:
Green and Yellow-Earth
Blue-Neutral
Brown-Live
The wire coloured green and yellow must be connected to the terminal marked with the letter
or by the earth symbol or coloured green and yellow.
The manufacturer declines any liability should this safety measure not be observed.
It is important not to connect the vent hose to,for example,a cooker hood,or a chimney or
flue pipe designed to carry the exhaust from a fuel burning appliance.
Note that to avoid condensation problems,it is essential that the dryer be fitted with the flexible
hose to carry its auste outside the kitchen.
In order to prevent the appliance from overheating,it is important that the steam exhaust is
unobstructed.
If the dryer is fitted next to kitchen units,make sure that the vent hose is not squashed.If the hose
is partially squashed,drying efficiency will be reduced,resulting in longer drying times and higher
energy consumption.If the hose is completely squashed,the safety cut-outs with which the machine
is fitted may operate.
Environment concerns

19 20
Appendix
M
~
LN
RY3
CN2
CN1
CN3
CN6
CN4P2
E
Heater
Thermostat
Door s witch
Temperature
sensor
Guide s ensor
Control
b oard
Operation
panel
Earth
NC
CE marking
VVolt
WHz
Tested safety
Watt Hertz
Alternating current
risk of fire
~
We undertake that if within 12 months of the date of the purchase this appliance , we will, at our option
repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:
The appliance has been correctly installed and used only on the electricity supply stated on the
rating plate.
The appliance has been used for normal domestic purposes only, and in accordance with the
manufacturer's instructions.
The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any
person not authorised by us.
This guarantee is in addition to your statutory and other legal rights.
Damage or calls resulting from transportation, improper use or neglect, the replacement of any
light bulbs or removable parts of glass or plastic.
Appliances found to be in use within a commercial environment, plus those which are subject to
rental agreements.
Products of our manufacture which are not marketed by us.
Do not over-dry laundry, this avoids creasing and saves energy.
Select the drying programme according to the type of laundry and the required degree of dryness.
Clean the filters regularly to avoid excessive drying times and high electricity consumption.
Ventilate the room well.
Standard guarantee conditions
This guarantee does not cover
Marking explanation
Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a
tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates
heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or
storing oil-affected items can prevent heat from escaping and so create a fire hazard.
If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by
hair care products be placed in a tumble dryer they should first be washed in hot water with extra
detergent - this will reduce, but not eliminate, the hazard.
Guarantee/Customer Service
Electric diagram
Electric diagram
