KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. (If the dryer changes ownership,
be sure this manual accompanies the dryer.)
Part No. 505828
August 1999

505828 1
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
• Installation and service must be performed by a qualified installer or service agency. W257
FOR YOUR SAFETY, the information in this manual must be followed to minimize the risk of
fire or explosion or to prevent property damage, personal injury or death. W033
WARNING
© Copyright 1999, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may bereproduced or transmitted in any form or by any meanswithout
the expressed written consent of the publisher.

2505828
Fzd"4FhFm"
If replacement parts are required, contact the source
where you purchased your dryer, or contact Alliance Laundry Systems LLC
Shepard Street
P.O. Box 990
Ripon, WI 54971-0990
Phone:
[phone]
for thename and address of the nearest authorized parts
distributor.
"*dFpO
pmFm
Replacement Parts ...............................................................................2
Important Safety Instructions .............................................................3
Roughing In Dimensions .....................................................................5
Tools .......................................................................................................5
Installing the Dryer
STEP 1 (Position and Level the Dryer) ...........................................6
STEP 2 (Connect Dryer Exhaust System)........................................6
STEP 3 (Connect Electrical Cord) ...................................................7
STEP 4 (Wipe Out Inside of Dryer).................................................8
STEP 5 (Connect Dryer to Electrical Power)...................................8
Heat Source Check ...............................................................................8
Reversing Door Procedure ..................................................................9
Electrical Requirements (240 Volt, 60 Hertz, 2-Wire).....................10
Electrical Requirements (240 Volt, 60 Hertz, 3-Wire).....................11
Location Requirements .....................................................................12
Dryer Exhaust Requirements ............................................................13
Before Drying ......................................................................................16
Available Drying Cycles .....................................................................17
To Dry Clothes ....................................................................................18
User-Maintenance Instructions .........................................................19
Motor Overload Protector .................................................................19
Lint Filter ............................................................................................20
Before You Call for Service ...............................................................21
If Service is Required .........................................................................21
Information for Handy Reference ....................................................22

505828 3
 
|"¦F ^FF m¤4apm}
1. Read all instructions before using the dryer.
2. RefertotheGROUNDINGINSTRUCTIONSin
the INSTALLATION manual for the proper
grounding of the dryer.
3. Do not dry articles that have been previously
cleaned in,soakedin, washed in,or spottedwith
gasoline, dry-cleaning solvents, other
flammable or explosive substances as they give
off vapors that could ignite or explode.
4. Do not allow children to play on or in the dryer.
Close supervision of children is necessary when
the dryer is used near children. This is a safety
rule for all appliances.
5. Before the dryer is removed from service or
discarded, remove the door to the drying
compartment.
6. Do not reach into the dryer if the cylinder is
revolving.
7. Do not install or store the dryer where it will be
exposed to the water and/or weather.
8. Do not tamper with the controls.
9. Donotrepairorreplaceanypartofthedryer,or
attempt any servicing unless specifically
recommended in the User-Maintenance
Instructions or in published user-repair
instructions that you understand and have the
skills to carry out.
10. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
11. To reducetheriskoffire,DO NOT DRYplastics
or articles containing foam rubber or similarly
textured rubberlike materials.
12. Always clean the lint filter after every load. A
layer of lint in the filter reduces drying
efficiency and prolongs drying time.
13. Keep area around the exhaust opening and
adjacent surrounding area free from the
accumulation of lint, dust and dirt.
14. The interior of the dryer and the exhaust duct
should be cleaned periodically by qualified
service personnel.
15. Dryer will not operate with the loading door
open. DO NOT by-pass the door safety switch
by permitting the dryer tooperate with the door
open. The dryer will stop tumbling when the
door is opened. Do not use the dryer if it does
not stop tumbling when the door is opened or
starts tumbling without pressing or turning the
START mechanism.Removethe dryer from use
and call the service person.
16. Do not put articles soiled with vegetable or
cooking oil in the dryer, as these oils may not be
removed during washing. Due to the remaining
oil, the fabric may catch on fire by itself.
17. To reduce the risk of fire, DO NOT put clothes
which have traces of any flammable substances
such as machine oil, flammable chemicals,
thinner, etc. or anything containing wax or
chemicals such as in mops and cleaning cloths,
or anything dry-cleaned at home with dry-
cleaning solvent in the dryer.
18. Use the dryer only for its intended purpose,
drying clothes.
19. Always disconnect the electrical power to the
dryer before attempting service. Disconnect the
power cord by grasping the plug, not the cord.
To reduce the risk of fire, electric shock,
serious injury or death to persons when
using your dryer, follow these basic
precautions:
WARNING

4505828
20. Replace worn power cords and/or loose plugs.
21. Install this dryer according to the
INSTALLATION INSTRUCTIONS. All
connections for electrical power and grounding
must comply with local codes and be made by
licensed personnel when required. Do not do it
yourself unless you know how!
22. Remove laundry immediately after the dryer
stops.
23. Always read and follow manufacturer’s
instructions on packages of laundry and
cleaning aids.Heed allwarnings or precautions.
To reduce the risk of poisoning or chemical
burns, keep them out of reach of children at all
times (preferably in a locked cabinet).
24. Do nottumble fiberglass curtains and draperies
unless the label says it can be done. If theyare
dried,wipe outthecylinderwithadampclothto
remove particles of fiberglass.
25. ALWAYS follow the fabric care instructions
supplied by the garment manufacturer.
26. Never operate the dryerwith any guardsand/or
panels removed.
27. DO NOT operate the dryer with missing or
broken parts.
28. DO NOT by-pass any safety devices.
29. Failure to install, maintain, and/or operate this
machine according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
NOTE: The WARNING AND IMPORTANT
SAFETY INSTRUCTIONS appearing in this
manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining, or operating the dryer.
Always contact your dealer, distributor, service agent
or the manufacturer about any problems or conditions
you do not understand.

505828 5
p¤V^amVmahFmapm
ppd

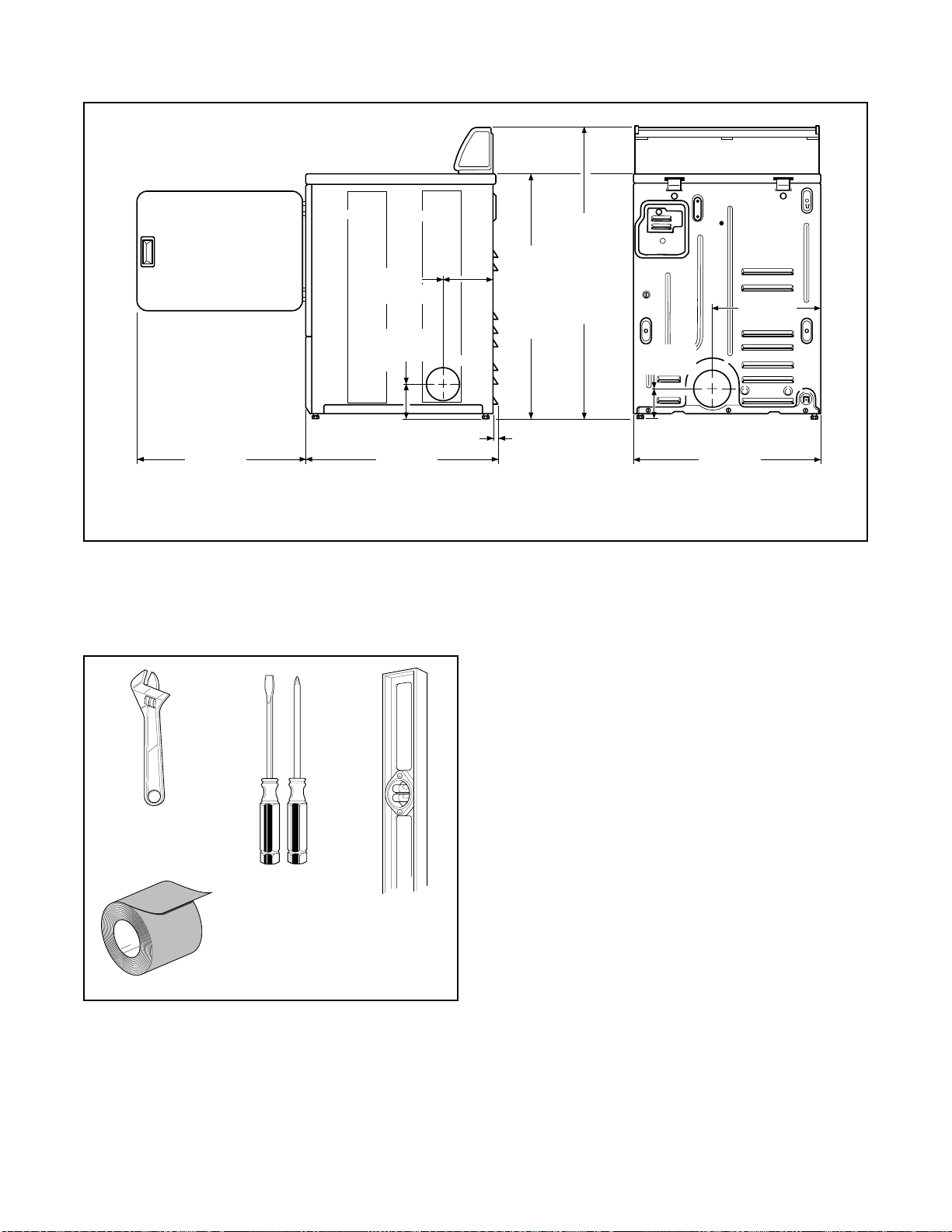

For most installations, the basictools you will need are:
19.6 cm
(7.7")
10.2 cm
(4.0")
59.7 cm
(23.5") 71.1 cm
(28")
1.1 cm
(0.4") 68.3 cm
(26.9")
10.2 cm
(4.0")
39.1 cm
(15.4")
*91.4 cm (36")
*109.2 cm (43")
* WITH LEVELING LEGS TURNED INTO BASE D312IE3H
D074IE1K
DUCT TAPE
WRENCH
LEVEL
SCREWDRIVERS

6505828
m"ddamV^F©F
Fz s9
Position and Level
the Dryer
For further assistance refer to Section on Location
Requirements.

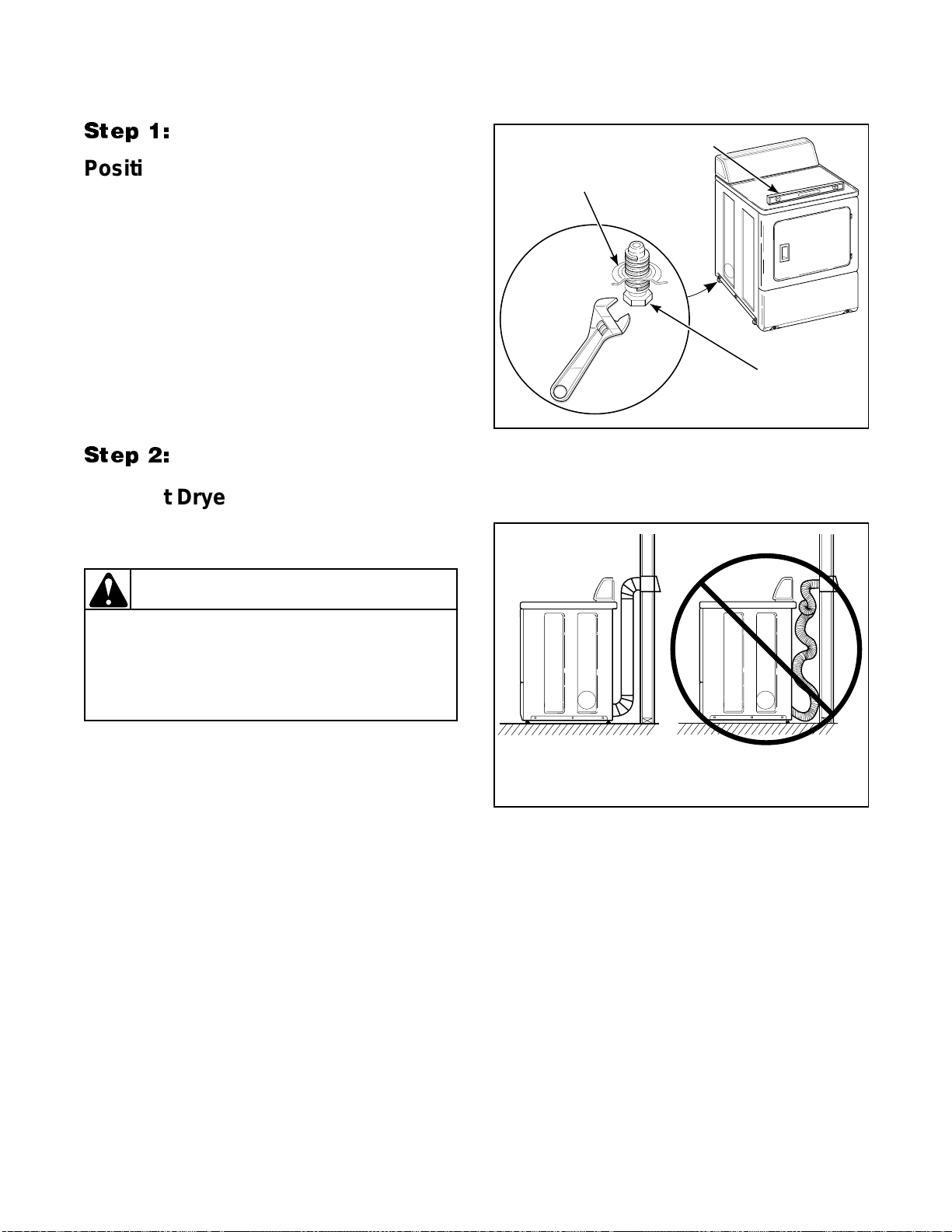

Place the dryer in position, and adjust the legs until the
dryer is level.
Fz ¢9
Connect Dryer Exhaust System
Refer to Sections on Location Requirements and
Dryer Exhaust Requirements.
NOTE: Failure to exhaust dryer properly will void
warranty.
NOTE: Venting materials are not supplied with the
dryer (obtain locally).
D298IE1A
DRYER
BASE
LEVELING
LEG
LEVEL
D259I
A clothes dryer produces combustible lint.
To reduce the risk of fire and combustion
gas accumulation the dryer MUST be
exhausted to the outdoors. W116
WARNING
DOD314IE0C DON'T
D315IE0C

505828 7
Fz 9 ¢T¬ pd ¬ F«
Connect Electrical Cord
Consult Section on Electrical Requirements.
D276IE1B
Three-Wire Connection
D189IE1C
Two-Wire Connection
NOTE: Dryer is shown with access cover removed for illustration purposes only. NEVER operate dryer
with access cover removed.

8505828
Fz T9

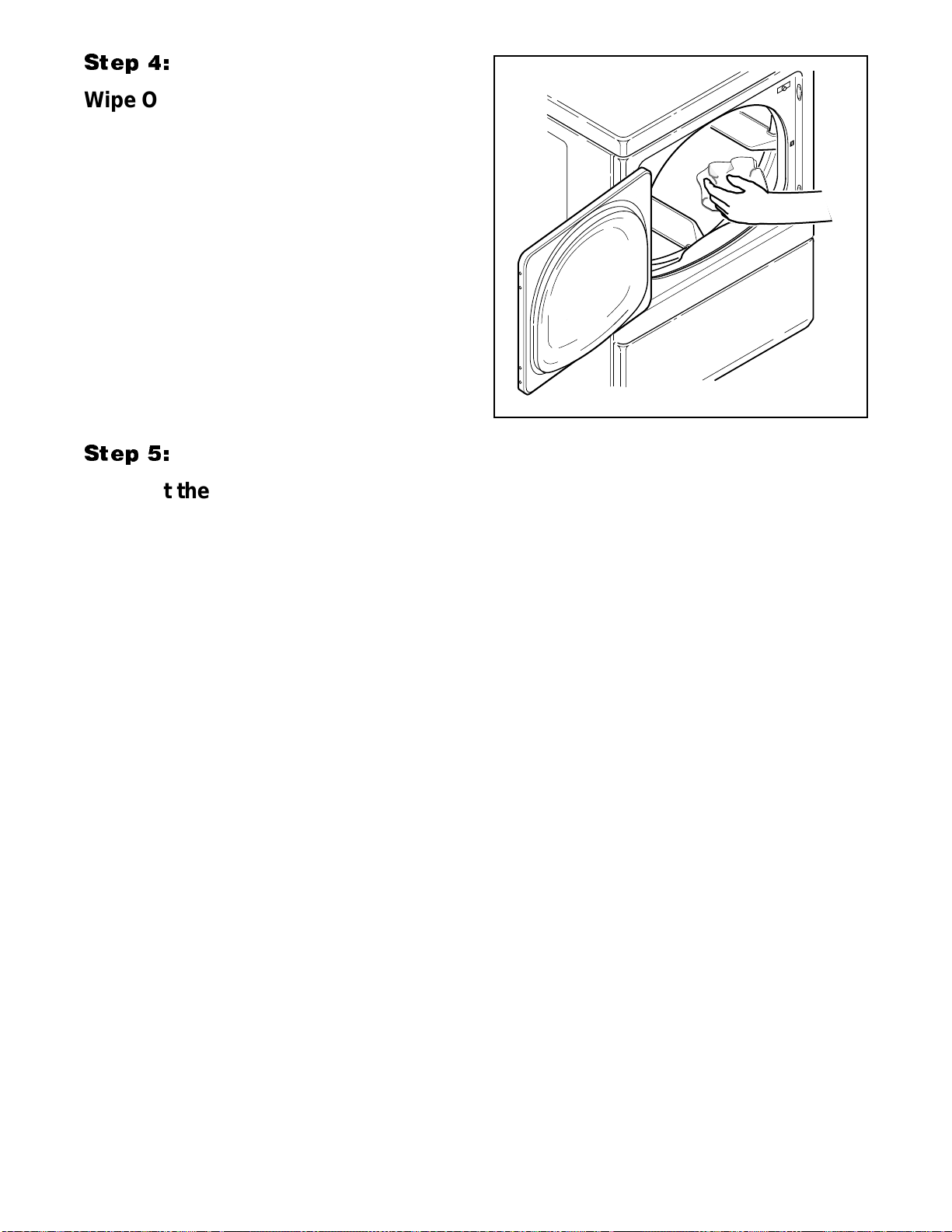

Wipe Out Inside Of Dryer
Before using dryer for the first time, use an all-purpose
cleaner, or a detergent and water solution, and a damp
cloth to remove shipping dust from inside dryer drum.
Fz Q9
Connect the Dryer to Electrical Power
Refer to Section on Electrical Requirements, and
connect the dryer to an electrical power source.
F"p¤4F^F4c
Close the loading door and start the dryer in a heat
setting (refer to the Operating Instructions). After the
dryer has operated for three minutes, the exhaust air or
exhaust pipe should be warm.
D327IE2A

505828 9
F¦FamVppp4F=¤F

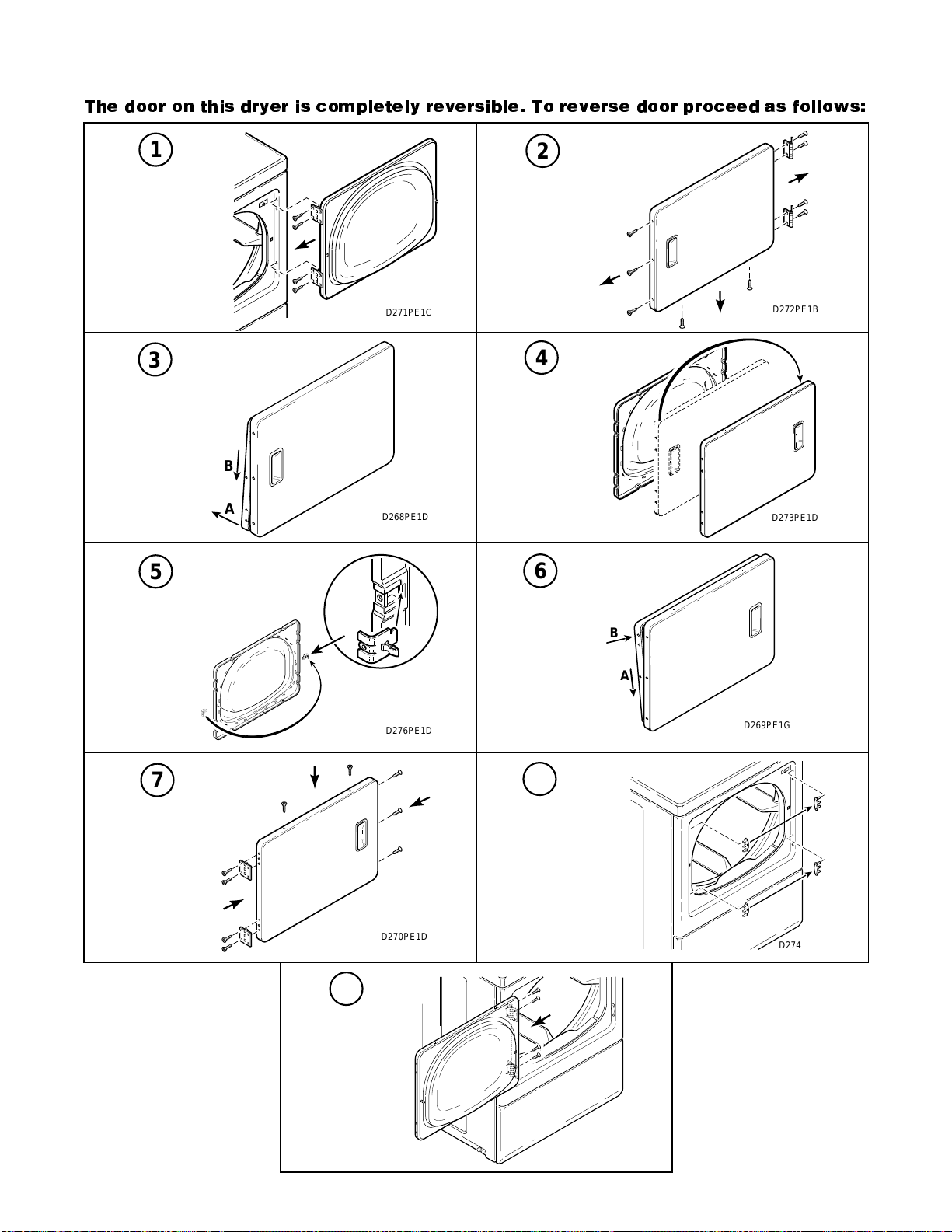

^F =pp pm ^a =©F a 4phzdFFd© F¦Fa*dF p F¦FF =pp zp4FF= " Opddp§9
D271PE1C
1
D272PE1B
2
D268PE1D
3
B
AD273PE1D
4
D276PE1D
5
D269PE1G
6
B
A
D270PE1D
7
D274PE1C
8
D275PE1C
9

10 505828
dF4a4"dF¤aFhFm
¢T¬ pd: ¬ F«: ¢_aF
d¤ p¤m=F= |"^} aF m"dd"apm

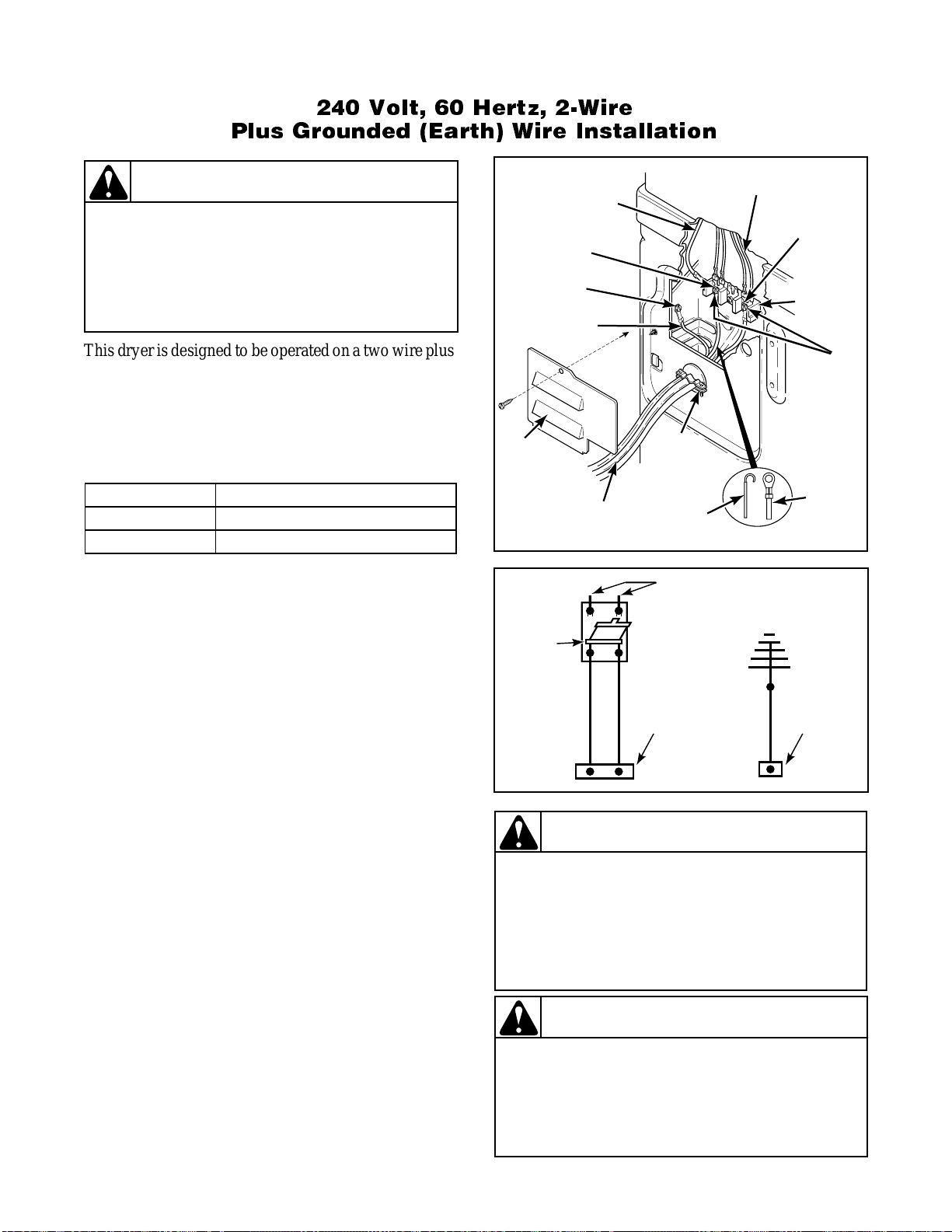

This dryer isdesigned to beoperatedon a twowire plus
grounded (earth) wire, 240 Volt, 60 Hertz, single phase
supply circuit. Itis designed tobe fused at30 Amperes.
Consult nameplate for model and electrical ratings.
NOTE: Branch circuit wire size requirements to
laundry room dryer outlet.
Use U.L. (Underwriters Laboratories) listed wire.
Allow sufficient slack in wiring so dryer can be moved
from its normal location when necessary.
1. Remove the screw and terminal block access cover
from the rear of dryer cabinet.
2. Insert ends of direct wire through power supply
hole (containing proper strain relief) in rear of
dryer cabinet. Connect the power cord, or direct
wiring,to thetwoouterterminalblockterminals
using the two wire-binding (10 - 32 x 3/8") screws
from the accessories pack in the envelope shipped
inside the dryer cylinder.
3. Attach ground (earth) wire to rear bulkhead as
shown.
IMPORTANT: Use only a U.L. listed No. 10
(copper wire only) two conductor power supply
cord kit rated 240 Volts (minimum) 30 Amperes for
electric dryers, and labeled as suitable for use in a
clothes dryer.
4. Tighten these wire-binding screws firmly.
IMPORTANT: Failure to tighten these screws
firmly may result in wire failure at the terminal
block.
5. Secure the strain relief to the power cord, or wires,
where they enter the dryer cabinet.
6. Reinstall access cover and screw.
Wire Length Electric Dryer
Less than 15 feet 10 A.W.G.* Copper Wire Only
Longer than 15 feet 8 A.W.G.* Copper Wire Only
To reduce the risk of fire, electric shock,
serious injury or death, the electrical
installation should conform to the National
Electrical Code, ANSI/NFPA 70, and such
local regulations as might apply. W155
WARNING
EARTH
(Ground)
WIRE
(Green/Yellow)
"N"
TERMINAL
EARTH
(Ground)
SCREW
EARTH
(Ground)
WIRE
ACCESS
COVER
(See
WARNING
below) POWER CORD
OR DIRECT WIRE
(Not supplied with dryer)
STRAIN
RELIEF
(Not supplied
with the dryer)
DIRECT
WIRING
POWER
CORD
WIRING
D189IE1F
WIRE
CONNECTION
DETAIL
HEX HEAD
SCREWS
(Slotted)
TERMINAL
BLOCK
"L"
TERMINAL
NOT USED
ON GAS MODELS
D003IE1B
240 VOLT
SUPPLY
TERMINAL
BLOCK
IN DRYER REAR
BULKHEAD
30 AMP
FUSE
To reduce the risk of electric shock, serious
injury or death, earth (ground) the dryer
frame externally by connecting one end of a
grounding wire under ground screw on
cabinet rear (see above) and the other end
to a known effective ground. W156
WARNING
Dryer is shown with the access cover
removed for illustration purposes only. To
reduce the risk of an electric shock, serious
injury or death, NEVER operate the dryer
with the access cover removed. W157
WARNING

505828 11
dF4a4"dF¤aFhFm
¢T¬ pd: ¬ F«: _aF
NOTE: The wiring diagram is located inside the
control hood. Grounding Instructions
This dryer must be connected to a grounded metal,
permanent wiring system; or an equipment-grounding
conductor must be run with the circuit conductors and
connectedto the equipment-grounding terminal or lead
on the dryer.
1. Remove access cover from rear of dryer.
2. Use a strain relief and insert end of power cord
through power supply hole.
3. Use the three screws from the envelope located in
the cylinder to attach the power cord wires to the
terminal block.
4. Tighten all screws and reinstall access cover
removed in Step 1.
To reduce the risk of fire, electric shock,
serious injury or death, all wiring and
grounding MUST conform with the latest
edition of the National Electrical Code,
ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1, and such local
regulations as might apply. It is the
customer’s responsibility to have the wiring
and fuses checked by a qualified electrician
to make sure your home has adequate
electrical power to operate the dryer. W113
WARNING
D003IE3E
POWER SUPPLY POWER SUPPLY
3-WIRE GROUNDED NEUTRAL
120/240 VOLT, 60 HERTZ AC 1 PHASE
SERVICE ENTRANCE SWITCH BOX
(SEE NOTE BELOW)
NEUTRAL WIRE NEUTRAL WIRE
METALLIC OR
NON-METALLIC
SHEATHED CABLE
(COPPER WIRE
ONLY)
PIGTAIL
TO DRYER
(SEE NOTE BELOW)
NEUTRAL
L1 L2
PIGTAIL CONNECTION L1 L2 DIRECT CONNECTION
NEUTRAL
WALL
RECEPTACLE
INTERMEDIATE
FUSE BOX
(MAY BE
OMITTED IF
SERVICE
ENTRANCE
BOX IS FUSED)
INTERMEDIATE
SHUT-OFF BOX
(MAY OR MAY
NOT BE FUSED)
A typical
30-Amp
Three-wire
Receptacle
NEMA Type
10-30R
30 AMPERE FUSES OR
CIRCUIT BREAKER
TERMINAL BLOCK
IN DRYER
120 ±12
VAC
240 ±12
VAC
120 ±12
VAC
NOTE: The power cord (pigtail) is NOT supplied with the
electric dryer. Type of pigtail and gauge of wire must conform
to local codes and instructions.
The method of wiring the dryer is optional and subject to local
code requirements.
NOTE: Connect the dryer to the power supply with the
MAXIMUM RATED VOLTAGE listed on the nameplate.
NOTE: Use COPPER WIRE only.
Shorter than 4.5 m (15') use 10 A.W.G.
Longer than 4.5 m (15') use 8 A.W.G.
D286IE0B
“L1”
TERMINAL
“L2”
TERMINAL
NEUTRAL
TERMINAL

12 505828
p4"apmF¤aFhFm

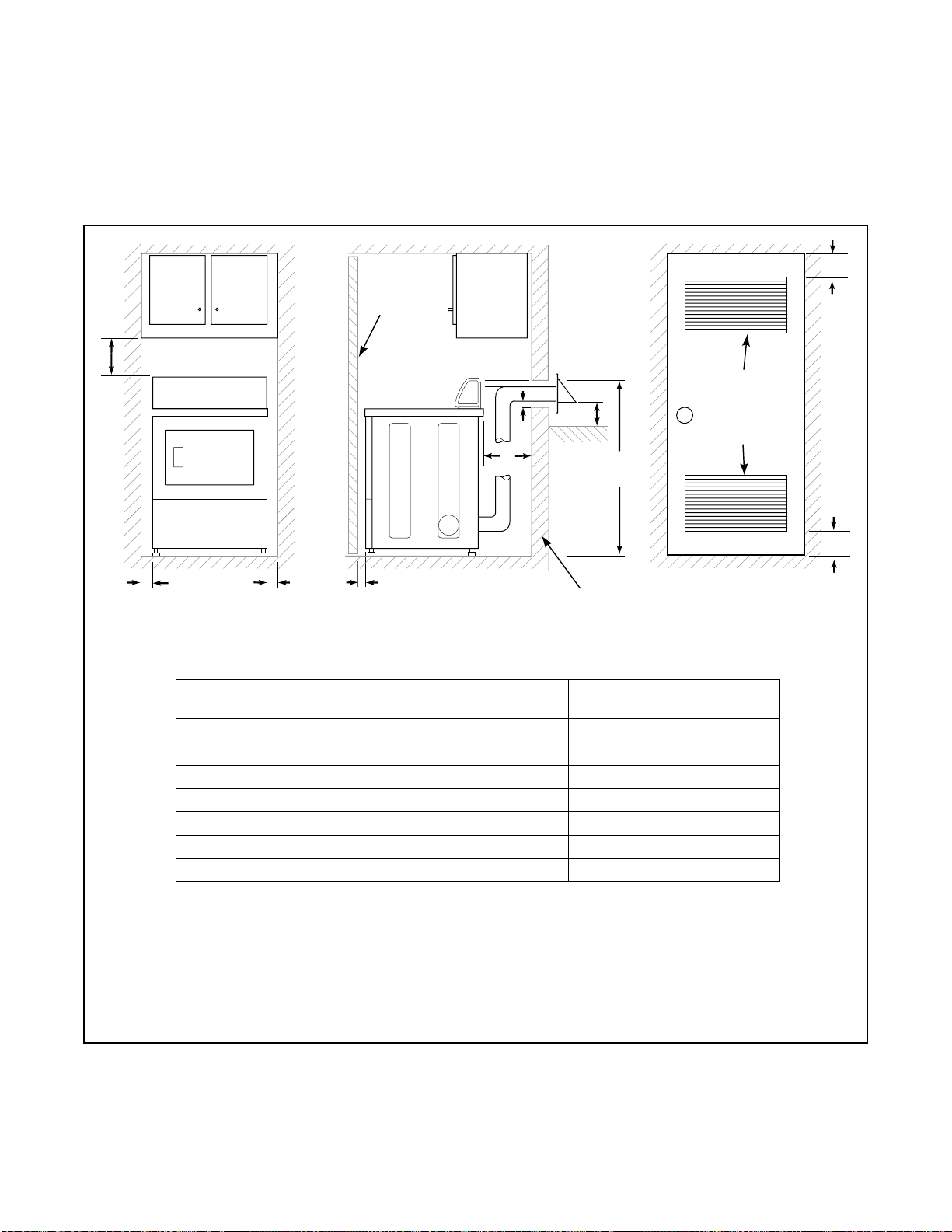

Select a location with a solid floor.
No other fuel burning appliance should be installed in
the same closet with the dryer.
The dryer must not be installed or stored in an area
where it will be exposed to water and/or weather.
The dryer needs sufficient clearance and an adequate
air supply for proper operation and ventilation, and for
easier installation and servicing. (Minimum clearances
are shown below.)
CLOSET
DOOR
D317IE3C
FRONT VIEW
(w/o Closet Door)
SIDE VIEW
AAC
A
D
E
B
CENTERED
AIR
OPENINGS (G)
(2 Openings
Minimum)
FRONT VIEW
(Closet Door)
F
F
OUTER
WALL OF
ENCLOSURE
**106.7 cm
(42")
**NOTE: For new installations, locate top of wall vent 106.7 cm (42 inches) above floor to make venting
easier to connect.
AREA FREE STANDING / ALCOVE INSTALLATION
(See Illustration) CLOSET INSTALLATION (See Illustration)
A0 cm (0") 0 cm (0")
B30.5 cm (12") 30.5 cm (12")
CNot Applicable 5.1 cm (2")
D5.1 cm (2") 5.1 cm (2")
E30.5 cm (12") 30.5 cm (12")
FNot Applicable 7.6 cm (3")
G* Not Applicable 260 sq. cm/open (40 sq. in./open)
*Louvered door with equivalent air openings is acceptable. (Minimum clearances are
shown.)

505828 13
©F¨^"¤F¤aFhFm
Never install flexible duct in concealed spaces, such as
a wall or ceiling.
Exhaust System Materials
Exhaust duct must be 10.2 cm(4") in diameter having
no obstructions. Rigid metal duct is recommended.
Non-combustible semi-rigid flexible metal duct is
acceptable. Do not use plastic pipe or flexible plastic
pipe, because it contributes to poordrying performance
and collects lint, which can lead to a fire hazard.
DO NOT use sheet metal screws on exhaust pipe joints
or other fastening means which extend into the duct
that could catch lint and reduce the efficiency of the
exhaust system. Secure all joints with duct tape. Use as
few elbows as possible.
Make-Up Air Requirements
For proper operation it is important that you locate the
dryer in an area that has an ample amount of make-up
air to replace the amount exhausted by the dryer.
Energy efficient homes with low air infiltration rates
should be equipped with an air exchanger that can
accommodate on demand make-up air needs in the
home. These devices can be obtained through your
building contractor or building material suppliers.
A clothes dryer produces combustible lint.
To reduce the risk of fire and combustion
gas accumulation the dryer MUST be
exhausted to the outdoors. W116
To reduce the risk of fire and the
accumulation of combustion gases, DO NOT
exhaust dryer air into a window well, gas
vent, chimney or enclosed, unventilated
area, such as an attic, wall, ceiling, crawl
space under a building or concealed space
of a building. W045
To reduce the risk of fire, DO NOT use
plastic pipe or flexible plastic pipe to
exhaust the dryer. W041
WARNING
DO D314IE0B DON'TD315IE0A

14 505828
Exhaust System
IMPORTANT: Keep exhaust duct as short as
possible.
NOTE: Be certain old ducts are cleaned before
installing your new dryer.
Forbestdryingresults,recommended maximumlength
of exhaust system is shown below.
To prevent backdraft when dryer is not in operation,
outer end of exhaust pipe must have a weather hood
with hinged dampers (obtain locally).
NOTE: Weather hood should be installed at least
30.5 cm (12") above the ground.
Exhaust Direction
The dryer can be exhausted to the outdoors through the
back, left, right or bottom of the dryer.
Dryer is shipped from factory ready for rear exhaust;
no kits required.
Exhausting the dryer through sides or bottom can be
accomplished by installing a DK1 Sales Accessory
(Directional Exhaust Kit 528P3) available as optional
equipment at extra cost.
D328IE0A
Q¢G aF4apm"d ¨^"¤ a
Number of
90° Elbows Weather Hood Type
Recommended Use only for short run installations
Maximum length of 10.2 cm (4") diameter rigid metal duct.
0 13.4 m (44 feet) 10.4 m (34 feet)
1 10.4 m (34 feet) 7.9 m (26 feet)
2 7.9 m (26 feet) 6.1 m (20 feet)
3 6.1 m (20 feet) 4.3 m (14 feet)
Maximum length of 10.2 cm (4") diameter flexible metal duct.
0 7.3 m (24 feet) 6.1 m (20 feet)
1 6.1 m (20 feet) 4.9 m (16 feet)
2 4.9 m (16 feet) 3.7 m (12 feet)
3 3.7 m (12 feet) 2.4 m (8 feet)
NOTE: Deduct 1.8 m (6') for each additional elbow.
D011IE2N
10.16 cm
(4")
10.16 cm
(4")
D011IE2O
6.35 cm
(2-1/2")

505828 15
Exhausting the dryer in hard-to-reach locations can be
accomplished by installing the 521P3 Flexible Metal
Vent Kit, available as optional equipment at extra cost.
The kit comes in two halves that can be separately
attached to the dryer and walloutlet. Once attached, the
dryer can be slid back into position and the two halves
can be connected from the front.
Dryer Airflow
Efficient dryer operation requires proper dryer airflow.
Proper dryer airflowcan be evaluated by measuring the
static pressure. See chart below.
NOTE: This can be measured with a manometer
placed on the exhaust duct approximately two feet
(61 cm) from the dryer. See illustration below.
Reduced Clearance Elbow
Installing the dryer in shallow closets can be
accomplished by using an Elbow, Part No. 62688,
which is one inch narrower than a standard venting
elbow.
D320I
Q¢s dF¨a*dF F"d Fm a
D012IE0A
MANOMETER
EXHAUST
DUCT
F"¤amV "a4 F¤F
MAXIMUM STATIC
PRESSURE IN
WATER COLUMN
1.5 cm(.6")
D319IE0A
F=¤4F= dF""m4F d*p§

16 505828
FOpF©amV
Energy Saving Tips
• Make sure the lint filter is always clean.
• Do not overload the dryer.
• Do not overdry items.
• Remove items to be ironed while still damp.
• Use the correct cycle for the type of fabric being
dried.
• Do not open the door during the drying cycle.
• Plan to do your laundry on low humidity days; your
clothes will dry faster.
• Dry multiple loads of clothes one right after another
so dryer interior does not have to be reheated for
each load.
Helps and Hints
• The necessary suggestions and directions for
installation and proper exhausting are given in
the beginning of this manual.
• Static electricity may cause garments of synthetic
fibers (as in lingerie) to cling together, especially if
they are overdried. The use of a fabric softener will
soften clothes and reduce static electricity.
• Do not wash or dry clothes that shed lint in the same
load with permanent press or knit garments.
• Remove permanent press loads immediately after
dryer stops.
• Follow the care labels on FLAME RETARDANT,
SCOTCH-GUARD™, etc., garments for the proper
washing and drying.
• If loads should be damp for ironing, turn timer knob
to the ENERGY SAVER setting, marked with a dot
(•), in Automatic or Time Dry cycles.

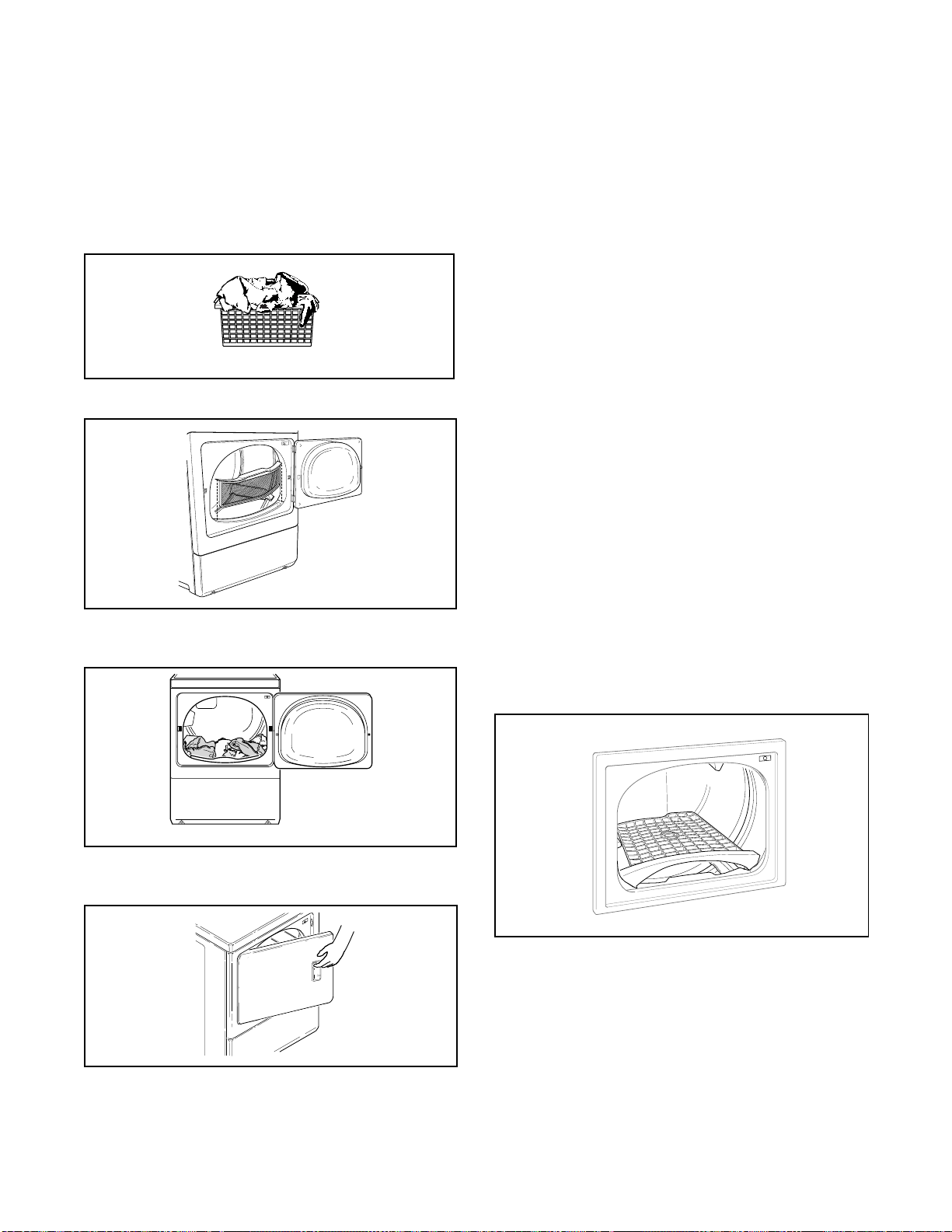

Load
Do not overload your dryer. Bulk, not weight,
determines the load size. There should be space in the
dryer for the clothes to tumble freely. Large and small
pieces together make up loads which will tumble well.
Permanent press loads should be smaller to provide
room for tumbling. The following illustrations show
the ideal load sizes for fabrics.
To reduce the risk of fire, explosion, serious
injury or death, clothes which have traces of
any flammable substances such as cooking
oil, machine oil, flammable chemicals,
thinner, etc. must not be put into the dryer.
W131
WARNING
D322IE1A
Cylinder with wet
cottons and linens
D323IE1C
Cylinder with wet
permanent press

505828 17
¦"ad"*dF©amV©4dF
NOTE: Use the automatic cycle for drying items
thatcanbedriedwithheat.Thiscycleautomatically
drys loads to the dryness level selected.
MORE DRY will dry very small loads and some heavy
items, such as blue jeans, but will overdry lightweight
items, such as sheets and shirts. Overdrying can cause
wrinkling,shrinking,excessivelintconditions,andwill
use more energy than necessary.
LESS DRY, which uses the least energy, will dry large
loads and lightweight items, such as sheets and shirts,
but might leave other items, such as denim and heavy
bath towels, more damp.
To increase energy savings and to make sure loads are
dried without overdrying, set your loads on LESS DRY.
If items are damp at the end of a cycle, the timer knob
needstobesetcloserto the MORE DRY settingthe next
time these loads are dried. If items are overdry at the
end of a cycle, the timer knob should be set closer to
COOL DOWN when these loads are dried again.
Remember the settings that work best to get ideal
drying results.
The COOL DOWN period at the end of each cycle
provides items a chance to tumble with no heat and
cool down to room temperature. This prevents wrinkles
from setting if items cannot be cared for immediately.
The ENERGY SAVER/DAMP DRY settings, marked
with a dot (•), show which settings will use the least
energy and will leave items damp for easier ironing.
NOTE: The timer knob will not advance as quickly
in the AUTOMATIC cycles as it does in the TIME
DRY cycle. The time it takes for the timer to
advance depends on the type and size of the load
being dried.
Automatic Regular/Delicate Cycle
Use for sturdy items like play or work clothes and also
for delicate items. The type of heat is determined by
choosing the proper Fabric Selector option. There are
two settings in the AUTOMATIC REGULAR/
DELICATE cycle — MORE DRY and LESS DRY.
Time Dry Cycle
This cycle will operate dryer for up to 75 minutes.
Cottons and heavyweight items dry best between 50
and75 minutes,andlightweightitems drybestbetween
20 and 40 minutes.
Automatic Permanent Press/Knits
Cycle
Use for permanentpress items and synthetics. The type
of heat is determined by selecting the proper Fabric
Selector option. There are two settings in the
AUTOMATIC PERMANENT PRESS/KNITS cycle
—MORE DRY and LESS DRY.
To reduce the risk of fire, electric shock,
serious injury or death to persons, read the
IMPORTANT SAFETY INSTRUCTIONS on
pages 4–5 before operating the dryer. W128-2
WARNING

18 505828
p©dp^F
IMPORTANT: See the INSTALLATION
INSTRUCTIONS before using dryer.
NOTE: This appliance is designed for repeated
normal operation according to operating
instructions.
1. Sort items into separate loads.
2. Clean lint filter before each use.
3. Add clothes loosely into dryer drum. Add fabric
softener sheet, if desired.
4. Closeloading door. Dryer will not operate with the
door open.
5. Select FABRIC SELECTOR. Follow garment
manufacturer’s care labels for recommended
temperature settings.
6. Selecttimersettingincycledesired:AUTOMATIC
REGULAR/DELICATE, TIME DRY, and
AUTOMATIC PERMANENT PRESS/KNITS.
These cycles control the drying time.
The ENERGY SAVER/DAMP DRY settings, marked
with a dot (•), show which dryer settings will use the
least energy and will leave items damp for easier
ironing.
7. Push timer knob in to start dryer.
NOTE: To stop dryer at any time, open the door or
turn timer knob to an OFF position. To restart
dryer, close door, reset timer ifnecessary, and push
in the timer knob.
End of Cycle Signal
(Not available on all models)
The volume of the signal tone may be set on OFF,
LOUD or between the two selections. If a volume level
is selected, the signal will let you know when the cycle
is done. The signal will stop when the door is opened,
or when the timer is advanced to an OFF position.
Optional Equipment
A drying rack, Part No. DR-3, is available as optional
equipment at extra cost. The rack can be used for no-
tumble drying of articles, such as tennis shoes,
sweaters, stuffed toys or other delicate items.
D305IE1A
D321IE1A
D323IE1B
D326IE1A
D325IE1B
