CIRCUIT DESIGN TB-NK2.4Y-IN User manual

OG_TB-NK2.4Y_IN_OUT_v10e 1Circuit Design, Inc
OPERATION GUIDE
NK-2.4Y Evaluation Board
TB-NK2.4Y_IN
TB-NK2.4Y_OUT
Operation Guide
Version 1.0 (Oct 2017)
CIRCUIT DESIGN, INC.,
7557-1 Hotaka, Azumino-city
Nagano 399-8303 JAPAN
Tel: + [phone]
Fax: + [phone]
e-mail: [email protected]
http://www.cdt21.com

OG_TB-NK2.4Y_IN_OUT_v10e 2Circuit Design, Inc
OPERATION GUIDE
CONTENTS
GENERAL DESCRIPTION & FEATURES .......................................................................................2
BOARD OVERVIEW…………………………….................................................................................3
Power supply…..........................................................................................................................3
CONNECTION FOR EXTERNAL DEVICES………………..............................................................4
PAIRING USING TB-NK2.4Y_IN, TB-NK2.4Y_OUT BOARDS……….............................................4
DIMENSIONS.. .................................................................................................................................5
CIRCUIT DIAGRAM ..................................................................................................................... …6
NK-2.4Y Input............................................................................................................................6
NK-2.4Y Output.. .......................................................................................................................7
CAUTIONS & WARNINGS…………………………………………….................................................8
REVISION HISTORY ......................................................................................................................9
GENERAL DESCRIPTION & FEATURES
General description
The TB-NK2.4Y_IN / TB-NK2.4Y_OUT allows you to evaluate the NK-2.4Y and perform simple
switching tests. Communication range can be tested easily by pressing the switch and
checking the appropriate LED on the output board.
During testing, link status of modules can be continuously monitored by looking at the LINK
LED on both the input and output boards.
Note: Modules on the input and output boards are linked prior to shipment.
Features
8-push buttons and output LEDs
Power, Link and Low battery status indicator LEDs
Operation with battery or external power supply
Terminals for direct connection to the module

OG_TB-NK2.4Y_IN_OUT_v10e 3Circuit Design, Inc
OPERATION GUIDE
BOARD OVERVIEW
Power supply
NK-2.4Y INPUT 3 V (1 x CR2032)
NK-2.4Y OUTPUT 4.5 V (3 x 1.5VAAA)
NK-2.4Y INPUT
NK-2.4Y OUTPUT
Battery Holder
GND
NK-2.4Y
INPUT LINK LED
Battery
LED
Power LED
SW1-8
BOTTOM TOP
VIN
REG
Vlow
Link
PM {
NC
{
Power SW
NK-2.4Y
OFF: Higher than 2.3V
BLINK: 2.2V to 2.3V
OFF: Lower than 2.2V
ON: Linked
BLINK: No link
OFF: Battery low (<2.2V)
ON: Power is connected
OFF: Power is disconnected
+ve and -ve
Connection
Battery Holder
NK-2.4Y
OUTPUT LINK LED
Battery
LED
Power LED
LED1-8
BOTTOM TOP
+ - +
-+-
GND
VIN
REG
Vlow
Link
PM {
NC
{
Power SW
NK-2.4Y
OFF: Higher than 2.3V
BLINK: 2.2V to 2.3V
OFF: Lower than 2.2V
ON: Linked
BLINK: No link
OFF: Battery low (<2.2V)
ON: Power is connected
OFF: Power is disconnected

OG_TB-NK2.4Y_IN_OUT_v10e 4Circuit Design, Inc
OPERATION GUIDE
CONNECTION FOR EXTERNAL DEVICE
Both boards allow connection to external devices, eg. external LEDs, relays through the use of
the following terminals as shown in the previous section. Please refer to the NK-2.4Y operation
guide for more details on each terminal function.
Pin
Function
GND
Ground
Vin
Power supply terminal
REG
Outputs 2.1V of the internal circuit voltage
Vlow
Low voltage detection output
Link
Link status output terminal
PM
Pairing mode setting
NC
No connection
PAIRING USING NK-2.4Y INPUT AND OUTPUT BOARDS
Step
NK-2.4Y INPUT
NK-2.4Y OUTPUT
1
Connect PM terminal to GND
Connect PM terminal to GND
2
Turn Power SW ON
Turn Power SW ON
3
Disconnect PM from GND
Disconnect PM from GND
LED
STATUS
Link LED = OFF
Battery LED = ON
Link LED = OFF
Battery LED = ON
4
Push SW1
LED
STATUS
Link LED = ON
Battery LED = OFF
Link LED = ON
Battery LED = OFF
5
Push SW2
LED
STATUS
Link LED = ON
Battery LED = ON
Link LED = ON
Battery LED = ON
Optional
If you wait 3 seconds, the Link
LED will flash and battery LED will
go OFF to confirm the link.
6
Turn main SW to OFF
Turn main SW to OFF

OG_TB-NK2.4Y_IN_OUT_v10e 5 Circuit Design, Inc
OPERATION GUIDE
DIMENSIONS

OG_TB-NK2.4Y_IN_OUT_v10e 6 Circuit Design, Inc
OPERATION GUIDE
CIRCUIT DIAGRAM

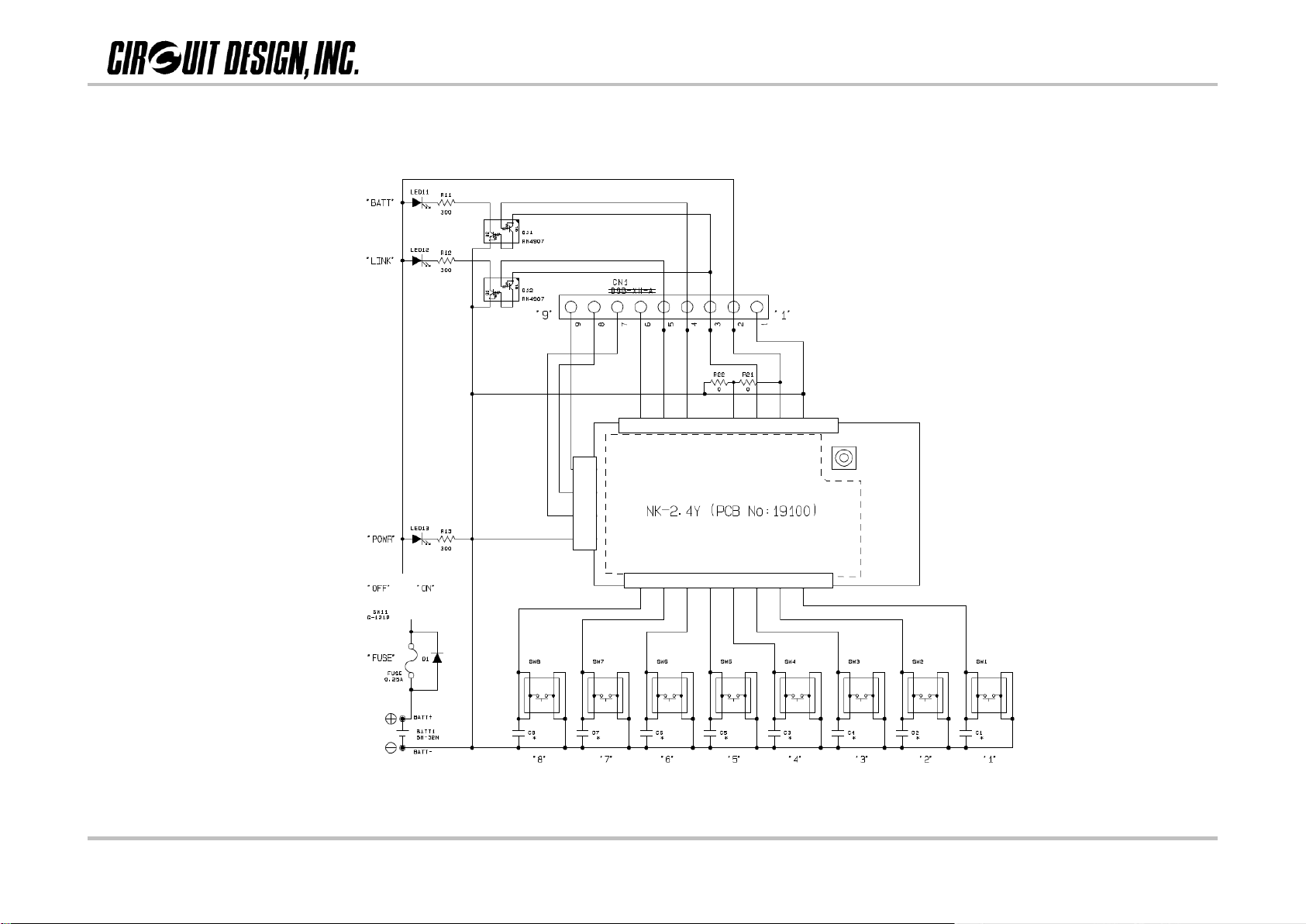

NK-2.4Y Input
To CR2032
battery holder
3.3 –5.5 V
(when no diode)
External
connection
Input mode,
SEL terminal = Open(HI)
PM LINK VLow SEL CONT REG VIN GND
P8 P7 P6 P5 P4 P3 P2 P1
NC
NC
NC
GND

OG_TB-NK2.4Y_IN_OUT_v10e 7 Circuit Design, Inc
OPERATION GUIDE
NK-2.4Y Output
External
connection
Output mode,
SEL terminal = GND
Connect to
3 x AAA battery
holder
2.3 –5.5 V
(when no diode)
PM LINK VLow SEL CONT REG VIN GND
P8 P7 P6 P5 P4 P3 P2 P1
NC
NC
NC
GND

OG_TB-NK2.4Y_IN_OUT_v10e 8Circuit Design, Inc
OPERATION GUIDE
OPERATION GUIDE
Cautions
As the product communicates using electronic radio waves, there are cases where transmission will be
temporarily cut off due to the surrounding environment and method of usage. The manufacturer is exempt from
all responsibility relating to resulting harm to personnel or equipment and other secondary damage.
Do not use the equipment within the vicinity of devices that may malfunction as a result of electronic radio waves
from the product.
The manufacturer is exempt from all responsibility relating to secondary damage resulting from the operation,
performance and reliability of equipment connected to the product.
Communication performance will be affected by the surrounding environment, so communication tests should be
carried out before actual use.
Ensure that the power supply for the product is within the specified rating. Short circuits and reverse connections
may result in overheating and damage and must be avoided at all costs.
Ensure that the power supply has been switched off before attempting any wiring work.
The case is connected to the GND terminal of the internal circuit, so do not make contact between the '+' side of
the power supply terminal and the case.
When batteries are used as the power source, avoid short circuits, recharging, dismantling, and pressure.
Failure to observe this caution may result in the outbreak of fire, overheating and damage to the equipment.
Remove the batteries when the equipment is not to be used for a long period of time. Failure to observe this
caution may result in battery leaks and damage to the equipment.
Do not use this product in vehicles with the windows closed, in locations where it is subject to direct sunlight, or
in locations with extremely high humidity.
The product is neither waterproof nor splash proof. Ensure that it is not splashed with soot or water. Do not use
the equipment if water or other foreign matter has entered the case.
Do not drop the product or otherwise subject it to strong shocks.
Do not subject the equipment to condensation (including moving it from cold locations to locations with a
significant increase in temperature.)
Do not use the equipment in locations where it is likely to be affected by acid, alkalis, organic agents or corrosive
gas.
The GND for the product will also affect communication performance. If possible, ensure that the case GND and
the circuit GND are connected to a large GND pattern.
Warnings
Do not take apart or modify the equipment.
Do not remove the product label (the label attached to the upper surface of the product.) Using a product from
which the label has been removed is prohibited.
Circuit Design, Inc. All right reserved
No part of this document may be copied or distributed in part or in whole without the prior written
consent of Circuit Design, Inc.
Customers are advised to consult with Circuit Design sales representatives before ordering.
Circuit Design, Inc. believes the furnished information is accurate and reliable. However, Circuit Design,
Inc. reserves the right to make changes to this product without notice.

OG_TB-NK2.4Y_IN_OUT_v10e 9Circuit Design, Inc
OPERATION GUIDE
OPERATION GUIDE
REVISION HISTORY
Version
Date
Description
Remark
1.0
Oct. 2017
The first issue
