Circuit ECX03011 User manual

Congratulations on your purchase of the ECX®
Circuit™Stadium Truck. This 1/10-scale model
introduces you to the sport of RC driving.
Herzlichen Glückwunsch zum Kauf des ECX
Circuit Stadium Truck. Dieses 1/10 Scale Model
öffnet Ihnen die Welt des RC Car Sports.
Nous vous félicitons pour l’achat du ECXCircuit
Stadium Truck. Ce modèle 1/10 vous initie à la
conduite RC.
Congratulazioni per l’acquisto di questo Circuit
Stadium Truck ECX. Questa vettura in scala 1/10
vi introdurrà nel mondo dei modelli RC.
INSTRUCTION MANUAL
BEDIENUNGSANLEITUNG
MANUEL D’UTILISATION
MANUALE DI ISTRUZIONI
1/10 4WD ELECTRIC
STADIUMTRUCK
ECX03011 | ECX03011AU | ECX03011I
®

2
EN
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, Inc. For
up-to-date product literature, visit http://www.horizonhobby.com and click on the support tab for this product.
Safety Precautions and Warnings
As the user of this product, you are solely responsible for operat-
ing in a manner that does not endanger yourself and others or
result in damage to the product or property of others.
This model is controlled by a radio signal subject to interference
from many sources outside your control. This interference can
cause momentary loss of control, so it is advisable to always
keep a safe distance in all directions around your model as this
margin will help avoid collisions or injury.
• Never operate your model with low transmitter batteries.
• Always operate your model in open spaces away from
full-size vehicles, traffic and people.
• Never operate the model in the street or in populated areas
for any reason.
• Carefully follow the directions and warnings for this and any
optional support equipment (chargers, rechargeable battery
packs, etc.) you use.
• Keep all chemicals, small parts and anything electrical out of
the reach of children.
• Never lick or place any portion of the model in your mouth as
it could cause serious injury or even death.
• Exercise caution when using tools and sharp instruments.
• Take care during maintenance as some parts may have sharp
edges.
• Immediately after using your model, do NOT touch equipment
such as the motor, electronic speed control and battery,
because they generate high temperatures. You may burn
yourself seriously touching them.
• Do not put fingers or any objects inside rotating and moving
parts, as this may cause damage or serious injury.
• Always turn on your transmitter before you turn on the
receiver in the car. Always turn off the receiver before turning
your transmitter off.
• Keep the wheels of the model off the ground when checking
the operation of the radio equipment.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating.
Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury.
This is a sophisticated hobby product and NOT a toy. It must be operated with caution and common sense and requires some basic
mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to the product
or other property. This product is not intended for use by children without direct adult supervision. Do not use with incompat-
ible components or alter this product in any way outside of the instructions provided by Horizon Hobby, Inc. This manual contains
instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual,
prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
Meaning of Special Language:
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility
of serious injury.
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious
injury OR create a high probability of superficial injury.
Safety Precautions and Warnings .............................................. 2
Water-Resistant Vehicle
with Waterproof Electronics.................................................3
Specifications .......................................................................... 3
Components..............................................................................4
Vehicle Preparations..............................................................4
Charging the Vehicle Battery ......................................................4
Initial Charge............................................................................... 4
Charging Warnings .....................................................................4
Installing Transmitter Batteries .................................................. 5
Transmitter Battery Safety Precautions......................................5
Removing the Vehicle Body ........................................................5
Installing the Battery in the Vehicle ...........................................5
Transmitter controls....................................................................6
Changing the Travel Adjust Settings .......................................... 6
Getting Started............................................................................7
Installing the Vehicle Body .........................................................7
Operation...................................................................................8
When you are Finished...........................................................8
Motor Care................................................................................8
Maintenance ............................................................................9
Electronic Speed Control (ESC)...................................................9
Electrical Layout.......................................................................... 9
Shock Cleaning............................................................................10
Ride Height Adjustment.............................................................. 10
Fasteners..................................................................................... 10
Binding ........................................................................................11
Troubleshooting Guide................................................................11
Limited Warranty..................................................................... 12
Contact Information.................................................................12
FCC Information........................................................................13
IC Information...........................................................................13
Compliance Information for the European Union..............13
Parts Diagrams.........................................................................52
Parts Lists.................................................................................... 54
TABLE OF CONTENTS
Age Recommendation: Not for children under 14 years. This is not a toy.

3
EN
WATER-RESISTANT VEHICLE WITH WATERPROOF ELECTRONICS
Your new Horizon Hobby vehicle has been designed and built with
a combination of waterproof and water-resistant components to
allow you to operate the product in many “wet conditions”, including
puddles, creeks, wet grass, snow and even rain.
While the entire vehicle is highly water-resistant, it is not completely
waterproof and your vehicle should NOT be treated like a submarine.
The various electronic components used in the vehicle, such as the
Electronic Speed Control (ESC), servo(s) and receiver are waterproof,
however, most of the mechanical components are water-resistant
and should not be submerged.
Metal parts, including the bearings, hinge pins, screws and nuts, as
well as the contacts in the electrical cables, will be susceptible to
corrosion if additional maintenance is not performed after running in
wet conditions. To maximize the long-term performance of your ve-
hicle and to keep the warranty intact, the procedures described in the
“Wet Conditions Maintenance” section below must be performed
regularly if you choose to run in wet conditions. If you are not willing
to perform the additional care and maintenance required, then you
should not operate the vehicle in those conditions.
CAUTION: Failure to exercise caution while using this
product and complying with the following precautions
could result in product malfunction and/or void the warranty.
General Precautions
• Read through the wet conditions maintenance procedures
and make sure that you have all the tools you will need to
properly maintain your vehicle.
• Not all batteries can be used in wet conditions. Consult the
battery manufacturer before use. Caution should be taken
when using Li-Po batteries in wet conditions.
• Most transmitters are not water-resistant. Consult your
transmitter’s manual or the manufacturer before operation.
• Never operate your transmitter or vehicle where lightning may
be present.
• Do not operate your vehicle where it could come in contact
with salt water (ocean water or water on salt-covered roads),
contaminated or polluted water. Salt water is very conductive
and highly corrosive, so use caution.
• Even minimal water contact can reduce the life of your motor
if it has not been certified as water-resistant or waterproof. If
the motor becomes excessively wet, apply very light throttle
until the water is mostly removed from the motor. Running a
wet motor at high speeds may rapidly damage the motor.
• Driving in wet conditions can reduce the life of the motor. The
additional resistance of operating in water causes excess
strain. Alter the gear ratio by using a smaller pinion or larger
spur gear. This will increase torque (and motor life) when
running in mud, deeper puddles, or any wet conditions that will
increase the load on the motor for an extended period of time.
Wet Conditions Maintenance
• Drain any water that has collected in the tires by spinning
them at high speed. With the body removed, place the vehicle
upside down and pull full throttle for a few short bursts until
the water has been removed.
CAUTION: Always keep hands, fingers, tools and any
loose or hanging objects away from rotating parts when
performing the above drying technique.
• Remove the battery pack(s) and dry the contacts. If you have an
air compressor or a can of compressed air, blow out any water
that may be inside the recessed connector housing.
• Remove the tires/wheels from the vehicle and gently rinse the
mud and dirt off with a garden hose. Avoid rinsing the bearings
and transmission.
NOTICE: Never use a pressure washer to clean your vehicle.
• Use an air compressor or a can of compressed air to dry the
vehicle and help remove any water that may have gotten into
small crevices or corners.
• Spray the bearings, drive train, fasteners and other metal
parts with a water-displacing light oil or lubricant. Do not
spray the motor.
• Let the vehicle air dry before you store it. Water (and oil)
may continue to drip for a few hours.
• Increase the frequency of disassembly, inspection and
lubrication of the following:
• Front and rear axle hub assembly bearings.
• All transmission cases, gears and differentials.
• Motor—clean with an aerosol motor cleaner and re-oil
the bushings with lightweight motor oil.
Transmitter
Frequency 2.4GHz
Modulation DSM, DSM2, DSMR, Marine
Battery AA x 4
Servo
Power Supply 4.8V~6V (shared with receiver)
Output Torque 41.66 oz (3 kg-cm)
Operating Speed 0.23sec/60 degrees of travel
Size 55.6 x 18 x 30mm
Electronic Speed Control (ESC)
Input Voltage 6.0–8.4 V
Electric Capacity (FET) Forward 40A/180A
Electric Capacity (FET) Reverse 20A/90A
PWM Frequency 1kHz
BEC Voltage 5V/2A
Size 36 x 31.7 x 18mm
Weight 65 g
SPECIFICATIONS

4
EN

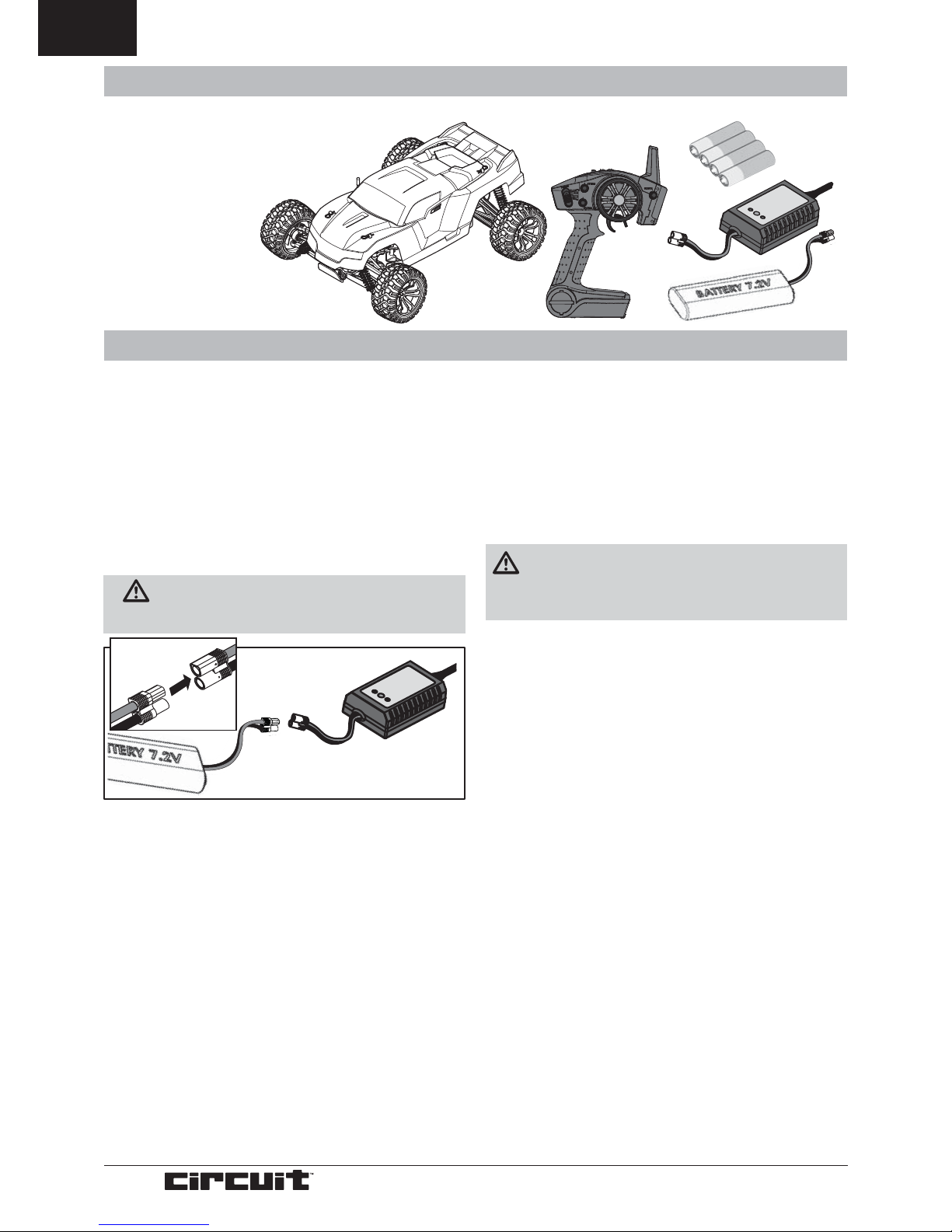

COMPONENTS
VEHICLE PREPARATIONS
1
CHARGINGTHEVEHICLE BATTERY
1. Connect the AC power cord to the power slot on the charger, then
connect the other end of the power cord to an AC power source.
2. The Power LED and Charging LED will turn GREEN when the
charger is connected to the AC power source.
3. Connect the battery pack connector to the charge connector.
4. Press the On/Off button to charge the battery. The Charging LED
turns RED.
5. When the battery pack is fully charged, the Charging LED will turn
GREEN.
6. Press the On/Off button to stop charging. Disconnect the battery
pack connector from the charge connector.
CAUTION: If at any time during the charge process the
battery pack(s) becomes hot to the touch, unplug the
battery immediately and discontinue the charge process.
The vehicle battery charger produces 2000 milliAmps (2 Amps) per
hour. Divide the mAh capacity on the label of a battery by 2000 to know
how long battery charging will require. For example, a fully
discharged 2400mAh battery requires 1.2 hours (72 minutes) to charge.
INITIAL CHARGE
Your Dynamite peak voltage detection charger includes safety circuitry
and programming. The charger will stop charging after 15 minutes if it
senses any issues that have come up in charging. The high electrical
resistance commonly found in new, unconditioned, Ni-MH batteries
can cause this safety circuit to turn off the charger before a full
charging cycle is complete. This is commonly known as a “false peak”
in your battery charge.
Should this occur during your first charge cycle, it does not necessarily
indicate a failure of either your charger or battery. Instead, it shows
that the charger is functioning properly and that the battery is not yet
fully conditioned.
To complete your first full charging cycle in the event of a false peak,
restart the charger by pressing the Start button again. Repeat this
process until the charge cycle continues to charge past 15 minutes.
It may take as many as 2 to 4 restarts to complete your first one or
two full charge cycles. Once your charger completes a charge cycle
longer than 15 minutes, your battery will be fully charged. A typical
first full charge cycle should run for 45 to 90 minutes, depending on the
self-discharge condition of the battery since it was shipped from the
factory.
Once your battery is properly conditioned through a few full charge
and discharge cycles, you will see normal operation of the charger by a
single press of the start button, followed by a 60- to 90- minute charge
cycle.
CHARGINGWARNINGS
WARNING: Failure to exercise caution while using this
product and comply with the following warnings could result
in product malfunction, electrical issues, excessive heat, FIRE, and
ultimately injury and property damage.
• Read all safety precautions and literature prior to use of this
product.
• Never leave the battery and charger unattended during use.
• Never allow children under 14 years of age to charge battery
packs.
• Never attempt to charge dead or damaged batteries.
• Never charge a battery if the cable has been pinched or shorted.
• Never allow batteries or charger to come into contact with
moisture at any time.
• Never charge batteries in extremely hot or cold places
(recommended between 50–80°F (10–26°C)) or place in direct
sunlight.
• Always use only Ni-MH rechargeable batteries. This charger
cannot charge batteries such as “heavy duty”, “alkaline”,
“mercury” or “lithium” battery.
• Always connect to the charger correctly.
• Always disconnect the battery and charger after charging and let
them cool between charges.
• Always inspect the battery before charging.
• Always terminate all processes and contact Horizon Hobby if the
product malfunctions.
• Always make sure you know the specifications of the battery to
be charged or discharged to ensure it meets the requirements of
this charger.
• Always constantly monitor the temperature of the battery pack
while charging.
• Always end the charging process if the charger or battery
becomes hot to the touch or starts to change form during the
charge process.
• Always charge in a well ventilated area.
1. ECX®Circuit™1/10-scale 4WD Stadium Truck
2. Spektrum™DX2E Transmitter
3. AA (4) Batteries
4. DYN4113 2A Peak Battery Charger
5. Dynamite®Speedpack™7.2V
Ni-MH battery (DYN1060EC)
2
5
3
4

5
EN
• Never install damaged batteries.
• Never install batteries of mixed types or of different ages in
the transmitter.
• Always remove exhausted batteries.
• Always remove batteries before storing the transmitter.
• Low battery power can result in loss of control of the RC
vehicle.
TRANSMITTER BATTERY SAFETY PRECAUTIONS
REMOVING THE VEHICLE BODY
INSTALLINGTHE BATTERY INTHE VEHICLE

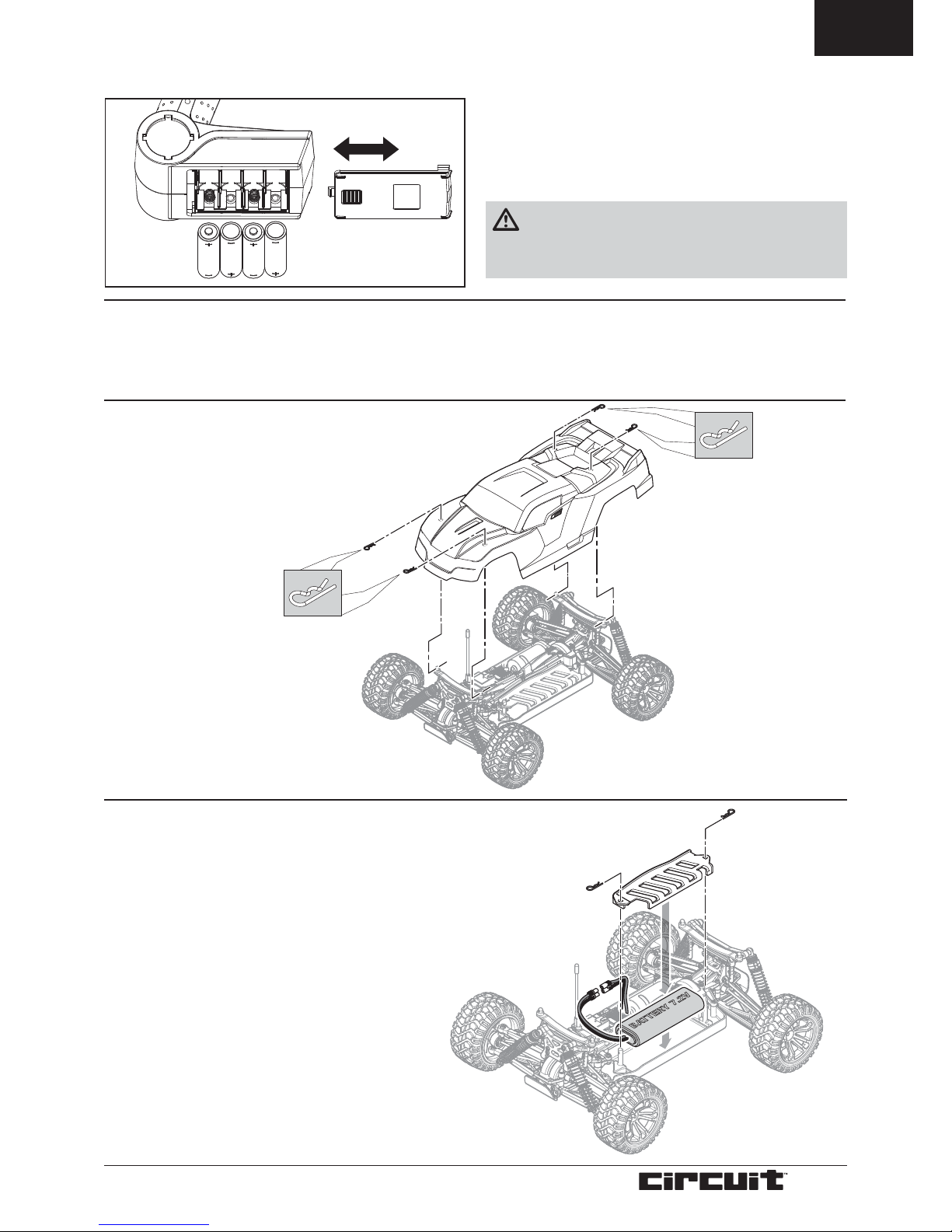

1. Remove the front and rear body clips, then remove the battery
strap.
2. Install a fully charged battery.
3. Install the battery strap.
4. Install the front and rear body clips.
If desired, you can put foam blocks (ECX2015) in front of the battery
so the weight of the battery increases rear traction or in back of the
battery to increase steering response.
INSTALLINGTRANSMITTER BATTERIES
1. Slide the panel open on the bottom of the transmitter.
2. Obey the battery plus (+) and minus (-) diagram in the
transmitter to install 4 AA batteries.
3. Slide the panel closed.
We recommend using only alkaline AA batteries in the
transmitter.
CAUTION: If using rechargeable batteries, charge only
rechargeable batteries. Charging non-rechargeable
batteries may cause the batteries to burst, resulting in injury to
persons and/or damage to property.

6
EN
CHANGINGTHETRAVEL ADJUST SETTINGS

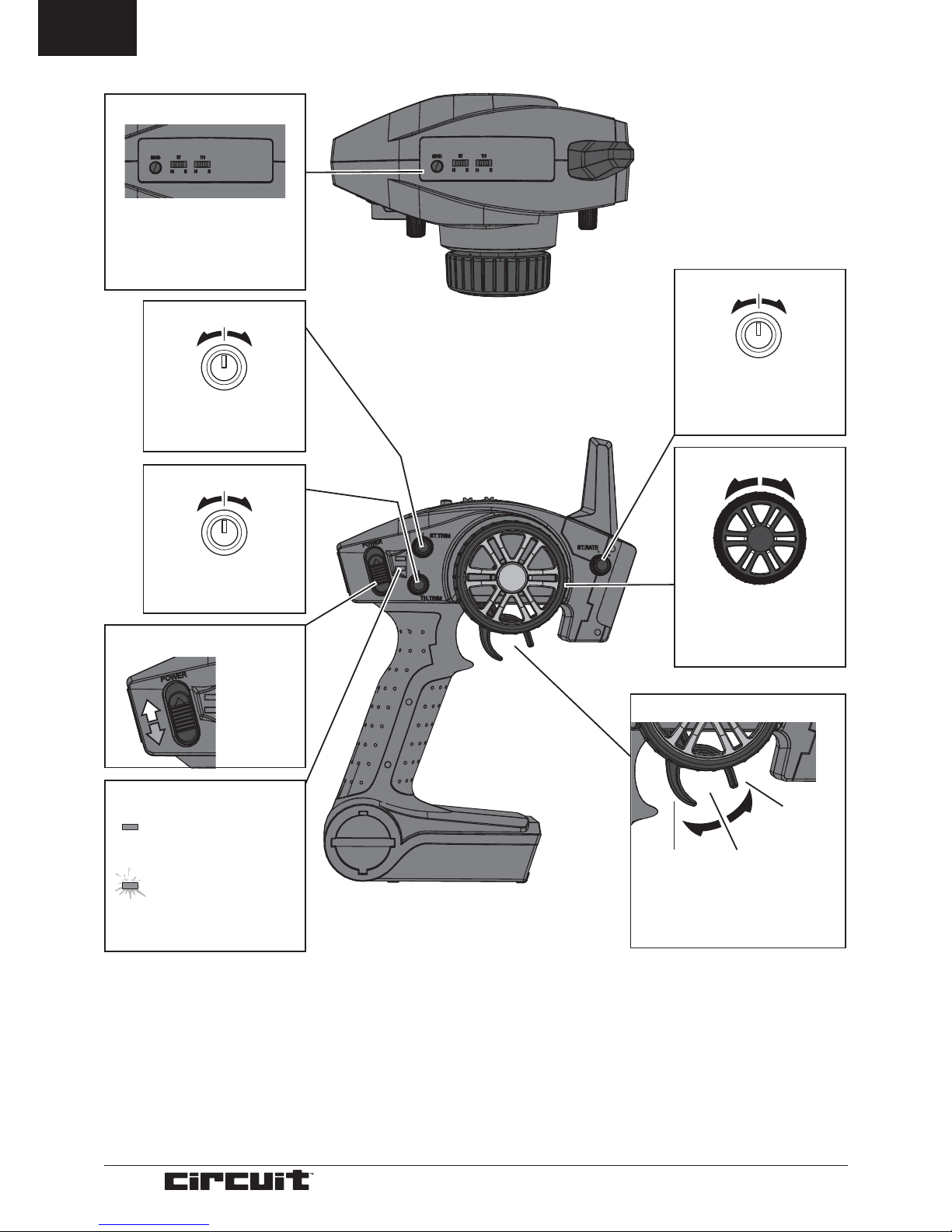

TRANSMITTER CONTROLS
BATTERY LEVEL
INDICATOR
Solid Green: Battery
voltage is good (above
4V).
Flashing Green: Battery
voltage is critically low
(below 4V). Replace
batteries.
THTRIM
Adjusts the neutral point
of the electronic speed
control.
STTRIM
Adjust to make the vehicle
drive straight with no input
at the steering wheel.
POWER SWITCH
Power on
or off the
transmitter.
STEERING WHEEL
Control steering. Right and
Left steering with ST. REV
Switch on N
(see ST. REV switch).
THROTTLETRIGGER
Controls power to motor for forward
or reverse (see TH. REV switch).
Stop
Reverse
(when TH.
REV switch
on N).
Forward
(when TH.
REV switch on N).
ST RATE
Adjusts the amount the
front wheels move when the
steering wheel is turned left
or right.
REVERSE SWITCH
Allows you to change the
direction of steering (ST. REV)
and throttle (TH. REV) controls
(default settings are “N” for
steering and “R” for throttle).
The travel function supports precise endpoint adjustments in
each direction for the steering and throttle channels.
1. Hold the trigger in the full brake position while powering
on the transmitter. The LED flashes rapidly, indicating the
programming mode is active.
2. Throttle End Point: Hold the trigger in the full throttle position.
Turn the TH TRIM knob to adjust the full throttle end point.
3. Brake End Point: Hold the trigger in the full brake position.
Turn the TH TRIM knob to adjust the full brake end point.
Return the trigger to the center position.
4. Left Steering End Point: Hold the steering wheel in the full left
position. Turn the ST TRIM knob to adjust the left end point.
5. Right Steering End Point: Hold the steering wheel in the full
right position. Turn the ST TRIM knob to adjust the right end
point. Return the steering wheel to the center position.
6. Power off the transmitter to save the travel adjust settings.
The minimum Travel is 75%, and the Maximum travel is
150%. The default travel settings are 125% steering and
100% throttle.

7
EN

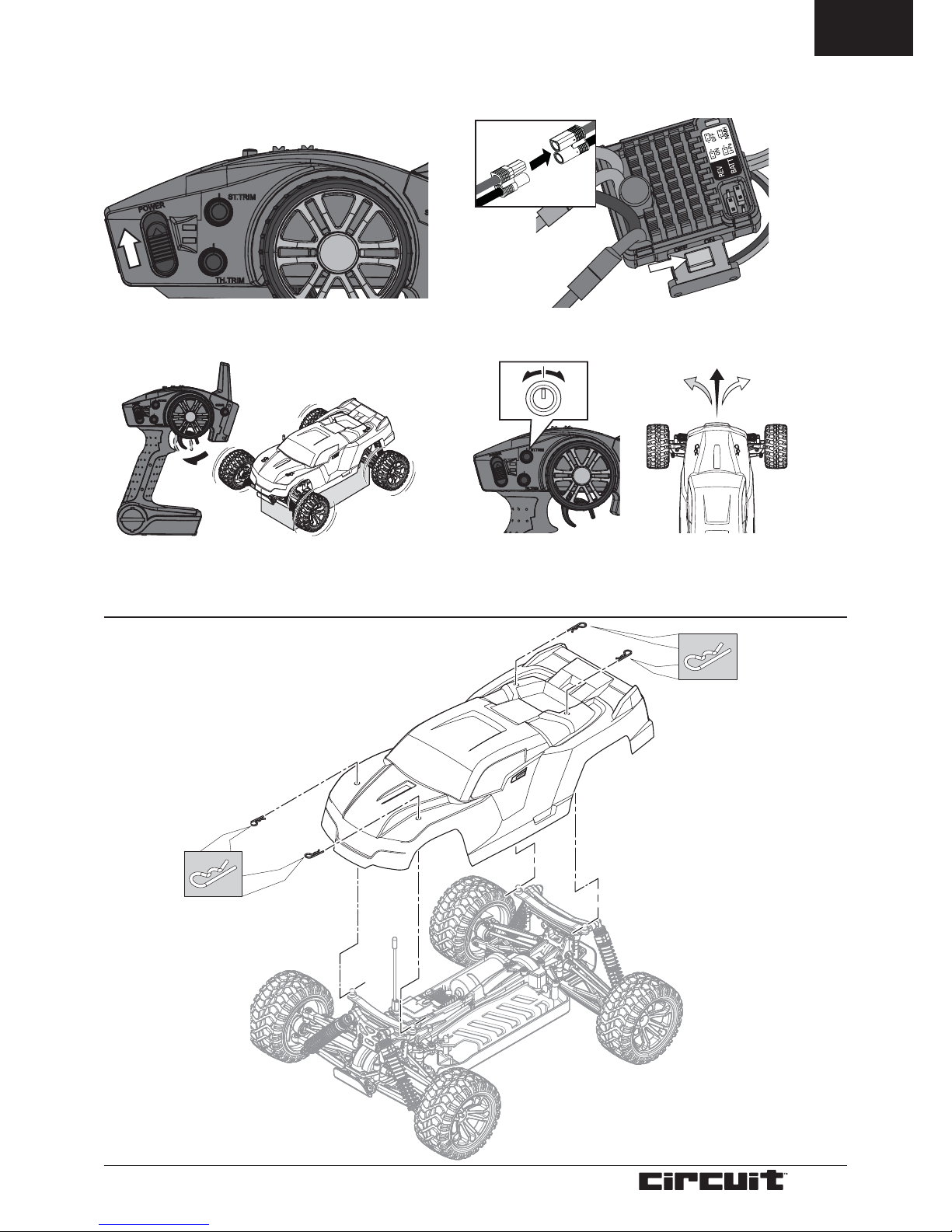

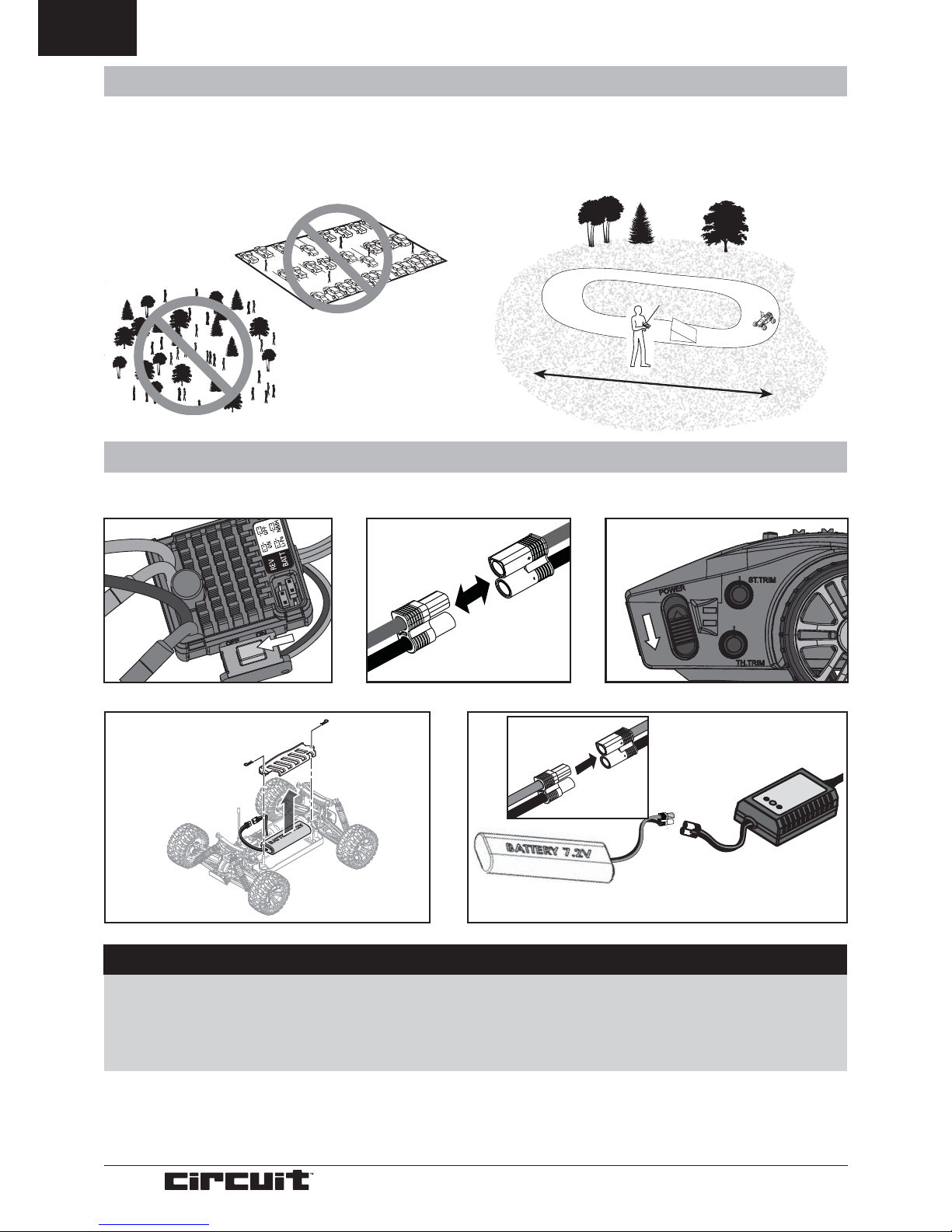

GETTING STARTED
1. Power on the transmitter.
3.Do a test of the transmitter’s control of the vehicle with
the vehicle’s wheels off the ground. 4. Start driving slowly, and, if the vehicle does not go straight, adjust the steering trim dial on the transmitter.
IMPORTANT: Seat the motor brushes by driving smoothly
on a flat surface during use of the first battery charge.
Properly seating the motor brushes will increase the life and
performance of the motor.
2. Power on the ESC.
INSTALLINGTHE VEHICLE BODY

8
EN
• ALWAYS turn on your transmitter before you turn on the
receiver in the vehicle. Always power off the receiver before
turning your transmitter off.
• ALWAYS operate your vehicle in a wide open area. Operating
the vehicle in a small space or indoors can cause overheating
at low speeds. Operating at low speed increases heat in the
electronic speed control (ESC). Overheating can damage the
vehicle and failure may result.
OPERATION
WHENYOU ARE FINISHED
• Seat the motor brushes by driving smoothly on a flat surface
during use of the first battery charge. Failing to do so can
greatly reduce motor performance and functional life.
• Prolong motor life by preventing overheating conditions.
Undue motor wear results from frequent turns, stops and
starts, pushing objects, driving in water and tall grass,
and driving continuously up hill.
• Over-temperature protection is installed on the ESC to
prevent circuit damage, but cannot protect the motor from
driving against heavy resistance.
MOTOR CARE
1. Power off the Electronic
Speed Control (ESC). 2. Disconnect the battery.
4. Remove the battery from the vehicle.
3. Power off the transmitter.
5. Recharge the battery.

9
EN
MAINTENANCE
ELECTRONIC SPEED CONTROL (ESC)
Programming: The ESC comes with two jumpers pre-installed in
the REV: ON and BATT: Ni-MH configurations.
To disable reverse or change battery type to Li-Po, disconnect the
jumper from the default port and connect it to the desired port.
Power off the ESC, then power it back on.
If the jumpers are lost or not installed, the ESC will default to
REV: ON and BATT: Li-Po.
ELECTRICAL LAYOUT
For correct operation, Channels 1 and 2
must be used as shown in the wiring diagram.
The motor can be disconnected from the ESC
at the connectors in the wiring.
Part # Description
A DYN1172 Motor
B DYN1060EC Battery 7.2V
C SPMS603 Waterproof Steering
Servo
D SPMSR201 Receiver
E DYNS2211 Waterproof Electronic
Speed Control (ESC)
F Channel 1
G Channel 2
Operation LED Status Sound at Power UP
Stop OFF
Forward Blinks
Forward (full speed) Solid
Reverse Blinks
Brake Blinks
Brake (full brake) Solid
Ni-MH/Ni-Cd Battery 1 Short Beep
2S Li-Po Battery 2 Short Beeps
ESC Ready 1 Long Beep
Battery Low Voltage Blinks
Overheat Blinks
EC3EC3
A
B
CD
E
G
F
LED

10
EN
SHOCK CLEANING
Oil-filled shocks will require regular maintenance due to the oil breaking
down or getting dirty. This maintenance should be performed after about
every 3 to 5 hours of use, depending on the conditions that the vehicle is
used in.
• Remove the shock from the vehicle.
• Remove the cap from the shock body and dispose of fluid.
• Disassemble the shock. Clean thoroughly with DYN5505. Dry parts
before assembly.
• Re-assemble the shock and refill the shock body with silicone fluid (30
weight recommended).
• Slowly move the shaft and piston up and down to remove air bubbles.
• Move the piston to the midway point of the body and install the cap.
• Wipe off any overflowing fluid.
• When properly filled, the piston should rebound about 3/8 in (9.5mm)
after being pushed in fully.
• Re-install the shock on the vehicle.
Ride Height Adjustment
Ride height is an adjustment that affects the way the vehicle jumps,
turns and goes over bumps. Drop one end of the vehicle from approxi-
mately 6 inches (152 mm) in height onto
a flat surface. When dropping the front of the vehicle, after the vehicle
settles, make sure the front arms are equal and parallel to the flat
surface. Do the same with the rear to make sure both arms are parallel
with the flat surface.
Lowering the front ride height increases steering, but decreases traction.
Lowering the rear ride height increases traction, but decreases steering.
Part # Description
ECX233000 Shock, Complete, (2): 4wd
ECX233001 Shock Rebuild, (2): 4wd
ECX233002 Top, Bottom Shock Ends: 4wd
ECX233003 Shock Spring, Black, Set: 4wd
Part # Description
ECX234005 Link Set, Plastic: 1:10 4wd All
ECX236001 Lock Nut, M2.5, (5)
ECX236004 Special Hardware: 1:10 4wd All
Description
Tapping Binder Head, M3x8mm
Tapping Binder Head, M2.5x4mm
Tapping Binder Head,
M3x10mm
Tapping Binder Head, M3x14mm
Tapping Binder Head, M3x16mm
Tapping Binder Head, M3x18mm
Tapping Binder Head, M3x20mm
Tapping Binder Head, M3x22mm
Tapping Binder Head, M3x25mm
Binder Head, M3x10mm
Tapping Flat Head, M2.5x10mm
Tapping Flat Head, M3x10mm
Tapping Flat Head, M3x15mm
Tapping Binder Head, M3x12mm
Washer,
6.2x10.8x0.2mm
Flanged Lock Nut, M4
Washer,
3x8x1mm
Lock Nut M3
Washer,
2.6x6 X0.5mm
Lock Nut M2.5
Setscrew, M3x3mm
Setscrew, M4x3mm
Binder Head, M3x20mm
Binder Head, M3x22mm
Flat Head, M3x8mm
Flat Head, M3x10mm
Flat Head, M4x18mm
Binder Head, M3x12mm
Binder Head, M3x14mm
Binder Head, M3x16mm
Binder Head, M3x18mm
Description Description Description
FASTENERS
ECX233000
ECX233001
ECX233002
ECX234005
ECX236001 ECX236004
ECX233001
ECX233002
ECX234005
ECX233003

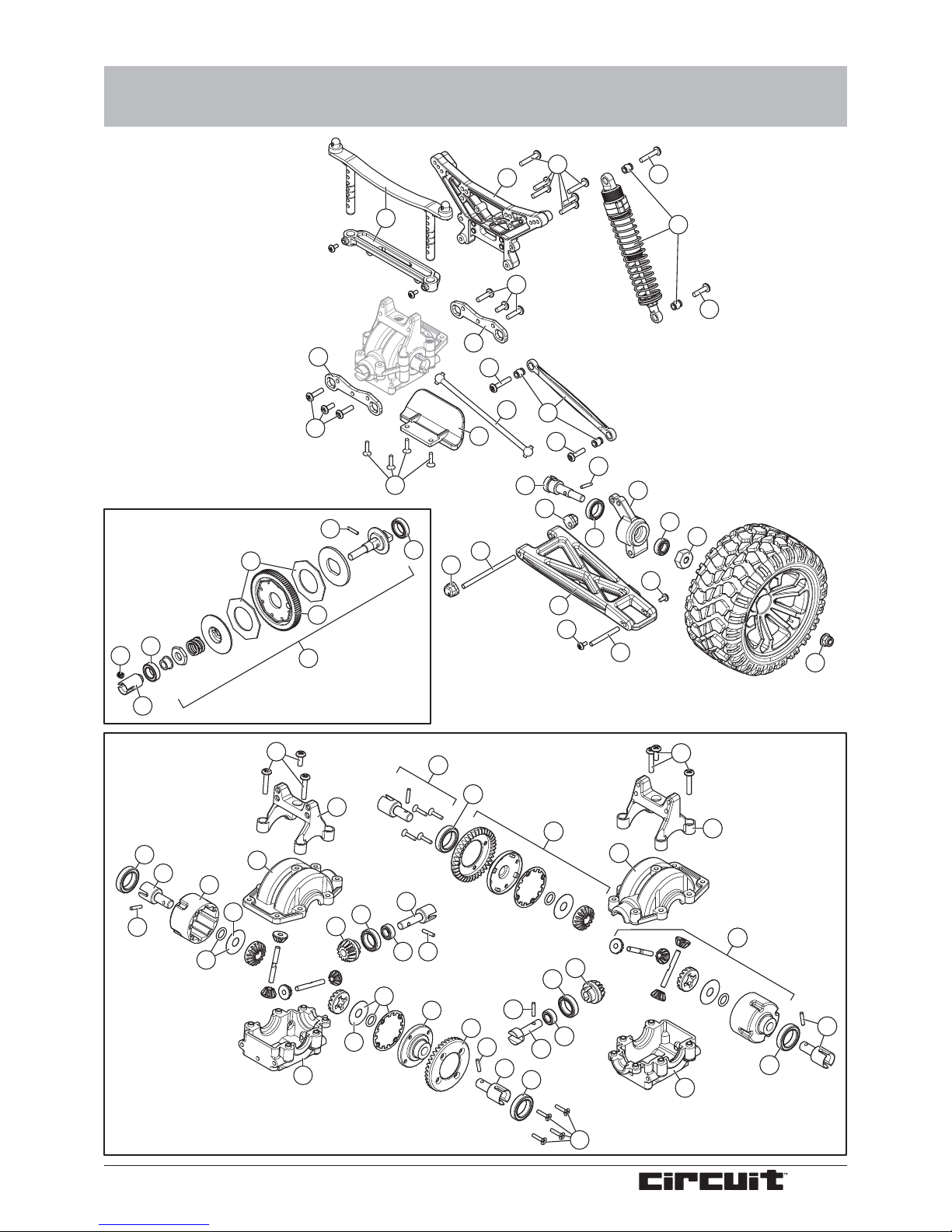

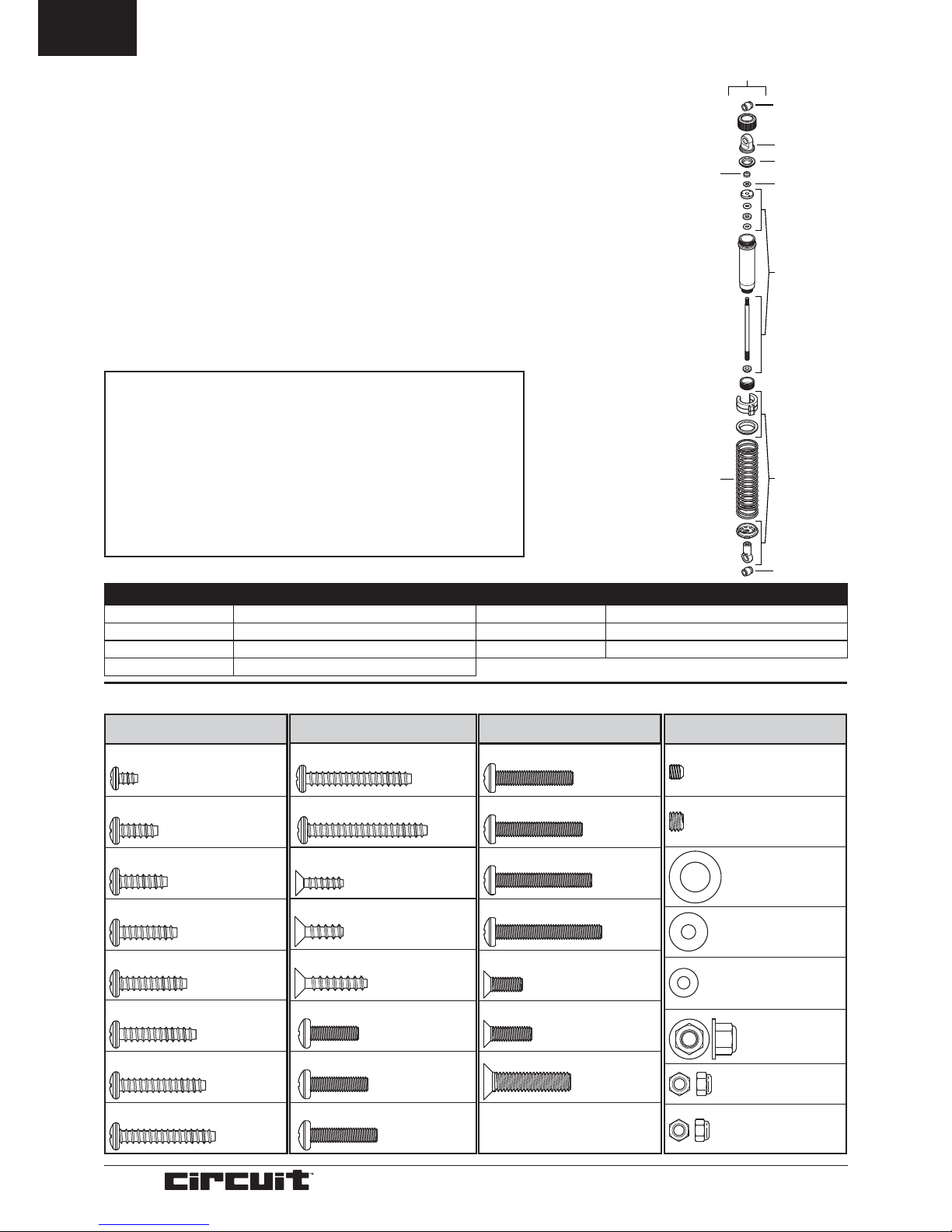

SHOCK PARTS
DIAGRAM

11
EN
Problem Possible Cause Solution
Short Run Time • Battery damaged/not charged
• Motor dirty or brushes worn • Check/change battery • Check/clean/replace
Sluggish Action • Motor dirty or brushes worn
• Bind in drivetrain
• Vehicle battery is not charged
• Check/clean/replace
• Clean/adjust
• Replace/recharge
Controls Reversed • ST. REV or TH. REV • Change switch position
Motor/ESC overheat • Over-geared for the driving environment • Install smaller pinion
Doesn’t Operate • Transmitter batteries low
• Transmitter powered off
• ESC powered off
• Vehicle battery is not charged
• Replace/recharge
• Power On
• Power On
• Replace/recharge
Poor Range • Transmitter batteries low
• Receiver antenna damaged • Replace/recharge • Check/repair/replace
The system will not
connect • Transmitter and receiver too near each other • Transmitter and receiver too near large
metal objects (vehicles, etc.)
• Receiver accidentally put in bind mode so
receiver is no longer bound
• Move transmitter 8–12 feet (2.4–3.6m) from receiver
• Move away from large metal objects (vehicles, etc.)
• Rebind transmitter and receiver
The receiver goes into
failsafe mode a short
distance away from the
transmitter
• Check the receiver antenna to be sure it is
not cut or damaged • Contact Horizon Product Support • Make sure receiver antenna is in an antenna tube
and is above vehicle
The receiver quits re-
sponding during operation • Low battery voltage • Loose or damaged wires or connectors
between battery and receiver
• Completely recharge battery
• Do a check of the wires and connection between
battery and receiver. Repair or replace wires and/or
connectors
Receiver loses its bind • Transmitter accidentally put in bind mode,
ending bind to receiver • Bind transmitter to receiver
TROUBLESHOOTING GUIDE
BINDING
Binding is the process of programming the receiver to recognize
the GUID (Globally Unique Identifier) code of a single specific
transmitter. The DX2E and SR201 receiver are bound at the fac-
tory. If you need to rebind, follow the instructions below.
1. With the receiver off, insert the bind plug into the BIND port
on the receiver.
2. Power the receiver through any other port. The orange LED
will flash continuously, indicating the receiver is in bind mode.
3. With the steering wheel and throttle trigger in the failsafe
positions, normally full brakes and straight steering (see the
Failsafe section on this page for more information), press and
hold the bind button and turn on the transmitter. The green
LED on the front of the transmitter will flash within three
seconds, indicating the transmitter is in bind mode.
4. Release the bind button when the green LED flashes.
Continue to hold the steering wheel and throttle trigger in the
failsafe positions until the LED on the receiver glows solid.
5. The LED on the receiver will glow solid when the transmitter
and receiver are bound.
6. Remove the bind plug and store it in a convenient place.
You must rebind when:
• Different failsafe positions are desired e.g., when throttle or
steering reversing has been changed.
• Changing receiver types e.g., changing from a DSM®receiver
to a DSM2®or Marine receiver.
• Binding the receiver to a different transmitter.
Some Spektrum receivers, like the SR3001, use a bind button
rather than a bind plug. The binding process is the same with
this receiver, however, instead of inserting the plug before
powering up the receiver, press and hold the bind button while
powering up the receiver to enter bind mode.
FAILSAFE
In the unlikely event that the radio link is lost during use, the
receiver will drive the servos to their preprogrammed failsafe
positions (normally full brakes and straight steering). If the
receiver is turned on prior to turning on the transmitter, the
receiver will enter failsafe mode, driving the servos to their
preset failsafe positions. When the transmitter is turned on,
normal control is resumed. Failsafe servo positions are set
during binding (see binding a receiver above).
Bind Button

12
EN
LIMITED WARRANTY
What this Warranty Covers
Horizon Hobby, Inc., (Horizon) warrants to the original purchaser
that the product purchased (the "Product") will be free from defects
in materials and workmanship at the date of purchase.
What is Not Covered
This warranty is not transferable and does not cover (i) cosmetic
damage, (ii) damage due to acts of God, accident, misuse, abuse,
negligence, commercial use, or due to improper use, installation,
operation or maintenance, (iii) modification of or to any part of
the Product, (iv) attempted service by anyone other than a Horizon
Hobby authorized service center, (v) Product not purchased from
an authorized Horizon dealer, or (vi) Product not compliant with
applicable technical regulations.
OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON
MAKES NO OTHER WARRANTY OR REPRESENTATION, AND
HEREBY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES,
INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES
OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE. THE PURCHASER ACKNOWLEDGES
THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL
SUITABLY MEET THE REQUIREMENTS OF THE PURCHASER’S
INTENDED USE.
Purchaser’s Remedy
Horizon’s sole obligation and purchaser’s sole and exclusive
remedy shall be that Horizon will, at its option, either (i) service,
or (ii) replace, any Product determined by Horizon to be defective.
Horizon reserves the right to inspect any and all Product(s) involved
in a warranty claim. Service or replacement decisions are at the
sole discretion of Horizon. Proof of purchase is required for all war-
ranty claims. SERVICE OR REPLACEMENT AS PROVIDED UNDER
THIS WARRANTY IS THE PURCHASER’S SOLE AND EXCLUSIVE
REMEDY.
Limitation of Liability
HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCI-
DENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR
PRODUCTION OR COMMERCIAL LOSS IN ANY WAY, REGARDLESS
OF WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY,
TORT, NEGLIGENCE, STRICT LIABILITY OR ANY OTHER THEORY
OF LIABILITY, EVEN IF HORIZON HAS BEEN ADVISED OF THE POS-
SIBILITY OF SUCH DAMAGES. Further, in no event shall the liability
of Horizon exceed the individual price of the Product on which
liability is asserted. As Horizon has no control over use, setup, final
assembly, modification or misuse, no liability shall be assumed
nor accepted for any resulting damage or injury. By the act of use,
setup or assembly, the user accepts all resulting liability. If you as
the purchaser or user are not prepared to accept the liability as-
sociated with the use of the Product, purchaser is advised to return
the Product immediately in new and unused condition to the place
of purchase.
Law
These terms are governed by Illinois law (without regard to conflict
of law principals). This warranty gives you specific legal rights,
and you may also have other rights which vary from state to state.
Horizon reserves the right to change or modify this warranty at any
time without notice.
WARRANTY SERVICES
Questions, Assistance, and Services
Your local hobby store and/or place of purchase cannot provide
warranty support or service. Once assembly, setup or use of the
Product has been started, you must contact your local distributor
or Horizon directly. This will enable Horizon to better answer your
questions and service you in the event that you may need any
assistance. For questions or assistance, please visit our website
at www.horizonhobby.com, submit a Product Support Inquiry, or
call the toll free telephone number referenced in the Warranty
and Service Contact Information section to speak with a Product
Support representative.
Inspection or Services
If this Product needs to be inspected or serviced and is compliant in
the country you live and use the Product in, please use the Horizon
Online Service Request submission process found on our website
or call Horizon to obtain a Return Merchandise Authorization (RMA)
number. Pack the Product securely using a shipping carton. Please
note that original boxes may be included, but are not designed to
withstand the rigors of shipping without additional protection. Ship
via a carrier that provides tracking and insurance for lost or dam-
aged parcels, as Horizon is not responsible for merchandise until
it arrives and is accepted at our facility. An Online Service Request
is available at http://www.horizonhobby.com/content/_service-
center_render-service-center. If you do not have internet access,
please contact Horizon Product Support to obtain a RMA number
along with instructions for submitting your product for service.
When calling Horizon, you will be asked to provide your complete
name, street address, email address and phone number where you
can be reached during business hours. When sending product into
Horizon, please include your RMA number, a list of the included
items, and a brief summary of the problem. A copy of your original
sales receipt must be included for warranty consideration. Be sure
your name, address, and RMA number are clearly written on the
outside of the shipping carton.
NOTICE: Do not ship LiPo batteries to Horizon. If you have
any issue with a LiPo battery, please contact the appropri-
ate Horizon Product Support office.
Warranty Requirements
For Warranty consideration, you must include your original
sales receipt verifying the proof-of-purchase date. Provided
warranty conditions have been met, your Product will be serviced
or replaced free of charge. Service or replacement decisions are at
the sole discretion of Horizon.
Non-Warranty Service
Should your service not be covered by warranty, service
will be completed and payment will be required without
notification or estimate of the expense unless the expense
exceeds 50% of the retail purchase cost. By submitting the
item for service you are agreeing to payment of the service without
notification. Service estimates are available upon request. You
must include this request with your item submitted for service.
Non-warranty service estimates will be billed a minimum of ½ hour
of labor. In addition you will be billed for return freight. Horizon
accepts money orders and cashier’s checks, as well as Visa, Mas-
terCard, American Express, and Discover cards. By submitting any
item to Horizon for service, you are agreeing to Horizon’s Terms and
Conditions found on our website http://www.horizonhobby.com/
content/_service-center_render-service-center.
ATTENTION: Horizon service is limited to Product com-
pliant in the country of use and ownership. If received, a
non-compliant Product will not be serviced. Further, the
sender will be responsible for arranging return ship-
ment of the un-serviced Product, through a carrier of the
sender’s choice and at the sender’s expense. Horizon will
hold non-compliant Product for a period of 60 days from
notification, after which it will be discarded.

13
EN
This device complies with part 15 of the FCC rules. Operation is sub-
ject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly
approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
This product contains a radio transmitter with wireless technology
which has been tested and found to be compliant with the ap-
plicable regulations governing a radio transmitter in the 2.400GHz to
2.4835GHz frequency range.
Antenna Separation Distance
When operating your Spektrum transmitter, please be sure to
maintain a separation distance of at least 5 cm between your body
(excluding fingers, hands, wrists, ankles and feet) and the antenna to
meet RF exposure safety requirements as determined by FCC
regulations.
The following
illustrations show
the approximate
5 cm RF exposure
area and typical
hand placement
when operating
your Spektrum
transmitter.
FCC INFORMATION
CONTACT INFORMATION
IC INFORMATION
This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause unde-
sired operation of the device.
Country of Purchase Horizon Hobby Contact Information Address
United States of America
Horizon Service Center
(Repairs and Repair Requests) servicecenter.horizonhobby.com/ RequestForm/
4105 Fieldstone Rd
Champaign, Illinois, 61822 USA
Horizon Product Support
(Product Technical Assistance)
www.quickbase.com/db/
bghj7ey8c?a=GenNewRecord
888-959-2306
Sales [e-mail]
888-959-2306
United Kingdom Service/Parts/Sales:
Horizon Hobby Limited
[e-mail] Units 1–4 , Ployters Rd, Staple Tye
Harlow, Essex, CM18 7NS, United
Kingdom
[phone]
Germany Horizon Technischer Service [e-mail] Christian-Junge-Straße 1
25337 Elmshorn, Germany
Sales: Horizon Hobby GmbH [phone]
France Service/Parts/Sales:
Horizon Hobby SAS
[e-mail] 11 Rue Georges Charpak
77127 Lieusaint, France
[phone]
China Service/Parts/Sales:
Horizon Hobby – China
[e-mail] Room 506, No. 97 Changshou Rd.
Shanghai, China 200060
[phone]

14
EN
Declaration of Conformity
(in accordance with ISO/IEC 17050-1)
No. HH2013121803
Product(s): ECX Circuit 1:10 4wd Stadium Truck Brushed RTR
(Spektrum DX2E transmitter and SR201 receiver
included)
Item Number(s): ECX03011I
Equipment class: 2
The object of declaration described above is in conformity with
the requirements of the specifications listed below, following
the provisions of the European R&TTE Directive 1999/5/EC, EMC
Directive 2004/108/EC and LVD Directive 2006/95/EC:
EN 300-328 V1.7.1: 2006
EN 301 489-1 V1.9.2: 2012
EN301 489-17 V2.1.1: 2009
EN60950-1:2006+A11:2009+A1:2010+A12: 2011
EN55022:2010 + AC:2011
EN55024:2010
EN61000-3-2:2006+A1:2009+A2:2009
EN61000-3-3:2008
Signed for and on behalf of:
Horizon Hobby, Inc.
Champaign, IL USA
Dec 18, 2013
Instructions for disposal of WEEE
by users in the European Union
This product must not be disposed of with other waste.
Instead, it is the user’s responsibility to dispose of their
waste equipment by handing it over to a designated collec-
tions point for the recycling of waste electrical and electronic
equipment. The separate collection and recycling of your waste
equipment at the time of disposal will help to conserve natural
resources and ensure that it is recycled in a manner that protects
human health and the environment. For more information about
where you can drop off your waste equipment for recycling,
please contact your local city office, your household waste
disposal service or where you purchased the product.
COMPLIANCE INFORMATION FORTHE EUROPEAN UNION
AT BE BG CZ CY DE DK
EE ES FI FR GR HR HU
IE IT LT LU LV MT NL
PL PT RO SE SI SK UK
IS LI NO CH
Robert Peak
Chief Financial Officer
Horizon Hobby, Inc.

54

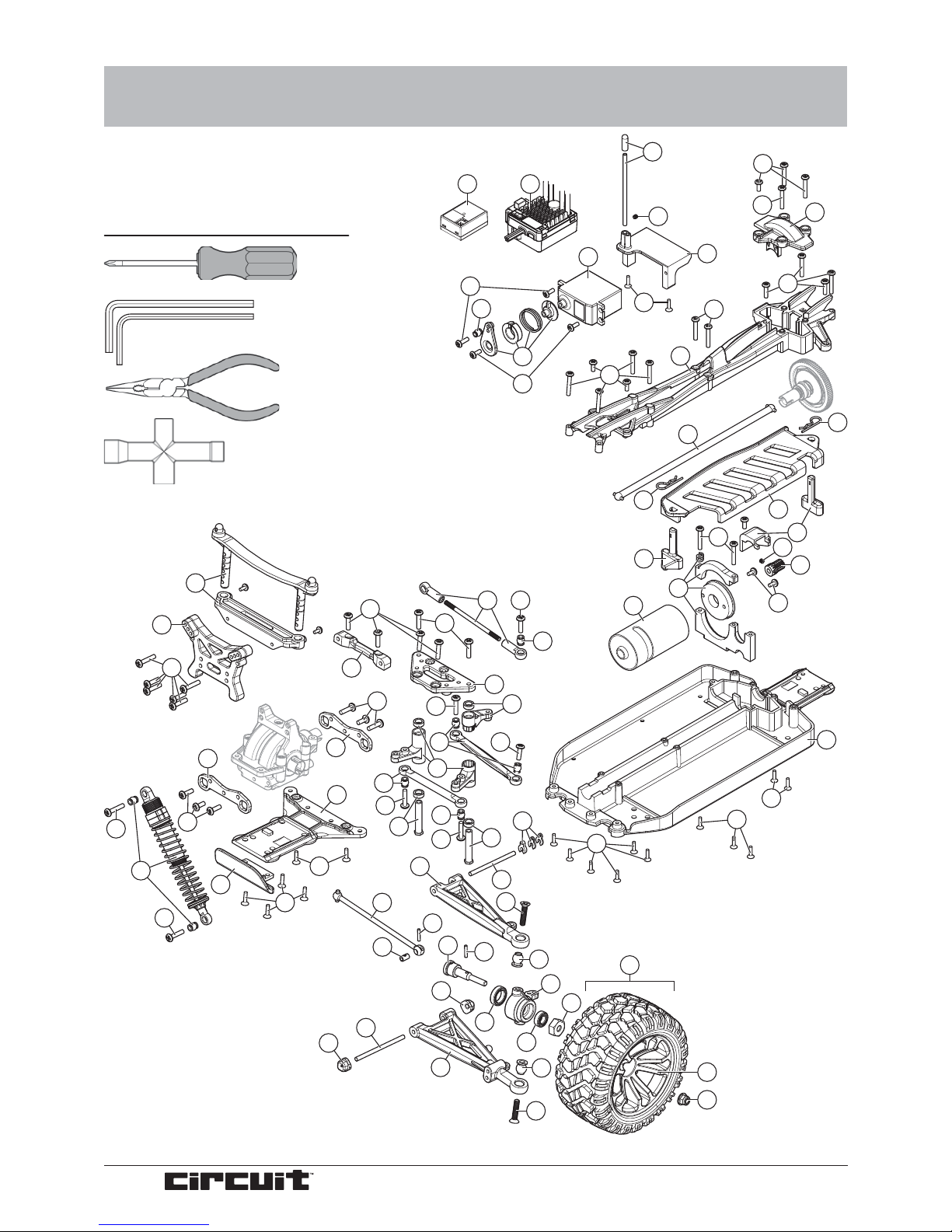

PARTS DIAGRAM | EXPLOSIONSZEICHNUNG |VUE ÉCLATÉE DES PIÈCES |
ESPLOSO DEL MODELLO CON REFERENZA PEZZI
1.5 mm
2 mm
RECOMMENDED ITEMS
EMPFOHLENE WERKZEUGE
OUTILS RECOMMANDÉS
ATTREZZI CONSIGLIATI
7
14
3
8
42
45
45 7
42
42
5
57
42
45
45
45
45
15
5
6
5
52
54
42
48 58
56
57
41
42
48
38 6
38
19
38
31
31 31 25
25
45
45
34
44
46
9
77
8
45 47
47
45
63
62
42
11
45
45
147 9
10
21
60
12
9
59
33
1
10
44
46
44
9
47
46
20
59
45
11
45
45
45
44
61
2

55
PARTS DIAGRAM | EXPLOSIONSZEICHNUNG |VUE ÉCLATÉE DES PIÈCES |
ESPLOSO DEL MODELLO CON REFERENZA PEZZI
155
52
25
30
24
23
22
45
4
53
28 26
25 50
50
29
29 26
3
27
25
28 53
43
52
27
30
51 25
4
30 51
4
4
16
53
53
52 27
16
3
45
16
16
25
34
45
3
14
45
5
5
44
45 15
18
45
45
5
56
39
43
43
6
19
58
54
40
25
17
52
42
45
45

56
Replacement Parts / Ersatzteile / Pièces de rechange / Pezzi di ricambio
Part # | Nummer
Numéro | Codice Description Beschreibung Description Descrizione
1 ECX0941 Set Screw Pack ECX Schraubenset Sachet de vis sans tête Confezione grani
2 ECX1087 Antenna Tube (1) Electrix Empfängerantenne mit
Röhrchen Tube d'antenne (1) Tubetto antenna (1)
3 ECX231004 Front/Rear Shock Tower Set:
1:10 4wd All
ECX Dämpferbrücke v/h 1:10
alle 4WD
Supports d'amortisseurs avant
et arrière
Set torre ammort. anter. e poster.
1:10 4wd tutti
4 ECX231005 Front/Rear Differential
Gearbox Set: 1:10 4wd All
ECX Differentialgehäuseset
1:10 alle 4WD
Carter de différentiel avant/
arrière
Set ingranaggi differenziale
anter. / poster. 1:10 4wd tutti
5 ECX231006 Front/Rear Toe Plates w/
Inserts: 1:10 4wd All
ECX Spureinsätze v/h 1:10
alle 4WD
Cales de pincement avant/
arrière avec inserts
Piastre c/inserti convergenza
anter./poster. 1:10 4wd tutti
6 ECX231007 Hinge Pin Set: 1:10 4wd All ECX Querlenkerstifthalter 1:10
alle 4WD Set d'axes de suspension Set perno cerniera 1:10 4wd tutti
7 ECX231008 Bell-Crank Set w/Post and
Bushing: 1:10 4wd All
ECX Lenkhebelset m. Halter u.
Lager 1:10 alle 4WD
Biellettes et renvois de
direction
Set squadrette con appoggi e
boccole 1:10 4wd tutti
8 ECX231009 Hinge Pin & Steering Brace:
1:10 4wd All
ECX Querlenkerstift Halter
1:10 alle 4WD
Renfort avant et support de
pivot de triangle sup
Perno cerniera e supporti sterzo
1:10 4wd tutti
9 ECX231010 Gear Cover/Kick Plate/Bttry
Mnts: 1:10 4wd All
ECX Getriebeabdeckung /
Kick Platte/ Akkuhalter 1:10
alle 4WD
Couvercle de couronne/Cale
de chasse/Plots de support de
batterie
Coperchi ingran/piastra rinvio/
supp. batteria 1:10 4wd tutti
10 ECX231012 Chassis & Upper Deck, Short
(1): 1:10 4wd Circuit
ECX Chassis u. oberes Deck,
kurz (1) 1:10 4WD Tor
Châssis court et platine
supérieure
Telaio e piattaforma superiore,
corto 1:10 4wd Circuit
11 ECX231013 Servo Saver, 23T/25T ECX Servo Saver,23/ 25T Sauve servo, 23T/25T Salva servo 23T/25T
12 ECX231014 Short Battery Strap: 1:10
4wd All
ECX Akkuverschluss kurz 1:10
alle 4WD Support de batterie court Fascetta corta batteria 1:10 4wd tutti
13 ECX231015 Long Battery Strap: 1:10
4wd All
ECX Akkuverschluss lang 1:10
alle 4WD Support de batterie long Fascetta lunga batteria 1:10 4wd tutti
14 ECX231016 Body Post & Mounts: 1:10
4wd All
ECX Karosserieträger und
Halter 1:10 alle 4WD Supports de carrosserie Appoggi e supporti batteria 1:10 4wd tutti
15 ECX231017 Front & Rear Bumper: 1:10
4wd Circuit
ECX Stoßfänger v/h 1:10 4WD
Circuit Pare-Choc avant et arrière Paraurti anter. e poster. 1:10 4wd Circuit
16 ECX232010 Differential, Complete: 1:10
4wd All
ECX Differential kpl. 1:10 alle
4WD Différentiel complet Differenziale completo 1:10 4wd tutti
17 ECX232011 Rear Stub Axle (2): 1:10
4wd All
ECX Hinterachse (2) 1:10 alle
4WD Axe de roues arrière (2) Snodo fuso posteriore (2): 1:10 4wd tutti
18 ECX232012 Rear Dog Bone (2): 1:10
4wd All
ECX Antriebsknochen hinten
(2) 1:10 alle 4WD Tige de cardan arrière (2) Semiasse snodato posteriore (2): 1:10 4wd tutti
19 ECX232013 Wheel Hex Set, (4): 1:10
4wd All
ECX Radmuttern (4) 1:10 alle
4WD Hexagone de roue (4) Set esagoni ruota (4): 1:10 4wd tutti
20 ECX232014 Motor Plate, Aluminum Set:
1:10 4wd All
ECX Motorplatte Aluminium
Set 1:10 alle 4WD Support moteur en aluminium Set piastra motore, alluminio 1:10 4wd tutti
21 ECX232016 Main Driveshaft, Short (1):
1:10 4wd Cir
ECX Antriebswelle Kurz (1)
1:10 4WD Cir Cardan central court Albero trasmissione principale, corto (1): 1:10 4wd circuito
22 ECX232017 Slipper, Complete: 1:10
4wd All
ECX Rutschkupplung kpl 1:10
4WD Cir Slipper complet Slipper completo 1:10 4wd tutti
23 ECX232018 Slipper Pad: 1:10 4wd All ECX Rutschkupplung Belag
1:10 alle 4WD Garniture de slipper Pattini slipper 1:10 4wd tutti
24 ECX232019 Spur Gear, 45T, Mod 1 (2):
1:10 4wd All
ECX Zahnrad 87 Zähne (1)
alle 4WD Couronne 45T, mod 1 (2) Corona 45T, Mod 1 (2): 1:10 4wd tutti
25 ECX232020 Drivetrain Roller Pin Set,
(11): 1:10 4wd All
ECX Drivetrain Roller Pin Set,
(11): 1:10 4wd All
Set de goupilles cylindriques
(11)
Set perni rulli trasmissione (11):
1:10 4wd tutti
26 ECX232021 Differential Case, Complete :
1:10 4wd All
ECX Differential Gehäuse kpl.
1:10 alle 4WD Corps de différentiel Scatola differenziale completa 1:10 4wd tutti
27 ECX232022 Ring & Pinion, Set: 1:10
4wd All
ECX Tellerrad u. Ritzel 1:10
alle 4WD
Couronne de diff et pignon
conique
Set anelli e pignoni 1:10 4wd
tutti
28 ECX232023 Differential Outdrives, (2):
1:10 4wd All
ECX Differential Abtriebe (2)
1:10 alle 4WD Noix de sortie de différentiel (2) Trascinatori differenziale (2): 1:10 4wd tutti
29 ECX232024 Differential Rebuild, (2):
1:10 4wd All
ECX Diff. Rep-Set 1:10 alle
4WD Kit de joints de différentiel Differenziale rigenerato (2): 1:10 4wd tutti
30 ECX232025 Center Drive, Out Drives:
1:10 4wd All
ECX Antriebswelle Mitte 1:10
alle 4WD Noix de cardan central (2) Trasmissione centrale e semiassi 1:10 4wd tutti
31 ECX232026 Front, Driveshafts, Set (2):
1:10 4wd All
ECX CVD Set: 1:10 4WD
alle (2) Cardan avant (2) Set trasmissione anteriore (2): 1:10 4wd tutti
32 ECX232027 Driveshaft Rebuild, (2):
1:10 4wd All
ECX Reparaturset
Antriebswelle: (2) 1:10 alle
WD
Kit de réparation de cardan
avant (2)
Albero di trasmissione
rigenerato (2): 1:10 4wd tutti

57
Part # | Nummer
Numéro | Codice Description Beschreibung Description Descrizione
33 ECX232028 Pinion Gear, 9T/12T x 3mm,
Mod 1
ECX Ritzel 9T/12T x 3mm,
Mod 1 Pignon 9T/12Tx 3mm, mod 1 Pignone 9T/12T x 3mm, Mod 1
34 ECX233000 Shock, Complete, (2):
1:10 4wd All
ECX Stoßdämpfer kpl. (2) 1:10
alle 4WD Amortisseur complet (2) Ammortizzatore completo (2): 1:10 4wd tutti
35 ECX233001 Shock Rebuild, (2):
1:10 4wd All
ECX Stoßdämpfer
Reparaturset (2) 1:10 alle
4WD
Kit de réparation d'amortisseur
(2)
Ammortizzatore rigenerato (2):
1:10 4wd tutti
36 ECX233002 Top, Bottom Shock Ends:
1:10 4wd All
ECX Stoßdämpferendstücke
oben /unten (2)1:10 alle 4WD
Chapes, coupelle, cales
d'amortisseurs
Terminali superiore e inferiore
ammortizzatore 1:10 4wd tutti
37 ECX233003 Shock Spring, Black, Set:
1:10 4wd All
ECX Dämpferfedern Set
Schwarz (4) 1:10 alle 4WD Set de ressorts noirs Set molle nere ammortizzatore 1:10 4wd tutti
38 ECX234001 Front Suspension Arm Set:
1:10 4wd All
ECX Querlenkerarme vorne Set
(2) 1:10 alle 4WD Set de triangles avant Set bracci sospensioni anter. 1:10 4wd tutti
39 ECX234002 Rear Suspension Arm Set:
1:10 4wd All
ECX Querlenkerarme hinten
Set (2) 1:10 alle 4WD Set de triangles arrière Set bracci sospensioni poster. 1:10 4wd tutti
40 ECX234003 Rear Hub Set: 1:10 4wd All ECX Radträger hinten Set (2)
1:10 alle 4WD Fusée arrière (2) Set mozzi poster. 1:10 4wd tutti
41 ECX234004 Front Steering Hub Set:
1:10 4wd All
ECX Rad / Lenkträger Set
vorne (2) 1:10 alle 4 WD Fusée avant (2) Set mozzo sterzo anter. 1:10 4wd tutti
42 ECX234005 Link Set, Plastic:
1:10 4wd All
ECX Anlenkungen Kunststoff
Set (6) 1:10 alle 4 WD
Set de biellettes plastique avec
rotules
Set collegamento, plastica
1:10 4wd tutti
43 ECX235001 Screw, M2.5, M2 (20) ECX Schrauben M2,5, M2 (20) Vis M2 et M2.5 (20) Vite M2.5, M2 (20)
44 ECX235002 Screw, M3, Flat Head,
Self-Tapping (25)
ECX M3 Schrauben Flachkopf
(25)
Vis auto-taraudeuse à tête
fraisée M3 (25)
Vite M3, Testa piatta,
autofilettante (25)
45 ECX235003 Screw, M3, Self-Tapping (35) ECX M3 Schrauben Flachkopf
selbstschneidend (25) Vis auto-taraudeuse M3 (35) Vite M3, Autofilettante (35)
46 ECX235004 Screw, M3, Flat Head, (10) ECX M3 Schrauben (10) Vis à tête fraisée M3 (10) Vite M3, Testa piatta (10)
47 ECX235005 Screw, M3, Binder Head (45) ECX M3 Schrauben (45) vis à tête bombée M3 (45) Vite, M3, Testa vincolante (45)
48 ECX235006 Screw, M4, Flat Head, (5) ECX M4 Schrauben Flachkopf
(5) Vis à tête fraisée M4 (5) Vite M4, Testa piatta (5)
49 ECX236001 Lock Nut, M2.5, (5) ECX Stopmutter M2.5 Ecrou auto-freiné M2.5 Dado autobloccante M2.5, (5)
50 ECX236004 Special Hardware:
1:10 4wd All
ECX Spezialzubehör 1:10 alle
4WD Accessoires spéciaux Viteria speciale 1:10 4wd tutti
51 ECX1015 5x10x4mm Ball Bearing (8) Radlager Set: Circuit Roulements 5x10x4mm (8) 5x10x4mm Cuscinetto a sfere (8)
52 ECX1055 10x15x4mm Ball Bearing (2) Kugellager 10X15X4 (2):
Circuit Roulements 10x15x4mm (2) 10x15x4mm Cuscinetto a sfere (2)
53 ECX237000 Ball Bearing, 12x18xT4mm,
(4)
ECX Kugellager, 12x18xT4mm,
(4) Roulements 12x18x4mm (4) Cuscinetto a sfere 12x18xT4mm, (4)
54 ECX237001 Ball Bearing, 6x12xT4mm, (4) ECX Kugellager, 6x12xT4mm,
(4) Roulements 6x12x4mm (4) Cuscinetto a sfere 6x12xT4mm, (4)
55 ECX237002 Ball Bearing, 8x14xT4mm, (4) ECX Kugellager, 8x12xT4mm,
(4) Roulements 8x14x4mm (4) Cuscinetto a sfere 8x14xT4mm, (4)
56 ECX43009 Front/Rear Wheel, 2.8" (2):
1:10 4wd Circuit
ECX v/h Räder 2.8'': 1:10 4WD
Circuit (2) Jantes av/arr 2.8" (2) Ruota anter./poster. 2.8" (2): 1:10 4wd circuito
57 ECX43010 FR/R Wheel & Tire,
Premount (2): Circuit
ECX Vorder / Hinterrad +
Reifen montiert 1:10 4WD
Circuit (2)
Pneus montés sur jantes (2) Ruota anter./poster. & gomma
premontata (2): circuito
58 ECX1060 M4 Locknut, Flanged (4) M4 Stoppmutter (4): Circuit Ecrou auto-freiné épaulé M4 (4) M4 dado autobloccante flagiato
(4)
59 ECX1048 Body Clips (8) Karosserie Clips (8): Circuit Clips de carrosserie (8) Clips carrozzeria (8)
60 DYNS1215 Brushed Motor Bürstenmotor Moteur à balais Motore a spazzole
61 DYNS2210 Brushed ESC Regler Bürste Variateur électronique ESC per mot. a spazzole
62 SPMS603 Servo Servo Servo Servo
63 SPMSR201 SR201 2Ch DSM Sport
Surface Rx - Coated
Spektrum SR201 2 Kanal DSM
Sport Surface Empfänger -
spritzwasserfest
Récepteur SR201 2 voies DSM -
Résine de protection
SR201 2Ch DSM Sport RX car
- rivestito
ECX230012 Body, Black/Orange:
1:10 4wd Circuit
ECX Karosserie Schwarz/
Orange 1:10 2wd & 4wd
Circuit
Carrosserie Circuit 1/10 4wd
noire/orange
Carrozzeria nero/arancio
1:10 4wd circuito
SPM2322 DX2E 2-Ch DSMR
Surface Radio
Spektrum DX2E 2 Kanal DSMR
Fernsteuerungs System Emetteur DX2E 2 voies DSMR DX2E 2-Ch DSMR Radio per auto

40859
Created 10/2013
© 2014 Horizon Hobby, Inc.
ECX, the ECX logo, Circuit, Dynamite, Speedpack, DSM, DSM2, DSMR and the
Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, Inc.
The Spektrum trademark is used with permission of Bachmann Industries, Inc.
www.ecxrc.com
ECX03011 | ECX03011AU | ECX03011I
®
