Circul-Air CACSM-22 User manual

CIRCUL-AIR
SOFT-MOUNT
EXTRACTOR
NFPA 1851:2020
COMPLIANT
Item # CACSM-22
DIMENSIONS OF THE WASHER:
LENGTH: 27.0” (L)
DEPTH: 30.5” (D)
HEIGHT: 38.7” (H)
DEPTH (DOOR OPEN): 52.6”
WEIGHT: 190 lbs.
SHIP WEIGHT: 275 lbs
PERMISSIBLE WATER PRESSURE: 20 - 120 psi
MAX SPIN - 100 G Force
POWER SUPPLY: 120 V~ 60Hz

2 PRODUCT FEATURES
PRODUCT FEATURES
The advanced brushless DC motor drives the drum directly without using a belt and pulley.
The tilted drum and extra-large opening make it possible to load and unload clothing more easily.
The larger drum enables more tumbling action and greater centrifugal force, but also less tangling
and wrinkling of the laundry.
Youcan see the laundry throughout the cycle.
Safely and conveniently secure the door slightly ajar with the magnetic door plunger. This will
promote air circulation and allow the interior ofthe machine to dry. To use this feature, after the load
has been removed, do not close the door completely. When the magnetic door plunger comes into
contact with the metal washer cabinet, it will secure the door slightly open allowing the interior of
the washer to dry.
Stainless steel drum offers extreme durability.
DIRECT DRIVE SYSTEM
TILTED DRUMAND EXTRA-LARGE DOOR OPENING
ULTRA CAPACITY
SEE-THROUGH DOORAND BIG DOOR
MAGNETICDOOR PLUNGER
STAINLESS STEEL DRUM

IMPORTANT SAFETYINSTRUCTIONS 3
IMPORTANT SAFETYINSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or
explosion, electric shock, or to prevent property damage, injury to persons, or death.
Your Safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always
read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word DANGER, WARNING or
CAUTION.
Thesewords mean:
DANGER
You will be killed or seriously injured if you don’t immediately follow instructions.
WARNING
You can be killed or seriously injured if you don’t follow instructions.
CAUTION
You may be slightly injured or cause damage to the product if you do not follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of
injury, and tell you what can happen if the instructions are not followed.

4 IMPORTANT SAFETYINSTRUCTIONS
IMPORTANT SAFETYINSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
WARNING
For your safety, the information in this manualmust be followed to minimize the risk of fire or
explosion, electric shock, or to prevent property damage, injury to persons, or death.
BASIC SAFETYPRECAUTIONS
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic
precautions, including the following.
•Before use, the washer must be properly installed as
described in this manual.
•Do not wash articles that have been previously cleaned
in, washed in, soaked in, or spotted with gasoline, dry-
cleaning solvents, or other flammable or explosive
substances, as they give off vapors that could ignite or
explode.
•Do not add gasoline, dry-cleaning solvents, or other
flammable or explosivesubstances to the wash
water.These substances give off vapors that could
ignite or explode.
•Under certainconditions, hydrogen gas may be produced
in a hot water system that has not been used for 2
weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the
hot water system has not been used for such a period,
before using the washer, turn on all hot water faucets
and let the water flow from each for several minutes.
This will release any accumulated hydrogen gas. As the
gas is flammable, do not smoke or use an open flame
during this time.
•Do not allow children to play on or in the washer. Close
supervision of children is necessary when the washer is
used near children.
•Before the washer is removed from service or
discarded,remove the door to prevent children from
climbing inside.
•Do not install or store the washer where it will be
exposedto the weather or freezing temperatures.
•Do not tamper with controls.
•Do not repair or replace any part of the washer or
attempt any servicing other than asdescribed inthis
manual. We strongly recommend that any service be
performed by a qualified technician.
•See Installation Instructions for grounding requirements.
•ALWAYS follow the fabric care instructions supplied by
the garment manufacturer.
•Do not place items exposed to cooking oil in your
washer. Items contaminated with cooking oils may
contribute to a chemical reaction that could cause a load
to catch fire.
•This washer is not designedfor maritime use or for
mobile installations such as in RVs, aircraft, etc.
•Turn off the water faucets and unplugthe washer if the
machine is to be left for an extended period of time,
such as during vacations.
•Packaging material can be dangerous for children. There
is arisk of suffocation! Keep all packaging from children.
•Always check the inside of the washer for foreign
objects before loading laundry. Keep the door closed
when not in use.
•Do not reach into the appliance if the tub is moving.
•WARNING: This product contains chemicals known to
the State of California to cause cancer and birth defects
or other reproductive harm. Wash hands after handling.
GROUNDING INSTRUCTIONS
Thisappliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk
of electric shock by providing a path of least resistance for electric current. This appliance equipped with a
cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an
appropriate outlet that is properly installedandgrounded in accordancewith alllocalcodes andordinances.
WARNING
Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check with a
qualified electrician or servicer if you are in doubt as to whether the appliance is properly grounded. Do not
modify the plug provided with the appliance. If it does not fit the outlet, have a proper outlet installed by a
qualifiedelectrician.Failure to follow these warnings can cause serious injury, fire, electric shock, or death.

IMPORTANT SAFETYINSTRUCTIONS 5
IMPORTANT SAFETYINSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
WARNING
For your safety, the information in this manualmust be followed to minimize the risk of fire or
explosion, electric shock, or to prevent property damage, injury to persons, or death.
SAFETYINSTRUCTIONS FORINSTALLATION
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic
precautions, including the following.
•Refer to INSTALLATION INSTRUCTIONS for
detailed grounding procedures. Installation
instructions are packed with the washer for
installer’s reference. If the washer is moved to a
new location, have it checked and reinstalled by a
qualified service technician. Failure to follow this
warning can cause serious injury, fire, electric shock,
or death.
•Do not, under any circumstances, cut or remove
the third (ground)prong from the power cord.
Failure to follow this warning can cause serious
injury, fire, electric shock, or death.
•For personal safety, this appliance must be
properlygrounded. Failure to follow this warning
cancause serious injury, fire, electric shock, or
death.
• The power cord of this appliances equipped with
a 3-prong (grounding) plug which mates with a
standard 3-prong (grounding) wall outlet to minimize
the possibility of electric shock from this appliance.
•This washer must be plugged into a 120 VAC, 60 Hz
grounded outlet. Failure to follow this warning can
causeserious injury, fire, electric shock, or death.
• Have the wall outlet and circuit checked by a
qualified electrician to make sure the outlet is
properly grounded. Failure to follow this warning
can cause serious injury, fire, electric shock, or
death.
• Where a standard 2-prong wall outlet is
encountered, it is your personal responsibility
and obligation to have it replaced with a properly
grounded 3-prong wall outlet. Failure to follow this
warning can cause serious injury, fire, electric shock,
or death.
• Do not install on carpet. Install washer on a solid
floor. Failure to follow this warning can cause
serious leak damage.
•Do not remove ground prong. Do not use an
adapter or extension cord. Plug into a grounded
3-prong outlet. Failure to follow these warnings can
causeserious injury, fire, electric shock, or death.
•The washer should always be plugged into its own
individual electrical outlet which has a voltage rating
that matches the rating plate. This provides the best
performance and also prevents overloading house
wiring circuits which could cause a fire hazard from
overheated wires.
• Never unplug your washer by pulling on the power
cord. Always grip plug firmly and pull straight out
from the outlet. Failure to follow this warning can
causeserious injury, fire, electric shock, or death.
•Repair or immediately replace all power cords that
have become frayed or otherwise damaged. Do not
use a cord that shows cracks or abrasion damage
along its length or at either end. Failure to follow
this warning can cause serious injury, fire, electric
shock, or death.
• When installing or moving the washer, be careful
not to pinch, crush, or damage the power cord.
Failure to follow this warning can cause serious
injury, fire, electric shock, or death.
•The washer must be installed and electrically
grounded by a qualified service person in
accordance with local codes to prevent shock
hazardand assure stability during operation.
• The washer is heavy. Two or more people may be
needed to install and move the appliance. Failure to
do socanresult in backor other injury.
• Store andinstallthe washer where it will not be
exposed to temperatures below freezing or
exposed to outdoor weather conditions. Failure to
follow this warning cancause serious leak damage.
•Do not install the washer in humid spaces to reduce
the risk of electric shock. Failure to follow this
warning can cause serious injury, fire, electric shock,
or death.
• To reduce the risk of injury to persons, adhere to all
industry recommended safety procedures including
the use of gloves and safety glasses.
Failure to follow all of the safety warnings in this
manual could result in property damage, injury to
persons or death.

6
IMPORTANT SAFETYINSTRUCTIONS
IMPORTANT SAFETYINSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
WARNING
For your safety, the information in this manualmust be followed to minimize the risk of fire or
explosion, electric shock, or to prevent property damage, injury to persons, or death.
SAFETYINSTRUCTIONS FOR USE, CARE,CLEANING, AND DISPOSAL
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic
precautions, including the following.
• Unplug the washer before cleaningto avoid
the risk of electric shock.
• Never use harsh chemicals, abrasive
cleaners, or solvents to clean the washer.
They will damage the finish.
• Do not put oily or greasy rags or clothing on
top of the washer. These substances give off
vapors that could ignite the materials.
• Do not wash items that are soiled with
vegetable or cooking oil. These items may
contain some oil after laundering. Due to the
remaining oil, the fabric may smoke or catch
fire by itself.
• Disconnect this appliance from the
power supply before attempting any user
maintenance. Turning the controls to the OFF
position does not disconnect this appliance
from the power supply. Failure to follow this
warning can cause serious injury, fire, electric
shock, or death.
• Do not combine laundry products for use in
one load unless specified on the label.
• Do not mix chlorine bleach with ammonia
or acids such as vinegar. Follow package
directions when using laundry products.
Incorrect usage canproduce poisonous gas,
resulting in serious injury or death.
• Do not reach into the washer while parts are
moving. Before loading, unloading, or adding
items, press the START/PAUSE button and
allow the drum to coast to a complete stop
before reaching inside. Failure to follow this
warning can cause serious injury, fire, electric
shock, or death.
• Do not allow children to play on or in the
washer. Close supervision of children is
necessary when the washer is used near
children. As children grow, teach them the
proper, safe use of all appliances. Failure to
comply with these warnings could result in
serious injury to persons or death.
• Destroy the carton, plastic bag, and other
packing materials after the washer is
unpacked. Children might use them for play.
Cartons covered with rugs, bedspreads, or
plastic sheets canbecome airtight chambers.
Failure to comply with these warnings could
result in serious injury to persons or death.
• Keep laundry products out of children’s
reach. To prevent injury to persons, observe
all warnings on product labels. Failure to
comply with these warnings could result in
serious injury to persons or death.
• Remove the door to the washing
compartment to avoidthe danger of children
or small animals getting trapped inside
before your washer is removed from service
or discarded. Failure to do so can result in
serious injury to persons or death.
SAVE THESEINSTRUCTIONS

PARTSAND ACCESSORIES 7
PARTS ANDACCESSORIES
Parts
Accessories
drawer
panel
bolts
cord
Tub
(-)
(+)
bolt holes)
Harness
Wrench
hose)

8CONTROL PANELFEATURES

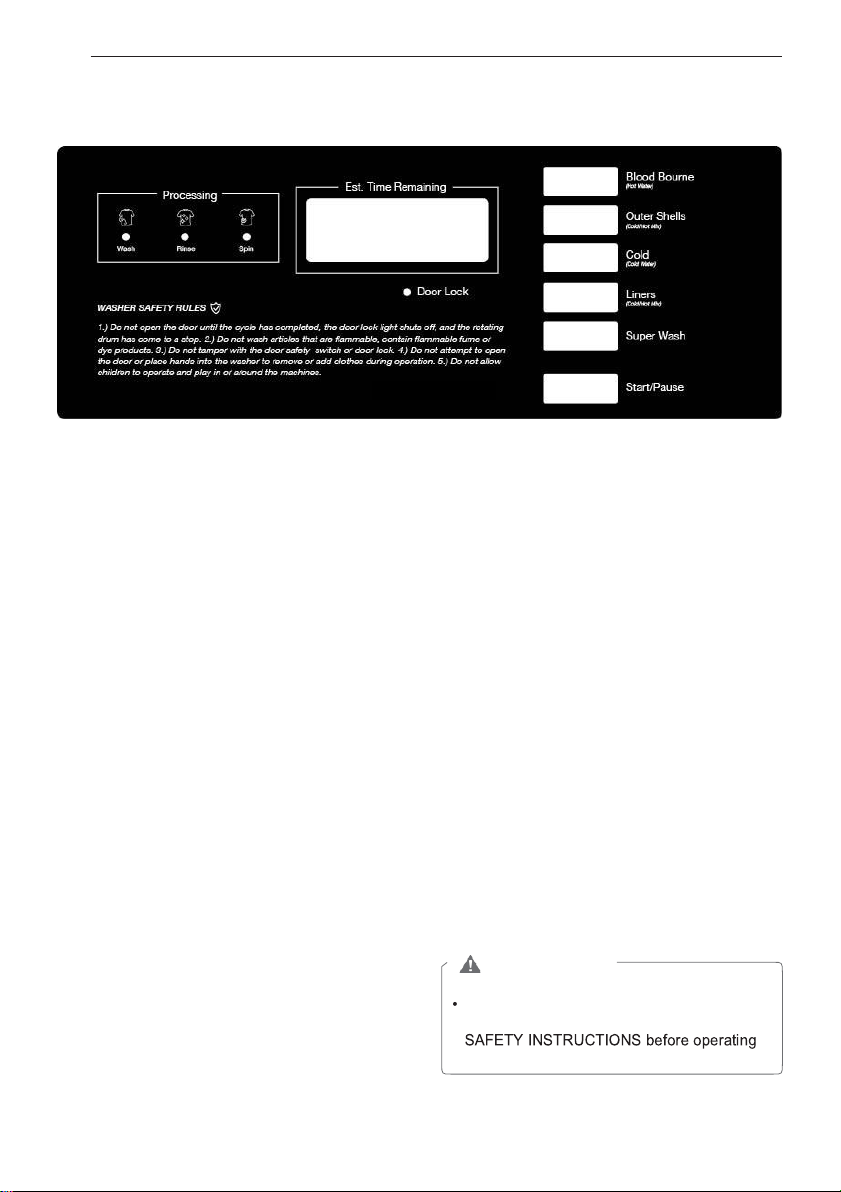

CONTROL PANEL FEATURES
Display LED
The displayshows the remaining time and
programming options.
Error codes are also displayed here.
Cyclebutton
Press the CYCLE button to select the desired
cycle based on laundrytypes and conditions.
BloodBorne
Increased temperature for cleaning heavilysoiled
clothing.
Use for warm washing for heavy external fabrics.
Use for cold washing for sturdy fabrics, such as
in-station clothing.
Use for warm washing for internal fabrics.
Optional cycle
Super Wash: Wash cycle with longest run time.
Start/Pause button
The Start/Pause LED flashes when the cycle has
been chosen.
Status LED
LED
Description
LED flashes whenever the
washing cycle is in operation.
LED flashes whenever the
rinsing cycle is in operation.
LED flashes whenever the
spinning cycle is in operation.
LED flashes whenever the
door lock is activated.
Outer Shells
Cold
Liners

NOTE
The floor must be strong andrigid enough
to support the weight of the washer,
when fully loaded, without flexing or
bouncing. If your floor has too much flex,
you may need to reinforce it to make it
more rigid. A floor that is adequatefor
atop-loading washer may not be rigid
enough for afront-loading washer, due to
the difference in the spin speed and
direction. If the floor is not solid, your
washer may vibrate and you may hear and
feel the vibration throughout your station.
Before installing the washer, make sure
the floor is clean, dry and free of dust,
dirt, water and oils so the washer feet
cannot slide easily. Leveling feet that can
move or slide on the floor can contribute
to excess vibration and noise due to poor
contact with the floor.
INSTALLATION INSTRUCTIONS 9
INSTALLATION INSTRUCTIONS
Checking and choosingthe
proper location
Install the washing machine on a solid floor
that is strong andrigid enough to support the
weight of the washing machine, even when
fully loaded, without flexing or bouncing. If
the floor has too much flex, you may need to
reinforce it to make it more rigid. If the floor
is not solid, it may cause severe vibration and
noise.
1
Clean the floor before installation.
- Make sure to select solid and smooth
ground.
2
Two or more people are needed for moving
and unpackingthe washing machine.
3
Allow for sufficient spacebetween the walls
andthe washing machine for installation.
22.5”
(56.5 cm)
30.5”
(77.0 cm)
52.6”
(133.6 cm)
4.0”
(10.0 cm)
You must allow sufficient space for water lines,
the drain line, and airflow.
1.0”
(2.5 cm)
27.0”
(69.0 cm)
1.0”
(2.5 cm)
Spacerequirements
Installing on afloor
NOTE
Be sure to allow for wall, door, or floor
moldings that may increase the required
clearances.

10 INSTALLATION INSTRUCTIONS

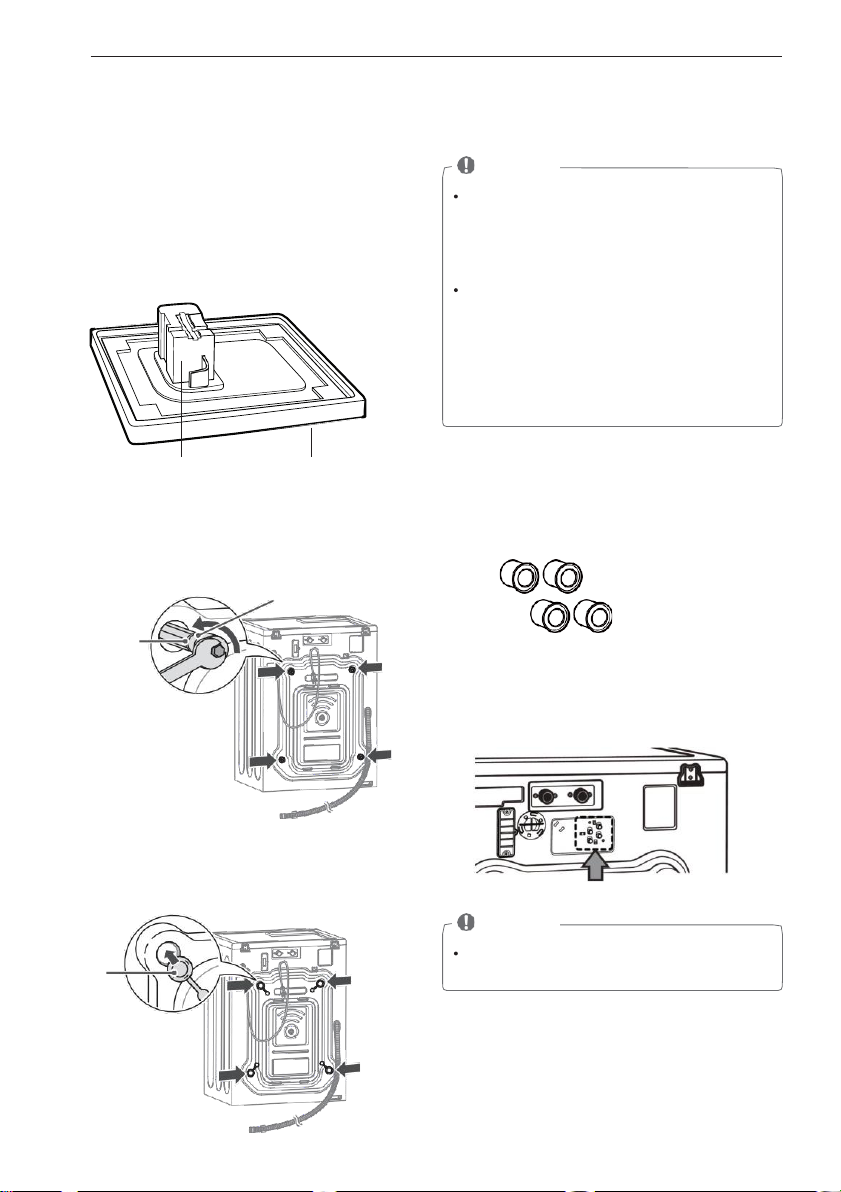

Unpacking and removing
shippingbolts
When removing the washer from the carton
base, be sure to remove the foam drum
support in the middle of the carton base.
If you must lay the washer down to remove the
base packaging materials, always lay it carefully
on its side.
DO NOT lay the washer on its front or back.
FoamTub Support Carton Base
1
Remove the bottom two shipping bolts
with the wrench (included) to fully loosen
all four shipping bolts by turning them
counterclockwise and then pullingthem out.
Shipping
bolt
2
Locate the four- h ol e caps included in
the accessory pack and install them in
the shipping bolt holes.
Cap
Installing Hole cap
1
Use provided hole caps.
Holecap
2
Insert the hole cap (4pieces) into the
hose connected to the back of the
machine.
NOTE
Savethe bolt assemblies for future use.
To prevent damage to internal
components, DO NOT transport the
washer without reinstalling the shipping
bolts.
Failure to remove shipping bolts and
retainers may cause severe vibration
and noise, which can lead to permanent
damage to the washer. The cord is
secured to the back of the washer with
a shipping bolt to help prevent operation
with shipping bolts in place.
Retainer
NOTE
In case of using auto dosing feature,
inserting hole cap is unnecessary.

INSTALLATION INSTRUCTIONS 11
Connectingthe waterlines
1
Check the rubber seals on both sides of the
hose.
- Insert a rubber seal into the threaded
fittings on each hose to prevent leaking.
Rubber seal
4
Connect the hoses to the water inlets tightly
by hand and then tighten another 2/3 turn
with pliers.
- Connect the blue hose to the cold-water
inlet andthe red hose to the hot water
inlet.
Water hose
(To water inlet on the
washing machine)
Water hose
(To faucet)
Cold
water inlet
Hot water
inlet
2
Connect the water supply hoses to the HOT
and Cold-water faucets tightly by hand and
then tighten another 2/3 turn with pliers.
- Connect the blue hose to a cold-water
faucet and the red hose to a hot water
faucet.
3
After connecting the inlet hose to water
faucets, turn on the water faucets to flush
out foreign substances (dirt, sand, sawdust)
in the water lines. Let water draininto a
bucket, and check the water temperature.
5
Check for leaks by turning on the faucets.
- If water leaks, check steps 1 to 4 again.
WARNING
Do not overtighten. Damage to the
coupling can result.
NOTE
For your safety, and for extended productlife,
use only authorized components. The
manufacturer is not responsible for product
malfunction or accidents caused by the use of
separately purchased unauthorized parts.
Use new hoses when you install the washing
machine. Do not reuse old hoses.Use only the
inlet hoses provided with thewasher.
Periodicallycheck the hoses for cracks,
every 5 years.
Do not stretch the water hoses intentionally,
and make sure that they arenot crushed by
other objects.
Water supply pressure must be between20 PSI
and 120 PSI (138~827 kPa). If thewater supply
pressure is more than 120 PSI, a pressure-
reducing valve must be installed.
To provide optimum washing performancethe
hot water temperature should be set
60°F (15°C).
WARNING
Do not overtighten the hoses.
Overtightening can damage the valves
resulting in leaking andproperty damage.

12 INSTALLATION INSTRUCTIONS

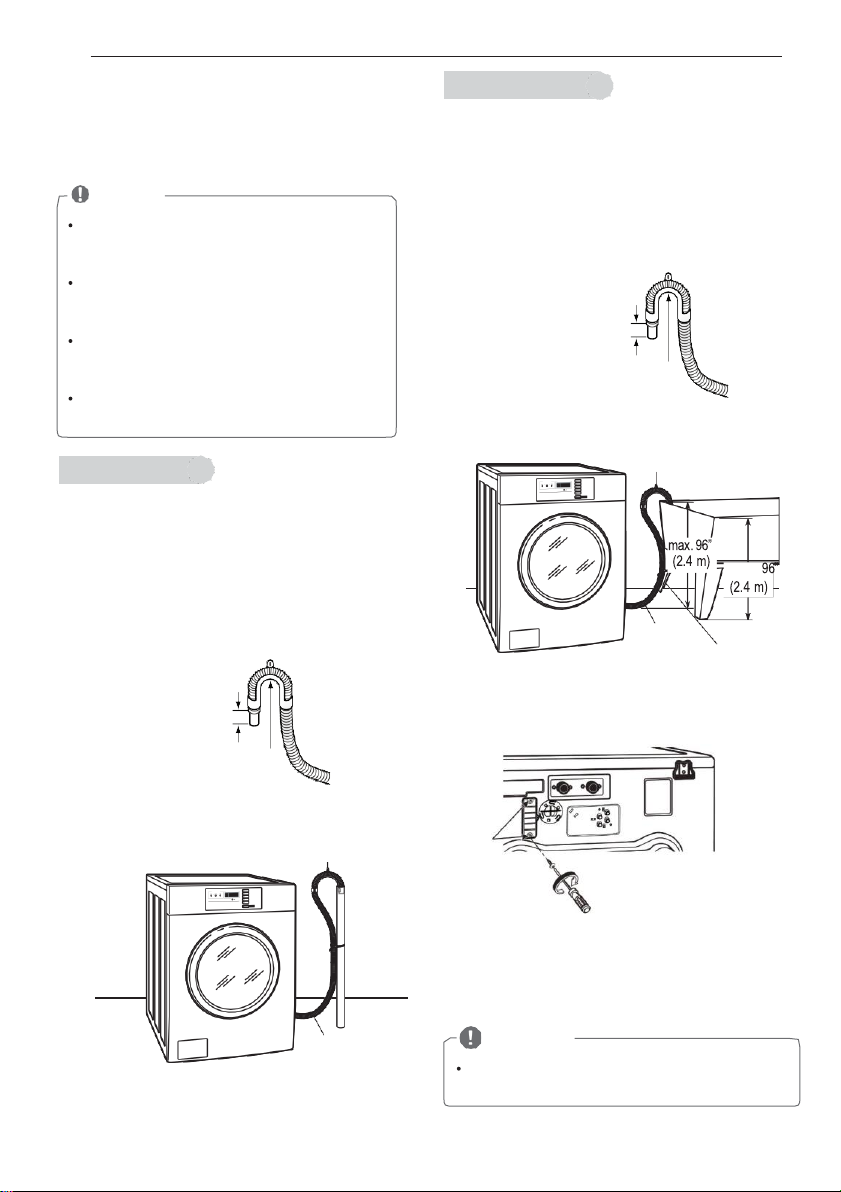

Connectingthe drainline
Secure the drain hose in place to prevent
moving and leaking.
1 Clipthe end of the hose into the elbow
bracket.
- Connect the elbow bracket within 4 inches
(10 cm) from the end of the drain hose.
If the drain hose is extended more than
4 inches (10 cm) beyond the end of the
elbow bracket, mold, or microorganisms
could spreadto the inside of the washer.
No more than
4 inches (10 cm)
ElbowBracket
2
Hang the end of the drain hose over the side
of the laundrytub.
1
Clip the end of the hose into the elbow
bracket.
- Connect the elbow bracket within 4 inches
(10 cm) from the end of the drain hose.
If the drain hose is extended more than
4 inches (10 cm) beyond the end of the
elbow bracket, mold or microorganisms
could spreadto the inside of the washer.
No more than
4 inches (10 cm)
ElbowBracket
2
Insert the end of the drain hose into the
standpipe. ElbowBracket
3
Use a tie strap to secure the drain hose in
place.
Connectingthe auto dosing
1 Unscrew the 2 screws on the protective
cover. Remove the protective cover.
2
Connect the auto dosing harness from
accessory parts.
3 Use a tie strap to secure the drain hose in
place.
Usinga laundrytub
Drain Hose
Elbow
Bracket
Laundry Tub
m ax.
Drain Hose
Tie Strap
NOTE
The drain hose should be properly secured.
Failure to properly secure the drain hose
can result in flooding and malfunction.
Total height of the hose end should not
exceed 96 inches (244.8 cm) from the bot-
tom of the washer.
The drain must be installed in accordance
with any applicable local codes and
regulations.
Make sure that the water lines are not
stretched, pinched, crushed, or kinked.
NOTE
The voltage of the auto dosing machine
should be the same as the washer’s voltage.
Usinga standpipe

INSTALLATION INSTRUCTIONS 13

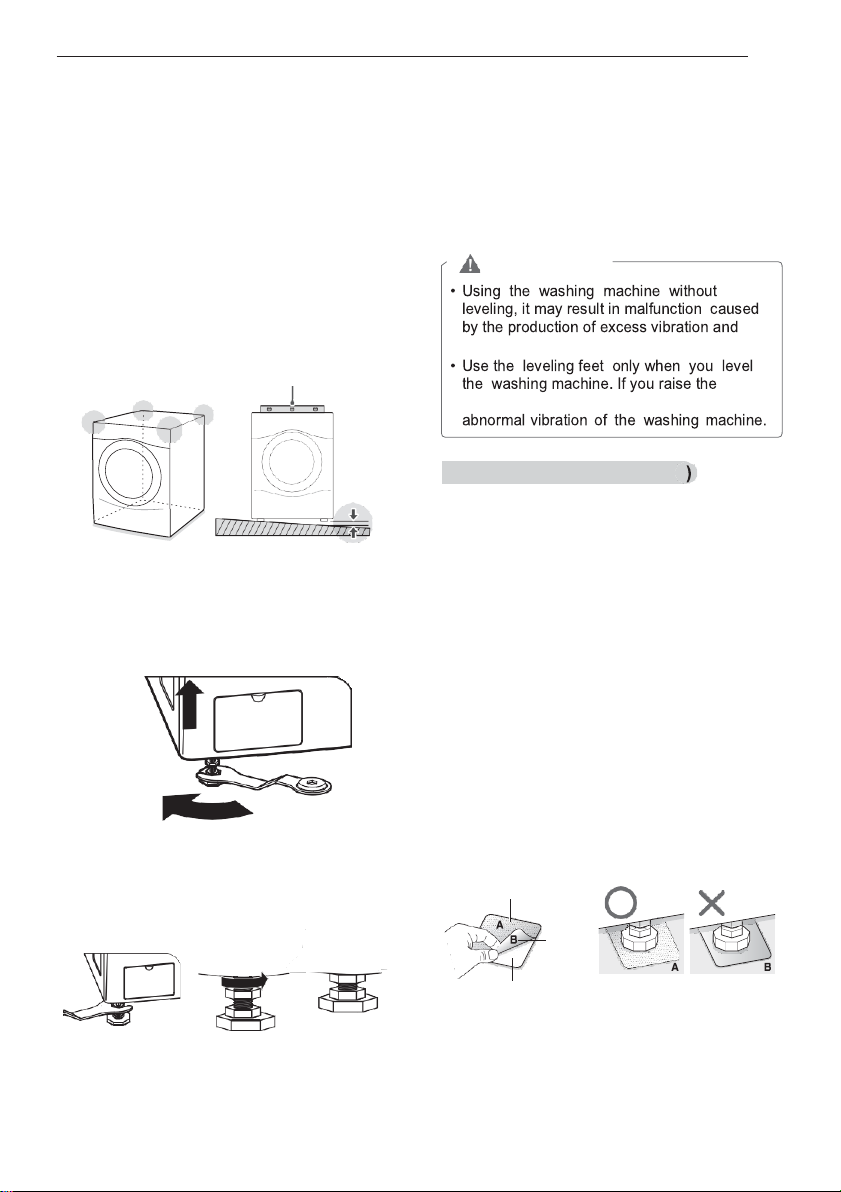

Leveling the washingmachine
The washer tub of your new washing machine
spins at very high speeds. To minimize
vibration, noise, and unwanted movement, the
floor must be perfectly level and solid.
1
Check the washing machine’s level.
- Check the precise level by rocking the top
edges of the washing machine or placing
a level on the washing machine. The slope
beneath the washing machine must not
exceed 1°, and all four leveling feet must
rest firmly on the floor.
4 Check the washing machine’s level again.
- Push or rock the top edges of the washing
machine gently to make sure that the
washing machine does not rock.
- If the washing machine rocks, repeat steps
1 to 3.
Level
1°
2
Turn the lower leveling feet clockwise to
level the washing machine.
- Turning the lower leveling feet clockwise
raises the washing machine.
Raise
3 Turn the locknuts counterclockwise and
tighten them when the washing machine is
level.
Tighten all 4
locknuts securely
using
the wrench.
If you install the washing machine on a slippery
surface, it may move because of excessive
vibration. Incorrect leveling may cause
malfunction through noise and vibration. In the
event of this, lay the non-skid pads under the
leveling feet and adjust the level.
1
Cleanthe floor to attach the non-skid pads.
- Use a dry rag to remove and clean foreign
objects or moisture. If moisture remains,
the non-skid pads may slip.
2
Adjust the level after placingthe washing
machine in the installation area.
3
Place the adhesive side of the non-skid pad
on the floor.
- It is most effective to install the non-skid
pads under the front legs. If it is hardto
place the pads under the front legs, place
them under the back legs.
This side up
Adhesive
side
Remove
backing
4
Check the washing machine’s level again.
- Push or rock the top edges of the washing
machine gently to make sure that the
washing machine does not rock. If the
washing machine rocks level the washing
machine again.
Usingnon-skid pads(optional
WARNING
noise.
leveling feet unnecessarily, it may cause

14
OPERATINGYOURWASHER
OPERATINGYOUR WASHER
1. Ready mode
The cycle LEDs flash at the same time,
and displays “PUSH.”
2. Select the cycle
Press the desired button and press the
Start button. The display LED will show the
remaining time and the selected cycle start.
3. Changecourse
You cannot change the cycle while the
machine is running.
4. Cyclefinish
The machine stops and the LED display shows
“END” with a beeper sound.
□Do not work any button and stop the washer
(When the washer is operating) or (when a
cycle is in progress)
WARNING
To reduce the risk of fire, electric shock, or
injury to persons, read the IMPORTANT
this appliance.

14 MAINTENANCE
Cleaning the door seal
Clean the door seal once a month to prevent
thebuild-up of dirt in the door seal.
1
Wear rubber gloves and protective goggles.
2
Dilute 3/4 cup (177 ml) of liquid chlorine
bleach in 1 gallon (3.8 L) of water.
3
Soak a sponge or a soft cloth in this diluted
solution and wipe down all around the door
seal.
4
Wipe any moisture with a dry towel or cloth
after cleaning.
5
Leave the door open to allow the door seal
to dry completely.
MAINTENANCE 15
Cleaning the drum
Using the washing machine in a humid space
for a long period of time may lead to a buildup
of black mold and germs in the air inside the
washer tub and affect your health. If you clean
the washer tub regularly on a monthly basis
Using the “Blood Borne” (hot) cycle will keepthe
washer tub clean for hygienic use.
1 Add tub cleaner or limescale remover into
the detergent dispenser drawer.
- Do not exceed the maximum detergent
limit line when you add it. The detergent
mayremain in the washer tub after
cleaning
NOTE
Never load laundry while cleaning the tub.
The laundry may damage or become
contaminated. Make sure to clean the
washer tub when it is empty.
Leave the door open after finishing the
laundry to keep the tub clean.
Cleaning the tub can be repeated
monthly.
Safely and conveniently secure the
door slightly ajar with a magnetic door
plunger. This will promote air circulation
and allow the interior of the
machine to dry.

16 MAINTENANCES

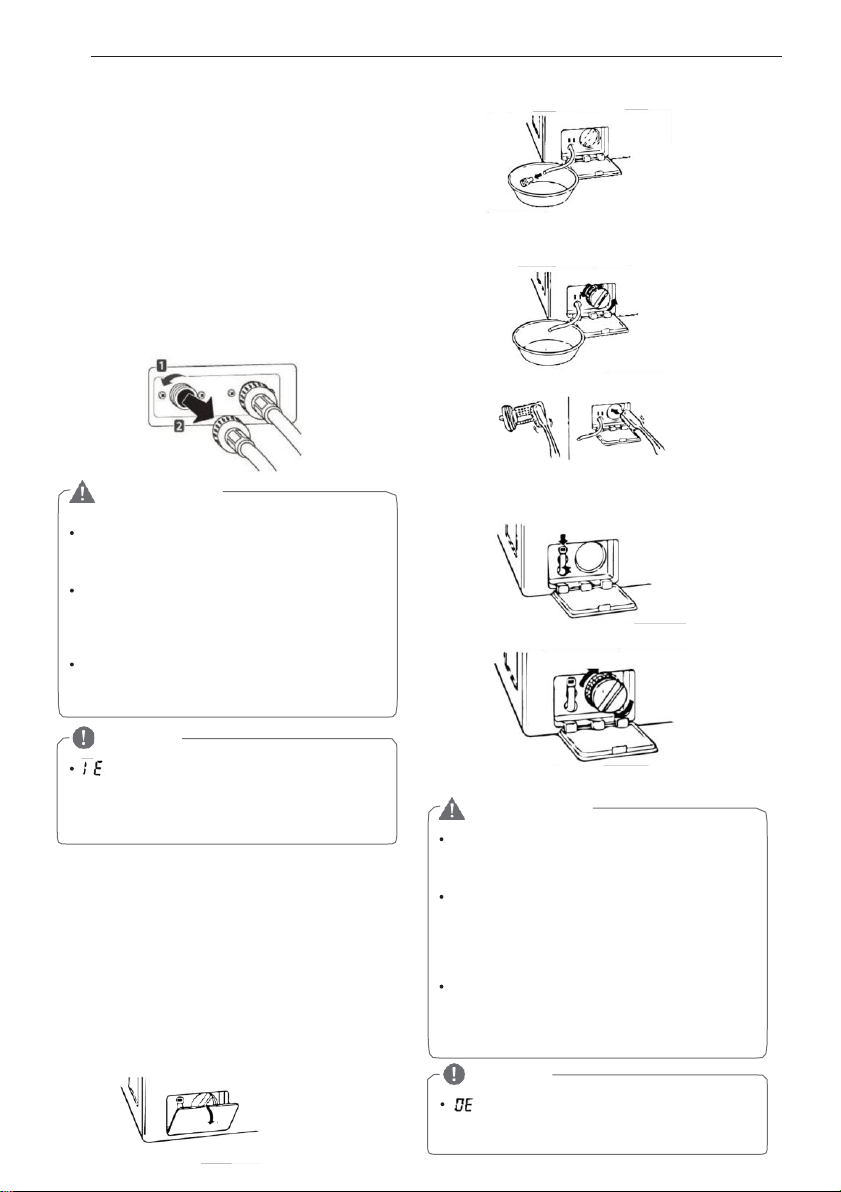

Cleaning the water inlet filters
Clean the water inlet filters periodically to prevent
clogging. Take extra care to clean the water inlet
filters for areas using hard water. Water may not
be supplied if there are foreign objects, such as
rust, sand, or stones in the water inlet filters.
1 Pull out the plug to turn off the
washing machine.
2 Turn off the faucets connected with the
water inlets.
3 Remove the water inlet hoses.
Cleaning the drain pump filters
The washing machine fails if the drain pump filter
is clogged. Periodically clean the drain filter to
prevent clogging with foreign objects.
1 Pull out the plug to turn off the
washing machine.
2 Open the drain pump filter cover.
3 Unclip the drain hose and remove the plug
from the drain hose to drain the remaining
4 Twist the pump filter counterclockwise to
remove.
5 Clean the pump filter and opening.
6 Recap the plug onto the drain hose and
reattach the drain hose.
7 Insert the drain pump filter.
8 Close the drain pump filter cover.
WARNING
Unplug the power cord and turn off the
faucets before cleaning. Failure to do so
may cause electric shock.
Do not use the washing machine without
inlet filters. If you use the washing machine
without the inlet filters, it will cause leaks and
malfunction.
If you use the washing machine in an area
with hard water, the inlet filter may clog due
to buildup.
NOTE
message will blink on the display when
the water pressure in the detergent drawer
is weak or an inlet filter is clogged with dirt.
Clean the inlet filter.
water.
WARNING
Make sure to pull out the plug before
Cleaning. Failure to do so may cause
electric shock.
Opening the drain filter will result in water
overflowing if there is water in the washer
tub. Make sure to check if the water is
completely drained before opening the
drain filter.
If you use the washing machine with the
drain filter reassembled incorrectly after
cleaning it or with no filter, it may cause
leaks or malfunction of the machine.
NOTE
message will blink when the drain
Pump filter is clogged with dirt. Clean the
drain pump filter.

ERROR MODE 17

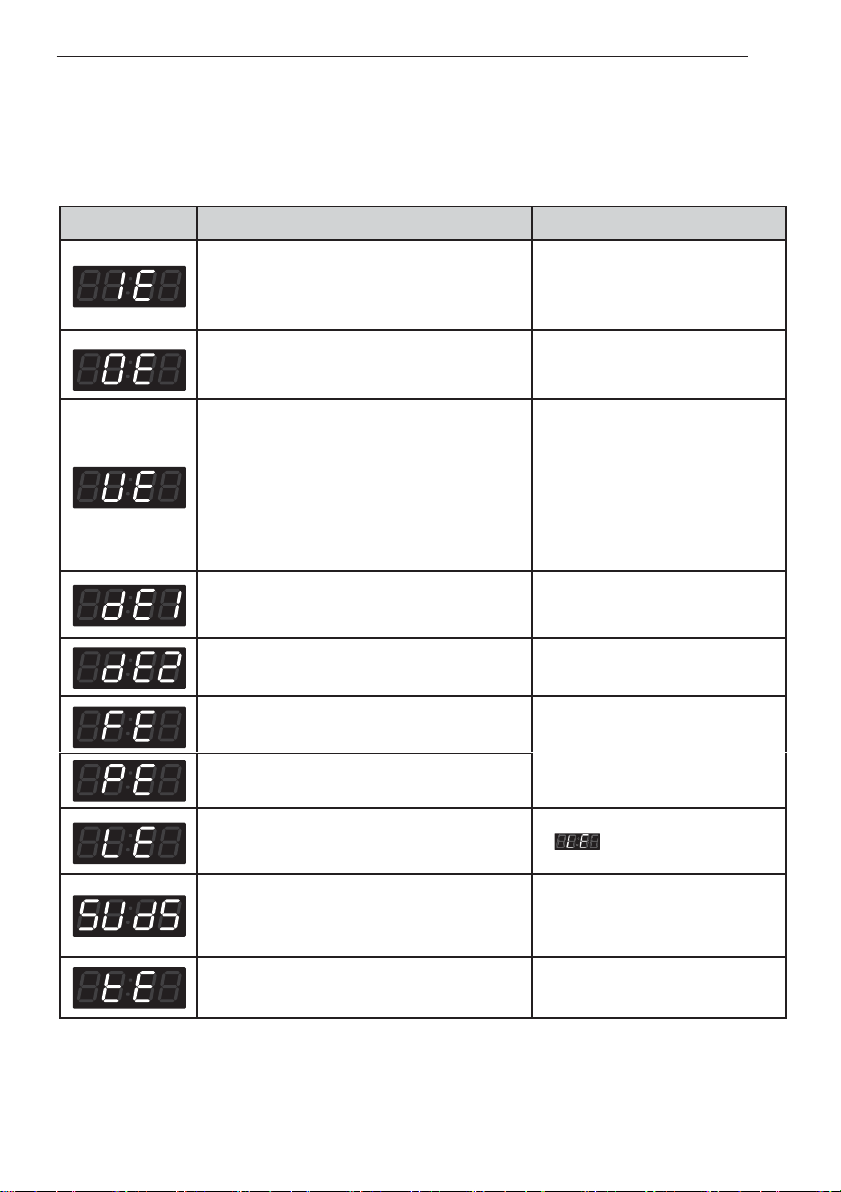

ERROR MODE
Meaning of ErrorCodes that LED displays during theoccurrence
oftheproblem.
Problem
PossibleCause
Solution
•Water supply is not adequate in the area.
•Water supply taps are not completely open.
•Water inlet hose is bent.
•The filter of the inlet hose clogged.
Check another tap in the house.
Fully open tap.
Straighten hose.
Check the filter of the inlet hose.
• Drain hose is bent or clogged.
• The drain filter is clogged.
Clean and straighten the drain
hose.
Cleanthe drain filter.
•Load is too small.
• Load is out of balance.
•The appliance has an imbalance detection
and correction system. If individual heavy
articles are loaded (bath mat, bathrobe, etc.)
and the imbalance is too great, after several
attempts to restart the spin cycle the
machine will stop and the error code will be
displayed.
Add 1~2 similar items to help
balance the load.
Rearrange load to allow proper
spinning.
•Is the door opened or not completely closed?
Close the door completely.
* If it will not open, call for
service.
•Door lock is broken.
Check the door switch.
•The water overfills due to a faulty water
valve.
Close the water tap.
Unplug the power plug.
Callfor service.
•The water level sensor malfunctioned.
•Overloading motor.
Restart the cycle after 30 minutes.
If is not released, call for
service.
•Too much detergent is used.
This is not an error. It indicates a
suds removal routine.
It will clear and restart the cycle
when the suds are gone.
• Thermistor is opened or shorted.
The thermistor should be
replaced.
*For further troubleshooting, please contact Circul-Air-Corp @ 800-795-1150.
**Please have your product serial number ready before calling.

18 POWER FAIL RECOVERY& DEFAULT WASHER SETTINGS & SPECIFICATIONS
POWER FAIL RECOVERY
In case of power failure, the machine stops running but the time displayremains on, showing the
time just before power failure.
SPECIFICATIONS
Model
Name
Front-loadingWashing Machine: CACSM-22
Power supply
120 V~ 60Hz
Size
27.0” (L) X 30.5” (D) X 38.7” (H), 52.6” (D with door open)
68.6 cm (L) X 77.5 cm (D) X 98.3 cm (H), 133.7 cm (D with door open)
Weight
190 lbs (86kg)
Wash capacity
3.6 cu.ft
Spinspeed
100 G Force
Permissible water pressure
20 - 120 psi (138~ 827 kPa)
