Citronic MPSD-1 User manual

OPERATINGINSTRUCTIONS
USBAndDualSDCardMP3Player
MPSD - 1

1
1. Do not use the apparatus near water.
2. Clean only with dry cloth.
3. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
4. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
5. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding- type plug has two blades and a third grounding prong. The wide
blade or the third prong is provided for your safety. If the provided plug does not t into your outlet, consult an
electrician for replacement of the obsolete outlet.
6. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
7. Only use attachments/ accessories specied by the manufacturer.
8. Use only with a cart, stand, tripod, bracket or table specied by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
9. Unplug this apparatus during lighting storms or when unused for long periods of time.
10. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
WARNING
To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture. The apparatus
shall not be exposed to dripping or splashing and that no objects lled with liquids, such as vases, shall be
placed on the apparatus.
CAUTION: To reduce the risk of electric shock, do not remove
any cover. No user-serviceable parts inside. Refer servicing to
qualied service personnel only.
The lightning ash with arrowhead symbol within the equilateral triangle is intended to alert the use
to the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of
sucient magnitude to constitute a risk of electric shock.
The exclamation point within the equilateral triangle is intended to alert the user to the presence of
important operation and maintenance (servicing) inst ructions in the literature accompanying this
appliance.
CAUTION
To prevent electric shock, do not use this polarized pl ug with an extension cord, receptacle or other outlet
unless the blades can be fully inserted to prevent blade exposure.
IMP
O
RTANT
S
AFETY IN
S
TR
UC
TI
O
N
S
DO NOT OPEN
RISK OF ELECTRIC SHOCK
Please keep these instructions for
future reference
Please read these instructions carefully

2
 Auto cue  Auto BPM
 Pitch Bend  Fader start
 Pitch display  Folder Search
 Fast Track Search  Single/Continuous
 Music Master Tempo  Mp3 Track Listings, ID3 Tags
 SD & SDHC cards available  Full Functional MP3 Playback
 1/75th second frame search  Big LCD Display with Backlight
 Selectable elapsed and remain time display  Jog Wheel Pitch Bend +/-100%
 Seamless Loop (uninterrupted loop playback)  USB mass storage device available
 Adjustable pitch percentages: +/-4%,+/-8%,+/-16%
1. SEARCH MODE BUTTON – Press this button to toggle the function of the JOG WHEEL between fast search
mode (the LED is lit) and normal mode. The fast search function is automatically turned off when the JOG
WHEEL is not used for more than 15 seconds.
 PLAY MODE: normally the JOG WHEEL is used as pitch bend tool to synchronize the beats of the playing
track to another track. When the fast search mode is turned on, you can use the JOG WHEEL to search very
quickly forward /backward inside the current track.
 PAUSE MODE: normally the JOG WHEEL is used to search very precisely (1 frame precision) for the exact
cue point. When the fast search mode is turned on, you can use the JOG WHEEL to search very quickly
forward/backward inside the current track.
2. SOURCE SELECT BUTTON –This button lets you toggle between USB Port and SD Card slots. This lets
you choose which music source device will play on either side. The LEDs will verify which source is active.
Glowing red LED signifies slot 1, green LED signifies slot 2；glowing red LED and green LED signifies
USB port. The function can only be selected under pause mode.
MAIN FEATURES
CO
NTR
O
L
S
AND F
U
N
C
TI
O
N
S
CONTROL UNIT
129
4
3
512
78
1415
16
17
1819
11
20
21
24
23 24 23 22
610
13

3
3. SEAMLESS LOOP (See basic operation for more information.)
 IN BUTTON – Allow you to set the cue point without stopping the playback. This button also sets the
beginning of a seamless loop. When the button contains a cue point it lights up.
 OUT BUTTON – Used to set the endpoint when looping music. The point where you press the button
will be memorized as an endpoint of the loop. The player starts to loop seamlessly until you press this
button again to exit.
 RELOOP BUTTON –When a loop is programmed but not active you can also restart the loop. press the
RELOOP button to enter the loop again. To exit the loop presses the OUT button.

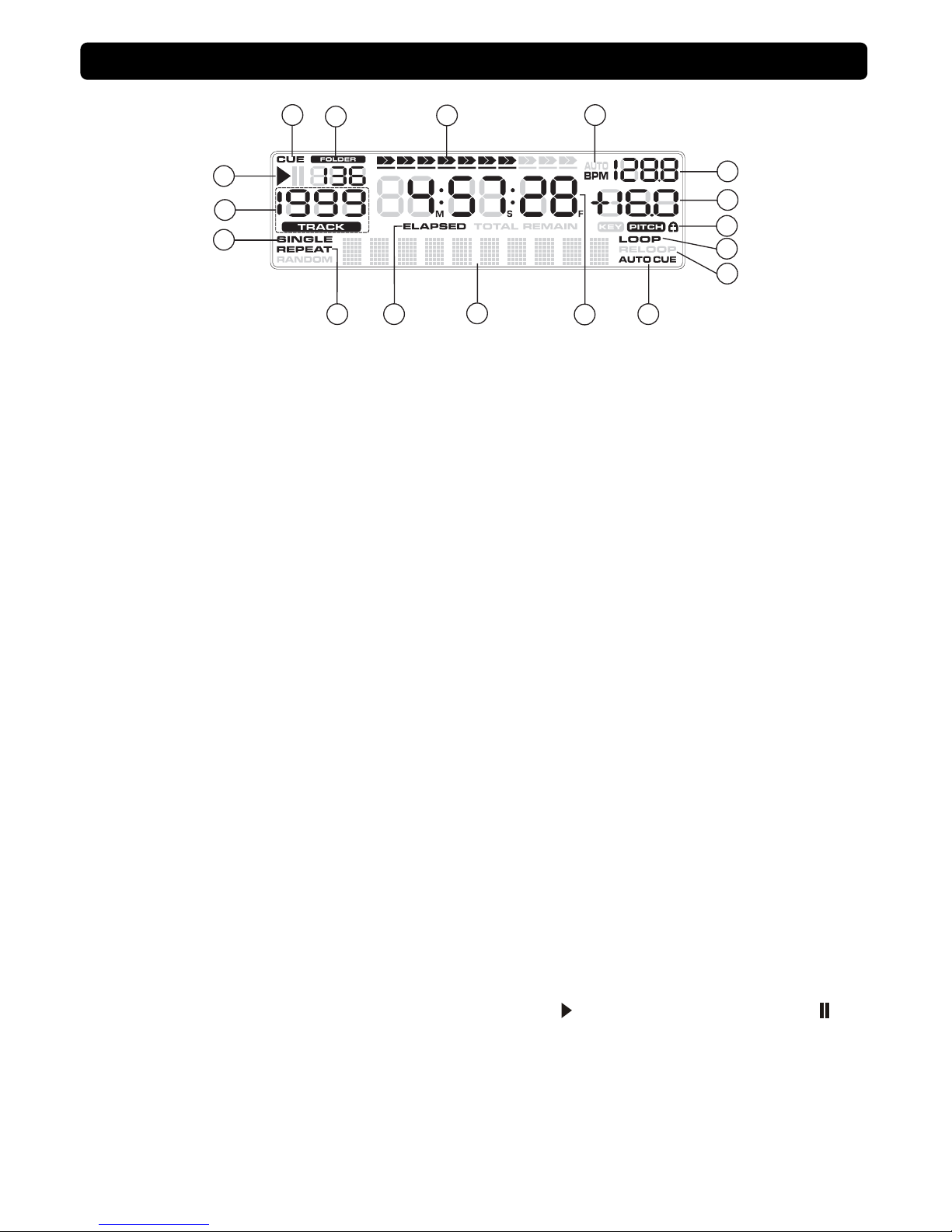

4. LCD DISPLAY – This high quality LCD display indicates all the functions, as they are occurring. The
display ICONS will be explained in the next section.
5. TAP/BPM BUTTON – The unit has a full automatic BPM-counter. In some rare cases the automatic beat
counter doesn't count as it should do (beat are out of the normal range or there' s simply no beat to detect).
In these cases you can help the beat counter by manually tapping this button to the rhythm of the beat.
See basic operation for more information.
6. PITCH SLIDER –This slider is used to adjust the playback pitch percentage. The slider is a set adjustment
and will remain set until the pitch slider is move or the pitch function has been turned off. This adjustment
can be made with or without a music source device (USB stick or SD card) in the player. The pitch
adjustment will remain even if a music source device (USB stick or SD card) has been remove and will
reflect on any other music source device inserted into the player. That is to say, if you set a +2% pitch on
one music source device, remove that device and insert another, that music source device too will have a
+2% pitch. The amount of pitch being applied will be displayed in the LCD.
7. SD CARD SLOT – Gently insert a SD card into the slot. Press the SD card while in Pause/Cue mode to eject
the SD card.
8. USB PORT – This is the USB port where you insert your USB mass storage device for playing MP3 files.
9. TIME BUTTON – The TIME button switches between elapsed playing time and remain time in a track. The default
mode is remain time.
10. FOLDER BUTTON – Use to switch between FOLDER and TRACK search modes. When the LED of
FOLDER button is lit, the player is in the FOLDER search mode, otherwise it is in TRACK search mode.
11. TRACK KNOB – Use this knob to select track or folder, depending on these two different modes as below.
 In TRACK mode, use to select a track. Turning track knob will navigate between tracks. Holding down
and turning track knob will rapidly forward / back skip through the tracks by 10 tracks per click.
 In FOLDER mode,turning track knob will forward / back skip between folders. You can also switch
between displaying Folder Name/FILE NAME / TITLE / ARTIST/GENRE/BITRATE for easy searching
by each pressing the TRACK button. Release the TRACK button when you see the information you
want to keep on the display. You can find more information in basic operation paragraph.
12. PITCH ON/OFF BUTTON – Use to turn the PITCH SLIDER function on and off. When ON, the button will
glow.
13. PITCH SELECT BUTTON – Press the button in order to change pitch percentage of 4%,8%,16%. When the
pitch range is selected, the related LED will glow.
14. PITCH BEND BUTTONS – The speed rises while the “+button” is pressed and returns to the original pitch
when the button is released. The speed drops when the “–button” is pressed and returns to the original pitch
when the button is released. These buttons can be used to synchronize the beats of 2 tracks.
15. SEARCH BUTTONS
This search button allows you to quickly scan backwards through a track.
This search button allows you to quickly scan forwards through a track.
16. PLAY/PAUSE BUTTON – Every time you press the PLAY/PAUSE button the player changes from play to
pause or from pause to play. The button blinks as long as the player is set to pause.
CONTROLS AND FUNCTIONS CONTROL UNIT

4
17. CUE BUTTON –Pressing the CUE button during playback immediately pauses playback and returns the
track to the last set cue point. The CUE LED will glow when the unit is in cue mode. The LED will also flash
every time a new CUE POINT is set. The CUE button can be held down to momentarily play the music.
When you release the CUE button it instantly returns to the CUE POINT. You can also tap the CUE button
to create a STUTTER EFFECT.
18. JOG WHEEL – This jog wheel serves 3 functions depending on the mode you are working in.

The wheel works as a pitch bend during Playback. Turning the wheel clockwise can increase the pitch
percentage up to 100%, and turning the wheel in the counterclockwise direction can decrease the pitch
percentage down to -100%. The pitch bend will be determined on how long you turn the jog wheel
continuously.

The jog wheel acts as a slow frame search (1/75 sec) control when the music is not playing but either paused
or set to a cue point. To set a new cue point, spin the wheel then press PLAY or IN when you have
determined the proper position. Press CUE to return to the “CUE POINT”.

If the search function is active, you will be able to search at a higher speed through all the tracks.
19. POWER SWITCH button – It is used to switch the power on/ standby. When power cord plug into the rear
socket to be the STANDBY mode, all LED are off but STANDBY LED.
(a) In the STANDBY mode, press power button to POWER ON,” Please insert memory device” is
displayed in the LCD.
(b) In the POWER ON mode, press and hold the power button more than 2sec. to standby.
20. TEMPO LOCK BUTTON – This button is used to choose the tempo lock mode and the pitch control mode.
Tempo lock mode allows speeding up or slow down playback speed without altering the tonality of music.
21. SGL/CTN BUTTON – You can choose between “single track mode” and “continuous play”.
 Continuous play: the complete memory device will be played without interruption. (mostly used in pubs)
 Single track: player stops at the end of each track and waits at the beginning of the next track. (mostly
used by deejays) Push the SGL/CTN button for more than 1 second to switch between normal and “auto
cue” mode. See basic operation for more information.
22. POWER CONNECTOR – Plug in power adapter here. It is a switching adapter to suitable to each voltage.
23. FADER START – This connection allows two players to be linked for relay play. This can also be
connected to a mixing board that supports automatic fader start.
24. AUDIO OUTPUTS –Output for the audio signals is from each player. Use the supplied cinch/cinch cables to
connect these outputs to the CD/line inputs of your mixing unit.
CO
NTR
O
L
S
AND F
U
N
C
TI
O
N
S
CONTROL UNIT

5
1. CUE INDICATOR –This indicator will glow when the device is in CUE mode and will flash every time a new
CUE POINT is set.
2. FOLDER INDICATOR – Indicates the number of the currently playing folder.
3. TIME BAR INDICATOR –Shows either time remaining or elapsed depending on the setting of the TIME
BUTTON.This bar will begin to flash shortly before the end of a track. The flashing bar is a great visual
reminder a track is about to end regardless of which time mode the unit is.
4. BPM STATUS – This will indicate that the AUTO BPM counter is active.
5. BPM METER – Indicates the BPM value of the currently playing track.
6. PITCH METER – Indicates the percentage of a track's pitch.
7. TEMPO LOCK– Indicates if the tempo lock is activated (lock symbol).
8. LOOP INDICATOR – Indicates if LOOP function is activated.
9. RELOOP INDICATOR – Indicates if a loop has been set which can be activated with the Reloop function
("Reloop").
10. AUTO CUE STATUS – Indicates if Auto Cue is activated ("AUTO CUE"). Press and hold the SGL/CTN for
1 second to turn the Auto Cue function on and off.
11. TIME DISPLAY – Indicates the time of the chosen Time mode in minutes, seconds and frames.
12. INFORMATION INDICATOR – Indicates the current name of the track, of the folder and the sampling rate.
13. TIME MODE – Indicates the elapsed time of a track ("ELAPSED") or the remaining time of a track
("Remain"). Change between these two modes with the Time button.
14. REPEAT INDICATOR – Indicates whether the unit is in REPEATED play mode.
15. SINGLE INDICATOR – Indicates whether the play mode is set to single ("SINGLE") or continuous mode
(no display).
16. TRACK INDICATOR – Indicates the number of the currently playing track.
17. PLAY/PAUSE INDICATOR – Indicates the device play mode (" "), if the player is in pause mode (" ").
CO
NTR
O
L
S
AND F
U
N
C
TI
O
N
S
LCD DISPLAY
123
17
16
15
14 12 10
13
5
6
7
8
9
4
11

6
SOURCE SELECT functions

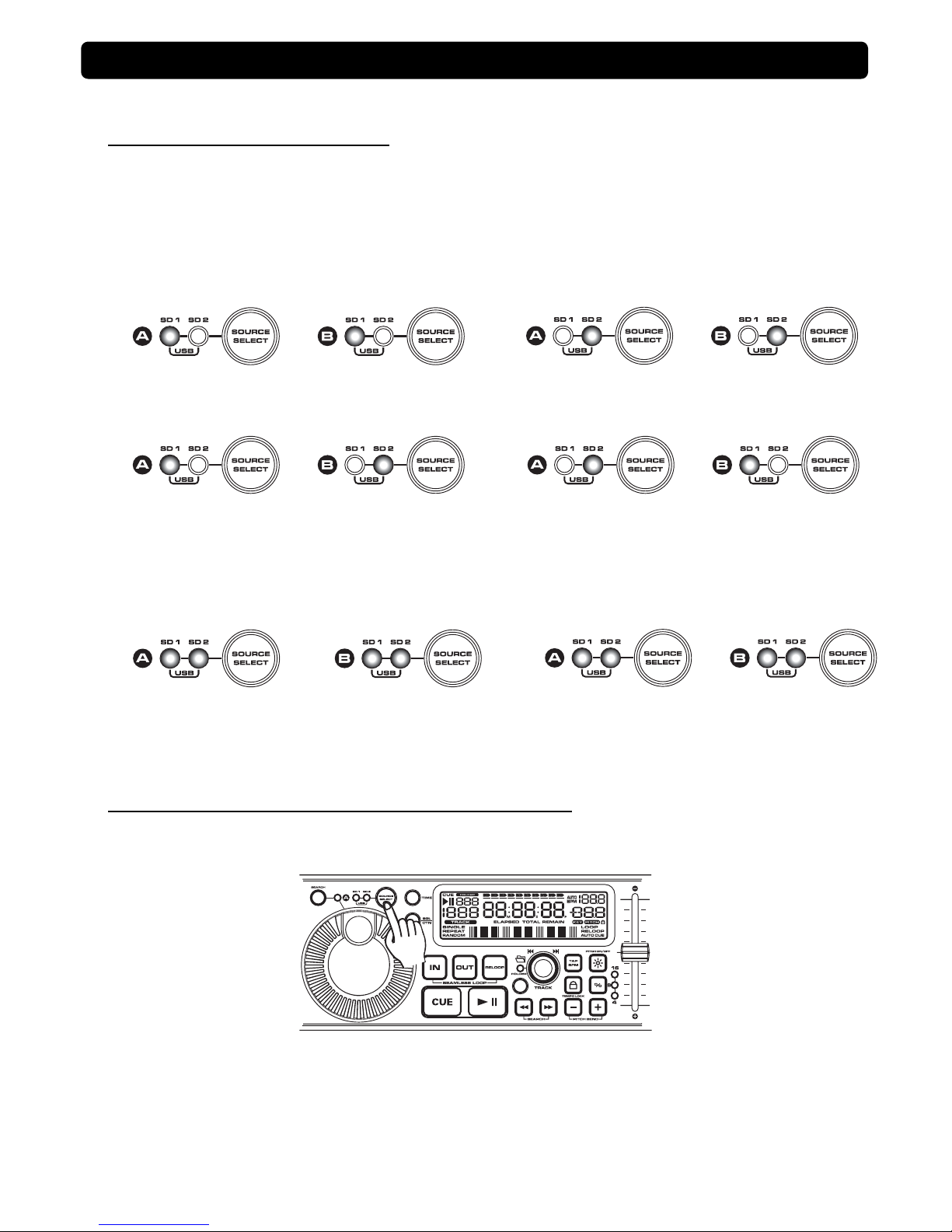

1. MUSIC SOURCE DEVICE SELECT
There is a SOURCE SELECT BUTTON to select the music source playback in each PLAYER by your
desires.
You have three different choices as below:
(a)THE SAME CARD PLAYBACK
To play the same card in both player 1 and player 2; insert the card into either SDA or SD B slot. Press
the SOURCE SELECT and both SD A LEDs in the player panel are on when card is in SD A slot; either
does when card is in SD B slot.
or
(b)TWO CARDS PLAYBACK
Each SD slot inserts a card to play. And each player select different SD slot to play.
or
(c)THE USB PLAYBACK
Press the SOURCE SELECT button and both SD A/B LEDs are on to play the USB device. When
connecting a USB stick, USB card reader, or external hard drive make sure you are correctly lined up
with the USB port and gently insert the USB connection. To disconnect a USB drive, stop playback and
"pull out" the USB connection.
or or

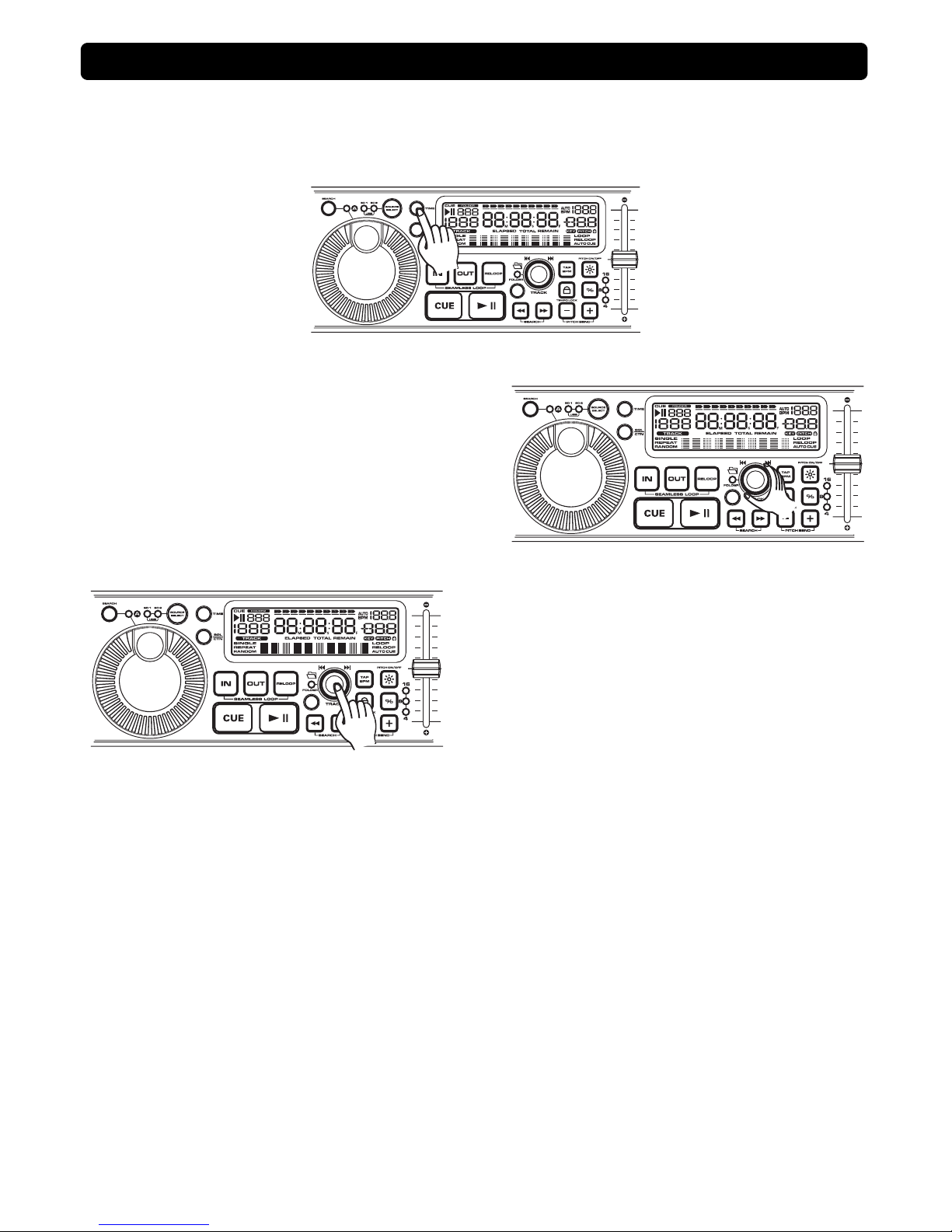

2. CHANGE MUSIC SOURCE DEVICE DURING PLAYBACK
It must in the pause mode, to press the SOURCE SELECT BUTTON you can select the other card. It will
no function when in the play mode.
BA
S
I
C
O
PERATI
O
N

7
AUTO CUE
This function will automatically set a cue point to the first
music note of each track. If a new track is selected, a new
CUE POINT will be set to reflect the new starting point.
Push the SGL/CTN button for more than 1 second, you
can switch between normal and “AUTO CUE” mode.

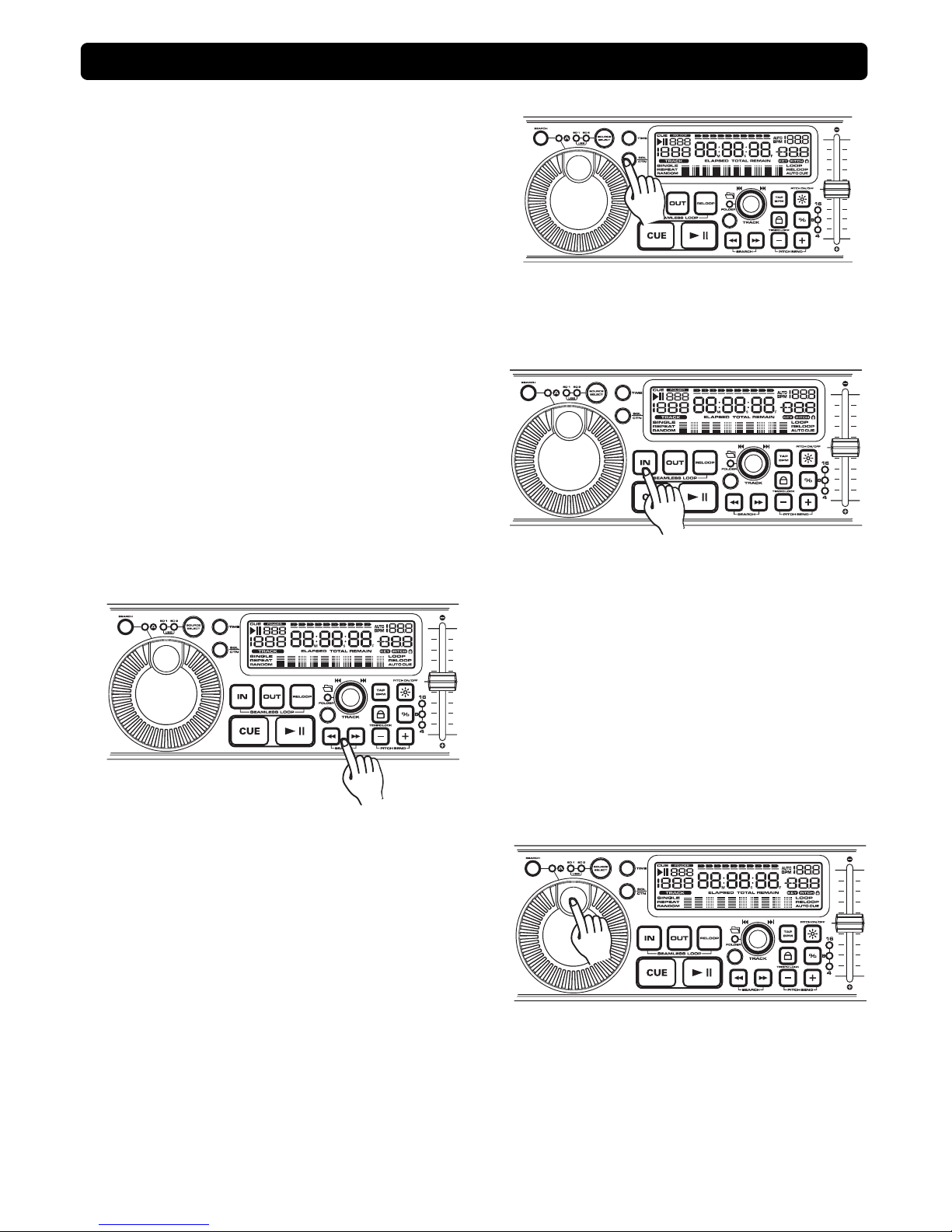

SETTING A CUE POINT
A cue point is the exact point playback will begin when the PLAY/PAUSE BUTTON is pressed.
(1) You may press the IN BUTTON on the fly (while the
music is playing). This will set a CUE Point without
music interruption. Pressing the CUE BUTTON will
now return you to the same point that you pressed the
IN BUTTON. Pressing the CUE BUTTON will now
return you to this exact point.
(2) You may also use the SEARCH KNOB to set a
cue point. While the music is in PAUSE or CUE
mode, use the SEARCH KNOB to scroll through a
track to find your desired starting point. Once you
have found your desired position press the PLAY
BUTTON to set your cue point. Pressing the
CUE BUTTON will return you to this exact point.
(3) You may also use the jog Wheel to set a cue point.
While the music is PAUSE or CUE mode, use the jog
Wheel to scroll through a track and find your desired
starting point. Once you have found your desired CUE
point press the play Button to set your cue point.
Pressing the cue Button will now return you to this
exact point.
BA
S
I
C
O
PERATI
O
N

8
SEAMLESS LOOP
1. CREATING AND PLAYING A SEAMLESS LOOP
A seamless loop is a sound loop that plays
continuously without sound interruption. You can use
this loop to create dramatic eect in your mixing. This
loop has no time limit and you could actually loop the
entire length of the current folder. You can create a
seamless loop between two continuous points of a
music source device as below:
(1) Press PLAY/PAUSE BUTTON to activate
playback mode.
(2) Press the IN BUTTON. This will set the starting
point of the SEAMLESS LOOP. The IN BUTTON
LED will blink.
(3) Press the OUT BUTTON to set the ending point
for your SEAMLESS LOOP. The IN BUTTON and
OUT BUTTON LEDs will immediately begin to
ash rapidly, indicating the SEAMLESS LOOP
mode has been activated.
2. EXITING A LOOP
To exit a SEAMLESS LOOP, press the OUT BUTTON.
The IN BUTTON and OUT BUTTON LEDs will remain
on, but will stop ashing. Music playback will resume
normal play. The IN BUTTON, OUT BUTTON LEDs
and RELOOP/LOOP indicator in the LCD will remain
on to remind you that a loop is stored in memory.
3. REPLAY LOOP
The RELOOP function allows you to return to your
stored loop at any time. The IN BUTTON and OUT
BUTTON LEDs will indicate a loop is stored in memory,
and may be played at any time. To replay the loop,
press the RELOOP BUTTON. The IN BUTTON and
OUT BUTTON LEDs will again begin to ash indicating
SEAMLESS LOOP mode has been activated and your
stored loop will immediately begin to play.
BASIC OPERATION

BASIC OPERATION
9

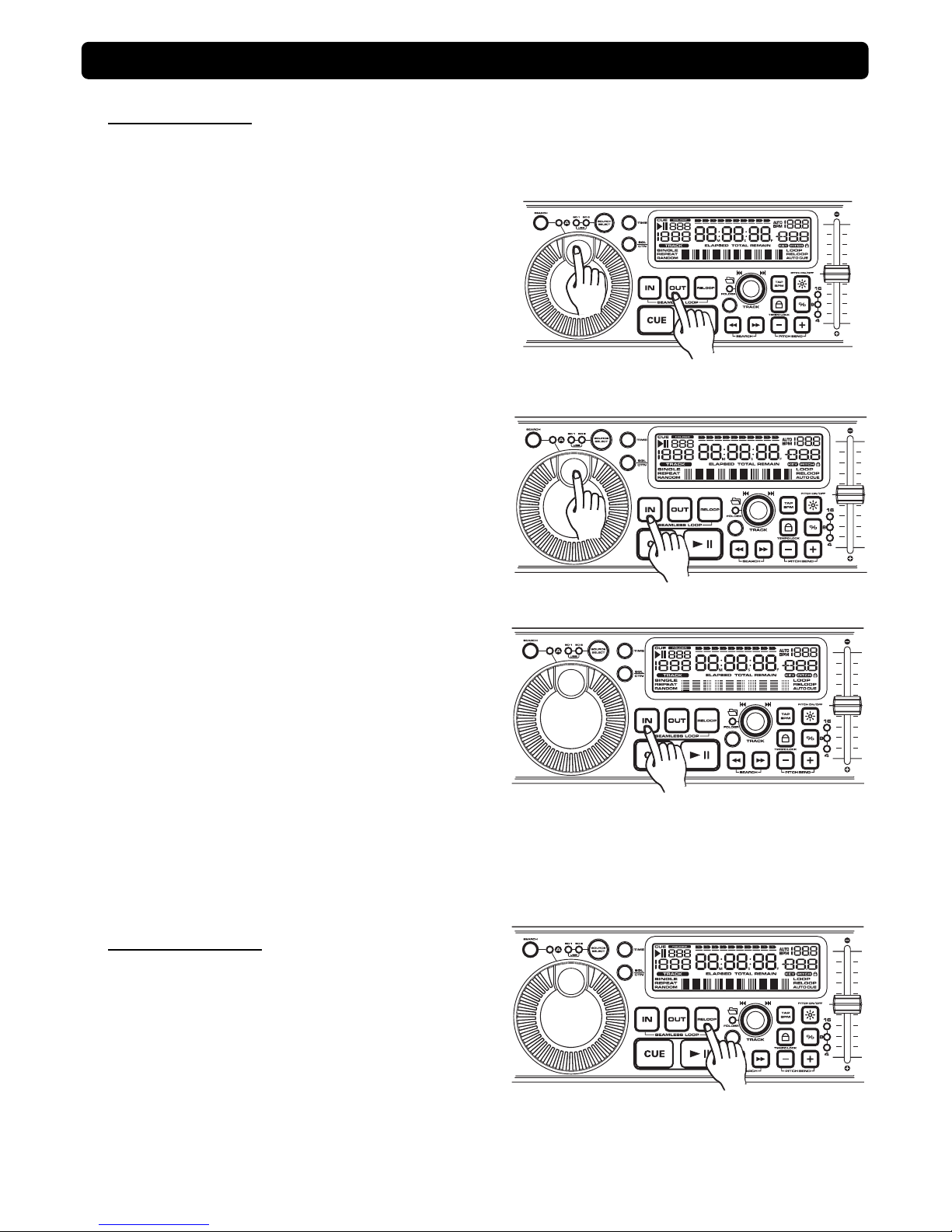

4. EDITING A LOOP
You can edit your seamless loop you obviously must rst have created a seamless loop to edit. If you
haven’t created a SEAMLESS LOOP, follow the instructions in step 1 to create a loop.
There are three methods as below:
(1) Edit a seamless loop’s ending point
You can edit the end point of the loop to make your
loop shorter or longer. Make sure the loop that you
want to edit is not in reloop mode. Turn the JOG WHEEL
or press search buttons to make the loop shorter/ longer.
Press the OUT button to set the new ending point of
your loop.
(2) Edit a seamless loop’s starting point
You can edit the starting point of the loop to make your
loop shorter. Under the reloop mode, turn the JOG
WHEEL clockwise or press search buttons to make the
loop shorter. Please make sure the new starting point
must before the ending point. Press the IN button to set
the new starting point of your l oop.
(3) Reset a loop
You can reset a new loop under the play or pause
mode. Whenever you nd a more desired starting point
press the IN button, the LED of OUT button will go out.
Find a new ending point and press the OUT button to
set the ending point of your new loop.
5. STUTTER EFFECT
You can use your loop to create a stutter eect and it
will add extra creativity to your performance. Every time
the RELOOP button is pressed, whether the loop is
playing or not, it will restart the pre-programmed loop at
once. You can press the RELOOP BUTTON repeatedly
to create the stutter eect.

10
TRACKS KNOB has three functions as below:
1. TRACK SEARCH
When FOLDER LED is off, left turning the TRACK knob to backward search and forward
search on the right turn. You can select the desired up to 999 tracks in a folder.
Turning the track knob counterclockwise will take
you to the previous track.
Turning the track knob clockwise will take you to
the to the next track.
2. FOLDER SEARCH
When FOLDER LED is on, to select folder number by turning the TRACK knob. You can
select the desired up to 999 folders.
Turning the track knob counterclockwise will take
you to the previous folder.
Turning the track knob clockwise will take you to
the to the next folder.
3. VIEW THE CONTENT OF TITLE
You can view the title content of Folder Name/FILE NAME/TITLE NAME/ARTIST/GENRE/BITRATE by each
pressing the TRACK knob.
Displayed ”Folder Name” is for folder contents
Displayed ”FILE NAME” is for file contents
Displayed ”TITLE NAME” is for title contents
Displayed ”ARTIST” is for artist contents
Displayed ”GENRE” is for genre contents
Displayed bitrate contents directly.
Note: Each display for 20 sec. It will auto return to
“TITLE NAME” when no action more than 20 sec.
BA
S
I
C
O
PERATI
O
N

11
TAP BPM
AUTO BPM is the default mode when power on. You can switch Manual /Auto BPM by pressing the “TAP
BPM” button.
Notice:
Switch Manual BPM on just need one touch the button.
Switch Auto BPM on by pressing the “TAP BPM” button more than 1 sec. and then the LCD will display “AUTO
BPM”.
There are two modes for BPM count as below:
1. Manual BPM: following the music tempo and press the “TAP BPM” button to count BPM value; from the
auto BPM to manual mode, the value won’t change until the correct BPM value is counted.
2. AUTO BPM: counting BPM value automatically without pressing “TAP BPM” button.
BA
S
I
C
O
PERATI
O
N

12
SYSTEM SETTING
Press the TIME BUTTON for 2 sec. until "PRESET " is displayed.
Note: System setting will be closed automatically when more than 5 sec no function.
Turn the TRACK KNOB to scroll through the different
submenus including: REPEAT, Reset all, and, FIRMWARE
VERSION..
You can adjust the setting by stopping on the desired
submenu and pushing the TRACK KNOB. To exit the
menu settings press the TIME BUTTON again.

REPEAT
“REPEAT: OFF” – All the tracks in the memory device will play in the normal mode.
“REPEAT: ON” – All the tracks in the current folder will play track by track until the repeat function is
deactivated.

RESET
In the ” Reset all?” section, you may reset the system memory. This will reset all your programmed menus
and restore the unit to its default settings. Press the TRACK knob will return all function setting to default
value automatically and then "reset OK" will display in the LCD.
BA
S
I
C
O
PERATI
O
N

13
FIRMWARE VERSION
You may display the unit rmware version Firmware is
the unit internal programming code. Once enter preset
menu and then turn the TRACK KNOB until Vxx.xx is
displayed. “x’s” are the version number.
FIRMWARE upgrade:
BASIC OPERATION
Step1: Copy the controller code or DSP code from PC and then save into memory device (Files must be in
root directory).
Step2. O the controller power cord and re-plug in.
Step3: Press STANDBY button to power on
Step4: Insert memory device into player A, USB port or SD card slot 1 to upgrade and “Update 10%~100%”
will show in the display (for DSP code), “UpdateUIxx” will show in the display (for controller code)
Step5: When upgrade is done ”COMPLETE” will display, removed memory device .
Step6: O the controller power cord and re-plug in. After pressing the STANDBY to power on, if “UpdateUI - -”
is displayed (failure), please repeat procedure step2 to step5.
Step7: Check the version number of the new rmware in the RESET MENU
Step8: Done
Note:
1. Please delete the code within memory device when upgrade has already done.
2. Power disconnection during processing or unknown memory device will cause failure ..

14
MODEL: MPSD - 1,
USB And Dual SD Card MP3 Player
(compatible with USB mass storage device 1.0/1.1/2.0)
POWER SOURCE: DC 6V, 2A
DIMENSIONS: 482 x 88 x 120.4 mm
WEIGHT: 2.03kg
GENERAL:
Display
Pitch control range
Pitch bend
P itch accuracy
LCD
Within +/-4%, +/-8%, +/-16%
+/-4%, +/-8%, +/-16%
+/-0.15 %
AUDIO CHARACTERISTICS (LOAD: LINE=100Kohm, TEST SIGNAL FORMAT: MP3,128Kbps)
ITEM TYPICAL LIMIT CONDITION
OUTPUT LEVEL 2V +/-0.5dB 2V +/-1dB 1KHz, 0dB (TCD-782 TRK.2)
CHANNEL BALANCE WITHIN 0.5dB WITHIN 1dB 1KHz, 0dB (TCD-782 TRK.2)
THD+N(*1): 0.006% 0.02% 1KHz, 0dB (TCD-782 TRK.2)
S/N RATIO(*2): 98dB90dB 1KHz, 0dB (TCD-782 TRK.2, 8)
L/R SEPARATION(*2): 98dB90dB 1KHz, 0dB (TCD-782 TRK.9, 11)
DYNAMIC RANGE(*2): 93dB 85dB 1KHz, -60dB (TCD-782 TRK.18)
FREQUENCY RESPONSE: 17-16KHz +/-0.2dB 17-16KHz +/-1dB (TCD-781 TRK.1,4 & 16)
NOTES:
*1: WITH 20KHz LOW PASS FILTER.
*2: WITH 20KHz LOW PASS FILTER, "IHF-A" WEIGHTED.
MP3 FORMAT
Applicable le extensions mp3 . MP3 . mP3 . Mp3
999sredloFforebmun.xaM
Disc Format
selif999.xamselifforebmun.xaM
MPEG 1 Layer 3 standard (ISO/IEC 11172-
3), which provides for single channel (‘mono’)
and two-channel (‘stereo’) coding at sampling
rates of 32, 44.1 and 48kHz.
32/40/48/56/80/96/112/128/160/192/224/2
56/320 kbps
Xing/VBRI VBR
MPEG 2 Layer 3 standard (ISO/IEC 13818-
3), which provides for similar coding at
sampling rates of 16, 22.05 and 24 kHz.
32/40/48/56/64/80/96/112/144/160 Kbps
MP3 Format
MPEG 2.5 Layer 3 standard, which provides
for similar coding at sampling rates of 8,
11.025 and 12 kHz.
32/40/48/56/64/80/96/112/144/160 Kbps
SPECIFICATION
