Thank you for your patronage. We are confident that our excellent products
and service can satisfy you. For your own safety, please read this user manual
carefully before installing the device.
In order to install , operate, and maintain the lighting safety and correctly. We
suggest that the installation and operation should be done by the verified
technician and follow the instruction Strictly.
Every person involved with the installation, operation and maintenance of this
device has to:
-be qualified
-follow carefully the instructions of this manual
INTRODUCTION:
INTRODUCTION:
INTRODUCTION:
INTRODUCTION:
Thank you for having chosen this professional moving head.
You will see you have acquired a powerful and versatile device.
Unpack the device. Inside the box you should find:
1. One DMX Cable
2. Two omega clamps
3 . User Manual
Please check carefully that there is no damage caused by transportation.
Should there be any, consult your dealer and don ’ t install this device.

Features
Features
Features
Features :
:
:
:
•La mp: Philips MSD Platinum 5R , YODN 5R or Jenbo NSK 5R Titanium .
•Color temperature: 8000K
•Channel : 16 DMX Channel s
•Pan scan ：540 ° (16bit) Electric correction
•Tilt scan ：270 ° (16bit) Electric correction
•Amazing dot matrix ,four tact switch, 180 ° tunning show
•Color wheel: one color wheel, 14 kinds of color chips in one color wheel
•Gobo: 17 gobos
•Effect Wheel:Rotatable eight prism,effect move , frost
•0-100% mechanical dimming, mechanical dimming and free dimming
available.
•strobe macro control available.
•Lens optical system mechanical focus .beam angle 0 ～4 °
•Over heat protection
•Power: 100-240V
，
50/60Hz
•Consume power
：
350W
•IP level :IP20
•Magnetic ballast and AC/Dc power supply
•Product Size
：
523 × 337 × 511mm
•Packing Size: 635X440X725 mm
•Net Weight
：
1 8.6 KG

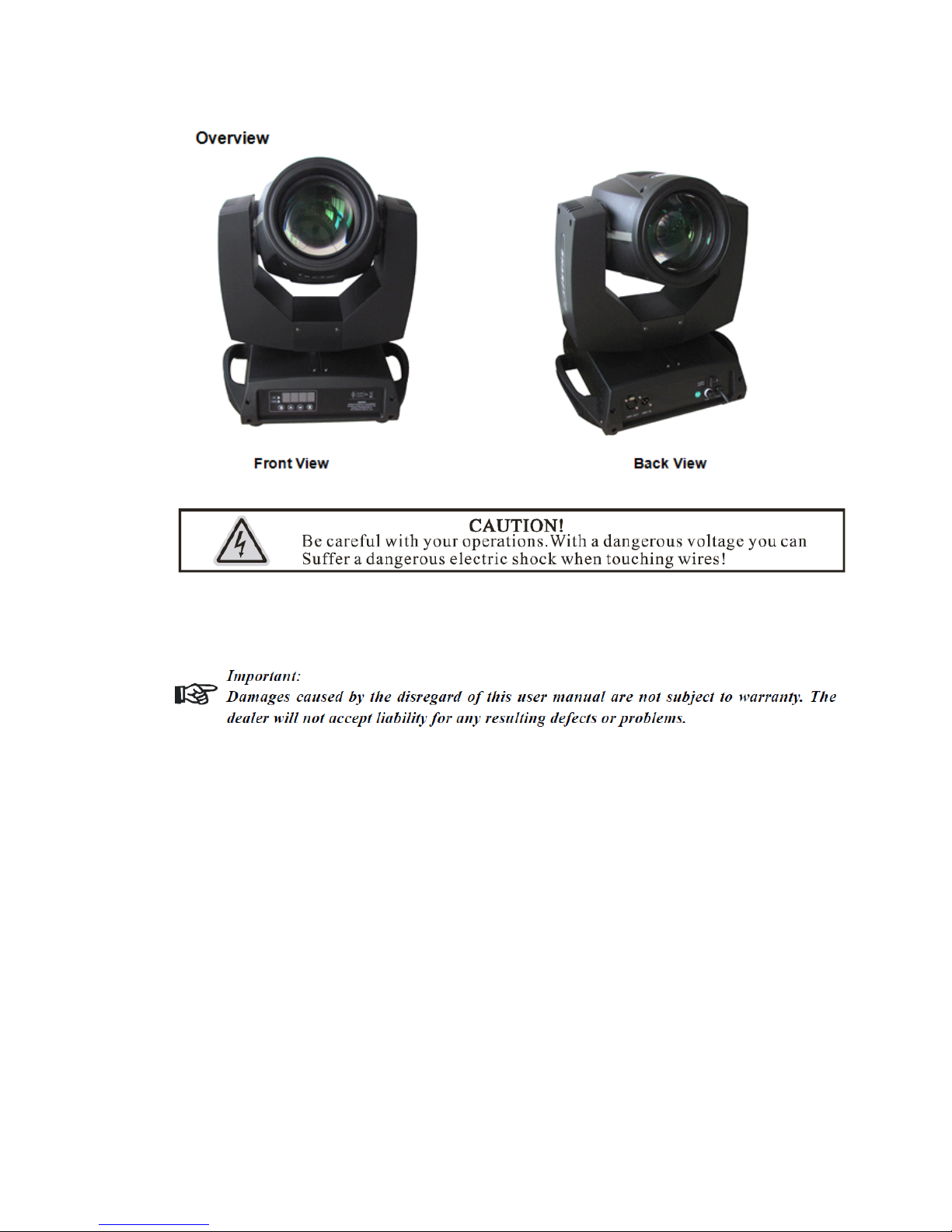

This device has left the factory in perfect condition. In order to maintain this
condition and to ensure a safe operation, it is absolutely necessary for the user
to follow the safety instructions and warning notes written in this user manual.
If the device has been exposed to temperature changes due to environmental
changes, do not switch it on immediately. The arising condensation could
damage the device. Leave the device switched off until it has reached room
temperature.
This device falls under protection-class I. Therefore it is essential that the
device be earthed.
The electric connection must carry out by qualified person.Make sure that the
available voltage is not higher than stated at the end of this manual.
Always disconnect from the mains, when the device is not in use or before
cleaning it. Only handle the power cord by the plug. Never pull out the plug by
tugging the power cord.
During initial start-up some smoke or smell may arise. This is a normal process

and does not necessarily mean that the device is defective, it should decrease
gradually. Please don't project the beam onto combustible substances.
If the external flexible cable or cord of this luminaire is damaged, it shall be
exclusively replaced by the manufacturer or his service agent or a similar
qualified person in order to avoid a hazard.
Please be aware that damages caused by manual modifications to the device
are not subject to warranty. Keep away from children and non-professionals .
GENERAL
GENERAL
GENERAL
GENERAL GUIDELINES
GUIDELINES
GUIDELINES
GUIDELINES
This device is a lighting effect for professional use on stages, in discotheques,
theatre, etc., the device was designed for indoor use only.
This fixture is only allowed to be operated with the max alternating current
which stated in the technical specifications in the last page of this manual.
Lighting effects are not designed for permanent operation. Consistent
operation breaks may ensure that the device will serve you for a long time
without defects.
Do not shake the device.Avoid brute force when installing or operating the
device.
While choosing the installation-spot, please make sure that the device is not
exposed to extreme heat, moisture or dust. Please don't project the beam onto
combustible substances.The minimum distance between light-output from the
projector and the illuminated surface must be more than 5 meter.
If you use the quick lock cam in hanging up the fixture, please make sure the
quick lock fasteners turned in the quick lock holes correctly.
Operate the device only after having familiarized with its functions. Do not
permit operation by persons not qualified for operating the device. Most
damages are the result of unprofessional operation.
For safety reasons, please be aware that all modifications on the device are
forbidden.
If this device will be operated in any way different to the one described in this

manual, the product may suffer damages and the guarantee becomes void.
Furthermore, any other operation may lead to short-circuit, burns, electric
shock, lamp explosion, crash, etc.
Installing
Installing
Installing
Installing or
or
or
or replacing
replacing
replacing
replacing the
the
the
the lamp
lamp
lamp
lamp :
:
:
:
Before replacing the lamp let the lamp cool down, because during operation,
the lamp can reach very high temperature.
During the installation of halogen lamps do not touch the glass bulbs bare
handed. Always use a cloth to handle the lamps during insertion and removal.
Do not install lamps with a higher wattage. They generate higher
temperatures than which the device was designed for.
For safety reasons, please be aware that all modifications on the device are
forbidden.
DMX-512
DMX-512
DMX-512
DMX-512 control
control
control
control connection
connection
connection
connection
Connect the provided XLR cable to the female 3-pin XLR output of your
controller and the other
side to the male 3-pin XLR input of the moving head. You can chain multiple
Moving head together through serial linking. The cable needed should be two
core, screened cable with XLR input and output connectors. Please refer to
the diagram below:

Menu
Menu
Menu
Menu Discerption
Discerption
Discerption
Discerption
1．A001 display the products ’ DMX address
001 for setting the products ’ DMX address cord
This function is used to set or adjust the fixture ’ s starting DMX address. Every
device controlled by DMX has to have a unique starting address.
The a ddressing feature is what allows DMX to function properly. The DMX
address of a fixture is what allows it to communicate with a controller properly.
2. Rpan
：
Rotation Pan
This function allows you to invert all pan movements . Use the Up and Down
buttons to turn this function On or Off. Press the Enter button to accept the
change or the Mode button to cancel and return to the main menu.
3. Rtil ：Rotation Tilt
Tilt Reverse - This function allows you to invert all tilt movements. Use the Up
and Down buttons to turn this function On or Off. Press the Enter button to
accept the change or the Mode button to cancel and return to the main menu.
4. Mode: DMX Control mode, Auto mode, Sound Mode
This function allows you to choose different work mode. By DMX Control Mode,
you can control via DMX512 Controller, by Auto Mode the lights can auto run
by self, by Sound Mode the light can control by music
5. Disp
：
3 Modes:
MODE1:Normal display
MODE2:Half bright
MODE3:Close (return by any key)
This function allows you to choose different display mode.
6. Lamp: Control the lamp on / off . This function allows manual control of the
lamp power via the on-board system menu.
“ ON ” mode ,click the button ,until appear “ OK ” ,and c lick again ,setting to :lamp
on when turn on the light .
“ OFF ” mode,click the button ,until appear “ OK ” ,and click again,setting to: ” lamp
off when turn on the light.
7. Rset
：
Reset and enter, after 3 seconds, it will be reset.
The reset function returns a motor to the “ Home ” position. The light will be
restart.
8. urn ：Show 180 degree rotation
This function allows the light show 180 degree rotation.

DMX
DMX
DMX
DMX channel
channel
channel
channel ´
´
´
´ s
s
s
s functions
functions
functions
functions and
and
and
and their
their
their
their values
values
values
values (16
(16
(16
(16 DMX
DMX
DMX
DMX channels):
channels):
channels):
channels):
Channel
Channel
Channel
Channel DMX
DMX
DMX
DMX Value
Value
Value
Value Description
Description
Description
Description
1CH Color 0-4 White
5-8 White+Color1
9-12 Color1
13-17 Color1+Color2
18-21 Color2
22-25 Color2+Color3
26-29 Color3
30-34 Color3+Color4
35-38 Color4
39-42 Color4+Color5
43-46 Color5
47-51 Color5+Color6
52-55 Color6
56-59 Color6+Color7
60-63 Color7
64-68 Color7+Color8
69-72 Color8
73-76 Color8+Color9
77-81 Color9
82-85 Color9+Color10
86-89 Color10
90-93 Color10+Color11
94-98 Color11
99-102 Color11+Color12
103-106 Color12
107-110 Color12+Color13
111-115 Color13
116-119 Color13+Color14
120-123 Color14
124-127 Color14+Color15
128-255 Color15
2CH Strobe 0-3 White
4-103 Slow strobe to fast strobe
104-107 White
108-207 Fast strobe to slow strobe
208-212 white
213-225 Free strobe ,slow
226-138 Free strobe ,middle
239-251 Free strobe ,fast
252-255 White

3CH Dimming 0-255 0-100%
4CH Gobo 0-3 White
4-7 Gobo1
8-11 Gobo2
12-15 Gobo3
16-19 Gobo4
20-23 Gobo5
24-27 Gobo6
28-31 Gobo7
32-35 Gobo8
36-39 Gobo9
40-43 Gobo10
44-47 Gobo11
48-51 Gobo12
52-55 Gobo13
56-59 Gobo14
60-63 Gobo15
64-67 Gobo16
68-71 Gobo17
72-113 Gobo change ,fast to slow
114-117 Stop
118-159 Gobo change ,slow to fast
160-166 Gobo2,shaking slow to fast
167-172 Gobo3,shaking slow to fast
173-179 Gobo4,shaking slow to fast
180-185 Gobo5,shaking slow to fast
186-191 Gobo6,shaking slow to fast
192-198 Gobo7,shaking slow to fast
199-204 Gobo8,shaking slow to fast
205-211 Gobo9,shaking slow to fast
212-217 Gobo10,shaking slow to fast
218-223 Gobo11,shaking slow to fast
224-230 Gobo12,shaking slow to fast
231-236 Gobo13,shaking slow to fast
237-243 Gobo14,shaking slow to fast
244-249 Gobo15,shaking slow to fast
250-255 Gobo16,shaking slow to fast
5CH Prism 0-127 White
128-255 Prism
6CH Prism Rotate 0-20 Angle 0
21-41 Angle90
42-62 Angle180
63-83 Angle270

84-104 Angle360
105-126 Angle450
127 Angle540
128-190 Fast rotate to Slow rotate
191-192 stop
193-255 Slow rotate to fast rotate
7CH Empty 0-255
8CH Frost 0-255 0-100% Frost
9CH Focus 0-255 0-100% Focus
10CH X 0-255 540 °
11CH X fine 0-255 1.8 °
12CH Y 0-255 270 °
13CH Y fine 0-255 1.8 °
14CH Macro Function 0-11
12-24
25-37
38-50
51-62
63-255
15CH Lamp 6 5 Off
178 On
16CH Reset 6 5 Reset
CLEANING
CLEANING
CLEANING
CLEANING AND
AND
AND
AND MAINTENANCE
MAINTENANCE
MAINTENANCE
MAINTENANCE
The following points have to be considered during the inspection:
1) All screws for installing the devices or parts of the device have to be tightly
connected and must not be corroded.
2) There must not be any deformations on the housing, color lenses, fixations
and installation spots (ceiling, suspension, trussing).
3) Mechanically moved parts must not show any traces of wearing and must
not rotate with unbalances.
4) The electric power supply cables must not show any damage, material
fatigue or sediments.
In order to make the lights in good condition and extend the life time, we
suggest a regular cleaning to the lights.

1) Clean the inside and outside lens each week to avoid the weakness of the
lights due to accumulation of dust.
2) Clean the fan each week.
3) To make sure the smooth gobo rotation, we suggest adding proper lube to
the wheel each three month, avoiding the excessive lube splashes during the
gobo rotating.
4) A detailed electric check by approved electrical engineer each three month,
make sure that the circuit contacts are in good condition, prevent the poor
contact of circuit from overheating.
TECHNICAL
TECHNICAL
TECHNICAL
TECHNICAL SPECIFICATIONS
SPECIFICATIONS
SPECIFICATIONS
SPECIFICATIONS :
:
:
:
Power supply: AC 100V-240V~, 50Hz/60Hz
Power consumption: 3 5 0W
Net weight: 18.6 KGS
Gross weight: 21.6 KGS
P
P
P
P ACKING
ACKING
ACKING

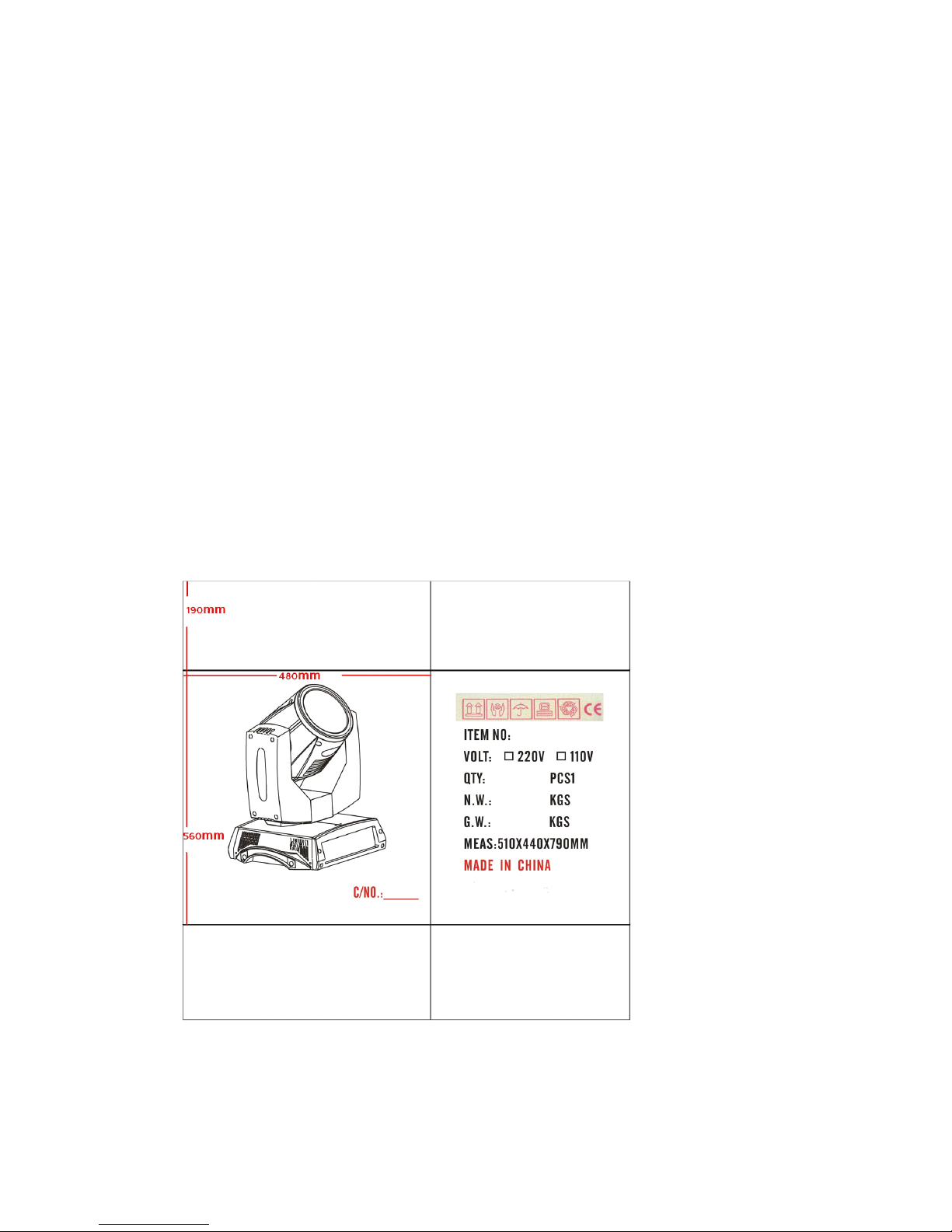

ACKING VIEW:
VIEW:
VIEW:
VIEW:
Remark
Remark
Remark
Remark : errors and omissions for every information given in this manual
excepted. All information is subject to change without prior notice.
