Clarke CHD900 Instruction Manual

OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC09/22
900W HAMMER DRILL
MODEL NO: CHD900
PART NO: 6479504

2
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
INTRODUCTION
Thank you for purchasing this CLARKE Hammer Drill.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
Please keep these instructions in a safe place for future reference.
ENVIRONMENTAL PROTECTION
Recycle unwanted materials instead of disposing of them as waste.
All tools, accessories and packaging should be sorted, taken to a
recycling centre and disposed of in a manner which is compatible
with the environment.
Through purchase of this product, the customer is taking on the obligation to
deal with the WEEE in accordance with the WEEE regulations in relation to the
treatment, recycling & recovery and environmentally sound disposal of the
WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.
SAFETY SYMBOLS
The above safety symbols may appear on the product.
Read instruction
manual before use
Wear ear defenders
Wear dust mask Wear safety glasses

3
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
SAFETY PRECAUTIONS
WORK AREA
1. Keep work area clean and well lit. Cluttered and dark areas invite
accidents.
2. DO NOT operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
4. Avoid body contact with earthed or grounded surfaces such as pipes,
radiators, ranges or refrigerators. There is an increased risk of electric shock
if your body is earthed or grounded.
5. DO NOT expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
6. When operating a power tool outdoors, use an extension cable suitable for
outdoor use. Use of a cable suitable for outdoor use reduces the risk of
electric shock.
PERSONAL SAFETY
1. Stay alert, watch what you are doing and use common sense when
operating a power tool. DO NOT use a power tool while you are tired or
under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in personal injury.
2. Use safety equipment. Always wear eye protection. Safety equipment such
as dust mask, non-skid safety shoes, or hearing protection used for
appropriate conditions will reduce personal injuries.
3. Avoid accidental starting. Ensure the switch is in the off position before
connecting to the power supply.
4. DO NOT overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
5. Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
WARNING: READ ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL
INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE AND/
OR SERIOUS INJURY. THE TERM “POWER TOOL” IN ALL WARNINGS LISTED
BELOW REFERS TO YOUR 900W HAMMER DRILL.

4
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
POWER TOOL USE AND CARE
1. DO NOT force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the
rate which it was designed.
2. DO NOT use the power tool if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and
must be repaired.
3. Store idle tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power
tool. Power tools are dangerous in the hands of untrained users.
4. Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tools
operation. If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
5. Keep cutting tools sharp and clean. Poorly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
6. Use the power tool and accessories in accordance with these instructions
and in the manner intended for the particular type of power tool, taking
into account the working conditions and the work to be performed. Use of
the power tool for operations different from intended could result in a
hazardous situation.
HAMMER DRILL SAFETY INSTRUCTIONS
1. ONLY use the drill in the manner and for the functions described.
2. Using the correct bit. Use the appropriate drill bit for the material being
drilled. Different bits are available from your Clarke dealer.
3. Use of the mains cable. Keep the mains cable well away from the drill and
ensure an adequate electrical supply is close at hand so that the
operation is not restricted by the length of the cable.
4. Working on the bench. Allow sufficient clearance beneath the work to
ensure the drill bit does not come into contact with the floor, table etc.
5. Switching off. Never place the drill on a table or bench if it has not
completely stopped. The drill bit will continue to rotate for a short time after
the trigger has been released to stop the drill.
6. Drilling into walls. DO NOT drill into walls or cavities before checking for
hidden electrical wires or water pipes etc.
7. Finishing drilling. DO NOT touch the drill bit immediately after use, allow
time for it to cool.
8. Use outdoor extension leads. If working outdoors, ALWAYS use an

5
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
approved cable extension suitable for the power rating of this tool (see
specifications), the conductor size should also be at least the same size as
that on the machine, or larger. When using a cable reel, ALWAYS unwind
the cable completely. We strongly recommend that this machine is
connected to the mains supply via a Residual Current Device (RCD).
9. Cooling agents. When drilling metals, ALWAYS use a cooling agent i.e.
cutting/soluble oil.
SERVICE
1. Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power
tool is maintained.
SPECIFICATIONS
Item Specification
Operating Modes Drill or Drill & Hammer Action
Chuck Capacity 1.5 mm -13 mm
Rated No-load Speed 0 - 3000 rpm
Product weight 2 kg
Hammer Impact Rate 45000 blows/min
Rated Drilling Capacity (mm) Wood, 25/ Steel, 12 / Masonary,12
Dimensions (L x W x H) 291 x 70 x 245 mm
Operating voltage & Frequency 230V~50Hz
Fuse rating 13A
Motor Power 900W
Sound Pressure Level 90 dB LpA
Sound Power Level 101 dB LWA
Vibration using metal drill bit
Vibration using concrete drill bit
Main handle 3.913 m/s2, Aux. 2.838 m/s2
Main handle 15.378 m/s2, Aux. 9.55 m/s2

6
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

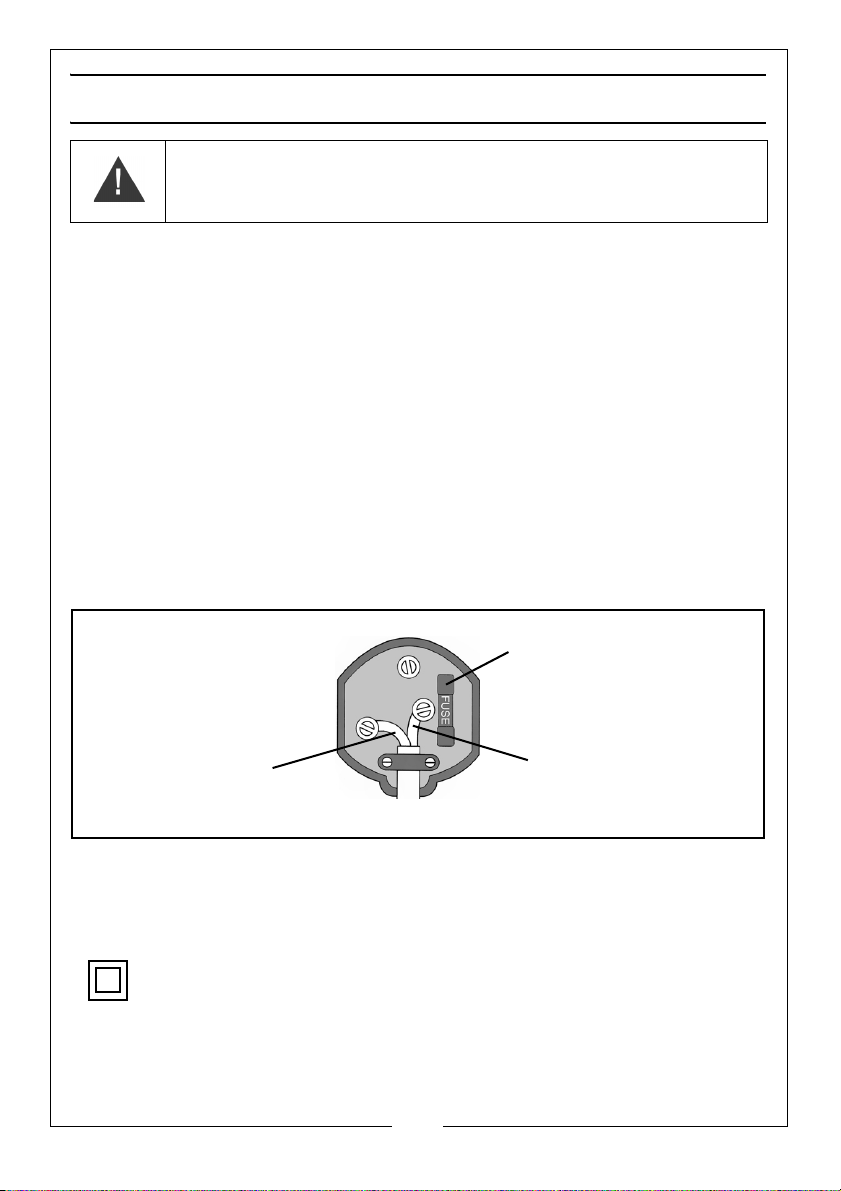

ELECTRICAL CONNECTIONS
This product may be fitted with a non-rewireable plug. If it is necessary to
change the fuse in the plug, the fuse cover must be refitted. If the fuse cover
becomes lost or damaged, the plug must not be used until a suitable
replacement is obtained.
If the plug has to be changed because it is not suitable for your socket, or due
to damage, it should be cut off and a replacement fitted, following the wiring
instructions shown below. The old plug must be disposed of safely as insertion
into a mains socket could cause an electrical hazard.
If the colours of the wires in the power cable of this product do not correspond
with the markings on the terminals of your plug, proceed as follows.
•TheBlue wire must be connected to the terminal which is marked N
or coloured Black.
•TheBrown wire must be connected to the terminal which is marked L
or coloured Red.
We strongly recommend that this machine is connected to the mains supply
via a Residual Current Device (RCD)
If in any doubt, consult a qualified electrician. DO NOT attempt any repairs
yourself.
This symbol indicates that this is a Class II product and does not require
an earth connection.
WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS
SUPPLY.
Plug must be BS1363/A approved.
Always fit a 13 Amp fuse.
Ensure that the outer sheath of the cable is firmly held by the clamp
Neutral
(Blue)
Live
(Brown)

7
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

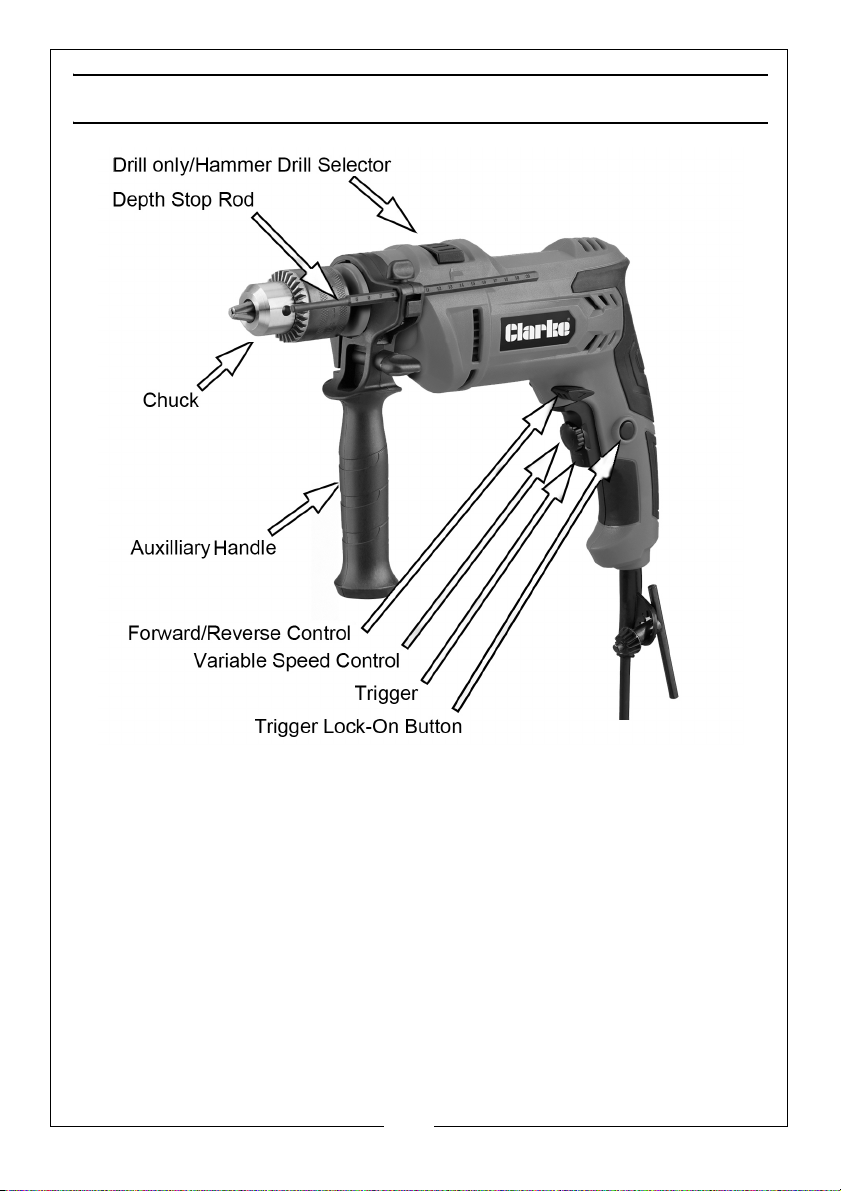

OVERVIEW
The CHD900 is a variable-speed hammer drill designed for DIY use. It is
equipped with a variable speed control and hammer operation. It also has a
lock-on button for continuous operation.
When unpacking, check for damage or shortages etc. Any found should be
reported to your CLARKE dealer where the drill was originally purchased. This
drill is supplied with the following components:
• 1 x Hammer Drill
• 1 x Chuck Key
• 1 x Depth Stop Rod
• 1 x Auxiliary (Side) Handle

8
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
OPERATION
IMPORTANT: To avoid accidental starting, ensure the drill is switched OFF
before plugging in to the mains. To do this, briefly pull the switch, and
release to ensure the trigger lock is not set in the ‘lock’ position.
INSERTING A DRILL BIT
1. Open the chuck by rotating the
chuck sleeve anticlockwise until
the jaws are open sufficiently to
take the drill bit.
2. Place the drill bit in the jaws of the
chuck as far as it will go.
3. Insert the chuck key in one of the
three holes in the chuck and
tighten in a clockwise direction.
• Make sure that the head of the
chuck key is located on the cog barrel of the chuck when
tightening.
• To remove the bit, release the jaws by inserting the chuck key in one
of the holes and turning in an anticlockwise direction.
SWITCHING ON & CONTINUOUS OPERATION
1. Plug into a 13amp socket and squeeze the trigger to start the drill.
2. During use, press the trigger lock-on button and the drill will run
continuously. Squeeze the trigger again briefly to release the trigger lock &
stop the drill.
WARNING: TAKE CARE TO REMOVE THE CHUCK KEY BEFORE OPERATING
THE DRILL.

9
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
HAMMER DRILL SELECTION
Slide the drill/hammer drill mode
selector switch to the ‘Hammer’
symbol on the drill body.
NORMAL DRILL SELECTION
Slide the drill/hammer drill mode
selector switch to the ‘Drill’ symbol on
the drill body.
NOTE: Both these actions should only
be performed when the drill is at a
complete stop.
FORWARD / REVERSE SELECTION
1. Set the forward/reverse selector
switch to the normal ‘Right Hand’
(forward) rotation for drilling holes.
2. Set the forward/reverse selector
switch to the opposite position for
‘Left Hand’ (reverse) rotation to
reverse the drill out of the
workpiece.
NOTE: This operation should only be
performed when the drill is at a
complete stop.
SPEED SELECTION
1. Turn the variable speed control in
the centre of the trigger until the
drill runs at your chosen speed.
2. The drill can be locked running by
pressing the lock-on button after
the trigger is squeezed.
3. To stop the drill, just squeeze the
trigger again.

10
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
AUXILIARY HANDLE
1. Fit the handle by loosening it off
prior to sliding it over the chuck
and onto the body of the drill.
2. Rotate the handle to the desired
position and secure in position
using the thumbscrew.
DEPTH STOP
1. The depth stop is fitted within the
auxiliary handle and can only be
used if the handle is installed.
2. Insert the depth stop rod through the holder in the handle assembly.
3. Slide the rod in and out to the required position. Lock in place by turning
the thumbscrew.
GENERAL DRILLING TECHNIQUE
• After drilling material to the full depth, maintain chuck rotation to
ease drill withdrawal.
• If the drill is not cutting the metal then sharpen the drill bit, ensuring
the various cutting angles are correct.
• ALWAYS use sharp, good quality drill bits. The performance of your
drill is dependant on the quality of the bits used.
• Reduce the pressure on the drill bit when it is about to break through.
This will prevent the drill from jamming.
• If drilling a large hole, first drill a pilot hole using a smaller drill bit.
• ALWAYS apply pressure to the drill bit in a straight line and at right
angles to the workpiece. Do not use sideways movement as this
may damage the drill or cause the bit to break.
• When drilling holes or driving screws into walls, floors etc., always
make sure that there are no live electrical wires in the path of the drill
• When drilling metal, it can become hot. To reduce overheating use
a suitable cooling lubricant. No cooling lubricant is necessary when
drilling cast iron or brass as they should be drilled dry.
• When drilling metal, the harder the metal, the slower the drill speed.
Likewise, the larger the drill bit the slower the speed.
• To prevent the drill bit from slipping when starting to drill a hole in
metal, use a centre punch to make an indentation at the start point.

11
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
• ALWAYS start drilling at the slowest speed to prevent the drill from
slipping out of the pop mark or indent.
• Select the speed according to the drill bit being used whilst
maintaining a MODERATE pressure ONLY. NEVER force the drill bit into
the work. This will overheat the tip and cause it to dull very quickly.
• When drilling in wood, clamp a piece of scrap wood to the
underside of the material to avoid splintering.
• ALWAYS drill directly in line with the bit. Do not use sideways
movement as this may damage the drill or cause the bit to break.
• Large holes should be drilled with wood augers, flat wood bits or
hole saws.
MAINTENANCE
Before any maintenance procedures, always ensure the drill is isolated from
the power supply by switching off and unplugging from the socket.
BEFORE USE
1. Inspect the power cable to ensure it is in good condition.
CLEANING
1. Ensure all air ventilation slots are clear of blockages, (use compressed air to
clean the machine if possible). Wear protective goggles if using
compressed air.
2. After use, clean all dust and swarf from the drill with a soft cleaning cloth.
Never use any chemicals/ solvents or harsh abrasives to clean the drill.
GENERAL MAINTENANCE
• All bearings etc, in this tool are lubricated with a sufficient amount of
high grade lubricant for the tools lifetime under normal operating
conditions, therefore no further lubrication is necessary.
• Refer to your CLARKE dealer if internal maintenance is required.

12
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
FAULTFINDING
Problem Possible Cause Remedy
Tool will not operate No power supply Check supply & rectify as
necessary
Switch is faulty Consult your CLARKE
dealer
Fuse blown Check & replace if
necessary
Motor is faulty Consult your CLARKE
dealer
Motor runs but drill bit
does not move.
Drill fastening not tight Secure drill bit
Drive gear broken Consult your CLARKE
dealer
Heavy internal sparking Faulty motor Consult your CLARKE
dealer
Worn brushes Consult your CLARKE
dealer
Motor becomes hot Unduly heavy use Reduce the force applied
to the drill bit. Let the tool
do the work
Air vent have become
blocked
Clean out the air vents
using compressed air or
clean with a dry cloth
Low supply voltage Ensure supply voltage is
correct. If an extension
cable is used, ensure it is
the correct rating and is
fully unwound
Excessive vibration. Drill bit bent or not
mounted correctly
Check and rectify
Machine bearings worn Consult your CLARKE
dealer

13
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
COMPONENT PARTS LIST
An extensive selection of accessories including Drill Bit Sets, Socket & Bit Sets
and Drill Bit Sharpeners are available from your CLARKE dealer.
The following drill bit sets are suggested for use with your hammer drill.
CHT342 - 30 Piece Titanium Coated HSS Drill Set (Imperial Sizes) Part No:1801342
CHT348 - 30 Piece Titanium Coated HSS Drill Set (Metric Sizes) Part No: 1801348
Titanium coated HSS bits last up to 6 times longer than standard bits which can
be sharpened using a Clarke Drill Sharpener such as the CBS43 or the CBS16.
CHT383 - 19 Piece (Metric) Cobalt Steel Drill Set Part No: 1801383
CHT384 - 25 Piece (Metric) Cobalt Steel Drill Set Part No: 1801384
Suitable for drilling carbon steel, super alloys, titanium and stainless steel.
No Description No Description
1 Chuck Retaining Screw 19 Disc spring
2 Chuck 20 Screw S/t3x10
3 Drive Spindle 21 607 Bearing
4 Woodruff Key 22 Motor Stator
5 Impact Spring 23 Casing (RH)
6 Bearing 6001 24 Casing Screw ST4x16
7 Carbon Brush Holder 25 Direction button
8 Gear 26 Inductor
9 Circlip 9mm 27 Switch
10 Copper bush 28 Capacitor 22uf
11 Supporting rack 29 Screw ST4x14
12 Impact Selector 30 Cable gland
13 Impact piece 31 Casing (LH)
14 Motor Bearing 608 32 Cable sleeve
15 Motor Rotor 33 Power Cable & Plug
16 Right Carbon Brush holder 34 Depth Stop Rod
17 Left Carbon Brush Holder 35 Auxiliary Handle
18 Carbon brush

14
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
COMPONENT PARTS
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission. This guarantee does not effect your
statutory rights.

15
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

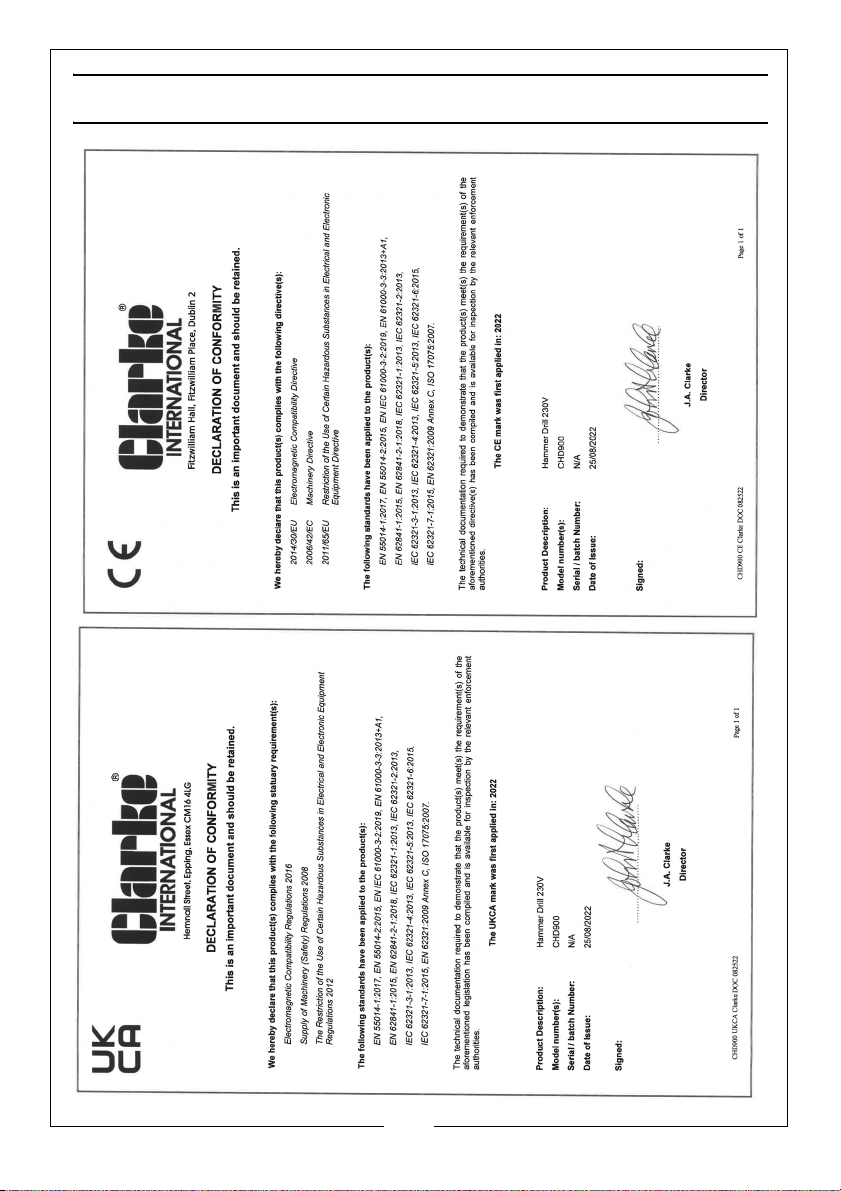

DECLARATIONS OF CONFORMITY
