classic rental solutions Symphony RE-1092 Manual

© 2023
Locked layer contains
placeholder marks.
Perspective View
Plan View
10’
10’
If you would like to tell us about your experience with your setup instructions please email us at [email protected]
SETUP INSTRUCTIONS
RE-1092 - 10’ x 10’ Symphony Inline

© 2023
Locked layer contains
placeholder marks.
= 1 sq ft
Plan View

© 2023
General Setup Instructions
- Read entire setup instruction manual prior to
unpacking parts and pieces.
- The setup instructions are created specifically
for this configuration.
- Setup instructions are laid out sequentially in
steps, including exploded views with detailed
explanation for assembly.
Cleaning & Packing
- For Cleaning Metal, Plex, & Laminate Parts:
Use a MILD NON-ABRASIVE cleanser and
soft cloth/paper towel to clean all surfaces.
- Keep exhibit components away from heat
and prolonged sun exposure.
Heat and UV exposure will warp and
fade components.
- Retain all provided Packing Materials.
All provided packing materials are for
ease of repacking & component protection.
Disassembly
- For loss prevention, keep all
knobs & connectors attached to
extrusions during disassembly.
Part Identification - Numbering
7A
Engaged Lock
DO NOT USE POWER TOOLS
ALL CONNECTIONS MUST
BE TIGHTLY SECURED
WARNING
General Information

© 2023
TSP49 Profile
All knobs must be tightened securely to ensure a proper connection.
Adjust connectors if necessary to
prevent gaps in connection.
Upper Horizontal Extrusion
Lower Horizontal Extrusion
Corner
Connector Corner
Connector
Corner
Connector
Corner
Connector
COMPLETED ASSEMBLY
Slide verticals over
lower connectors.
Then slide upper
connectors into
groove of verticals.
Tighten all knobs.
Corner Connection
3) Tighten all knobs to secure connection.
Disassembly
1) Loosen knobs on vertical extrusions.
2) Slide the vertical extrusions off of
corner connectors on lower and upper
horizontal extrusions.
1) Loosen knobs, then slide vertical extrusions onto
corner connectors of lower horizontal extrusion.
2) Slide corner connectors of upper horizontal
extrusion into grooves of vertical extrusions.
Disassembly
1) Loosen all knobs.
2) Slide connectors off of one extrusion.
3) Tighten knobs to prevent loss during
packing & shipping.
Keep straight connectors in groove of
extrusion. Do not remove connectors
during disassembly.
Straight Connection
3) Tighten all knobs to secure connection.
When assembling frame, first attach all straight
connectors, then attach corner connectors.
1) Place extrusions end-to-end.
Slide connector across seam of extrusions.
Tighten all knobs.
All knobs must be tightened securely to ensure a proper connection.
Straight Connector
2) Loosen all knobs, then slide straight
connector across the seam of extrusions.
Tool-less Frame Assembly

© 2023
Crate 1 of 1
Locked layer contains
placeholder marks.
Setup Hardware
Lights
Counter Top
Workstation Counter Top
Workstation Legs
Floor
Shelf
Shelf Supports
9
9
15
Counter
Back
hardware Counter
Front
1,2
1,2
3434
5678
5678
910
Counter Sides
Level 1
(Bottom level)
Level 2 Level 3 Level 4 Level 5

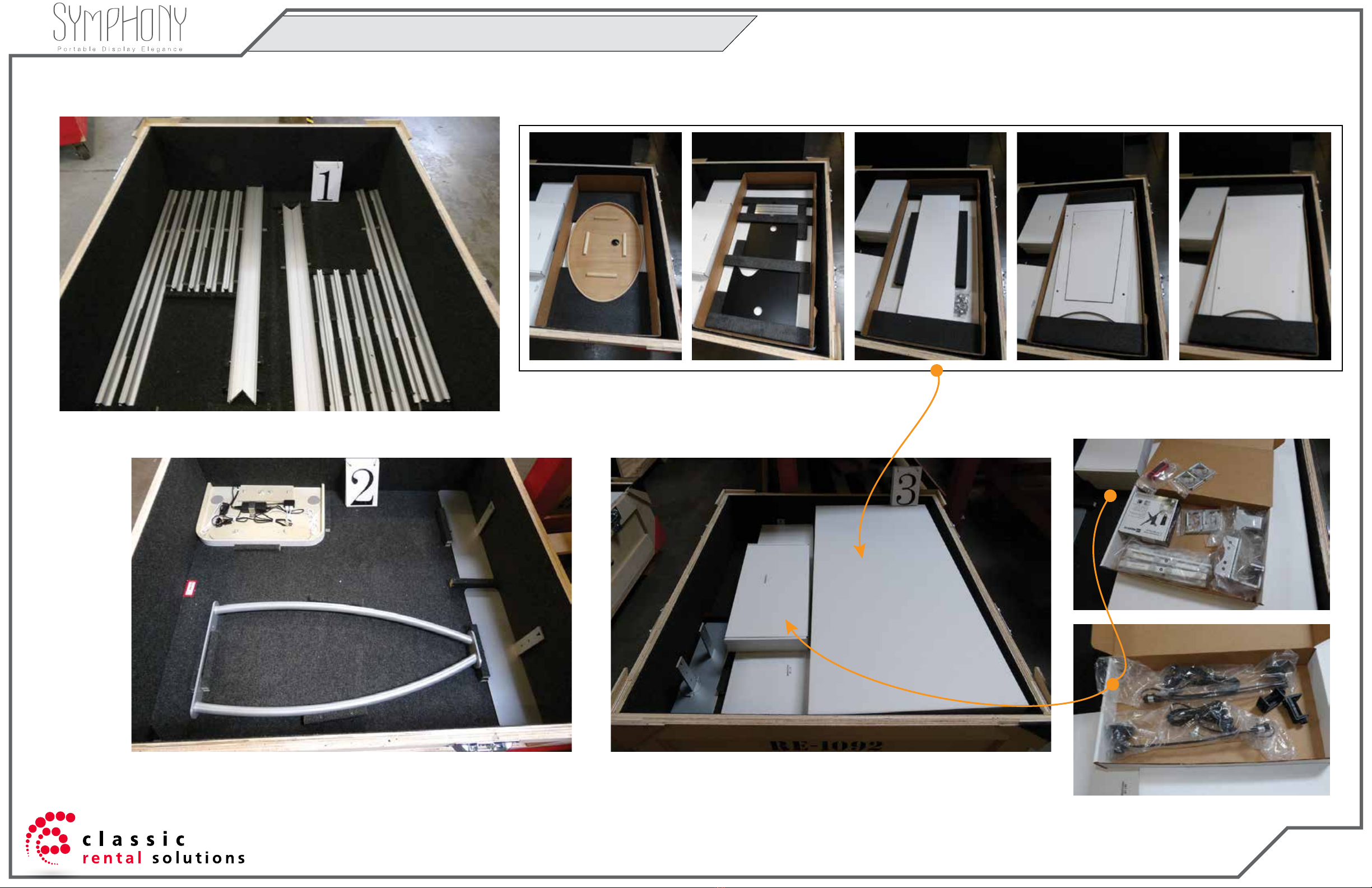

RE-1092 Crate Packing

© 2023
Step 1 of 7
Locked layer contains
placeholder marks.
Item
1
2
3
4
5
6
7
8
9
Qty.
1
1
1
1
1
1
1
1
1
Description
45”h TSP49 Vertical Extrusion
45”h TSP49 Vertical Extrusion
45”h TSP49 Vertical Extrusion
45”h TSP49 Vertical Extrusion
27.35”w TSP49 Horizontal Extrusion
27.35”w TSP49 Horizontal Extrusion
27.35”w TSP49 Horizontal Extrusion
27.35”w TSP49 Horizontal Extrusion
6” x 22” End Base Plate w/ foot
When assembled
Tool-less Spline Connector
1. Place extrusions end-to-end.
2. Slide tool-less connectors
across seam of extrusions.
*
3. Tighten all knobs to secure connection.
Tool-less Corner Connector
1. Slide extrusion onto
Corner Connector.
2. Tighten all knobs to
secure connection.
*
Keep corner connectors attached to horizontal extrusions.
Assemble frame flat on ground.
Steps:
Refer to the Tool-less Frame Assembly general information page.
1) Assemble vertical extrusions [1-2], [3-4] & horizontal extrusions [5-6], [7-8]
together, using Tool-less Spline connectors labeled [X].
2) Connect vertical assemblies [1/2], [3/4] between horizontal
assemblies [5/6], [7/8], using Tool-less Corner Connectors labeled [A].
3) Install Base Plate [9] to bottom corners of frame assembly
as shown. See Base Plate Attachment detail.
1) Place key hole over bolt on panel
& slide down.
2) Twist knob to secure connection.
Base Plate Attachment
*
bolt
knob
Base Plate
threaded
hole
key hole
*
1
2
3
4
56
7
8
9
FRONT VIEW
*
X
A
*
A
*
A*
A
*
*
X
*X
*
X
Left Backwall Frame Assembly

© 2023
Step 2 of 7
Locked layer contains
placeholder marks.
Item
1
2
3
4
5
6
7
8
9
Qty.
1
1
1
1
1
1
1
1
1
Description
45”h TSP49 Vertical Extrusion
45”h TSP49 Vertical Extrusion
45”h TSP49 Vertical Extrusion
45”h TSP49 Vertical Extrusion
27.35”w TSP49 Horizontal Extrusion
27.35”w TSP49 Horizontal Extrusion
27.35”w TSP49 Horizontal Extrusion
27.35”w TSP49 Horizontal Extrusion
6” x 22” End Base Plate w/ foot
When assembled
Tool-less Spline Connector
1. Place extrusions end-to-end.
2. Slide tool-less connectors
across seam of extrusions.
*
3. Tighten all knobs to secure connection.
Tool-less Corner Connector
1. Slide extrusion onto
Corner Connector.
2. Tighten all knobs to
secure connection.
*
Keep corner connectors attached to horizontal extrusions.
Assemble frame flat on ground.
3
4
1
2
65
8
7
9
FRONT VIEW *
Steps:
Refer to the Tool-less Frame Assembly general information page.
1) Assemble vertical extrusions [1-2], [3-4] & horizontal extrusions [5-6], [7-8]
together, using Tool-less Spline connectors labeled [X].
2) Connect vertical assemblies [1/2], [3/4] between horizontal
assemblies [5/6], [7/8], using Tool-less Corner Connectors labeled [A].
3) Install Base Plate [9] to bottom corners of frame assembly
as shown. See Base Plate Attachment detail.
1) Place key hole over bolt on panel
& slide down.
2) Twist knob to secure connection.
Base Plate Attachment
*
bolt
knob
Base Plate
threaded
hole
key hole
*
X
A
*
A
*
A*
A
*
*
X
*X
*
X
Right Backwall Frame Assembly

© 2023
Step 3 of 7
Locked layer contains
placeholder marks.
When assembled
15
FRONT VIEW
Steps:
1) Install Base Plate [15] to vertical [3/4] of right frame.
See Right Frame Base Plate Attachment detail.
2) Connect vertical [3/4] of left frame to Base Plate [15].
See Left Frame Base Plate Attachment detail.
*
TOP VIEW
Item
15
Qty.
1
Description
6” x 22” Two-Connection Base Plate
*
3
4
3
4
Left Frame Base Plate Attachment
*
Place key hole over bolt on panel & slide down.
Twist knob to secure connection.
Front
Base Plate
key hole
bolt
Right Frame Base Plate Attachment
*
bolt
knob
Front
key hole
1) Place key hole over bolt
on panel & slide down.
2) Twist knob to secure
connection.
threaded
hole
Base Plate
Backwall Frames Connection

© 2023
Step 4 of 7
Locked layer contains
placeholder marks.
Steps:
1) Apply SEG Graphic to front of assembled frame.
SEG Graphic Installation
Corner A
Corner D
Corner B
Corner C
It is important to first insert
graphic into each alternate
corner, then to the sides of
the frame. If this is not done,
graphic will not fit into the
frame correctly.
Step 1
Insert corner A. Turn edge of
graphic so silicon welt is
perpendicular to face of
graphic. Insert narrow side
of welt with fabric to outside
into the channel. Repeat for
other side of this corner.
Step 2
Repeat Step 1 for opposite
corner C, then insert corner
B, followed by corner D, to
complete the installation of
the corners.
Graphic Removal
To remove the graphic from
the frame, locate the fabric
pull tab. Gently pull up on
the tab to remove the fabric.
Step 3
Once all corners are inserted,
press one silicon edge into
channel from corners and
work toward the center.
Make sure welt is fully inserted
into channel. Continue until
all sides are done. Smooth
out edges of graphic.
When assembled
FRONT VIEW
S
E
G G
ra
phi
c
S
E
G G
r
aphi
c
Fabric Graphics Application

© 2023
Step 5 of 7
Locked layer contains
placeholder marks.
Steps:
1) Attach Workstation Mounting Bracket
to backwall vertical as shown.
See Workstation Bracket Attachment detail.
2) Assemble Workstation legs & counter top to
bracket. See Workstation Assembly detail.
3) Affix Graphic to front of workstation assembly,
using Velcro.
4) Attach Lights to top of backwall as shown.
See Light Attachment detail.
Attach clamp of stem light
to top of horizontal extrusion
where desired.
Twist knob on back to
tighten in place.
Light Attachment
*
knob
Light
BACK VIEW
Extrusion
Hook the Mounting Bracket
over the vertical extrusion.
Slide
Bracket
forward
Slide down onto
V4 connector
Tighten knobs
to secure.
Mounting
Bracket
Workstation Bracket Attachment
Slide bracket forward, then
down onto V4 connector.
Tighten thumb screws to
secure connection to inside
of frame.
Bracket
TOP VIEW SIDE VIEW
1 2 3
V4
V4 connectors stay permanently
attached to vertical extrusion.
*
Threaded
Studs
Wing
nuts
Counter Top
Mounting
Bracket
Counter
Legs
UNDERSIDE VIEW
3) Attach power cords to
wireless chargers.
2) Connect Counter Top to
Mounting Bracket, using
wing nuts.
1) Attach threaded studs on underside
of Counter Top to Counter Legs;
secure with wing nuts.
Workstation Assembly
Keep cords attached to
underside of counter top.
Underside View of Counter
To Power
USB
charging
pad
power
cords
charging
block
Counter Top
Light
Light
**
Workstation *
When assembled
Graphic
Backwall Attachments

© 2023
Step 6 of 7
Locked layer contains
placeholder marks.
Completed Assembly
Steps:
1) Attach Monitor Mount to backwall vertical as shown.
See Monitor Mount Bracket Attachment detail.
Monitor
Mount
*
Monitor Mount Attachment
*
Extrusion
Hook the Mounting Bracket
over the vertical extrusion.
Slide
Bracket
forward
Slide down onto
V4 connector
Tighten knobs
to secure.
Mounting
Bracket
Slide bracket forward, then
down onto V4 connector.
Tighten thumb screws to
secure connection to inside
of frame.
Bracket
Bracket
Monitor
Mount
back piece
TOP VIEW
SIDE VIEW
12
3Attach Monitor
Mount back piece
to Bracket.
4
5
V4
V4 connectors stay permanently
attached to vertical extrusion.
Slide monitor
mount into
back piece.
Backwall Attachments (cont’d)

© 2023
Step 7 of 7
Locked layer contains
placeholder marks.
*
Completed Pedestal Assembly
Pedestal Base Assembly
Pedestal Top Attachment
Pedestal Top
Screw
Cap
Back Panel
with Door
Side Panel
Side Panel Front Panel
Floor
Shelf Support
Shelf
Align hole with pin Rotate pin. Spring
will push pin into hole.
Pedestal Top Attachment
12
*
Pin
*
Remove pins for floor from
side panels when packing.
Setup Instructions:
1) Attach pins at bottom interior of side panels. Note: Pins are designed to be slightly angled.
2) Use screw caps to secure the side panels to front panel and back panels, making sure Velcro is facing inward.
3) Slide floor into the bottom of assembled pedestal base. The floor will sit on pins of the side panels.
4) Connect shelf supports to Velcro on panels, then place shelf on top of supports.
5) Attach pedestal top to assembled pedestal base. See Pedestal Top Attachment detail.
LTK-1001 Counter Assembly
