CLEARSPAN™ SCREEN HOUSE
Revision date: 12.19.07
ClearSpan™
Screen House 12' Wide
STK# DIMENSIONS
105680 12’ W x 12’ L
105681 12’ W x 18’ L
105682 12’ W x 24’ L

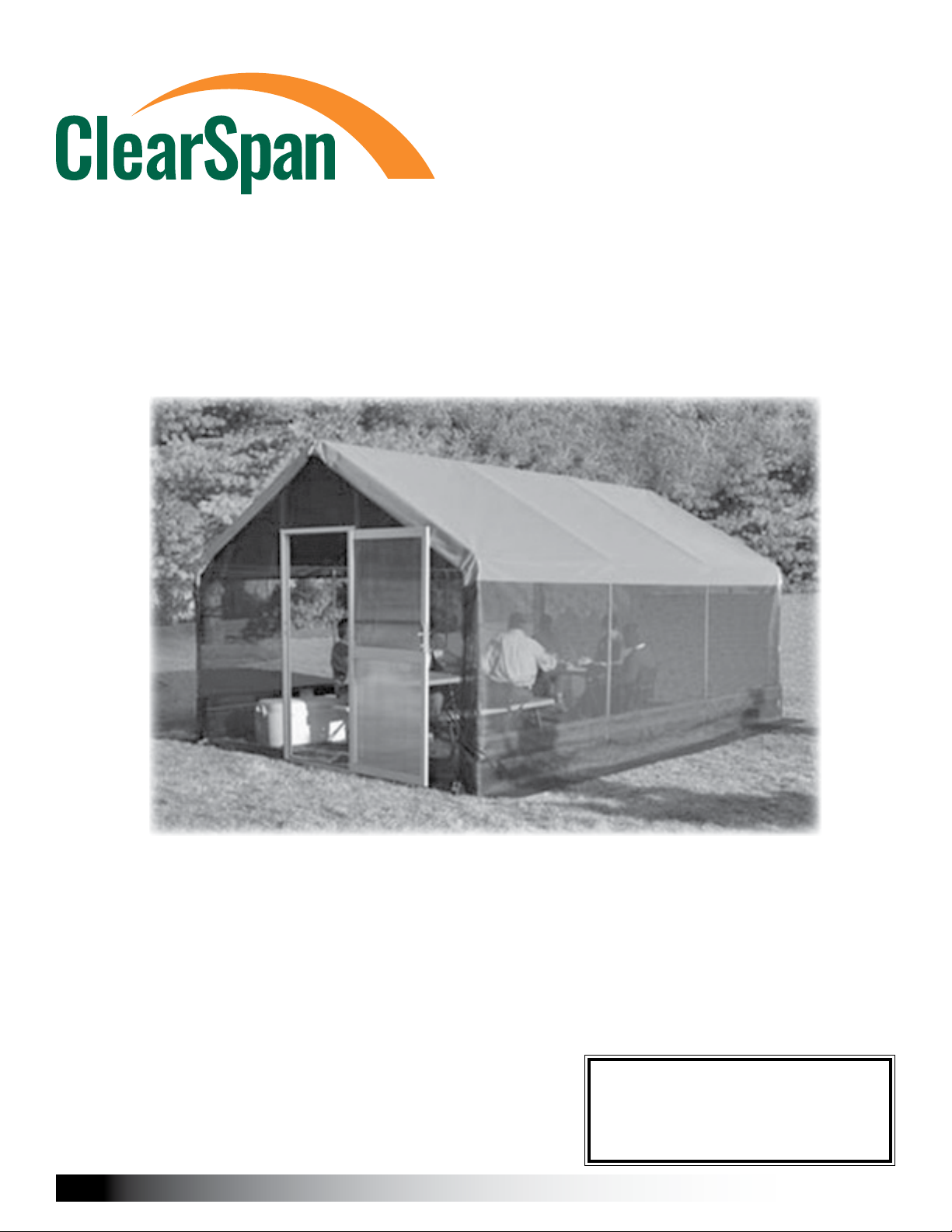

Photo may show a dierent but similar model.
©2007 ClearSpan™
All Rights Reserved. Reproduction
is prohibited without permission.

CLEARSPAN™ SCREEN HOUSE
2Revision date: 12.19.07
YOU MUST READ THIS DOCUMENT BEFORE YOU
BEGIN TO ASSEMBLE THE SHELTER.
Thank you for purchasing this ClearSpan™ shelter. When
properly assembled and maintained, this product will
provide years of reliable service. These instructions include
helpful hints and important information needed to safely
assemble and properly maintain the shelter. Please read
these instructions before you begin.
If you have any questions during the assembly, contact
Customer Service for assistance.
SAFETY PRECAUTIONS
• Wear eye protection.
• Wear head protection.
• Wear gloves when handling metal tubes.
• Use a portable GFCI (Ground Fault Circuit Interrupter)
when working with power tools and cords.
• Do not climb on the shelter or framing during or after
construction.
• Do not occupy the shelter during high winds,
tornadoes, or hurricanes.
• Provide adequate ventilation if the structure is
enclosed.
• Do not store hazardous materials in the shelter.
• Provide proper ingress and egress to prevent
entrapment.
ANCHORING INSTRUCTIONS
Prior to assembling this shelter, please read the MUST
READ document included with the shipment.
WARNING: The anchor assembly is an integral part of
the shelter construction. Improper anchoring may
cause shelter instability and failure of the structure.
Failing to anchor the shelter properly will void the
manufacturer’s warranty and may cause serious injury
and damage.
LOCATION
Choosing the proper location is an important step before
you begin to assemble the structure.
The following suggestions and precautions will help you
determine whether your selected location is the best
location.
• Never erect the structure under power lines.
• Identify whether underground cables and pipes are
present before preparing the site or anchoring the
structure.
• Location should be away from structures that could
cause snow to drift on or around the building.
• Do not position the shelter where large loads such as
snow and ice, large tree branches, or other overhead
obstacles could fall.
SITE
After choosing a location, proper preparation of the site is
essential. Follow the information below.
• A level site is required. The site must be level to
properly and safely erect and anchor the structure.
• For sites that are not concrete or gravel, placing wood
blocks or other suitable supports under each rafter leg
or the perimeter base frame (if present) helps prevent
the pipes from sinking or working into the site.
• Drainage: Water draining o󰀨 the structure and from
areas surrounding the site should drain away from the
site to prevent damage to the site, the structure, and
contents of the structure.
WARNING: The individuals assembling this structure
are responsible for designing and furnishing all
temporary bracing, shoring and support needed during
the assembly process. For safety reasons, those who
are not familiar with recognized construction methods
and techniques must seek the help of a qualified
contractor.

3
CLEARSPAN™ SCREEN HOUSE
Revision date: 12.19.07
ASSEMBLY PROCEDURE
Following the instructions as presented will help ensure
the proper assembly of your shelter. Failing to follow these
steps may result in an improperly assembled and anchored
shelter and will void all warranty and protection the owner
is entitled.
The steps outlining the assembly process are as follows:
1. Verify that all parts are included in the shipment. Notify
Customer Service for questions or concerns.
2. Read these instructions, the Must Read document, and
all additional documentation included with the shipment
before you begin assembling the shelter.
3. Gather the tools, bracing, ladders (and lifts), and
assistance needed to assemble the shelter.
4. Check the weather before you install the roof cover
and any panels (if equipped). Do not install covers or
panels on a windy or stormy day.
5. Re-evaluate the location and site based on the
information and precautions presented in the
documentation included with the shipment.
6. Prepare the site (if applicable).
7. Assemble the frame components in the order they are
presented in these instructions.
8. Assemble the frame including the struts (if equipped).
9. Consult the MUST READ document and properly
anchor the assembled frame.
10. Install, tighten, and secure the main cover and panels
(if equipped). This applies to fabric covers that stretch
over the frame assembly. Your shelter may include roof
panels or side panels or both.
11. Read the care and maintenance information at the end
of these instructions.
12. Complete and return all warranty information as
instructed.
LIST OF WORDS AND PHRASES
Before you begin, it is important to become familiar with the
words and phrases used in this instruction manual.
These words and phrases are common to most
ClearSpan™ shelters and identify the di󰀨erent parts of
the shelter. (Some are used in this document. Others may
not apply to this particular shelter.) These terms describe
the shipped parts and can also be found on the materials
list/spec sheets included with the shipment. To aid in the
assembly, read through the following denitions before you
begin to assemble your shelter.
• Conduit: An assembly of pipes used to secure the
main cover and end panels (if equipped). Purlins and
some strut assemblies also consist of connected pipes
to form a conduit. Each pipe joint of a conduit assembly
is secured with a self-tapping Tek screw.
• Coupler or Fitting: A part of the frame assembly
where legs, purlins and rafter pipes are inserted and
secured. In most instances, 3-way and 4-way couplers
are used. In some larger applications, couplers are
used to secure the joints of the di󰀨erent rafter sections
during the assembly of the rafters. Some shelters do
not use couplers.
• Foot or Rafter Foot: The part attached to and found
at the base of the rafter or leg of the shelter.
Depending on the shelter, the foot is an optional
purchase. Some shelters do not o󰀨er an optional foot.
Some use 1-way connectors; others use ground posts.
• Must Read Document: This document includes
building and shelter anchoring instructions, steps for
end wall reinforcement, safety precautions, and notices
and warnings. The Must Read document is sent with all
shelters and buildings. If you did not receive a Must
Read document, contact Customer Service to request
one.
• On-Center: Term used to describe a measurement
taken from the vertical center of the rafter or frame
member to the vertical center of another.
• Purlin: The pipe assembly that runs perpendicular to
the rafters or framework that supports the main cover.
Purlins are found on the sides and roof areas of the
assembled frame, are evenly spaced, and typically run
from the front to the back of the shelter.
• Plain or Straight Pipe: A term used to describe a pipe
that has the same diameter or width throughout its
entire length.
• Strut: A strut is usually a length of pipe with two
attened ends and is used for diagonal bracing of the
shelter frame. A strut is typically secured to the frame
work by special brackets and bolts.
• Swaged End or Swaged Pipe: The term “swaged”
refers to the tapered end of the pipe or tube. Swaged
ends of a pipe can be inserted into couplers and the
straight ends of other pipes.
• Tek screw: A self-tapping fastener used to secure pipe
joints and to fasten brackets to rafters.

CLEARSPAN™ SCREEN HOUSE
4Revision date: 12.19.07
REQUIRED TOOLS
The following list identies the main tools needed to
assemble the shelter. Additional tools and supports may be
needed depending on the structure, location, and
application.
• Tape measure or measuring device
• Marker to mark locations on the pipes
• Variable speed drill and impact driver (cordless with
extra batteries works best)
• Metal-cutting tool for pipe
• Wrench set or ratchet and socket set (recommended)
• Hammers and gloves
• Adjustable pliers
• Box cutter or utility knife
• Ladders, work platforms, and other machinery for lifting
designed to work safely at the height of the shelter.
UNPACK AND IDENTIFY PARTS
The following steps will ensure that you have all the
necessary parts before you begin to assemble the shelter.
1. Unpack the contents of the shipment and place where
you can easily inventory the parts. Refer to the Bill of
Materials/Spec Sheets.
2. Verify that all parts listed on the Bill of Materials/Spec
Sheets are present. If anything is missing or you have
questions, consult the Pictorial Parts Guide and all
shelter diagrams for clarication, or contact Customer
Service.
NOTE: At this time, you do not need to open the plastic
bags containing smaller parts such as fasteners or
washers.
LAY OUT THE BUILDING SITE
After the site is prepared, identify the location of the shelter
corners helps to square the frame after it is assembled.
Taking these steps before assembling the shelter saves
time and ensures that the structure is positioned as
desired. The following procedure is a suggested method. Its
use depends on the size of the shelter, shelter application,
the footings, and the method used to anchor the shelter.
QUICK START DIAGRAMS
For a quick overview of the shelter and its components,
consult the Quick Start diagrams at the back of these
instructions.
Continue with FRAME ASSEMBLY procedures that follow.

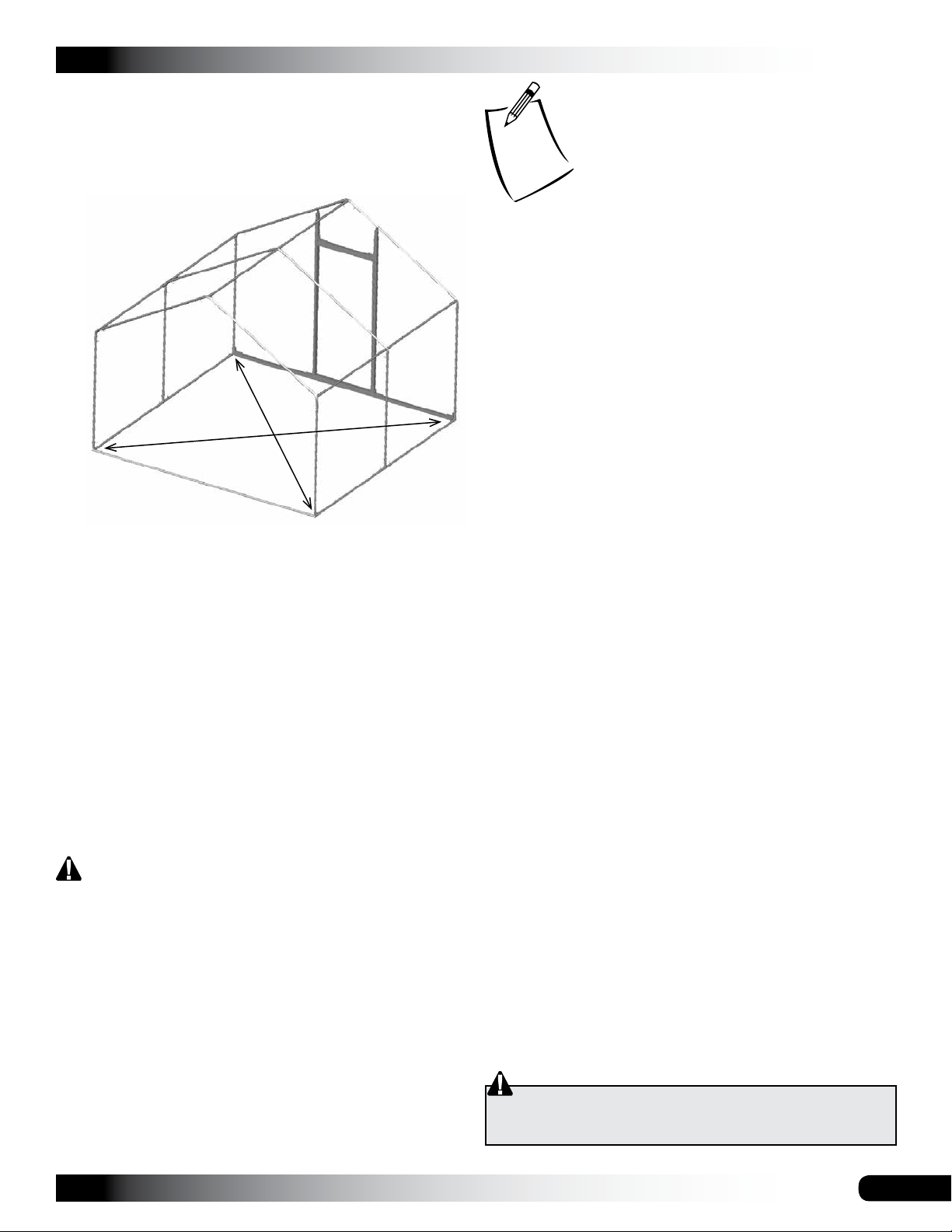

SQUARE THE SITE
1. Identify a corner where a building rafter will be
positioned, drive in a stake, and string a line the exact
width of the building and stake in place.
2. Sting a line at least as long as the building from the rst
stake at 90°.
NOTE: A transit can be used to ensure an accurate 90°
angle, or the 3-4-5 rule can be used. Refer to diagram.
Using multiples of 3-4-5 such as 6-8-10 or 12-16-20
helps to maintain an accurate 90° angle.
3. After squaring the position of the building and placing
a stake at all corners, string a line between the stakes
to mark the base of the building.
NOTE: Depending on length, shelters that include side
base rails may not require that you mark the site to
position the shelter. However, these steps are useful as
the shelter length increases.

5
CLEARSPAN™ SCREEN HOUSE
Revision date: 12.19.07

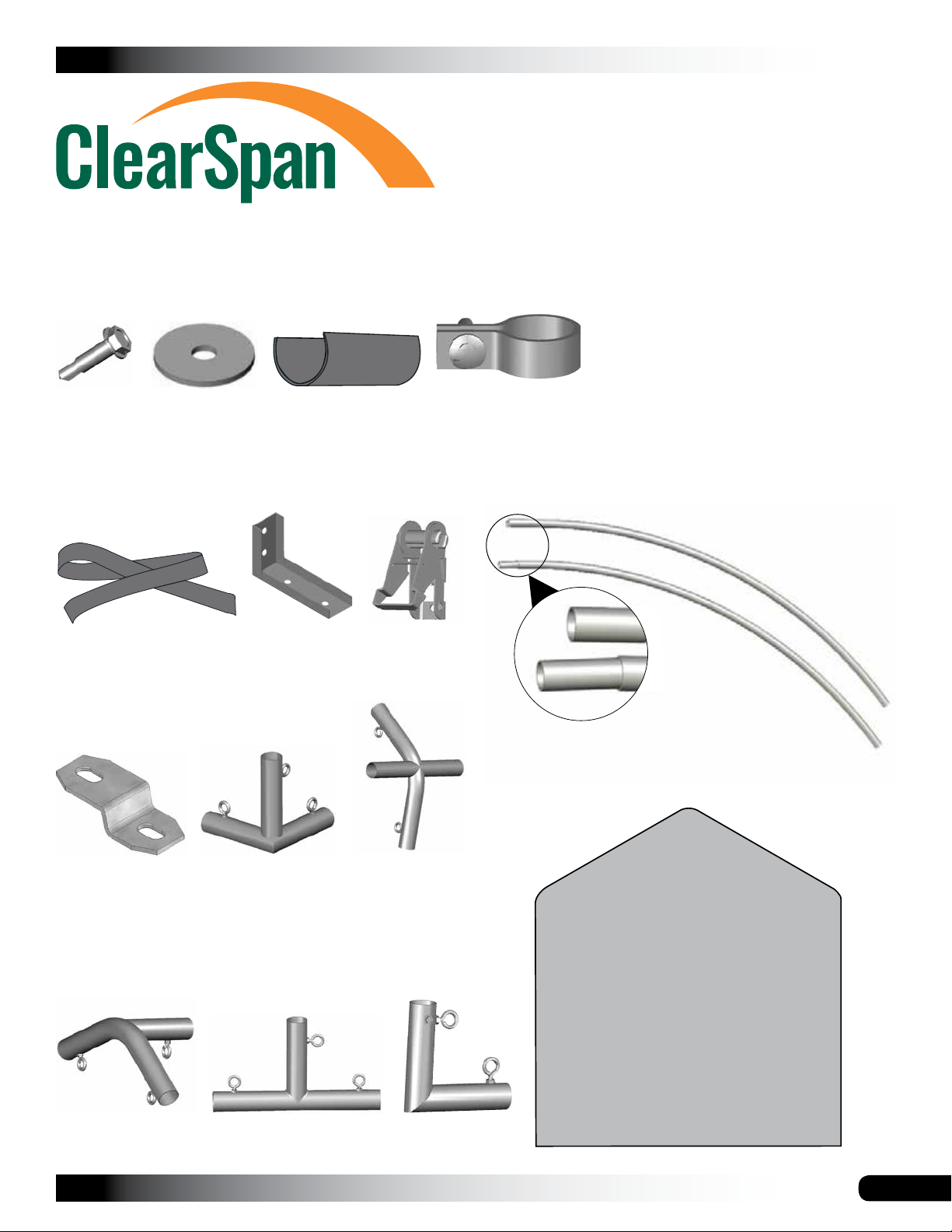

The following graphics and photos will help you identify
the di󰀨erent parts and show you how they are used.
(Not all parts are shown.)
103620B
Black Strap
104656
Coupler Elbow
Swaged
Unswaged
Swaged and Unswaged Rafter Sections
(not all pieces are shown)
102191
3-Way Coupler
102192
4-Way Coupler
FA4482B
Tek screw
QH1061
Ratchet
FAMF01B
Fender Washer
QH1330
Angled Bracket
CC6212
Fabric Clips
QH1400
Band Clamp
104074
Square-to-Round
Tube Connect
Bracket
Plain End Panel
102204
Corner Coupler
102205
T-Coupler

CLEARSPAN™ SCREEN HOUSE
6Revision date: 12.19.07
There can be two types of couplers used during the assembly of the shelter: those that include an installed locking eyebolt
and those that do not. See above.
If the couplers included with your shelter do not have an installed lock bolt, use a self-tapping Tek screw to secure the
di󰀨erent pipes to the couplers during the assembly process. The self-tapping Tek screws are included with the shipment.
ATTENTION: Tek screws are sent with all shelters of this type. For couplers with locking eyebolts, install the Tek screws at
each pipe connection for additional security if desired.
WARNING: To prevent personal injury and damage to the shelter, fasten and tighten a Tek screw at each pipe and
coupler joint.
To prevent cover damage, install the Tek screw so that it does not touch the main cover or any optional side or end
panels once these are installed.
4-Way Coupler (no lock bolt) 4-Way Coupler (includes lock bolt)
ADDITIONAL PARTS IDENTIFICATION NOTES
In some instances, there can be di󰀨erences between the
parts that are shown and referenced in the instructions
and the parts that are shipped with the shelter. These
di󰀨erences do not a󰀨ect the integrity of the shelter, but can
change the assembly procedures.
The information that follows identies possible changes in
the assembly procedure found in this instruction document.
Please implement these changes during the assembly of
the shelter.
3-Way Coupler (no lock bolt) 3-Way Coupler (includes lock bolt)

7
CLEARSPAN™ SCREEN HOUSE
Revision date: 12.19.07
ClearSpan™
Screen House
ASSEMBLE THE MAIN ROOF FRAME
This section is an overview of the process for assembling
your roof frame assembly. See illustration below to identify
main parts of the assembly.
1. Locate the required couplers and pipes and assemble
the roof frame as shown below.
2. Secure each pipe in the coupler using the locking
eyebolt. If the couplers are not equipped with locking
eyebolts, secure each pipe in the coupler using a Tek
screw.
ATTENTION: Position Tek screws so they will not
touch the main covers or side panels when these are
installed.
Pipe Identication
Location Pipe Length
Rafter 131P078 78"
Purlin 131P0705 70.5"
Rafter
Purlin

CLEARSPAN™ SCREEN HOUSE
8Revision date: 12.19.07
Pipe Identication
Location Pipe Length
Leg Pipe 131P070 70"
Side Base Pipe 131P0705 70.5"
Leg Pipes
Side Base Pipes
ASSEMBLE THE LOWER FRAME
This section is an overview of the process for assembling
your lower frame assembly. See illustration below to
identify main parts of the assembly.
1. Locate the required couplers and pipes and assemble
the roof frame as shown below.
2. Secure each pipe in the coupler using the locking
eyebolt. If the couplers are not equipped with locking
eyebolts, secure each pipe in the coupler using a Tek
screw.
ATTENTION: Position Tek screws so they will not
touch the main covers or side panels when these are
installed.
Frame shown may di󰀨er in length. At this time, DO
NOT install the pipe identied by the dashed line. It is
installed in a later procedure.

9
CLEARSPAN™ SCREEN HOUSE
Revision date: 12.19.07
INSTALL END WALL FRAME ASSEMBLY: FRONT
The front end wall framing includes a base rail that is
attached between the end rafter legs at ground level. Below
describes one way to install the end wall.
Complete these steps to assemble the end wall framing for
the front end wall.
Required parts:
• 2" x 2" square tubes (#105328) (4)
• 1.75" x 1.75" square tube plain (#104075) (3)
• 36" x 80" door (#104706)
• Angle brackets (#QH1330) (6)
• 1.315" band clamps (#QH1400) (2)
• Square-to-Round brackets (#104074) (2)
• Tek screws (#FA4482B)
• 5/16" x 2 1/2" carriage bolts (#FAH320B)
• 5/16" nuts (#FALB02B)
ATTENTION: Consult the End Framing - Connections in
the Quick Start Guide at the back of these instructions
before you start the steps that follow.
1. Locate two (2) 96" square tubes (#105328) and one (1)
16" square tube (#104075).
2. Measure and cut a 46" section of tube from one (1) of
the 96" square tubes.
3. Using the 16" square tube (#104075) as an insert,
connect the 46" and 96" square tubes to form the base
rail for the front end wall.
4. Rotate the square tube so that the Tek screws are to
the inside of the shelter.
ATTENTION: To prevent damage to the end panel and
interference with the door installation, do not position
the rail with the Tek screw heads to the top or front/
outside surface of the assembled tube.
5. Attach one (1) angled bracket (#QH1330) to each end
of the base rail.
96''
Square Tube
46''
Square Tube
#104075
1.75" x 1.75" Square Tube (16'')
Tek Screws
NOTE: Make sure the brackets are ush at each end of
the base rail.
6. Position the assembly between the legs of the front end
rafter and attach using Tek screws.

CLEARSPAN™ SCREEN HOUSE
10 Revision date: 12.19.07

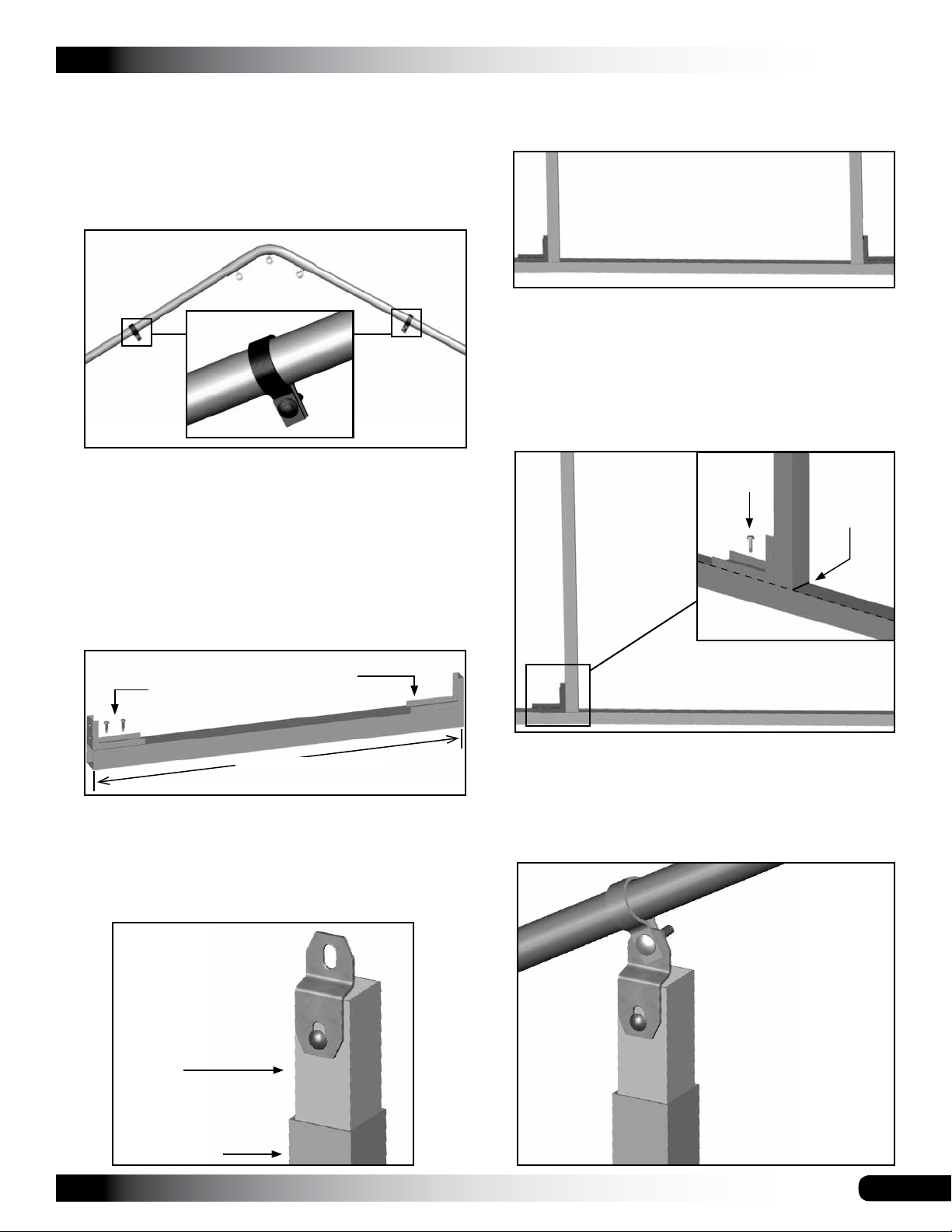

7. With the base rail secured between the end rafter
legs, locate the two (2) remaining 16" square tubes
(#104075) and attach one (1) square-to-round tube
connector (#104074) to one end of each tube.
INSTALL END WALL FRAME ASSEMBLY: FRONT
(CONTINUED)
Use a 5/16" drill bit and drill
to drill the hole for the 5/16"
carriage bolt.
Square-to-Round Tube Connect
Bracket (#104074)
Carriage Bolt (#FAH320B)
Square Tube - 16" (#104075)
8. Locate the remaining two (2) 96" square tubes
(#105328) and attach a angled bracket (#QH1330)
ush at one end of each tube as shown below.
96" Square Tube
(#105328)
Angled Bracket
(#QH1330)
Tek Screw (#FA4472B)
These tubes form the vertical door frame members of
the end wall.
9. Measure and mark the center of the end wall base rail.
This mark will be used when you center the door in the
end wall.
10. Locate the pedestrian door that shipped with your
shelter and measure the width of the door.
11. After measuring the width, add 1/2" to the dimension to
allow room to properly install and adjust the door.
ATTENTION: The frame of the door is designed to
"wrap around" the vertical door frame tubes of the end
wall. Diagram below shows how the door is installed.
Top of Door Frame
Door Frame
Vertical Door Frame
Tube of the End Wall
Door
NOTE: Verify that you are measuring the width of the
door correctly to allow it to be installed.
12. Using the center mark and the width determined in
Steps 10 and 11, mark the inside rough opening for the
pedestrian door.
Consult the comment that follows if needed.
REMEMBER: The dimension for the inside rough
opening of the door is the width of the door (Step 10)
plus 1/2" (Step 11). Vertical tubes can be adjusted once
the door is set in position.
NOTE: Vertical door frame tubes (shown above) are
installed later.
Width of door plus 1/2"
Center of Base RailMark
here
Vertical Door Frame
Mark
here

11
CLEARSPAN™ SCREEN HOUSE
Revision date: 12.19.07
14. Locate the short section of 2" x 2" square tube and cut
it to the dimension determined in Steps 10 and 11. This
tube is used for the top horizontal end wall door frame
tube (header).
15. Attach the remaining two (2) angled brackets to the
header tube as shown below.
The length of the header tube is the width of the door
plus 1/2". See Steps 10 and 11 if needed.
NOTE: Attach the angled brackets (#QH1330) flush
with the ends of the header tube.
16. Take one (1) 16" square tube and square-to-round
connector assembly (Step 7) and insert it into the top of
each 96" vertical door frame member (Step 8).
13. Take two (2) band clamps (#QH1400), remove the bolt
and nut, and place the clamp over the upper tube of
the end rafter. Use a set of pliers to squeeze the clamp
back into shape once it is in position on the rafter if
needed.
INSTALL END WALL FRAME ASSEMBLY: FRONT
(CONTINUED)
Width of Door plus 1/2"
Angled Bracket
(#QH1330)
Tek screws
Square-to-Round
Connector Assembly
(Step 7)
Vertical Door Frame
17. Verify that the angled bracket (#QH1330) attached to
the lower end of each frame tube is positioned to the
outside of the door frame rough opening.
ATTENTION: Do not secure the 16" square tube insert
to the top of the vertical door frame member at this
time.
18. Carefully position one (1) vertical door frame tube on
the base rail and align the inside edge with one mark of
the rough door opening. See the diagram below.
Lower section of the left and right vertical
door frame tubes as seen from the
outside of the end wall.
Install Tek
screw Rough door
opening
mark.
19. Secure the angled bracket (#QH1330) to the base rail
tube using one (1) Tek screw at this time.
20. Attach the upper portion of the vertical door frame tube
to the band clamp on the upper tube of the end rafter
as shown below.
NOTE: Install the nut, but
do not tighten the clamp
at this time.

CLEARSPAN™ SCREEN HOUSE
12 Revision date: 12.19.07
INSTALL END WALL FRAME ASSEMBLY: FRONT
(CONTINUED)
21. Repeat the steps for the remaining vertical door frame
tube.

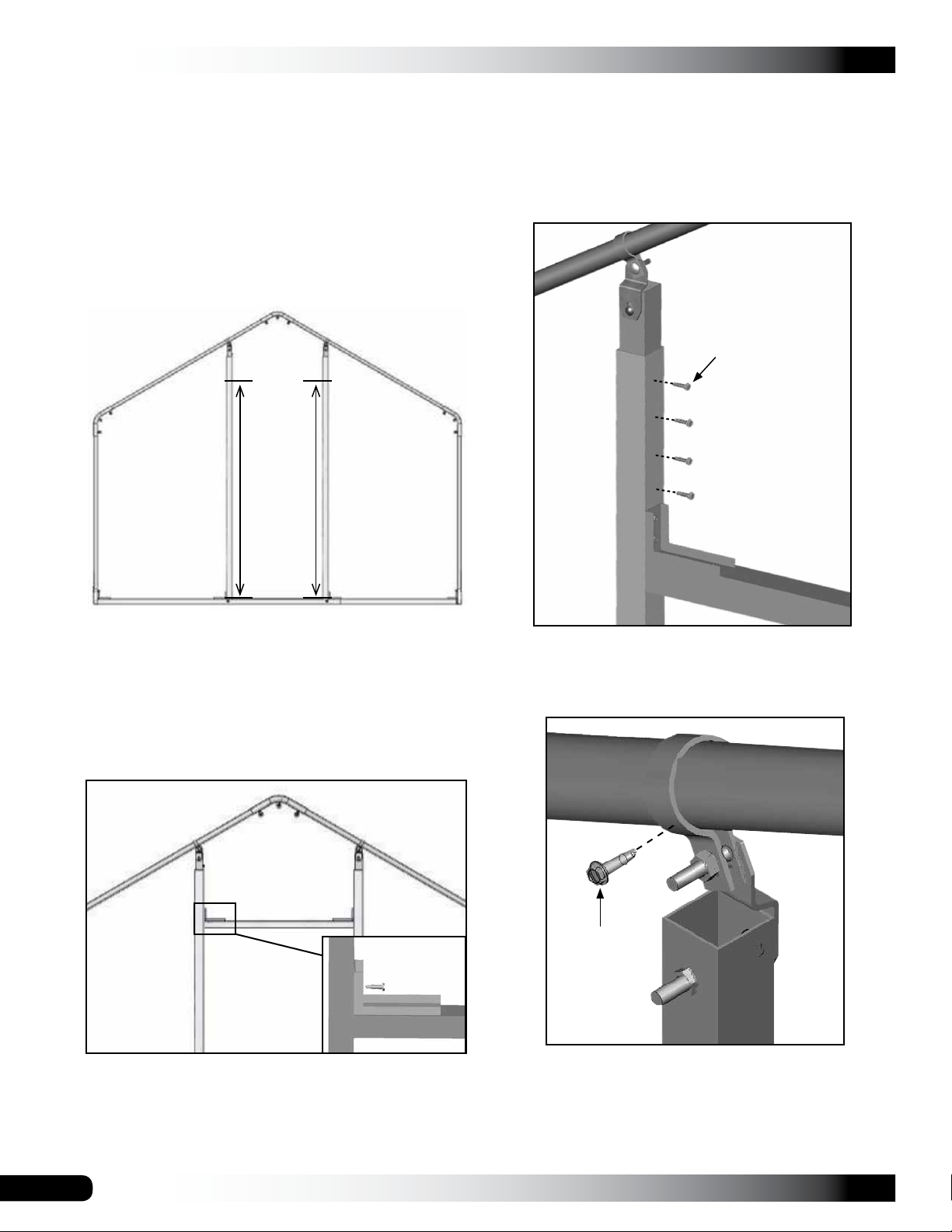

22. Using the pedestrian door, measure the height of the
door and add 1/2" to allow for the proper installation
and adjustment.
23. Using the dimension determined in the previous step,
measure along each door frame tube from the top of
the base rail and mark the location.
Pedestrian
door height
measurement
plus 1/2".
24. Position the horizontal door frame member between
the vertical frame members and align the bottom of the
horizontal tube with the rough opening marks.
25. Temporarily secure the horizontal tube to the vertical
end frame tubes using one (1) Tek screw for each
angled bracket. This frame tube will be removed to
install the door after installing the end panel.
NOTE: Clamps can also be used to temporarily clamp
the horizontal tube between the vertical frame tubes.
26. Verify that the vertical door frame tubes are plumb and
secure both pipe clamps to the end rafter.
27. Recheck the rough door opening dimensions (top and
bottom) to verify that the door opening is square.
28. Using Tek screws, secure the square tube insert to
each vertical door frame tube as shown.
Tek screw
29. Return to each band clamp and install a Tek screw
through the clamp and into the rafter pipe from the
inside of the shelter to secure the clamp to the rafter.
View above is from the inside (or backside) of the end
wall frame and shows the top of one vertical frame
tube.
30. After assembling the back, end wall frame, square and
anchor the frame.
Tek Screws

13
CLEARSPAN™ SCREEN HOUSE
Revision date: 12.19.07
Frame shown without end panels for clarity.
SQUARE THE ASSEMBLED FRAME
1. With the frame in position, perform a nal square of
the frame by measuring diagonally (corner-to-corner)
at the bottom of the legs and verify that the two
measurements are equal. Adjust if needed.
2. Adjust width. Measure width from center of rafter leg to
center of other rafter leg of the same rafter assembly.
Adjust if needed.
3. Examine the frame and remove any sharp edges from
the frame or reposition screws so they do not come in
contact with the roof covers.
4. After the frame is squared, read or reread the MUST
READ document and anchor the frame in place before
installing the cover or end panels.
ANCHOR THE FRAME
At this point in the assembly process, anchor the
assembled frame. Once the frame assembly is anchored
properly, continue with these instructions.
WARNING: Securing the legs to concrete blocks or
wood boards set on the site is not a substitute for
properly anchoring the shelter. You must anchor the
shelter to the site.
FAILING TO PROPERLY ANCHOR THE SHELTER
WILL RESULT IN DAMAGE TO THE SHELTER AND
MAY CAUSE PERSONAL INJURY.
Turnbuckles and ground anchors are suitable to anchor this
type of shelter. Consult a reliable construction professional
if you need assistance when anchoring the assembled
frame.
Contact Customer Service at 1-800-245-9881 to purchase
additional parts to anchor the shelter.
DO NOT INSTALL OR ATTEMPT TO INSTALL END
PANELS OR THE MAIN COVER DURING WINDY OR
STORMY CONDITIONS.
Space below is reserved for customer notes.

CLEARSPAN™ SCREEN HOUSE
14 Revision date: 12.19.07
END PANEL INSTALLATION: FRONT
This procedure describes one way to install the end panel
and pedestrian door.
ATTENTION: The end panels are identical for both ends of
the shelter. Each includes a pocket sealed at the bottom of
the rectangular panel.
These panels are taller and wider than what is required to
cover the ends. The excess panel material can be removed
(if desired) after the panel is attached to the shelter frame.
Required parts and tools:
• End panel
• Tek screws (FA4482B)
• Fabric clips (#CC6212)
• Utility knife, nut setter (included), battery- (or electric-)
powered drill to install Tek screws
1. Locate one end panel, unfold it on the ground at the
end wall of the shelter, and center it with the end wall.
Position the pocket along the base rail.
4. Take the base rail and insert it into the pocket of the
end panel beginning at either of the outer cuts made in
Step 2.
2. With the panel centered, take a utility knife (or similar
cutting tool) and slice the pocket material in the
locations shown by the arrows and lines above.
ATTENTION: Cut only the pocket of the end panel. Do
not cut through the end panel.
3. After cutting the end panel pocket, detach the base rail
of the end wall frame from the four (4) angled brackets
(#QH1330). Leave the angled brackets attached to the
rafter legs and vertical door frame members.
NOTE: Loosen—do not remove—the frame anchors if
needed to remove the base rail and to install the panel.
5. With the base rail in the end panel pocket, reattach the
rail to the QH1330 brackets using the same holes to
install the screws.
NOTE: Use two Tek screws for each QH1330 bracket.
Install only one (1) Tek screw to secure the right
vertical at this time. This tube will be loosened to install
the door.
6. Using adequate assistance, lift the end panel up and
over the end rafter and stretch it into position.
The excess end panel material can be removed after
the panel is attached to the rafter pipe.

15
CLEARSPAN™ SCREEN HOUSE
Revision date: 12.19.07
7. Fold the edges around the rafter pipes and secure
the panel to the rafter pipes using fabric clips and Tek
screws.
END PANEL INSTALLATION: FRONT (CONTINUED)
ATTENTION: Divide the fabric clips in half and use half
to secure each end panel. Space the clips evenly along
the rafter as shown above.
Position the Tek screws so they will not touch the main
cover when it is installed.
The number of fabric clips shown above may not match
the number used for your greenhouse.
8. After securing the end panel to the rafter, retighten the
frame anchors and cut the opening for the pedestrian
door.
View shows the inside
surface of the end panel.
Fabric clip
and Tek screw
CUT THE DOOR OPENING: FRONT END PANEL
The end panel material is cut and removed from the rough
opening of the pedestrian door. These steps describe one
way to do this.
1. From the outside of the shelter, use a utility knife to cut
the end panel as shown below. The dashed lines show
where to make the three (3) cuts.
2. After cutting the end panel in the locations shown by
the dashed lines, remove the part of the panel shown
by the shaded area in the diagram below.
ATTENTION: Allow an 8" border to remain in the door
opening. The white areas in the above diagram identify
this 8" border.
This material is wrapped around the door frame tubes
of the end wall and secured to the inside of the door
frame tubes using Tek screws and fender washers.
3. Remove the end panel material from the base rail
between the vertical door frame tubes. See diagram
above.
4. Continue by installing the pedestrian door.
8" Border
(White area)
Remove
dark gray
area.
Cut on
dotted lines.
Remove end panel material.

CLEARSPAN™ SCREEN HOUSE
16 Revision date: 12.19.07

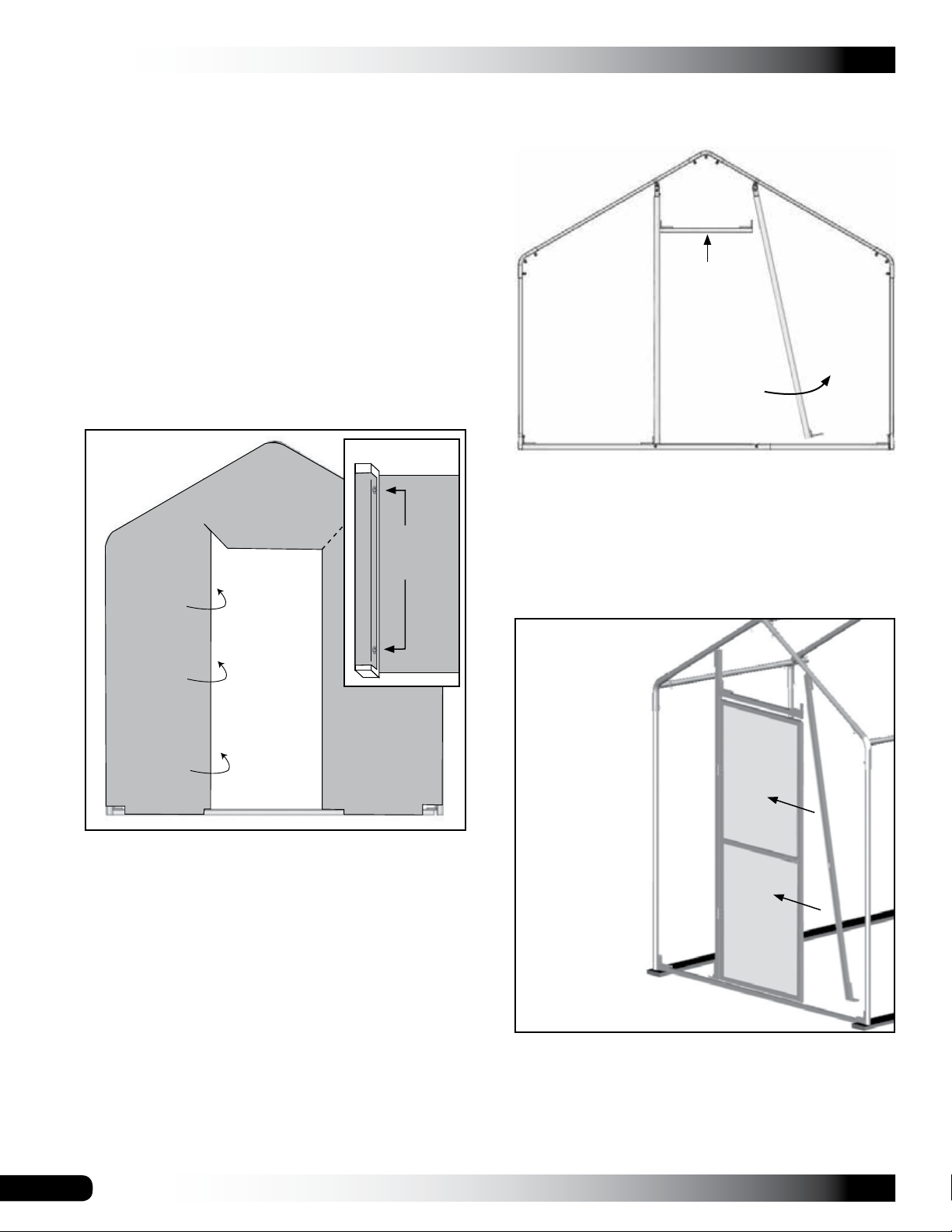

INSTALL THE PEDESTRIAN DOOR
The door for the shelter is installed between the vertical
door frame members of the end wall. The following steps
describe one way to install the door.
1. Wrap one side of end panel material (remaining in
the door opening) around the left vertical door frame
member, which is secured to the base rail.
ATTENTION: The remaining vertical door frame
tube should be loose at the bottom to allow for the
installation of the door. If this tube is attached to the
rail, remove the Tek screw before you continue with
these steps. See diagram to the right.
2. Secure the end panel material to the door frame tube
using Tek screws and washers and evenly space these
(12"-14") along the tube.
The insert above shows the Tek screws and washers
attached to the frame from the inside of the shelter.
NOTE: Do not secure the end panel material to the
backside of the vertical door frame tubes. Doing so will
interfere with the installation of the door.
The arrows in the previous diagram show which
surface of the vertical tube to attach the end panel
material that is wrapped around the vertical door frame
tube.
Outside View
Tek screw
and washer
Inside View
3. With the end panel secured to the left door frame tube,
remove the header tube. Allow the brackets to remain
attached to the header tube.
View is from the outside of the frame. End panel is not
shown to better show the frame.
4. Move to the bottom of the vertical door frame tube and
swing the tube outward as shown above.
5. With the proper assistance, lift the pedestrian door and
position it in the opening.
ATTENTION: The
vertical door frame
tubes sit within
the frame channel
of the door. The
header tube will
sit on top of the
installed door.
End panel is not shown.
End panel is
not shown.
HeaderTube

17
CLEARSPAN™ SCREEN HOUSE
Revision date: 12.19.07

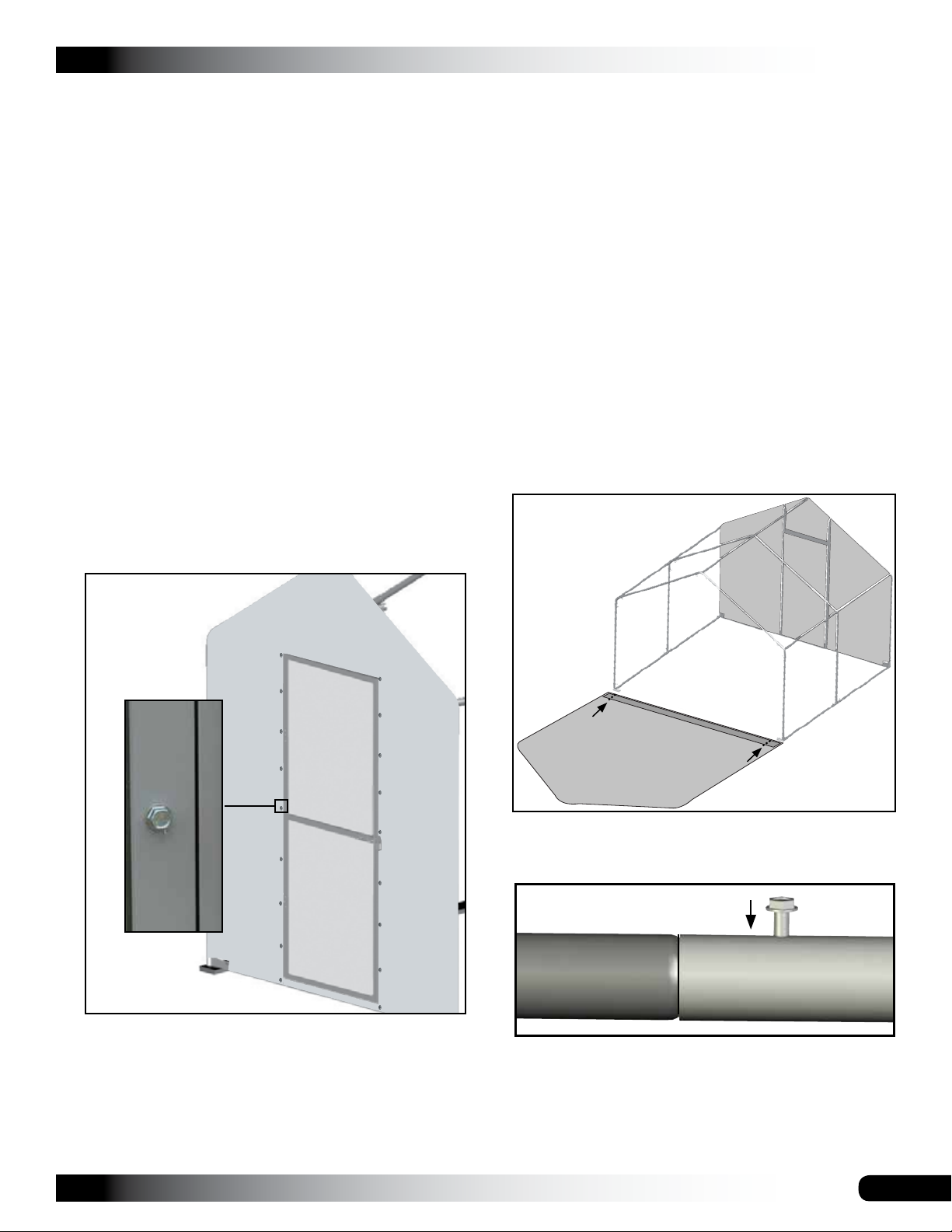

INSTALL THE PEDESTRIAN DOOR (CONTINUED)
6. With the door installed, swing the loose vertical door
frame tube back into position.
7. Feed the end panel material between the vertical tube
and the frame of the pedestrian door.
8. Secure the vertical tube to the base rail and reattach
the horizontal tube (header) between the vertical tubes.
NOTE: Verify that the end panel material is between
the top of the door frame and the header before you
reattach the tube.
The header can be adjusted as needed to properly
adjust the door.
9. Stretch the panel material as needed and secure it to
the remaining door frame members on the inside of the
assembled frame.
ATTENTION: Refer to Steps 1 and 2 if needed.
10. Verify that the door is in the desired position and
adjusted and install Tek screws from the outside
through the door frame of the door and into the end
wall door frame tubes.
Evenly space the Tek screws (12"-14") to secure the
door to the end wall frame.
11. After the door is secured to the end wall frame, verify
that the end panel is stretched, test the door, and
remove the excess panel material (if desired).
12. Continue by installing the remaining end panel.
Check the
operation of the
door before you
secure it to the
end frame. Shim
if needed.
END PANEL INSTALLATION: BACK
The end panel for the remaining end wall is installed and
secured in the same manner as the previous end panel.
The following steps describe one way to install the panel.
Required tools and parts include:
• Solid end panel
• 131S075 swaged pipe (1)
• 131P0705 plain pipe (1)
• Tek screws (#FA4482B)
• Fabric clips (#CC6213)
1. Locate the remaining end panel, unfold it on the ground
at the end wall of the shelter, and center it with the end
wall.
2. Cut the panel pocket using the arrows and lines below
for a guide.
3. Locate one (1) 75" swaged pipe (#131S075) and one
(1) 70-1/2" plain pipe (#131P0705) and connect the
pipes, securing the joint with one Tek screw.
4. Tape the connection and Tek screw with duct tape and
slide the pipe assembly into the pocket.

CLEARSPAN™ SCREEN HOUSE
18 Revision date: 12.19.07
END PANEL INSTALLATION: BACK (CONTINUED)
5. Slide each end of the end panel pipe into the remaining
opening of each 3-Way coupler located at the ends of
the end rafter legs.
NOTE: It may be necessary to spread the end rafter to
insert the pipe into each coupler. The end panel shown
in the insert has been hidden to better see the pipe and
coupler.
6. Secure the pipe ends in each coupler with either a
locking eyebolt or a Tek screw.
7. With the end panel conduit secure between the end
rafter legs, pull the end panel up and over the end
rafter and attach it to the rafter using Tek screws and
fabric clips.
NOTE: Refer to Step 7 of the previous End Panel
Installation procedure if needed.
8. Trim the excess panel material if desired.
9. Once the back end panel is in place and secured,
retighten all frame anchors (if needed), and install the
ratchets.
Space below is reserved for customer notes.

19
CLEARSPAN™ SCREEN HOUSE
Revision date: 12.19.07
RATCHET INSTALLATION
The main cover is secured to the shelter frame using
ratchets and straps. Two (2) ratchets are attached to each
of the end panel conduits. (These are the pipe or tube
assemblies installed in the bottom pocket of each end
panel.)
The remaining ratchets are evenly spaced and attached to
the rafter legs immediately across from one another along
the sides of the frame.
NOTE: For some shelters, ratchets are attached to each
mid rafter; for other shelters, ratchets are attached to every
other mid rafter.
The main point is to position the ratchets as evenly as
possible along each side of the shelter and immediately
across from one another.
Ratchet Locations: Ratchets are attached to the outside
of the rafter legs and to the end panel conduit as shown
above. Frame shown may differ in length.
Complete these steps to attach the ratchets to the frame:
1. Locate the ratchets and Tek screws used to attach the
ratchets to the frame.
2. Move to the outside of the front end rafter and attach
one (1) ratchet to the frame tube as shown in the
diagram that follows.
Ratchet is attached approximately 10" in from the
center of the end rafter pipe so it is in line with the
strap in the main cover bonnet when the main cover is
installed.
3. Repeat Step 2 to attach the remaining ratchets to the
end frame conduits.
4. Move to each end rafter and attach a ratchet to the side
of the rafter as shown in the next diagram.
NOTE: All side ratchets are attached to the rafter leg
just above the top of the coupler.
10"
Tek screw
ATTENTION: Each corner of the shelter will resemble
the corner shown in the above insert.
5. Divide, evenly space, and attach the remaining ratchets
along each side of the shelter frame.
6. After attaching all ratchets, verify that the frame is
anchored and that all anchors are tight and install the
main cover.
Top of the Coupler
End Panel

CLEARSPAN™ SCREEN HOUSE
20 Revision date: 12.19.07
MAIN COVER INSTALLATION
The main cover is secured to the frame using ratchets and
straps. The straps are wrapped around a conduit inserted
in a pocket along each side of the cover.
When installed properly, the main cover skirt covers the
ratchets and straps used to secure the cover in place.
WARNING: To prevent damage to the cover and to
prevent serious personal injury, DO NOT attempt to
install the main cover on windy days.
The following steps describe one way to assemble the
cover conduits and to install the main cover.
1. Locate the round 1.315" pipes for the cover conduits
and assemble the two (2) cover conduits for the main
cover.
Each cover conduit assembly consist of following
swaged and plain pipes:
These cover conduits are inserted into the pockets
sewn into the main cover. The conduits are used to
tighten and secure the main cover.
3. Locate the main cover and spread it out on the ground
(with its underside facing up) along the side of the
assembled and anchored frame. See diagram below.
6. With all ropes attached to the cover conduit, lift the
conduit and carry the cover toward the base of the
frame.
7. Toss the ropes over the frame and pull the cover into
position. One person is required at each rope.
NOTE: Do not use the straps in the bonnet pocket
of the main cover to pull the cover into place. These
straps will pull out.
8. With the cover on the frame, center the cover end-to-
end and side-to-side as needed.
Ropes
NOTE: The black straps in the main cover are
positioned at the front and back of the assembled
frame.
4. Insert the cover conduits into the pockets along the
sides of the main cover.
5. After inserting the cover conduits and with the cover
positioned along the side of the frame, attach ropes to
both ends of the cover conduit. Wrap the rope around
the conduit a few times to prevent it from slipping o󰀨.
Frame length shown may di󰀨er from actual frame.
Swaged Pipe Plain Pipe
105680 #131S075 (1) #131P0735 (1)
105681 #131S075 (2) #131P0735 (1)
105682 #131S075 (3) #131P0735 (1)
2. After assembling the two (2) cover conduits of equal
length, secure the pipe joints with a Tek screw and tape
over the screw head with duct tape.
Frame length shown may di󰀨er from actual frame.
Cover Conduits
