ClearView CleanCam CCS-2519 User manual

CCS-2519 Assembly Instructions
Contents:

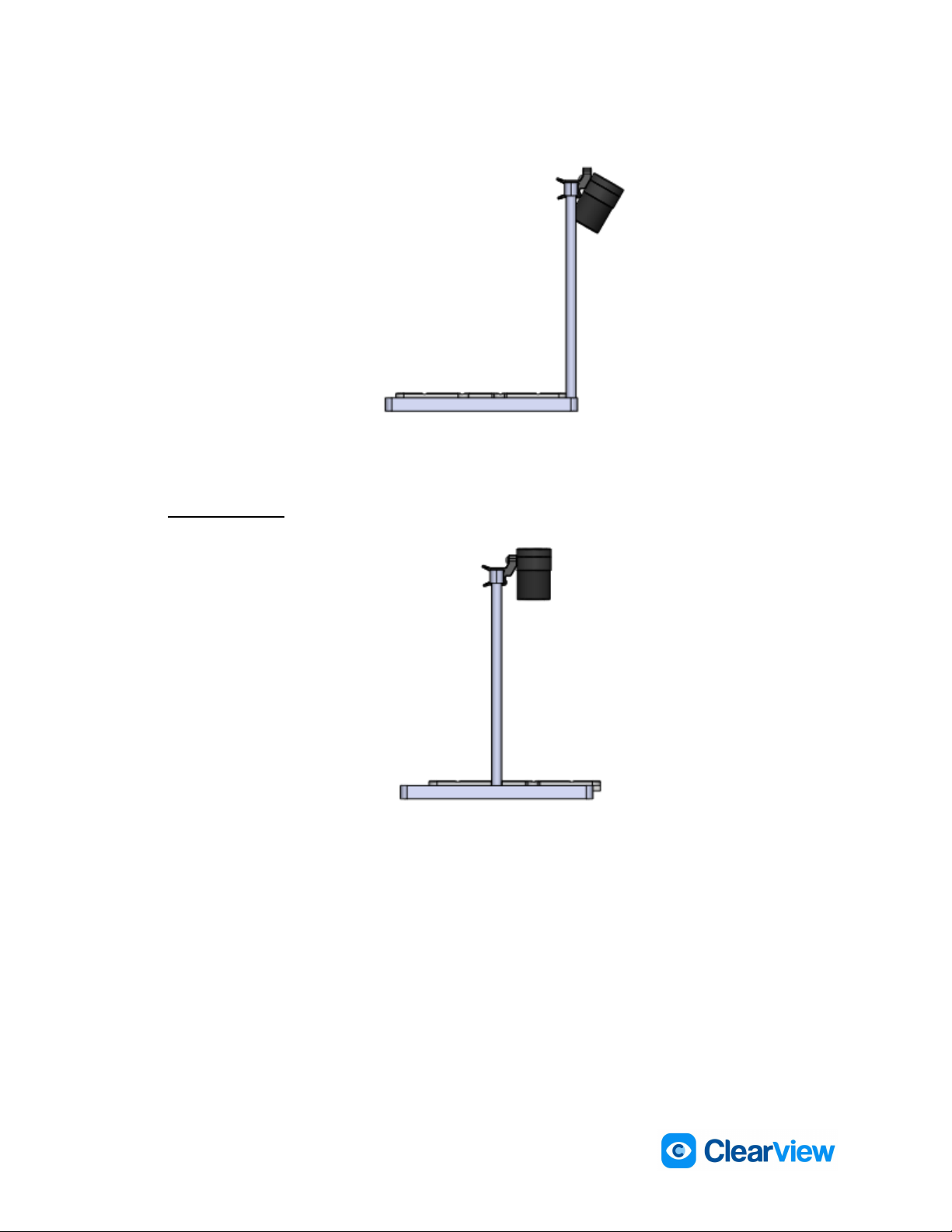

Note: the CCS-2519 supports two mounting orientations. Follow the instructions based
on your intended orientation
Orientation 1:
1. Using the provided hex key, pass one CCS-4015 fastener through a hole in
CCS-2007 Camstand Horizontal and screw it into the threaded hole at the end of
CCS-2208 Camstand Upright.
2. Repeat, using another CCS-2007 and CCS-2208.

3. Position the remaining CCS-2207 Camstand Horizontal such that the end of
CCS-2208 of the assemblies from steps 1. and 2. align with the holes at the far
ends of the remaining CCS-2207. Using the provided hex key, pass one CCS-4015
fastener through each hole and secure the CCS-2207 to CCS-2208.
4. Tighten all fasteners. If desired, place CCS-2205 Camera Stand Tray in place over
the CCS-2207s to preserve the shape of the stand while tightening.
5. Attach the CCS-2009 Camera Mount Clip to the CleanCam using the 30-degree
attachment point using the provided hex key and one CCS-4015.

6. Clip the assembly from step 5. to the assembled mount
Orientation 2:
1. Using the provided hex key, pass one CCS-4015 fastener through the center hole
in CCS-2007 Camstand Horizontal and screw it into the threaded hole at the end
of CCS-2208 Camstand Upright.
2. Repeat, using another CCS-2007 and CCS-2208.
3. Position the remaining CCS-2207 Camstand Horizontal such that the CCS-2208 of
the assemblies from steps 1. and 2. align with the holes at the far ends of the
remaining CCS-2207. Using the provided hex key, pass one CCS-4015 fastener
through each hole and secure the CCS-2207 to the CCS-2208.

4. Tighten all fasteners. If desired, place CCS-2205 Camera Stand Tray in place over
the CCS-2207s to preserve the shape of the stand while tightening. Note: the
CCS-2205 will be offset to one side.
5. Attach the CCS-2009 Camera Mount Clip to the CleanCam using the 90-degree
attachment point using the provided hex key and one CCS-4015.
6. Clip the assembly from step 5. to the assembled mount. To maximize the amount
of the CCS-2205 shown by the CleanCam during image capture, attach the
assembly such that the CleanCam is oriented over the side of the mount that has
slightly more than 50% of the CCS-2205’s surface area.
