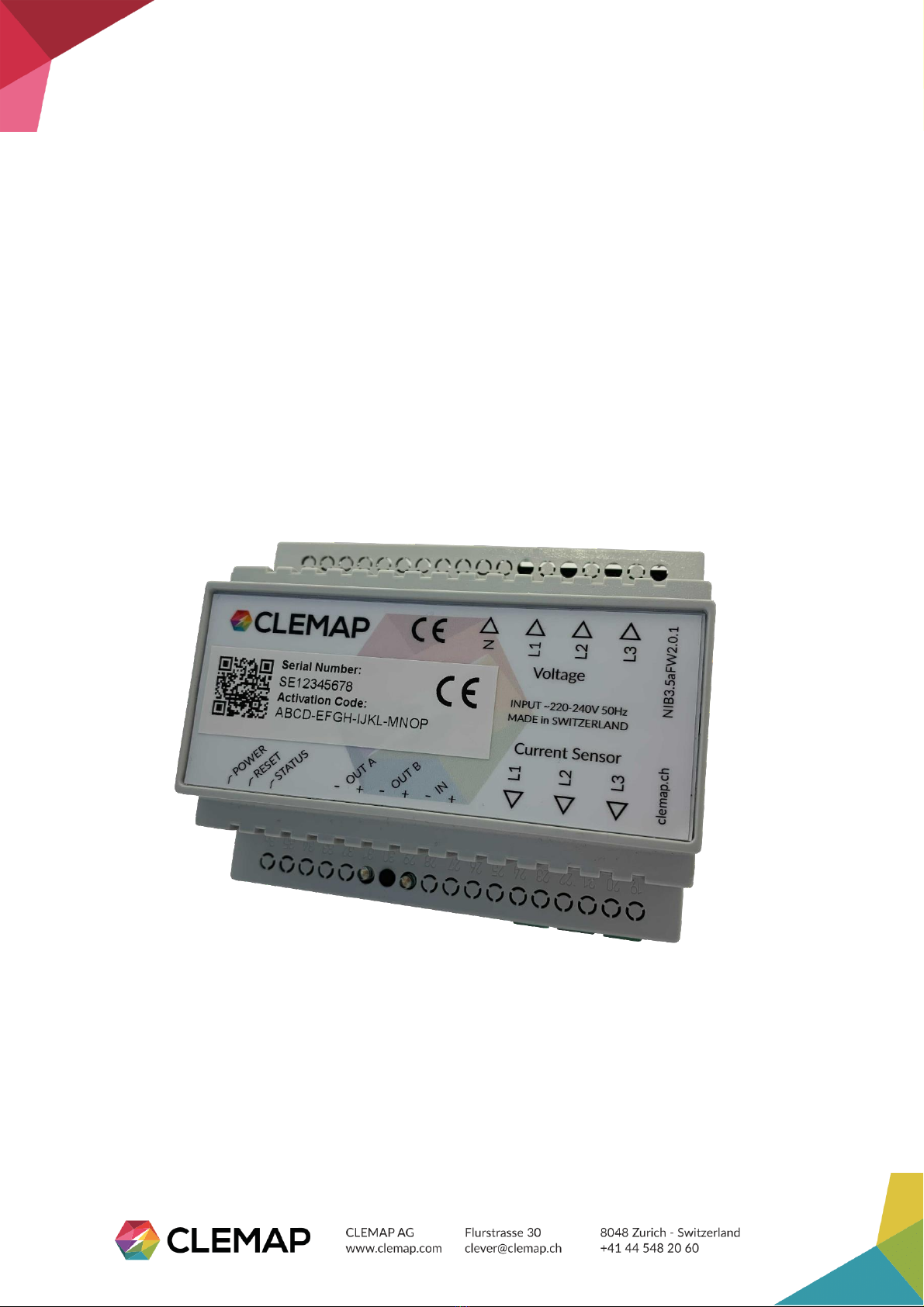

CLEMAP Energy Monitor User manual

1
CLEMAP Energy Monitor
Installation instructions
Version 05.2023

CLEMAP Energy Monitor | Installation manual
2
Table of contents
CLEMAP Energy Monitor................................................................................................................................. 1
Material .........................................................................................................................................................2
Specification...................................................................................................................................................3
Description.....................................................................................................................................................3
Installation requirements ...............................................................................................................................4
Safety notice ..................................................................................................................................................4
Power cable colours and their meaning...........................................................................................................4
Step 1: Electrical installation...............................................................................................................................5
Step 2: CLEMAP connection to a WIFI network or via Ethernet cable ...................................................................7
Step 3: Activation on floem.clemap.com.............................................................................................................8
FAQ –Frequently asked questions ......................................................................................................................9
The installation takes place inan electriccabinetor junctionbox,we recommend you
to contact an electrician.
Material
1 CLEMAP Energy Monitor (a)
3 current sensors, CT or
Rogowski Coils (b)
Picture 1 Material

CLEMAP Energy Monitor | Installation manual
3
Specification
Power supply:
230V+/-10% 50/60Hz AC
Complies with EU standards:
- RE Directive 2014/53/EU
- LVD 2014/35/EU
- EMC 2014/30/EU
- RoHS2 2011/65/EU
Radio protocol:
WiFi 802.11b/g/n
Frequency:
2400 - 2500 MHz
LAN:
RJ45 connector
Operational range (depending on local
construction):
- up to 50 m outdoors
- up to 30 m indoors
Dimensions (WxHxD):
105 x 86 x 59 mm
Electrical consumption:
<3W
Mechanical interface:
DIN Rail
Description
CLEMAP Energy Monitor can measure the power consumption of a building or industrial facility. The
energy consumption can be displayed on a web portal and additional features can be unlocked to
contribute to efficient energy use.
CLEMAP Energy Monitor is installed in a circuit breaker box and must be connected to the power
supply lines between the meter and the building. It is possible to connect the sensor to a singlephase
(L1), two phases (L1 and L2), or three phases (L1, L2, and L3).
Usually there are three input cables in a building: the phase conductors (L1=brown, L2=black and
L3=grey) and as output the neutral conductor (also called N=blue). The three current sensors must
be connected to all three incoming cables.

CLEMAP Energy Monitor | Installation manual
4
Installation requirements
Before you start the installation, check that the following points are fulfilled:
1. you have a smartphone or laptop to activate the CLEMAP product.
2. there is enough space in the fuse box to install the CLEMAP product.
a. Yes → Go to step 3.
b. No → Check whether you can install CLEMAP next to the fuse box.
CLEMAP can also be installed in other fuse boxes. Continue to point 3.
3. Is there an Ethernet cable connection or possibly a WIFI network at the installation
location of the CLEMAP product?
a. Yes → Start the installation.
b. No → Pull a LAN cable up to the CLEMAP sensor or install a WIFI repeater
and continue with the installation.
Safety notice
Power cable colours and their meaning
The function of each conductor can be recognised by the respective colour of the power cable in a
proper electrical installation. But be careful: Old buildings often have the wrong colouring of the
conductors because the standards have changed several times over the years.
Basically, there are three types of electrical cables. First, there is the active conductor, the outer
conductor, also called the phase conductor (L) or simply phase. Then there is the neutral conductor
(N). And finally there is the protective conductor (PE), also simply called earth (not used when
installing the CLEMAP product).
The following are the colours of the power cables:
Phase
L1, L2 and L3
brown, black, grey
Neutral
N
blue
Earth
PE
green-yellow
However, especially with older installations, do not assume that the colour scheme of the electrical
installation is correct.
For all work with electricity, safety is paramount. The lines of the area where work is
being done must be switched off "all poles" before the work. The best way to do this
is to switch off the corresponding fuse. But be careful: All-pole means that all
conductors, i.e. the phase as well as the neutral conductor, are de-energised. To
ensure this, the residual current circuit breaker (FI) should also be switched off. In
addition, the cables must be checked to ensure that they are current-free before
touching them.

CLEMAP Energy Monitor | Installation manual
5
Step 1: Electrical installation
As installation takes place in an electric cabinet, we recommend you to contact an
electrician.
Direction building
Direction energy
supplier
Picture 2 diagram of CLEMAP installation in the junction box of an industrial building
Figure 6: Current sensor. The
arrow must follow in the direction
of the current (to the consumers).
Figure 7: Rogowski coil. The direction of current is shown by the
arrow.

CLEMAP Energy Monitor | Installation manual
6
a. make sure that the power supply in the fuse box is disconnected.
b. positionthe CLEMAP product (a) so that the currentsensors (b) can be easily connected to the
main input cables (L1, L2 and L3) (as shown in Fig. 2).
c. Attach the CLEMAP product to the fuse box.
d. Connect the current sensors (b) to the insulated incoming power lines (L1, L2 and L3),
making sure that the arrow shown in figure 3 points in the direction of the electrical loads.
e. connect the currentsensors (b) totheCLEMAPproductandmake sure that the currentsensors
of the L1, L2 and L3 cables match the corresponding voltage inputs L1, L2 and L3.
f. Connect the inputs N, L1, L2 and L3 to the corresponding voltage lines after fusing
(maximum 16 A).
g. Switch on the fuses and wait 3 minutes until the sensor is active.
POWER LED- feedback
OFF
The CLEMAP product is currentless.
ON
The CLEMAP product is switched on.
STATUS LED feedback
OFF
Hotspot Mode
The CLEMAP product has no connection to a LAN or WLAN network, so it creates its own
hotspot (see step 2 on the next page).
Slow
Flashing
The WiFi login data is configured, an attempt is made to establish a connection to the
WiFi.
Flashing
The CLEMAP product is connected to a network.
It is currently seeking communication with the Internet.
ON
The CLEMAP product is connected to a WLAN network or connected via an Ethernet
cable and receives data from the Internet.
RESET button
pressed between 1
and 5 seconds
Hotspot Mode
If the CLEMAP product does not have a connection to a LAN or WLAN
network, it will create its own hotspot (see step 2 on the next page).
pressed between 5
and 10 seconds
Restart
The CLEMAP product is restarted.
pressed for more
than 10 seconds
Reset saved WIFI
The saved WIFI is deleted and the CLEMAP product creates a new hotspot.

CLEMAP Energy Monitor | Installation manual
7
Step 2: CLEMAP connection to a WIFI network or via Ethernet cable
a. Connect to the WiFi network created by the CLEMAPproduct with your smartphone or laptop.
((Name: clemapXX, where XX = the last two digits of the serial number, Password:
sensorsetup). WARNING: If an Ethernet cable is connected to the CLEMAP sensor, the
clemapXX's WIFI hotspot is automatically deactivated.
NOTE: For security reasons, the hotspot is deactivated after 10 minutes without connection.
To reactivate it, press the RESET button for more than 1 second (until the status LED starts
flashing rapidly).
b. go to http://192.168.1.100:4000, via a browser, if the sensor is connected with an Ethernet
cable, the IP may be different.
Figure 8
c. Registration with
•User: clemap
•Password: The serial number on the housing
(e.g. SE12345678)
Figure 9
d. briefly check if the displayed consumption
values (P, V and I) for the three phases L1, L2
and L3 are realistic. In case of anomalies,
check if each current sensor matches the
correct voltage phase, if the current sensors
are connected to the correct input (main)
cable and if they "clicked" when closed
e. In the case of a WiFi connection, proceed to
the next step. In the case of an Ethernet
connection, connect the cable and go directly
to step 3.
Figure 10
f. Select "Network", select "Refresh" and your
Wi-Fi network from the pop-up menu and
enter your Wi-Fi password.
CAUTION: the CLEMAP product only supports
WIFI on the 2.4 GHz band. Once you have
saved the WIFI password, you can log out.
Within a few minutes, the sensor will be
connected to the WIFI network you have
chosen.

CLEMAP Energy Monitor | Installation manual
8
Step 3: Activation on floem.clemap.com
Go to
http://floem.clemap.com
Figure 11
a. Select Log In or Create an account (you will need the serial number and activation code that
are included with these instructions).
b. During the registration process you will receive a confirmation email, if you cannot find it,
please check your spam folder.
c. Follow the instructions. Then select under "Settings", "Metering Point Settings", "Activate
new metering point".

CLEMAP Energy Monitor | Installation manual
9
FAQ –Frequently asked questions
During installation, the CLEMAP product does not create a WIFI network with the name «clemapXX»:
NOTE: For security reasons, the hotspot is deactivated after 10 minutes without connection. To reactivate it, press
the RESET button for more than 1 second (until the status LED starts flashing rapidly).
If the Edge Device does not find a WLAN network to connect to, it goes into discovery mode and provides its own
WLAN network (called "clemapXX"). It may take up to 3 minutes until "clemapXX" appears among the available
networks.
ATTENTION: If an Ethernet cable is connected to the CLEMAP product, the clemap WLAN hotspot is automatically
deactivated.
The password for clemapXX WIFI network is not accepted:
After entering the clemapXX WIFI network password “sensorsetup”, it is not accepted.
The network is set up, try again in 30 seconds.
I can’t reach floem.clemap.com through my browser:
Check the network connection. Check that you have selected the correct home WIFI and that you can reach the
Internet (e.g. www.google.com). Try again later.
During the installation (step 2) I cannot reach 192.168.1.100:4000 via my browser:
Check whether you are connected to the “clemapXX” WIFI network or whether the LAN cable is plugged in. Refresh
the webpage http://192.168.1.100:4000 and wait up to 30 seconds. Check again that you are connected to the
“clemapXX” WIFI network or that the LAN cable is plugged in and try to access the webpage
http://192.168.1.100:4000 again. If you still cannot access the webpage, try opening the webpage with another
device, e.g. another mobile phone or computer.
Perform a hard reboot by pressing the RESET button for more than 5 seconds (and less than 10 seconds) and wait 3
minutes.
During the installation (step 2) I cannot find my WIFI in the list of available networks:
Check whether the WIFI reaches the control cabinet in which the CLEMAP product is installed. If the WIFI router is
too far away, install a LAN cable, a power line adapter (e.g. TP-LINK TL-WPA4220KIT) or a WIFI repeater. The sensor
only supports WIFI networks on the 2.4 GHz frequency, if the network is on the 5 GHz frequency, activate transmission
on 2.4 GHz via the menu of your WIFI router or install a repeater.
Ground fault circuit interrupter switches off
The RCD can compare the amount of current flowing in and out. If the sum is intact, the current flowing in must be
as high as the current flowing back, whereby the sum of the currents of the neutral conductor and phases must be
zero. If this is not the case, the RCD disconnects the circuit, it "pops out". If L1, L2 and/or L3 are connected after the
RCD and the neutral is connected before it, the RCD will notice a difference between the current flowing back and
forth. Make sure that L1, L2, L3 and the neutral are connected after the RCD.

CLEMAP Energy Monitor | Installation manual
10
The sensor cannot connect to the cloud (status LED flashes):
1. Check whether the ports TCP 443, 3032, 8883 and
UDP 123 of the wireless router are open.
2. Perform a hard reboot by pressing the RESET
button for more than 5 seconds (and less than 10
seconds) and wait 3 minutes.
3. Some charging station models have their own DNS
server which may interfere with the setup process.
Plug charging stations into the router last so that
the IP address is given by the router and not by the
charging station.
Figure 12 Hard Reboot
I have installed the CLEMAP product correctly and registered it on the platform,
but the data is not accessible on floem.clemap.com:
Check whether the sensor is communicating with https://floem.clemap.com by looking at the LED status on the
sensor. If this flashes or is switched off, check whether the radio connection is also accessible when the control
cabinet door is closed (install a repeater if necessary) and whether the router doors are open.
→ See question: The sensor cannot connect to the cloud (status LED flashes).
If the status LED is constantly lit, check at https://floem.clemap.com whether the measuring point is online. If this is
not the case, please contact support.
Do you haveany furtherquestions abouttheinstallation? We will be happy to
answer them at [e-mail] or by phone [phone].
