clenaware Advanced SD50 Mark 5 User manual

www.clenaware.co.uk
Owner’s Manual
Thermal TD50 & Advanced SD50 Mark 5
Dish Washing Machine
WEE/DE2076RU
Machines are manufactured to ISO 9001 : 2008

www.clenaware.co.uk
Index
Thermal TD50 Dish Washer Operating Instructions.....................................................3
Preparation (TD50)...............................................................................................3
Filling (TD50).......................................................................................................4
Washing (TD50)...................................................................................................5
Close Down Cycle (TD50)......................................................................................7
Advanced SD50 Dish Washer Operating Instructions...................................................8
Preparation (SD) ..................................................................................................8
Filling (SD)...........................................................................................................9
Standby Mode (SD) ............................................................................................10
Washing (SD).....................................................................................................11
Closedown Cycle (SD).........................................................................................12
Chemical Injection and Warnings (TD & SD).........................................................13
Spraybar Rotation Warning (TD & SD)..................................................................13
Spraybar Rotation Warning (TD & SD)..................................................................14
Other Features (TD & SD)...................................................................................15
Daily Maintenance..................................................................................................16
Vital Parts To Be Regularly Cleaned / Maintained...................................................18
Caring For Your Dish Washer..................................................................................19
Simple Fault Finding...............................................................................................21
Machine Errors ......................................................................................................26
Dish Washer Installation.........................................................................................28
WEEE ................................................................................................................38
Service And Warranty.............................................................................................39
Warranty ...........................................................................................................39
Service ..............................................................................................................41
Disclaimer..........................................................................................................42

www.clenaware.co.uk
Thermal TD50 Dish Washer Operating
Instructions
Preparation (TD50)
Ensure that the machine interior is clean and soil-free, and that the top and bottom
spray bars rotate freely, and jets are clean and correctly located.
Ensure that all four filters are in position in the wash tank trough:
Primary Flat Disc Filters (2) are fitted to the wash and waste outlets. Secondary Drum
Filter fitted over the wash outlet (left-hand outlet). Main Tray Filter that encloses the
wash tank trough.
Check that the detergent and rinse aid containers have sufficient liquid level and
that the suction tubes are in their appropriate products. Blue Tube for rinse aid,
and Clear Tube for detergent.
Switch on the water and electrical supplies to the machine. Close the door.
The Select Switch will be illuminated red.

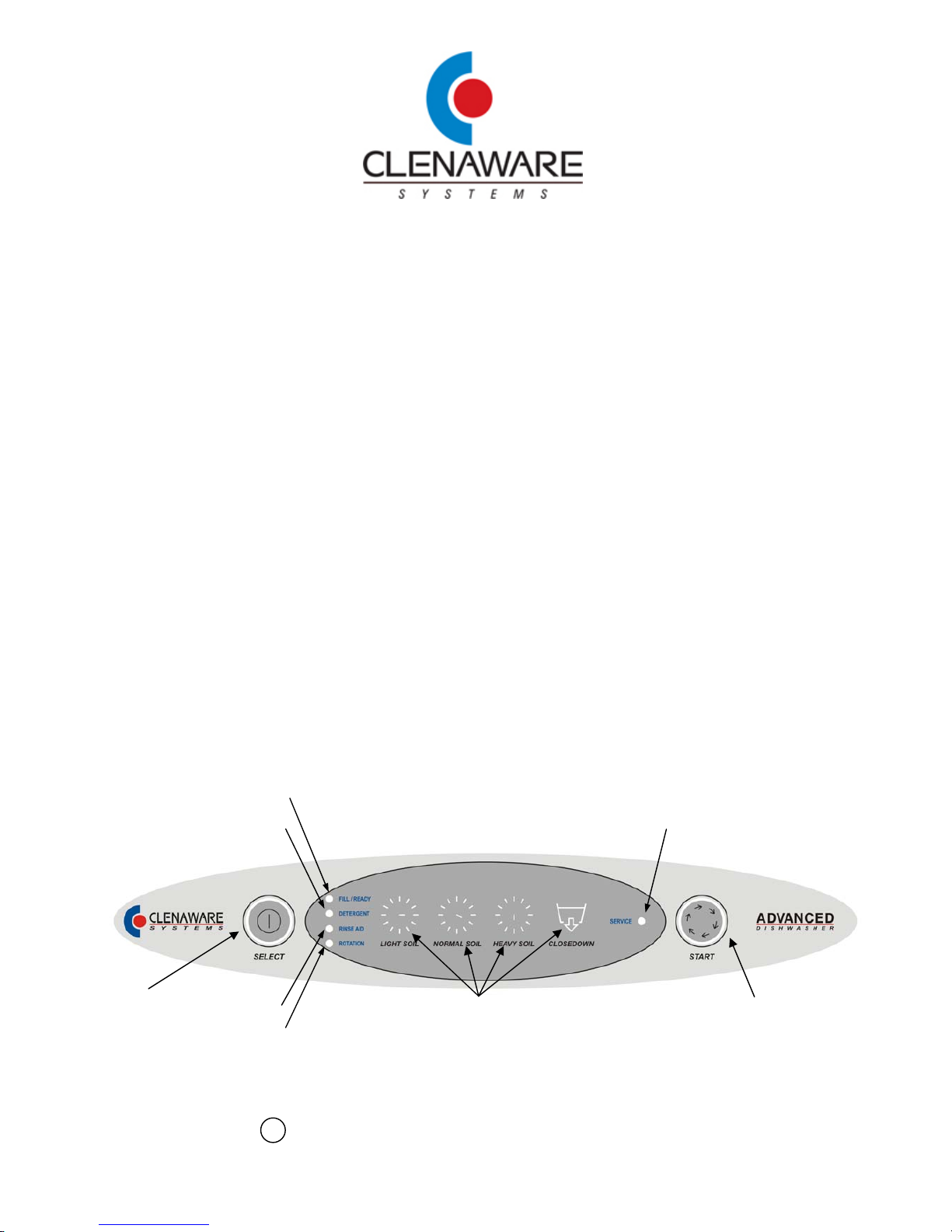

Switch The Machine On
Press the I SELECT Switch: The Select Switch will be illuminated blue.
CLOSEDOWN
ROTATION
SELECT
SWITCH
FILL/READY
DETERGENT
START
SWITCH
CYCLE PROGRESS LED’S
SERVICE
RINSEAID
DOOR LOCK
DISPLAY

www.clenaware.co.uk
Filling (TD50)
When the machine is switched on, a fill heat sequence will be performed as
follows:
The rinse tank will fill with water.
The drain pump will operate to vacate any water from the wash tank.
The Fill/Ready Lamp will be illuminated orange.
The Start Switch will be illuminated green (rotating).
Once the rinse tank is full, the water will be heated to 82°C.
The Fill/Ready Lamp will flash orange during heating.
Once up to temperature, the rinse water will be pumped into the wash tank.
After the Fill/Heat sequence has been completed, the audible alarm will bleep
five times.
The Fill/Ready Lamp and Start switch will be illuminated green.
“TD” will be displayed.
The rinse tank will re-fill and heat to standby temperature.
The machine will now be in STANDBY MODE, ready to operate wash cycles.
Note:
If the machine has not been switched off using the CLOSEDOWN Cycle (or
suffered a power failure) a short refreshment cycle will be performed at start-up
to ensure that all water is vacated from the machine. The Fill/Ready Lamp being
illuminated red indicates this.
To avoid this, and to ensure hygienic conditions, ALWAYS use the
CLOSEDOWN cycle at the end of a session.

www.clenaware.co.uk
Washing (TD50)
The TD50 incorporates two possible temperature/time regimes for thermal
disinfection:
82°C for 2 minutes (default)
72°C for 3 minutes
The ‘72°C for 3 minute’ thermal disinfection can be selected by an engineer upon
request.
The TD cycle consists of the following functions:
Re-circulating wash period with detergent.
Refill period, replacing the wash tank water.
Thermal Rinse period, raising the rinse water to TD temperature and holding
for the TD time.
Final Cooling Rinse.
Starting A Wash Cycle
Fill the rack with crockery etc to be washed having first removed any liquid or
solid waste elsewhere. Pre-rinsing is recommended. Open the door and slide the
rack into position. Close the door.
Press the START Switch to begin the cycle:
The Start Switch will be illuminated green (rotating).
The ‘WASH’ progress indicator lamp will be lit.
The wash pump will be energised for the initial two minutes of the cycle, re-
circulating the wash water via the rotating spraybars.
The door must not be opened during the wash cycle.
During the wash period the rinse water will be heated to the correct operating
temperature.
If the rinse water is not up to temperature at the end of the wash period, the
machine will continue washing until the correct temperature is reached.

www.clenaware.co.uk
At the end of the wash period, the wash pump will de-energise.
The ‘REFILL’ progress indicator lamp will be lit.
The Door will be locked, indicated by the Door Lock lamp illuminated orange.
The wash water will be emptied and replaced with pre-heated fresh water.
Following this, the ‘THERMAL RINSE’ progress indicator lamp will be lit.
During Thermal Rinse, the TD rinse water will be re-circulated via the
spraybars.
The TD rinse water will be heated to 82°C (or 72°C). The temperature is
displayed.
Once up to TD temperature, this temperature will be held for the 2 minute (or
3 minute) TD period. The temperature will flash in the display during the TD
period.
Following this, the ‘FINAL RINSE’ progress indicator lamp will be lit.
The Door will be unlocked, indicated by the Door Lock lamp illuminated green.
The cycle will conclude with a short drain and cooling rinse sequence.
At the end of the cycle, the audible alarm will bleep five times.
‘TD’ will flash in the display.
Open the door and remove the rack. Close the door.
The Fill/Ready Lamp and Start switch will be illuminated green.
The rinse tank will re-fill and heat to standby temperature.
The machine will be in Standby, ready for another wash cycle to be started.

www.clenaware.co.uk
Close Down Cycle (TD50)
The machine can be closed down at any time by pressing the SELECT Switch (the
Closedown Lamp will flash green), followed by the START Switch. This will force a
Closedown Cycle.
The Start Switch will be illuminated green (rotating).
The drain pump will be energised during the entire cycle, removing water
from the wash tank.
The door must not be opened during the closedown cycle.
The rinse pump will be energised for the initial 20 seconds of the cycle to
remove the water from the rinse tank.
At the end of the 40 second cycle, the machine will switch off, with the Select
Switch illuminated red.
Isolate the water and electrical supplies to the machine.

www.clenaware.co.uk
Advanced SD50 Dish Washer Operating
Instructions
Preparation (SD)

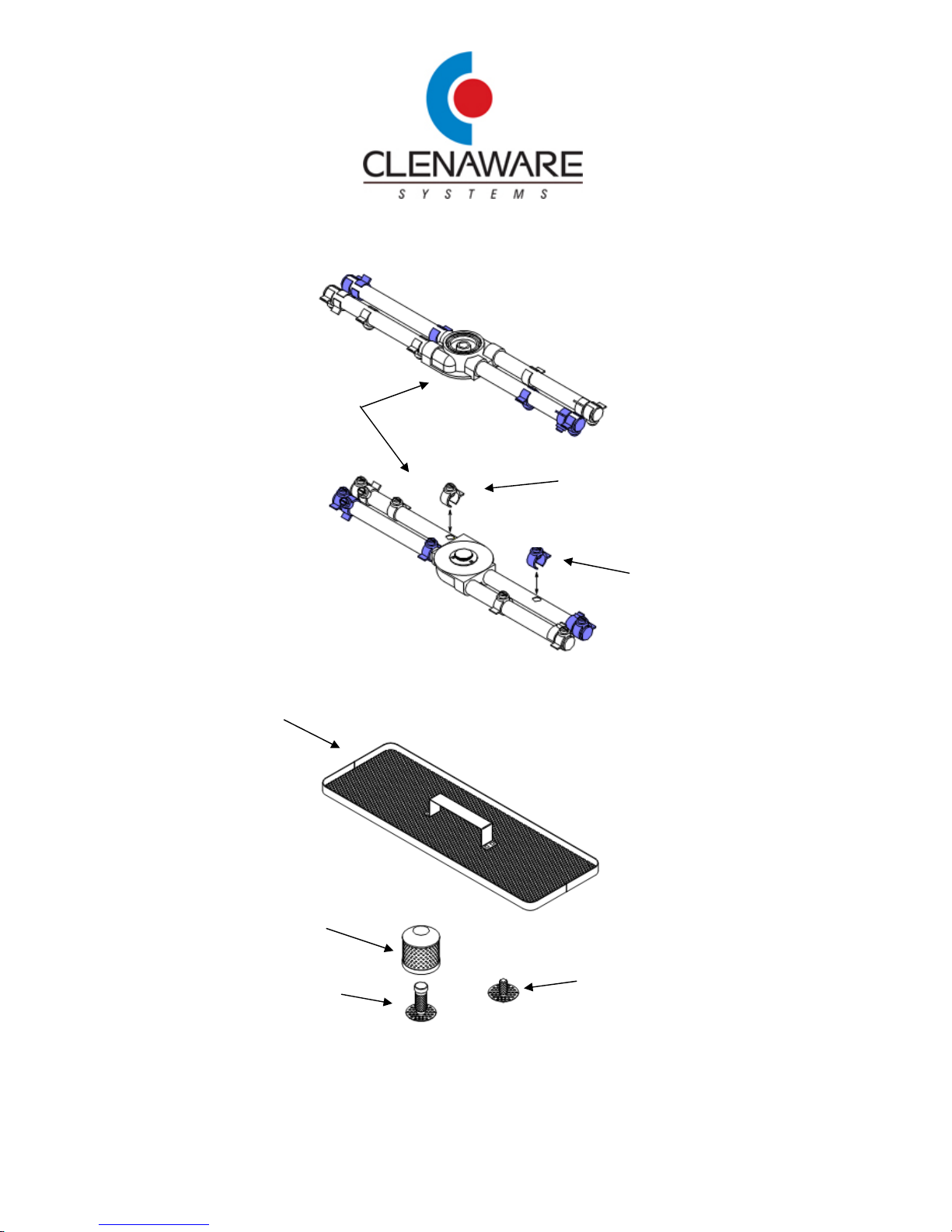

Ensure that the machine interior is clean and soil-free, and that the top and
bottom spray bar rotates freely, jets are clean and correctly located.
Ensure that all four filters are in position in the wash tank trough:
Primary Flat Disc Filters (2) are fitted to the wash and waste outlets. Secondary
Drum Filter fitted over the wash outlet (left-hand outlet). Main Tray Filter that
encloses the wash tank trough.
Check that the detergent and rinse aid containers have sufficient liquid level and
that the suction tubes are in their appropriate products. Blue Tube for rinse aid,
and Clear Tube for detergent.
Switch on the water and electrical supplies to the machine. Close the door.
The Select Switch will be illuminated red.
Switch The Machine On
Press the I SELECT Switch: The Select Switch will be illuminated blue.
ROTATION
RINSE-AID
SELECT
SWITCH
FILL/READY
DETERGENT
START
SWITCH
CYCLE TYPES
SERVICE

www.clenaware.co.uk
Filling (SD)
When the machine is switched on, a fill heat sequence will be performed as
follows:
The rinse tank will fill with water.
The drain pump will operate to vacate any water from the wash tank.
The Fill/Ready Lamp will be illuminated orange.
The Start Switch will be illuminated green (rotating).
Once the rinse tank is full, the water will be heated to 82°C.
The Fill/Ready Lamp will flash orange during heating.
Once up to temperature, the rinse water will be pumped into the wash tank.
After the Fill/Heat sequence has been completed, the audible alarm will bleep
five times.
The Fill/Ready Lamp and Start switch will be illuminated green.
The Glass Cycle Lamp will be illuminated blue.
The rinse tank will re-fill and heat to standby temperature.
The machine will now be in STANDBY MODE, ready to operate wash cycles.
Note:
If the machine has not been switched off using the CLOSEDOWN Cycle (or
suffered a power failure) a short refreshment cycle will be performed at start-up
to ensure that all water is vacated from the machine. The Fill/Ready Lamp being
illuminated red indicates this.
To avoid this, and to ensure hygienic conditions, ALWAYS use the
CLOSEDOWN cycle at the end of a session.

www.clenaware.co.uk

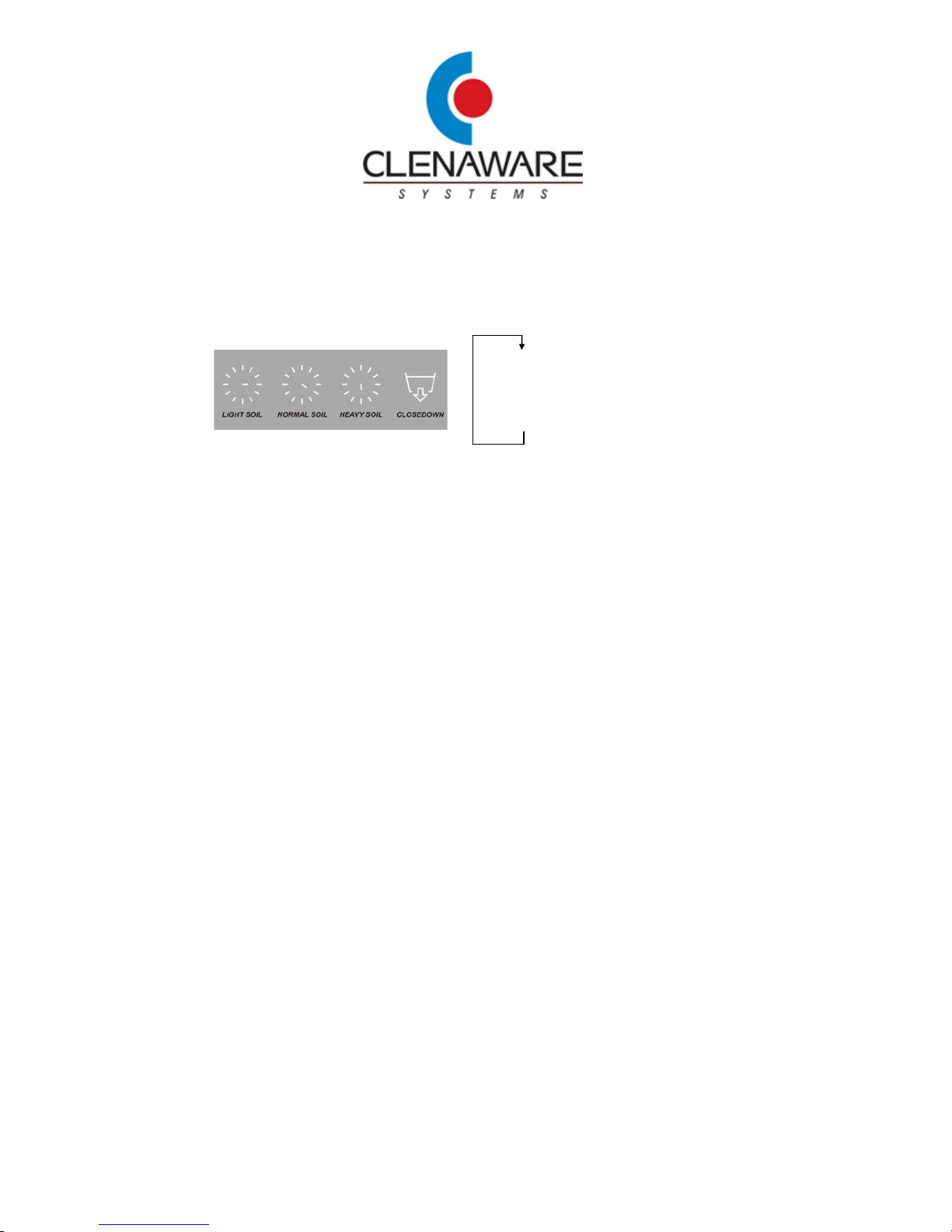

Standby Mode (SD)
Pressing the ‘SELECT Switch’ will step through the cycle options as follows:
Light Soil
NormalSoil
HeavySoil
CloseDown
The appropriate indicator will be illuminated blue.
LIGHT SOIL provides a TWO*-minute wash cycle for washing lightly soiled ware.
NORMAL SOIL provides a THREE*-minute wash cycle for washing normally soiled
ware. This is the default cycle type when the machine is switched on.
HEAVY SOIL provides a FOUR*-minute wash cycle for washing heavily soiled ware.
CLOSEDOWN CYCLE is used at the end of a washing session to empty all tanks and
flush the system clean.
Note: that whichever cycle type (light, normal, or heavy) is operated, the machine will
revert back to the same chosen cycle.
* Note: that the cycle times may be extended depending on incoming water
temperature and heavy usage.

www.clenaware.co.uk
Washing (SD)
Note that the Light, Normal, and Heavy cycles are very similar in operation. Only the
wash time changes.
Fill the rack with ware to be washed having first removed any liquid or solid
waste elsewhere. Pre-rinsing is recommended. Open the door and slide the
basket into position.
Starting The Cycle
Select the wash cycle required and press the START Switch to start the chosen
cycle:
The Start Switch will be illuminated green (rotating).
The wash pump will be energised for the initial timed period of the cycle, re-
circulating the wash water via the rotating spraybar
The door must not be opened during the wash cycle.
During the wash period the rinse water will be heated to the correct operating
temperature.
If the rinse water is not up to temperature at the end of the wash period, the
machine will continue washing until the correct temperature is reached.
At the end of the wash period 3lt’s of water will be removed from the wash tank.
The cycle will conclude with a fresh water. lt rinse at 82°C.
At the end of the cycle, the audible alarm will bleep five times.
The Fill/Ready Lamp and Start switch will be illuminated green.
The chosen Cycle Lamp will be illuminated blue.
The rinse tank will re-fill and heat to standby temperature.
Open the door and remove the rack. Close the door.
The machine will now be in Standby Mode.

www.clenaware.co.uk
Closedown Cycle (SD)
From Standby, select the Closedown Cycle and press the START Switch to start
the cycle:
At any other time (during the fill/heat sequence, during a wash cycle, or whilst the
machine is in an error condition), press the SELECT Switch (the Closedown Lamp will
flash) and press the START Switch. This will force a Closedown Cycle.
The Start Switch will be illuminated green (rotating).
The drain pump will be energised during the entire cycle, removing water
from the wash tank.
The door must not be opened during the closedown cycle.
The rinse pump will be energised for the initial 20 seconds of the cycle to
remove the water from the rinse tank.
At the end of the cycle, the machine will switch off, with the Select Switch
illuminated red.
Isolate the water and electrical supplies to the machine.

www.clenaware.co.uk
Chemical Injection and Warnings (TD & SD)
Detergent & Rinse-Aid
Detergent and Rinse-Aid is automatically injected during each washing cycle. The
amount of chemical injected is dependant on site conditions, and can be adjusted by an
engineer. The default setting is 300:1 for detergent and 3000:1 for rinse-aid. A bottle of
rinse-aid will last 10 times longer (before replacement is required) than detergent.
Detergent and Rinseaid is continuously monitored (by
conductivity) on entry into the machine.
If a chemical is detected then the relevant lamp is
illuminated green.
If not detected, then the lamp is illuminated orange.
Note: In some cases, poor quality chemicals may not be detected.
If a chemical is low (orange warning lamp), then replace the relevant bottle.
For rinse-aid low, it is recommended to restart the machine to allow the rinse-aid to
prime.
It is important that the correct
chemical suction tube (colour
coded) is connected to the correct
chemical.
DETERGENT RINSE-AID
CLEAR
TUBING BLUE TUBING
! OPERATING THE MACHINE WITHOUT THE CORRECT CHEMICALS,
OR WITH CHEMICAL TUBES WRONGLY CONNECTED TO BOTTLES
WILL DAMAGE THE GLASSWARE AND PROMOTE SCALE BUILD-UP

www.clenaware.co.uk
Spraybar Rotation Warning (TD & SD)
Poor wash quality will result from the lack of rotation of the spray-bar. The machine
incorporates a spray-bar rotation sensor and will highlight a problem by use of a
warning lamp.
Spray bar rotation is continually monitored during the wash and rinse periods of a wash
cycle.
If rotation is detected: The warning lamp will be illuminated green
If rotation not detected: The warning lamp will be illuminated red
Attheendofawashcycle the lamp will flash red
The reason for lack of rotation will normally be caused by soil build-up around the wash
arm bearing, blocked filters, or by blocked jets.
Remove the spray-bar assembly & filters and clean thoroughly. Refit the parts. The
spray-bar should rotate freely. Check that the warning lamp responds to the rotations.
! CLEAN THE MACHINE THOROUGHLY THEN START A WASH CYCLE
ONLY CALL AN ENGINEER IF THE ERROR CANNOT BE CLEARED

www.clenaware.co.uk
Other Features (TD & SD)
Energy Saving
In Standby Mode the rinse water temperature is held at a lower value than that required
for the cycle rinse. The shortfall in rinse temperature is made up during the wash part of
a cycle. In this way, energy is not needlessly wasted.
The standby temperature will depend on the model, the cycle type chosen, and whether
the machine is connected to 13 or 30 Amps.
Data Fault
If for any reason the data within the control system becomes corrupted, this will be
indicated on the control panel with all indicator lamps flashing.
To re-load the default data, press the START Switch.
If the problem persists, call an engineer.

www.clenaware.co.uk
Daily Maintenance
IMPORTANT!
Ensure that the electrical and water supplies are switched off while carrying out the
following procedures. This appliance must not be cleaned with a water jet.
Refer to Exploded Diagram below for help with maintenance and spares.
At the end of each session, open the machine door and remove any racks.
Remove the top and bottom Wash Arms by unscrewing their central retaining
fasteners and lifting away. Ensure that the mating surfaces around the spindle
areas are clear of debris.
Inspect the spray-jet nozzles for blockages.
To clean blocked jets, the affected nozzle can be sprung-off from the spray-
bar and flushed clear with running water.
Do not dismantle the spray-arms from the Hub.
Ensure that all the spray-jets are seated firmly on the spray-bar, and that all
the jets have an o-ring attached. Note that the white wash spray-jets are a
different size to the blue rinse-jets, so it is impossible to fit incorrectly.
Damaged or missing spray-jets and o-rings must be replaced for efficient
operation of the machine.
Carefully remove any debris from the machine interior (protective gloves are
recommended).
Clean all internal surfaces of the wash tank with a nylon brush and wipe with
a clean damp cloth. Pay particular attention to the door labyrinths and hinge
areas.
Do not use a wire brush for cleaning.

www.clenaware.co.uk
Remove the Main Tray Filter which covers the wash tank trough, and the Drum
Filter which covers the wash outlet hole. Brush them clean under running water
to ensure that all particles and fibres are removed.
Use a damp cloth to wipe clean the wash tank trough.
Unscrew and remove the two Flat Disc Filters and brush clean under running
water.
Re-assemble the fittings in reverse order, ensuring that all four filters are in their
correct positions, and that both spray-bars rotate freely. Do not over tighten
spray-bar fixing screws – finger tight is sufficient.
Check and if necessary replace the Detergent and Rinse-aid containers.
The regular use of Renovate Powder as a Machine Cleaner is recommended.

www.clenaware.co.uk
Vital Parts To Be Regularly Cleaned / Maintained
WASH ARM & SPINDLE ASSY
CS-B0703
WASH SPRAY-JET
CS-D0718 (WHITE)
O-RING
CS-X0747
RINSE SPRAY-JET
CS-D0719 (BLUE)
O-RING
CS
-
X0747
MAIN TRAY FILTER
CS-F0331
DRUM FILTER
CS
-
B0304
FLAT DISC FILTER (WASH)
CS
-
F0333
FLAT DISC FILTER (DRAIN)
CS
-
F0332

www.clenaware.co.uk
Caring For Your Dish Washer
Observance of the following will ensure maximum efficiency from your machine:
Please “do” the following:
Preparation
Remove all solid material from dishes etc by scraping and pre-rinsing.
Ensure that all drink residues are disposed of, prior to washing.
Racking and Stacking
Ensure that racks are loaded with even distribution, and that cups and glasses are
inverted.
Use open racks for cups and spiked racks for dishes.
Use a cutlery rack placed in an open rack. Cutlery should be loaded with handles
facing down.
Be aware of the weight of a fully loaded rack.
Machine Preparation And Use
Ensure that the machine interior is thoroughly clean and free of debris.
Remove and thoroughly clean all jets, filters, wash arms etc. DAILY. Wash filters
must be absolutely clean and located correctly for the machine to operate
efficiently.
Ensure that the Jets are located correctly and check that both Spray Bars are free
to rotate.
Ensure that the detergent and rinse aid containers are sufficiently full for the
anticipated use during the session. Use only quality detergents and rinse aids that
are designed for dishwashing.
Ensure that a Water Softener, where fitted, is regenerated regularly.

www.clenaware.co.uk
Ensure that the Fill/Ready Lamp is green before starting a cycle.
Ensure that a wash cycle is fully completed before removal of rack. On completion
of a cycle, the Start Switch will stop rotating, and there will be five bleeps by the
audible alarm.
Operate a Closedown Cycle to drain the machine completely after every trading
session.
Leave the door open at the end of session to ventilate the machine.
Please “do not” do the following:
Attempt to wash more than one rack per wash cycle.
Interrupt the cycle and attempt to remove the rack before the Wash Cycle is
completed.
Wash with water only. Detergent and Rinse Aid must be used.
Stack cups or glasses on top of each other, or overload the rack.
Leave washed items in the machine.
Handle crockery, glasses, or cutlery during the drying period. Allow to dry naturally
before handling.
Leave the door open between cycles.
Isolate power without operating a Closedown Cycle.
Attempt to remove machine covers.
