Samsung DW80J7550UG User manual

Dishwasher
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
DW80H994 Series
DW80J994 Series
DW80J755 Series
DW80H994_DD68-00164A-03_EN_150408.indd 1DW80H994_DD68-00164A-03_EN_150408.indd 1 2015-04-08  7:44:132015-04-08  7:44:13

English - 2
contents
SETTING UP YOUR DISHWASHER
6
6Unpacking your dishwasher
6Checking parts
7Meeting installation requirements
USING YOUR DISHWASHER
8
8Control panel
12 Cycle selector
12 Progress displays
13 Basic guidelines
15 Adjusting the angle of the plate supports
16 Adjusting the height of the upper rack
16 Removing the upper rack (for some models)
17 Loading the lower rack
18 Loading the upper rack
19 Using the 3
rd
(cutlery) rack (for some
models)
20 Using wine rack (for some models)
21 Using the cutlery basket
22 Using detergent
23 Using rinse aid
CLEANING AND MAINTAINING YOUR
DISHWASHER
24
24 Cleaning the exterior
24 Cleaning the interior
25 Cleaning the nozzles
26 Cleaning the filter
26 Storing your dishwasher
CYCLES
27
27 Cycle chart
TROUBLESHOOTING
28
28 Check these points if your dishwasher…
31 Information codes
APPENDIX
32
32 Helping the environment
32 Specifications
DW80H994_DD68-00164A-03_EN_150408.indd Sec9:2DW80H994_DD68-00164A-03_EN_150408.indd Sec9:2 2015-04-08  7:44:162015-04-08  7:44:16

English - 3
safety information
Congratulations on your new Samsung Dish washer. This manual contains important
information on the installation, use, and care of your appliance. Please take time to
read this manual to take full advantage of your washer’s many benefits and features.
WHAT YOU NEED TO KNOW ABOUT THE SAFETY INSTRUCTIONS
Warnings and Important Safety Instructions in this manual do not cover all
possible conditions and situations that may occur. It is your responsibility to use
common sense, caution, and care when installing, maintaining, and operating
your washer.
IMPORTANT SAFETY INSTRUCTIONS
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury or death.
To reduce the risk of fire, explosion, electric shock, or personal injury when using
your washer, follow these basic safety precautions:
CAUTION
Hazards or unsafe practices that may result in minor personal injury or property
damage.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicity.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
Note
These warning signs are here to prevent injury to you and others.
Please follow them explicitly.
After reading this section, keep it in a safe place for future reference.
SAVE THESE INSTRUCTIONS
01 safety information
DW80H994_DD68-00164A-03_EN_150408.indd Sec1:3DW80H994_DD68-00164A-03_EN_150408.indd Sec1:3 2015-04-08  7:44:162015-04-08  7:44:16

English - 4
WARNING : When using your dishwasher, follow basic precautions, including the following:
1. Read all instructions before using the dishwasher.
2. Use the dishwasher only for its intended function.
3. Use only detergents or wetting agents recommended for use in a dishwasher and keep them
out of the reach of children.
4. When loading items to be washed:
- locate sharp items so that they are not likely to damage the door seal, and
- load sharp knives with the handles up to reduce the risk of cut-type injuries.
5. Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent. For
plastic items not so marked, check the manufacturer’s recommendations.
6. Do not touch the HEATING ELEMENT during or immediately after use.
7. Do not operate your dishwasher unless all ENCLOSURE panels are properly in place.
8. Do not tamper with controls.
9. Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
10. To reduce the risk of injury, do not allow children to play in or on a dishwasher.
11. Under certain conditions, hydrogen gas may be produced in a hot-water system that has
not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water
system has not been used for such a period, before using the dishwasher turn on all hot-
water faucets and let the water flow from each for several minutes. This will release any
accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame
during this time.
12. Remove the door to the washing compartment when removing an old dishwasher from
service or discarding it.
WARNING:
This product contains chemicals known to the State of California to cause cancer and
reproductive toxicity.
• After unpacking the dishwasher, keep the packaging out of the reach of children.
• The dishwasher is extremely heavy. Do not attempt to move or carry the dishwasher by
yourself. Two or more people are needed to move a dishwasher and avoid potential injuries.
• As with any equipment using electricity, water, and moving parts, potential hazards exist.
• Do not install the dishwasher near electrical components. Keep the dishwasher away from
open flames.
• Install and level your dishwasher on an uncarpeted floor that can support its weight.
• Your dishwasher must be properly grounded. Never connect it to an ungrounded outlet. See
page 7for more information on grounding your dishwasher.
• Connect the ground wire to the green ground connector in the terminal box.
• After the dishwasher is installed, check that the drain hose is properly connected and
that there is no leakage from the hose connectors. If the drain hose is loose, it may cause
property damage.
• The water supply line is susceptible to breakage. As time goes by, it becomes less flexible.
Check the line periodically. If it is swollen, torn, cut, or there is a water leak, replace it
immediately.
• To safely operate this appliance, familiarize yourself with its operations and exercise care
when using it.
WARNING
WARNING
CAUTION
SAVE THESE INSTRUCTIONS
safety information
DW80H994_DD68-00164A-03_EN_150408.indd Sec1:4DW80H994_DD68-00164A-03_EN_150408.indd Sec1:4 2015-04-08  7:44:162015-04-08  7:44:16

English - 5
• Do not put gasoline, solvents, or other flammable materials inside the dishwasher. Do not
wash dishes exposed to these materials.
• Keep your dishwasher detergent out of the reach of children. Detergent has an adverse
eect on human organs. It contains elements for polishing and is corrosive. Avoid letting the
detergent come into contact with your skin and eyes.
• Do not push or place pressure on the door when it is open, as this may damage the
dishwasher or cause harm.
• Do not allow children to play in or on the dishwasher. They may harm themselves or damage
the dishwasher.
• Disconnect the power cable (or set the circuit breaker to o) before servicing your
dishwasher.
• Do not repair, replace, or service any part of your dishwasher yourself. Disassembly, repairs,
and modifications are permitted by authorized service technicians only. Work done by an
unauthorized person may void your warranty.
• Before disposing of your dishwasher, remove the door of the washing compartment or the
door latch so that children or small animals cannot get trapped inside.
• If the dishwasher is left unused for an extended period of time, turn o the water supply.
• This dishwasher is intended for residential use only.
BEFORE USING YOUR DISHWASHER
WARNING
Tip-Over Hazard
- Do not use the dishwasher until it is correctly installed.
- Do not push down on an open door.
- Do not place excessive weight on the open door.
Electric Shock Hazard
Failure to follow these instructions can result in death, fire, or electric shock:
- Electrically ground the dishwasher
- Connect the ground wire to the green ground connector in the junction box.
- Do not use an extension cord.
WARNING
SAVE THESE INSTRUCTIONS
01 safety information
DW80H994_DD68-00164A-03_EN_150408.indd Sec1:5DW80H994_DD68-00164A-03_EN_150408.indd Sec1:5 2015-04-08  7:44:162015-04-08  7:44:16

English - 6
setting up your dishwasher
Be sure to have your installer follow these instructions closely so that your new
dishwasher works properly and that you’re not at risk of injury when washing
dishes.
UNPACKING YOUR DISHWASHER
• Once your new dishwasher has been delivered to you, carefully unpack it and check for any damage.
If the dishwasher has been damaged, make note of it on the waybill and keep a copy.
Do not install the dishwasher, and contact Samsung Customer Service at the number listed below.
• If there is no damage to the product, you can proceed with the installation. If you are going to install it
yourself, make sure to read through the installation guide and follow the directions inside.
• After unpacking your dishwasher, keep the packaging out of the reach of children to ensure their safety.
CHECKING PARTS
When your dishwasher has been unpacked, make sure you’ve received all the parts shown below.
If your dishwasher was damaged during shipping, or if you do not have all the parts, contact Samsung
Customer Service at 1-800-SAMSUNG (726-7864)
Door
Base
Top nozzle
Dispenser
Lower nozzle
Water reflector
Control panel
Vapor vent cover
Upper nozzle
Upper rack Lower rack Cutlery rack 3
rd
rack
(for some models)
3
rd
rack PAD
(for some models)
Wine Rack
(for some models)
Accessory parts - User/Installation manual, Installation Kit, Drain Hose, Holder Drain Hose,
Hose Clamp, Kick Plate.
DW80H994_DD68-00164A-03_EN_150408.indd Sec3:6DW80H994_DD68-00164A-03_EN_150408.indd Sec3:6 2015-04-08  7:44:162015-04-08  7:44:16

English - 7
MEETING INSTALLATION REQUIREMENTS
Electrical supply and grounding
To prevent the risk of fire, electric shock, or personal injury, all wiring and grounding must be
done in accordance with the National Electrical Code ANSI/FNPA, No. 70 Latest Revision and
local codes and ordinances. It is the personal responsibility of the appliance owner to provide
adequate electrical service for this appliance.
Never use an extension cord.
When preparing for installation, ensure that your power supply provides:
• An individual 120 Volt, 60Hz branch circuit serving only your dishwasher with a 15 AMP fuse
or circuit breaker
Your dishwasher must be grounded. If your dishwasher malfunctions or breaks down, grounding
will reduce the risk of electric shock by providing a path of least resistance for the electric
current.
Never connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.
GROUNDING INSTRUCTIONS
For a permanently connected appliance:
This appliance must be connected to a grounded metal, permanent wiring system, or an
equipment-grounding conductor must be run with the circuit conductors and then connected to
the equipment-grounding terminal or lead on the appliance.
Water supply
The hot water supply line pressure must be between 20 ~ 120 psi (140 ~ 830 kPa).
Adjust the water heater to deliver water between 120 ˚F (49 ˚C) ~ 149 ˚F (65 ˚C).
Most plumbing supply stores sell water supply lines of various lengths up to 10 feet
(305cm) long.
You can reduce the risk of leaks and water damage by:
• Making water faucets easily accessible.
• Turning o faucets when the dishwasher is not in use.
• Periodically checking for leaks at water supply line fittings.
Before using your dishwasher for the first time, check all connections at the water supply valve
and faucets for leaks.
Flooring
For safety, your dishwasher must be installed on a solidly constructed floor.
Never install your dishwasher on a platform or poorly supported structure.
Your dishwasher must be properly installed in accordance with the Installation Guide before you use it.
If you did not receive an Installation Guide with your dishwasher, you can obtain one by visiting our website
at www.samsung.com.
CAUTION
WARNING
WARNING
02 setting up your dishwasher
DW80H994_DD68-00164A-03_EN_150408.indd Sec3:7DW80H994_DD68-00164A-03_EN_150408.indd Sec3:7 2015-04-08  7:44:182015-04-08  7:44:18

English - 8
using your dishwasher
WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT
SAFETY INSTRUCTIONS before operating this appliance.
CONTROL PANEL

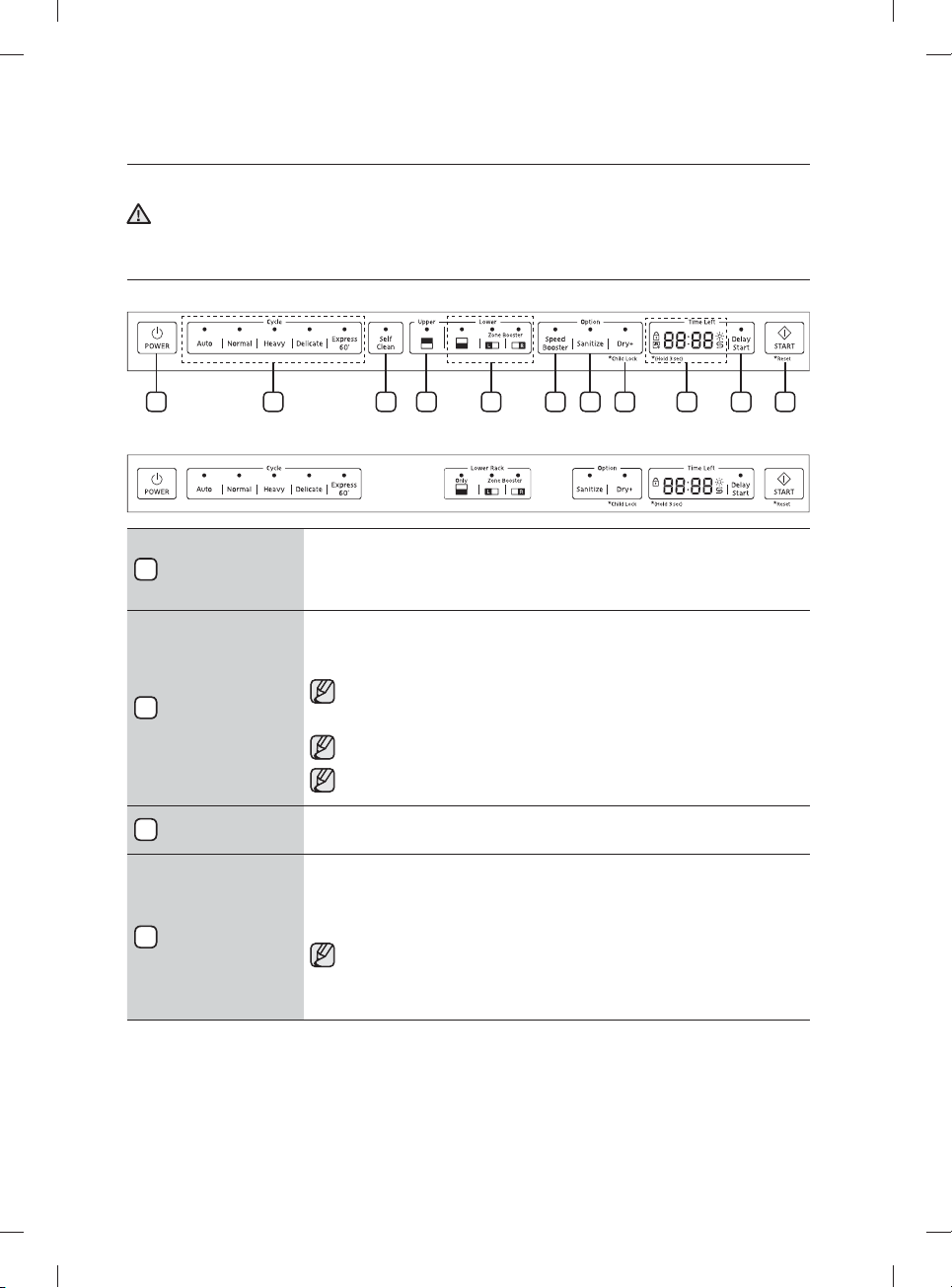

DW80H994 Series
7 9 10 11 2 83 61 4 5
DW80J994 Series / DW80J755 Series
1Power
When you press the Power button, the light of the most recently finished
cycle turns on. When the cycle you selected has finished, all other indicator
lights are turned o and the "End" light is illuminated for some minutes.
Then, the Power turns o automatically.
2Cycle Selector
Select the appropriate wash cycle depending on the soil level of your dishes.
After you select a cycle, the Cycle On light for that cycle lights.
Also, the Upper and Lower zone lights turn on by default.
If you want to change the cycle once it has started, press the Reset
button and turn o the dishwasher. Then, turn on the dishwasher again
and select a new cycle.
The default cycle is Normal.
When turning on the dishwasher after it has been reset, the last run
cycle is selected by default.
3Self Clean
(for some models)
Select this option to clean the dishwasher TUB. Run with the dishwasher
empty. The Upper and Lower options are turned o by default.
4Upper
(for some models)
When you select Upper, only the upper rack nozzle is activated.
The lower nozzle will not operate.
Use this feature to wash a small load of dishes or glasses placed in the upper
rack.
When you select Upper, place dishes, glasses, etc. in the upper rack
only. The dishwasher will not wash items placed in the lower rack.
Selecting Upper reduces both the cycle time and the amount of electricity
consumed.
WARNING
DW80H994_DD68-00164A-03_EN_150408.indd 8DW80H994_DD68-00164A-03_EN_150408.indd 8 2015-04-08  7:44:182015-04-08  7:44:18

English - 9
5
Lower
(for some models) /
Lower Rack - Only
(for some models)
When you select Lower (Lower Rack - Only), only the lower rack nozzle is
activated. The upper nozzle will not operate.
Use this feature to wash a small load of dishes or glasses placed in the lower
rack.
When you select Lower (Lower Rack - Only), place items, glasses, etc.
in the lower rack only. The dishwasher will not wash items placed in the
upper rack.
Selecting Lower (Lower Rack - Only) reduces both the cycle time and the
amount of electricity consumed.
If you want to wash heavily soiled items such as pots and pans, select
the Zone Booster option. (This option consumes slightly more water
and energy.)
Select Zone Booster L option: Applies intensive washing power to the
left part of the lower rack.
Select Zone Booster R option: Applies intensive washing power to the
right part of the lower rack.
Select both Zone Booster L & R options: Applies intensive washing
power to the whole lower rack.
Selecting a Zone Booster option does not turn o the Upper Nozzle.
6Speed Booster
(for some models) Select this option to reduce washing time.

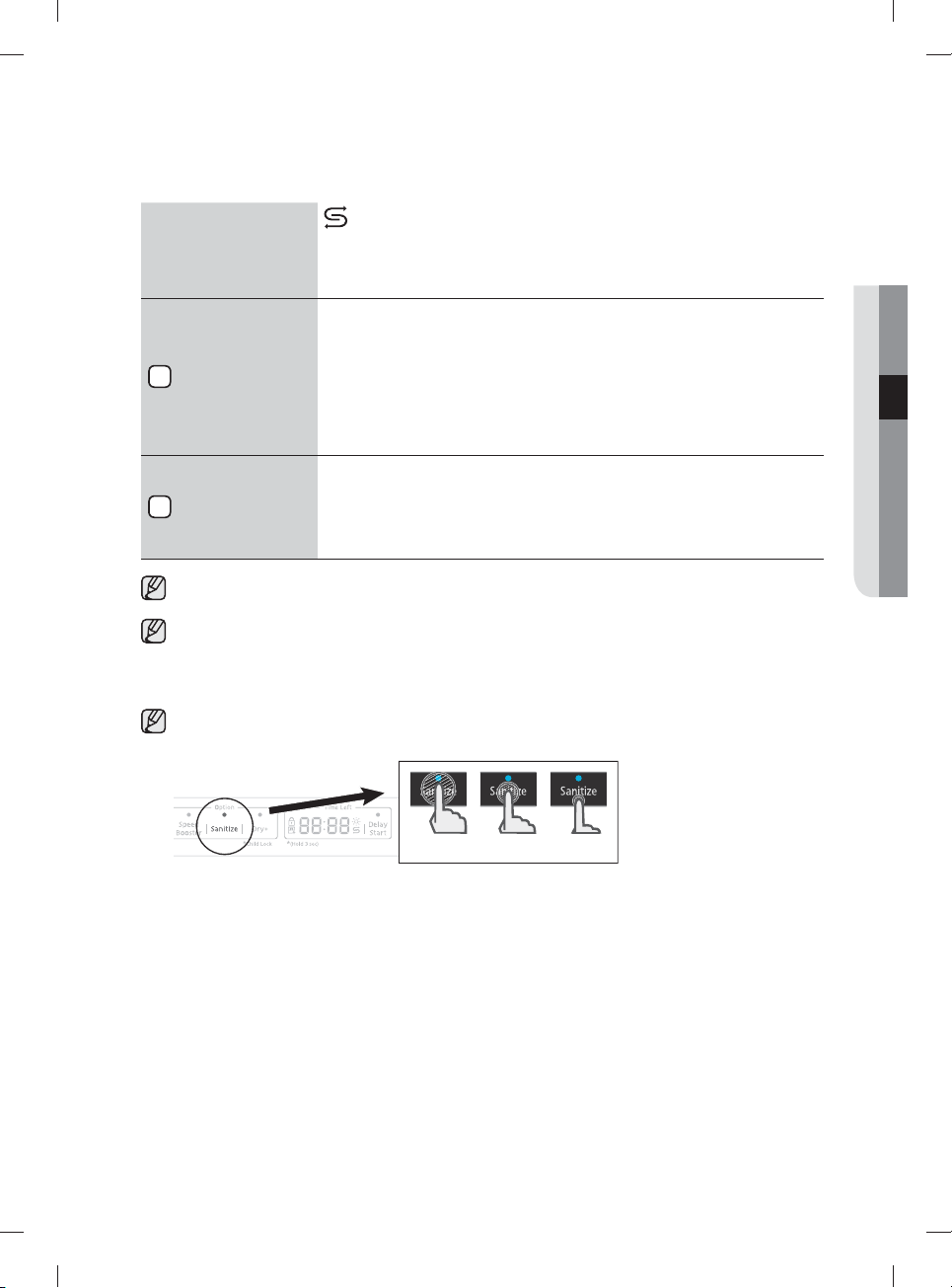

7Sanitize
With the Sanitize option selected, the water temperature is increased to
162˚F (72 ˚C) in the final rinse cycle for high temperature sanitization.
If you select the Sanitize option, the "Sanitize" lamp blinks when the water
temperature reaches the sanitary temperature (over 155 ˚F (68 ˚C)), and then
remains illuminated until the Sanitize option ends. When you open the door
or press the Power button, the "Sanitize" lamp turns o.
You cannot select the Sanitize option if you select the Delicate cycle.
The Sanitize feature operates in accordance with NSF/ANSI Standard
184 for Residential Dishwashers. Certified residential dishwashers are
not intended for licensed food establishments. Your dishwasher is NSF
Certified.
The cycle that is NSF certified is the Normal Cycle with the Sanitize option
selected.
03 using your dishwasher
DW80H994_DD68-00164A-03_EN_150408.indd 9DW80H994_DD68-00164A-03_EN_150408.indd 9 2015-04-08  7:44:192015-04-08  7:44:19

English - 10
8Dry+ / Child Lock
Use this option when you want to dry your dishes more completely.
The temperature rises to 162 ˚F (72 ˚C) in the final rinse cycle and dry time is
increased.
If you select the this option, electricity consumption is increased.
The next time you use the dishwasher, the Dry+ option will be selected
automatically and applied to the next cycle. You can turn o the Dry+ option
by pressing the Dry+ button.
You cannot select the Dry+ option if you select the Delicate cycle.
*Child Lock : This option allows you to lock the buttons on the control panel -
except the Power button - so children cannot accidently start the dishwasher
by pressing the buttons on the panel. Only the Power button remains active.
To lock or unlock the buttons on the control panel, press and hold the
Dry+/Child Lock button for three (3) seconds.
-When the Power is On : Press and hold the "Dry+/Child Lock" button for
three (3)seconds.
-When the Power is O : Push the Power button first, and then press and
hold the "Dry+/Child Lock" button for three (3) seconds.
-
Child Lock remains active until you turn it o. You cannot select cycles or
options or start the dishwasher when Child Lock is on.
9Display
Displays cycle time and remaining hours and minutes, Delay Start hours, and
Information codes.
If a problem occurs during operation, an information code appears with a
warning sound.
Refer to the information codes page.
Child Lock indicator
-
Turns on if the Child Lock is set (or the dishwasher is in the standby or
pause modes).
- Turns o while the dishwasher is operating.
- When Child Lock is on, the Child Lock indicator blinks for several
seconds if any button except the Power button is pressed.
Self Clean indicator (for some models)
- Turns on when the Self Clean option is enabled (or the dishwasher is
in the standby or pause modes), but turns o while the dishwasher is
operating.
- Blinks for 5 seconds every 20 to 22 cycles.
- The cycle counter disappears when the Self Clean operation is complete
or when the dishwasher reaches the 23rd cycle without the Self Clean
cycle being used. (The Reset or Self Clean operation is not counted by
the cycle counter.)
Rinse Refill indicator
- Turns on if the dishwasher runs out of rinse aid (or the dishwasher is in
the standby or pause modes).
- Turns o while the dishwasher is operating.
using your dishwasher
DW80H994_DD68-00164A-03_EN_150408.indd 10DW80H994_DD68-00164A-03_EN_150408.indd 10 2015-04-08  7:44:192015-04-08  7:44:19

English - 11
Lack of salt indicator (*applicable models only)
- Tu
rns on when the water softener runs out of salt. (or the dishwasher is
in the standby or pause modes.)
- Turns o while the dishwasher is operating.
10 Delay Start
Delay a cycle for up to 24 hours in one-hour increments. To increase the delay
start time, press or hold the Delay Start button. The hour displayed indicates
the time at which the wash will be started.
- After setting the delay time, press the Start button, and then close the
door to start the cycle.
- If you want to change the delay time once the dishwasher has started,
press the Reset button and turn o the dishwasher. Then, turn on the
dishwasher again and select a new cycle with a new delay setting.
11 Start
To start a cycle, press the Start button before closing the door.
*Reset : To cancel a currently running cycle and drain the dishwasher, press
and hold the Start button for three (3) seconds.
Once the dishwasher is reset, select a cycle and option, and then press Start
to restart the dishwasher.
You can select options (Self Clean, Upper, Lower, Speed Booster, Sanitize, Dry+, Delay Start) before
starting a cycle. If you change the cycle after selecting an option, the original cycle is reset.
To prevent the touchpad from losing response sensitivity, follow these instructions:
- Touch the center of each keypad using one finger. Do not push.
- Clean the touch control’s surface regularly with a soft, damp cloth.
- Be careful not to touch more than one touch key pad at a time, except as directed.
When you pause a cycle by opening the door during operation, press the Start button before closing
the door to continue the cycle.
OO X
03 using your dishwasher
DW80H994_DD68-00164A-03_EN_150408.indd 11DW80H994_DD68-00164A-03_EN_150408.indd 11 2015-04-08  7:44:192015-04-08  7:44:19

English - 12
using your dishwasher
CYCLE SELECTOR
1 2 3 4 5
1Auto This cycle detects the level of soil and automatically initiates the optimal cycle
after a few minutes of operation.
2Normal Use this cycle for normally soiled dishes.
The energy-usage label is based on this cycle.
3Heavy Use this cycle for heavily soiled dishes.
4Delicate
Use this cycle for soiled, fragile items such as fine glassware and crystal glass
(wine glass). Do not use this cycle for other glassware because clouding or
etching may occur.
The Zone Booster, Dry+, or Sanitize option is not available with this cycle.
5Express 60'
Use this cycle when you need to wash dishes quickly. It takes about 1 hour.
You cannot select the Speed Booster or Zone Booster option if you select
this cycle.
PROGRESS DISPLAYS
DW80H994 Series
1Wash When the dishwasher is in a wash portion of a cycle, the first
arrow light is illuminated and the remaining time is displayed.
2Rinse
When the dishwasher is in a rinse portion of a cycle, the
second arrow light is illuminated and the remaining time is
displayed.
3Dry When the dishwasher is in a drying portion of a cycle, the third
arrow light is illuminated and the remaining time is displayed.
4Clean
After the dishwasher has completed all portions of a cycle, all
other indicator lights are turned o.
The dishwasher chimes and End is displayed for several
minutes.
When the dishwasher starts a cycle, the light that corresponds to the current operation turns on to
show the progress of the cycle.
DW80J994 Series / DW80J755 Series
On DW80J994 Series / DW80J755 Series dishwashers, the Pocket LED lights when the dishwasher
operates.
DW80H994_DD68-00164A-03_EN_150408.indd 12DW80H994_DD68-00164A-03_EN_150408.indd 12 2015-04-08  7:44:192015-04-08  7:44:19

English - 13
BASIC GUIDELINES
1. Open the door and load your dishes (see page 17 ~ 21).
- Place dishes into the upper and lower racks, unless you have selected the Upper or Lower
(Lower Rack - Only) option.
- Remove any food remains from the dishes before placing them in the rack(s).
- After placing the dishes into the racks, turn the upper nozzles to make sure none of the dishes will
block nozzle rotation.
- Make sure the dishes will not prevent the detergent dispenser from opening.
2. Add detergent to the dispenser (see page 22).
- Make sure to use only automatic dishwasher detergent.
- Refer to "Using detergent" on how to add detergent.
3. Press the Power button.
- When you press the Power button, the cycle light of the most recently finished cycle lights up.
- If "Rinse Refill" Indicator is illuminated, you should refill the rinse aid dispenser to improve washing
and drying performance.
4.
Select an appropriate cleaning cycle depending on the soil level of the dishes. (see pages 12 and 27).
- Press the appropriate Cycle button.
- When you press a Cycle button, the cycle indicator light is illuminated.
- For information about selecting a cycle according to the soil level of the dishes, see "Cycle
selector".
5. Press the Start button, and then close the door.
- Push the racks back so that they are in place, and then press the Start button and close the door.
- Make sure to close the door firmly. If the door is slightly ajar, the selected cycle will not start
automatically.
- The dishwasher will start draining after a few seconds, and then start the cycle you selected.
6. When the wash cycle is completed.
- The "End" light illuminates and the dishwasher sounds a chime.
- The power is automatically turned o after a few minutes.
If you want to load more dishes or pause the dishwasher while it is already running, make sure to open
the door slowly and carefully as there is a possibility of injury from the hot steam or water inside the
dishwasher.
(If the door is opened while the dishwasher is running, a safety mechanism is activated and stops the
cycle.) To resume operation, press the Start button, and then close the door.
Note that adding dishes several minutes after the dishwasher started operating may aect the
performance.
You should use rinse aids for better drying performance. You can further improve drying performance
by also selecting the Dry+ option.
CAUTION
03 using your dishwasher
DW80H994_DD68-00164A-03_EN_150408.indd 13DW80H994_DD68-00164A-03_EN_150408.indd 13 2015-04-08  7:44:202015-04-08  7:44:20

English - 14
Touch Controls
Touch controls allow you to operate the dishwasher easily.
• They are convenient to operate, requiring only a soft touch.
• Have a simple and stylish design.
• Are easy to clean.
If you have children or you want to clean the Control Interface, we recommend activating
the Child Lock feature to lock the control buttons.
- Children will not be able to accidently start the dishwasher by touching the controls with
this option selected.
- If a cycle is running, the buttons will not respond. (except the Power button and
ChildLock & Reset options)
- If dishwasher is o, only the Power button responds.
Delay Start
When you select the Delay Start option, your dishwasher will begin the selected cycle when the
delay time expires.
The Water Reflector Interference Alarm:
• The water reflector interference feature automatically detects obstacles in the tub. If it detects
an obstacle, the display blinks and the dishwasher chimes for several minutes. If an obstacle
is detected at the end a cycle, End blinks for several minutes.
• Remove any obstacles in the bottom of the dishwasher.
Setting Mode
The Setting Mode lets you change the dishwasher's sound setting and LED brightness setting.
To enter the Setting mode, press the Delay Start + Sanitize buttons for 3 seconds while
the dishwasher is on. Press the Sanitize button to select a sub-setting menu and press the
Delay Start button to change a setting.
- Sound Setting: Press the Sanitize button until "S on" or "SoFF" is displayed. To change
the setting, press the Delay Start button. "SoFF" means that the sound is o for all cycles.
The dishwasher maintains the Sound Setting you have selected until you change it.
- Pocket LED Brightness Setting: Press the Sanitize button until "B0 ~ B5" is displayed.
The higher the number, the brighter the LEDs. To change the setting on an DW80J994
Series / DW80J755 Series dishwasher, press the Delay Start button.
When using the dishwasher, try to arrange the dishes properly as described on page 16.
• You should remove food remains such as bones, fruit seeds, etc. and any other waste such
as toothpicks, paper, etc. from the dishes as these may cause damage to the dishes, create
noise, or cause the dishwasher to malfunction.
• Select the appropriate cycle depending on the level of soil and the type of dishes.
• Use only the proper amount of detergent and rinsing agent.
Do not wash the following items
• Acrylic or Aluminum items: Acrylic and aluminum items can discolor dishes with printed
gold rim decoration and mar other items.
• Dishes treated with adhesive: Treated plastics can come apart. Wood, ivory, copper, and tin
glued to dishes can come loose.
• Plastics with a temperature tolerance less than 194 ˚F (90 ˚C): Thin plastics wash and dry
poorly, and may be damaged by elevated wash temperatures.
• Tin: Tin should be washed by hand and dried immediately as it can rust.
• Wooden utensils: Wooden items can crack.
WARNING
WARNING
using your dishwasher
DW80H994_DD68-00164A-03_EN_150408.indd 14DW80H994_DD68-00164A-03_EN_150408.indd 14 2015-04-08  7:44:202015-04-08  7:44:20

English - 15
ADJUSTING THE ANGLE OF THE PLATE SUPPORTS
You can adjust the angle of the tines in the upper rack to three dierent positions to match the size and
shape of your dishes. To adjust the tines, grasp the handle at the back of the rack, and then push it left or
right. See the illustration below.
In the lower rack, you can easily fold down the fold-down tines to make room for large items such as pots
and pans. Remove the rack from the dishwasher, and then fold down the tines one at a time. See the
illustration below.
Upper rack Lower rack
Loading large items into the Zone Booster Areas
You can load large items such as pots and pans into the left
and/or right sides of the lower rack - the Zone Booster areas -
for more eective cleaning. When you select the Zone Booster
option, an additional, powerful jet is activated and directed at
items in the Zone Booster areas. Make sure pot handles and
other items do not interfere with the rotation of the nozzles and
the water reflector.
03 using your dishwasher
DW80H994_DD68-00164A-03_EN_150408.indd 15DW80H994_DD68-00164A-03_EN_150408.indd 15 2015-04-08  7:44:202015-04-08  7:44:20

English - 16
ADJUSTING THE HEIGHT OF THE UPPER RACK
You can adjust the height of the upper rack in your Samsung dishwasher so that the lower rack can
accommodate larger sized dishes. Depending on where you set the upper rack height, the lower rack can
accommodate plates up to 12 in. (30 cm) in diameter and the upper rack can accommodated plates up to
8 in. (20 cm) in diameter.
1. To lower the upper rack by 2 in. (5 cm), pull the
adjust handles located at the left and right sides
of the upper rack, and then push the upper rack
downwards slightly at the same time.
2. To raise the upper rack, just pull the upper rack
upwards. The adjuster handle will latch and the
upper rack will move to the high position.
We recommend adjusting the height of the
upper rack before loading dishes into the rack. If
you adjust the the rack after loading the dishes,
you may damage the dishes. If you do not
adjust with left and right handle together, the
dishwasher door may not close properly.
Pull out the upper rack from the tub until it is
fully revealed before adjusting the upper rack.
Using the glass support
You can load cups or glasses onto the glass support. This is also very
convenient for washing wine glasses. Hang your wine glasses onto the
pegs of the glass support.
You can fold the glass support back when it is not being used.
REMOVING THE UPPER RACK (FOR SOME MODELS)
You can remove the upper rack to accommodate extra large items in the bottom rack. Take care that
you do not lose the holder rails during this process.
To remove the upper rack from the slide rail, pull the upper rack out from the tub until it is fully extended.
Hold down the holder rails on both sides to release the upper rack. Slide the upper rack out to the end of
one holder rail, and then lift it up.
Repeat the steps above with the other holder rail.
Step 1. Step 2. Step 3.
CAUTION
using your dishwasher
DW80H994_DD68-00164A-03_EN_150408.indd 16DW80H994_DD68-00164A-03_EN_150408.indd 16 2015-04-08  7:44:202015-04-08  7:44:20

English - 17
LOADING THE LOWER RACK
Load cookware (pots, pans, etc.), up to 12 in. (30 cm) in diameter into the lower rack. The lower rack has
been especially designed for dinner dishes, soup bowls, plates, pots, lids, and casserole dishes.
Load your plates into the center column of the rack so that their top sides face each other. Load large items
such as pans and pots into the dishwasher so their inner cavities face downwards. We recommend loading
cups, stemware, and small plates into the upper rack.

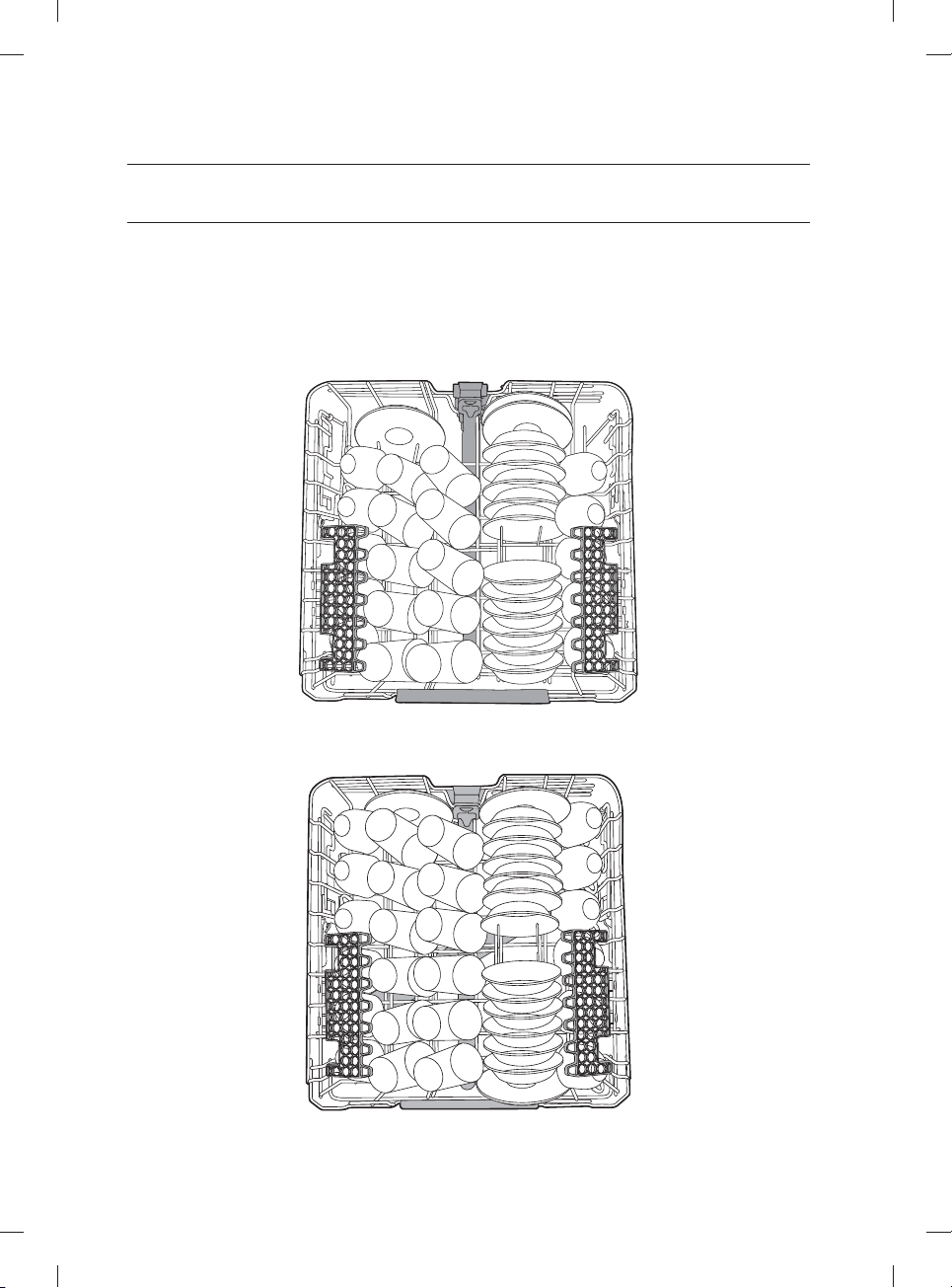

See the recommended loading patterns below.
saucer
10 place setting
12 place setting
03 using your dishwasher
DW80H994_DD68-00164A-03_EN_150408.indd 17DW80H994_DD68-00164A-03_EN_150408.indd 17 2015-04-08  7:44:212015-04-08  7:44:21

English - 18
using your dishwasher
LOADING THE UPPER RACK
The upper rack has been designed for small plates, mugs, glasses, and plastic items marked "dishwasher
safe". Load your plates into the dishwasher so that their top sides face each other.
Make sure the loaded dishes do not interfere with the rotation of the nozzle which is located at the bottom
of the upper rack. (Check this by rotating the nozzle by hand.)
When loading dishes, pull the upper rack out suciently so you can load it without striking the counter
above.
10 place setting
12 place setting
DW80H994_DD68-00164A-03_EN_150408.indd 18DW80H994_DD68-00164A-03_EN_150408.indd 18 2015-04-08  7:44:212015-04-08  7:44:21

English - 19
USING THE 3RD (CUTLERY) RACK (FOR SOME MODELS)
Loading the cutlery rack
<Place items randomly or regularly.>
In addition to the standard cutlery basket in the lower rack, some models come with a cutlery rack.
The cutlery rack is best suited for flatware and cooking or serving utensils. You can place cutlery and
utensils randomly or regularly on the cutlery rack.
Heavily soiled utensils or items with baked on foods should be placed in the lower cutlery basket for
the most eective cleaning.
Removing the Cutlery Rack
The entire cutlery rack can be removed if more space is needed on the upper rack for larger items.
Loading the cutlery pad
<Place items randomly or regularly.>
Some models come with a removable, foldable cutlery pad along with a cutlery rack. To use,
place the pad on the cutlery rack. and then place cutlery and serving and cooking utensils on the
pad in a random or regular fashion. After a wash cycle is complete, and the cutlery and utensils
are dry, you can fold the pad and carry the cutlery and utensils in the pad to their storage
locations.
Use caution when folding and moving the rack with a long thin item inside the pad.
The item may fall out in this process, causing physical injury.
It is advisable not to move the pad while it is wet.
Wait until the pad is dry.
The pad dries quickly after a wash cycle when exposed to
air for a few minutes.
WARNING
03 using your dishwasher
DW80H994_DD68-00164A-03_EN_150408.indd 19DW80H994_DD68-00164A-03_EN_150408.indd 19 2015-04-08  7:44:222015-04-08  7:44:22

English - 20
using your dishwasher

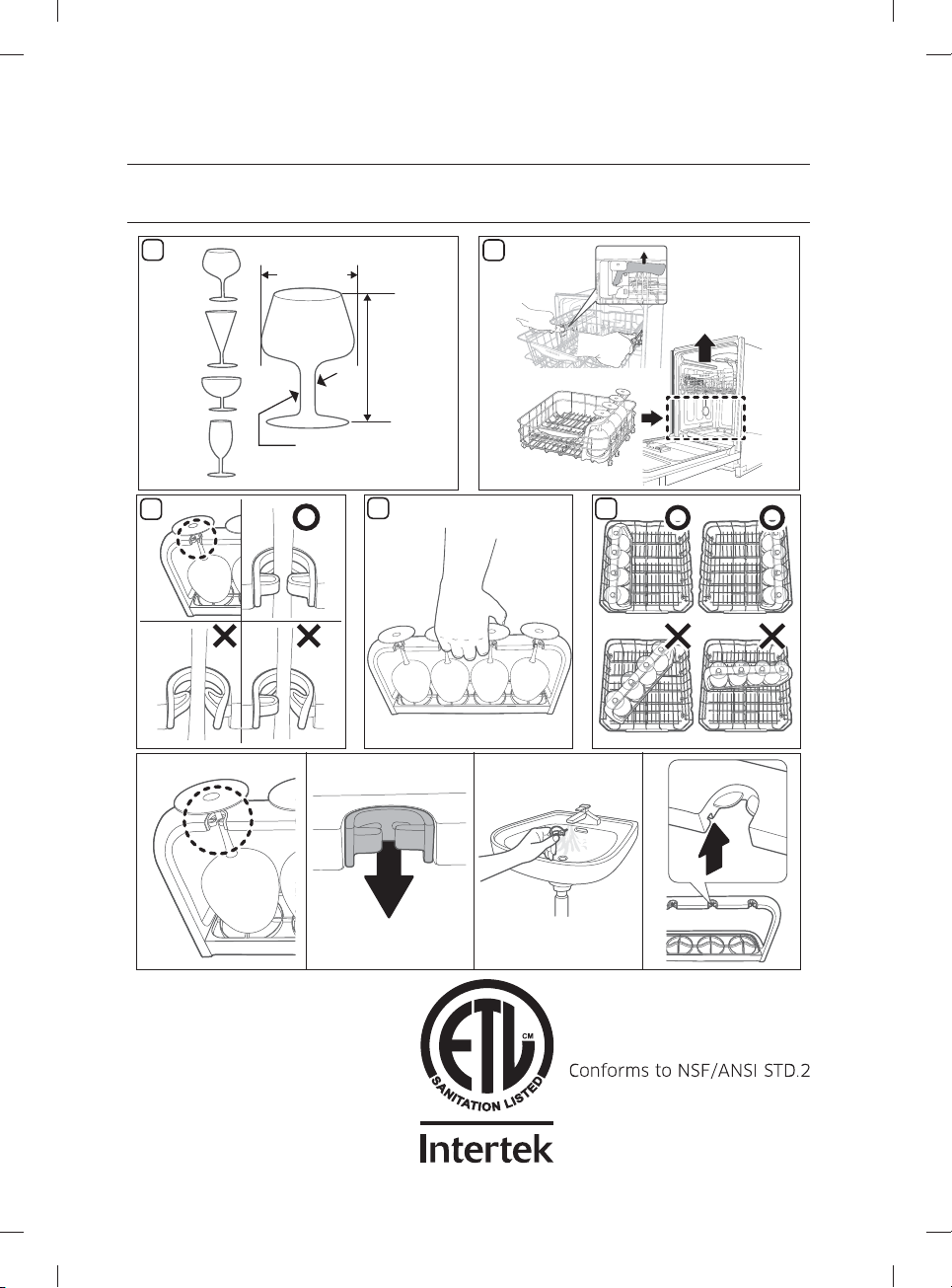

USING WINE RACK (FOR SOME MODELS)
180-245 mm
1
Ø 105 mm
Ø 6-9 mm
2
345
DW80H994_DD68-00164A-03_EN_150408.indd 20DW80H994_DD68-00164A-03_EN_150408.indd 20 2015-04-08  7:44:222015-04-08  7:44:22
