Congratulations
Congratulations on the purchase of your state-of-the-art security system.
Reading this Owner’s Guide prior to using your system will help maxi-
mize the use of your system and its many features. For any additional
questions please contact your authorized Directed dealer or contact
Directed at 1-800-753-0600 (US only).
Additional Guide Information
Only basic commands, features and essential information are covered
in this compact guide. Your product has many advanced features
which are not discussed here, please consult the expanded online ver-
sion for these on the website listed on the back cover. Most sections in
this guide also contain additional information which can be found in
the expanded online version.
Important information
Government Regulations and Safety information
Read the Government Regulations and Warning! Safety
First sections of this manual prior to operating this system.
Warning! Failure to heed this information can result in
death, personal injury or property damage and may also
result in the illegal use of the system beyond its intended
purpose.

ii © 2014 Directed. All rights reserved.
Your Warranty
Your system comes with a warranty. The warranty terms are detailed at
the end of this guide. Make sure that you receive the proof of purchase
from your dealer, indicating the product was installed by an autho-
rized Directed dealer.
Replacement remote controls
Please see your authorized dealer or visit us at www.directedstore.
com to order additional remote controls. Remote control part numbers
are found on the back of the device.
Getting Started
Due to transit and storage time prior to your purchase, the battery
charge on your 2-way remote control may have depleted. To ensure
proper operation, check the battery level and connect the included
USB cable between it and a computer if not fully charged. The dis-
play indicates the charging status and then when the battery is fully
charged.

Contents
Congratulations ................................................................................................... i
Additional Guide Information................................................................................ i
Important information .......................................................................................... i
Government Regulations and Safety information .......................................i
Your Warranty......................................................................................ii
Replacement remote controls..................................................................ii
Getting Started.................................................................................................... ii
Responder LC Remote Control .............................................................................. 2
Control Center .................................................................................................... 3
Status Screen Icons.............................................................................................. 4
Using your System............................................................................................... 7
Commands and Confirmations .............................................................. 7
Performing Commands ......................................................................... 7
Responder LC Command table .............................................................. 8
Basic Commands (Direct Access) .......................................................................... 9
Arm ................................................................................................... 9
Disarm ............................................................................................... 9
AUX/Trunk........................................................................................ 10
Remote Start/Aux 1/Aux 4................................................................. 10
Responder LC Configuration............................................................................... 11
Navigating menus and options............................................................ 11
Button operation ................................................................................ 11
Access menu items ............................................................................ 11
1-way Companion Remote Control..................................................................... 12
Accessing Commands ........................................................................ 12
Battery Information (Responder LC)..................................................................... 13
Battery Information (1-Way) ................................................................ 13
Battery Disposal ................................................................................ 13
Patent Information ............................................................................................. 14
Government Regulations .................................................................................... 15
Additional Information....................................................................................... 16
Interference....................................................................................... 16
Upgrades and Batteries ...................................................................... 16
Water/Heat Resistance ...................................................................... 16
Limited lifetime consumer warranty..................................................................... 17

2© 2014 Directed. All rights reserved.

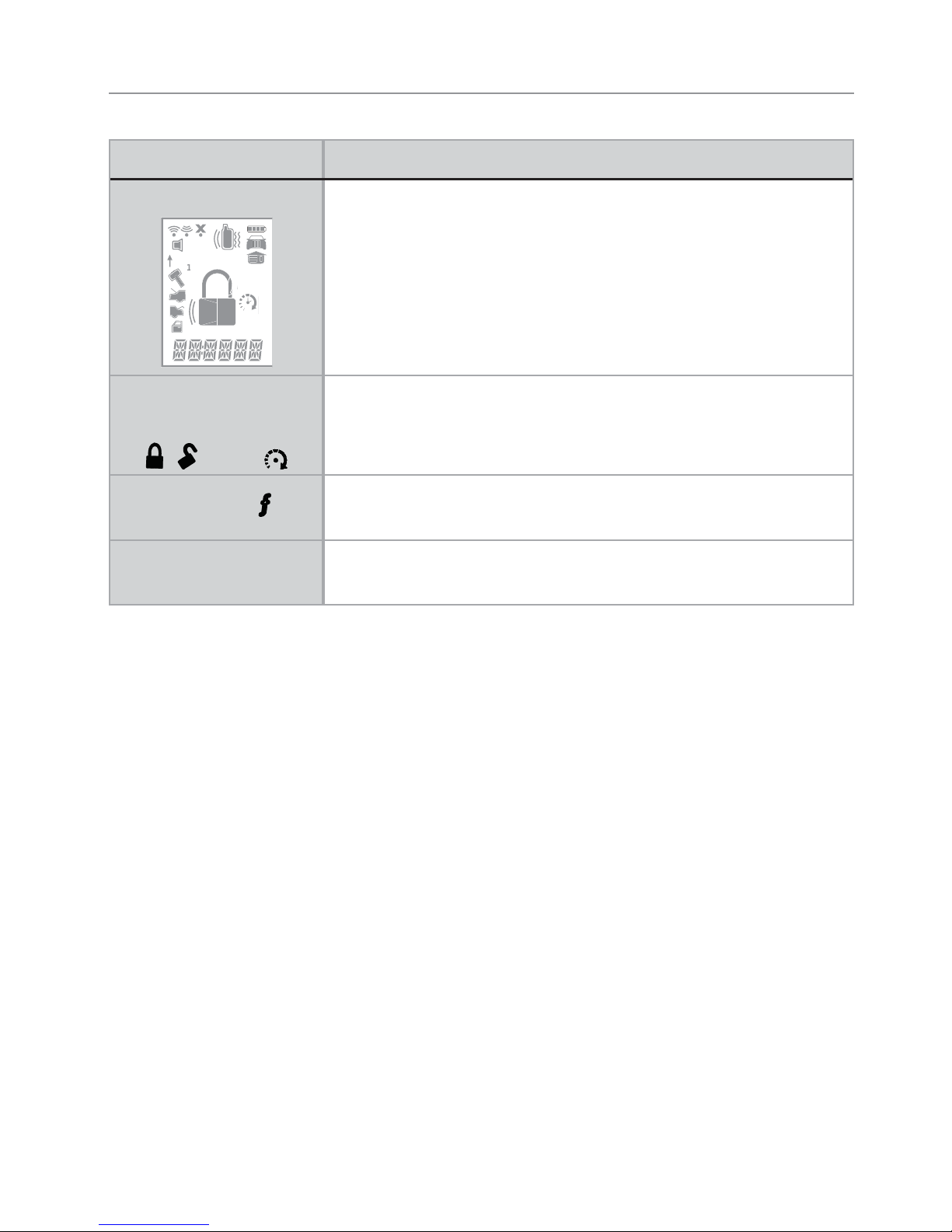

Responder LC Remote Control
Feature Description
Display
1
ALL
Status screen - the upper portion of the display contains
status icons for the System, Siren, Alarm zones, and Remote
Control.
Text field - the lower portion of display - shows the Clock,
Command confirmations, Page messages and programming
menus
Command buttons (4)
AUX
Used to perform arming, disarming, and auxiliary channel
commands
Function button Used to access function levels for commands, configuration
menus for programming, and car Selection
Micro-USB Port The USB cable plugs into this port (located on remote control
side).

3
© 2014 Directed. All rights reserved.

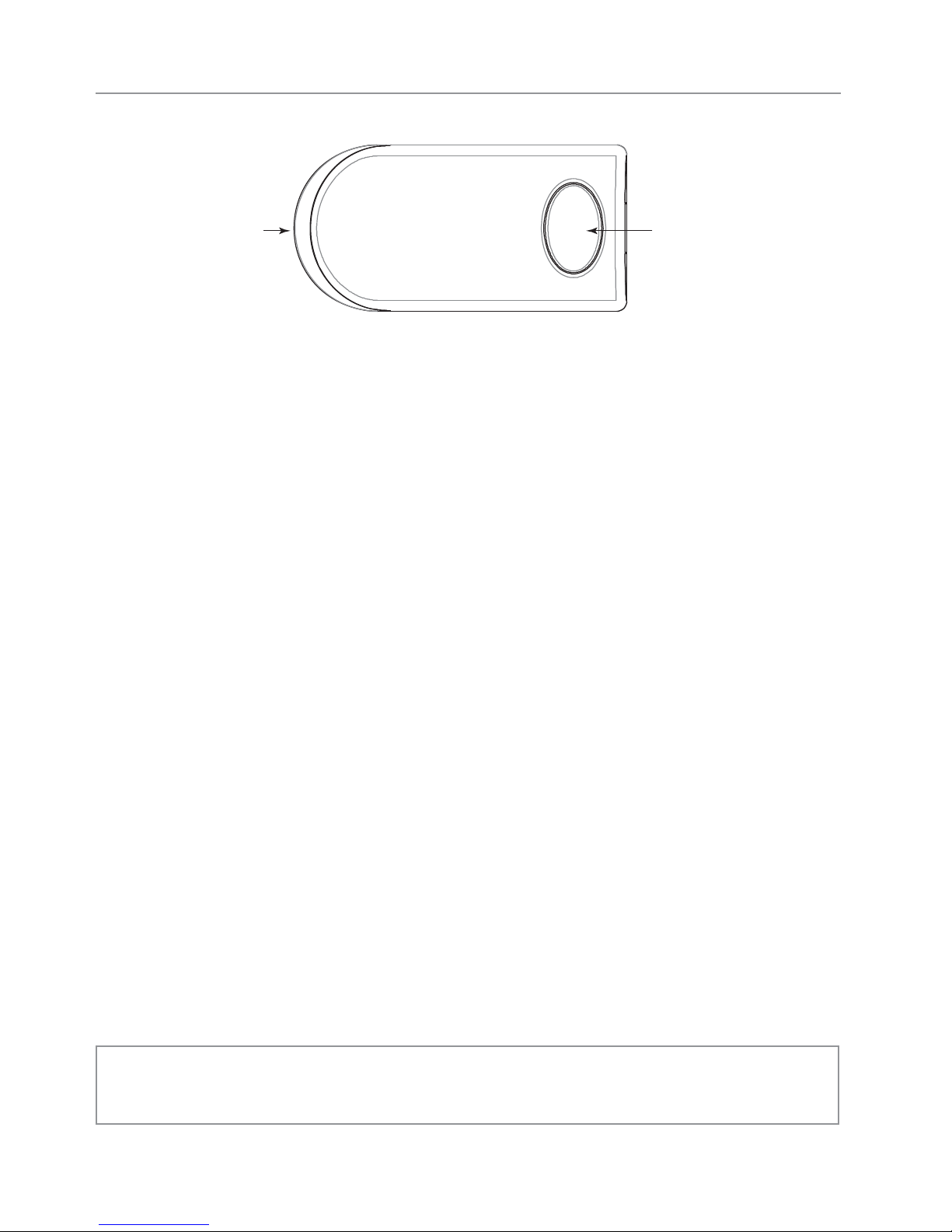

Control Center
Control CenterLED Button
The Control Center, typically located on the upper part of the front
windshield sends and receives commands or messages to and from
your system. It consists of:
• The In-vehicle system antenna, for 2 way communication.
• The Status LED, as a visual indicator of the system’s status.
• The Control button, for placing the system into Valet Mode* and
to perform the Emergency Override** operation.
* See “Remote and System Operations” in online guide.
** See “Alarm Features” in online guide.

4© 2014 Directed. All rights reserved.

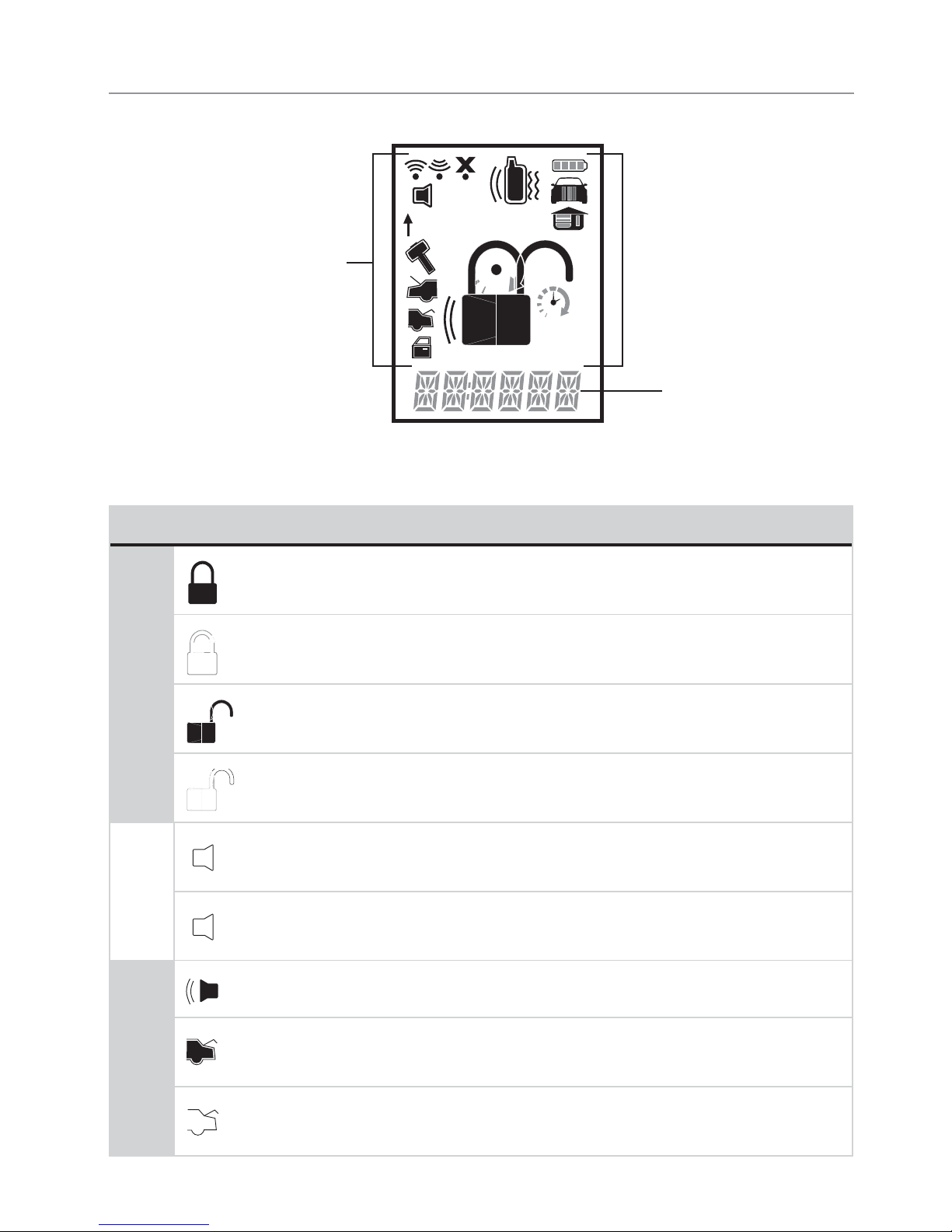

Status Screen Icons
1
ALL
Text Field
Status Screen
Icons
The table below describes all the status screen icons.

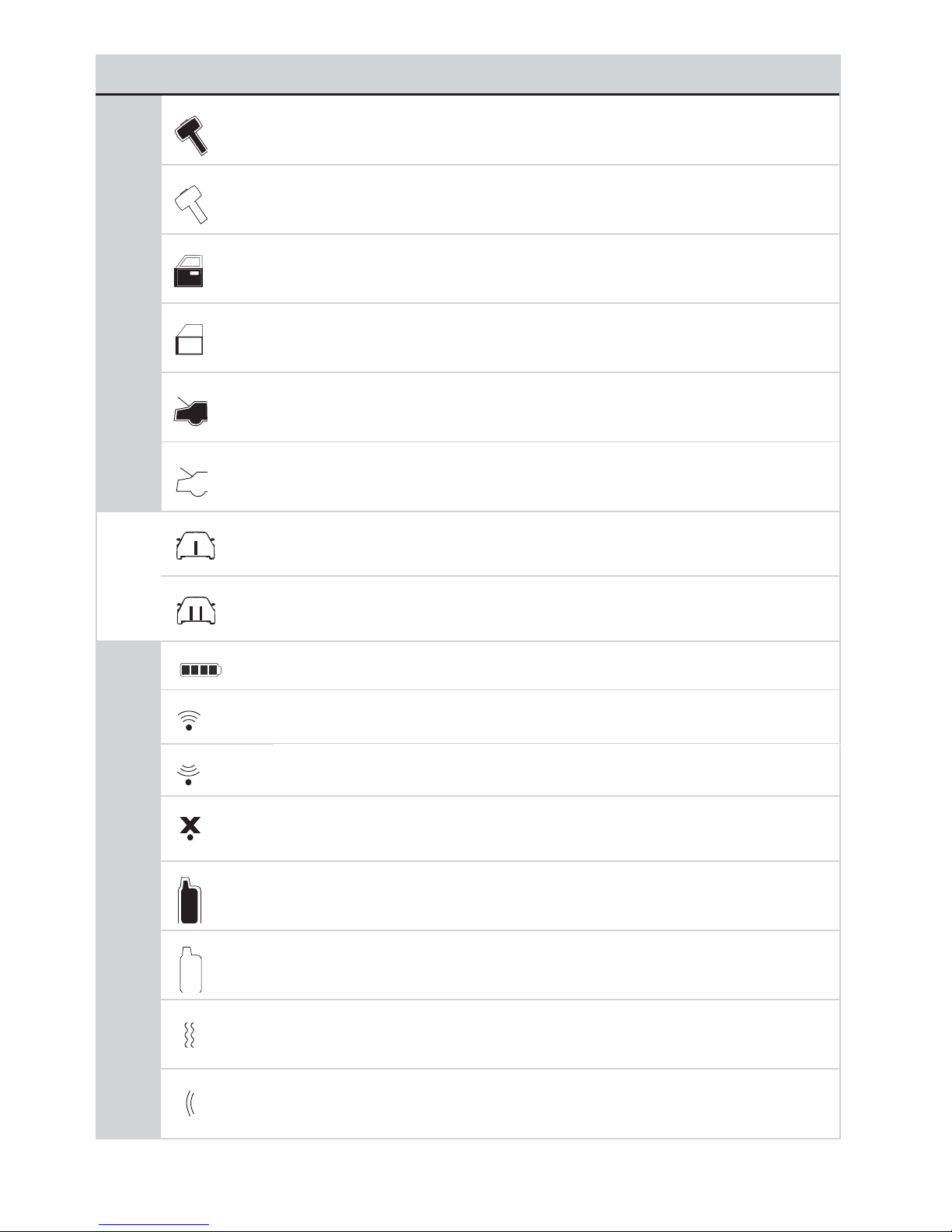

Icon Description
System Status
Armed: The system is Armed, the alarm is enabled.
Locked: The system is Locked in Valet, the alarm is disabled.
Disarmed: The system is Disarmed, the alarm is disabled.
Unlocked: The system is Unlocked in Valet, the alarm is dis-
abled.
Siren Status
Siren is disabled for sensor triggers; remote is paged for all trig-
gers (Sensor Silent Arm).
+ ALL Siren is disabled for all triggers; remote is paged for all triggers
(Full Silent Arm).
Zone Status
On during Warn-away and Full Trigger message output
On during Trunk Zone Full Trigger output and Aux/Trunk
channel activation
On during Fault Report to indicate the Trunk is open and
bypassed when arming

5
© 2014 Directed. All rights reserved.
Icon Description
Zone Status
On during a Sensor Zone Full Trigger output
On during Fault Report to indicate a Sensor is active and
bypassed when arming
On during the Door Zone Full Trigger output
On during Fault Report to indicate a Door is open and
bypassed when arming
On during a Hood Zone Full Trigger output
On during Fault Report to indicate the Hood is open and
bypassed when arming
On when remote is set to command the system programmed
as Car 1*
On when remote is set to command the system programmed
as Car 2*
Remote Control Status
Bars indicate battery level is Full, ¾,½,¼ or Empty
On while the remote control is transmitting a command
On while the remote control is receiving a message
On with Out of Range fault tone to indicate the remote failed to
receive a command confirmation
Pager on: The remote will wake up to listen for messages
Pager off: The remote will not wake up to listen for messages
The remote will Vibrate when messages are received
The remote will emit Beeps and Tones when messages are
received

6© 2014 Directed. All rights reserved.
Icon Description
Text field Displays the Clock, message text and feature menus
On after the Garage Open** message has been received.
On after the Garage Closed** message has been received.
Remote start is active, the engine is running (with optional
remote start module only).
* This icon not present until the Car 2 is turned on in the Setup
Remote configuration menu. See “Remote and System Operations” in
online guide.
** This icon not present until the remote is paired with an optional
garage door opener.

7
© 2014 Directed. All rights reserved.
Using your System
Commands and Confirmations
Commands, Basic or Advanced, are used to activate system features
and are performed by pressing one of the Command buttons. Basic
commands control the most often used security and remote start fea-
tures while Advanced commands control more specialized features
and request reports.
Confirmations for Basic or Advanced commands are indicated
first by siren chirps and parking light flashes, and then by Text, Icons
and beeps or tones on the remote control. A description of each
feature confirmation is found in the following Basic command and
Advanced command sections.
Performing Commands
Perform Basic commands by pressing one of the command buttons
while in the Direct Access level. Direct access is available while the
text field displays the Clock. Perform Advanced commands by first
accessing one of the Function Levels and then pressing one of the
command buttons while within a level. Function Levels are available
when the text field displays LEVEL 1,2,3 or 4.
Advanced command example: Silent Arm
1. Press the button once to access Function Level 1, the text
field will display LEVEL 1 .
2. Press the button while LEVEL 1 text is still on to perform the
Silent Arm command.
3. The Responder LC remote will display SILENT ARMED in the
text field and update the status screen icons.
