Climate Control CLIMATE CONTROL CC-CUBZTB Quick start guide

CCCUBZTB
April 2009, v. 001
AIRCOOLED CONDENSING UNITS
WITH BITZER COMPRESSORS
Technical Guide
www.coldyoucancounton.com
CLIMA TE
CONTROL

2
© 2009 Heatcraft Refrigeration Products, LLC
Floating Tube™ Coil 3
Options 4
Head Pressure Control 5
Bitzer Compressor
Features and Benets 6-7
Horizontal Air Discharge Condensing Units 4 to 13 HP
Standard and Optional Features 8
Nomenclature 8
Performance Data
Medium Temperature - R-404A/R-507 9
Low Temperature - R-404A/R-507 9
Electrical Data
Medium Temperature - R-404A/R-507 10
Low Temperature - R-404A/R-507 10
Specications and Dimensional Data
Medium Temperature - R-404A/R-507 11
Low Temperature - R-404A/R-507 11
Vertical Air Discharge Condensing Units 13 to 50 HP, Single Compressor
Standard and Optional Features 12
Nomenclature 12
Performance Data
Medium Temperature - R-404A/R-507 13
Low Temperature - R-404A/R-507 14
Electrical Data
Medium Temperature - R-404A/R-507 15
Low Temperature - R-404A/R-507 15
Specications and Dimensional Data
Medium Temperature - R-404A/R-507 16
Low Temperature - R-404A/R-507 16
Vertical Air Discharge Condensing Units 26 to 100 HP, Dual Compressor
Standard and Optional Features 17
Nomenclature 17
Performance Data
Medium Temperature - R-404A/R-507 18
Low Temperature - R-404A/R-507 19
Electrical Data
Medium Temperature - R-404A/R-507 20
Low Temperature - R-404A/R-507 20
Specications and Dimensional Data
Medium Temperature - R-404A/R-507 21
Low Temperature - R-404A/R-507 21
Table of Contents

3

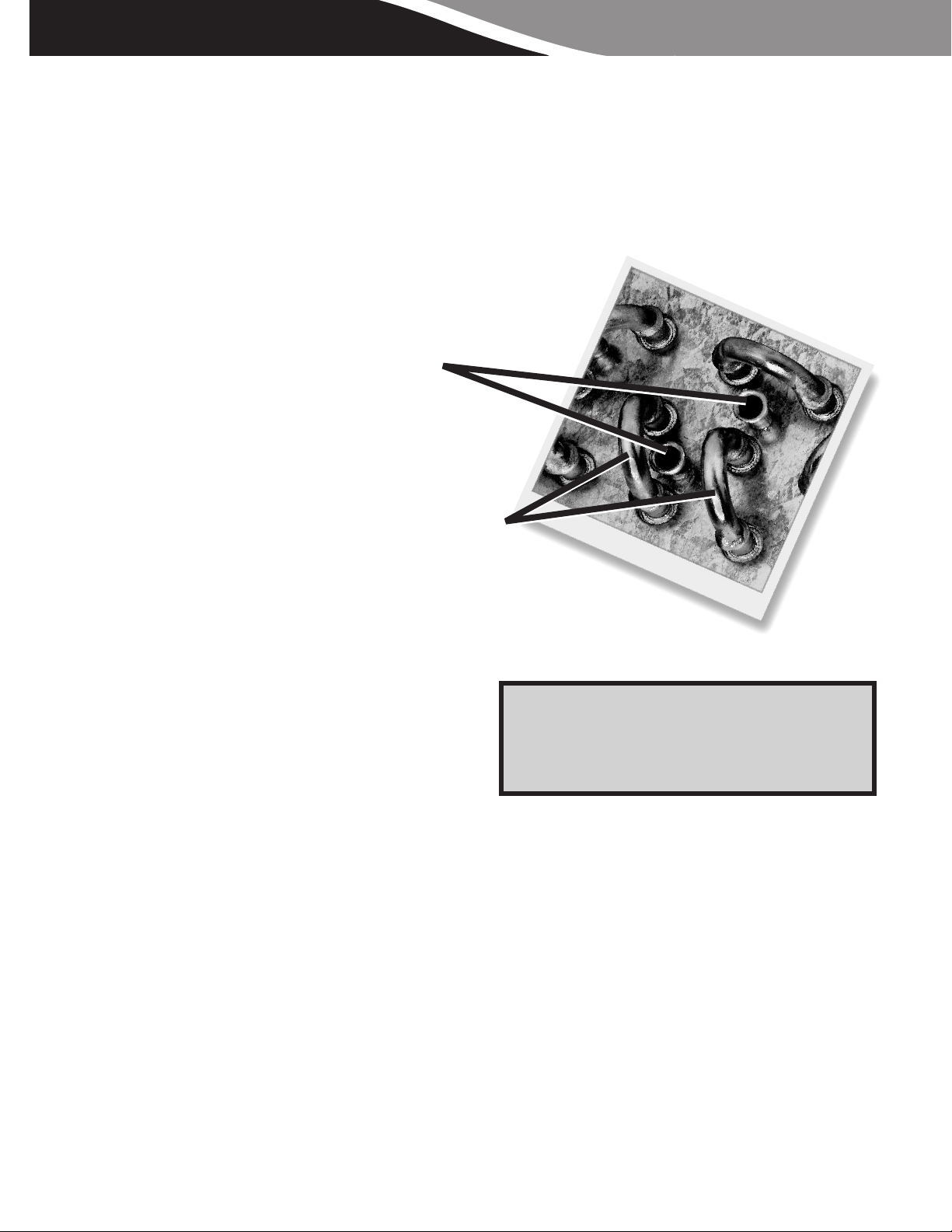

Expanded (Locked) Auxiliary Tubes:
These tubes support the coil with ns and refrigerant
carrying tubes. They do not carry refrigerant and are
tightly tted on end supports and center supports.
Free Floating Circuited Coil Tubes:
These tubes carry refrigerant and never touch
and sheet metal (end supports and center
supports).
All condensers use the Floating Tube™ coil design to eliminate refrigerant leaks at the tube
sheets. Additional tubes are added to the condenser coil. These tubes are expanded into the
aluminum ns and condenser tube sheets. These anchor tubes support the weight of the coil,
but are not a part of the refrigerant circuit.
The tubes in the refrigerant circuit are expanded into the ns, but “oat” through oversized
holes in the tube sheets. Tube sheet leaks are virtually eliminated, since the tubes which carry
refrigerant never come in contact with the tube sheet.
All units include a limited
Five Year Warranty
against condenser leaks at tube sheets and
center supports.
Single And Dual Compressor
Condensing Units
Feature Our Floating Tube™ Coil Design

4
Beacon II™ Refrigeration System
Beacon II™ is the next generation
of Climate Control’s patented,
preassembled, factory installed
refrigeration system featuring an
integrated microcomputer-based electronic control board.
The Beacon II™ systems come completely factory installed,
wired and tested saving you time and money.
Beacon II™ oers:
• Complete factory installation, wiring and testing which
saves time and money
• Simple eld electrical connections and 24 volt wiring
between condensing and evaporator units
• Preset factory superheat allowing the system to run
more eciently and reducing future adjustments
• Monitors and controls box temperature, evaporator
superheat, condenser fan cycling on two fan units,
system status and defrost from outside the box
• Monitor and make system changes remotely via modem
and exclusive Beacon II™ Smart II software
• Data logging capabilities with Smart Controller
Beacon II™ Smart Controller
Beacon II™ Smart Controller is an
optional system monitoring and
programming control device. It
allows for adjustments to be
made at the push of a button from a conveniently mounted
location. The Beacon II™ Smart Controller also allows you
to monitor and make changes to the refrigeration system
via modem connection from anywhere in the world. The
Beacon II™ has been updated to allow the user to make even
more precise adjustments than the original Beacon’s Smart
Controller. One Smart Controller can program and control
up to four separate condensing units with up to
four evaporators on each system. That’s more control in
your hands!
™
Beacon II™ Smart II Software
Beacon II™ Smart II Software
makes it easy to adjust
and monitor one or more
refrigeration systems as well
as capture minute by minute
system conditions. This
Windows-based software allows you to connect to the
Beacon II™ Smart Controller from anywhere in the world to
monitor the systems, make adjustments and log minute
by minute system conditions. This data logging capability
is critical in the food service industry.
Beacon II™ Smart Defrost
The Beacon II™ Smart Defrost,
available only on the Beacon
II™ Smart Controller, enables
the Beacon II™ system to sense
frost accumulation and initiates defrost only when it
is necessary. To begin, preset defrost times using the
Beacon II™ Smart Controller. At each scheduled defrost
time, Smart Defrost checks system performance to see
if a defrost is necessary. If not, it simply does not defrost,
waiting until the next scheduled defrost time.
Smart Defrost KitTM
The factory installed Smart
Defrost KitTM (SDK) skips
unnecessary defrosts in
commercial, electric defrost walk-
in refrigeration systems saving
energy, reducing costs and ultimately improving product
integrity. The SDK is available as a factory-installed option
on all condensing units.
E Solutions branded products and options are designed to exceed current energy and environmental
standards. It is our commitment in environmental innovation to dedicate ourselves by delivering energy
ecient eco-conscious choices. Products included in the E Solutions portfolio reduce costs, improve
bottom lines, and enhance equipment performance and service life.
The Beacon II™ Refrigeration System with Smart Defrost and the factory-installed Smart Defrost Kit™
are E Solutions options that will optimize your savings and increase energy eciency.
Options

5
Refrigeration condensing units must efficiently
perform at varying ambient conditions. A properly
sized unit will adequately perform at even the
highest summer ambient temperatures. However,
in situations where the system must operate the
majority of the time at less than design temperature,
a means of providing adequate head pressure
for refrigerant ow is desirable. The CDV & CDD
units have an adjustable method of head pressure
control.
This system provides year round control of refrigerant
head pressure without the use of special refrigerant
expansion valves. As the ambient temperature falls,
the reciever pressure is allowed to fall to a minimum
of 75°F saturated condensing pressure. The reduced
discharge pressure at the compressor increases the
compressor capacity and lowers the input watts
from the compressor motor. The system also uses
the reduced ambient temperature to subcool the
liquid refrigerant in the condenser. This subcooled
liquid also increases system capacity. As a general
rule, every one degree of subcooling results in 0.50%
increase in system capacity. Together these result
in greater eciency, greater capacity, and reduced
run time.
Benets:
• Automatic year-round control of refrigerant head
pressure without the use of special expansion
valves.
• Energy savings in mild ambient conditions due
to reduced compressor discharge pressure and
refrigerant subcooling
• Provides easy restart during low ambient
conditions.
Operation
As the ambient temperature falls, the system
condensing pressure is also reduced. This pressure
is maintained by a regulator (ORI-6-65/225) at the
condenser drain. At approximately 75°F saturated
condensing pressure the regulator restricts the flow
of liquid refrigerant from the condenser causing the
condenser to flood. This condenser flooding allows
the liquid refrigerant in the condenser to become
subcooled by the ambient air flowing through the
condenser. As the regulator continues to flood the
condenser, a pressure differential will be established
between the receiver and the compressor discharge.
At a predescribed differential, a second valve (ORD-
4) will open and allow discharge gas from the
compressor to bypass the condenser and flow into
the top of the receiver. This gas is used to pressurize
the receiver. These valves are adjustable and the
minimum receiver pressure may be reset higher or
lower depending upon application situations of a
particular job.
Subcooled liquid is further enhanced by the routing
of liquid from the receiver liquid line outlet to the
condenser before leaving the condensing unit.
HEAD PRESSURE CONTROL

6
Bitzer is the world’s largest manufacturer of semi-hermetic refrigeration compressors
over 3 HP. In business since 1934, Bitzer has manufacturing plants in Germany,
Brazil, Portugal, China and the United States and operates in over 100 countries
around the world. Bitzer’s Georgia plant manufactures a complete range of
semi-hermetic compressors from 3 to 50 HP. Bitzer provides aftermarket support
through wholesalers and also provides 24-hour replacement service from its seven
distribution warehouses located across the U.S.
Bitzer Oers:
• 2-Year Warranty
• Unloader Heads Standard on All 4 & 6-cylinder Models
• Dual Voltage Control Modules on All Models
• Dual Voltage Compressors (6 to 50 HP)
• Lowest Sound Levels in their Class (Built-in Muers)
• Superior Lubrication and Low Oil Circulation Rates
• German Engineering / Built in America
Bitzer Standard Execution Octagon
4C Models
4B & 6B
Models
POE Oil Charge √ √
Protective Dry-Nitrogen Charge √ √
Suction & Discharge Service Valves √ √
Dual Voltage INT Protection Modules √ √
Terminal Box Enclosure Class IP65 √ √
Unloader Heads √ √
Patented Internal Muers √ √
Centrifugal Oil System √ √
Conventional Oil Pump √ √
Bitzer Options 4C Models 4B & 6B
Mounting Hardware (Spring Kits) √ √
Hard Mount Kits √ √
Optical Oil Sensor √ √
Crankcase Heaters √ √
Unloader Stems / Coils √ √
Head Fans and Brackets √ √
Delta P II Dierential Oil Pres. Switch √ √
Bitzer Quiet!!!

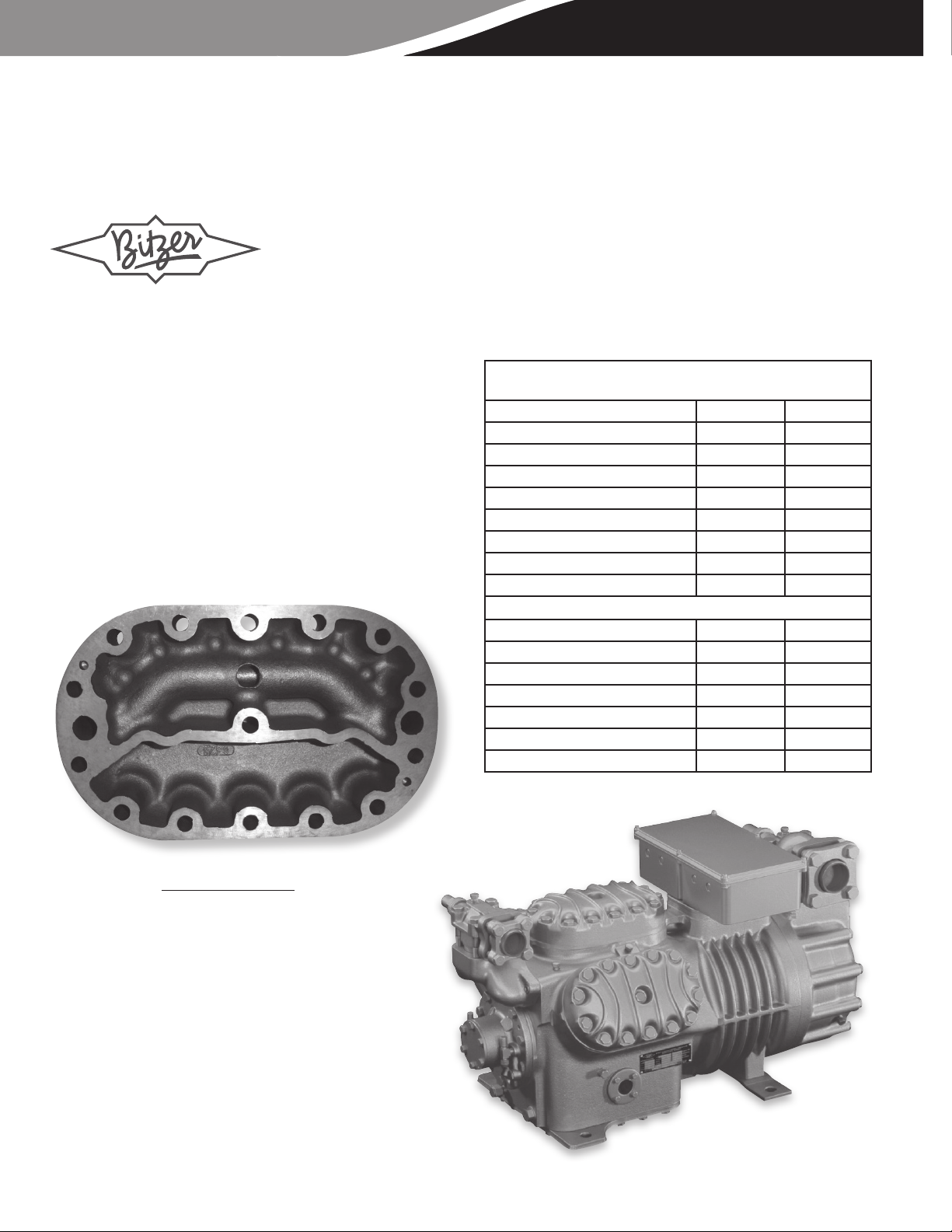

Bitzer compressors are famous for their low sound
levels. We change capacities within a frame size by
changing our bore diameters rather than the length
of the piston strokes. This gives our compressors an
unsurpassed balance and precision that translates
to low decibels. In addition, Bitzer compressors
have a muer built into each head (see photo) that
eliminates pulsations and reduces the sound levels
even further.
Bitzer Compressors
Features and Benets

7
Octagon® 4C Models
Bitzer Octagon 4C Models are rated from 3 to 20 HP. This rugged, compact
series utilizes wear resistant drive gear with PTFE coated bearings for especially
low friction, aluminum pistons of optimized geometry, connecting rods with
eccentric straps and generously dimensioned bearing surfaces. Bitzer’s centrifugal
lubrication system eliminates the need for an oil pump and provides optimum oil
supply to the compressor even under extreme operating conditions.
Centrifugal Lubrication
The centrifugal lubrication design employs a solid metal disc
mounted to the crankshaft (see cut-away) that distributes
oil into a reservoir at the end of the shaft. The oil then ows
through the shaft to the bearing surfaces.
Bitzer oers an optional Optical Oil Sensor (See OLC-K1 photo
below) that mounts to the outer cover of the compressor
and monitors oil level by means of an infrared light.
OLC-K1 Operating Principle
The OLC-K1 sensing device shines an infrared light into
the oil reservoir. If oil is present, the light is absorbed
and the compressor runs normally. If no oil is present,
the light reects on the sensor, and the compressor
shuts o.
Bitzer 4B & 6B Models
Bitzer 4B through 6B Models are rated from 13 to 50
HP. This series features surface hardened crank shafts,
low friction bearings, aluminum pistons, hard chrome
plated piston rings and special wrist pin bearings.
The 4B & 6B models have a sealed main bearing and
generously sized oil pump. Our patented oil return
system ensures complete lubrication while reducing oil
circulation into the system. Ecient capacity control
is provided by unloader banks that can signicantly
reduce energy consumption.
Bitzer Compressors
Features and Benets

8
3 - 22 HP Condensing UnitsHorizontal Discharge
Nomenclature
C B T 0000 L6 C
Brand Compressor Application Horsepower Temp. Range Refrigerant Voltage
C =
Climate
Control
B = Bitzer T = Outdoor
N = Indoor
S = Beacon II™
0401 - 4
0551 - 5
0601 - 6
0611 -6
0751 - 7.5
0901 - 9
1001 - 10
1201 - 12
1301 - 13
M = Med. Temp.
L = Low Temp.
6 = R-404A,
R-507
C = 208-230/3/60
D = 460/3/60
E = 575/3/60
Horizontal Air Discharge Condensing Units 4 to 13 HP
Standard and Optional Features
• Floating Tube™ coil design
• Ried copper condenser tubing
• Designed for use with R-404A, R-507
• Prebent copper tubes minimize welded joints on
internal piping
• Fixed high and adjustable low pressure controls.
• Oil safety control
• Head pressure control valve
• Bitzer compressors with POE oil
• Spring mounted compressor with suction and discharge
vibration eliminators
• Crankcase heater
• Thermally protected, permanently lubricated ball bearing
condenser fan motors
• Separate subcooling circuit in condenser for added capacity
and vapor-free liquid
• Pressure relief valve on receiver
• Sealed liquid line lter drier and sight glass
• Electrical controls, including compressor contactor and
optional defrost control, are located in easily accessible control
box with a hinged cover
• Service Mate™ module to assist troubleshooting
• Pumpdown Switch
• Cabinet is constructed from prepainted galvanized steel
• Base valve and high & low pressure taps on outside
of unit
• Vertical receivers
Factory-Installed Options
• Oversized receiver
• Replaceable core liquid lter drier
• Liquid line solenoid valve
• Suction lter
• Replaceable core suction lter
• Suction accumulator
• Oil separator
• Air defrost timer
• Electric defrost kits, including timer, evaporator fan contactor
with fusing, defrost heater contactor(s), lockout relay and
terminal strip
• Fusing for defrost kits
• Evaporator holdout relays for systems with multiple electric
defrost evaporators
• Low ambient kit with heated and insulated receiver with
time delay
• Fused disconnect switch
• Non-fused disconnect switch
• Phase-loss monitor
• Manual-reset high pressure switch
• Anti-short cycle timer
• Compressor circuit breakers
• Condenser fan cycling
• Coated condenser coils
• Copper nned coil
• Beacon II™ compatible
• Hail guards (shipped loose)
• Compressor unloading
• NEMA contactors
• 12" extended legs for snowbelt region (shipped loose)
• Slanted louver for snowbelt regions (shipped loose)
• Dual pressure control

9
Horizontal Discharge
Medium Temperature R-404A/R-507
*= T for Outdoors, N for Indoors, S for Beacon II™
Consult factory on all models for applications above 110°F ambient.
Unit Model
Number
Compressor
Model
Suction Temp. 90°F
Amb.
95°F
Amb.
100°F
Amb.
110°F
Amb.
°F
CB*0551M6 4C0969SH
40
30
25
20
15
5
89700
75460
68740
62260
56190
45520
85620
72064
65580
59360
53510
43270
81720
68710
62440
56460
50870
41170
74280
62010
56230
50730
45720
36550
CB*0751M6 4C1145SH
40
30
25
20
15
5
105280
88720
80750
72780
65640
53140
100690
84739
76660
69360
62500
50500
95530
80270
72960
65960
59380
47880
86960
72380
65640
59210
53160
42700
CB*0901M6 4C1385SH
40
30
25
20
15
5
129090
108780
99120
89850
81200
65960
124130
101623
94750
85870
77500
62760
118700
99390
90440
81860
73800
59840
107220
90050
81730
76750
66340
53950
CB*1001M6 4C1480PH
40
30
25
20
15
5
137470
115200
104860
94930
85670
69300
131010
107509
100040
90550
81560
65840
125080
105430
95260
86090
77450
62560
113750
94630
85740
77130
69510
55590
Performance Data
Unit Model
Number
Compressor
Model
Suction Temp. 90°F
Amb.
95°F
Amb.
100°F
Amb.
110°F
Amb.
°F
CB*0401L6 4C0969SL
0 35200 33380 31560 28020
-10 27690 26222 24690 21680
-15 24440 23040 21620 18870
-20 21520 20210 18930 16460
-30 17090 16000 14930 12820
-40 15030 14090 13200 11330
CB*0551L6 4C1145SL
0 42930 40770 38600 34290
-10 33890 32073 30230 26620
-15 29880 28200 26510 23190
-20 26310 24770 23230 20270
-30 20960 19650 18370 15830
-40 18450 17320 16240 14010
CB*0601L6 4C1385SL
0 52890 50250 47530 42230
-10 41590 39334 37070 32610
-15 36690 34580 32480 28460
-20 32320 30410 28510 24810
-30 25910 24260 22630 19540
-40 22910 21500 20090 17370
CB*0611L6 4C1480PL
0 56010 52610 49660 43790
-10 43740 41241 38770 33850
-15 38540 36230 33910 29460
-20 33870 31750 29680 25640
-30 26730 24980 23280 19980
-40 23080 21650 20230 17430
CB*0751L6 4C1761PL
0 68040 64570 61090 54180
-10 53710 50780 47800 41660
-15 47320 44580 41840 36480
-20 41590 39080 36600 31870
-30 32760 30720 28700 24750
-40 28200 26530 24910 21590
CB*1001L6 4C2067PL
0 78200 74200 70160 63210
-10 61470 58050 54740 48110
-15 54150 51030 47940 41820
-20 47560 44700 41880 36370
-30 37620 35240 32860 28310
-40 32550 30500 28620 24710
CB*1201L6 4C2397PL
0 93390 88580 83830 74420
-10 74920 69208 65150 57070
-15 64440 60680 56890 49580
-20 56560 53090 49680 43080
-30 44620 41750 38850 33170
-40 38400 36060 33630 28760
CB*1301L6 4B2707PL
0 105360 100530 95590 85790
-10 83410 79221 75110 66870
-15 73740 69890 66030 58590
-20 65040 61530 58040 51230
-30 51830 48880 45950 40350
-40 45050 42600 40250 35390
Low Temperature R-404A/R-507

10
3 - 22 HP Condensing UnitsHorizontal Discharge
Low Temperature – R-404A/R-507
Medium Temperature – R-404A/507
*= T for Outdoors, N for Indoors, S for Beacon II™
^ Consult factory for 50Hz applications.
† MCA = Minimum Circuit Ampacity
†† MOP = Maximum Overcurrent Protection
‡ Condensing unit data plate ratings will be based on actual system match.
Electrical Data
Unit Model
Number
Compressor
Model
Voltage
Supply ^ Compressor Condenser Fan Motors
Beacon II™ or
Air Defrost Remote Loads ‡
60 Hz RLA LRA Qty. HP FLA MCA†MOP††
Electric Defrost
Evap.
Fan
Amps
Defrost
Heater
Amps
System
MCA†
System
MOP††
CB*0551M6C 4C0969SH 208-230/3 26.5 163.0 2 1/3 5.4 38.5 60
CONTACT FACTORY FOR SYSTEM
ELECTRICAL RATINGS
CB*0551M6D 4C0969SH 460/3 12.8 66.5 2 1/3 3.8 19.8 30
CB*0551M6E 4C0969SH 575/3 8.3 48.0 2 1/3 2.4 12.8 20
CB*0751M6C 4C1145SH 208-230/3 29.0 215.0 2 1/3 5.4 41.7 70
CB*0751M6D 4C1145SH 460/3 13.8 88.0 2 1/3 3.8 21.1 35
CB*0751M6E 4C1145SH 575/3 10.3 63.5 2 1/3 2.4 15.3 25
CB*0911M6C 4C1385SH 208-230/3 32.7 215.0 2 3/4 8.8 49.7 80
CB*0911M6D 4C1385SH 460/3 16.3 88.0 2 3/4 4.4 24.8 40
CB*0911M6E 4C1385SH 575/3 13.1 63.5 2 3/4 3.6 20 30
CB*1001M6C 4C1480PH 208-230/3 38.5 222.0 2 3/4 8.8 56.9 90
CB*1001M6D 4C1480PH 460/3 19.2 111.0 2 3/4 4.4 28.4 45
CB*1001M6E 4C1480PH 575/3 15.4 89.0 2 3/4 3.6 22.9 35
Unit Model
Number
Compressor
Model
Voltage
Supply ^ Compressor Condenser Fan Motors
Beacon II™ or
Air Defrost Remote Loads ‡
60 Hz RLA LRA Qty. HP FLA MCA†MOP††
Electric Defrost
Evap.
Fan
Amps
Defrost
Heater
Amps
System
MCA†
System
MOP††
CB*0401L6C 4C0969SL 208-230/3 16.7 142.0 1 1/3 2.7 23.6 40.0
CONTACT FACTORY FOR SYSTEM
ELECTRICAL RATINGS
CB*0401L6D 4C0969SL 460/3 9.0 58.0 1 1/3 1.9 13.2 20.0
CB*0401L6E 4C0969SL 575/3 7.0 51.5 1 1/3 1.2 10.0 15.0
CB*0551L6C 4C1145SL 208-230/3 19.4 163.0 1 1/3 2.7 27.0 45.0
CB*0551L6D 4C1145SL 460/3 10.6 66.5 1 1/3 1.9 15.2 25.0
CB*0551L6E 4C1145SL 575/3 8.7 48.0 1 1/3 1.2 12.1 20.0
CB*0601L6C 4C1385SL 208-230/3 24.9 215.0 2 1/3 5.4 36.5 60.0
CB*0601L6D 4C1385SL 460/3 14.2 88.0 2 1/3 3.8 21.6 35.0
CB*0601L6E 4C1385SL 575/3 10.8 63.5 2 1/3 2.4 15.9 25.0
CB*0611L6C 4C1480PL 208-230/3 24.4 150.0 2 1/3 5.4 35.9 60.0
CB*0611L6D 4C1480PL 460/3 12.2 75.0 2 1/3 3.8 19.1 30.0
CB*0611L6E 4C1480PL 575/3 9.6 60.0 2 1/3 2.4 14.4 20.0
CB*0751L6C 4C1761PL 208-230/3 28.2 180.0 2 1/3 5.4 40.7 60.0
CB*0751L6D 4C1761PL 460/3 14.1 90.0 2 1/3 3.8 21.4 35.0
CB*0751L6E 4C1761PL 575/3 12.2 72.0 2 1/3 2.4 17.7 30.0
CB*1001L6C 4C2067PL 208-230/3 34.6 222.0 2 1/3 5.4 48.7 80.0
CB*1001L6D 4C2067PL 460/3 17.3 111.0 2 1/3 3.8 25.4 40.0
CB*1001L6E 4C2067PL 575/3 14.4 89.0 2 1/3 2.4 20.4 30.0
CB*1201L6C 4C2397PL 208-230/3 39.7 252.0 2 3/4 8.8 58.4 90.0
CB*1201L6D 4C2397PL 460/3 19.9 126.0 2 3/4 4.4 29.3 45.0
CB*1201L6E 4C2397PL 575/3 15.9 101.0 2 3/4 3.6 22.5 35.0
CB*1301L6C 4B2707PL 208-230/3 43.6 294.0 2 3/4 8.8 63.3 100.0
CB*1301L6D 4B2707PL 460/3 21.8 147.0 2 3/4 4.4 31.7 50.0
CB*1301L6E 4B2707PL 575/3 17.3 117.0 2 3/4 3.6 25.2 40.0

11
Horizontal Discharge
Medium & Low Temperature – R-404A/R-507

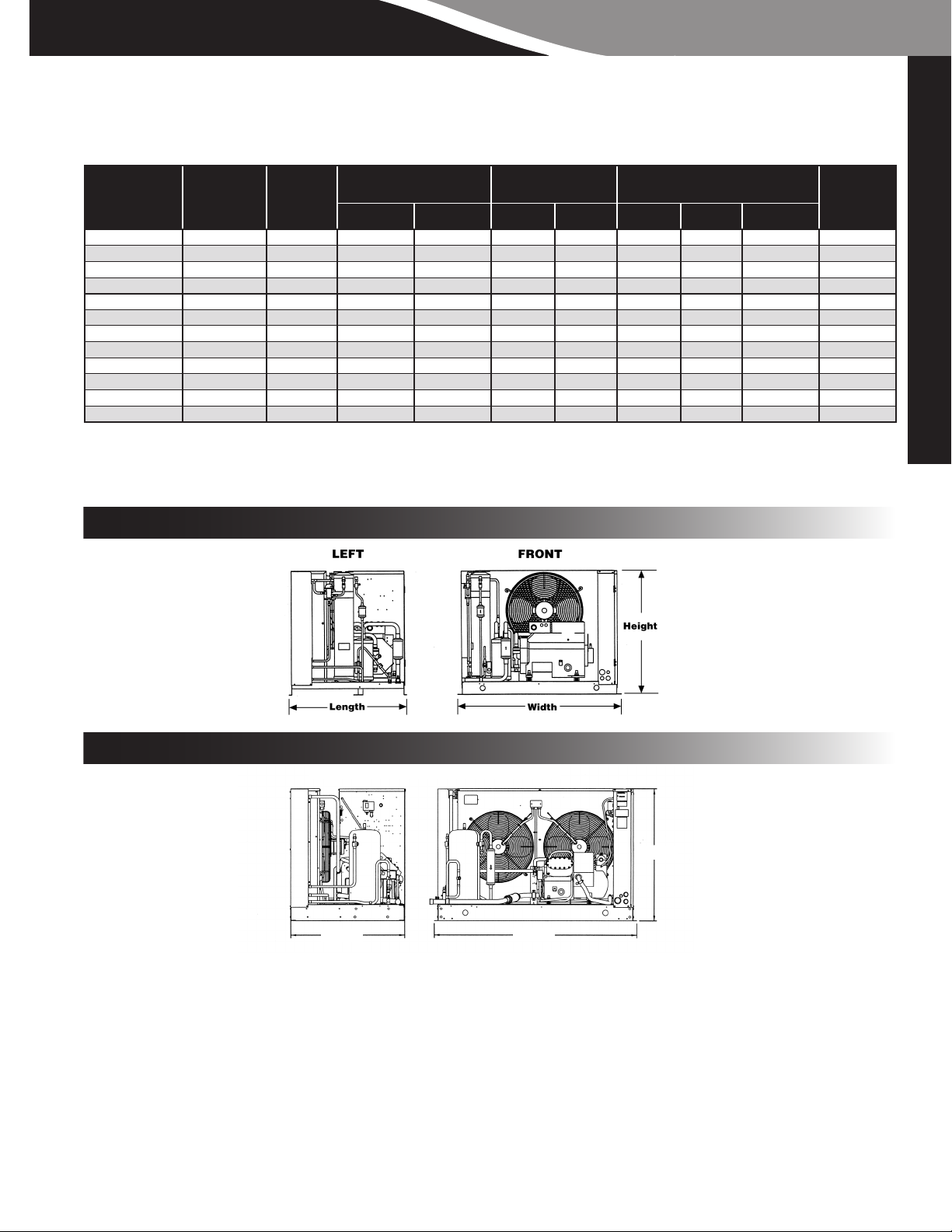

Specications and Dimensional Data
Unit Model
Number
Compressor
Model HP
Refrigerant Line
Connections (OD)
Receiver Capacity
@ 90% full (lbs.) Dimensions (inches) Approx.
Net Wt.
(lbs.)
Liquid Suction STD OPT Length Width Height
CB*0551M6 4C0969SH 5.5 5/8 1 3/8 67 78 36-3/4 63-3/4 39-1/4 823
CB*0751M6 4C1145SH 7.5 5/8 1 3/8 67 78 36-3/4 63-3/4 39-1/4 862
CB*0901M6 4C1385SH 9.0 7/8 1 5/8 67 87 41-3/4 75-1/8 48-3/4 993
CB*1001M6 4C1480PH 10.0 7/8 1 5/8 67 87 41-3/4 75-1/8 48-3/4 1,101
CB*0401L6 4C0969SL 4.0 1/2 1 1/8 28 52 36-3/4 51-3/4 39-1/4 595
CB*0551L6 4C1145SL 5.5 1/2 1 1/8 28 52 36-3/4 51-3/4 39-1/4 645
CB*0601L6 4C1385SL 6.0 5/8 1 3/8 67 78 36-3/4 63-3/4 39-1/4 775
CB*0611L6 4C1480PL 6.5 5/8 1 3/8 67 78 36-3/4 63-3/4 39-1/4 865
CB*0751L6 4C1761PL 7.5 5/8 1 3/8 67 78 36-3/4 63-3/4 39-1/4 935
CB*1001L6 4C2067PL 10.0 5/8 1 3/8 67 78 36-3/4 63-3/4 39-1/4 1,000
CB*1201L6 4C2397PL 12.0 7/8 1 5/8 67 87 41-3/4 75-1/8 48-3/4 1,082
CB*1301L6 4B2707PL 13.0 7/8 1 5/8 67 87 41-3/4 75-1/8 48-3/4 1,173
One Fan Condenser
LEFT SIDE FRONT
Length Width
Height
Two Fan Condenser
*= T for Outdoors, N for Indoors, S for Beacon II™

12
Single Vertical Air Discharge Condensing Unit
Standard and Optional Features
• The Floating Tube™ coil design. Refrigerant-carrying copper
tubes do not contact any metal support sheets; instead,
the coil is constructed with expanded anchor tubes that
support the coil construction and do not carry refrigerant.
The coil design eliminates one of the major causes of leaks in
refrigeration systems
• Limited ve-year warranty against condenser tube sheet and
center support leaks
• Designed for use with R-404A, R-507
• Prebent copper tubes minimize welded joints on
internal piping
• All sweat type connections, no are joints to leak
• Fixed high pressure switch eliminates capillary tubes
• Oil safety control
• Bitzer compressors with POE oil
• Spring mounted compressor with suction and discharge
vibration eliminators
• Crankcase heater
• Thermally protected, permanently lubricated ball bearing
condenser fan motors
• Separate subcooling circuit in condenser for added capacity
and vapor-free liquid
• Receivers are sized for sucient pumpdown capacity with
inlet and outlet service valves
• Pressure relief valve on receiver
• Sealed liquid line lter drier and sight glass
• Electrical controls, including compressor contactor and
optional defrost control, are located in easily accessible
control box with a hinged cover
• Service Mate™ module to assist troubleshooting
• Pumpdown Switch
• Cabinet is constructed from prepainted galvanized steel
• Convenient access panels for easy servicing to internal
components
• Adjustable head pressure control valves
Factory-Installed Options
• Compressor unloading
• Replaceable core liquid lter drier
• Liquid line solenoid valve
• Suction lter
• Replaceable core suction lter
• Suction accumulator
• Oil separator with discharge line check valve
• Air defrost timer
• Electric defrost kits, including timer, evaporator fan contactor
with fusing, defrost heater contactor(s), lockout relay and
terminal strip
• Fusing for defrost kits
• Evaporator holdout relays for systems with multiple electric
defrost evaporators
• Low ambient kit with heated and insulated receiver with
time delay
• Fused disconnect switch
• Non-fused disconnect switch
• Phase-loss protection
• Manual-reset high pressure switch
• Anti-short cycle timer
• Compressor circuit breakers
• Condenser fan cycling (standard on CDVS)
• Three-way heat reclaim valve (n/a on CDVS)
• Coated condenser coils for protection against corrosion in
harsh environments
• Beacon II™ compatible
Vertical Air Discharge Condensing Units 13 to 50 HP
Single Compressor
Nomenclature
C D V 000B L6 C
Brand Airow Horsepower Temp. Range Refrigerant Voltage
C =
Climate
Control
D - V = Vertical
VS = Vertical Beacon II™
130B - 13
150B - 15
200B - 20
220B - 22
250B - 25
300B - 30
330B - 33
350B - 35
400B - 40
500B -50
M = Med. Temp.
L = Low Temp.
6 = R-404A,
R-507
C = 208-230/3/60
D = 460/3/60
E = 575/3/60

13
Single Vertical Air Discharge Condensing Unit
Medium Temperature – R-404A/R-507
Performance Data
Unit Model
Number
Compressor
Model
Suction Temp.
°F
90°F
Amb.
95°F
Amb.
100°F
Amb.
110°F
Amb.
CDV*150BM6 4C2067PH
40
30
25
20
15
5
197120
165780
150650
136230
122680
98790
188290
157400
143110
129380
116550
93540
178750
150410
132640
123010
110440
88070
162020
134650
121880
109570
98170
77590
CDV*200BM6 4C2397PH
40
30
25
20
15
5
230460
192070
174410
157400
141810
113840
219760
183360
166320
150000
134810
107790
209960
175590
158250
142470
127880
101800
191380
157870
142410
127770
113890
89390
CDV*220BM6 4B2707PH
40
30
25
20
15
5
254200
212600
193960
175330
157850
127090
244040
204700
185270
167820
150960
121320
232880
195360
177330
160390
144070
115590
213790
177890
161290
145490
130340
103770
CDV*250BM6 4B3139PH
40
30
25
20
15
5
291480
245260
222450
201510
181830
146820
279820
234460
213660
193150
173860
140070
268270
225090
203930
184500
165980
133380
243980
204400
185400
167350
150090
119580
CDV*300BM6 4B3604PH
40
30
25
20
15
5
339410
284940
259200
235080
211960
171290
324930
273150
248290
225050
202640
163320
311370
261580
237590
214940
193290
155450
285650
238360
215910
194800
174680
139050
CDV*330BM6 6B4060PH
40
30
25
20
15
5
385050
321570
292920
263780
237640
190700
368290
308190
279790
252590
227190
181990
352830
296110
267620
241230
216720
173230
323590
268900
243190
218990
195850
155250
CDV*350BM6 6B4709PH
40
30
25
20
15
5
438780
369160
335750
303260
273630
220740
421120
353880
321530
290650
261560
210580
401770
338590
306610
277520
249500
200500
368420
307100
278580
251470
225500
179780
CDV*400BM6 6B5406PH
40
30
25
20
15
5
505840
425630
388520
352010
317530
256880
483740
408880
371110
336760
303520
245160
463250
391180
354990
321570
289520
233350
424260
355120
322990
291390
261700
209240
CDV*500BM6 6B6462PH
40
30
25
20
15
5
592370
501120
457060
414850
375030
304620
567970
479900
437280
396510
357970
290190
543770
485690
417510
378160
341040
275780
494050
415900
378430
341770
307300
246360
CDV* = CDVS is Beacon II™
Notes: For 50 cycle capacity, multiply values by .86

14
Single Vertical Air Discharge Condensing Unit
Low Temperature – R-404A/R-507
Unit Model
Number
Compressor
Model
Suction Temp.
°F
90°F
Amb.
95°F
Amb.
100°F
Amb.
110°F
Amb.
CDV*130BL6 4B2707PL
0 105960 100880 95790 85810
-10 81650 77300 72980 64920
-15 70890 66880 62900 55370
-20 61310 57620 53960 46770
-30 46800 43630 40420 33650
-40 39880 37260 34420 29100
CDV*150BL6 4B3139PL
0 123250 117250 111270 99750
-10 95940 90740 85500 75940
-15 83810 78930 74120 64930
-20 73030 68530 63970 55110
-30 56580 52580 48520 40050
-40 48750 45290 41760 34500
CDV*200BL6 4B3604PL
0 141040 133910 126850 112960
-10 110120 104050 97980 86810
-15 96260 90640 85090 74470
-20 83860 78710 73500 63370
-30 64670 60140 55580 46070
-40 55050 51170 47240 39070
CDV*220BL6 6B4060PL
0 156330 148990 141590 127330
-10 120650 114230 107830 96230
-15 104810 98870 92970 81890
-20 90770 85340 79790 69200
-30 69550 64720 59860 49790
-40 59470 55420 51350 43220
CDV*250BL6 6B4709PL
0 184510 175840 166300 148750
-10 142790 135120 127430 113350
-15 124340 117270 110260 96980
-20 107930 101510 94950 82350
-30 83040 77430 71770 59880
-40 71140 66410 61560 51750
CDV*300BL6 6B5406PL
0 204160 194480 190060 165790
-10 158700 150250 141860 126570
-15 138390 130550 122800 108090
-20 120340 113100 105750 91680
-30 92900 86400 79830 66380
-40 80050 74380 68650 56190
CDV*400BL6 6B6462PL
0 245130 232960 220670 196830
-10 189440 178850 168260 148730
-15 164710 154820 144950 126420
-20 142690 133540 124260 106400
-30 109060 100910 92610 74580
-40 93380 86320 79130 63910
Performance Data
CDV* = CDVS is Beacon II™
Notes: For 50 cycle capacity, multiply values by .86

15
Single Vertical Air Discharge Condensing Unit
Medium & Low Temperature – R-404A/R-507
CDV* = CDVS is Beacon II™
† MCA = Minimum Circuit Ampacity
† † MOP = Maximum Overcurrent Protection
‡ Condensing unit data plate ratings will be based on actual system match.
Beacon II™ and Air Defrost Units do not carry any of the evaporator fan or heater loads. Power is
brought directly to the evaporators and does not go through the condensing unit.
An evaporator heater hold out relay (option) is recommended when two or more evaporators
are connected to a single (CDV) condensing unit to allow termination on coils that have already
defrosted to prevent unnecessary steaming. This option is not needed on Beacon II™ (CDVS)
systems wired for a Master / Slave operation. Power is brought to each Beacon evaporator. Each coil
terminates its own defrost. Refrigeration will not start until all coils have terminated defrost.
Electrical Data
Unit Model
Number
Compressor
Model
Compressor Condenser Fan
Motors
Beacon II™ or
Air Defrost Remote Loads ‡
RLA LRA Qty. FLA MCA†MOP††
Electric Defrost
Evap.
Fan
Amps
Defrost
Heaters
Amps
System
MCA†
System
MOP††
208-230 Volts
CDV*150BM6 4C2067PH 48.7 294 2 9.6 70.5 110
CONTACT FACTORY FOR SYSTEM
ELECTRICAL RATINGS
CDV*200BM6 4C2397PH 57.7 352 2 14.0 86.1 125
CDV*220BM6 4B2707PH 61.5 352 2 14.0 90.9 150
CDV*250BM6 4B3139PH 75.6 436 2 14.0 108.5 175
CDV*300BM6 4B3604PH 89.7 490 3 21.0 133.1 200
CDV*330BM6 6B4060PH 100.0 550 3 21.0 146.0 225
CDV*350BM6 6B4709PH 105.1 550 3 21.0 152.4 250
CDV*400BM6 6B5406PH 141.0 700 4 28.0 204.3 325
CDV*500BM6 6B6462PH 143.6 950 4 28.0 207.5 350
CDV*130BL6 4B2707PL 43.6 294 2 9.6 64.1 100
CDV*150BL6 4B3139PL 46.2 294 2 9.6 67.4 110
CDV*200BL6 4B3604PL 57.7 352 2 9.6 81.7 125
CDV*220BL6 6B4060PL 65.4 436 2 14.0 95.8 150
CDV*250BL6 6B4709PL 69.2 436 2 14.0 100.5 150
CDV*300BL6 6B5406PL 84.6 490 2 14.0 119.8 200
CDV*400BL6 6B6462PL 97.4 700 3 21.0 142.8 225
460 Volts
CDV*150BM6 4C2067PH 24.4 147 2 4.8 35.3 60
CONTACT FACTORY FOR SYSTEM
ELECTRICAL RATINGS
CDV*200BM6 4C2397PH 28.8 176 2 7.0 43.0 70
CDV*220BM6 4B2707PH 30.8 176 2 7.0 45.5 70
CDV*250BM6 4B3139PH 37.8 218 2 7.0 54.3 90
CDV*300BM6 4B3604PH 44.9 245 3 10.5 66.6 110
CDV*330BM6 6B4060PH 50.0 275 3 10.5 73.0 110
CDV*350BM6 6B4709PH 52.6 275 3 10.5 76.3 125
CDV*400BM6 6B5406PH 70.5 350 4 14.0 102.1 150
CDV*500BM6 6B6462PH 71.8 425 4 14.0 103.8 175
CDV*130BL6 4B2707PL 21.8 147 2 4.8 32.1 50
CDV*150BL6 4B3139PL 23.1 147 2 4.8 33.7 50
CDV*200BL6 4B3604PL 28.8 176 2 4.8 40.8 70
CDV*220BL6 6B4060PL 32.7 218 2 7.0 47.9 80
CDV*250BL6 6B4709PL 34.6 218 2 7.0 50.3 80
CDV*300BL6 6B5406PL 42.3 245 2 7.0 59.9 100
CDV*400BL6 6B6462PL 48.7 350 3 10.5 71.4 110
575 Volts
CDV*150BM6 4C2067PH 19.6 117 2 4.6 29.1 40
CONTACT FACTORY FOR SYSTEM
ELECTRICAL RATINGS
CDV*200BM6 4C2397PH 23.6 140 2 5.6 35.1 50
CDV*220BM6 4B2707PH 24.4 140 2 5.6 36.1 60
CDV*250BM6 4B3139PH 30.1 165 2 5.6 43.2 70
CDV*300BM6 4B3604PH 35.9 196 3 8.4 53.3 80
CDV*330BM6 6B4060PH 39.7 220 3 8.4 58.0 90
CDV*350BM6 6B4709PH 41.7 220 3 8.4 60.5 100
CDV*400BM6 6B5406PH 56.4 280 4 11.2 81.7 125
CDV*500BM6 6B6462PH 57.1 340 4 11.2 82.6 125
CDV*130BL6 4B2707PL 17.3 117 2 4.6 26.2 40
CDV*150BL6 4B3139PL 18.6 117 2 4.6 27.9 45
CDV*200BL6 4B3604PL 23.1 140 2 4.6 33.5 50
CDV*220BL6 6B4060PL 26.9 174 2 5.6 38.5 60
CDV*250BL6 6B4709PL 27.6 174 2 5.6 40.1 60
CDV*300BL6 6B5406PL 33.3 196 2 5.6 47.2 80
CDV*400BL6 6B6462PL 39.1 280 3 8.4 57.3 90

16

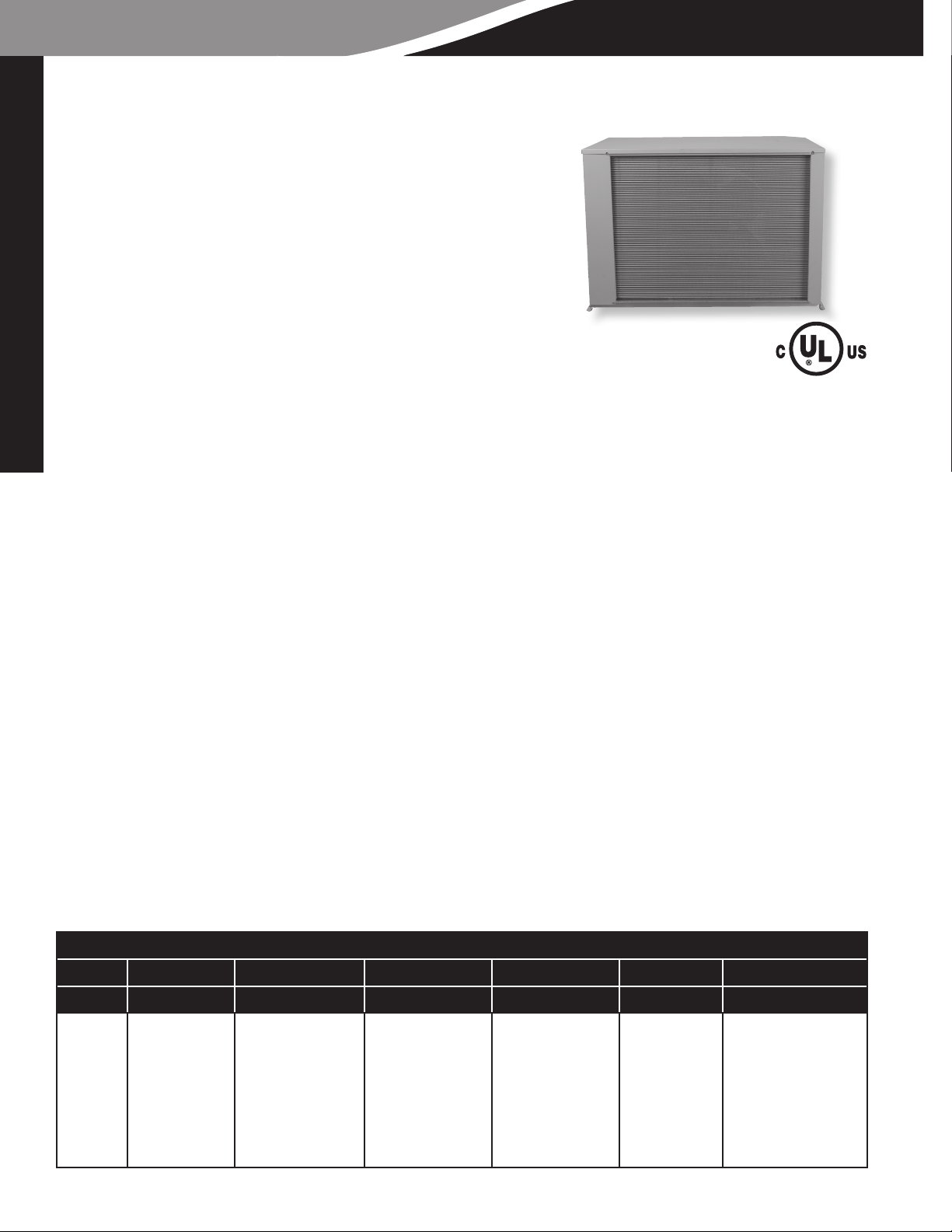

Single Vertical Air Discharge Condensing Unit
End View
Side View
Medium & Low Temperature – R-404A/R-507
Dimensions (Inches)
Specications and Dimensional Data
CDV*= CDVS is Beacon II™
Unit Model
Number
Compressor
Model HP
Refrigerant Line
Connections (OD)
CDV & Beacon II
Receiver Capacity @
90% full (lbs.s)
Dimensions
(inches) Approx.
Net Wt.
(lbs.)
Liquid Suction LBS KG Length (A)
CDV*150BM6 4C2067PH 15 7/8 1-5/8 123 56 144 1,400
CDV*200BM6 4C2397PH 20 7/8 1-5/8 123 56 171 1,625
CDV*220BM6 4B2707PH 22 1-1/8 2-1/8 123 56 171 1,690
CDV*250BM6 4B3139PH 25 1-1/8 2-1/8 123 56 171 1,935
CDV*300BM6 4B3604PH 30 1-1/8 2-1/8 188 85 226 1,615
CDV*330BM6 6B4060PH 33 1-1/8 2-1/8 188 85 226 1,785
CDV*350BM6 6B4709PH 35 1-1/8 2-1/8 188 85 226 1,885
CDV*400BM6 6B5406PH 40 1-1/8 2-1/8 188 85 281 2,440
CDV*500BM6 6B6462PH 50 1-1/8 2-1/8 188 85 281 2,835
CDV*130BL6 4B2707PL 13 7/8 1-5/8 81 37 144 1,590
CDV*150BL6 4B3139PL 15 7/8 1-5/8 81 37 144 1,800
CDV*200BL6 4B3604PL 20 7/8 2-1/8 81 37 144 1,870
CDV*220BL6 6B4060PL 22 7/8 2-1/8 123 56 171 2,075
CDV*250BL6 6B4709PL 25 1-1/8 2-1/8 123 56 171 2,170
CDV*300BL6 6B5406PL 30 1-1/8 2-1/8 123 56 171 2,180
CDV*400BL6 6B6462PL 40 1-1/8 2-1/8 188 85 226 1,920

17

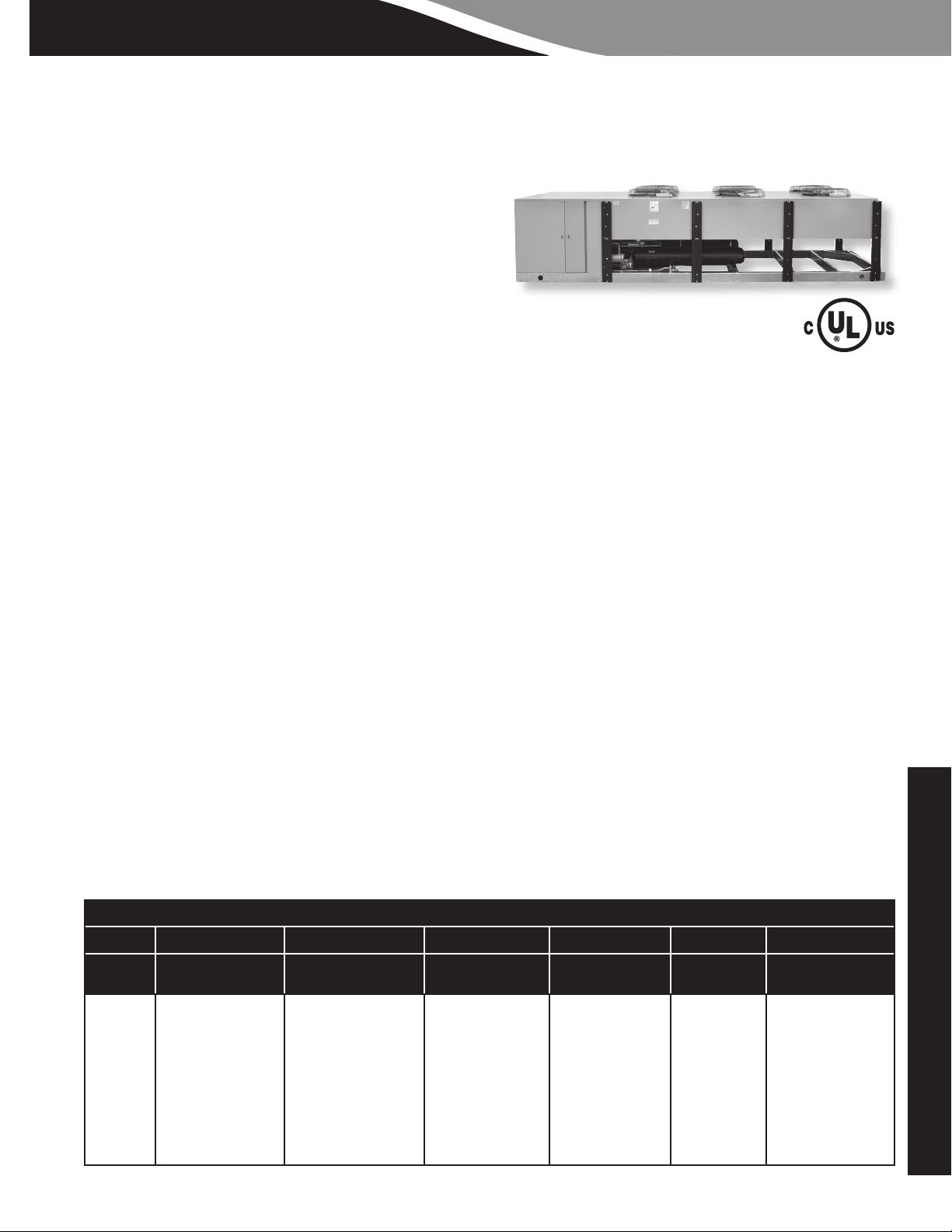

Dual Vertical Air Discharge Condensing Unit
Vertical Air Discharge Condensing Units 26 to 100 HP
Dual Compressor
Additional Standard Features
for Parallel Piped Units
1. Replaceable core liquid line lter drier
2. Replaceable core suction lter
3. Suction accumulator
4. Oil management system
5. Contact Factory for Beacon IITM Application
Standard and Optional Features
• Designed for use with R-404A/507
• Bitzer compressors with POE oil
• Thermally protected permanently lubricated ball
bearing condenser fan motors
• Electrical controls, including compressor contactor
and optional defrost control, are located in easily
accessible control box with a hinged cover
• Receivers are sized for sucient pumpdown
capacity with inlet and outlet service valves
• Cabinet is constructed from prepainted
galvanized steel
• Convenient access panels for easy servicing to
internal components
• Suction and discharge vibration eliminators
• Separate subcooling circuit in condensers for added
capacity and vapor-free liquid
• Sealed liquid line lter drier and sight glass
• Service Mate™ module to assist troubleshooting
• Floating Tube™ coil design
• Prebent copper tubes minimize welded joints on
internal piping
• Adjustable head pressure control valves
Factory-Installed Options
• Replaceable core liquid line lter driers with
sight glasses
• Liquid line solenoid valves
• Suction lters
• Replaceable core suction lters
• Suction accumulators
• Oil separators with discharge line check valves
• Air defrost timers
• Electric defrost kits, including timer, evaporator fan
contactor with fusing, defrost heater contactor(s),
lockout relay and terminal strip
• Low ambient kits with heated and insulated receiver with
time delay
• Compressor unloading
• External discharge line muers
• Phase-loss protection
• Manual-reset high pressure switches
• Anti-short cycling timers
• Compressor circuit breakers
• Condenser fan cycling (standard on CDDS)
• Three way heat reclaim valve with mounted check valves
• Coated condenser coils for protection against corrosion
in harsh environments
• Beacon II™ compatible
Nomenclature
C D D 000B L6 C
Brand Airow Horsepower Temp. Range Refrigerant Voltage
C =
Climate
Control
D - D = Vertical
DS = Vertical
Beacon II™
260B - 26
300B - 30
400B - 40
440B - 44
500B - 50
600B - 60
660B - 66
700B - 70
800B - 80
110B -100
M = Med. Temp.
L = Low Temp.
6 = R-404A,
R-507
C = 208-230/3/60
D = 460/3/60
E = 575/3/60

18
Dual Vertical Air Discharge Condensing Unit
Performance Data
Unit Model
Number
Compressor
Model
(2 Each)
Suction Temp.
°F
90°F
Amb.
95°F
Amb.
100°F
Amb.
110°F
Amb.
CDD*300BM6 4C2067PH
40 394250 376590 357490 324040
30 331570 314800 300810 269290
25 301290 286220 265290 243760
20 272450 258760 246010 219040
15 245360 233090 220890 196340
5 197580 187090 176140 155170
CDD*400BM6 4C2397PH
40 460920 439520 419910 382760
30 384140 366730 351180 315740
25 348820 332640 316500 284830
20 314800 299990 284950 255530
15 283620 269620 255760 227790
5 227670 215570 203590 178780
CDD*440BM6 4B2707PH
40 508400 488080 465770 427590
30 425210 409390 390720 355770
25 387920 370550 354660 322580
20 350670 335640 320780 290970
15 315710 301920 288130 260680
5 254190 242630 231170 207540
CDD*500BM6 4B3139PH
40 582960 559640 536530 487960
30 490520 468920 450170 408790
25 444900 427310 407850 370800
20 403020 386290 369000 334690
15 363660 347710 331970 300180
5 293650 280140 266760 239150
CDD*600BM6 4B3604PH
40 678820 649850 622730 571310
30 569890 546290 523150 476730
25 518410 496570 475180 431820
20 470170 450090 429890 389600
15 423920 405270 386590 349370
5 342580 326630 310890 278110
CDD*660BM6 6B4060PH
40 770100 736570 705660 647170
30 643130 616390 592210 537790
25 585850 559580 535230 486380
20 527550 505170 482450 437980
15 475270 454380 433450 391700
5 381390 363990 346540 310500
CDD*700BM6 6B4709PH
40 877570 842230 803550 736830
30 738320 707760 677170 614200
25 671500 643050 613220 557150
20 606520 581300 555030 502940
15 547270 523130 498990 451000
5 441480 421160 400990 359560
CDD*800BM6 6B5406PH
40 1011680 967490 926490 848530
30 851260 817760 782360 710240
25 777050 742220 709980 645990
20 704020 673510 643140 582780
15 635050 607050 579050 523390
5 513760 490320 466700 418470
CDD*110BM6 6B6462PH
40 1184730 1135930 1087530 988100
30 1002230 959810 917380 831800
25 914120 874560 835020 756870
20 829690 793020 756310 683550
15 750050 715930 682090 614590
5 609230 580370 551560 492720
Medium Temperature – R-404A/R-507
CDD* = CDDS is Beacon II™, CDD*PP is Parallel Piped

19
Dual Vertical Air Discharge Condensing Unit
Unit Model
Number
Compressor
Model
(2 Each)
Suction Temp.
°F
90°F
Amb.
95°F
Amb.
100°F
Amb.
110°F
Amb.
CDD*260BL6 4B2707PL
0 211930 201760 191580 171630
-10 163290 154600 145970 129850
-15 141770 133760 125810 110740
-20 122620 115230 107910 93530
-30 93600 87260 80840 67290
-40 79760 74510 68840 58200
CDD*300BL6 4B3139PL
0 246490 234490 222550 199500
-10 191890 181480 170990 151890
-15 167610 157870 148240 129860
-20 146060 137070 129950 110220
-30 113170 105150 97030 80094
-40 97500 90590 83510 68990
CDD*400BL6 4B3604PL
0 282080 267830 253710 225910
-10 220240 208090 195590 173620
-15 192520 181280 170180 148940
-20 167720 157420 146990 126740
-30 129340 120290 111160 92150
-40 110090 102350 94480 78130
CDD*440BL6 6B4060PL
0 312650 297970 283180 254650
-10 241300 228460 215670 192460
-15 209620 197730 185940 163780
-20 181550 170680 159580 138390
-30 139100 129450 119730 99570
-40 118940 110850 102700 86450
CDD*500BL6 6B4709PL
0 369030 350950 332610 297490
-10 285580 270240 254860 226690
-15 248670 234530 220520 193970
-20 215850 203020 189890 164690
-30 166080 154850 143530 119770
-40 142280 132800 123120 103500
CDD*600BL6 6B5406PL
0 408320 388960 380130 331580
-10 317410 300490 283720 253140
-15 276770 261100 245600 216170
-20 240670 226200 211500 183350
-30 185790 172800 159650 132760
-40 160100 148770 137310 112380
CDD*800BL6 6B6462PL
0 490250 465930 441340 393670
-10 378890 357700 336520 297450
-15 329420 309630 289900 252840
-20 285380 267080 248530 212800
-30 218130 201830 185220 149700
-40 186770 172630 158260 127820
Low Temperature – R-404A/R-507
Performance Data
CDD* = CDDS is Beacon II™, CDD*PP is Parallel Piped

20
Dual Vertical Air Discharge Condensing Unit
CDD* = CDDS is Beacon II™, CDD*PP is Parallel Piped
† MCA = Minimum Circuit Ampacity
†† MOP = Maximum Overcurrent Protection
‡ Condensing unit data plate ratings will be based on actual system match.
Electrical Data
Medium & Low Temperature – R-404A/507
Unit Model
Number
Compressor
Model
(2 Each)
Compressor Condenser Fan
Motors
Beacon II™ or
Air Defrost Remote Loads ‡
RLA LRA Qty. FLA MCA†MOP††
Electric Defrost
Evap.
Fan
Amps
Defrost
Heaters
Amps
System
MCA†
System
MOP††
208-230 Volts
CDD*300BM6 4C2067PH 48.7 294 4 19.2 128.8 175
CONTACT FACTORY FOR SYSTEM
ELECTRICAL RATINGS
CDD*400BM6 4C2397PH 57.7 352 4 28.0 157.8 200
CDD*440BM6 4B2707PH 61.5 352 4 28.0 166.4 225
CDD*500BM6 4B3139PH 75.6 436 4 28.0 198.1 250
CDD*600BM6 4B3604PH 89.7 490 6 42.0 243.8 325
CDD*660BM6 6B4060PH 100.0 550 6 42.0 267.0 350
CDD*700BM6 6B4709PH 105.1 550 6 42.0 278.5 350
CDD*800BM6 6B5406PH 141.0 700 8 56.0 373.3 500
CDD*110BM6 6B6462PH 143.6 950 8 56.0 379.1 500
CDD*260BL6 4B2707PL 43.6 294 4 19.2 117.3 150
CDD*300BL6 4B3139PL 46.2 294 4 19.2 123.2 150
CDD*400BL6 4B3604PL 57.7 352 4 19.2 149.0 200
CDD*440BL6 6B4060PL 65.4 436 4 28.0 175.2 225
CDD*500BL6 6B4709PL 69.2 436 4 28.0 183.7 250
CDD*600BL6 6B5406PL 84.6 490 4 28.0 218.4 300
CDD*800BL6 6B6462PL 97.4 700 6 42.0 261.2 350
460 Volts
CDD*300BM6 4C2067PH 24.4 147 4 9.6 64.5 80
CONTACT FACTORY FOR SYSTEM
ELECTRICAL RATINGS
CDD*400BM6 4C2397PH 28.8 176 4 14.0 78.8 100
CDD*440BM6 4B2707PH 30.8 176 4 14.0 83.3 110
CDD*500BM6 4B3139PH 37.8 218 4 14.0 99.1 125
CDD*600BM6 4B3604PH 44.9 245 6 21.0 122.0 150
CDD*660BM6 6B4060PH 50.0 275 6 21.0 133.5 175
CDD*700BM6 6B4709PH 52.6 275 6 21.0 139.4 175
CDD*800BM6 6B5406PH 70.5 350 8 28.0 186.6 250
CDD*110BM6 6B6462PH 71.8 425 8 28.0 189.6 250
CDD*260BL6 4B2707PL 21.8 147 4 9.6 58.7 80
CDD*300BL6 4B3139PL 23.1 147 4 9.6 61.6 80
CDD*400BL6 4B3604PL 28.8 176 4 9.6 74.4 100
CDD*440BL6 6B4060PL 32.7 218 4 14.0 87.6 110
CDD*500BL6 6B4709PL 34.6 218 4 14.0 91.9 125
CDD*600BL6 6B5406PL 42.3 245 4 14.0 109.2 150
CDD*800BL6 6B6462PL 48.7 350 6 21.0 130.6 175
575 Volts
CDD*300BM6 4C2067PH 19.6 117 4 9.2 53.3 70
CONTACT FACTORY FOR SYSTEM
ELECTRICAL RATINGS
CDD*400BM6 4C2397PH 23.6 140 4 11.2 64.3 80
CDD*440BM6 4B2707PH 24.4 140 4 11.2 66.1 90
CDD*500BM6 4B3139PH 30.1 165 4 11.2 78.9 100
CDD*600BM6 4B3604PH 35.9 196 6 16.8 97.6 125
CDD*660BM6 6B4060PH 39.7 220 6 16.8 106.1 125
CDD*700BM6 6B4709PH 41.7 220 6 16.8 110.6 150
CDD*800BM6 6B5406PH 56.4 280 8 22.4 149.3 200
CDD*110BM6 6B6462PH 57.1 340 8 22.4 150.9 200
CDD*260BL6 4B2707PL 17.3 117 4 9.2 48.1 60
CDD*300BL6 4B3139PL 18.6 117 4 9.2 51.1 70
CDD*400BL6 4B3604PL 23.1 140 4 9.2 61.2 80
CDD*440BL6 6B4060PL 26.3 174 4 11.2 70.4 90
CDD*500BL6 6B4709PL 27.6 174 4 11.2 73.3 100
CDD*600BL6 6B5406PL 33.3 196 4 11.2 86.1 110
CDD*800BL6 6B6462PL 39.1 280 6 16.8 104.8 125
