1. INTRODUCTION
Thank you for buying a product manufactured by CLIMER TECHNOLOGY. This product, has
been manufactured according to the European Quality Standards, incorporates prime grade
materials and its correct working has been tested before it leaves our facilities.
Through this Installation and User Manual, you will be guide towards the correct and safety
installation of the product. It is necessary to carefully read this manual before making any
handling to avoid problems arising from the misuse of the product.
The company CLIMER TECHNOLOGY reserves the right to modify the information included in
this document at any time without prior notice.
2. GENERAL INDICATIONS
2.1. Safety notes
The incorrect or inappropriate use of this product could lead to hazardous situations, causing
damage or injuries to the user, third parties or even to the product itself or material goods.
-The installer has the responsibility to install the minimum safety devices (hydraulic and
electrical) set out in this Manual. In case of failure, the lack of any device may cause
burns or other injuries.
-The installer has the responsibility to inform the user about the function and placement
of the safety devices installed into the device and the installation.
-The water outlet temperature could reach 62 degrees. Do not touch the pipes while
the system is working to avoid any risk of burns.
2.2. Installer’s qualification
Since the installation of the ECOHEAT TD involves handling coolant as well as carry out
welding work, it is needed the technical staff have the official certification that accredits them
as authorized to handle coolants.
The installer must explain the user the application of the product and the use and
management of the unit, and he should provide the user all the documentation supplied
with the equipment.

INSTALLATION AND USER MANUAL
ECOHEAT TD
2 V1REV5EN0222
2.3. Package contents
The ECOHEAT system comprises the following components:
-Thermodynamic panel
-Anchoring elements
-ECOHEAT TD
-Silent-Blocks
-User Manual
2.4. Indications about transport and unpacking the unit
The unit is supplied packed into a wooden pallet properly secured to prevent damage
during transport.
The material that CLIMER TECHNOLOGY uses to the packing are recyclables, so dispose it
in an appropriate container.
Use a forklift or hand pallet truck to transport the unit to the installation site, always
introducing the forks into the bottom of the pallet being careful not to damage the unit.
In case you identify any damage at the time of the reception of the unit, it is mandatory to
register it in the reception note of the transport company, and then, submit the complaint.
For this reason, it is recommended to make a thorough visual inspection of the goods before
signing the reception note.

INSTALLATION AND USER MANUAL
ECOHEAT TD
3 V1REV5EN0222
3. TECHNICAL INFORMATION

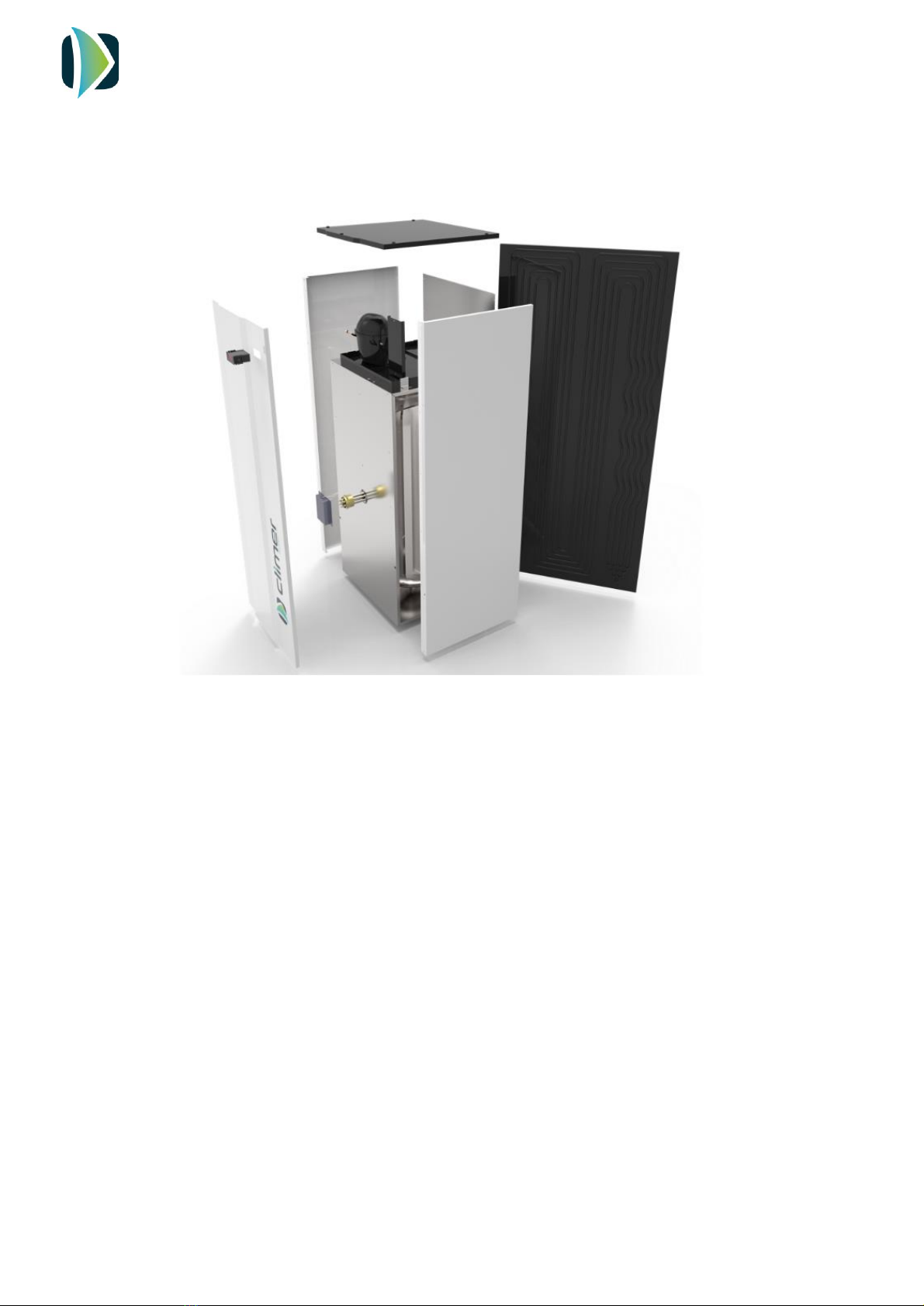

3.1. Operating Principle

INSTALLATION AND USER MANUAL
ECOHEAT TD
4 V1REV5EN0222

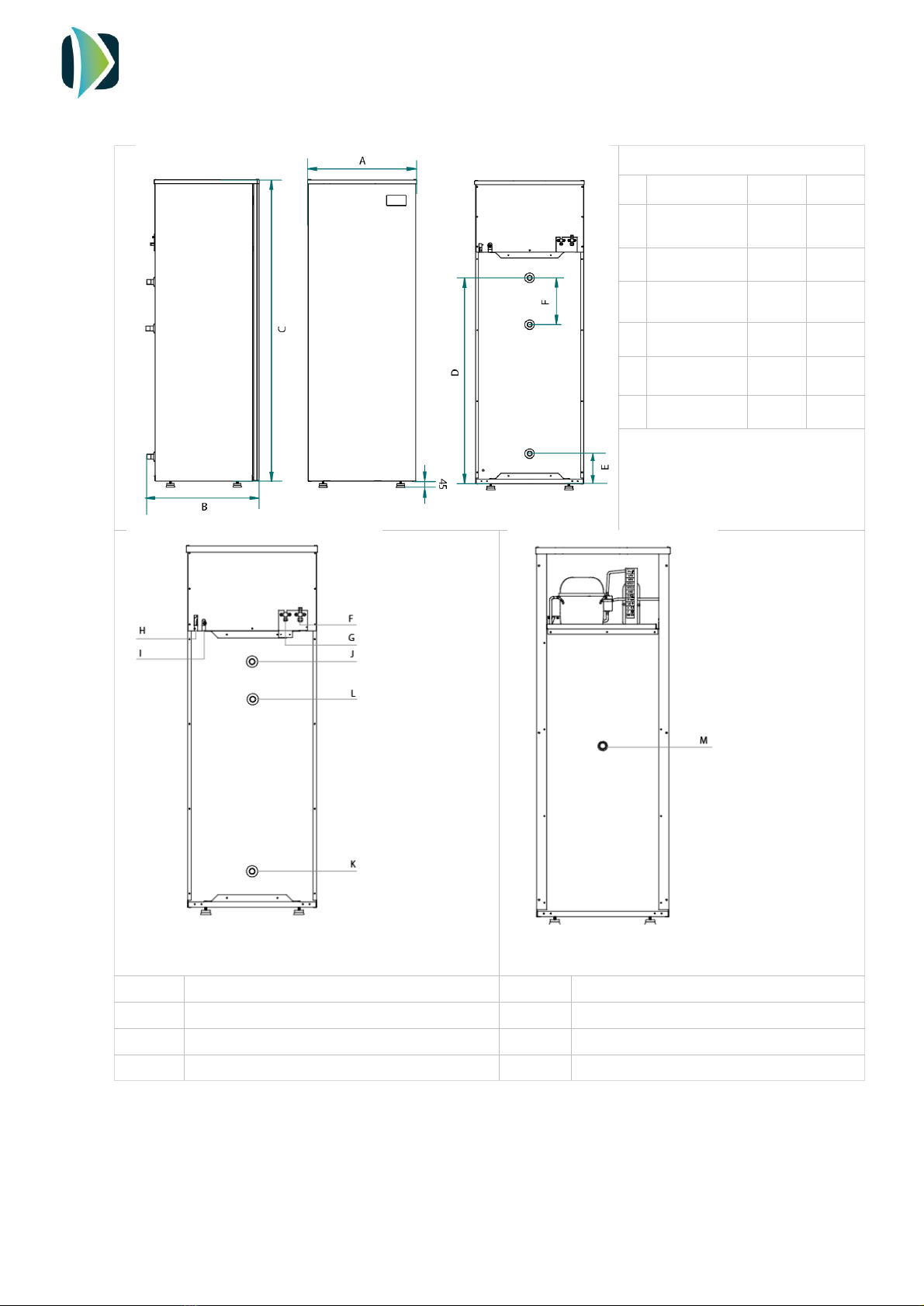

3.2. Dimension drawings
It is possible to remove the side and front casing access easily to any part of the system.

INSTALLATION AND USER MANUAL
ECOHEAT TD
5 V1REV5EN0222
Dimensions, mm
EH160
EH200
EH260
A
585
585
585
B
587
587
587
C
1297
1527
1945
D
727
956
1323
E
217
217
217
F
94
194
194
Back connections
Front connections
F
Refrigerant inlet, 3/8 inch
J
Hot water outlet, ¾ inch
G
Refrigerant outlet (liquid), ¼ inch
K
Cold water inlet, ¾ inch
H
Power supply, 230 V/1 PH/50 Hz
L
Recirculation connection, ¾ inch
I
Condesate drain
M
Electrical heater / Temperature probe

INSTALLATION AND USER MANUAL
ECOHEAT TD
6 V1REV5EN0222
3.3. Technical data

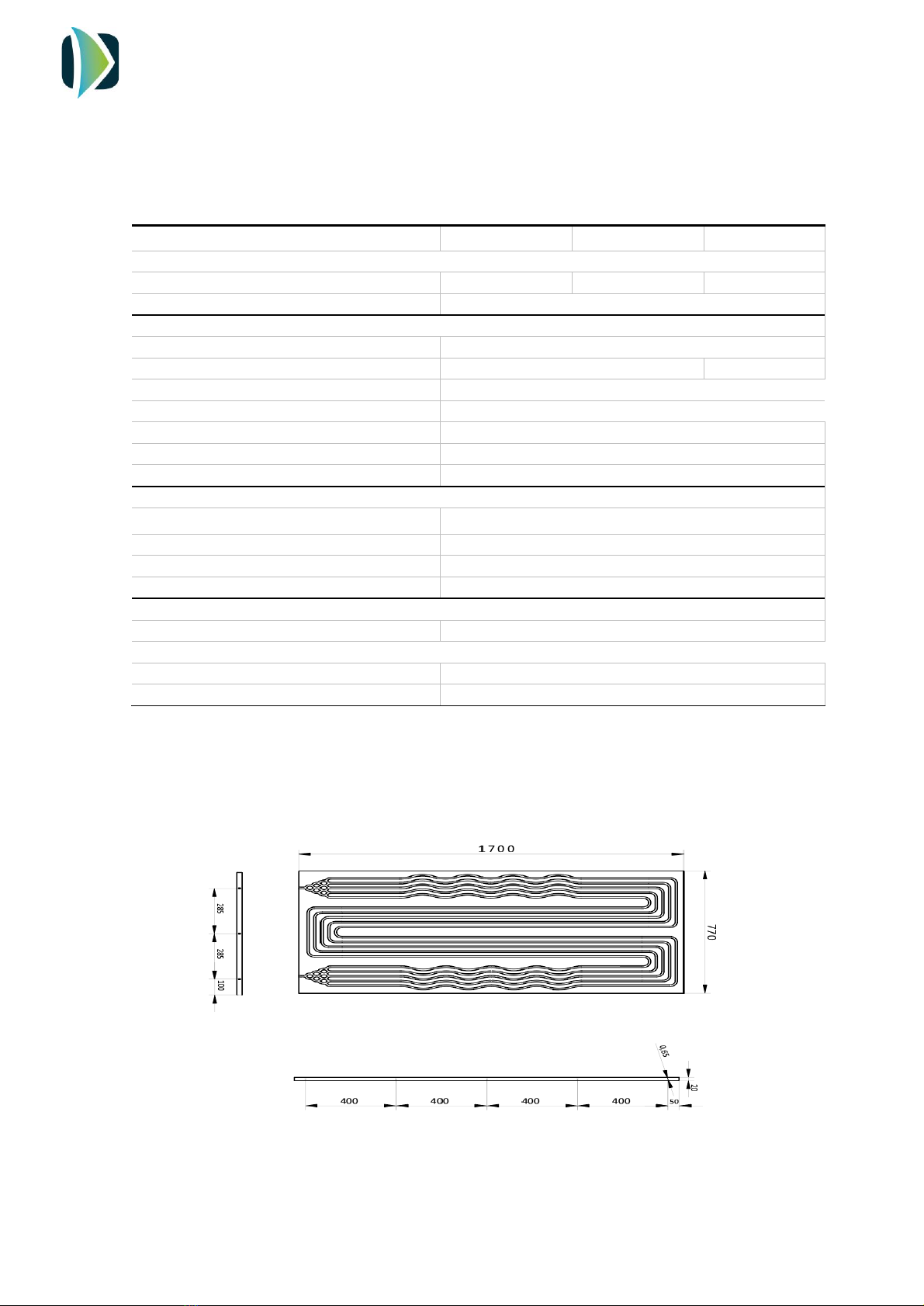

Thermodynamic panel dimensions:
Model
EH160 TD
EH200 TD
EH260 TD
Cylinder
Capacity, L
160
200
260
Maximum operating pressure, bar
6
Heat pump data
Energy Efficiency Class
A
Load profile
L
XL
Heating capacity range *, W
1430 –2560
Input power range *, W
450 –540
Maximum temp. HP, ºC
60
Maximum temp. electric element, ºC
62
Coolant
R134A
Electric data
Power supply, V/ph/Hz
230/1/50
Electric element power, W
1500
Maximum current, A
10,1
Maximum power absorbed, W
2100
Thermodynamic panel
Number of panels
1
Dimensions, mm
1700 x 800
Maximum operating pressure, bar
10
Refrigerant inlet/outlet, inch
1/4 - 3/8

INSTALLATION AND USER MANUAL
ECOHEAT TD
7 V1REV5EN0222
4. INSTALLATION STEPS
Before starting the installation, check the availability of all the necessary components and tools:
-High and low pressure manometers
-Vacuum pump
-Scales
-Nitrogen bottle
-Refrigerant quality copper pipe
-Pipe-cutter
-Tube bender
-Pipe expander
-Welder
-Copper Rods (40 % silver)
-Insulating hose
-Drill
-Screwdriver
-Hydraulic installation components
-Electric installation components
Once it has been checked that it is available all the necessary components and tools, the
installer should follow the next steps:
1. Placing and anchoring panels
2. Joining and welding the refrigerant pipes
3. Placing the ECOHEAT TD
4. Joining and welding liquid and suction line between ECOHEAT TD and panel
5. Nitrogen pressure test (maximum10 bar)
6. Vacuum
7. Filling refrigerant installation
8. Hydraulic installation
9. Electric installation
10. Commissioning
11. Adjustment of refrigerant load

INSTALLATION AND USER MANUAL
ECOHEAT TD
8 V1REV5EN0222
5. THERMODYNAMIC SOLAR PANEL INSTALLATION
5.1. Site selection
The choice of the installation site of the thermodynamic panel is a key factor in the final
performance of the unit. For this reason, we recommend following the indications in order
to achieve the best performance:
-South orientation is indeed the best to take the maximum advantage of solar radiation.
Panel may also have other orientations, but northerly orientation is the worst to receive
solar radiation.
-Inclination: The minimum inclination of the panel is 45 º in order to ensure the correct
evaporation of the coolant. It is recommended to install the panel with an inclination
between 45º and 90 º. The minimum inclination of the panel must be 5º to ensure the
correct evaporation of the fluid.
-Direction: The panel can be installed in a vertical or horizontal position. In the case of
horizontal installation, the refrigerant inlet will be made through the lower part of the
panel.
-Distance to the equipment: The maximum distance allowed from the panels to the
equipment is 15 meters (sum of the distances L1 + L2 + L3 + L4 in the following figure).

INSTALLATION AND USER MANUAL
ECOHEAT TD
9 V1REV5EN0222

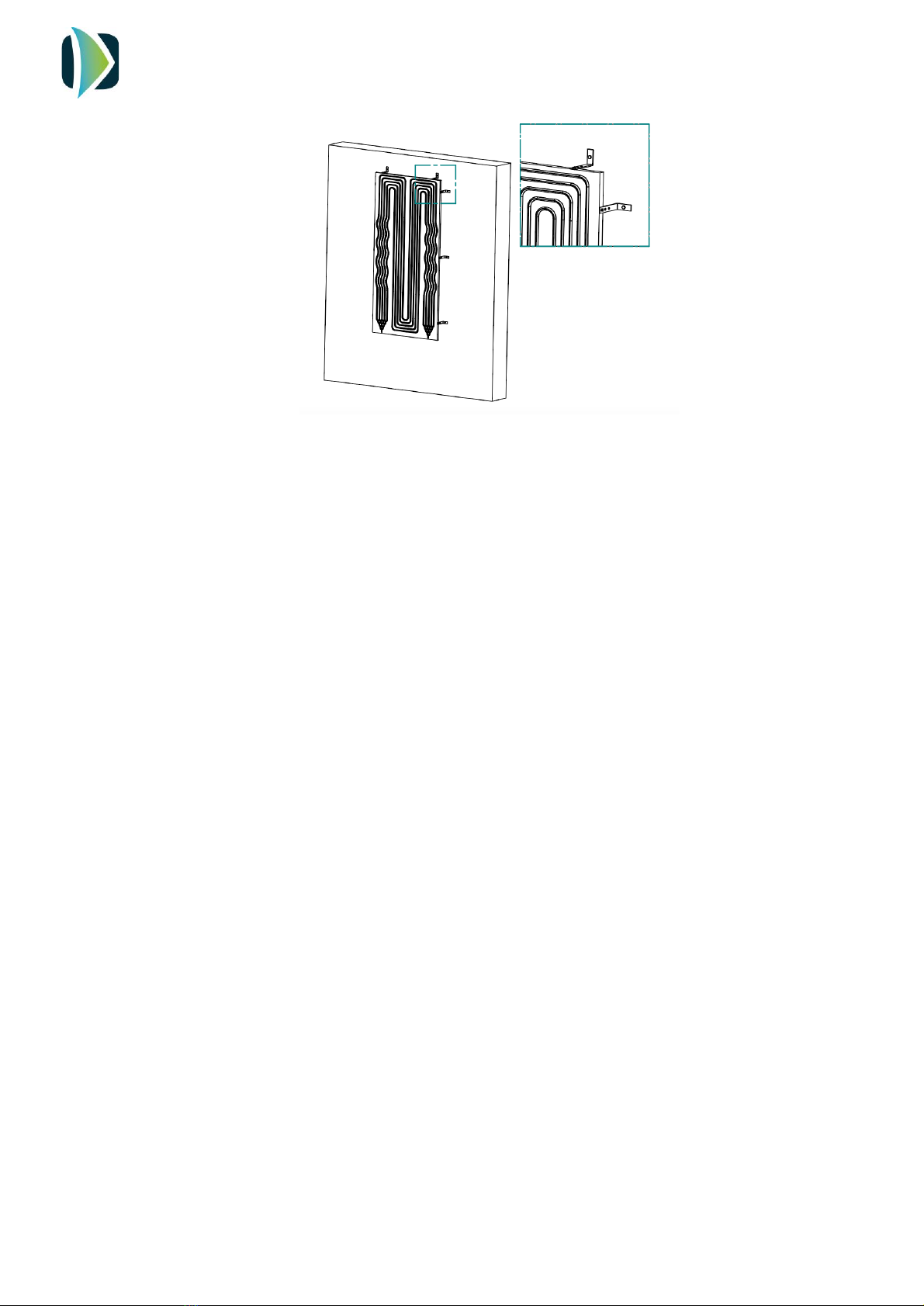

5.2. Anchoring panel
Beside the panel, it is supplied a bag with anchoring elements that contains the following
pieces:
Anchor the panels using the lateral and front holes to the suitable surface.
When the panel is installed in
vertical position, always the inlet
and outlet connection has been
at the bottom. (It is not allowed
to install the reverse)
If the panel is installed at
horizontal position, refrigerant
inlet pipe should be connected
into the bottom connection.
Ref.
Qty.
Panel
1
1
Aluminium support
(L shape)
2
6
Screw M5
3
6
Nut M5
5
6
Washer 5
4
12
Sheet metal screw
6
6
Block M6
7
6

INSTALLATION AND USER MANUAL
ECOHEAT TD
10 V1REV5EN0222
6. PLACING ECOHEAT
The place where the system will be installed should allow an easy access in order to make
maintenance work or inspection.
Air outlet of ECOHEAT is around 5-10 degrees below inlet temperature, so in case that the
exhaust air would not be ducted, the room temperature will be considerably reduced.
Beside these factors, it is important to take into account the following indications regards the
installation site:
-The system has been designed and manufactured for it indoors utilization. Install the
system in a dry, frost-free room at a minimum temperature of 5 ºC.
-Installer must install the supplied Silent blocks to avoid the transmission of vibration.

INSTALLATION AND USER MANUAL
ECOHEAT TD
11 V1REV5EN0222
7. CONNECTION BETWEEN ECOHEAT TD AND PANELS
a. Pipeline installation
First, measure the distance between Ecoheat and Panels and cut the appropriate copper
pipe length. The diameter for each line is:
-Liquid line: 1/4 inch
-Gas line: 3/8 inch

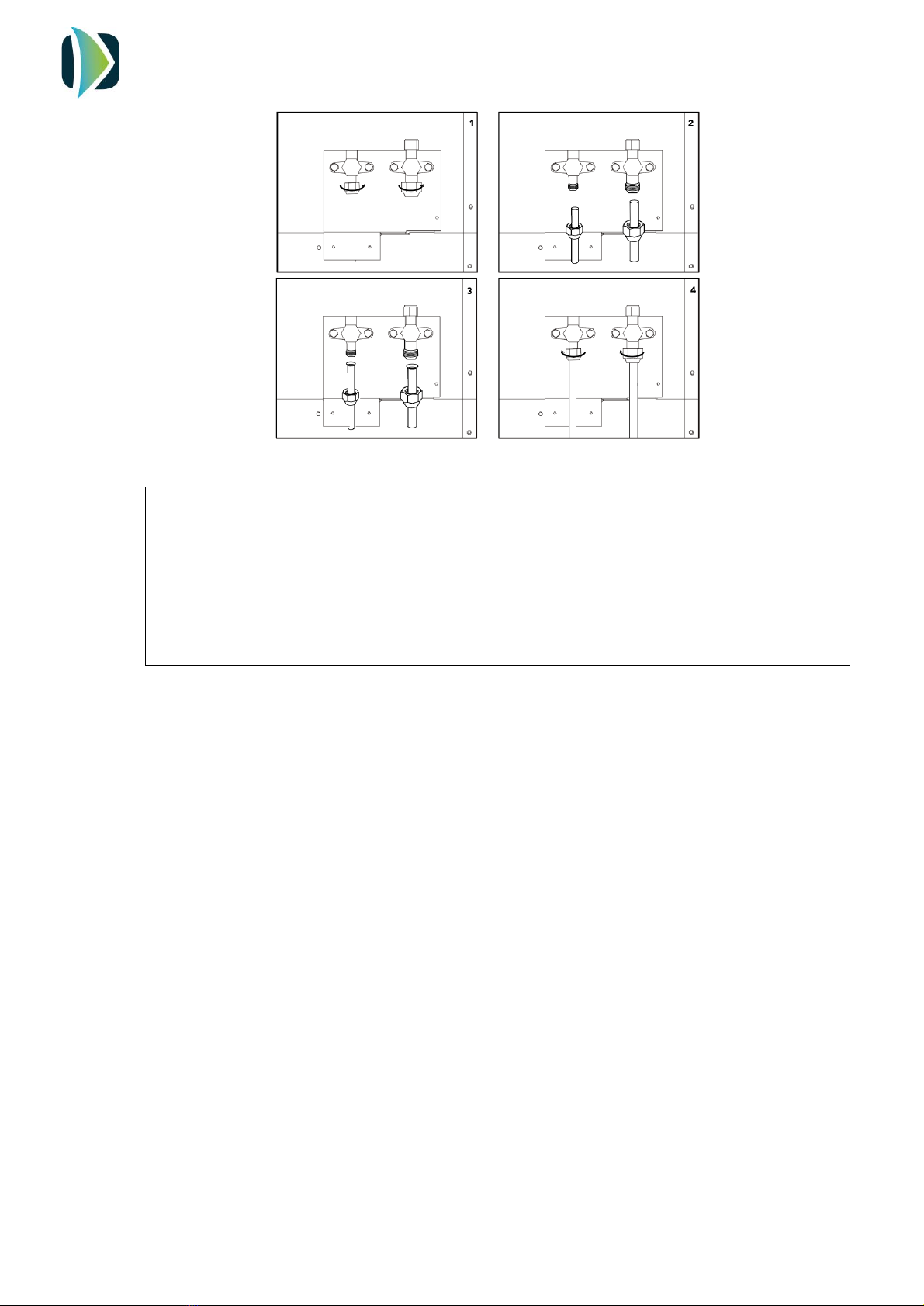

b. Join refrigerant pipes to the Panels and Ecoheat
Panels are supplied with two nuts for the inlet and outlet connection. The inlet to each panel
is 1/4 inch diameter. The installer has to insert the nut into the copper pipe, flare the pipe
and then use the nut to fit it.
Repeat the procedure with the outlet connection using 3/8 inch copper pipe.
Then, join the suction line that comes from the panel to the coolant inlet of ECOHEAT, and
the liquid line to the coolant outlet. The connections are threaded, if welding is needed,
weld by oxyacetylene welding.

INSTALLATION AND USER MANUAL
ECOHEAT TD
12 V1REV5EN0222
IMPORTANT (Only when welding is needed):
It is recommended to weld pipelines by oxyacetylene welding.
Welding is a critical step in the installation and to do it well ensures that the system will run
properly along its useful life.
Only expert staff should make this step by using proper tools and high-quality materials.
c. Nitrogen test and cleaning procedure
In order to check the tightness, introduce nitrogen by using the pressure gauge already
installed into load ports.
CAUTION: Never exceed a nitrogen load greater than 10 bars.
Use leaking detector fluid at every welding and even in panel’s connections to verify the
absence of leaks.
d. Vacuum
Connect the vacuum pipe to the pressure gauge to carry out a vacuum of the whole
installation.
e. Coolant filling
Open the load ports to fill the circuit with the refrigerant loaded into the system.

INSTALLATION AND USER MANUAL
ECOHEAT TD
13 V1REV5EN0222
8. HIDRAULIC CONNECTION
The hydraulic connections are shown in the following scheme:
The installer must install the following components of the hydraulic circuit:
-Cold water inlet (1)
-Ball valves (2)
-Pressure reducing valve (3)
-Non- return valve (4)
-Lined Filter Strainer (Y Type) (5)
-Drain (6)
-Safety valve (7)
-Expansion vessel (8)
-Check valve (9)
-Recirculation pump (10)
-DHW (11)
Once the hydraulic connections are made, vent the circuit to avoid the air inside the installation.

INSTALLATION AND USER MANUAL
ECOHEAT TD
14 V1REV5EN0222
9. ELECTRICAL CONNECTION
The power supply of the system is 230 V/1/50 Hz. The power supply line must be protected
with a 16 A circuit breaker. The electrical scheme is shown in the picture below:
PV: Photovoltaic connection
LPS: Low pressure switch
HPS: High pressure switch
NTC1: Water temperatur probe
NTC2: Ambient temperature probe
D: Display
VS: Solenoid valve
R: Electrical heater
K: Compressor
F: Fan
230 VAC: Power supply

INSTALLATION AND USER MANUAL
ECOHEAT TD
15 V1REV5EN0222
10. COMISSIONING. CONTROLLER.

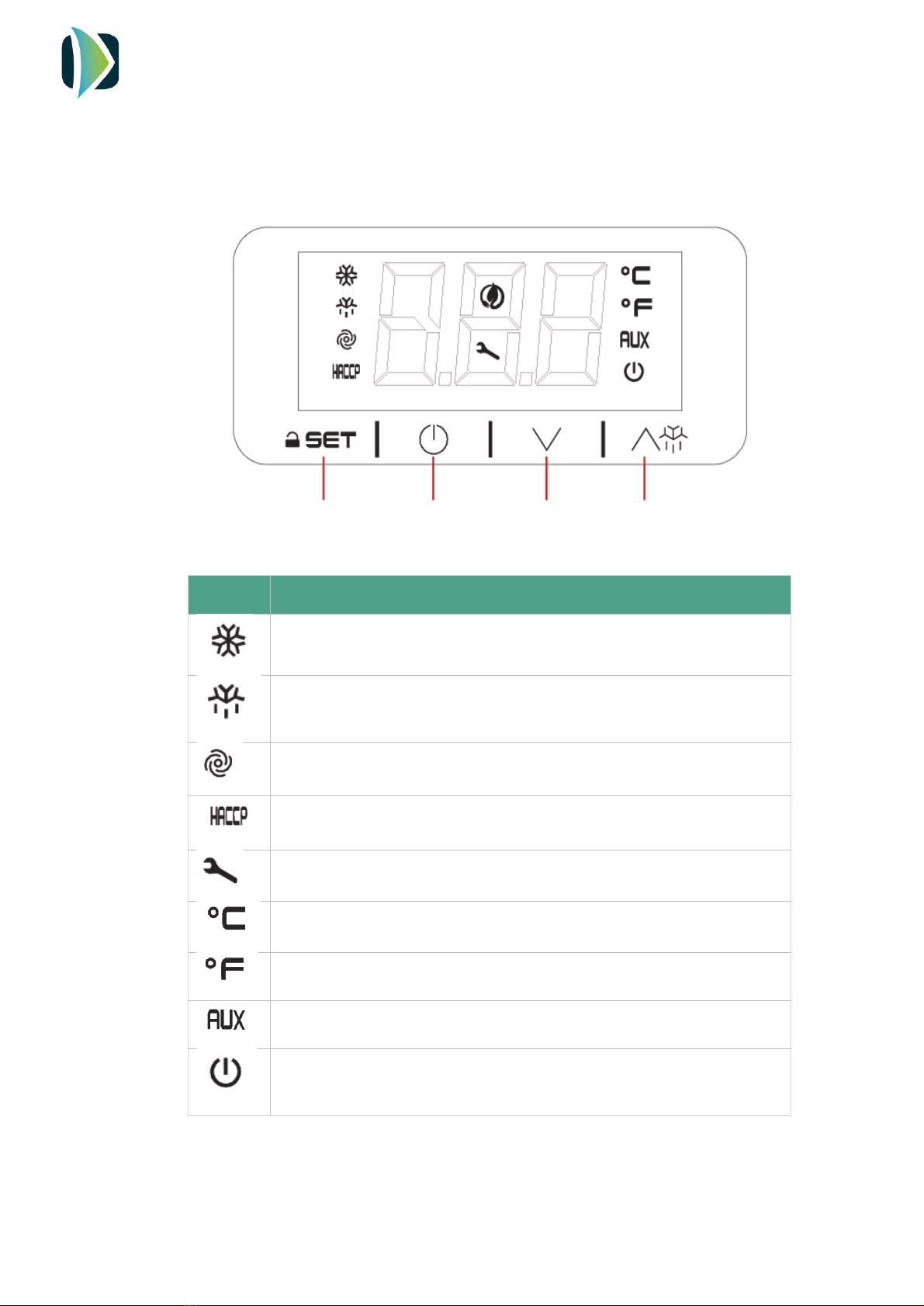

10.1. USER INTERFACE DESCRIPTION
R IACE D ES CR IPT I
Symbol
Meaning when it lights
Compressor switched on
Defrost active
Fan switched on
Alarm active
Compressor working hours exceeded
Unit in ºC
Unit in ºF
Electric heater switched on
Stand by
SET / Confirm
ON / Stand-by
Escape
Down / Change
mode
Up

INSTALLATION AND USER MANUAL
ECOHEAT TD
16 V1REV5EN0222
10.2. INSTALLATION- Switching on
After full installation of the water heater (power and water pipes connected) and after
the water heater tank is full of water, power can be turn ON.
10.3. Switching OFF
4 sec
1. After filling the tank of water, connect the
mains plug to the mains supply.
The screen will show the symbol
2. Hold the key for 4 seconds. The
display will show the icons.
3. The screen will show the water
temperature
4 sec
To switch off the system, hold the
key for 4 seconds

INSTALLATION AND USER MANUAL
ECOHEAT TD
17 V1REV5EN0222
10.4. Unlocking the keypad
10.5. Displaying the operating mode
At first initial power ON, the product goes, by default, in Eco mode. By touching one time
the key, the controller will show the mode in operation in this moment.
When 30 have elapsed without the keys being
pressed, the display will show the ‘’ LOC’’ label
and the keypad will lock automatically
Touch any key until the screen shows UnL, to
unlock the keypad
4 sec
1 click
ECO Mode: Heating only by heat pump technology
Auto Mode: Heating by heat pump and electric heater
only if the water temperature falls drastically
OverBoost Mode: Simultaneously heating by heat pump
and electrical heater to achieve the temperature setpoint
as quickly as possible
Defrost: Defrost cycle active
Photovoltaics/ Timer: Automatic working due to the
existence of surplus energy from PV installation or Off-
Peak Rate
Antilegionella: Automatic disinfection by thermal shock

INSTALLATION AND USER MANUAL
ECOHEAT TD
18 V1REV5EN0222
10.6. Changing operating mode
4 sec
To change the operating mode, touch the key for
4 seconds.

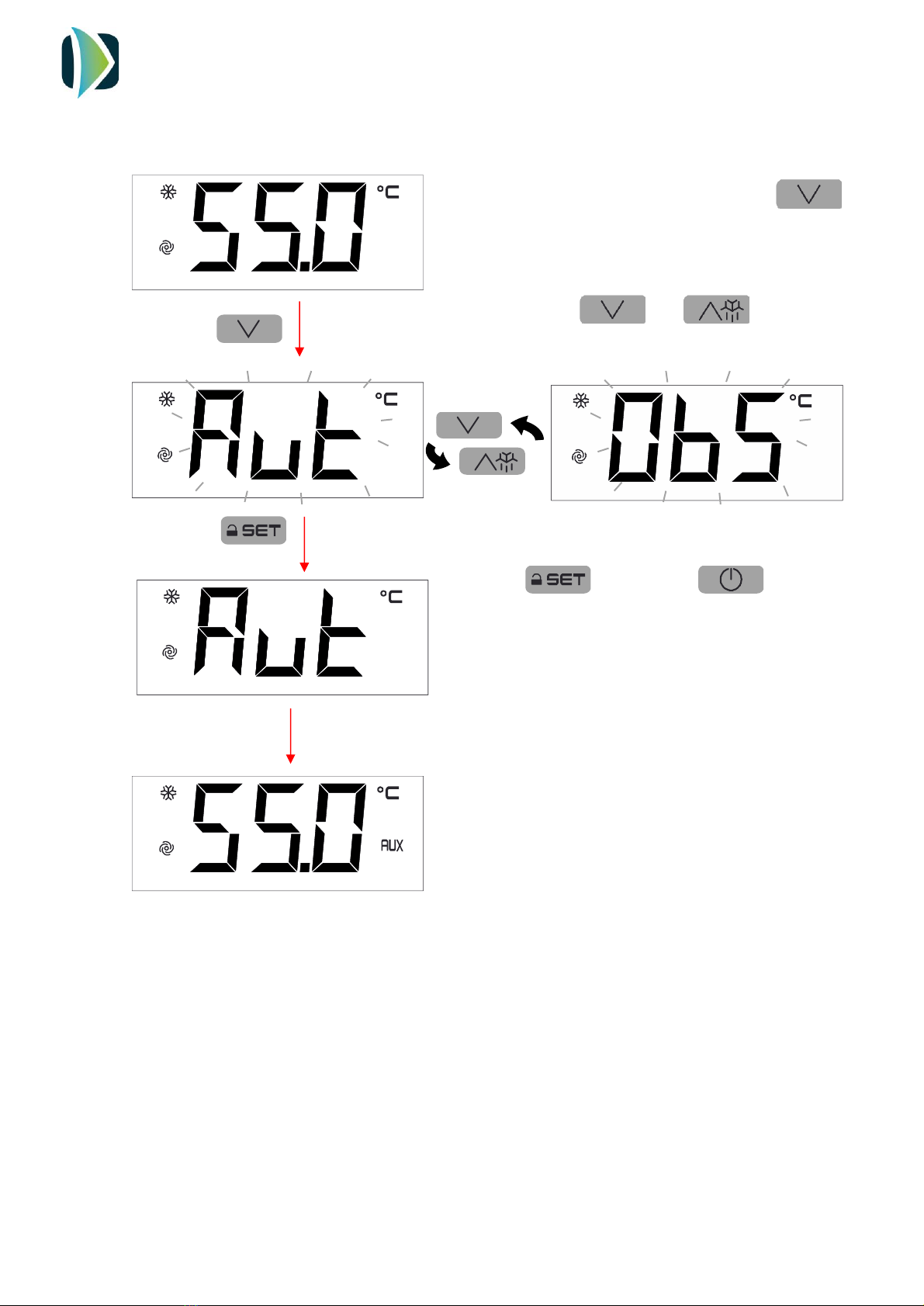

The screen will show blinking the selectable operating
modes. Use the and keys to select the
operating mode.
1 click
Touch to confirm or to cancel
The screen will show again the water temperature
