Clover D14A User manual

Updated on 18 March, 2010
- 1 -

Updated on 18 March, 2010
- 2 -
TABLE OF CONTENTS
1. SPECIFICATION & PARTS IDENTIFICATION .............................................................................3
2. OPERATION & FUNCTION OF PARTS....................................................................................4, 5
A. Cooling Operation
B. Heating Operation
C. Function of Parts
3. LOCATION REQUIREMENTS.......................................................................................................5
4. INSTALLATION PROCEDURES ..................................................................................................6
5. STORAGE.......................................................................................................……………………..6
6. CLEANING ..................................................................................................……………………….7
7. TROUBLESHOOTING GUIDE..............................................................................………..8, 9, 10
8. WIRING DIAGRAM………………………….........................................................………..…….....10

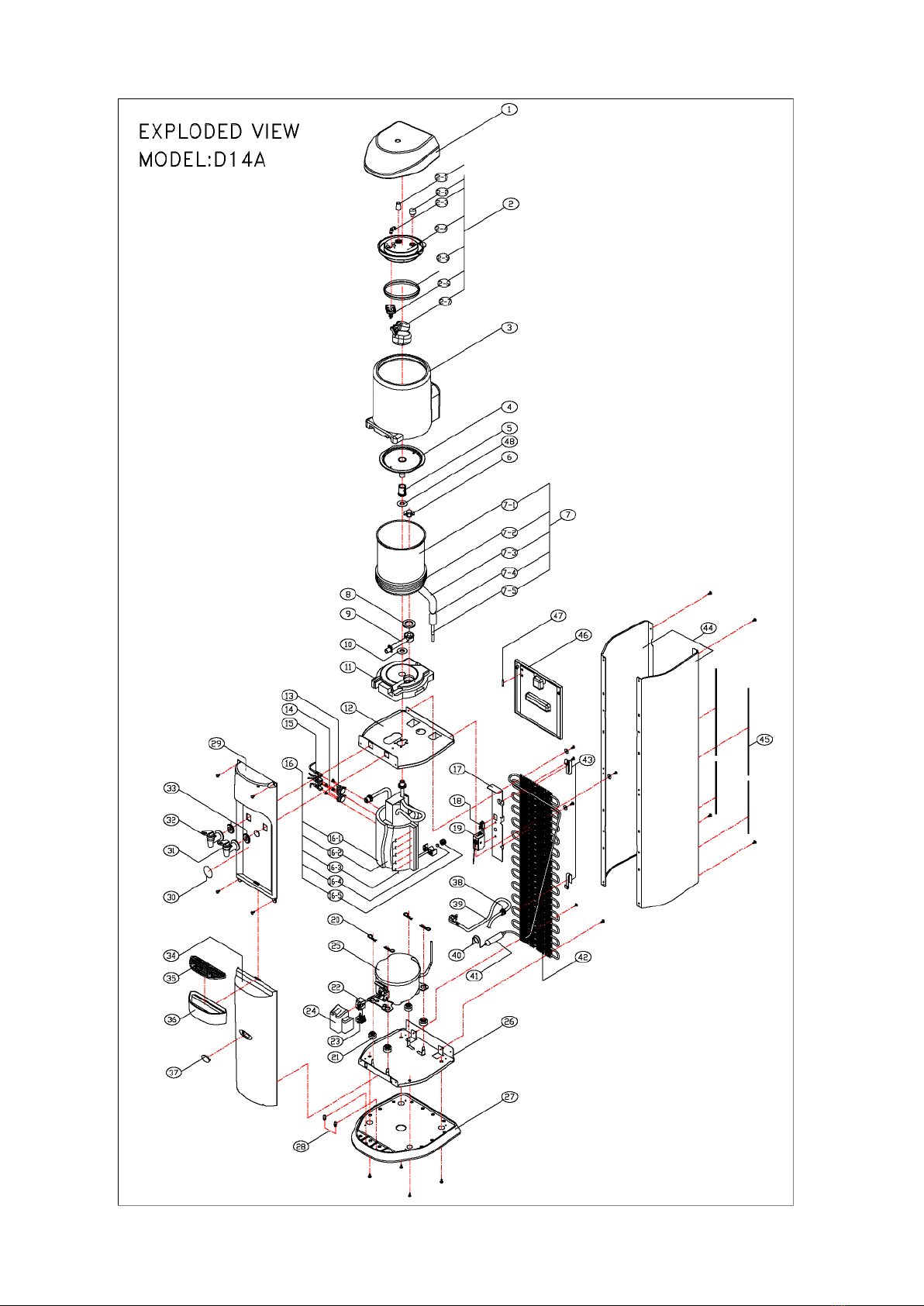

9. EXPLODED VIEW & SERVICE PARTS LIST
A. D14A..................................................................................................................................11, 12

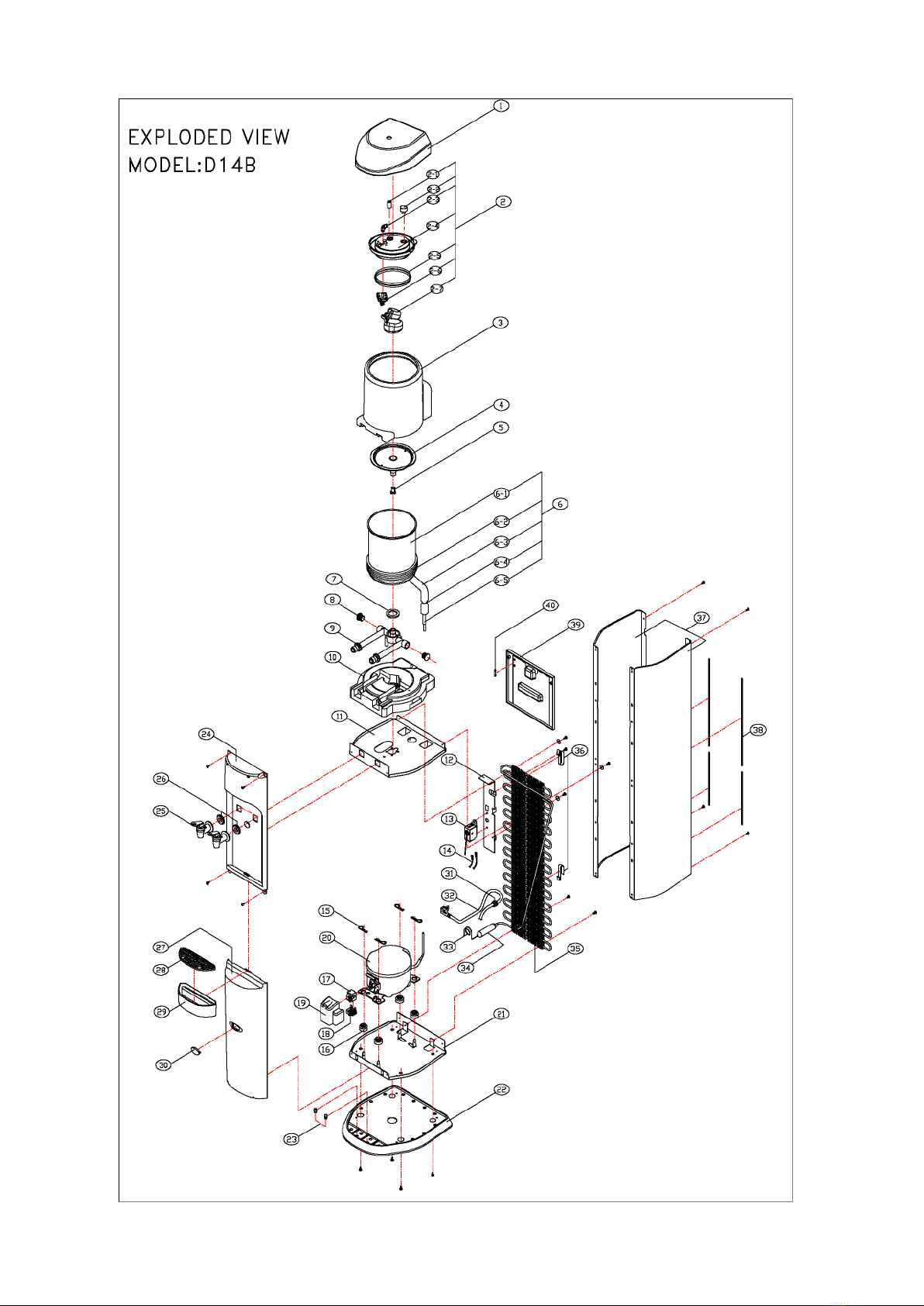

B. D14B.................................................................................................................................13, 14
FOR YOUR SAFETY
Please read the following safety precaution before servicing the watercooler.
1) Check if an electric leakage occurs in the appliance.
2) To prevent electric shock, unplug prior to servicing.
3) In case of testing with power on, wear rubber gloves to prevent electric shock.
4) When using an instrument or replacing a part for repairing, check it is applied to rated voltage
current and capacity.
5) Prevent water from flowing into electric elements in mechanical parts.
6) When carrying or tilting the appliance, remove all the objects on it.
7) If the cooling cycle is out of order, contact nearest authorized service center for maintenance,
repair and adjustment.

Updated on 18 March, 2010
- 3 -
1. SPECIFICATION & PARTS IDENTIFICATION
MODEL
D14A(HOT & COLD)
D14B(COOK & COLD)
DIMENSION
313W×323D×1000H(mm)
WEIGHT
16kg
15kg
COLD
CONSUMPTION
105W
TEMP CONTROL
AUTO
TANK
Stainless Steel
CAPACITY
3.8 ℓ/h (10℃)
HOT
CONSUMPTION
440W/465W
PROTECTOR
Heat Limiter
TEMP. CONTROL
Hot Control
TANK
Stainless Steel
CAPACITY
7.5 ℓ/h (85℃)
ELECTRICAL
220-240V, 50/60Hz. 110-127V, 50/60Hz.
Check the available power supply against the watercooler data plate to assure correct electrical service.

Updated on 18 March, 2010
- 4 -
2. OPERATION & FUNCTION OF PARTS
A. Cooling Operation
The vapor refrigerants that compressed to high temperature & high pressure conditions in the compressor, turn
into liquid refrigerant of high temperature and high pressure passing through the condenser, and then turn into
the liquid refrigerants of low temperature and low pressure conditions by passing through the capillary tubes.
The liquid refrigerant of low temperature & low pressure absorbs the surrounding heat while evaporating in the
evaporator. Then, it is sucked in the compressor by turning into saturated vapor.
B. Heating Operation

Updated on 18 March, 2010
- 5 -
The electric heater inside of the hot water tank heats the supplied water. The temperature of hot water is
controlled by the hot control at a proper temperature. In case of overheating, the heat limiter will operate
automatically.
C. Function of Parts
①Compressor: Compresses the vapor refrigerant sucked from the evaporator and discharges it to condenser
②Condenser: Changes the compressed vapor refrigerant into the liquid refrigerant by cooling.
③Drier: Removes moisture and dirt inside pipes
④Capillary tube: Reduces the pressure of liquid refrigerant and evaporates it in the evaporator under
constant pressure.
⑤Evaporator: Absorbs the surrounding heats while evaporating the liquid refrigerant, cools down water inside
of cold water tank.
⑥Cold water thermostat: Senses the temperature of cold water tank and controls the electric power supply to
the compressor automatically in order to keep the constant temperature of cold water.
⑦Over Load Protector (OLP): Protects the compressor and operates when rising up to abnormal temperature
or energizing over current.
⑧PTC Starter: Starts up the motor of compressor.
⑨Cold water baffle: Separates the supplied water from cold water, hot water, or room temperature water
respectively.
⑩Hot tank heater: Heats the supplied room temperature water to hot water.
⑪Hot control: Controls the temperature of hot water at a proper automatically.
⑫Heat limiter: Cuts off the electric power to the heater in case of overheating.
⑬Hot water switch: Supplies or cuts off the electric power to the heater by setting it ON/OFF.
⑭Drain cap: By opening this, you may drain out remaining water in hot water tank when cleaning or not using
cooler for a long period of time.
⑮Dual float valve assembly: Controls the water level of cold water tank. When the primary valve malfunctions,
secondary float activates and close the water inflows, preventing damage caused by water leakage.
3. LOCATION REQUIREMENTS
A. Locate cooler in a well ventilated space where temperature is never below 0℃.
B. Maintain a minimum clearance of 4 inches on sides and rear of cooler for proper ventilation.
C. Make sure installation ground is flat and even. - Unbalanced placement may cause excessive noise and
trembling of the cooler.
D. Coolers are for indoor use only. Keep away from direct sunlight and excessive moisture.
E. Avoid harmful gas or excessive heat.

Updated on 18 March, 2010
- 6 -
4. INSTALLATION PROCEDURES
A. Install drip tray below faucet.
B. Thoroughly clean the dual float valve, the cooling tank and baffle. The dual float valve and baffle must be in
exact place for proper cooling operation.
CAUTION: IF THE COLD WATER BAFFLE IS REMOVED, COLD WATER WILL NOT BE FORMED NOR DISCHARGED.

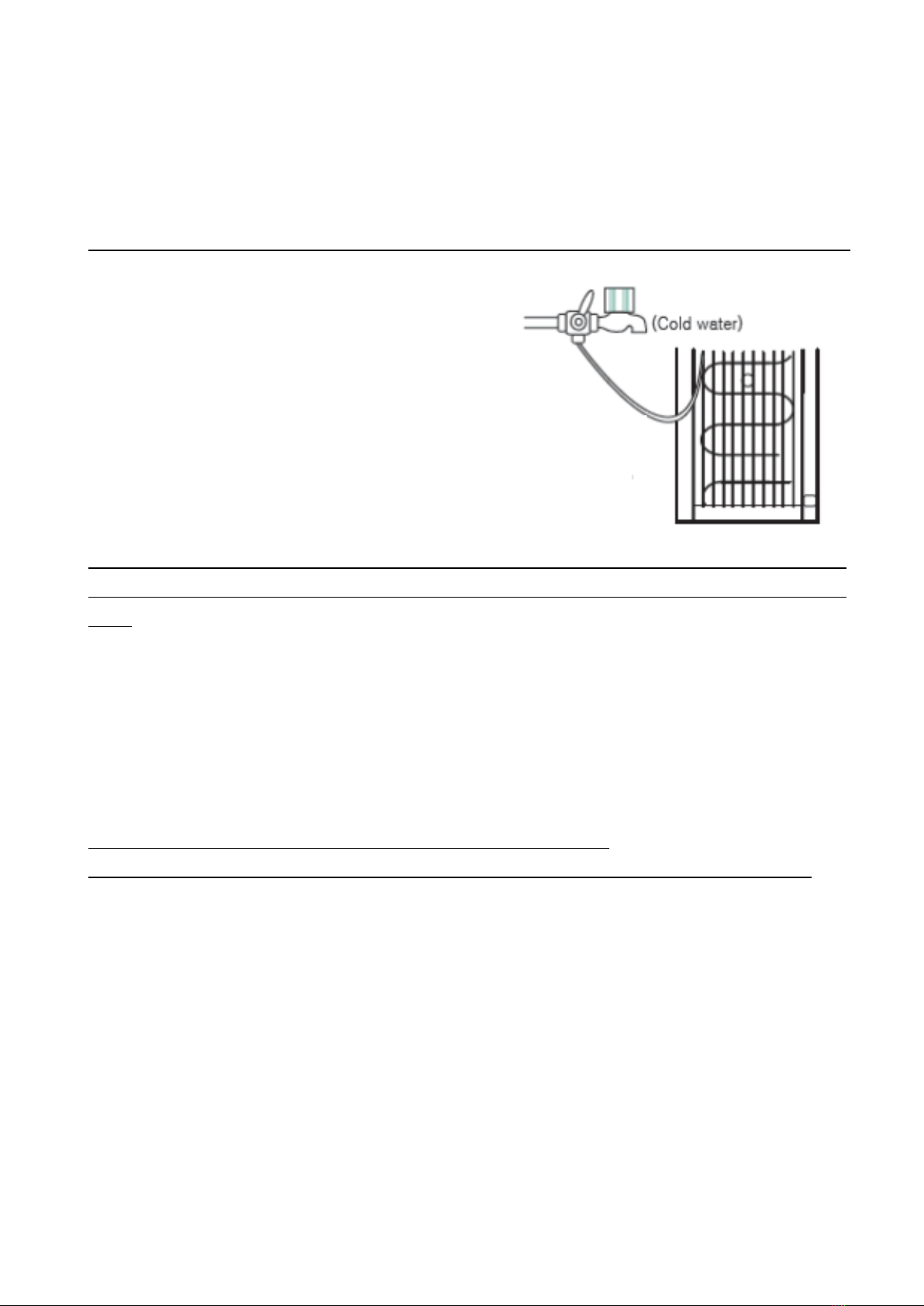

C. Connect the supply water hose to cold water piping of the
back of the product.
-Connect the supply water pipe to water inlet at the back
of the product.
-Use potable water only.
-Acceptable supply water pressure is 20 ~ 100psi.
-Press reset button if cold water does not flow.
-Once all the requirements above are met, open the tap
water valve.
CAUTION: TO PREVENT PROPERTY DAMAGE DUE TO WATER LEAKAGE, SEEK INSPECTION BY PLUMBERS TO
SEE THE WATER PRESSURE IS LESS THAN 100PSI (690KPA) BEFORE YOU CONNECT THE SUPPLY WATER
HOSE.
D. For hot water activation, stay holding down hot faucet handle until water flow is continuous and clear.
E. Place the hot water switch on the "ON" position.
(Check the available power supply against the cooler specification plate to ensure correct electrical service.)
F. Cooler will be ready to serve you Cold & Hot water in 30 minute after installation.
G. Hot Water Safety Faucet: A safety faucet deters accidental dispensing of water by toddlers. (Korea, US
patented)
CAUTION: WATER FROM HOT FAUCET IS EXTREMELY HOT AND MAY SCALD.
CAUTION: FAILURE TO ABIDE BY ABOVE PROCEDURE CAN CAUSE PHYSICAL DAMAGE ON THE COOLER.
5. STORAGE
A. Close off the adapter valve to cut flow from main water pipe.
B. Switch off hot water switch.
C. Unplug power cord.
D. Disconnect the water pipe from the product.
E. Drain hot water by opening faucet. Then, do the same on cold water faucet.
F. Place a bucket behind the drain pipe. By unscrewing the drain cap counter clockwise, drain the remaining
water in the hot water tank. When tank is emptied, dry drain cap and end of drain pipe. Close draining pipe
with cap.

Updated on 18 March, 2010
- 7 -
G. When storing, ensure it stands on its erect position on the flat and even ground. (Do not lay the product on its
sides down or upside down.)
H. When not use for a long period of time, conduct product cleaning before you put in storage.
CAUTION: FAILURE TO ABIDE BY ABOVE PROCEDURE MAY INCUR PHYSICAL DAMAGE ON THE COOLER.
CAUTION: WATER FROM HOT FAUCET WOULD BE EXTREMELY HOT AND MAY SCALD.
6. CLEANING
A. Close off the adapter valve to cut flow from main water pipe.
B. Switch off hot water switch.
C. Unplug power cord.
D. Disconnect the water pipe from the product.
E. Drain hot water by opening faucet. Then, do the same on cold water faucet.
F. Place a bucket behind the drain pipe. By unscrewing the drain cap counter clockwise, drain the remaining
water in the hot water tank. When tank is emptied, dry drain cap and end of drain pipe. Close draining pipe
with cap.
G. Remove the dual float valve and baffle parts in cold water tank.
H. Remove faucets from the product. Both faucets are disassembled by turning them counter clockwise.
I. Wear disposable gloves (clean and safe material for drinking water).
J. Wash the faucets, the dual float valve, baffle, drip tray and grid with mild soap and water. Then, rinse them
with clean water immediately.
K. Cleanse interior of cold water tank with a clean dish towel.
Do not use bleach or any cleaning agents containing bleach or chlorine.
L. Assemble drip tray, grid, faucets, baffle and the dual float valve.
M. Pour clean water into cold water tank and open cold faucet to flush the entire water trail. Repeat this step at
least three times. Then, close the faucet.
Steps N, O are for Hot & Cold model only.
N. Open hot water faucet. Then, until the water flow from hot water faucet is continuous and clear, pour clean
water into cold water tank. Then, close the faucet.
O. Open drain cap to flush water trail in hot water tank.
Repeat this step at least three times and close the drain cap at the end.
P. The black static condenser on the rear of the cooler should be cleaned with a small stiff non-wire brush.
Q. Follow Installation Procedures to operate the cooler.

Updated on 18 March, 2010
- 8 -
7. TROUBLESHOOTING GUIDE
TROUBLE
POSSIBLE CAUSE
REMEDY
REFRIGERATION SYSTEM
A. Compressor does
not run.
No electric power to outlet.
Turn on electric power outlet.
The thermostat is misadjusted or defective.
Adjust or replace the thermostat, as
necessary.
The wires leading to the thermostat are
defective or are not connected.
Check the internal wiring.
Make repairs as necessary.
The line voltage is low.
Check the line voltage. It must be at least
90% of minimum voltage.
The compressor over-load
Protector (OLP) is defective.
Replace the defective over-load protector.
The starting relay (PTC) is defective.
Replace the starting relay.
The compressor is defective.
Replace the compressor.
Return cooler to authorized service center
or factory for repair.
B. Water is adequately
chilled, but cooler runs
excessively or
continuously.
Poor ventilation.
Minimum side & rear clearance 4"
The condenser is dirty or restricted.
Clean the condenser or relocate the unit to
prevent restricting the condenser.
The thermostat is defective. (the contacts
are shorted or the control is not adjusted
properly)
Replace or adjust the thermostat as
necessary.
The ambient temperature is high.
It is normal for the cooler to run
continuously at high ambient temperatures.
C. The cooler
compressor runs
continuously, but I do
not have cold water.
There has been a substantial loss in the
sealed system's charge of refrigerant.
If refrigerant leak is suspected, return
cooler to authorized service center or
factory for repair.
The compressor is defective.
Same as above.
D. The water cooler
excessively and the
cold water is not cold
enough.
Cold water baffle is not in place.
Check inside the cold tank to make sure
baffle is fully inserted into the mating cold
tank fitting nut.
The condenser is dirty or restricted.
Clean the condenser and relocate the
water cooler to prevent restricting the
condenser.
The cold water thermostat is set high or the
water cooler is in a high ambient
environment.
Check the cold water thermostat setting.
Adjust the setting as necessary.
Usage of the cold water system is greater
than the water cooler capacity.
Inform the customer of the cold water
system's maximum capacity.
The refrigeration system is overcharged or
undercharged.
Return water cooler to authorized service
center or factory for repair.
There is a partial restriction in the
refrigeration system.

Updated on 18 March, 2010
- 9 -
The compressor is defective.
E. The water cooler
has a short running
cycle. It is cooling, but
does not run long
enough to cool water
to the required level.
If wattage readings are normal, the cold
water thermostat may be defective.
Replace the cold water thermostat.
The cold water thermostat is improperly set
for the prevailing environmental conditions
and water cooler usage.
Adjust the cold water thermostat.
The compressor motor is defective,
causing the watercooler to cycle on the
overload protector.
Replace the compressor.
Return water cooler to authorized service
center or factory for repair.
F. The cold water
flows slowly or not at
all.
Defective faucet.
Replace faucet assembly.
The cold water thermostat is so much low,
causing ice to build up in the cold tank,
blocking water flow.
Defrost water cooler.
Adjust the temperature control.
G. Cook water too
Cold. (cook & cold
models)
If cook water is only occasionally used,
cold water will migrate into the cook water
system.
This phenomenon can happen under
normal condition.
HOT WATER SYSTEM
A. The hot water is not
hot.
If cooler equipped with hot water switch
may be OFF.
Turn the hot water switch ON.
There is a loose or broken wire connection
in the hot water system.
Identify the loose or broken wire
connection, repair as necessary.
The hot control is defective.
Replace the hot control.
The heat limiter is "ON".
Push "Reset" button of heat limiter.
The hot tank heater is defective.
Replaced the hot tank heater or hot tank
assembly.
B. The hot water is
hot, but not hot
enough.
Usage of the hot water system is greater
than its capacity.
Inform the customer of the hot water
system's maximum capacity.
The hot control is defective.
Replace hot control.
C. The hot water flows
slowly or not at all.
Hot water flow is designed to flow slowly
than cold and cook water to prevent
splashing.
Advice the customer of this safety feature.
Defective faucet.
Replace faucet.
Hot tank plugged with mineral deposits.
De-lime tank.
D. Hot tank is noisy.
The hot tank heater is caked with mineral
deposits.
Slight boiling sound normal during heating
cycle. De-lime tank.
NOISE
A. There is excessive
noise coming from the
cooler, but it is
otherwise operating
normally.
The cooler is not level.
The cooler must be leveled.
Place the cooler on even surface.
A section of the tubing inside the cooler is
touching other parts of cooler, causing
noise to be generated due to vibration.
Adjust position of the tubing to make sure it
is not in contact with any other parts.
Check the connection of the fixed screws.
Completely connect the fixed screws.
The compressor's operation is noisy
Advise the customer of the cooler's normal

Updated on 18 March, 2010
- 10 -
because of inherent conditions.
operating sounds.
WATER LEAKAGE
A. Water drips from
faucet.
The faucet body packing and spring is
defective.
Press down the faucet lever several times.
Replace faucet assembly.
B. Leakage through
inside or outside of
appliance.
The faucet is not completely connected.
Properly connect the faucet.
C. Water drips from
dual float valves
assembly.
The dual float valves elbow union is
defective.
Replace the dual float valves elbow union.
The dual float valve’s packing is defective.
Replace the dual float valves packing.
The cold water piping is defective.
Properly connect and replace the cold
water piping.
8. WIRING DIAGRAM

Updated on 18 March, 2010
- 11 -

Updated on 18 March, 2010
- 12 -

Updated on 18 March, 2010
- 13 -

Updated on 18 March, 2010
- 14 -
