CMX IP-600NA User manual

IP-600NA
IP Network Pre-Amplifier
INSTALLATION & OPERATION MANUAL
Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty

IP-600NA IP Network Pre-Amplifier
2 / 9 www.cmx udio.com
SAFTY WARNINGS!
1. Read and keep these instructions.
2. eed all warnings and follow all instructions.
3. Do not use this apparatus near water.
4. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
5. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat.
6. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than
the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
7. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
8. Only use attachments/accessories specified by the manufacturer.
9. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
10. Unplug this apparatus during lightning storms or when unused for long periods of time.
11. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
12. This appliance shall not be exposed to dripping or splashing water and that no object filled with liquid such as vases shall be
placed on the apparatus.
13. Plug this apparatus to the proper wall outlet and make the plug to be disconnected readily operable.
14. Main plug is used as disconnected device and it should remain readily operable during intended use. In order to disconnect the
apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.
15. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
16. An appliance with a protective earth terminal should be connected to a mains outlet with a protective earth connection.
WARNING!
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THE PLUG WITH
AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
TO PREVENT ELECTRICAL SHOC
K, MATCH WIDE BLADE PLUG TO WIDE SLOT, FULLY INSERT.

IP-600NA IP Network Pre-Amplifier
3 / 9 www.cmx udio.com
INTRODUCTIONS:
Description:
The IP public address system network audio Pre-Amplifier with decoder is the main equipment of the IP network PA system. It is
built-in decoder which can decode the network audio signal into analog to feed in analog amplifier.
The IP public address (PA) system key equipment to set up the IP PA sound system, it is convenient to set up sound over network
system as one IP decoder, moreover it is also very useful to upgrade the traditional public address system into digital IP public
address system by only add this IP network audio adapter and keep the existing PA system amplifier and loudspeakers.
Fe ture:
 The IP network audio adapter with decoder is the head of IP PA system.
 The IP network audio adapter with decoder can work with universal PA 100 volt amplifier and speakers.
 It is high capacity but cost-effective multiple room network sound system.
 The system could be set up over existing network, non dedicated network is needed.
 System capacity of 300 adapters online simultaneously.
 Capacity of control power amplifier 1000W.
 Support LAN/WAN and Internet network.
 Network data delay of less than 100 milliseconds.
 Program controllable power supply of AC 230V.

IP-600NA IP Network Pre-Amplifier
4 / 9 www.cmx udio.com
FRONT PANEL & REAR PANEL:
Re r P nel:
1. Power switch on front panel to power on/off the AC power supply.
2. Network status indicator, light on means LAN communication is good.
3. Power indicator, light on means AC power supply on.
4. Terminal Configuration Port, RS232 protocol, which is used to configure the terminal through CMX supplied cable with PC
directly.
5. LAN Port, after connection with LAN network, green LED light and yellow flash means communication well, otherwise means
communication failure.
6. Reserved two LAN outputs, they are unused right now.
7. Line output, the audio sources from network will be decoded into analog signal to mixer or pre-amplifier.
8. 24V DC, 24VDC power supply

IP-600NA IP Network Pre-Amplifier
5 / 9 www.cmx udio.com
OPERATION AND SETTING
Termin l Def ult IP Address:
Default IP Address
Terminal IP Address 192.168.1.105
Subnet Mask 255.255.255.0
Gateway 0.0.0.0
Server IP Address 192.168.1.1
1. How to write in new IP ddress to remote microphone?

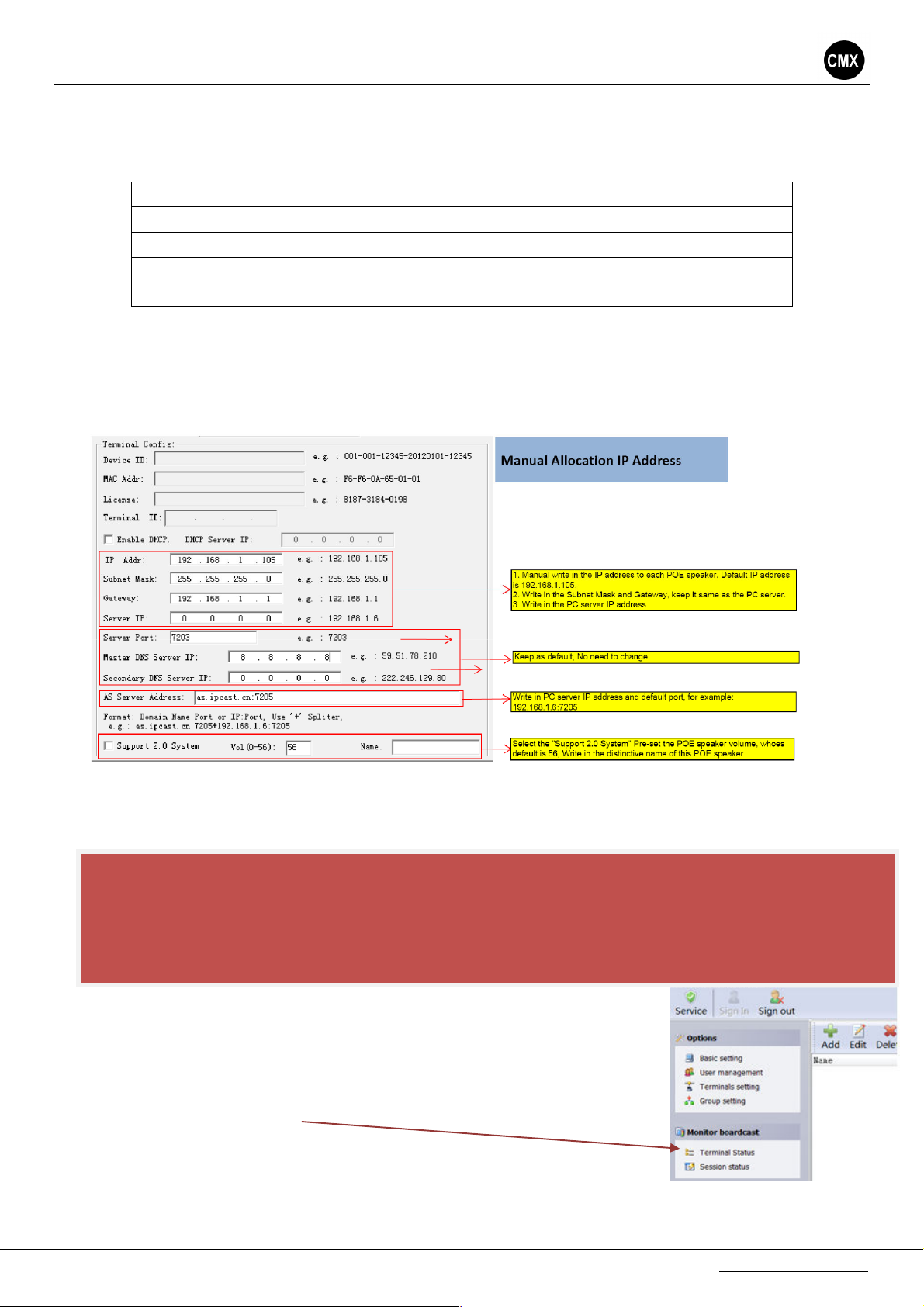

1.1 Termin l IP Configur tion W y
Successful write in IP address will comes with two reminding: Visual status indicators of the LAN input flashing, reminding words
of “Success Write In”, another way is to check the online status displayed IP address from the software.
1.2 Online St tus Monitoring
Connect the IP-600NA and IP-600RM IP remote paging microphone to the LAN network with
PC server, the software will auto detect the IP terminal, go to the “Session status” to monitor
and check all equipments whether are online or not, “red cross” means failure connection,
please correct the IP configuration.
Reminding!
 Make sure the terminal and the PC server within the LAN Network and their IP address is in same bandwidth.
 Enable to search the terminal: P E speaker default IP: 192.168.1.105; PC server IP address: 192.168.1.6
 Wrong bandwidth can not search the terminal: P E speaker default IP: 192.168.1.105; PC server IP address:
192.168.0.1

IP-600NA IP Network Pre-Amplifier
6 / 9 www.cmx udio.com
2. How to m ke p ging over IP?
2.1 User Log In
Press “Enter” button to enter the user log in window with password “001” and “enter”.
Press “enter” to log in the menu: 1-Paging, 2-Intercom, 3-Program Broadcast, 4-Program Control and 5-Exit
2.2 Termin l St tus Monitoring
Press “#” button to enter the status monitoring window, when status show connected with “√” means well connection and otherwise
means disconnection.
2.3 Zone P ging Oper tion
Press “Enter” button to enter the user log in window with password “001” and “enter”.
(W y-1) Press “1-paging” to make zone paging to individual speaker zone or group speaker zones.
Press”1-paging” and zone number”2”, means zone paging to 2
nd
ID defined IP equipment.
Press “1-paging” and “2#3#4” & enter means zone paging to 2
nd
, 3
rd
and 4
th
IP equipment.
(W y-2) Directly enter the IP equipment ID “2” and press the “Call” button to make remote paging over IP to the 2
nd
IP equipment.
Log in the user menu to direct use the “paging” button with zone number to make remote zone paging.
After connection, there will be chime pre-announcement and display on the LCD” connection, please talk”.
3. How to bro dc st music over IP?
3.1 Re ltime T sk
Click on the “Play Studio” to add the broadcasting task, select the Mp3 file to random or
repeatedly broadcast the file to selected IP terminal, zone or groups.
3.2 Scheduled Bro dc st & Ring Bell:
Ring—using built-in ring bell for scheduled broadcast
Schedule—List of program for monitoring and checking
Schedule broadcast-using external Mp3 files or pre-recorded message for scheduled broadcast
Click on the “Schedule broadcast” menu to enter set a scheduled program, which will be automatically broadcast, pause or stop as
pre-set time to pre-set zones.
So please select the Mp3 file, target IP terminals and time and broadcast mode to make one scheduled broadcast program.

IP-600NA IP Network Pre-Amplifier
7 / 9 www.cmx udio.com
SPECIFICATIONS:
Model IP-600NA
Description IP Network Audio Pre-Amplifier
Power Supply AC230V or 110V
Power Consumption 5W
Network Protocol TCP, UDP, ARP, ICMP, IGMP
Network Speed 10/100Mbps
Audio Format Mp2, Mp3, PCM, ADPCM
Audio Sampling 8K z-44.1K z, 16 bits, 8K-320Kbps
S/N Ratio ≥90dB
Frequency Response 20 z-20K z
Data Delay 100 milliseconds
Connector one aux output
Dimensions 483×256×44mm
Weight 3.2kg

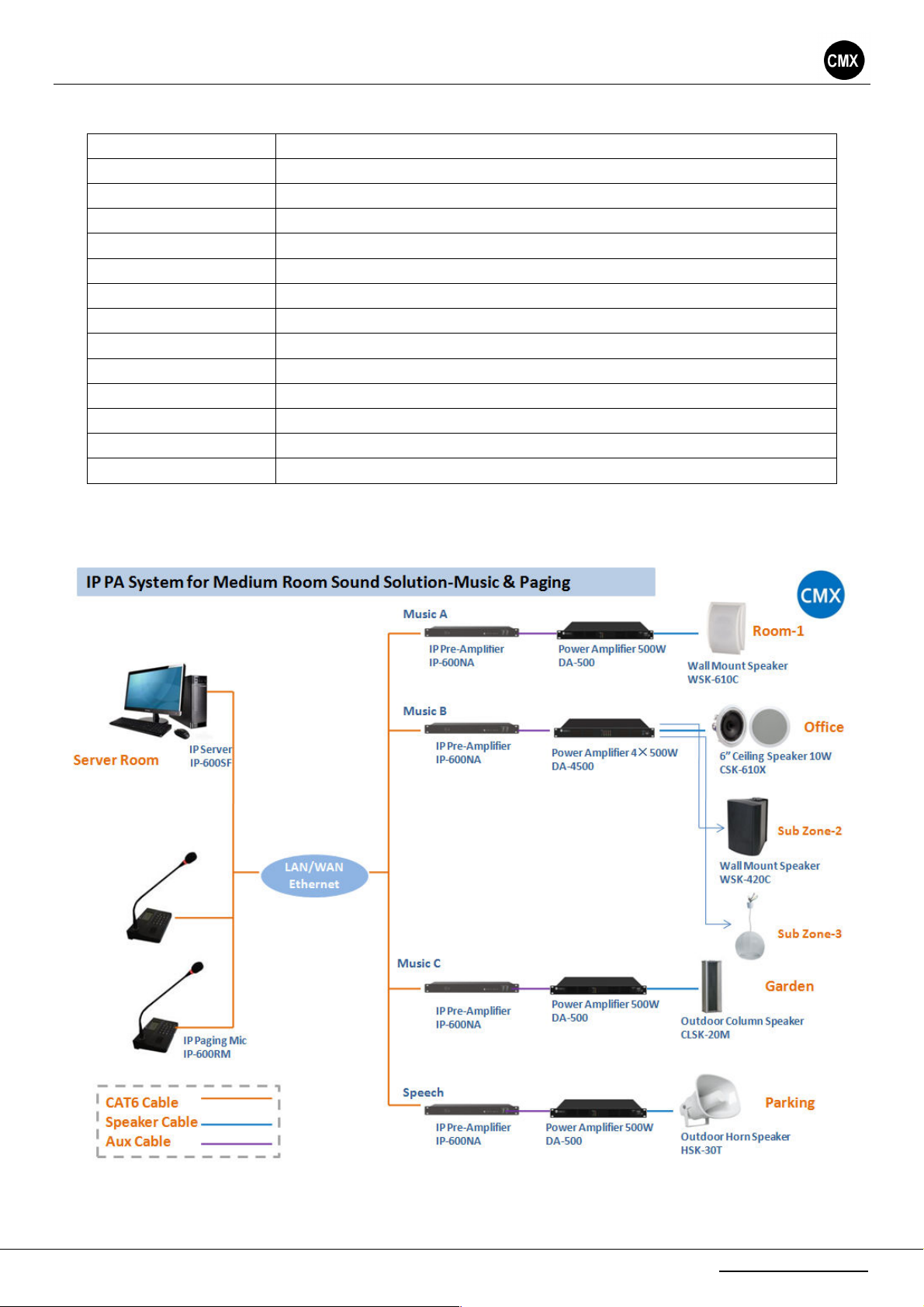

CONNECTION DIAGRAMS:

IP-600NA IP Network Pre-Amplifier
8 / 9 www.cmx udio.com
Simple Trouble Shoot Guid nce
1 Can not connect the network audio
adapter to the PC server
 Check whether the software is incomplete installation for Anti-virus, firewall,
Windows 7 or office 2007
 Check the PC server whether have the fixed IP
 Check the network audio adapter successfully written in IP address
 Check all of the equipments whether in the same gate way, like PC server IP
is 192.168.1.6, all of the other equipments IP the first three position shall be
exactly same: 192.168.1.*.
 Go to the software terminal status to check whether there is "red cross"
which means disconnection
 ave you restart the software "service" bar as point 12 stated?
2 Can not broadcast music or voice
massage to speaker
 Go to the software terminal status to check whether there is "red cross"
which means disconnection
 Analyze the Mp3 files whether is supportable for the system through the C
Disk software installation root where the tool file for Mp3 analyze.
 Check the volume bar whether is minimum?
 Check the task whether had selected the network audio adapter after you
create the task?
 Check the license code whether is registered, which mentioned in the point
10.
 Check the sources input voltage level whether is too small for the PC
 Check the PC's sound card whether is working
3 Why I can not connect more than 3
network audio adapter to the
system
 The software is not registered, you are using free demo software, register
license code must be purchased from the salesman.
4 The software is expired
automatically.
 The software is not registered, you are using free demo software, register
license code must be purchased from the salesman.
5 Can I create a scheduled program
task to broadcast voice message
or music song for a week?
 Yes, the IP system software is built-in weekly timer, you can designate
pre-recorded voice message to the wanted speaker zones at defined time for
a week
6 Can I select the music and control
the volume for my own speaker
zone?
 Yes, you can. The PC server must set up one voice message or music song
library, then the end-user could go to this library to selected program for its
own speaker zones. The remote control is also for volume attenuation.
7 What is the difference between file
broadcast and live broadcast
 File broadcast is using the software built-in media player, while the live
broadcast is the software only collect the sound out from the sound card for
this system
8 Can I broadcast different music to
different speaker zones
simultaneously?
 Yes, the system is capable of more than 500 file broadcast tasks
simultaneously are operated, which means you can play different voice

IP-600NA IP Network Pre-Amplifier
9 / 9 www.cmx udio.com
messages or music songs to different speaker zones at the same time
10 What kinds of music broadcasting
this system can do?
 There are six ways of music broadcasting: 1) External source player input to
the PC, the software will transfer the analog data into digital data 2) Live
broadcast when collect output from the PC sound card 3) File broadcast by
using the software built-in media player 4) Scheduled broadcast: the
software is built-in weekly timer, you can create scheduled program for
automatic broadcasting. 5) End-user speaker zone broadcast, the end user
could select its own program through remote control from the library in the
PC server 6) End-user could local input music or microphone to its own
speaker zones
11 What kind of paging system i can
have?
 There are three paging system: 1) condenser microphone input to PC,
manually select speaker zones to make live announcement 2) Network zone
paging through T-6702, which is a paging microphone over network, you can
use it to make announcement to any speaker zones 3) End-user local
microphone input live announcement.
12 What is the function of network
audio adapter?
 It is built in IP data encoder and decoder, which could encode analog signal
into digital one for LAN network system transmission and also decode digital
data into analog one for amplifier to speakers.
14 What is the advantages of this IP
network audio system
 Low wiring cost by using the exiting LAN/WAN or Internet network system
 ighest capacity to management huge loudspeaker zones
 ighest capacity to transfer audio to vast area
 ighest capacity to broadcast many music songs or voice message to
different speaker zones at the same time
 Nearly no cost to upgrade or expansion the system in future
 Remote maintenance
16 The software license code could
not be registered.
 The PC system must be reinstalled when the license code is wrong
registered more than 5 times.
Please contact the only professional technician or authorized distributor for after sales service, never open the equipment which will
broken the warranty sticker to make it expire of service.
Gu ngzhou CMX Audio Co., Limited
302RM 3#, onghui Industrial Zone, Zhongyuan RD, Shibi Area, Panyu, Guangzhou, China 511497
www.cmxaudio.com; [email protected]
Skype: publicaddress
Tech Tel: [phone]
