Codesoft EVO-TM2A User manual

Revision v1.3 Dec. 2010

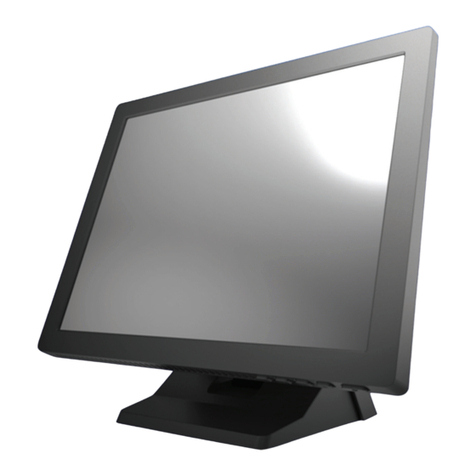

EVO-TM2A
EVO-TM2B
TouchScreenMonitor
User Manual

i
Copyright 2010 August
All Rights Reserved
Manual Version 1.3
Part Number: 3LMPP1300213
The information contained in this document is subject to change
without notice.
We make no warranty of any kind with regard to this material,
including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose. We shall not be
liable for errors contained herein or for incidental or consequential
damages in connection with the furnishing, performance, or use of
this material.
This document contains proprietary information that is protected by
copyright. All rights are reserved. No part of this document may be
photocopied, reproduced or translated to another language without
the prior written consent of the manufacturer.
TRADEMARK
Intel®, Pentium® and MMX are registered trademarks of Intel®
Corporation. Microsoft® and Windows® are registered trademarks
of Microsoft Corporation.
Other trademarks mentioned herein are the property of their
respective owners.

ii
Safety
IMPORTANT SAFETY INSTRUCTIONS
1. To disconnect the machine from the electrical Power Supply, turn
off the power switch and remove the power cord plug from the
wall socket. The wall socket must be easily accessible and in
close proximity to the machine.
2. Read these instructions carefully. Save these instructions for
future reference.
3. Follow all warnings and instructions marked on the product.
4. Do not use this product near water.
5. Do not place this product on an unstable cart, stand, or table.
The product may fall, causing serious damage to the product.
6. Slots and openings in the cabinet and the back or bottom are
provided for ventilation; to ensure reliable operation of the
product and to protect it from overheating. These openings must
not be blocked or covered. The openings should never be
blocked by placing the product on a bed, sofa, rug, or other
similar surface. This product should never be placed near or over
a radiator or heat register, or in a built-in installation unless
proper ventilation is provided.
7. This product should be operated from the type of power indicated
on the marking label. If you are not sure of the type of power
available, consult your dealer or local power company.
8. Do not allow anything to rest on the power cord. Do not locate
this product where persons will walk on the cord.
9. Never push objects of any kind into this product through cabinet
slots as they may touch dangerous voltage points or short out
parts that could result in a fire or electric shock. Never spill liquid
of any kind on the product.
CE MARK
This device complies with the requirements of the EEC directive
2004/108/EC with regard to “Electromagnetic compatibility” and
2006/95/EC “Low Voltage Directive”
FCC
This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation

iii
CAUTION ON LITHIUM BATTERIES
There is a danger of explosion if the battery is replaced incorrectly.
Replace only with the same or equivalent type recommended by the
manufacturer. Discard used batteries according to the manufacturer’s
instructions.
LEGISLATION AND WEEE SYMBOL
2002/96/EC Waste Electrical and Electronic Equipment Directive on
the treatment, collection, recycling and disposal of electric and
electronic devices and their components.
The crossed dustbin symbol on the device means that it should not
be disposed of with other household wastes at the end of its
working life. Instead, the device should be taken to the waste
collection centers for activation of the treatment, collection,
recycling and disposal procedure.
To prevent possible harm to the environment or human health from
uncontrolled waste disposal, please separate this from other types
of wastes and recycle it responsibly to promote the sustainable
reuse of material resources.
Household users should contact either the retailer where they
purchased this product, or their local government office, for details
of where and how they can take this item for environmentally safe
recycling.
Business users should contact their supplier and check the terms
and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for
disposal.

iv
Revision History
Changes to the original user manual are listed below:
Revision Date Description
V1.0 Sep. 2009 Release
V1.1 Oct. 2009 MB version change
V1.2 Aug. 2010 MB version change
V1.3 Dec. 2010 Model name change

v
Table Contents
1 Package Checklist...................................1
1-1 Standard Items..................................................................... 1
1-2 Optional Items...................................................................... 2
2 System View.............................................3
2-1 Front View............................................................................ 3
2-2 Rear View............................................................................. 4
2-3 Bottom View......................................................................... 5
2-4 I/O View................................................................................ 6
3 Peripheral Installation.............................7
3-1 MSR..................................................................................... 7
3-2 VFD...................................................................................... 8
3-3 Wall Mount Kit.................................................................... 10
4 System Assembly & Disassembly .......12
4-1 Remove the System Stand................................................. 12
4-2 Replace the Power Adapter................................................ 13
5 Specification..........................................14

1
1 Package Checklist
Take the system unit out of the carton. Remove the unit from the carton by
holding it by the foam inserts. The following contents should be found in the
carton:
1-1 Standard Items
a. d.
b.
e.
c. f.
a. Monitor
b. Driver CD
c. Power Adapter (36W)
d. Power Cable
e. USB Cable for touch
f. VGA Cable

2
1-2 Optional Items
a.
c.
b.
a. MSR Module
b. VFD Module
c. Wall Mount Kit

3
2 System View
2-1 Front View
System Overview table -1
Number Component
1 Touch Screen
2 MSR (Optional)
3
OSD Button for OSD menu selection
From left to right button:
4 Stand Hole for cable management

4
2-2 Rear View
System Overview table -2
Number Component
5 VFD Module (Optional)
6 Stand (with cable management and power adapter bracket)
7 Cable Outlet
8 VFD Cover (VFD module installation location)
9 VESA hole for stand and wall-mount kit installation

5
2-3 Bottom View
System Overview table -3
Number Component
9 Easy-Service Retaining Bracket for Power Adapter
10 Rubber feet

6
2-4 I/O View
System Overview table -4
Number Component
a USB (to Device)
b USB IN (from PC)
c VGA IN
d COM IN
e COM 12V
f 12V IN

7
3 Peripheral Installation
3-1 MSR
Components of MSR Kit:
1. Slide the MSR into the right position of the System.
2. Fasten the screws (x2) and grounding cable (x1).
USB
Groundin
g
MSR
Screws

8
3-2 VFD
Components of VFD Kit:
1. Unfasten the screws (x2) and slide the VFD Cover outward.
2. Position the VFD metal bracket onto the rear side of the VFD module
and fasten the screws (x4).
3. Position the plastic bracket on the metal bracket as shown in the images
above.
VFD
Metal Bracket Plastic bracket Screws
❷
❶

9
4. Fasten the screw (x1) to attach the plastic bracket to the metal bracket
and VFD module.
5. Slide the VFD module with bracket into the VFD socket.
6. Attach the VFD module by fastening the screws (x2) as shown.
7. Connect the VFD’s RJ45 to the VFD Module.
8. Connect the other end of the VFD Cable to the Touch Screen Monitor.

10
3-3 Wall Mount Kit
Before installing the Wall Mount Kit, please remove the stand first.
(See Chapter 4-1)
(Parts of Wall Mount Kit) (Location to install)
1. VESA Wall Mount Kit includes the following:
a. Wall-mount plate
b. Monitor-mount plate & screws
c. Screw metal bracket
2. The wall mount installs at the rear of the system.
3. Attach part “b” to the back of the Touch Monitor.
4. Attach part “c” to the monitor plate as pictured and secure with a screw
(x1).
5. Fasten the screws (x4) to attach the monitor plate.
c
a. Wall Plate b. Monitor
plate
c
b

11
6. Mount part “a” to the wall in your desired location.
7. Align the hooks of the monitor plate with the keyholes of the wall plate
and slide the monitor into place.
8. Tighten the thumb screw (x1).

12
4 System Assembly & Disassembly
4-1 Remove the System Stand
1. Remove the screws (x2) that secure the stand to the system.
2. Remove the screws (x4) that secure the VESAmount to the monitor.
3. Remove the VESA bracket.

13
4-2 Replace the Power Adapter
1. Release the thumb screw to seperate the retaining metal bracket from
the stand and take out the power adapter.

14
5 Specification
Model Name EVO-TM2A EVO-TM2B
AD board B16
LCD Panel
Panel Size 15" 17"
Brightness 250nits 300~380nits
Resolution 1024 x 768 1280 x 1024
Touch Resistive
Tilt Angle 4° ~ 90°
External I/O Ports
USB 1 x USB 2.0 (Type A), 1x USB 2.0 (Type B to PC)
VGA 1
Serial / COM 2 x COM (1 x DB-9/F type to PC, 1 x RJ-45 type to VFD)
DC Jack 1
OSD Button 5 (left, right, power, menu, select)
Power Adapter
Power Source Ext. 36W, 12V / 3A
Control / Indicator
Power Button 1
Indicator LED 1
Peripheral
MSR module MSR (USB)
Customer display 2 x 20 VFD customer display (COM)
Environment
EMC & Safety FCC/CE Class A, LVD
Operating Temperature 0oC~ 40oC (32oF ~ 104oF)
Storage Temperature -20oC ~ 55oC (-4oF ~ 131oF)
Operating Humidity 5% to 95% RH, Non-condensing
Storage Humidity 5% to 95% RH, Non-condensing
Dimension
(W x D x H) LCD 90 degree :
365.2 x 217.8 x 338.9 mm LCD 90 degree : 399.2 x 217.8 x 381.5 mm
Weight (N.W./G.W.) 4.8kgs / 5.8kgs 6kgs / 7kgs
Mounting 100mm x100mm VESA Standard holes
* This specification is subject to change without prior notice.
