Colebrook Bosson Saunders AV/VC Intro AVS/031/CAM1 User manual

REFER ALSO TO MAIN
INSTRUCTIONS FOR AV/VC
INTRO STAND INSTALLATION
Installation Instructions for
AV/VC Intro Camera Mount

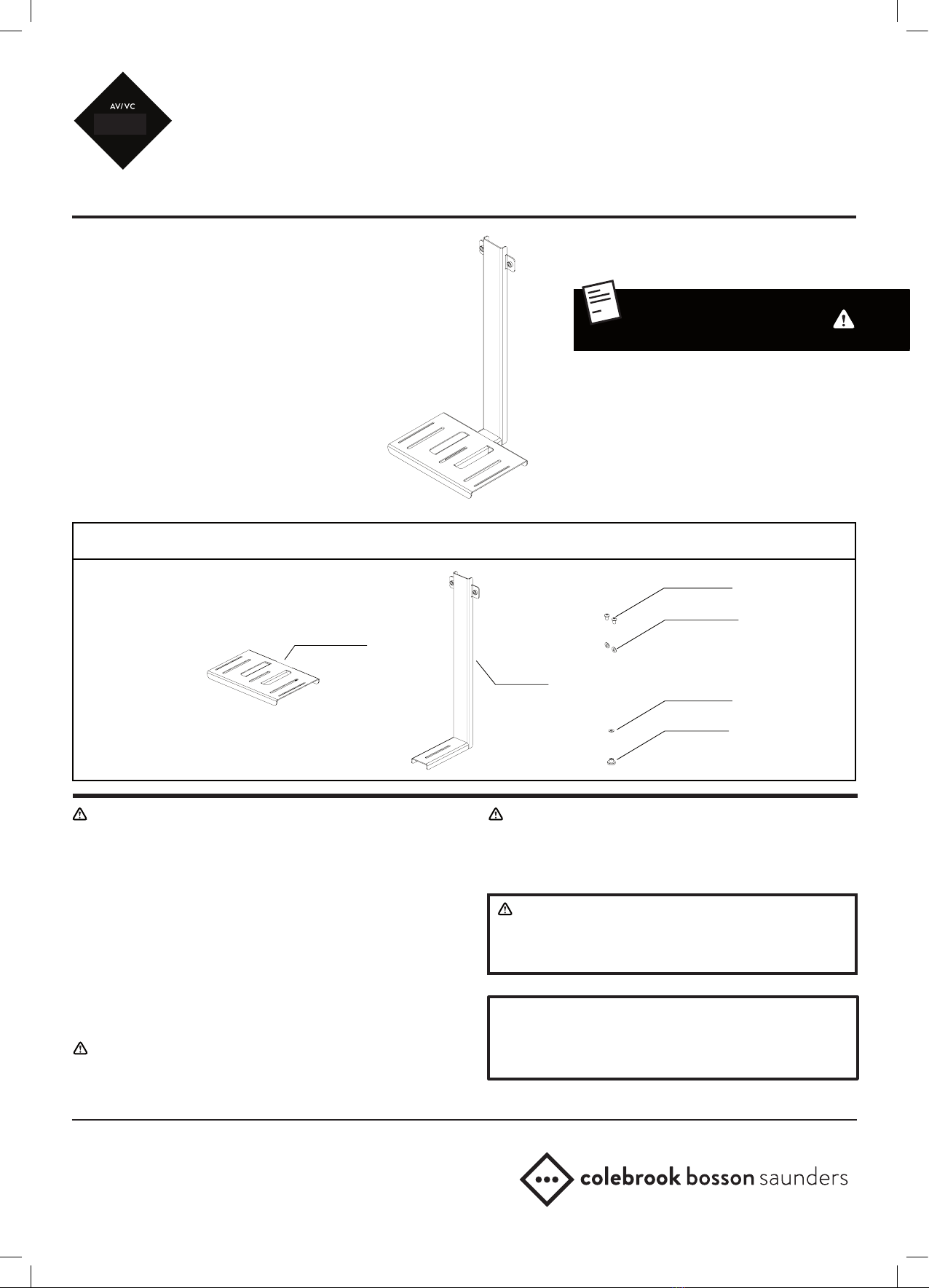

AVS/031/CAM1PARTS INCLUDED:
Camera bar
M6 Screws x2
M6 Washers x2
M5 Washer x1
Thumb screw
Camera platform
AVS-031-CAM1-INST-B-OCT 2018
WARNING
• Do not install equipment heavier than 6kg/13.2lb.
• Use with products heavier than the maximum weights indicated may result in
instability causing possible injury.
• Correct installation is essential to safe and reliable operation of the AV/VC
Intro product and falls outside the scope of responsibility of Colebrook Bosson
Saunders. Please follow assembly instructions carefully.
• Do not use this product for any purpose other than that for which it was designed.
• Ensure that oor or wall surface is strong enough to support the weight of the
fully-loaded AV/VC Intro and that the oor surface is at and level.
• Do not install AV/VC Intro outdoors or in environments where it will be directly
exposed to moisture or high winds.
• Follow the manufacturer’s guidance for mounting of monitors, displays and
other equipment.
• Please take care to avoid trapping ngers when installing or adjusting the product.
ELECTRICAL SAFETY
• Safe installation of electrical equipment is the responsibility of the installer.
• Colebrook Bosson Saunders recommends that only double-insulated electrical
equipment and cables are installed in AV/VC Intro unit.
MAINTENANCE AND INSPECTION
• Ensure all screws and xings are fully tightened and occasionally re-tighten
if necessary.
• Clean with a damp cloth. DO NOT use solvents.
DISCLAIMER
As part of Colebrook Bosson Saunders ongoing product improvement
programme, the design of products may change without prior notice and
details may vary from those illustrated.
AVS/031/CAM1
intro
Colebrook Bosson Saunders hold a number of patents and other
intellectual property rights covering our products and processes. You
can find patent information on our website at:
www.colebrookbossonsaunders.com/patents
PATENTS

INSTALL CAMERA PLATFORM
ADjuST PLATFORM POSITION AND FIx
1.1
1.2
Assemble the mount structure 1
Washer M5
Thumb screw
Adjust platform position
front to back as required.
Fully tighten xing
nut in position.

Pass camera cables through the cable management hole 2

INSTALL CAMERA MOuNT TO COLuMN
FIx CAMERA MOuNT INTO POSITION SECuRE CAMERA MOuNT TO COLuMN
3.1
3.2 3.3
Installing the camera mount 3
IMPORTANT NOTE
Ensure cables remain
tucked behind camera bar
for a tidy installation.

Screen can now be fitted 4

Install camera to platform 5
FIT CAMERA TO PLATFORM FuLLY TIGHTEN FIxING SCREWS
5.1 5.2
ADjuST CAMERA MOuNT HEIGHT
IF REQuIRED
YOuR CAMERA MOuNT INSTALL
IS NOW COMPLETE
5.3 5.4
PLEASE CONSIDER LEAVINg ThESE INSTRUCTIONS wITh ThE UNIT
IF FURThER INSTALLATION MAy BE REqUIRED By OThERS
IMPORTANT NOTE
Remember to connect
cables to camera.
