Colorbeam CUBE LIGHT 50 User manual

CUBE LIGHT 50
User Guide
Version 2.0 December 2011
DRY
IP 20 3 W

CONTENTS
1
www.colorbeam.com
1. ITEMS INCLUDED...........................................
2. INTRODUCTION...............................................
3. SPECIFICATION..............................................
4. INSTALLATION & WIRING DIAGRAM................
5. WARNING.......................................................
6. OPERATION....................................................
7. ORDER INFORMATION....................................
2
3
4
5
6
7
9

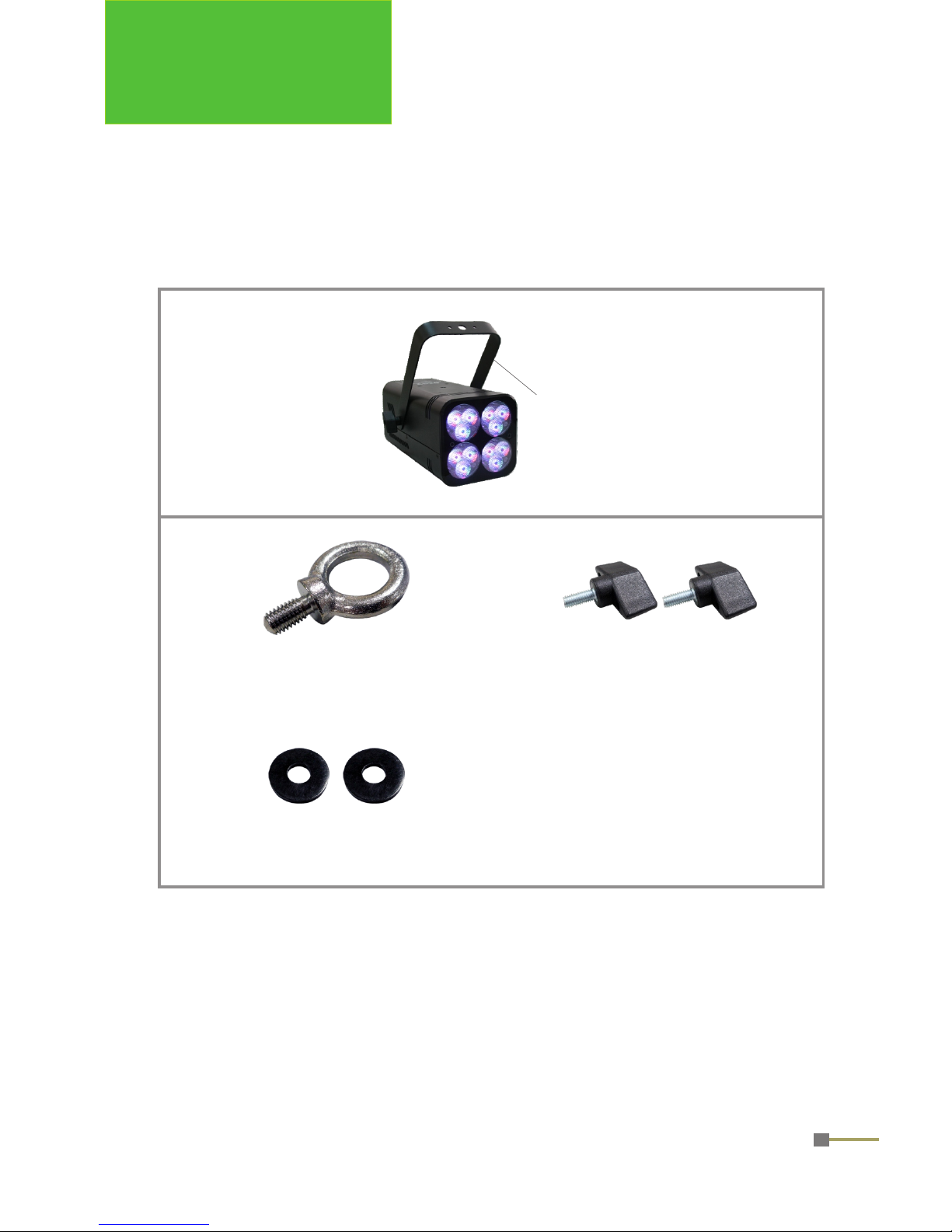

ITEMS INCLUDED
2
www.colorbeam.com
CUBE LIGHT 50
Ring (1 pc.)
Washer (2pcs.)
Screw(2pcs.)
Please make sure the below items included when unpacking.
If there is anything missing, please contact with your local
dealer immediately.
Hanging bracket (1pc.)

Features:

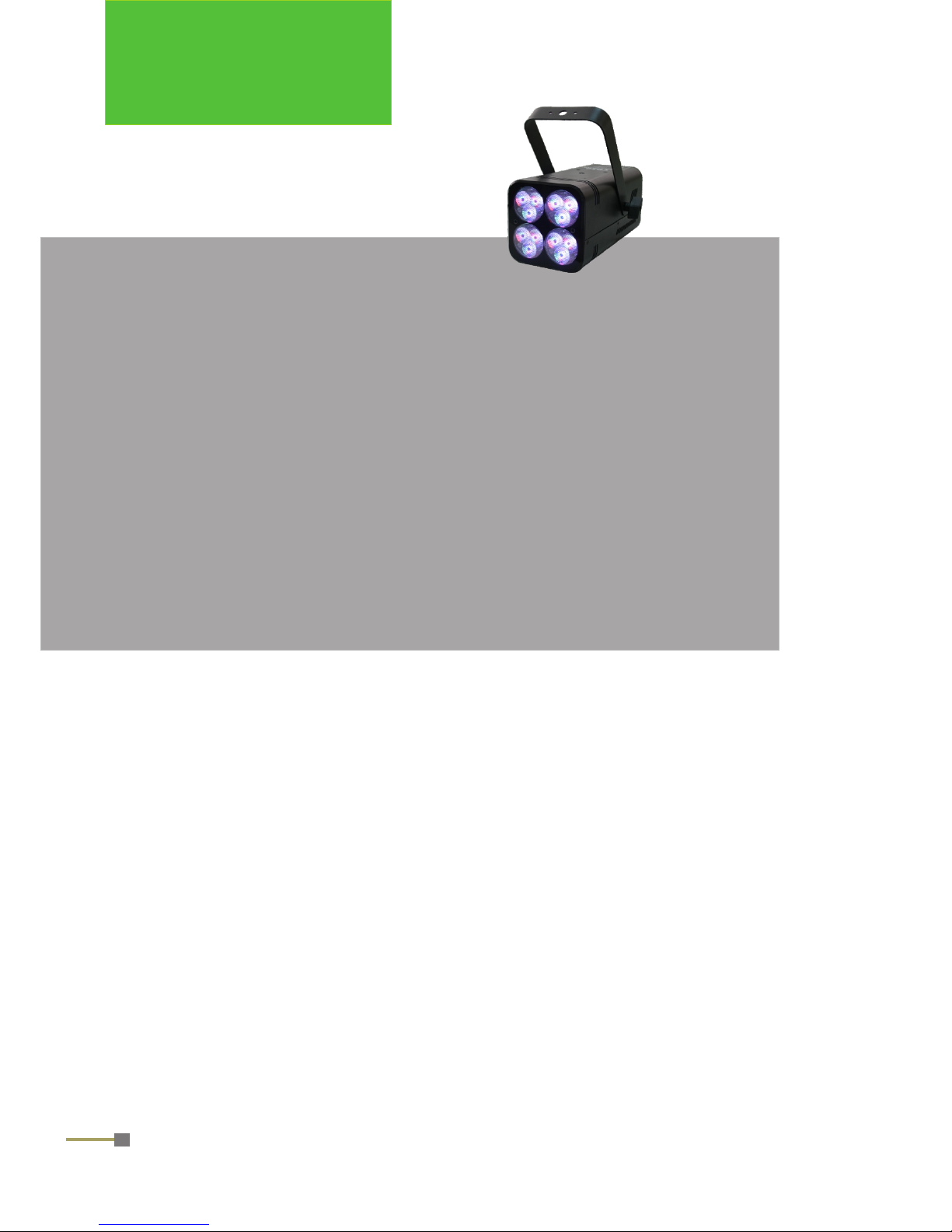

INTRODUCTION
www.colorbeam.com
3
Cube Light 50 (CP-50) is an innovative LED color washing fixture
enclosed in a compact cubic housing.
12 high power multi-color (R.G.B.) LEDs are utilized to create
smooth and gorgeous colors. 20 built-in fixed colors and 9 built-in
fading effects are included in the sophisticated onboard control
power system which brings designers a creative platform without
additional DMX consoles.
Large scale of operations can be easily achieved through the
synchronization function with the master-slave mechanism
equipped in every CP-50. The feature-rich CP-50 is aimed for
professional projects in entertainment and architectural lighting,
such as stage, theater, museum, and etc. First grade aluminum
housing is chosen to promise durability demanded in such venues.
1. Consists of 12 numbers of 3W RGB in 1 high power LEDs.
2. With built-in power and DMX driver for easier wiring and installation.
3. Operate with DMX512 system, 20 solid colors and 9 color changing
effects.
4. Master/Slave mode suits for large event.
5. Suitable in lots of entertainment application such as stage, theatre
and museum…etc.

ELECTRICAL
Power Requirement: 100-240VAC, 50~60Hz
Power Consumption: 55±10%W max at full intensity
LEDs: 12 x 3W RGB in 1
Luminous Flux (Lm): 1058±2.5%
Efficacy (Lm/W): ≒19
Beam Angle: 35°
Fixture Warranty: 2 Years
Protocol: USITT DMX 512-A
DMX Cable Connecter: 3-pin XLR
AC Cable Connecter: AC Power Cord
SOURCE & OPTICS
ENVIRONMENT
Temperature Range: -10°C ~ 40°C
HOUSING
Weight: ≒3 kg
Dimension (mm): L270 × W120 × H120
Color: Black
Lens: Optical Grade PMMA
Material: Metal
IP Rating: IP 20
Accessories: Hanging bracket
Driver: ORBIT-TP
LISTING
Certifications: CE / RoHS / WEEE

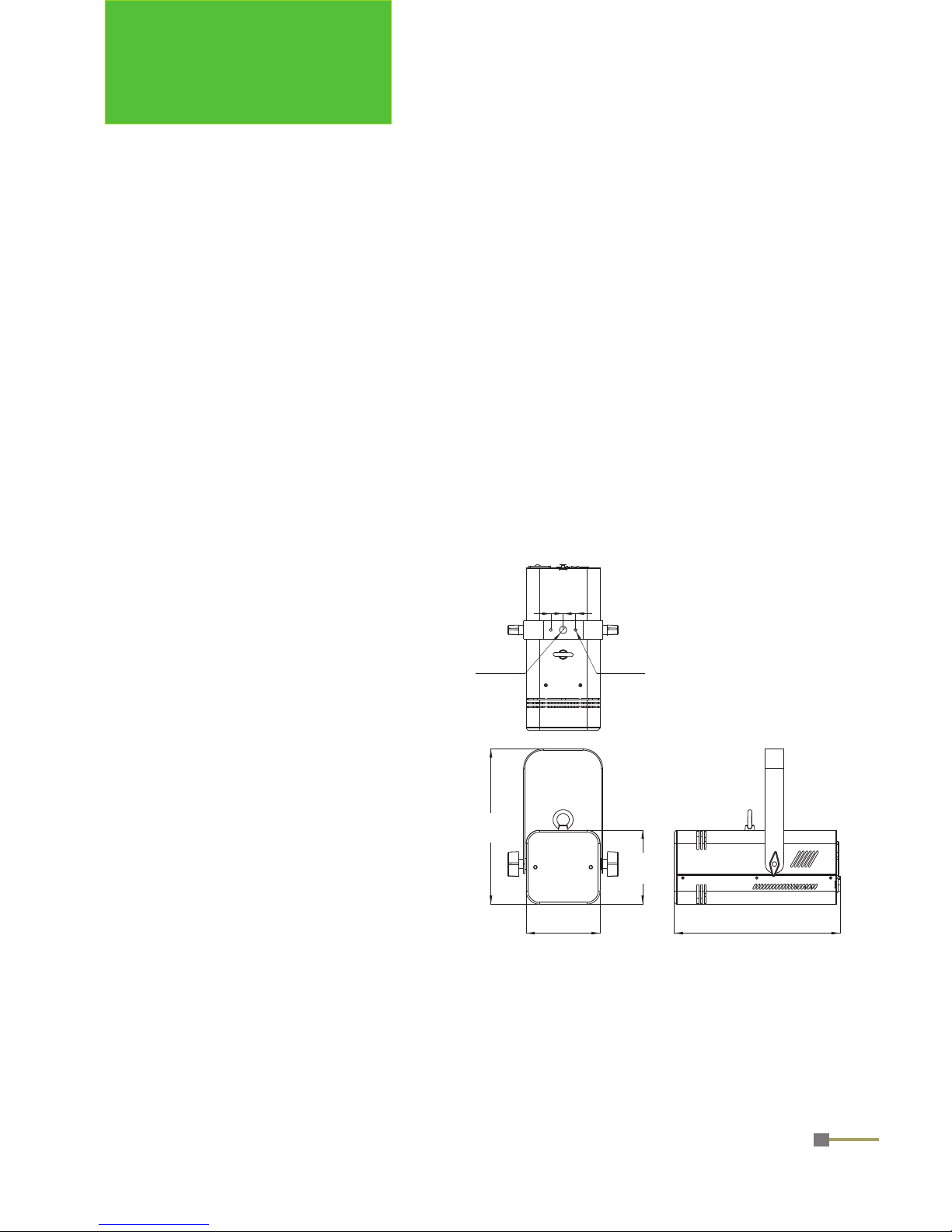

SPECIFICATION
4
www.colorbeam.com
10.71”
(270mm)
Dia0.2”
(5mm)
Dia0.48”
(12mm)
0.79”
(20mm)
4.76”
(120mm)
10”
(252mm)
4.76”
(120mm)
Remark:
Life Time based on LED manufacturers' test data. LED
manufacturers predict LED life of up to 100,000 hours
MTBF (mean time between failure). Consideration for
determining useful life, in addition to MTBF, useful life
affected by numerous environmental conditions such as
ambient temperature, humidity and ventilation.
LED will have long life performance when used under
normal operating conditions [ambient temperature:
-4˚F to 104˚F (-20˚C to 40˚C), humidity: 0-95% non-
condensing humidity, adequate ventilation and air volume]
and when operated using typical color-changing effects.

Screw
Hanging bracket
Washer
Ring

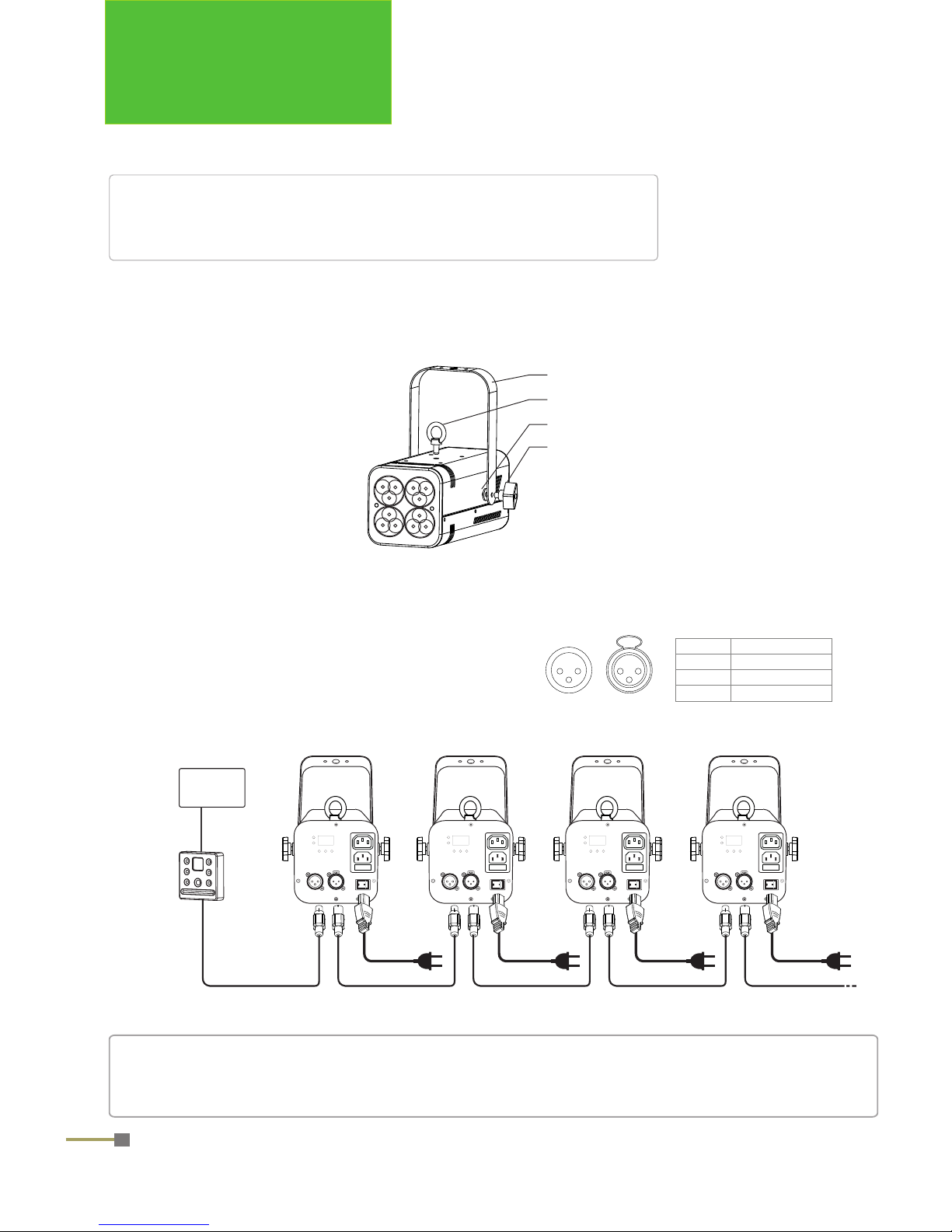

WIRING DIAGRAM
INSTALLATION
Do not hot swap. Ensure that power to the fixture is off before
connecting or disconnecting fixtures.
CAUTION:
INSTALLATION&
WIRING DIAGRAM
www.colorbeam.com
5
1. Unplug from the mains before installation
2. Fix the fixture with bracket
3. Put the electronic plug into the socket
NOTICE:
1. The warranty will be invalid when the fixture is not under normal usage (including trimming the cable
and do wiring by user).
Please contact with your sales representative for the detailed information if the trimming will be happen.
1
3
21 2
3
DMX INDMX IN DMX OUT DMX OUT DMX IN DMX OUT DMX IN DMX OUT
DMX OUT
DMX IN
GND
D-
D+
1
2
3
PIN NO. DESCRIPTION
3-PIN XLR，IP-20 DMX Connector
Controller
ORBIT TP
VAC
100~240
VAC
100~240
VAC
100~240
VAC
100~240
Power
24VDC

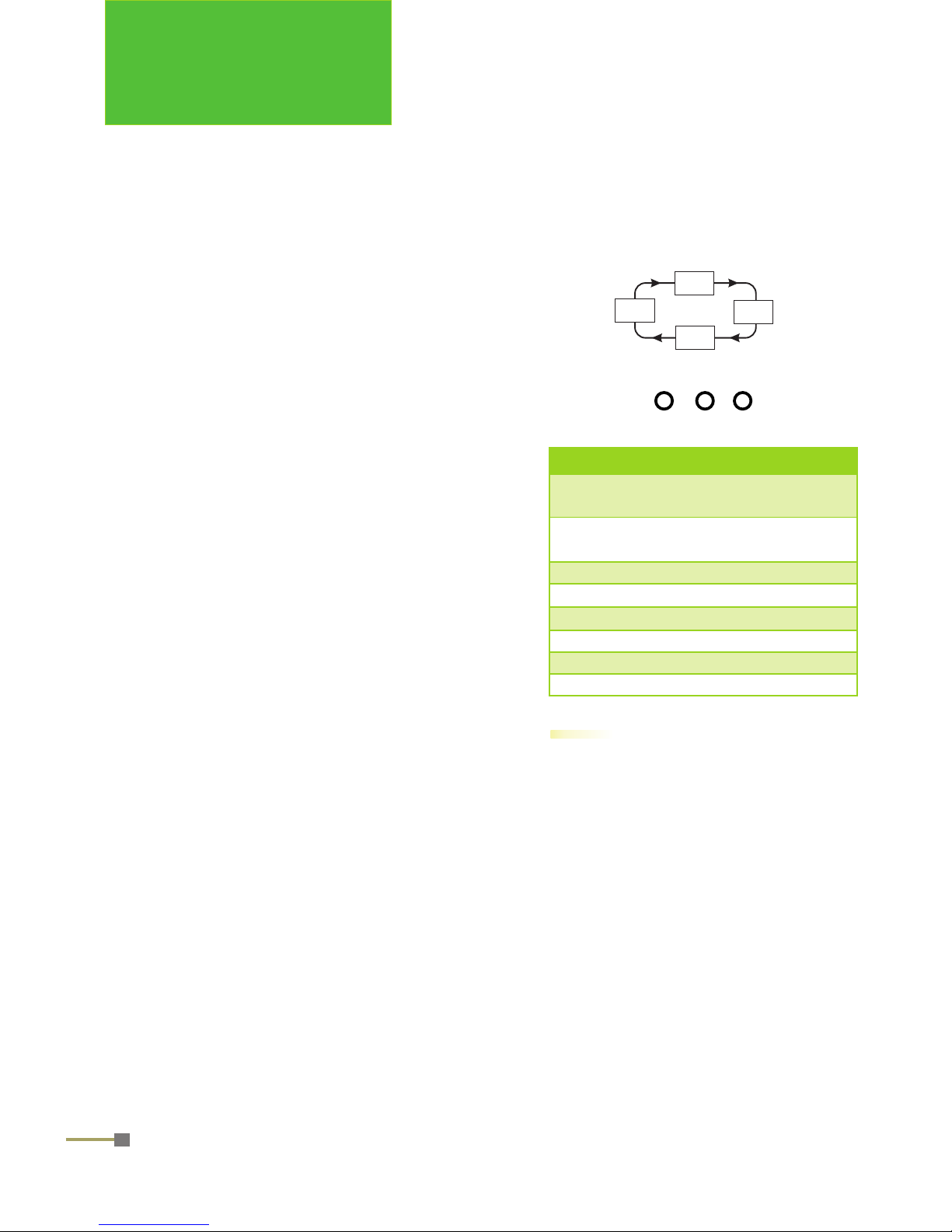

OPERATION
www.colorbeam.com
7
001
C01
F01
S- Me n u
Add.
Color
Fade
Set -
Menu Up
Down
DMX No. Mode
S10
S11
S20
S21
S30
S31
S40
S41
Control all of LED fixtures in
the same channel (default)
Control all of LED fixtures
independently
Master off (default)
Master on
RGB 3 channels (default)
RGB dimming, strobe 5 channels
Delay off (default)
Delay on
Attention: It is important to read this manual before you install or
use this product.
1. Turn on / off the power
2. Fixed Color (20 colors):
There are 20 built-in fixed colors in the
device. Press Menu, the display will
show “C--” on the display. Then the user
can press Down or Up to select the
desired color from C01~C20.
3. Fade Effect ( 9 colors):
There are 9 built-in fade programs in
the device. Press Menu, the display will
show ”F--” on the display.
Then the user can press Down or
Up to select the desired fade
program from F01~F09.
The fade time of the effect can be
changed from 01~99% (0.5~50 sec).
e.g. F03 is running, the fade time
can be changed by pressing Menu
and Hold for 5 seconds. The display
will show ”S--” on the display.
The fade time can be adjusted from
01 to 99% by pressing Down and
Up, and confirm the adjustment by
pressing Menu.
4. DMX Address Setting:
Press Menu and the display shows
the initial DMX address ”001” . The
user can select the desired address
from 001~512 by pressing Down
or Up.
Note:
The function of delay on is designed
for running slow, and free-fliker
program.
The response speed of LEDs is
slower than normal. All drivers must
be set on the same mode (delay on
or off) as connecting together,
otherwise, the program does not run
synchronously.
The slave drivers must be set add.
001 when running Master / Slave
function.

Read the instructions carefully before you install or power the device!
2. Operation Determinations
The device must only be used indoor.
If the device has been exposed to drastic temperature fluctuation, do not switch it on
immediately. The arising condensation water might damage your device. Leave the device
switched off until it has reached room temperature.
Only operate the device after having checked the housing which is firmly closed and all
screws are tightly fastened. Do not shake the device. Avoid brute force when installing or
operating the device.
Operate the device only after having familiarized with its functions. Do not permit operation
by persons who are not qualified for operating the device. Most damages are the result of
unprofessional operation!
The maximum ambient temperature 40 degree must never be exceeded.
Please consider that unauthorized modifications on the device are forbidden due to safety
reasons!
WARNING
CAUTION!
Be careful with your operations.
You can suffer a dangerous electric shock when touch the wires inside the unit.
Keep this driver away from rain and moisture.
Unplug mains lead before opening the housing.
Make sure the plug is tightly connected with outlet.
Make sure all connector are connected properly.
Make sure the AC power that complies with local electrical codes.
Do not expose the device to heat source, corrosive, flammable or explosive area.
Do not block any of ventilation openings.
Do not open the device and try to repair the device personally.
Important
Every person involved with installation and maintenance of the this device has to :
-be qualified.
-following the instructions of manual
Please make sure that there are no obvious transport damages.
Please immediately contact the local dealers as the device is in fault operation or damage.
Damages caused by the disregard of this user manual or unauthorized modification to
products are not subject to warranty.
1. Safety Instructions
!
CAUTION!
For non-Colorbeam fixtures, refer to the
wiring diagram for installation.
6
www.colorbeam.com

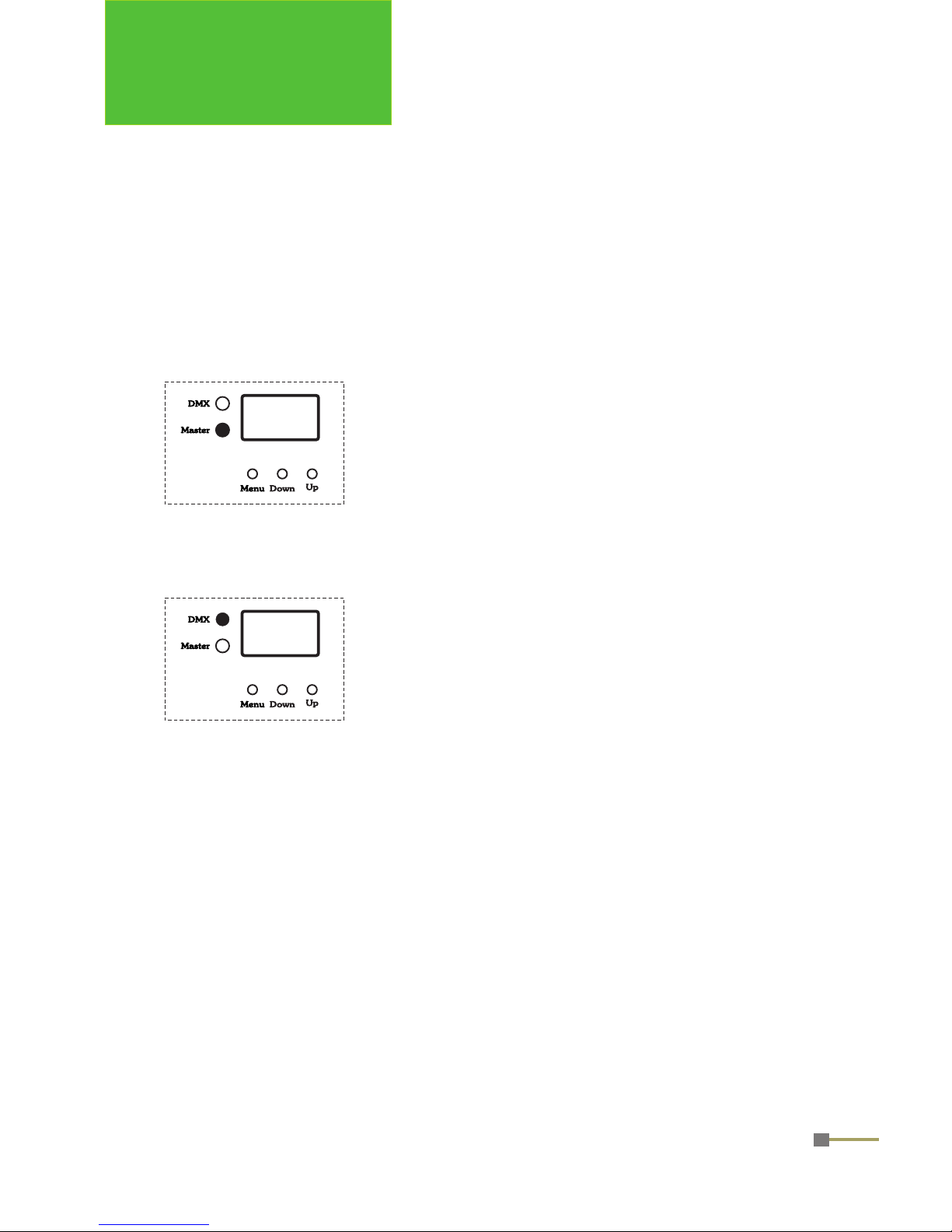

6. Signal Indicator:
(1) Receive Master Signal: The green light shows when the lighting
fixture has been set as Master.
OPERATION
8
www.colorbeam.com
(2) Receive DMX Signal: The green light shows when the lighting fixture
is receiving DMX Signal.
7. Sleeping Mode:
The control unit will go into Sleeping Mode automatically in the event of
no instruction from the keypad after 30 sec. Under Sleeping Mode, the
control unit is functional but the display is off and the keypad is locked.
To leave the Sleeping Mode, the user can press Menu and hold for 5 sec. till
the display is on. When using the DMX Address to control the lighting fixture,
the Sleeping Mode will start after 30 sec. Press Menu and hold for 5 sec.
to leave the Sleeping Mode.
5. DMX Mode Setting:
The following mode can be selected by pressing Menu to confirm it.
Press Menu first and the display shows ”S--”. And press Down or Up
to select the desired program from S10~S41.

ORDER INFORMATION
www.colorbeam.com
9
ITEM HOUSING COLOR BEAM ANGLELEDs PART NUMBER
CP-50
LIGHT
Black 12 x 3W RGB in 1 35° GORL231BF351
ORDER INFORMATION
ORBIT-TP
Driver/Controller
ITEM SPEC. PART NUMBER
Controller GOBC0111

COLORBEAM CO. LTD.
314, 3F., No. 87, Minguang E. Rd.,
Taoyuan City, Taiwan 33052
TEL : [phone]
FAX : [phone]
E-MAIL : [e-mail]
W : www.colorbeam.com
