Colorful Light CL-P360 User manual

LED MOVING HEAD
LedWash
36 x 10w RGBW 4in1
Zooming
USER MANUAL Version 1.0 beta
This product manual contains important information about the safe installation and use of this projector.
Please read and follow these instructions carefully and keep this manual in a safe place for future reference.

LED MOVING HEAD
LedWash
36 X 10w RGBW 4in1 LED Moving Head Zoom
INDEX
2
SAFE USAGE OF THE PROJECTOR
INSTALL THE PROJECTOR
POWER SUPPLY-MAINS
CONTROL CONNECTION
DMX TERMINATOR
SETUP OPTIONS-PROJECTOR CONFIGURATION
TO SET THE DMX START ADDRESS
OPERATION MENU
DMX PROTOCOL
MAINTENANCE
KEEPING THE PROJECTOR CLEAN
TROUBLESHOOTING
TECHNICAL DATA
3
4
12
12
11
7
6
6
6
5
5
12
13
PHOTOMETRIC DIAGRAMS 14

When unpacking and before disposing of the carton check there is no transportation damage
before using the projector. Should there be any damage caused by transportation, consult your
dealer and do not use the apparatus.
The projector is for indoor use only, IP20. Use only in dry locations. Keep this device away from rain
and moisture, excessive heat, humidity and dust. Do not allow contact with water or any other
liquids.
DO NOT mount the projector directly onto inammable surface
The projector is only intended for installation, operation and maintenance by qualied personnel.
The projector must be installed in a location with adequate ventilation, at least 50cm from adjacent
wall surfaces. Be sure that no ventilation slots are blocked.
Do not project the beam onto inammable surfaces, minimum distance is 5m 5m
Avoid direct exposure to the light from the lamp. The light is harmful to the eye. Do not attempt to
dismantle and/or modify the projector in any way.
Electrical connection must only be carried out by qualied personnel.
Before installation, ensure that the voltage and frequency of power supply match the power
requirements of the projector. It is essential that each projector is correctly earthed and that
electrical installation conforms to all relevant standards.
Do not connect this device to any other types of dimmer apparatus.
Make sure that the power-cord is never crimped or damaged by sharp edges. Never let the power-
cord come into contact with other cables. Only handle the power-cord by the plug. Never pull out
the plug by tugging the power-cord.
Keep a projector’s optical system clean. Do not touch LED lens with bare hands.
The projector should always be installed with a secondary safety xing. A safety cord is supplied for
this; it should be attached as shown in “installing the projector” section.
Shields and lens shall be changed if they have become visibly damaged to such an extent than their
effectiveness is impaired, for example by cracks or deep scratches.
LED lamps should be replaced if damaged or having reached life limit.
Exterior surface temperatures of the luminaire after 5 minutes operation is55℃, when steady state is
achieved 70℃,
There is no user serviceable parts inside the projector, do not open the housing and never operate
the projector with the covers removed.
If you have any questions, don’t hesitate to consult your dealer or manufacturer.
Always disconnect a projector from the POWER when not in use or before cleaning or any
SAFE USAGE OF THE PROJECTOR
3

INSTALL THE PROJECTOR
Take 1 clamp and 1 safety cord (the clamp and safety cord are optional accessories). Hang
the xture on the structure and fasten the screws attached to the clamp. (See the WARNING
on the underside of the base as shown above) Always ensure that the projector is rmly
anchored to avoid vibration and slipping whilst functioning. Always ensure that the structure
that you are going to mount the projector is secure and is strong enough to support a weight
of each projector.
WARNING:
The projector MUST be lifted or carried by the HANDLES instead of clamps.
For safety the safety cord should afford 10 times of the unit’s weight.
4
SAFETY CORD GO THROUGH
THE HOLE FOR SAFETY
WARNING

Connect the power cord as follows:
L (live) =brown
E (earth) =yellow/green
N (neutral) =blue
Use the plug provided to connect the mains power to the projector paying attention to the voltage
and frequency marked on the panel of the projector. It is recommended that each projector be
supplied separately so that they may be individually switched on and off.
IMPORTANT
It is essential that each projector is correctly earthed and the electrical installation conforms to all
relevant standards.

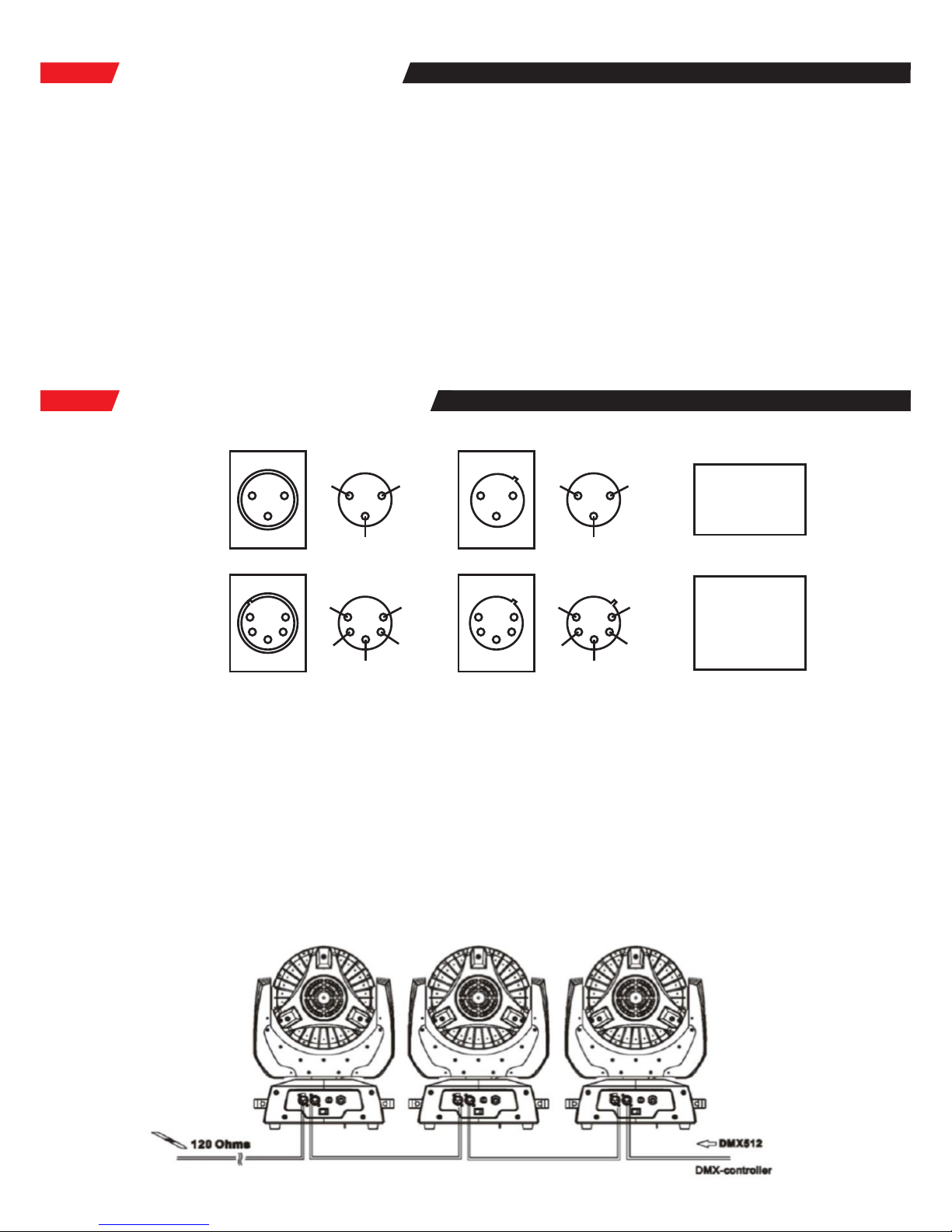

Connection between controller and projector and between one projector and another must be
made with a 2 core-screened cable, with each core having at least a 0.5mm diameter. Connection
to and from the projector is via cannon 3 pin (which are included with the projector) XLR plugs and
sockets. The XLR's are connected as shown in the gure above.
Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or
each other. The body of the plug is not connected in any way. The projector accepts digital control
signals in protocol DMX512 (1990).
Connect the controller’s output to the rst xture’s input, and connect the rst xture’s output to the
second xture’s input and connect the rest xtures in the same way. Eventually connect the last
xture’s output to a DMX terminator as shown in the gure below.
POWER SUPPLY-MAINS
CONTROL CONNECTIONCONTROL CONNECTION
5
1
2
3
3
1
2
5
4
2
1
3
3
5
4
1
2
DMX OUT
DMX OUT
DMX IN
DMX IN
3PIN
5PIN
DMX512
PIN FUNCTION
1 GND
2 DATA-
3 DATA+
DMX512
PIN FUNCTION
1 GND
2 DATA-
3 DATA+
4 N/C
5 N/C

In the Controller mode, at the last xture in the chain, the DMX output has to be connected with a
DMX terminator. This preventselectrical noise from disturbing and corrupting the DMX control signals.
The DMX terminator is simply an XLR connector with a 120Ω(ohm) resistor connected across pins 2
and 3, which is then plugged into the output socket on the last projector in the chain. The
connections are illustrated below.
Projector conguration can be set conveniently via press button switch and LCD display.
To browse or change its setup options, Press button ENTER to unlock panel. Menu will be displayed
on the screen, each menu has it own sub-menu. Each menu has specic function, Please refer to
“Operation Menu” for details.
Press button UP or DOWN if you want to browse or change through the various Setup Options.
Press button ENTER to save your settings or enter the next menu.
Press button UP or DOWN to change values.(Add or subtract)
Press button FUNC , it will return to the upper menu one by one.
Each projector must be given a DMX start address so that the correct projector responds to the
correct control signals. This DMX start address is the channel number from which the projector starts
to “listen” to the digital control information being sent out from the controller. The xture have 3 DMX
modes. There are simple mode, standard mode and extended mode. For example standard mode
has 15 channels, so set the No. 1 projector’s address 001, No. 2 projector’s address 016, No. 3
projector’s address 031, No. 4 projector’s address 046 and so on.
Launch the projector. Press button ENTER more than 5 seconds to unlock panel.
Press button ENTER to display DMX address.
Press button UP or DOWN , you can set the address.
Press button ENTER to conrm, which means the projector has saved the Start Address automatically,
when powered on next time, it will display the value saved last time.
Press button UP or DOWN to change values.(Add or subtract)
Press button FUNC , it will return to the upper menu one by one.
DMX TERMINATOR
1
2
3
120Ω
DMX TERMINATOR CONNECTION
Connect a 120Ω(OHM) resistor
across pins 2 and 3 in an XLR plug and
insert into the DMX out socket on the
last unit in the chain.
SETUP OPTIONS-PROJECTOR CONFIGURATION
TO SET THE DMX START ADDRESS
FUNC DOWN UP ENTER
6
PIN2 PIN3

OPERATION MENU
Colorful Light
36 Led Zoom
DMX Address = 001
Colorful Light
Address Setup
Address = 001
Colorful Light
Manual Operation
Pan = 000
Level 2 Level 3 Level 4
Colorful Light
36 Led Zoom
Auto = P01:S01
Colorful Light
36 Led Zoom
Master = P01:S01
Colorful Light
36 Led Zoom
Slave = P01:S01
Colorful Light
36 Led Zoom
Slave same
Colorful Light
Address Setup
Colorful Light
Reset
Colorful Light
Manual Operation
Colorful Light
Reset Complete
Colorful Light
Manual Operation
Pan
Colorful Light
Manual Operation
Titl
Colorful Light
Manual Operation
Red
Colorful Light
Manual Operation
Greenl
Colorful Light
Manual Operation
Blue
Colorful Light
Manual Operation
White
Colorful Light
Manual Operation
Tilt = 000
Colorful Light
Manual Operation
Red = 000
Colorful Light
Manual Operation
Green = 000
Colorful Light
Manual Operation
Blue = 000
Colorful Light
Manual Operation
White = 000
Colorful Light
36 Led Zoom
Music = P01:S01
Level 1
7

Level 2 Level 3 Level 4
Colorful Light
Operation Mode
Colorful Light
Mode =
DMX Mode
Colorful Light
DMX Mode =
Short Mode
Colorful Light
Option Settings
Colorful Light
Option
Pan Tilt Swap
Colorful Light
Pan Tilt Swap
=OFF
Colorful Light
Mode =
Auto Mode
Colorful Light
Mode =
Master Mode
Colorful Light
Mode =
Slave SYNC Mode
Colorful Light
Mode =
Slave SAME Mode
Colorful Light
Mode =
Music Mode
Colorful Light
DMX Mode =
Extended Mode
Colorful Light
Select Program
Program = 001
Colorful Light
Select Program
Program =001
Colorful Light
Select Program
Program = 001
Colorful Light
Select Program
Program = 001
Colorful Light
DMX Mode =
Standard Mode
Colorful Light
Option
Pan Invert
Colorful Light
Option
Tilt Invert
Colorful Light
Pan Tilt Swap
=ON
Colorful Light
Pan Invert
=OFF
Colorful Light
Pan Invert
=ON
Colorful Light
Tilt Invert
=OFF
Level 1
Colorful Light
Manual Operation
Zoom
Colorful Light
Manual Operation
Zoom = 000
8

Level 2Level 2 Level 3 Level 4
Colorful Light
Option
Lost DMX
Colorful Light
Display Setup
Display Invert
Colorful Light
Delay Off
= Enable
Colorful Light
Advanced
Colorful Light
Access Code
Colorful Light
Access Code
Code = 000 注:Code = 008
Colorful Light
Option
Display Setup
Colorful Light
Delay Off
= Disable
Colorful Light
Display Setup
Delay Off
Colorful Light
Display Setup
Language
Colorful Light
Lost DMX
=Clear Value
Colorful Light
Lost DMX
=Hold Value
Colorful Light
Display Invert
= OFF
Colorful Light
Display Invert
= ON
Colorful Light
Language
= English
Colorful Light
Language
= 简体中文
Colorful Light
Adjust
Colorful Light
Adjust
Pan
Colorful Light
Adjust
Tilt
Colorful Light
Adjust
Red
Colorful Light
Adjust
Green
Colorful Light
Adjust
Pan = +000
Colorful Light
Adjust
Tilt = +000
Colorful Light
Adjust
Red = 000
Colorful Light
Adjust
Green = 000
Level 1
Colorful Light
Tilt Invert
=ON
9

Level 1 Level 2 Level 3 Level 4
Colorful Light
Information
Colorful Light
Temperature
Colorful Light
Temperature
=025C
Colorful Light
Reset Hours
=NO
Colorful Light
Mic Sensitivity
Colorful Light
Adjust
White
Colorful Light
Mic Sensitivity
=080%
Colorful Light
Adjust
White = 000
Colorful Light
Load Defaults
Colorful Light
Fixture Hours
Colorful Light
Product ID
Colorful Light
View DMX Value
Colorful Light
Version
Colorful Light
Load Defaults
=NO
Colorful Light
Load Defaults
=YES
Colorful Light
Fixture Hours
=00000 H
Colorful Light
Product ID
= Y************
Colorful Light
View DMX Value
Channel 001 = 000
Colorful Light
Version
=1.00
Colorful Light
Reset Hours
=YES
Note:
There is only one Projector to be set as a Master in a signal Cable. If Master’s functions used,
Please disable DMX control signal.
When multiple projectors’ work together in synchronous control state, Parameters can be
transmitted from the master projector to the slave projectors such as DMX channel mode,
Display setting status and operation mode (User memory data is included). Before
parameters transmitted, the projector which will send parameters should be set as a Master
and others be as Slaves.
10
Colorful Light
Adjust
Blue
Colorful Light
Adjust
Blue = 000

DMX PROTOCOL
Short
mode
Standard
mode
Extended
mode
Mode/Channel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Pan
Pan Fine
Tilt
Tilt Fine
Move Speed
Dimmer
Dimmer ( 8 Bit )
Strobe
Red ( 8 Bit )
Red ( 16 Bit )
Green ( 8 Bit )
Green ( 16 Bit )
Blue ( 8 Bit )
Blue ( 16 Bit )
White ( 8 Bit )
White ( 16 Bit )
Zoom
Color
Temperature
Virtual
Color Wheel
Function
"停留于某值的
时间大于5秒"
FUNCTION VALUE
0~255
0~255
0~255
0~255
0~255
0~255
0~255
0~9
10~255
0~255
0~255
0~255
0~255
0~255
0~255
0~255
0~255
0~255
0~9
10~19
20~29
30~39
40~49
50~59
60~255
0~9
10~255
0~24
25~49
50~74
75~99
100~124
125~149
150~174
175~199
200~224
225~255
Pan Moving 0 - 540 Degree
Pan Fine Moving
Tilt Moving 0 - 270 Degree
Tilt Fine Moving
Moving Speed From Fast To Slow
RGBW All Dimmer
RGBW All Fine Dimmer
No Strobe
Strobe From Slow To Fast
Red control
Red ne control
Green control
Green ne control
Blue
Blue ne control
White
White ne control
Zoom from Distant to Near
No function
2700K
3200K
4200K
5600K
8000K
Color Temperature from Slow to High
Virtual Color ( B>BG>G>GR>R>RB>B )
Unused
Unused
Unused
Unused
Unused
Unused
Unused
Unused
Unused
Unused
Reset: Complete
1
2
3
4
5
6
8
9
10
11
12
13
7
14
15
1
2
3
4
5
6
7
8
9
10
DESCRIPTION
11

MAINTENANCE
To prolong a Projector’s life, Regular maintenance should be done for its LED optical System
to ensure that the system be in best operational condition. If the projector does not function,
check the fuses on the power socket of the projector, if burned, they should only be replaced
by fuses of the same specication. Should these be damaged call a qualied technician
before replacement. The projector has thermal protection device that will switch off the
projector in case of overheating, should this occur, check if the fans work normally or fan and
fan shield are blocked by dust. If the projector not operational, call a qualied technician.
After cleaned and repaired, the projector can be restarted.
Any maintenance work should only be carried out by qualied technicians.
KEEPING THE PROJECTOR CLEAN
It denitely necessary to keep a projector clean for its reliable use. Cooling fans and their
shield should be cleaned every 15days. LED lamps’lens and cover should be cleaned
regularly for optimized light output.
Cleaning frequency depends on how often a projector is used and its operational
environment. A soft cloth and typical glass cleaning products should be used in cleaning. It
is recommended to clean the external optics at least once every 20 days.
Do not use any organic solvent, e.g. alcohol, to clean t housing of the apparatus.
TROUBLESHOOTING
PROBLEM ACTION
The projector can’t be started
The lamp can be started, but LED
lampsare off and not controlled
A projector’s lamps are on but
it doesn’t respond to the controller
The beam appears dim and
its brightness slows sharply
> Power Cable not connected well
> Power supply damaged or not connected well,
a qualied Technician should be required
> Control board not connected well and a qualied
Technician should be
> LED boards not connected properly, a qualied
technician is needed
> Make sure that the projector’s start address is
correctly set
> Replace or repair the DMX cable.
> Ambient temperature too high which result in a
projector overheating, necessary ventilating
measures needed.
12

TECHNICAL DATA
VOLTAGES:
100V~240V AC，50/60Hz
POWER CONSUMPTION:
400W@220V
LED:
Power consumption10W(RGBW)
Quantity36pcs
Manufacturers Rated LED Life 50000 Hours
COLOURS:
RGBW linear color mixing
COLOR TEMPERATURE CORRECTION:
Linear color temperature correction from 2700K to 8000K
DIMMER:
0-100% linearly adjustable
STROBE:
Electronic Strobe 0 ~25F.P.S
PAN AND TILT:
PAN(0°~540°) and TILT(0°~270) , User-selectable Pan/Tilt ranges
ZOOM ANGLE:
12°~70°
CONTROL:
DMX512, 3 pins interfaces RDM Control Protocol
10channels in short mode, 15channels in standard mode, and 20 channels in extended mode
Master/Salve Synchronous
Control Mode:
DMX512 / Master-Slave / Auto / Custom / Sound
HOUSING:
Flame retardant engineering plastic shell/cast aluminum, Ip20
WORK ENVIRONMENT TEMPERATURE:
-10°C~40°C
CARTONS PACKING DIMENSION:
Inner: 410x330x450 (mm) Outer: 435x345x480 (mm)
WEIGHT:
Net weight :9.6KgGross Weight: 13.0Kg
13

DIMENSIONS (mm):
240
330
235
375
280
286
440
85
220
14
0 1 2358 10
0
2
4
6
2
4
6
70° 12°
Beam opening(m)
Distance (m)
Diameter (m) - 12°
0
0
1.6
11.2
2.1
14
0.2
1.4
0.6
4.2
0.4
2.8
1.0
7.0 Diameter (m) - 70°
PHOTOMETRIC DIAGRAMS

Min.zoom (12 )°
15
Distance (m)
Red
Green
Blue
White
17800/1654
1 3 5
Distance (m)
R+G+B+W
5
650/60 232/22
7240/673
940/87
880/82 305/28
130/12 50/4.6
1472/137 842/78 310/29
123 8 10
5000/465 2200/205 790/73.4 320/30 200/19
4320/401
Intensity (center)
Lux/Footcandles
Intensity (center)
Lux/Footcandles
2500
500
1000
1500
2000
0
1.0 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 1.00.90.8
0.70.6
0.50.40.30.20.1
Distance=3m
Diameter (m)
(Lux)
233
186
140
93
47
0
(Foot-candles)
R+G+B+W
White
Blue
Green
Red

Max.zoom( )70°
16
Distance (m)
Red
Green
Blue
White
Intensity (center)
Lux/Footcandles
4200/390
1 3 5
Distance (m)
R+G+B+W
5
160/15 70/6.5
1610/150
282/26
193/18 75/7
35/3.2 14/1.3
1472/137 174/16 69/6.4
123 8 10
1100/102 510/47 200/19 80/7.4 60/5.6
1310/122
Intensity (center)
Lux/Footcandles
600
120
240
360
480
0
5.0 4.5 4.0 3.5 3.0 2.5 2.0 1.5 1.0 0.5 0 5.04.54.0
3.53.0
2.52.01.51.00.5
R+G+B+W
White
Blue
Green
Red
Distance=3m
Diameter (m)
(Lux)
56
45
34
22
11
0
(Foot-candles)
