GENERAL SAFETY
1. Read carefully and keep these instructions in a
safe place.
2. Use this product only for its intended function and
do not use attachments not recommended by the
manufacturer.
3. Do not use outdoors.
PLUMBING
1. This unit must be plumbed by a licensed plumber.
IMPORTANT PLEASE READ THESE SAFETY INSTRUCTIONS
DO NOT ALLOW CHILDREN AROUND
THE WASHLOUNGE WHEN IN USE
ALL PLUMBING MUST BE COMPLETED
BY A LICENSED PLUMBER
IMPORTANT
IMPORTANT

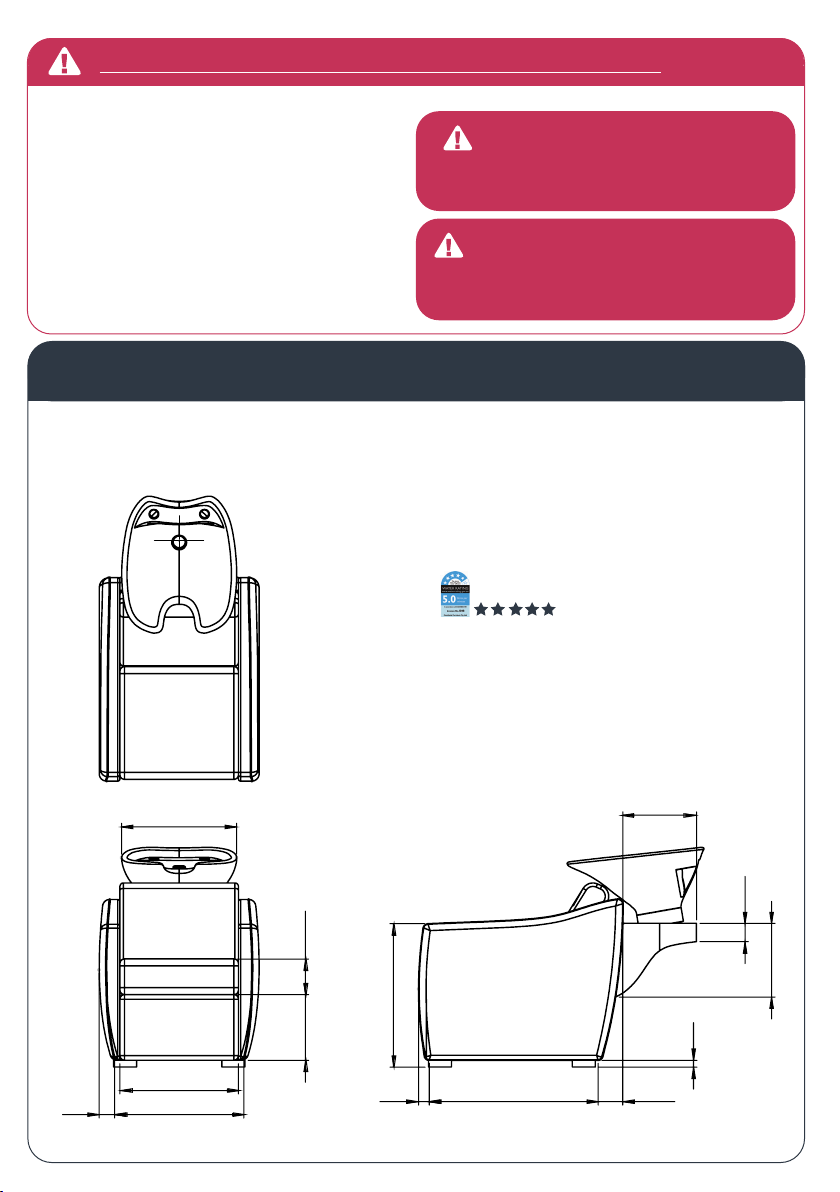

GET STARTED
HAZEL
Wash Lounge
Total Width: 700mm (27.5")
Internal Seat Width: 515mm (20.3")
Length: 1240mm (48.8")
Basin Height: 900mm (35.5")
Water consumption: 5L p/m
AUSTRALIA
WELS RATING
155285
515
590
500
55
320
80
770 90
30
620
320
25
(19.7")
(12.6")
(12.6")
(3.15")
(6.1")
(24.4")
(11.2")
(20.3")
(2.15")
(1") (3.5")
(1.2")
(30.3")
(23.25")

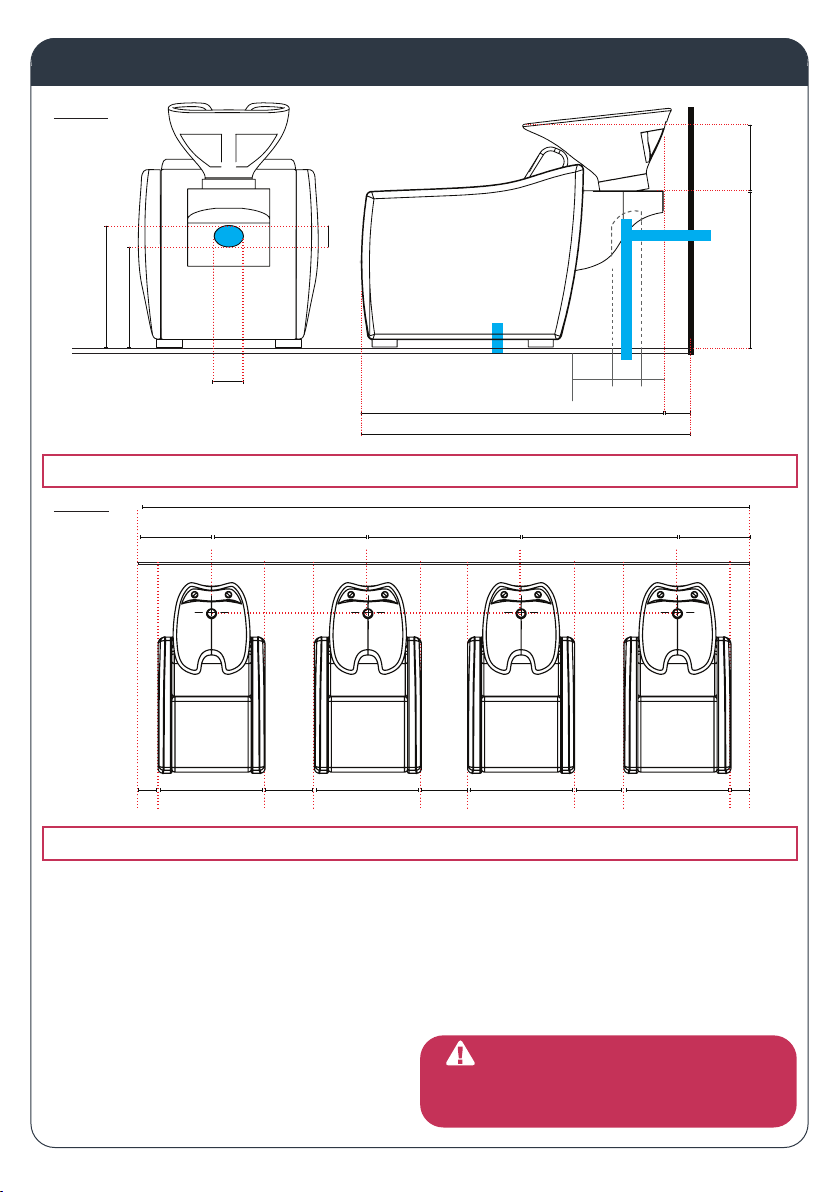

POSITIONING
DIAGRAM A
DIAGRAM B
PLUMBING ACCESS OPTIONS
Determine the best way to connect plumbing.
OPTION A: FROM WALL TO BASIN STAND
From behind the basin stand connect plumbing to the wall
OPTION B: FROM FLOOR BENEATH SEAT
From under the chair seat connect plumbing to the floor
OPTION C: FROM FLOOR TO BASIN STAND
From under the basin stand connect plumbing to the floor
ALL PLUMBING MUST BE COMPLETED
BY A LICENSED PLUMBER
IMPORTANT
BEFORE INSTALLING YOU SHOULD CONSIDER
THE FOLLOWING
• Allow for the necessary room around the unit for
free movement.
• If installing against a wall, a minimum distance of
80mm (3.15") between wall and bottom back of basin
is required to allow free movement of basin.
• If plumbing location is in wall (see Diagram A).
For neatness of finish it is preferable to bring water
and waste into the wash lounge in the same hole.
• If plumbing location is on floor (see Diagram A),
place wash lounge over.
100
50 100 100 50
400800
3200 (126”)
(31.5”) 800 (31.5”) 800 (31.5”) (15.75”)
700 (27.5”) 700 (27.5”) 700 (27.5”) 700 (27.5”)
(4”)(4”)(4”)(2”) (2”)
400 (15.75”)
Wall
1240 (48.8”)
120
130
(4.7”)
(5.1”)
520 (20.5”)
390 (15.3”)
(52”)
(3.15”)
(23.25”) (12.2”)
A
80
310590
1320
BC
150 90
(3.5) (3.5)
(5.9)
90
If washing from behind, add a minimum of 400mm (15.75") of space behind your wash lounge to provide room for access.
If washing from side add 400mm (15.75"). All measurements in mm (inches).

GET STARTED

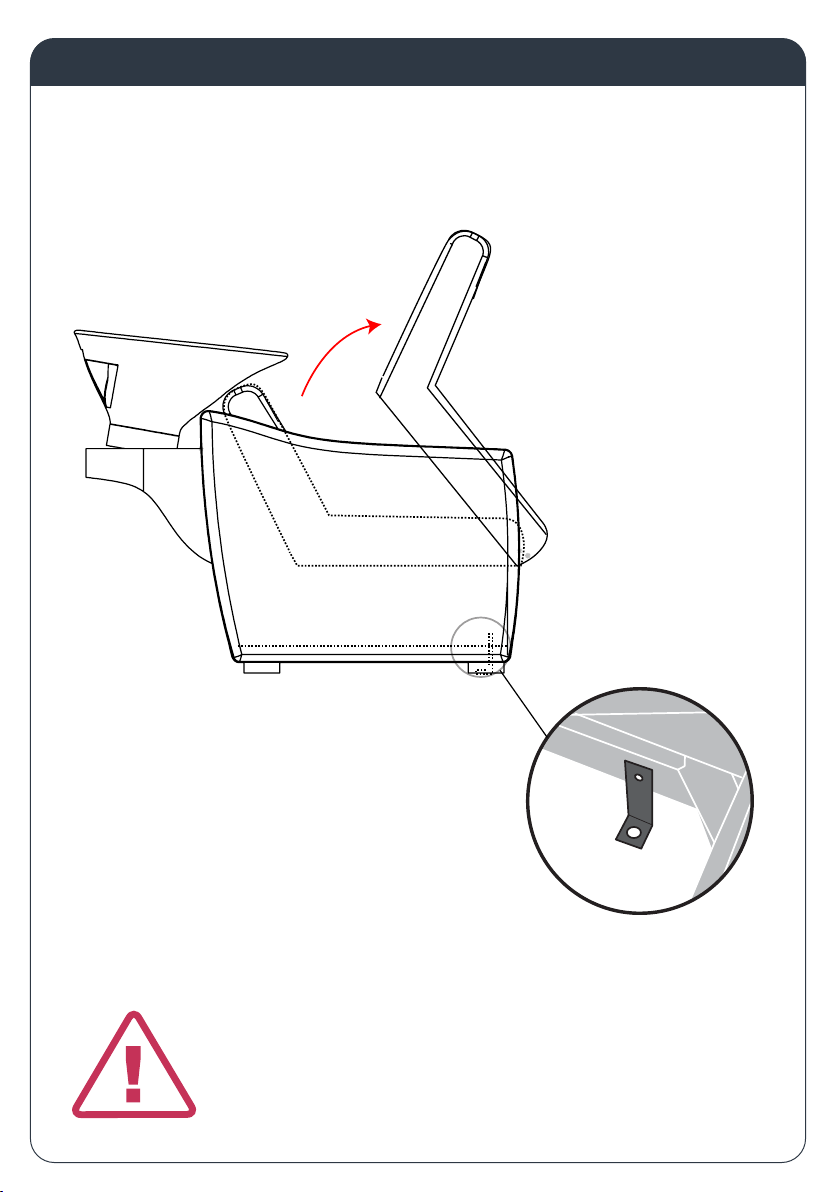

SECURE AND BOLT DOWN
BEFORE INSTALLATION
THE WASH LOUNGE MUST BE SECURED TO THE FLOOR.
Making sure your wash lounge is supported from behind, remove the back
panel by unscrewing the two screws located on the left and right of the
access panel. Fix to the floor through connector brackets using bolts.
LIFT SEAT UP

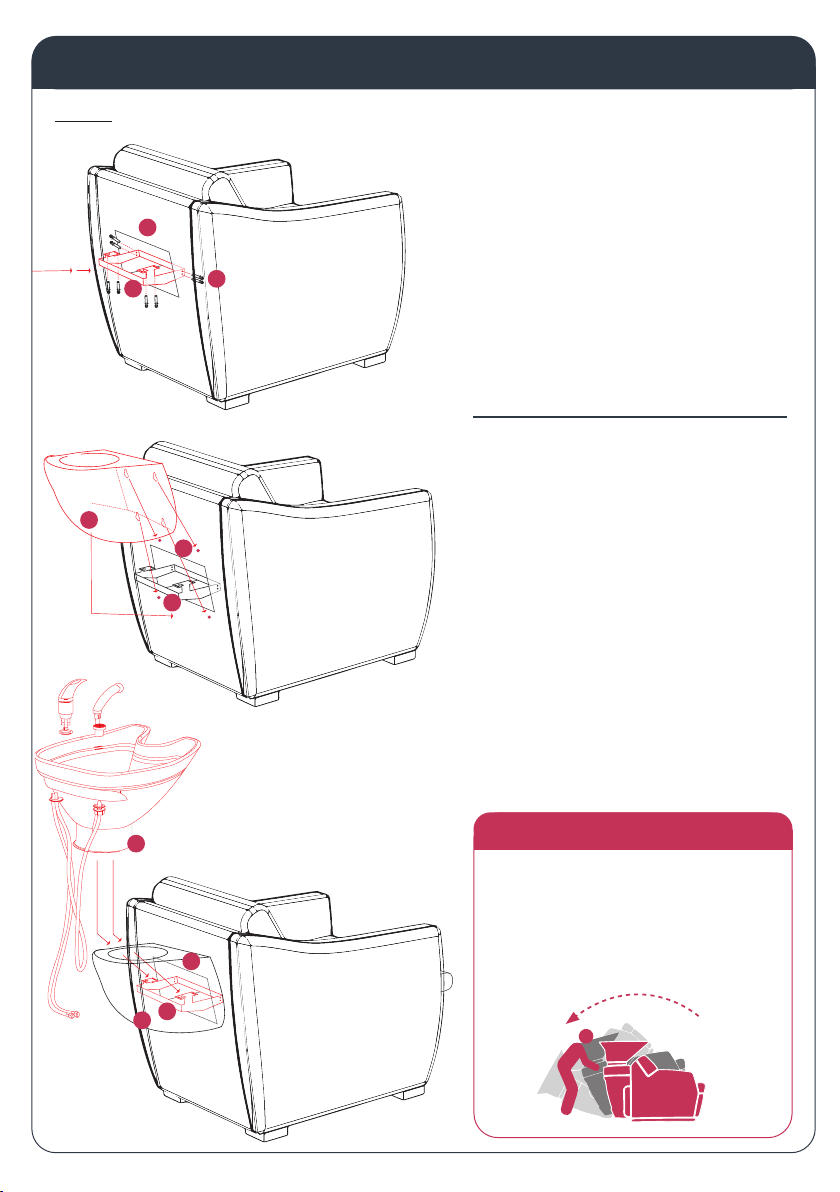

INSTALLATION & ASSEMBLY: BASIN
DIAGRAM D
INSTALLING BASIN
·Undo bolts and remove steel frame from the
opening of the back of chair.
·Flip steel frame over and re-bolt onto the inside of
the chair using bolts supplied.
·Secure and bolt on the stainless cover onto the
steel frame.
·Using 4 x bolts/nuts provided, install ceramic basin
onto steel frame and tighten.
·Check the basin is balanced. If not balanced,
adjust the bolts to ensure that the basin is balanced
correctly.
PLEASE MAKE SURE THERE IS
SUPPORT AT THE BACK OF THE WASH
LOUNGE WHERE THE WASH BASINS
ARE LOCATED, AS ONCE THE SEAT
CUSHION IS REMOVED  THE UNIT
COULD TILT BACKWARDS.
1. Opening at back of chair
2. Steel frame
3. Bolts (supplied)
4. Stainless steel cover
5. Ceramic basin
IMPORTANT
BASIN ASSEMBLY
3
1
2
2
1
4
4
2
1
5
3
1
2
2
1
4
4
2
1
5
3
1
2
2
1
4
4
2
1
5

ASSEMBLY
DIAGRAM C
BASIN ASSEMBLY
124
3
6
5
7
8
9
14
17
18
10
11
12
13
16
15
1. Flick Mixer
2. Showerhead
3. Showerhose basin
collar
4. Comfortneck
5. O-ring
6. Foam washers
7. Plastic nut
8. Flat seal
9. Fitted flange
10. Flexible waste pipe
11. Flange
12. Seal
13. P trap (not supplied)
14. Hot and cold braided
hoses
15. Long nut
16. Plastic washers
17. Metal washers
18. O-ring
WASHLOUNGE ASSEMBLY
1. Washlounge MUST be secured to the floor.
BASIN ASSEMBLY
2. Install Flick Mixer using O-ring, plastic and metal
washers & (Long Nut) and Shower Head using the
Showerhose Basin Collar, O-ring, Foam Washer &
Plastic Nut as indicated.
3. Place Flick Mixer and Shower Head Hoses through the
holes in the basin.
4. Connect Flexible Waste Pipe to Plug and Waste which
is already installed making use of the with Flat Seal and
fitted Flange.
PLUMBING CONNECTION
5. Connect Flexible Waste Pipe to P trap (not supplied)
making use of Seal and Flange.
6. Connect hot and cold (½” connection) braided hoses
to respective supplies.
7. Please attach Comfortneck to the basin.

CLEANING
UPHOLSTERY
All upholstery needs some care; good housekeeping will help to prolong the life of any upholstered products.
Avoid extreme temperatures. Extreme cold can make your vinyl prone to cracking, while extreme heat can cause
permanent stretching. Avoid exposing your products to direct sunlight for prolonged periods of time.
ALWAYS FOLLOW THE CLEANING INSTRUCTIONS
• Wipe with a clean colourfast cloth dampened with mild alkaline free soap and luke warm water. Do not wet
excessively.
• Remove all traces of any cleaning product by wiping with fresh water and a clean cloth.
• Dry with a soft, clean cloth.
• Stubborn grime may require gentle scrubbing with a soft brush.
Do not use:
• hot or boiling water
• hydrocarbons including alcohol
• acetone
• furniture polishes
• bleach
• concentrated detergents
• abrasive powder or paste cleaners
• steel wool
• silicon or petroleum-based cleaners
• solvent based or abrasive cleaning agents
METAL AREAS
Wipe using regular cleaning products that are recommended for stainless steel and metals.
Do not use:
·acetone ·furniture polishes
·bleach ·detergent
·abrasive cleaners ·steel wool
Damage caused by any improper treatment is not covered by the product warranty.
A periodic inspection of all components and fasteners should be made to ensure that your washlounge is structurally
intact and functioning properly.
Damaged and broken parts should be replaced and loose fasteners tightened.
All maintenance to be carried out by a suitably qualified tradesperson.
MAINTENANCE
HOW TO CHANGE A SHOWERHEAD
Please view our online video on how to change a showerhead:
www.comfortel.com.au/service-support/troubleshooting-videos/
ALWAYS FOLLOW THE CLEANING INSTRUCTIONS

PRODUCT CODE The information contained in this document is subject to change without notice and
should not be construed as a commitment by Comfortel Furniture Pty Ltd.
Comfortel Furniture Pty Ltd. assumes no responsibility for any errors that may appear in
this document nor does it make expressed or implied warranty of any kind with regard
to this material, including, but not limited to, the implied warranties of merchantability
and fitness for a particular purpose.
Comfortel Furniture Pty Ltd. shall not be liable for incidental or consequential damages
in connection with or arising out of the use of this document and the program material.
PURCHASE DATE INVOICE NUMBER
NOTE YOUR PURCHASE DATE & INVOICE NUMBER FOR FUTURE REFERENCE
PLEASE RETAIN THIS INFORMATION FOR FUTURE REFERENCE
For more information about our products and services, contact us at comfortel.com.au
WARRANTY PERIOD
TERMS AND CONDITIONS. For more information about our warranty, please refer to our website.
