LG WM2688H Series User manual

Owner's Manual
WM2688H*M
☎1-800-243-0000
24 HOURS A DAY, 7 DAYS A WEEK FOR LG CUSTOMER SERVICE
Please read this manual carefully. It provides
instructions on safe installation, use, and maintenance.
Retain it for future reference.
Record the model and serial numbers of your machine
and report this information to your dealer if your machine
requires service.
Washing Machine
Designed specially to use only
HE (High Efficiency) detergent

PRODUCT FEATURES
2
CONTENTS
■Ultra Capacity
The Larger drum enables not just higher head drop and stronger centrifugal force, but also
less tangling and wrinkling of the laundry. Heavier loads, such as king size comforters,
blankets, and curtains, can be washed.
■Direct Drive System
The advanced Brushless DC motor directly drives the drum without
belt and pulley.
■Tilted Drum and Extra Large Door Opening
Tilted drum and extra large opening make it possible to load
and unload clothing more easily.
■Steam Washing and SteamFreshTM
Steam Washing features upgraded washing performance with low energy and water
consumption. SteamFreshTM cycle removes wrinkles from dry clothes.
■RollerJets
Washing ball enhances the wash performance and reduces damage
to the clothing. The jets spray and help tumble clothes to enhance
washing performance while maintaining fabric care.
■Automatic Wash Load Detection
Automatically detects the load and optimizes the washing time.
■Built-in Heater
Internal heater helps to maintain water temperature at its optimum level for selected cycles.
■Child Lock
The Child lock prevents children from pressing any button to change the settings during
operation.
■Using the RLM (Remote Laundry Monitor)
The RLM monitors status of your washer and/or dryer. You can plug the display unit into any
power outlet in your home.
The RLM Display Unit can be purchased separately for this washer.
Important Safety Information ...........................................................................................................................................3
Specifications...................................................................................................................................................................4
Installation Instructions ....................................................................................................................................................5
Preparation Before Washing..........................................................................................................................................10
Using the Dispenser ......................................................................................................................................................11
Cycles ...........................................................................................................................................................................13
How to Use the Washer.................................................................................................................................................14
Maintenance ..................................................................................................................................................................17
Troubleshooting Guide ..................................................................................................................................................20
Warranty ........................................................................................................................................................................23
추가선택 예약
추가선택 예약

IMPORTANT SAFETY INFORMATION
ENGLISH
3
READ ALL INSTRUCTIONS BEFORE USE
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire or
explosion, electric shock, or to prevent property damage, personal injury, or loss of life.
IIMMPPOORRTTAANNTTSSAAFFEETTYYIINNSSTTRRUUCCTTIIOONNSS
• Read all instructions before using the washer.
• Do not wash articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry cleaning solvents, or other
flammable or explosive substances, as they give
off vapors that could ignite or explode.
• Do not add gasoline, dry cleaning solvents, or
other flammable or explosive substances to the
wash water. These substances give off vapors that
could ignite or explode.
• Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for 2 weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot water system has not been
used for such a period, before using the washing
machine, turn on all hot water faucets and let the
water flow from each for several minutes. This will
release any accumulated hydrogen gas. As the gas
is flammable, do not smoke or use an open flame
during this time.
• Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children.
• Before the washer is removed from service or
discarded, remove the door to prevent children
from hiding inside.
• Do not install or store the washer where it will be
exposed to the weather.
• Do not tamper with controls.
• Do not repair or replace any part of the washer or
attempt any servicing unless specifically
recommended in the user-maintenance
instructions or published user-repair instructions
that you understand and have the skills to carry
out.
• See Installation Instructions for grounding
requirements.
• ALWAYS follow the fabric care instructions
supplied by the garment manufacturer.
• Do not place items exposed to cooking oil in your
washer. Items contaminated with cooking oils may
contribute to a chemical reaction that could cause
a load to catch fire.
• Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
WARNING : To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic
precautions, including the following:
SSAAVVEETTHHEESSEEIINNSSTTRRUUCCTTIIOONNSS
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk
of electric shock by providing a path of least resistance for electric current. This appliance is equipped with
a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
• Do not use an adapter or extension cord.
• Do not remove ground prong.
• If you don’t have the proper outlet, consult an electrician.
GROUNDING INSTRUCTIONS
WARNING : Improper connection of the equipment-grounding conductor can result in risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is
properly grounded. Do not modify the plug provided with the appliance - if it does not fit the outlet,
have a proper outlet installed by a qualified electrician.
!
!
!

& Steam Nozzle
Drum Light
Door Seal
HIGH
WASHING
HIGH
HOT/
COLD
STEAMDOORLOCK
EST.TIME:
REMANING
5%
NORMAL
CHILDLOCKDELAYWASH
1:21
SPECIFICATIONS
4
■
Accessories
■Name: Front-loading Washing Machine
■Power supply: 120V~ 60Hz
■Size: 68.6 cm (W) X 75.6 cm (D) X 98.3 cm (H), 129.1 cm (D with door open)
27”(W) X 293/4”(D) X 3811/16”(H), 5013/16”(D with door open)
■Weight: 192 lbs. (87 kg)
■Wash capacity: 3.47 cu. ft. (IEC: 4.0 cu. ft.)1)
■Spin speed: 1320 rpm max.
■Permissible water pressure: 14.5 ~ 116 PSI (100 ~ 800 kPa)
✽Specifications subject to change by manufacturer.
1) Per IEC 60456, washes the equivalent of a 4.0 cu. ft. agitator washer.
Safety Cover (PLC Modem)

5
INSTALLATION INSTRUCTIONS

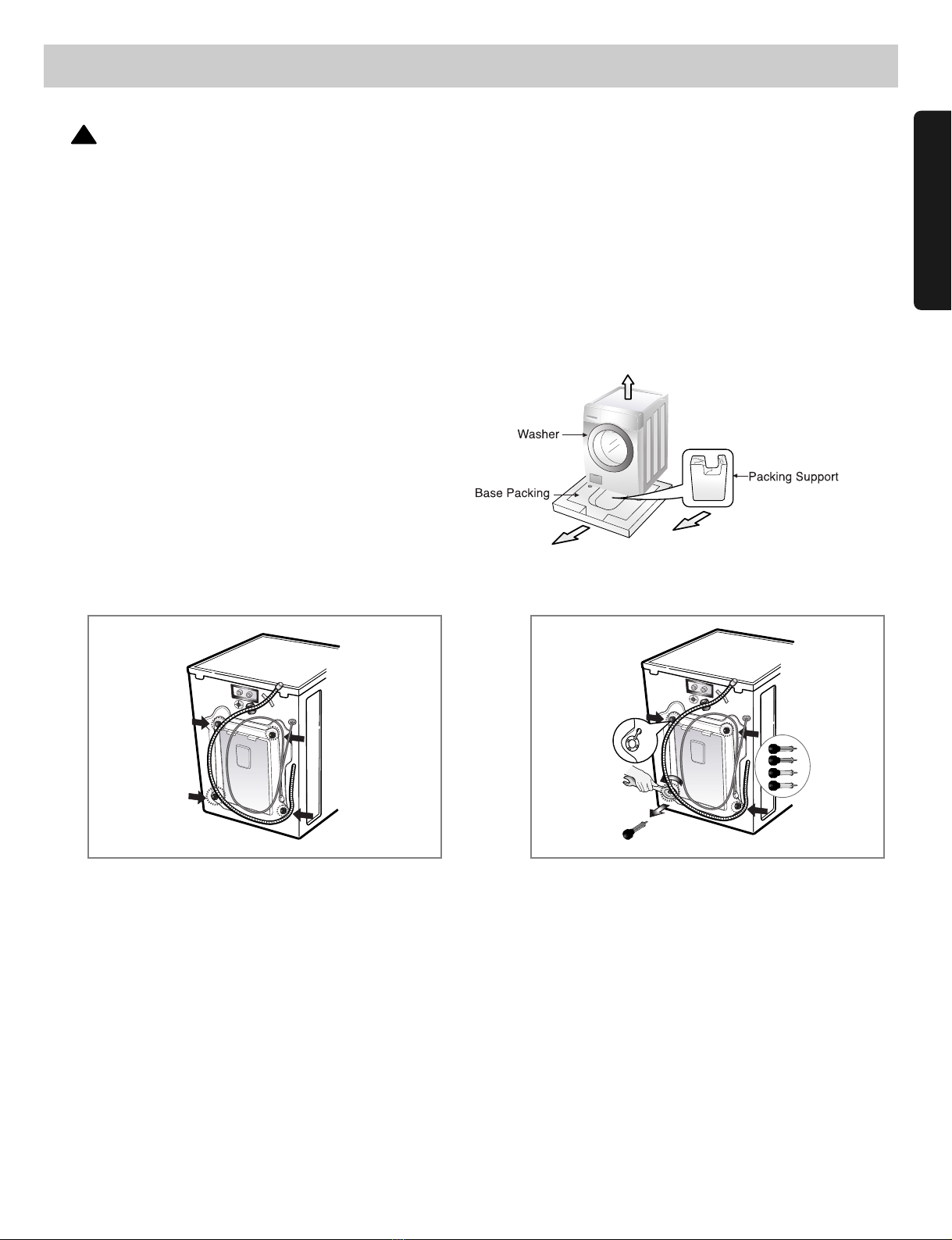

1. To prevent internal damage during transport,
4 locking bolts are installed. Before operating
the washer, remove the bolts and braces.
• If they are not removed, it may cause severe
vibration, noise, and malfunction.
3. Take out the 4 bolts and braces by twisting
the braces slightly. Keep the 4 bolts, braces
and the wrench for future use.
• Whenever the appliance is transported, the
shipping bolts and braces must be replaced.
2. Unscrew the 4 bolts with the wrench supplied.
Do first lower side to remove easily. One of the
bolts retains the power cord of the washer to
prevent operating without removing bolts.
4. Close the holes with the caps supplied.
The appliance is fitted with shipping bolts to prevent
internal damage during transportation.
Packing and all shipping bolts must be removed
before using the washer.
☞When unpacking the base, be sure to remove the
additional packing support in the middle of the
base packing.
: Two or more people may be need to install and move the appliance.
■Shipping bolts
Install or store unit where it will not be exposed to temperatures below freezing or
exposed to outside weather conditions.
Properly ground washer to conform with all governing codes and ordinances.
To reduce the risk of electric shock, do not install the washer in humid spaces.
The base opening must not be obstructed by carpeting when the washing machine is installed on a carpeted floor.
In countries where there are areas which may be subject to infestation by cockroaches or other vermin, pay
particular attention to keeping the appliance and its surroundings in clean condition at all times.
Damage caused by cockroaches or other vermin will not be covered by the appliance warranty.
■Removing shipping bolts
(Packing support may not
be used depending on
models.)
cap
ENGLISH
!
WARNING
