GENERAL SAFETY
1. Read carefully and keep these instructions in a
safe place.
2. Use this product only for its intended function and
do not use attachments not recommended by the
manufacturer.
3. Do not use outdoors.
PLUMBING
1. This unit must be plumbed by a licensed plumber.
IMPORTANT PLEASE READ THESE SAFETY INSTRUCTIONS
DO NOT ALLOW CHILDREN AROUND
THE WASHLOUNGE WHEN IN USE
ALL PLUMBING MUST BE COMPLETED
BY A LICENSED PLUMBER
IMPORTANT
IMPORTANT
GET STARTED

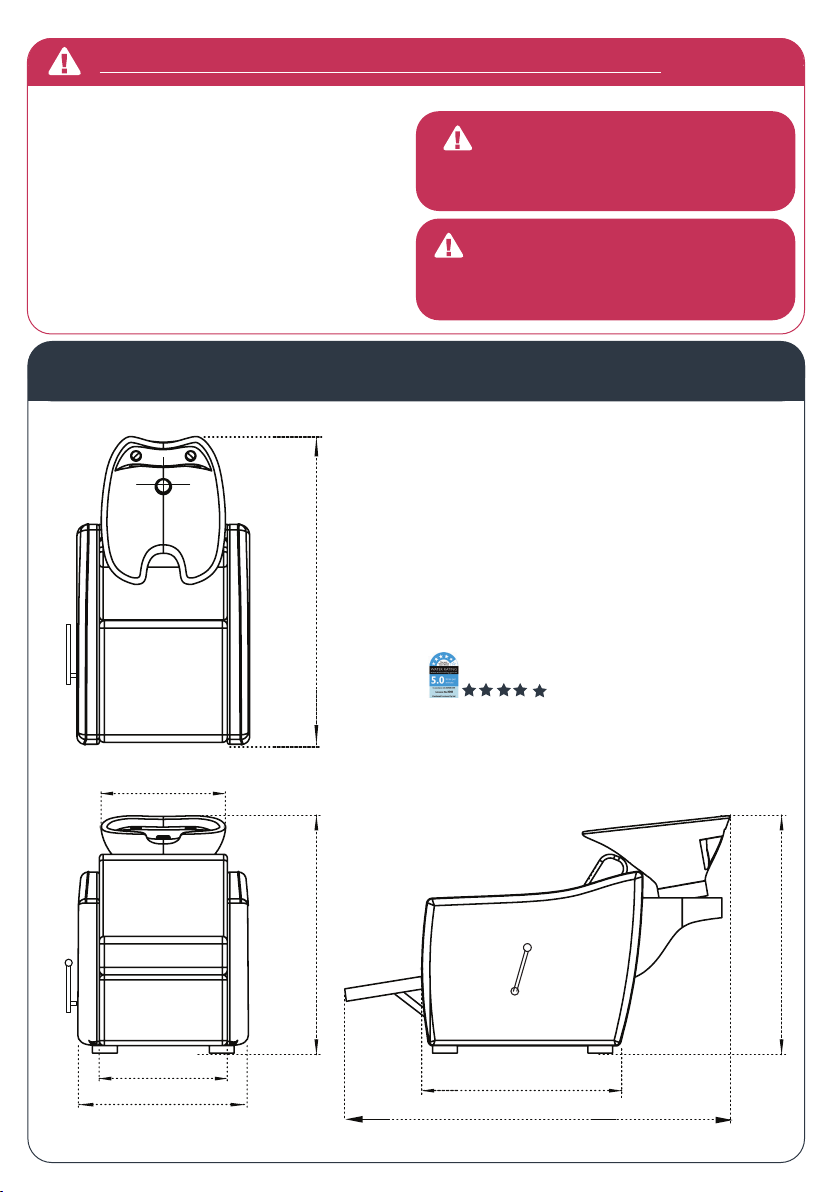

DUSTY
Wash Lounge
Total Width: 700mm
Internal Seat Width: 520mm
Length: 1380mm
Length Reclined: 1640mm
Basin Height: 910mm
Water consumption: 5L p/m
WELS RATING

GET STARTED
SECURE AND BOLT DOWN
BEFORE INSTALLATION

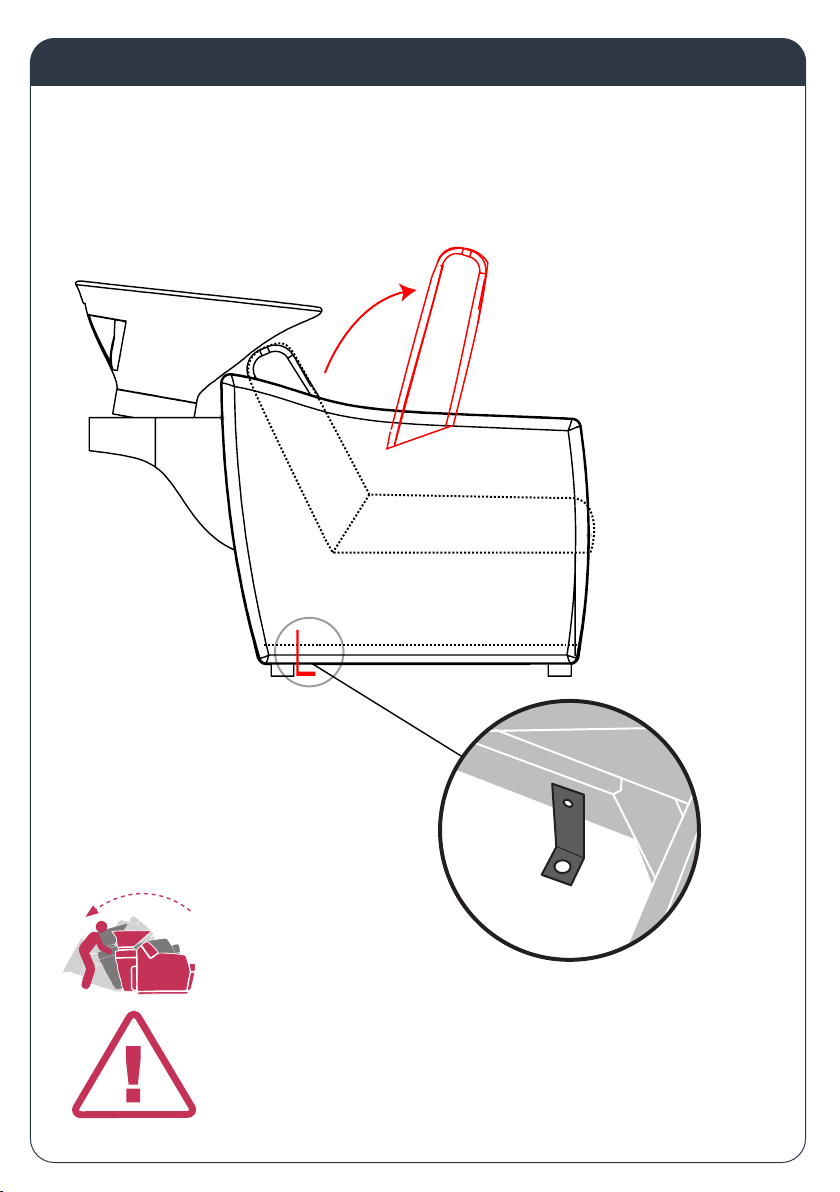

THE WASHLOUNGE MUST BE SECURED TO THE FLOOR.
Making sure your wash lounge is supported, lift and remove the back seat.
Secure to the oor through connector brackets using appropiate xings
(not supplied).
LIFT BACK
REST UP

POSITIONING
DIAGRAM A
DIAGRAM B
PLUMBING ACCESS OPTIONS
Determine the best way to connect plumbing.
OPTION A: FROM WALL TO BASIN STAND
From behind the basin stand connect plumbing to the wall
OPTION B: FROM FLOOR BENEATH SEAT
From under the chair seat connect plumbing to the floor
ALL PLUMBING MUST BE COMPLETED
BY A LICENSED PLUMBER
IMPORTANT
If washing from side add 400mm between each basin. All measurements in mm.
BEFORE INSTALLING YOU SHOULD CONSIDER
THE FOLLOWING
• Allow for the necessary room around the unit for
free movement.
• If installing against a wall, a minimum distance of 80mm
between wall and bottom back of basin is required to
allow free movement of basin.
• If plumbing location is in wall (see Diagram A).
For neatness of finish it is preferable to bring water
and waste into the washlounge in the same hole.
• If plumbing location is on floor (see Diagram A),
place washlounge over.
Wall
1380
A
80
590
1460
B
120
120
490
380
100
50 100 100 50
400800
3200 (126”)
(31.5”) 800 (31.5”) 800 (31.5”) (15.75”)
700 (27.5”) 700 (27.5”) 700 (27.5”) 700 (27.5”)
(4”)(4”)(4”)(2”) (2”)
400 (15.75”)
If washing from behind, add a minimum of 400mm of space behind your wash lounge to provide room for access.

ASSEMBLY
WASHLOUNGE ASSEMBLY
1. Washlounge MUST be secured to the floor. Secure
to the floor using appropiate fixings (not supplied).
BASIN ASSEMBLY
2. Install Flick Mixer using O-ring, plastic and metal
washers & (Long Nut) and Shower Head using the
Showerhose Basin Collar, O-ring, Foam Washer &
Plastic Nut as indicated.
3. Place Flick Mixer and Shower Head Hoses through
the holes in the basin.
4. Connect Flexible Waste Pipe to Plug and Waste
which is already installed making use of the with Flat
Seal and fitted Flange.
PLUMBING CONNECTION
5. Connect Flexible Waste Pipe to P trap (not supplied)
making use of Seal and Flange.
6. Connect hot and cold (½” connection) braided
hoses to respective supplies.
7. Please attach Comfortneck to the basin.
1Flick Mixer
2Showerhead
3Showerhose basin collar
4Comfortneck
5O-ring
6Foam washers
7Plastic nut
8Flat seal
9Fitted flange
10 Connector Bracket
11 Flexible waste pipe
12 Flange
13 Seal
14 P trap (not supplied)
15 Hot & cold braided hoses
16 Long nut
17 Plastic washers
18 Metal washers
19 O-ring

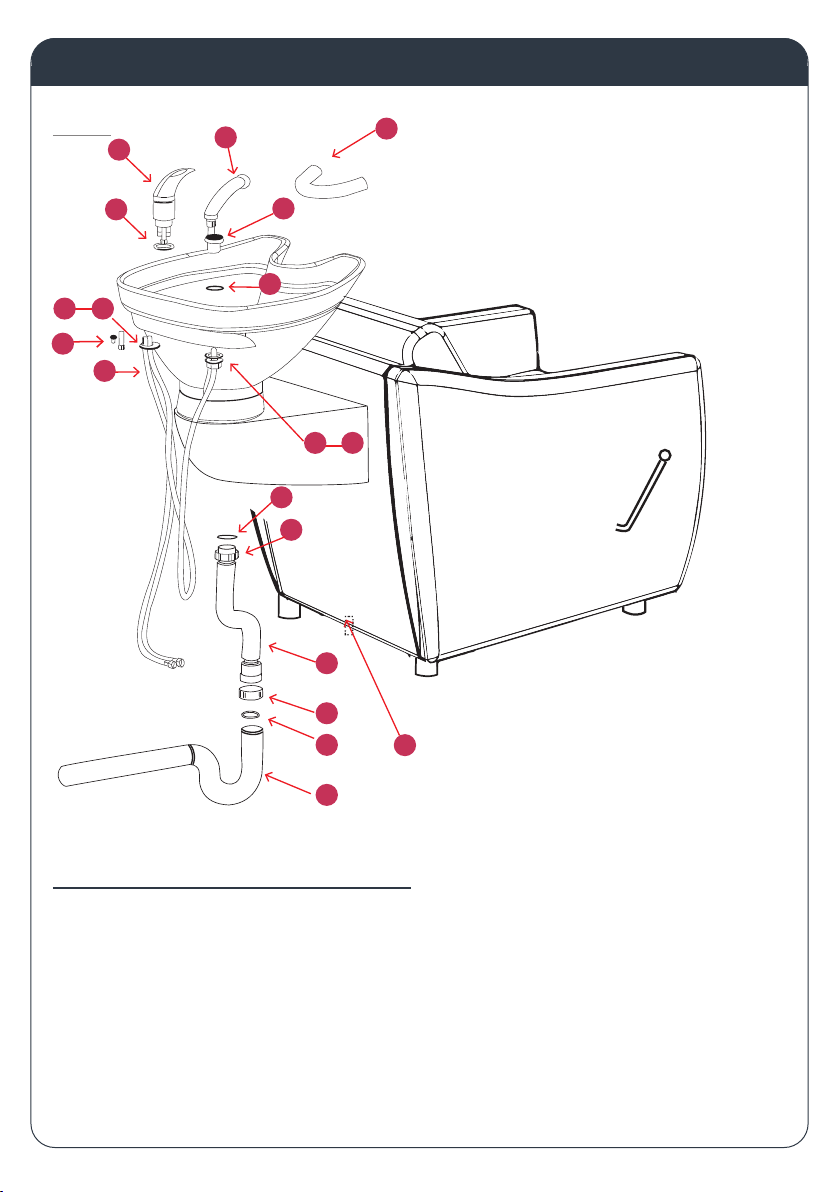

DIAGRAM C
BASIN ASSEMBLY
1
2
3
5
6
15
1817
19
16
8
9
11
12
13
14
10
7
4

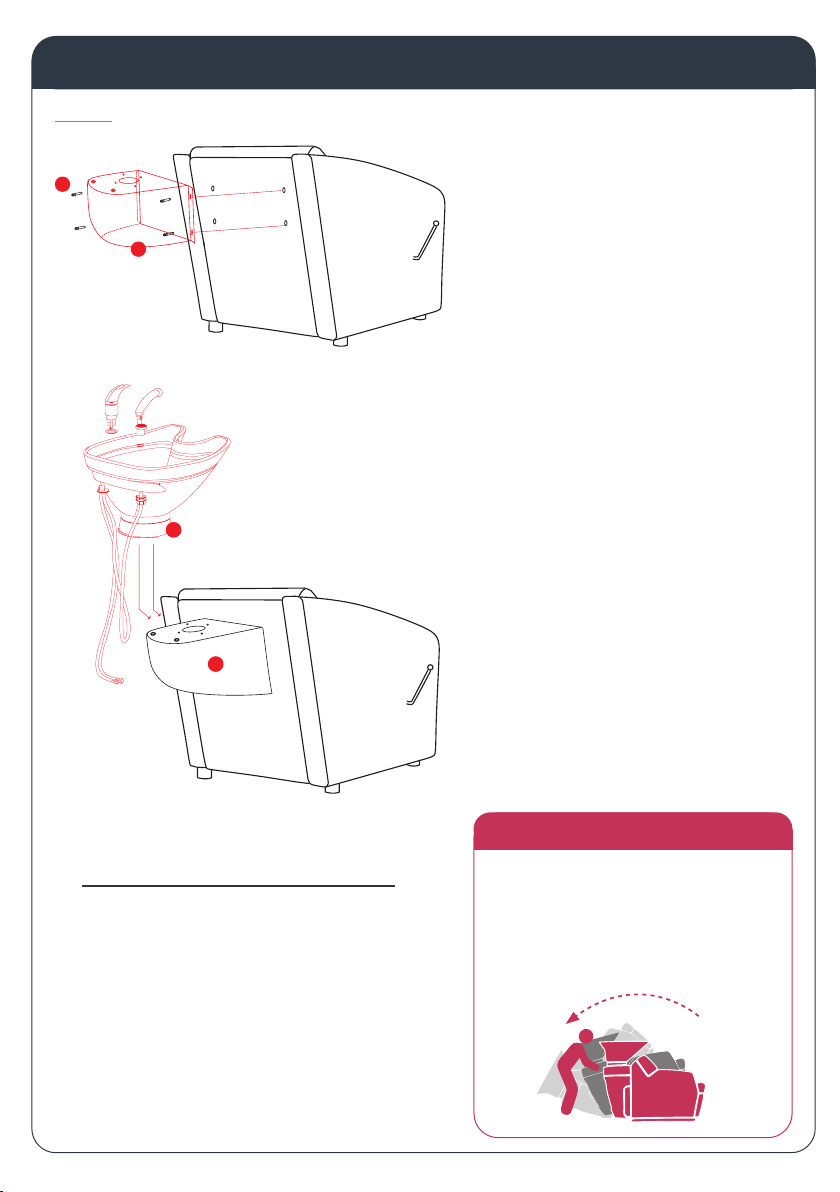

INSTALLATION & ASSEMBLY: BASIN
DIAGRAM D
INSTALLING BASIN
·Attach Stainless steel cover with the bolts to the
back of the chair.
·Using 2 x bolts/nuts provided, install ceramic basin
onto steel frame and tighten.
PLEASE MAKE SURE THERE IS
SUPPORT AT THE BACK OF THE WASH
LOUNGE WHERE THE WASH BASINS
ARE LOCATED, AS ONCE THE SEAT
CUSHION IS REMOVED  THE UNIT
COULD TILT BACKWARDS.
1. Stainless steel cover
2. Bolts (supplied)
3. Ceramic basin
IMPORTANT
BASIN ASSEMBLY
3
1
1
2
2
3
1
1
2
2

CLEANING
UPHOLSTERY
All upholstery needs some care; good housekeeping will help to prolong the life of any upholstered products.
Avoid extreme temperatures. Extreme cold can make your vinyl prone to cracking, while extreme heat can cause
permanent stretching. Avoid exposing your products to direct sunlight for prolonged periods of time.
ALWAYS FOLLOW THE CLEANING INSTRUCTIONS
• Wipe with a clean colourfast cloth dampened with mild alkaline free soap and luke warm water. Do not wet
excessively.
• Remove all traces of any cleaning product by wiping with fresh water and a clean cloth.
• Dry with a soft, clean cloth.
• Stubborn grime may require gentle scrubbing with a soft brush.
Do not use:
• hot or boiling water
• hydrocarbons including alcohol
• acetone
• furniture polishes
• bleach
• concentrated detergents
• abrasive powder or paste cleaners
• steel wool
• silicon or petroleum-based cleaners
• solvent based or abrasive cleaning agents
METAL AREAS
Wipe using regular cleaning products that are recommended for stainless steel and metals.
Do not use:
·acetone ·furniture polishes
·bleach ·detergent
·abrasive cleaners ·steel wool
Damage caused by any improper treatment is not covered by the product warranty.
A periodic inspection of all components and fasteners should be made to ensure that your washlounge is structurally
intact and functioning properly.
Damaged and broken parts should be replaced and loose fasteners tightened.
All maintenance to be carried out by a suitably qualified tradesperson.
MAINTENANCE
HOW TO CHANGE A SHOWERHEAD or SHOWERHOSE
Please view our online video on how to change a showerhead or showerhose: help.comfortel.com.au
ALWAYS FOLLOW THE CLEANING INSTRUCTIONS

#2441 DUSTY WASHLOUNGE WHITE BASIN
#2442 DUSTY WASHLOUNGE BLACK BASIN
PURCHASE DATE INVOICE NUMBER
NOTE YOUR PURCHASE DATE & INVOICE NUMBER FOR FUTURE REFERENCE
PRODUCT CODE The information contained in this document is subject to change without notice and
should not be construed as a commitment by Comfortel Furniture Pty Ltd.
Comfortel Furniture Pty Ltd. assumes no responsibility for any errors that may appear in
this document nor does it make expressed or implied warranty of any kind with regard
to this material, including, but not limited to, the implied warranties of merchantability
and fitness for a particular purpose.
Comfortel Furniture Pty Ltd. shall not be liable for incidental or consequential damages
in connection with or arising out of the use of this document and the program material.
PLEASE RETAIN THIS INFORMATION FOR FUTURE REFERENCE
For more information about our products and services, contact us at comfortel.com.au
help.comfortel.com.au
