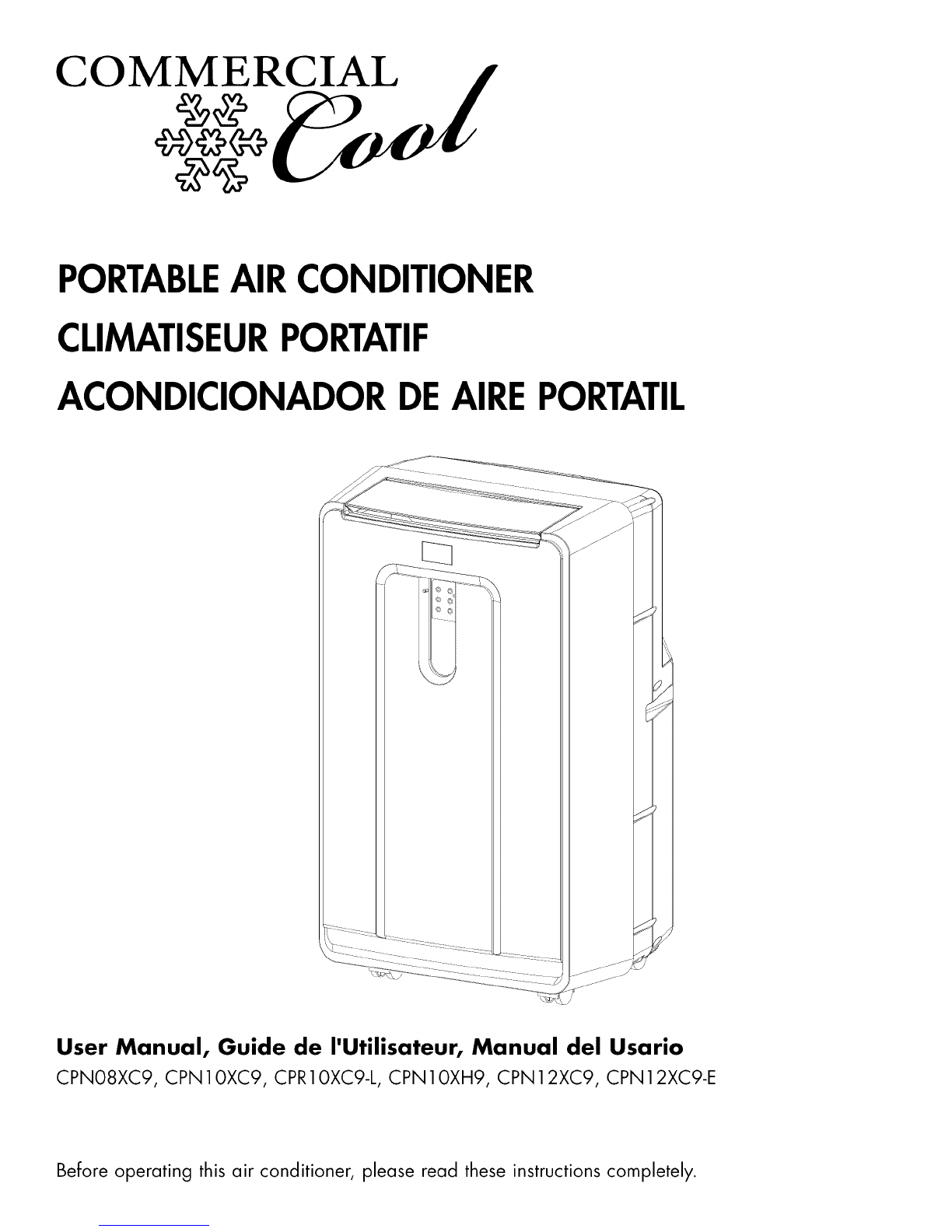

commercial cool CPN08XC9 User manual

COMMERCIAL /
PORTABLEAIR CONDITIONER
CLIMATISEURPORTATIF
ACONDICIONADOR DEAIRE PORTATIL
User Manual, Guide de I'Utilisateur, Manual del Usario
CPN08XC9, CPN10XC9, CPR10XC9-L, CPN10XH9, CPN12XC9, CPN12XC9-E
Before operating this air conditioner, please read these instructions completely.

@
Thank you for buying a dependable, energy saving and easy-to-operate Commercial Cool air
conditioner. This manual contains useful information for you to maintain, operate, install and
safely use your air conditioner. Your air conditioner cleans, cools and dehumidifies the air in
your room to provide you with the ultimate level of comfort.
Please read instructions carefully before using the product. Also, do not forget to fill out and
mail the Product Registration Card.
@
Record Your Model and Serial Number.
Attach the sales receipt to this guide and keep for future reference. Model and serial number
can be obtained from the serial label, which is on your air conditioner. For all your service calls
during the warranty period the following information will be needed:
Model Number: ..............................................................................................................
Serial Number: ...............................................................................................................
Date of Purchase: ............................................................................................................
Dealer's Name: ..............................................................................................................
Dealer's Address: ............................................................................................................
Dealer's Phone Number: ..................................................................................................

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiU i!i i i !i!! !ii!i i!! i i! ! i! i! i i i i i i i i i i i i i i i i i i i i i i i i! i !
S
WARNING: Following these basic precautions will reduce the risk of fire, electrical
__ shock, injury or death when using your air conditioner.
Air conditioner must be connected to proper electrical outlet with the correct electrical
supply. (see table previous page)
Proper grounding must be ensured to reduce the risk of shock and fire. DO NOT CUT OR
REMOVE THE GROUNDING PRONG. If you do not have a three-prong electric receptacle
outlet in the wall, have a certified electrician install the proper receptacle. The wall receptacle
MUST be properly grounded.
Do not operate air conditioner if power cord is frayed or otherwise damaged. Avoid using
it if there are cracks or abrasion damage along the length, plug connector or if the unit
malfunctions or is damaged in any manner. Contact an authorized service technician for
examination, repairs or adjustments.
DO NOT USE AN ADAPTER OR AN EXTENSION CORD.
5) Do not block airflow around the air conditioner. The exhaust hose should be free of any
obstructions.
6) Always unplug the air conditioner before servicing it or moving it.
7) Do not install or use the air conditioner in any area where the atmosphere contains
combustible gases or where the atmosphere is oily or sulphurous. Avoid any chemicals coming
in contact with your air conditioner.
8) Do not place any object on the top of the unit.
9) Never operate the air conditioner without the filters in place.
10) Do not use the air conditioner near a bathtub, shower or wash basin.
SAVE THESE INSTRUCTIONS
2

n n @$n$
• Please keep this manual in a safe place.
• Do not use liquid or a spray to clean this product. Use a damp cloth.
• Do not place the product in an insecure or elevated place as it may fall and cause damage or
injury.
• Never spill liquid on the control panel; it may cause electrical shock to the electronic parts inside
and disable them or cause them to function improperly.
• Never try to dismantle the product by yourself. Unsupervised dismantling and incorrect reassembly
of the inside of the back cover may damage the electrical circuit and affect its performance. When
maintenance is required, please contact the local service center or local distributor.
Thank you for purchasing our Commercial Cool
product. Please read this manual carefully before
operating and store for future reference.
Staple your receipt to your manual. You will need
it to obtain warranty service.
Model number
Serial number
Date of purchase
3

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiU i!i i i !i!! !ii!i i!! i i! ! i! i! i i i i i i i i i i i i i i i i i i i i i i i i! i !
@n
Page
A Word From Haier America ........................................................................................... 1
Product Registration ......................................................................................................... 1
Safety Precautions ............................................................................................................ 2
Important Instructions ...................................................................................................... 3
Adva ntages ....................................................................................................................... 4
Assembly and Installation ............................................................................................... 5
Parts and Features ........................................................................................................... 5
Operation ...................................................................................................................... 7-9
Product Specification ...................................................................................................... 10

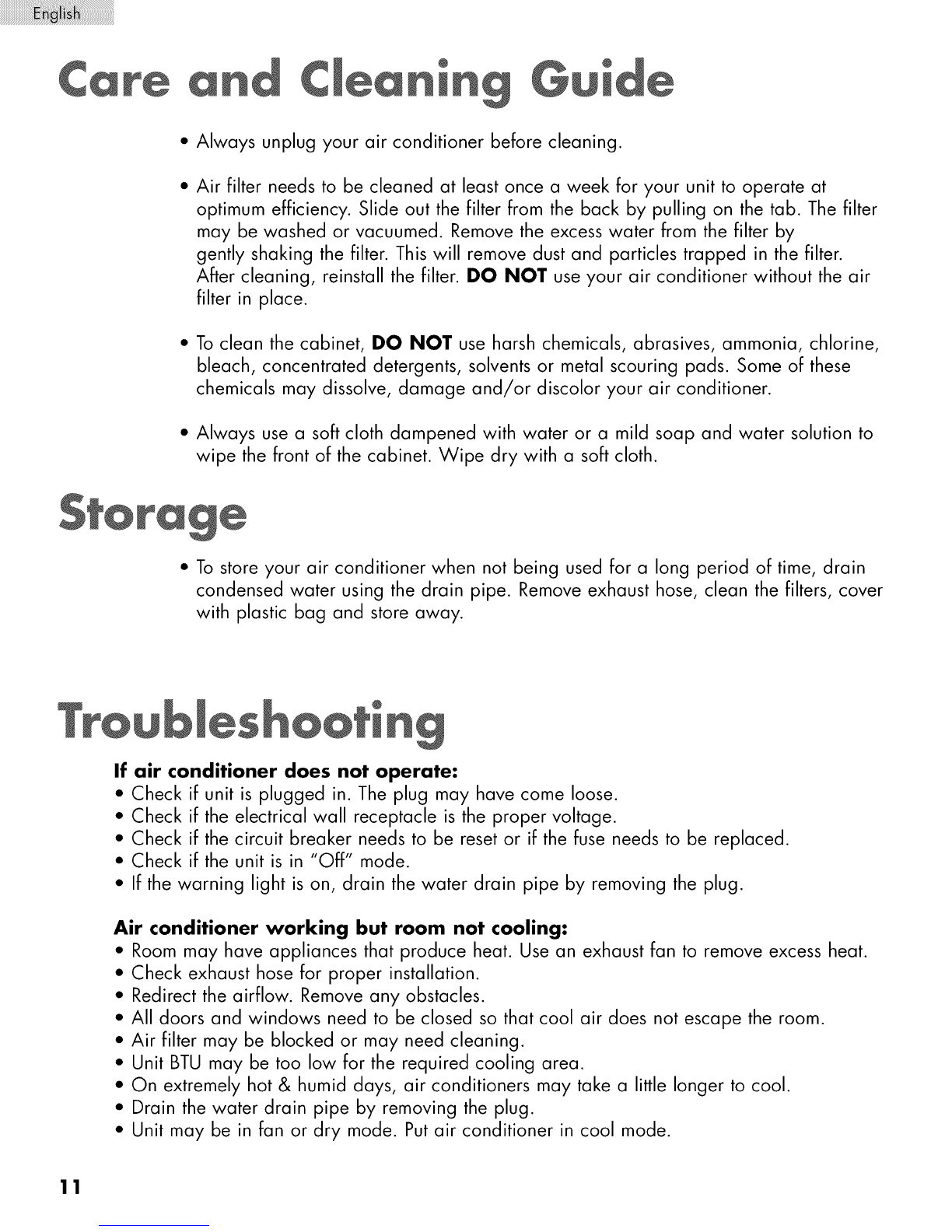

Care and Cleaning .......................................................................................................... 1 1
Storage ............................................................................................................................ 1 1
Troubleshooting .............................................................................................................. 1 1
Warranty Information .................................................................................................... 12
@
1. This model is easy to operate. The electronic control panel has a timer, thermostat, three
speed cooling speeds, three fan speeds and one speed dehumidification function.
2. This portable air conditioner does not require water to be removed.
3. The unit has a unique design which evaporates the water. Therefore there is no condensation
tank and no need to empty a tank overnight.
4. An easy-to-install window kit is included which consists of the exhaust hose, 2 hose nozzles,
the window panel kit, exhaust hose connector and cover for the exhaust hose connector.
5. Full directional casters are included to help move the unit as needed.
6. The filter screen is designed for easily accessibility of the filter.
7. Portable air conditioners are easy to store when not in use.
4

n

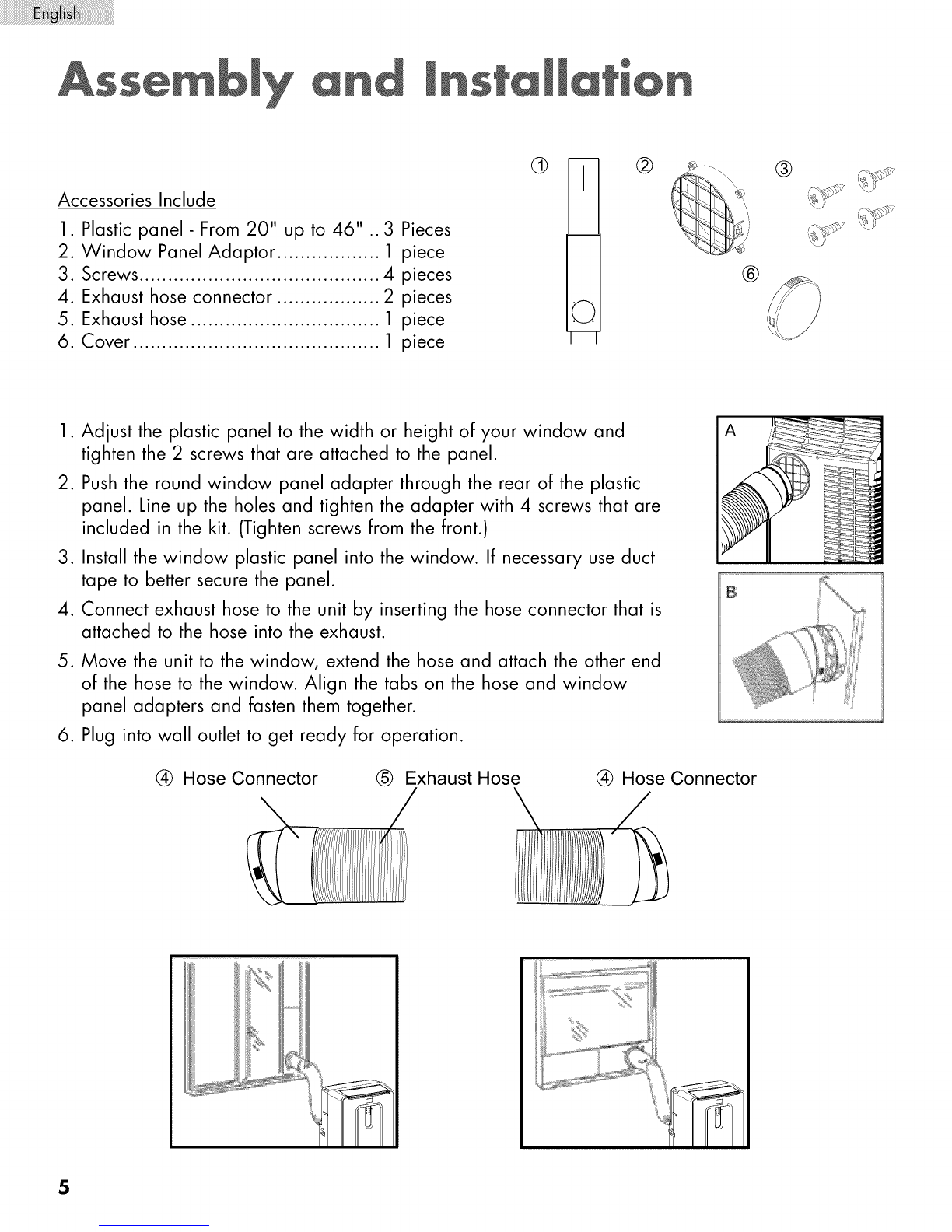

Accessories Include
1. Plastic panel - From 20" up to 46" .. 3 Pieces
2. Window Panel Adaptor .................. 1 piece
3. Screws.......................................... 4 pieces
4. Exhaust hose connector .................. 2 pieces
5. Exhaust hose ................................. 1 piece
6. Cover ........................................... 1 piece
@
®
1. Adjust the plastic panel to the width or height of your window and
tighten the 2 screws that are attached to the panel.
2. Push the round window panel adapter through the rear of the plastic
panel. Line up the holes and tighten the adapter with 4 screws that are
included in the kit. (Tighten screws from the front.)
3. Install the window plastic panel into the window. If necessary use duct
tape to better secure the panel.
4. Connect exhaust hose to the unit by inserting the hose connector that is
attached to the hose into the exhaust.
5. Move the unit to the window, extend the hose and attach the other end
of the hose to the window. Align the tabs on the hose and window
panel adapters and fasten them together.
6. Plug into wall outlet to get ready for operation.
@ Hose Connector @ Exhaust Hose @ Hose Connector
5

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiU i!i i i !i!! !ii!i i!! i i! ! i! i! i i i i i i i i i i i i i i i i i i i i i i i i! i !
1. Air Outlet
2. Control Panel
3. Handle
4. Remote Control Cradle
5. Air Inlet
6. Casters
7. Air Filter
8. Water Outlet Drain
9. Power Supply Cord
©
POWER SUPPLYCORD
TEST:WHEN THISBUTTONIS
PRESSEDORWHEN THEREISA
CURRENTLEAK,THE UNITWILL
NOT OPERATE.
RESET:AFTERSOLVINGTHE
PROBLEM,PRESSTHERESET
BUTTONTO RESUMEOPERATION.
6

NOTE: Wait for 24 hours to turn on air conditioner if the unit has been tilted for any reason. This is
for the oils and the coolants to settle and level off.
1. After a normal shut down, wait for 3 minutes before restarting the unit so as to complete the
compressor cycle.
2. Use an 115v/15amp outlet for the air conditioner. Do not use any other electrical appliances on
this line or you may trip the fuse. Use a dedicated line for this air conditioner.
3. Do not place the air conditioner in direct sunlight or close to any heating appliances (ie. baseboard
heaters, stoves, etc.)
4. Operate on a flat surface only.
5. Keep the unit free of any obstructions such as drapes, curtains, blinds, etc.
6. Keep unit at least 1 foot away from the wall.
7. Check and clean the filter once every week for highest efficiency.
NOTE: Do not use unit without filter.
8. If the unit is not being used for a long period of time, remove the plug from the water drain pipe
and drain out any condensed water.
When turning on the unit for the first time after plugging it into an electrical outlet, the unit will start in
a low fan cool mode. The temperature reading out on the LCD will be the current room temperature.
When turning on the unit during regular usage, it will remember the last setting used. If you want to
operate the air conditioner as a dehumidifier, then adjust to dehumidify mode.
7

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiU i!i i i !i!! !ii!i i!! i i! ! i! i! i i i i i i i i i i i i i i i i i i i i i i i i! i !
©

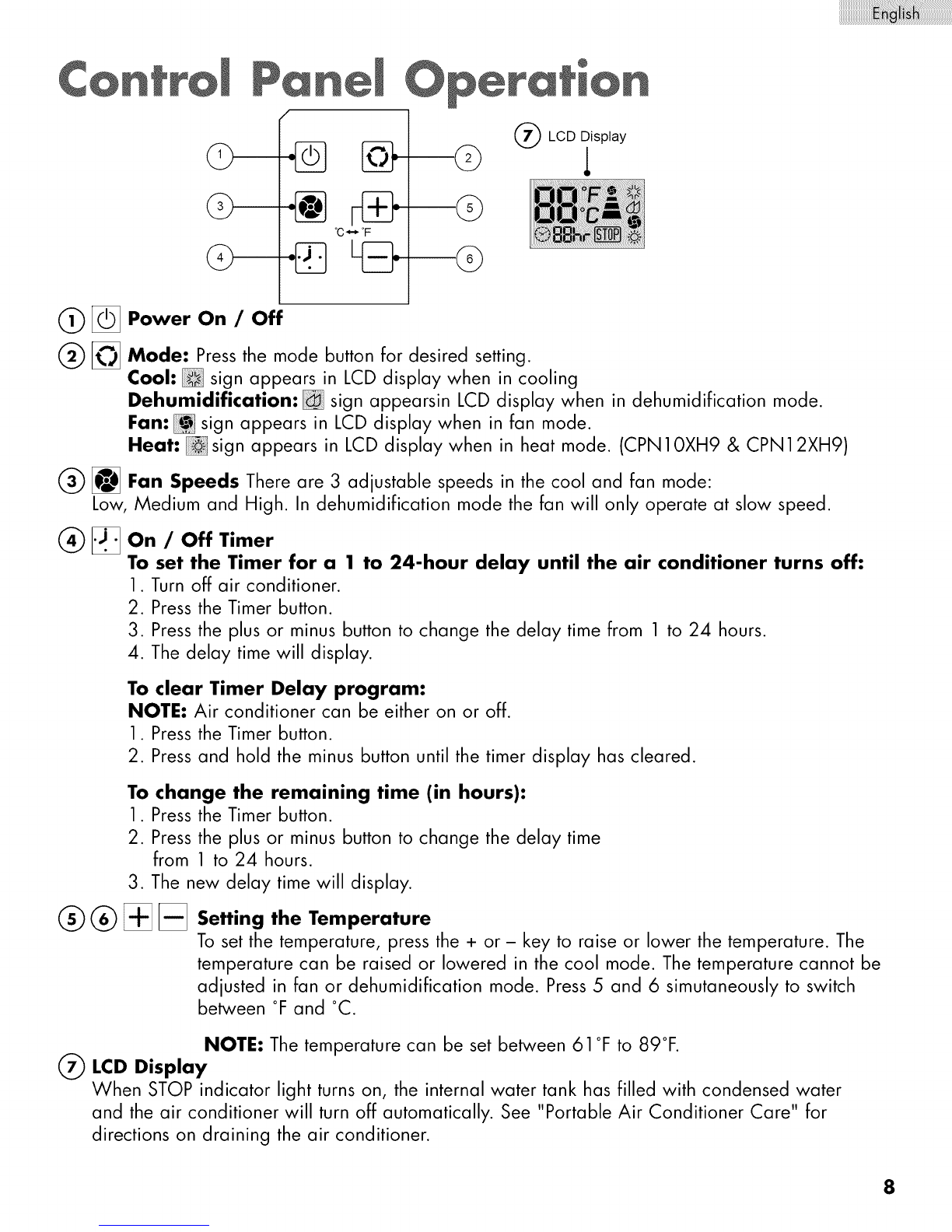

G
G
G
°C_'- °F
©
G
@
(_LCD Display
l
®
Power On /Off
Mode: Press the mode button for desired setting.
Cool: [] sign appears in LCD display when in cooling
Dehumidification: [] sign appearsin LCD display when in dehumidification mode.
Fan: [] sign appears in LCD display when in fan mode.
Heat: []sign appears in LCD display when in heat mode. (CPN10XH9 & CPN12XH9)
Fan Speeds There are 3 adjustable speeds in the cool and fan mode:
Low, Medium and High. In dehumidification mode the fan will only operate at slow speed.
On /Off Timer
To set the Timer for a 1 to 24-hour delay until the air conditioner turns off:
1. Turn off air conditioner.
2. Pressthe Timer button.
3. Pressthe plus or minus button to change the delay time from 1 to 24 hours.
4. The delay time will display.
To clear Timer Delay program:
NOTE: Air conditioner can be either on or off.
1. Press the Timer button.
2. Press and hold the minus button until the timer display has cleared.
To change the remaining time (in hours):
1. Pressthe Timer button.
2. Pressthe plus or minus button to change the delay time
from 1 to 24 hours.
3. The new delay time will display.
(_ (_ _ [_ Setting the Temperature
To set the temperature, press the + or - key to raise or lower the temperature. The
temperature can be raised or lowered in the cool mode. The temperature cannot be
adjusted in fan or dehumidification mode. Press 5 and 6 simutaneously to switch
between °F and °C.
NOTE: The temperature can be set between 61 °F to 89°F.
(_ LCD Display
When STOP indicator light turns on, the internal water tank has filled with condensed water
and the air conditioner will turn off automatically. See "Portable Air Conditioner Care" for
directions on draining the air conditioner.
8

®

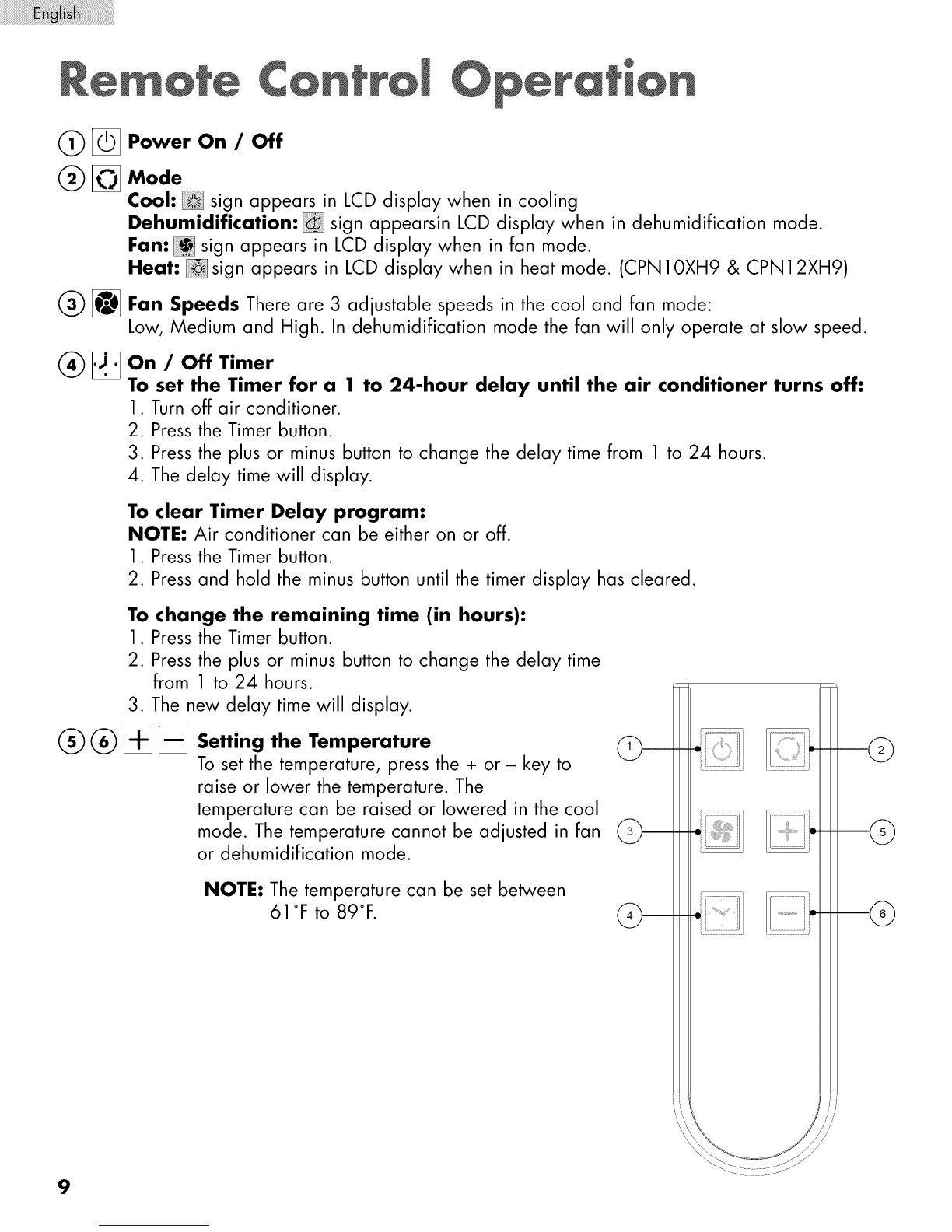

Power On /Off
Mode
Cool: [] sign appears in LCD display when in cooling
Dehumidification: [ sign appearsin LCD display when in dehumidification mode.
Fan: [] sign appears in LCD display when in fan mode.
Heat: []sign appears in LCD display when in heat mode. (CPN10XH9 & CPN1 2XH9)
Fan Speeds There are 3 adjustable speeds in the cool and fan mode:
Low, Medium and High. In dehumidification mode the fan will only operate at slow speed.
(_) _ On /Off Timer
To set the Timer for a 1 to 24-hour delay until the air conditioner turns off:
1. Turn off air conditioner.
2. Pressthe Timer button.
3. Pressthe plus or minus button to change the delay time from 1 to 24 hours.
4. The delay time will display.
To clear Timer Delay program:
NOTE: Air conditioner can be either on or off.
1. Press the Timer button.
2. Press and hold the minus button until the timer display has cleared.
To change the remaining time (in hours):
1. Pressthe Timer button.
2. Pressthe plus or minus button to change the delay time
from 1 to 24 hours.
3. The new delay time will display.
(_) (_) _i_ _ Setting the Temperature
To set the temperature, press the + or - key to
raise or lower the temperature. The
temperature can be raised or lowered in the cool
mode. The temperature cannot be adjusted in fan
or dehumidification mode.
NOTE: The temperature can be set between
61 °F to 89°F.
9

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiU i!i i i !i!! !ii!i i!! i i! ! i! i! i i i i i i i i i i i i i i i i i i i i i i i i! i !

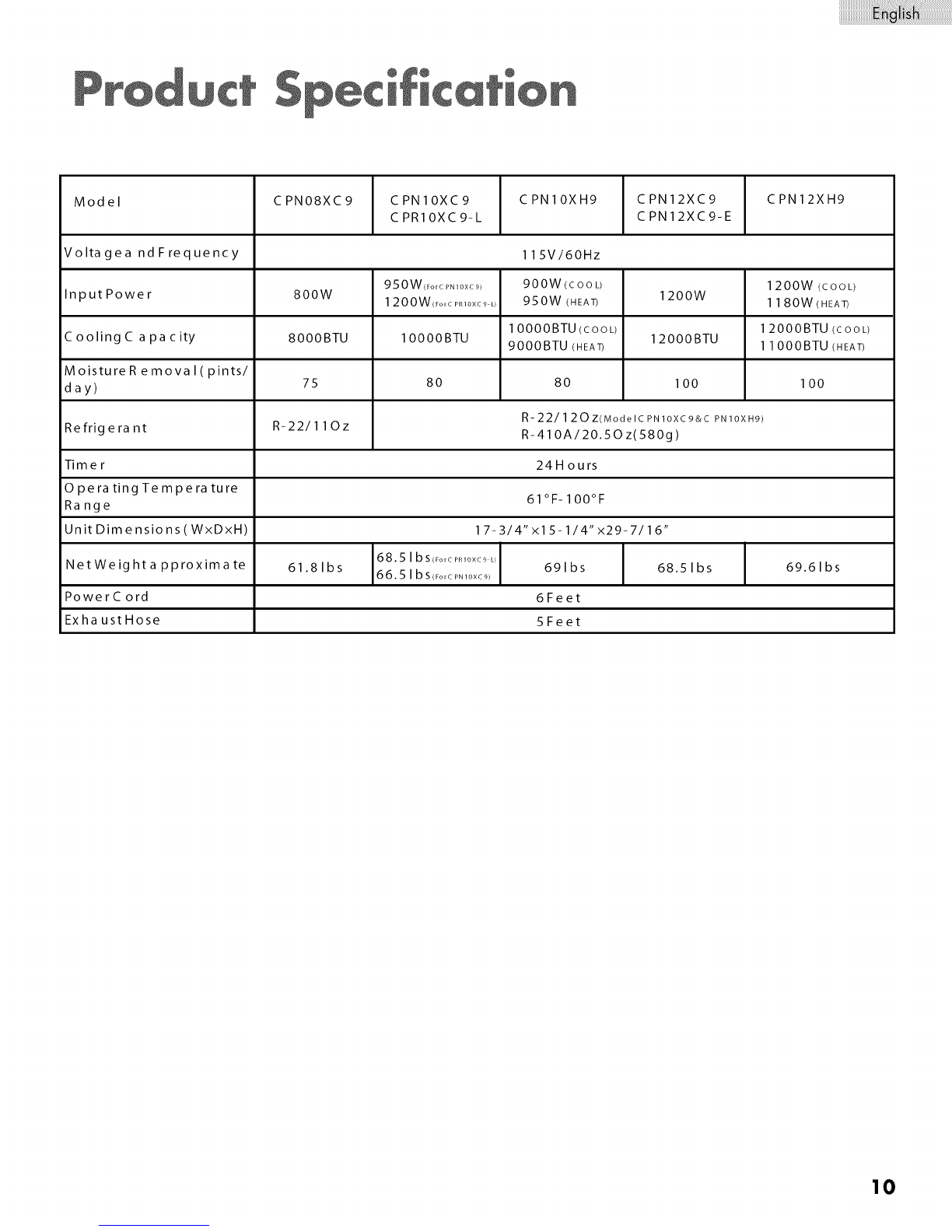

Specific
Model CPNO8XC9 CPNIOXC9 CPNIOXH9 CPN12XC9 CPN12XH9
C PR10XC 9-L C PN 12XC 9-E
Volta gea ndFrequency 115V/60Hz
950W(ForCPNlOXCg> 900W(cooL) 1200W (COOL)
Input Power 800W 1200W
1200W/Fo_C PR10xc9U 950W (HEAT) 1180W(HEAT)
1O000BTU(cooL) 12000BTU (COOL)
CoolingC apacity 8000BTU IO000BTU 12000BTU
9000BTU (HEAT) 11000BTU (HEAT)
Moisture R e mova I(pints/
day) 75 80 80 100 100
R-22/120 Z(ModelC PNIOXCg&C PNIOXH9)
Refrig era nt R-22/1 lOz R-410A/20.50z(580g)
Timer 24Hours
0 pera ring Tempera ture
Range 61°F-100°F
Unit Dim e nsio ns (WxDxH) 17-3/4"x15- 1/4"x29-7/16"
NetWeighta pproximate 61.81bs 68.5 I bS_Fo_CPR_oxc9u 691bs 68.51bs 69.61bs
66.5 I b S_Fo_cPN_oxcg>
PowerC ord 6Feet
Exhaust Hose 5 Feet
10

@
m
Always unplug your air conditioner before cleaning.
Air filter needs to be cleaned at least once a week for your unit to operate at
optimum efficiency. Slide out the filter from the back by pulling on the tab. The filter
may be washed or vacuumed. Remove the excess water from the filter by
gently shaking the filter. This will remove dust and particles trapped in the filter.
After cleaning, reinstall the filter. DO NOT use your air conditioner without the air
filter in place.
Toclean the cabinet, DO NOT use harsh chemicals, abrasives, ammonia, chlorine,
bleach, concentrated detergents, solvents or metal scouring pads. Some of these
chemicals may dissolve, damage and/or discolor your air conditioner.
Always use a soft cloth dampened with water or a mild soap and water solution to
wipe the front of the cabinet. Wipe dry with a soft cloth.
•To store your air conditioner when not being used for a long period of time, drain
condensed water using the drain pipe. Remove exhaust hose, clean the filters, cover
with plastic bag and store away.
@$
If air conditioner does not operate:
•Check if unit is plugged in. The plug may have come loose.
• Check if the electrical wall receptacle is the proper voltage.
• Check if the circuit breaker needs to be reset or if the fuse needs to be replaced.
• Check if the unit is in "Off" mode.
• If the warning light is on, drain the water drain pipe by removing the plug.
Air conditioner working but room not cooling:
• Room may have appliances that produce heat. Use an exhaust fan to remove excess heat.
• Check exhaust hose for proper installation.
• Redirect the airflow. Remove any obstacles.
• All doors and windows need to be closed so that cool air does not escape the room.
• Air filter may be blocked or may need cleaning.
• Unit BTU may be too low for the required cooling area.
•On extremely hot & humid days, air conditioners may take a little longer to cool.
• Drain the water drain pipe by removing the plug.
• Unit may be in fan or dry mode. Put air conditioner in cool mode.
11

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiU i!i i i !i!! !ii!i i!! i i! ! i! i! i i i i i i i i i i i i i i i i i i i i i i i i! i !
@ @
This warranty covers all defects in workmanship or
material for:
.The mechanical and electrical parts (including labor
costs) contained in this Amana product, for a
period of 12 months from the date of purchase.
(For commercial or rental application the warranty
is 90 days.)
2. The sealed system and compressor contained in this
Amana product is for a period of 5 years, from the
date of purchase (excluding labor costs after the
initial 12 month period). In commercial or rental
use, the additional limited compressor warranty is
for 1 year and 9 months (excluding labor costs after
the initial 90 days period).
You must keep and be able to provide your original
sales receipt as proof of the date of purchase.
Who is covered?
The original retail purchaser of this Haier America
product.
What will be done?
Amana will repair or replace any mechanical, electri-
cal part or the compressor, which proves defective in
normal household use for a period of 12 months.
Amana will repair or replace (excluding labor costs)
the sealed system and compressor (parts only) for an
additional 4 year period.
How can you get service?
.Contact your nearest manufacturer authorized
Service Depot. For the name of the Service Depot
nearest you, contact Haier America at
[phone]
2. All service must be performed by a manufacturer
authorized Haier America Service Depot.
THIS WARRANTY COVERS UNITS WITHIN THE
CONTINENTAL UNITED STATES,CANADA AND
PUERTO RICO.
THIS WARRANTY DOES NOT COVER:
Damages from improper installation.
Damages in shipping.
Damages from misuse, abuse, accident, alteration, lack
of proper care and maintenance.
Damages from service by other than an authorized
dealer or service center.
Labor, service, transportation and shipping charges for
the removal of defective parts and installation of
replacement parts beyond the initial 12-month period.
THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL
OTHER WARRANTIES, EXPRESSOR IMPLIED,
INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE.
The remedy provided in this warranty is exclusive and
is granted in lieu of all other remedies. This warranty
does not cover incidental or consequential damages.
Some states do not allow the exclusion of incidental or
consequential damages, so this limitation may not
apply to you. Some states do not allow limitations on
how long an implied warranty lasts, so this limitation
may not apply to you. This warranty gives you specific
legal rights and you may also have other rights, which
vary from state to state.
12
