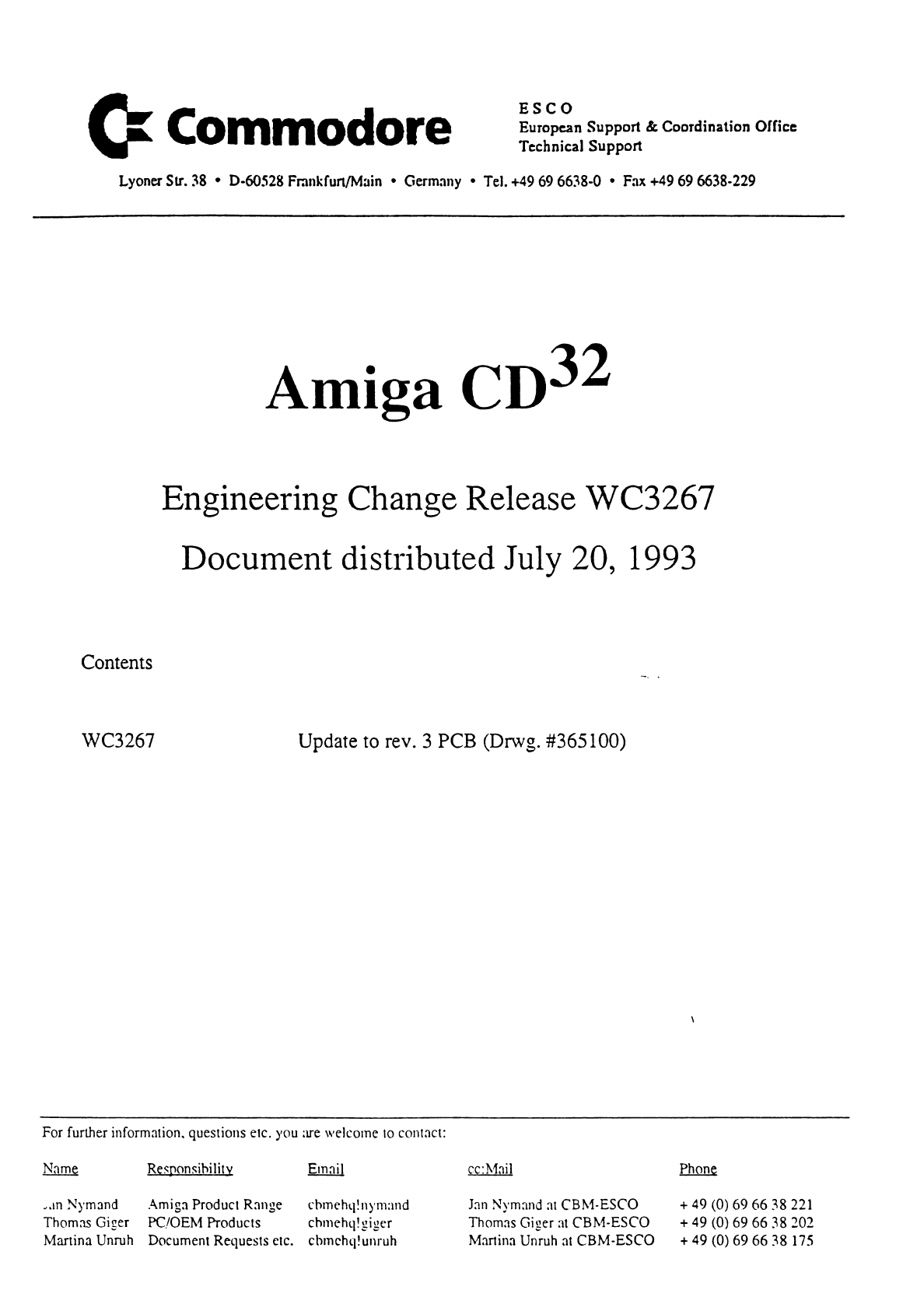

Commodore Amiga CD32 User manual

ESCO
European Support & Coordination Office
Technical Support
^ Commodore
Lyoner Str. 38 • D- 0528 Frankfurt/Main • Germany • Tel. +49 9 38-0 • Fax [phone]
Amiga C D ^
Engineering Change Release WC32 7
Document distributed July 20, 1993
Contents
WC3267 Update to rev. 3 PCB (Drwg. #365100
For furlher Information, questions eic. you are welcome to contact:
Name Responsibilitv Email cc:Mail Phone
.an Nymand Amiga Product Range cbmehq!nymand
Thomas Giger PC/OEM Products cbmehqlgiger
Martina Unruh Document Requests etc. cbmchq! unruh
Jan Nymand at CBM-ESCO
Thomas Giger at CBM-ESCO
Martina Unruh at CBM-ESCO
+ 49 (0) 69 66 38 221
+ 49 (0) 69 66 38 202
+ 49 (0) 69 66 38 175

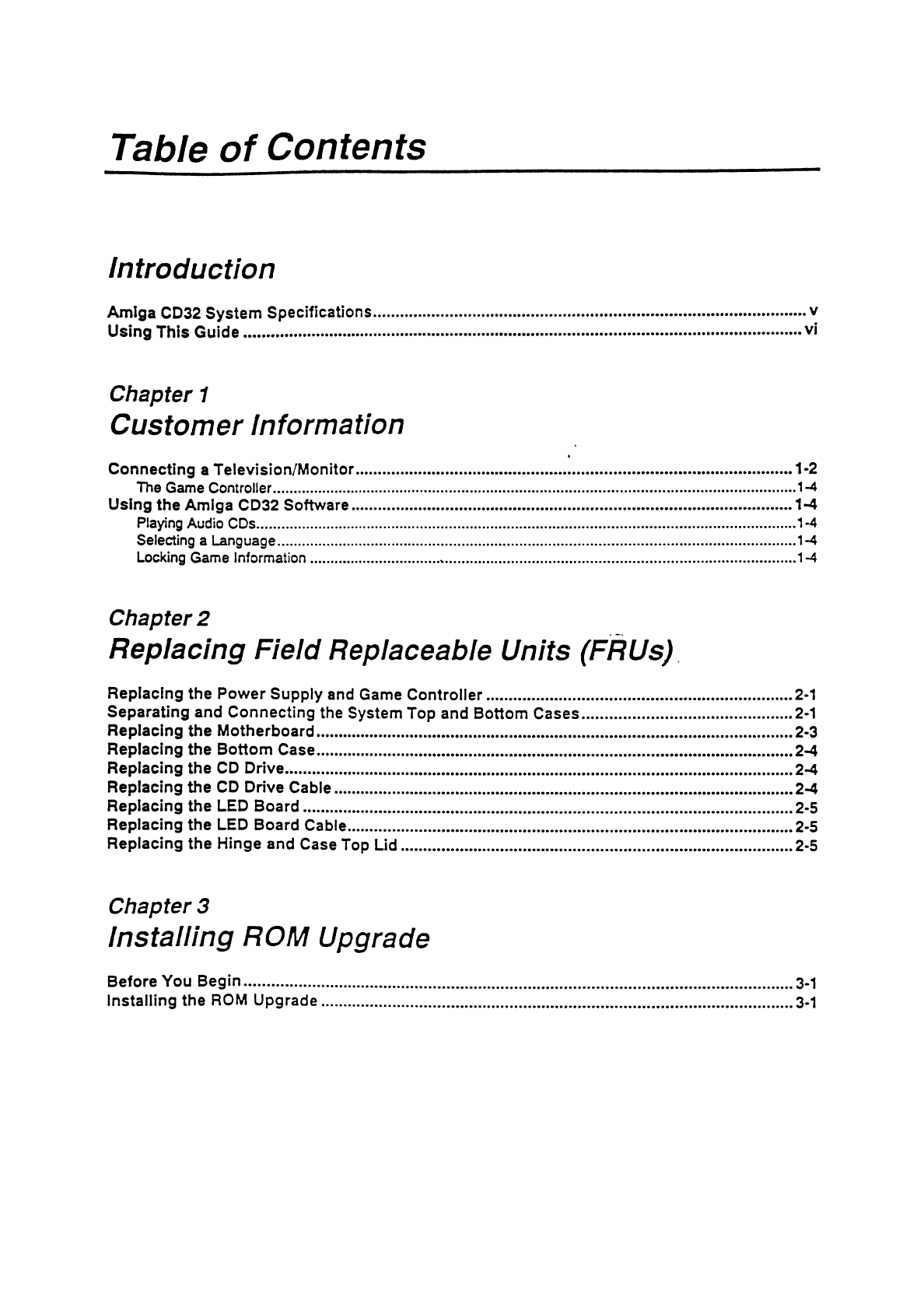

Table of Contents
Introduction
Amiga CD32 System Specifications...........................................................................................................v
Using This Guide..........................................................................................................................................vi
Chapter 1
Customer Information
Connecting a Television Monitor............................................................................................................1-2
The Game Controller.................................................................................................................................1-4
Using the Amiga CD32 Software.............................................................................................................1-4
Playing Audio CDs.....................................................................................................................................1-4
Selecting a Language................................................................................................................................1-4
Locking Game Information
............................... ,...................................................................................... 1-4
Chapter 2
Replacing Field Replaceable Units (FRUs)
Replacing the Power Supply and Game Controller............................................................................2-1
Separating and Connecting the System Top and Bottom Cases
.................................................... 2-1
Replacing the Motherboard......................................................................................................................2-3
Replacing the Bottom Case......................................................................................................................2-4
Replacing the CD Drive..............................................................................................................................2-4
Replacing the CD Drive Cable................................................................................................................. 2-4
Replacing the LED Board.........................................................................................................................2-5
Replacing the LED Board Cable..............................................................................................................2-5

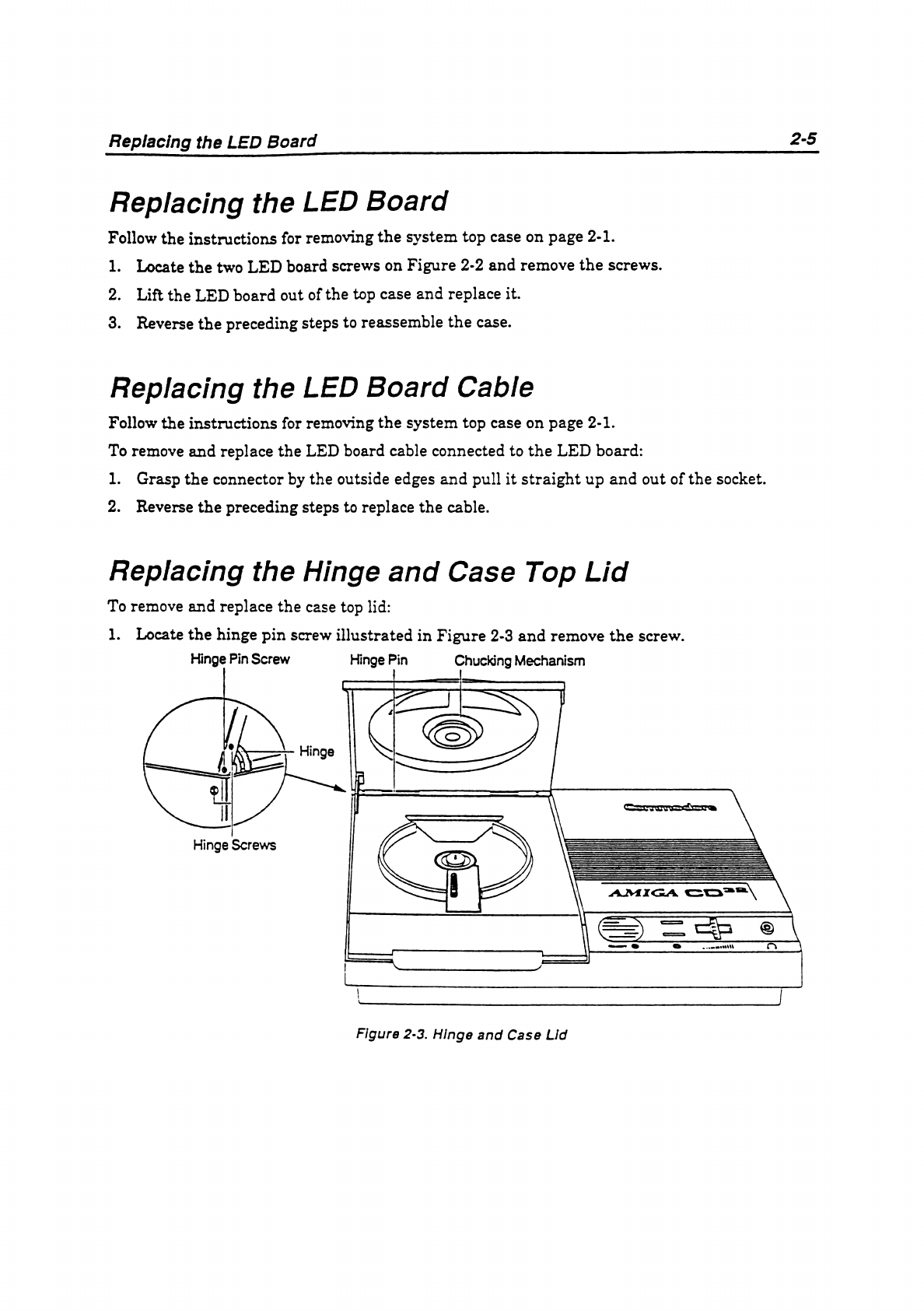

Replacing the Hinge and Case Top Lid.................................................................................................2-5
Chapter
Installing ROM Upgrade
Betöre You Begin........................................................................................................................................3-1
Installing the ROM Upgrade.....................................................................................................................3-1

Errata
User's Guide/Service Addendum (P/N 7122 -01)
Page 4-5
Replace the drawing of the auxiliary serial/keyboard port
(6-pin mini-DIN with the following:
Auxiliary Serial/Keyboard Port (6-pin mini-DIN)
Copyright <0 1993 Commodore Electronics Ltd. P N 371223-02 08 03 93

Introduction
The Amiga CD32is a 32-bit System designed to play CD games and audio discs. Planned
expansion options include a full motion video module and Computer expansion unit.
Amiga CD 2 System Specifications
• Motorola® 8EC020, 32-bit microprocessor 14 mHz clock speed
• 2 MB, 32-bit Chip RAM
• 1 MB System ROM containing AmigaDOS
• Top loading CD-ROM double-speed drive
• Advanced Graphics Architecture’“ custom chip set Support for:
25 ,000 screen colors from a palette of 1 .8 million colors
Resolutions up to 800 x 00
Eight 4-bit sprites
Two graphics accelerator co-processors
• Video display support for:
S-video for TV
PAL and NTSC composite video monitor or TV
PAL and NTSC RF modulator output for TV
• Audio support for:
Four channel Stereo sound
8-bit digital/analog Converters
1 -bit audio CD Stereo at 44 kHz
Headphonejack
Sliding volume control

wUsing This Guide

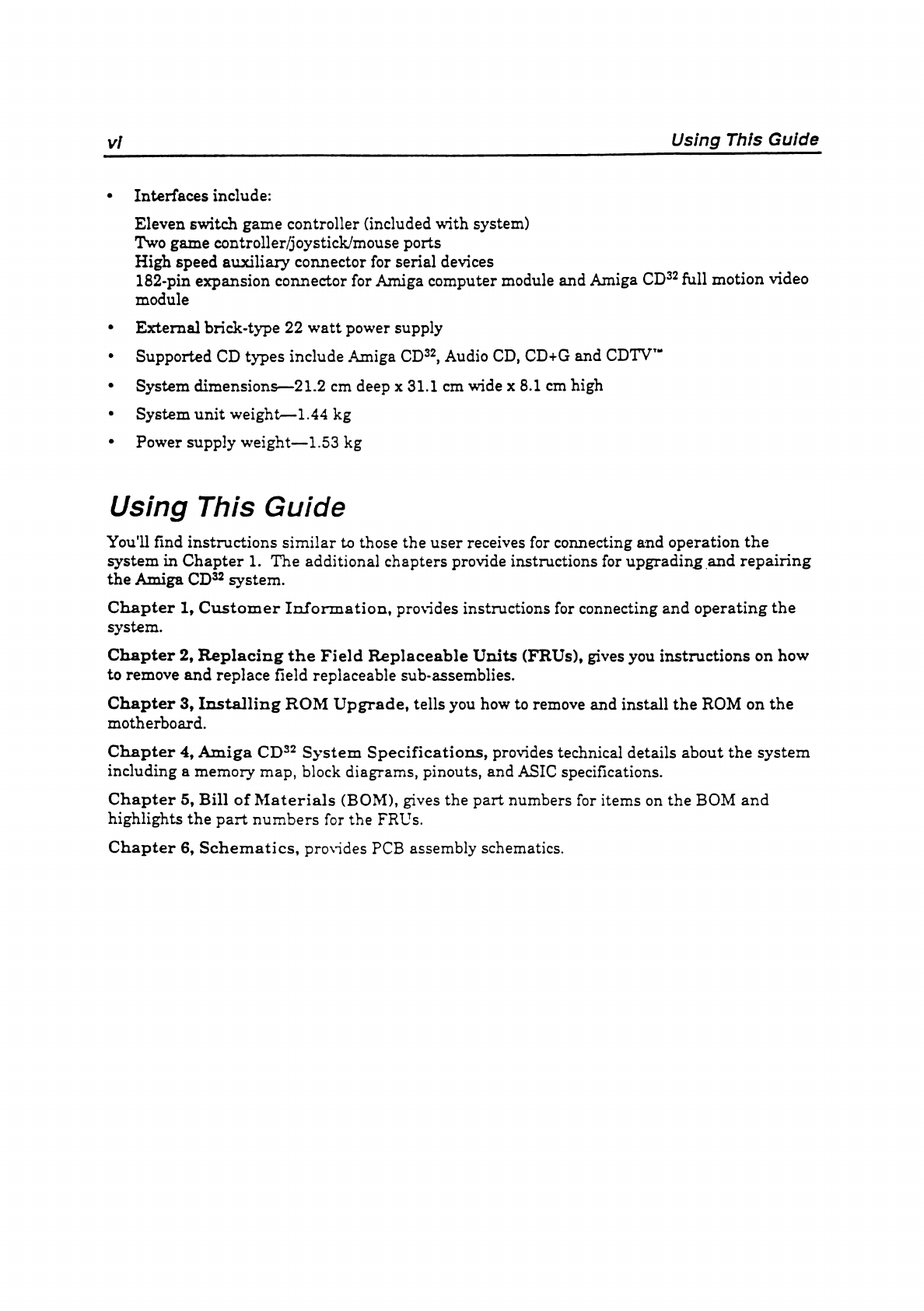

• Interfaces include:
Eleven switch game Controller (included with System
Two game controller/joystick/mouse ports
High speed auxiliary connector for serial devices
182-pin expansion connector for Amiga Computer module and Amiga CD32 full motion video
module
• Extemal brick-type 22 watt power supply
• Supported CD types include Amiga CD32, Audio CD, CD+G and CDTV’“
• System dimensions—21.2 cm deep x 31.1 cm wide x 8.1 cm high
• System unit weight—1.44 kg
• Power supply weight—1.53 kg
Using This Guide
You'll find instructions similar to those the user receives for connecting and Operation the
System in Chapter 1. The additional chapters provide instructions for upgrading and repairing
the Amiga CD32 System.
Chapter 1, Custom er Inform ation, provides instructions for connecting and operating the
System.
Chapter 2, Replacing the Field Replaceable Units (FRUs), gives you instructions on how
to remove and replace field replaceable sub-assemblies.
Chapter 3, Installing ROM Upgrade, teils you how to remove and install the ROM on the
motherboard.
Chapter 4, Amiga CD32 System Specifications, provides technical details about the System
including a memory map, block diagrams, pinouts, and ASIC specifications.
Chapter 5, Bill of M aterials (BOM), gives the part numbers for items on the BOM and
highlights the part numbers for the FRUs.
Chapter , Schematics, provides PCB assembly schematics.

Chapter 1
Customer Information
This chapter summarizes the Information the customer receives. This indudes basic setup
instructions and Software operations. The Amiga CD32 System comes with the items illustrated
in Figure 1-1.
Figure 1-1. Amiga CD 2 System

1-2 Connecting a Television/Monitor
Connecting a Television/Monitor
The easiest way to connect the Amiga CD32 System to a television/monitor is to use the RF
modulator that provides all the video and audio connections necessary. For a PAL System: Use
the provided RF modulator cable. For a NTSC System use the provided RF switch box to
connect a television/monitor with a VHF cable (F-type) connector and 75Q antenna, cable or
VCR cable. The NTSC System requires a 300/75Q Converter for an antenna or rabbit ears with
twin lead wire and a 75/300Q Converter for VHF screw type connectors.
S-video and composite video are options, but require the customer to purchase additional
spedalized cables. The customer is referred to his TV documents in order to determine whether
his set is S-video or composite video compatible.
The Stereo audio cables allow the customer to connect to TV stereo, powered Speakers, or
Standard stereo output.
See Figure 1-2 for the location of the side and rear panel features.
Figura 1-2. Slde and Rear Panels

Connecting a Television/Monitor 1-
Table 1-1 lists each socket on the System unit side and rear panels and summarizes the
Information provided to the customer.
Table 1-1. Side and Rear Panel Connectors
Connector Description
Game Controller
Connector Plug the game Controller into socket 1. To use a second game Controller, joystick
or mouse, plug it into socket 2. Donl plug or unplug a Controller while the power is
on.
Auxiliary Connector To use keyboard or another device, plug it into the socket marked AUX.
RF Connector Plug the RF modulator cable into the jack and the other end into the
television monitor.
For a PAL System:
Set the switch to the left (5.5 mHz) for the United Kingdom and to the right (6.0
mHz) for all other countries.
If the television monitor picture is not clear, use a small flat-bladed screwdriver to
turn the screw until the picture is in Sharp focus.
For a NTSC System:
Set the switch to left for channel 3 and or the right for channel 4, whichever is not
used in your geographical area.
For both Systems use the television monitor volume control to adjust the sound.
S-video Connector To use S-video, the customer must buy an S-video cable with a 4-pin mini-DIN
connector at each end. Plug one end of the cable into the socket under the Symbol
and the other into the television monitor.
Composite Video
Connector To use composite Video, the customer must buy a composite video cable with an
RCA plug at each end. Plug one end of the cable into the yellow socket and the
other into the television monitor.
Right and Left Audio If the customer has a Stereo television monitor, he can use the Stereo audio cables
Connectors shipped with the System. Plug the white cable into the white socket and the other
cable into the red socket. Connect the other end to the television monitor.
If the customer wants to connect a television monitor with mono sound, he should
plug the white cable into the white socket under the Symbol. Do not connect the
other cable. Plug the white cable on the other end into the television monitor.
Plug in the power supply and turn on the System only after securely connecting these options.
In the United Kingdom manual, the customer is told to have a certified electrician attach the
correct plug to the cable.
The control panel in the front of the machine contains the reset button, power and disk activitv
lights, headset jack and headset volume control.

1-4 Using the Amiga CD 2 Software
The Game Controller
The System comes with a customized game Controller that has four play buttons, a pause/start
bar, two general feature bars and an omni-directional movement button. The Controller is used
for controlling game play, making audio selections and defining System set-up options..
Using the Amiga CD 2 Software
Once the System has been tumed on, you can change CDs by just lifting the lid and the disc
stops spinning. The System Starts again when you dose the lid.
• Ifyou put an Amiga CD32 game in the drive the logo screen appears for a few seconds while
the game loads. Then the game Starts.
• Ifyou put an audio CD in the drive you’ll see the audio control display.
• If there is no CD in the drive you'll see the Amiga CD32 logo screen.
Play Ing Audio CDs
The user can play an audio CD in one of two ways: from the Controller or from the audio display.
The easiest way is to press the appropriate button on the Controller. The function Symbols
associated with the buttons are identical to those on the display. The other way is to highlight
the appropriate box on the display and press the red button to select it. Use the black
directional button to move the highlight around the display.
Selecting a Language
From the logo screen press the blue button to see the language selection screen. Choose a
preferred language for game playing on this screen. This is a one time selection.
Locking Game Information
From the logo screen press the red button to see the gamelock screen. The Amiga CD32 can save
100 memory units worth of game information. This screen allows the user to protect old game
information from being aeleted or replaced by other game information by "locking" it.

Chapter 2
Replacing Field Replaceable Units
(FRUs)
This chapter gives instructions for removing and replacing the following FRUs:
• Power supply (part number 313375-01 to 313375-0 )
• Game Controller (part number 3 5183-01
• System motherboard (part number 3 5101-02 PAL or 3 5101-01 NTSC)
• Bottom Case Assembly (part number 3 5159-01, see Chapter 5 for individual part numbers)
• CD drive cable (part number 31337 -01)
• CD drive assembly (part number 3 51 1-01
• LED cable (part number 3 53 7-01)
• LED board assembly (pari number 3 51 8-01)
• Top Case Assembly (part number 3 51 0-01, see Chapter 5 for individual part numbers
Order replacements according to the procedures established by your Service Organization.
Replacing the Power Supply and Game Controller
If the power supply or game Controller is defective replace it with a new item.
Separating and Connecting the System Top and
Bottom Cases
To remove the System top case:
1. Tum off the power switch and remove all connecting cables.
2. Remove the System case screws. Remove the case screw on the rear panel as illustrated in
Figure 1-2. Tum the System over and remove the five screws on the bottom of the case.
3. Tum the System over while holding the System bottom case firmly to the System top case.

2-2 Separating and Connecting the System Top and Bottom Cases
4. The CD drive assembly and LED board are connected to the top case and their cables attach
to the motherboard in the bottom case. Very carefully lift up the top case from the bottom
case a few inches.
5. Remove the LED board cable from the LED board installed in the top System case. Locate
the LED board cable in Figure 2*1. Grasp the connector by the outside edges. Pull it out of
the socket and lift the cable out of the niche behind the tab in the bottom of the System case.
Make certain to place the cable behind the tab on the bottom of the system case when
replugging it into the LED board.
CD Drive CD Drive Cable
Figure 2-1. CD Player and LED Board Location and Cables
. Flip the top case up at a 90® angle to expose the inside of the top and bottom cases.
7. Remove the LED board cable from the motherboard. Locate the LED board cable socket on
the bottom of the case in Figure 2-2. Make certain to place the cable behind the tab on the
bottom of the System case when replugging it into the motherboard.

Replacing the Motherboard 2-
Shield Screws (3)
rum
m
9
T o T
0 O • O O o~ o
o o o o o
ov o - o oü o ü o
O O O O^ O '
TTL Q TI
• o
o
--- ■> . 'S ' >•
-0 -x •
• O;
% ■
°o
°o
0b;0S0o0o0o0ö°o°-
o n o o o on ° • ° 0 :
. -*:V •*> : u
^•sv~ .
%•• -i •' j-* 3
.'[W > i l
1 0
B
9
~TöT
--------------- 1-----------------------------i ---------------------
LEO Cable Socket LED Wire Tab CO Orive Cable Socket
1 3
Figure 2-2. Motherboard Shield and Cable Socket Locations
8. Remove the CD drive cable from the motherboard. Locate the CD drive cable socket on the
motherboard in Figure 2*2. The socket may be an insertion socket or a ZIF socket. Grasp
the cable firmly and pull it out of the socket. To insert the cable into an insertion socket,
grasp the flat ribbon cable and push it straight into the socket. To insert the cable into a
ZIF socket, first grasp the socket on its outside edges with a needle-nose pliers and pull the
socket up to release it. Then grasp the flat ribbon cable and push it straight into the socket.
Push the socket down to lock the cable in place.
9. Reverse this procedure to reassemble the top and bottom cases.
Replacing the Motherboard
Follow the instructions for removing the System top case on page 2-1.
To remove and replace the motherboard:
1. Locate the three shield screws on Figure 2-2 and remove the screws.
2. Lift the shield out of the case.

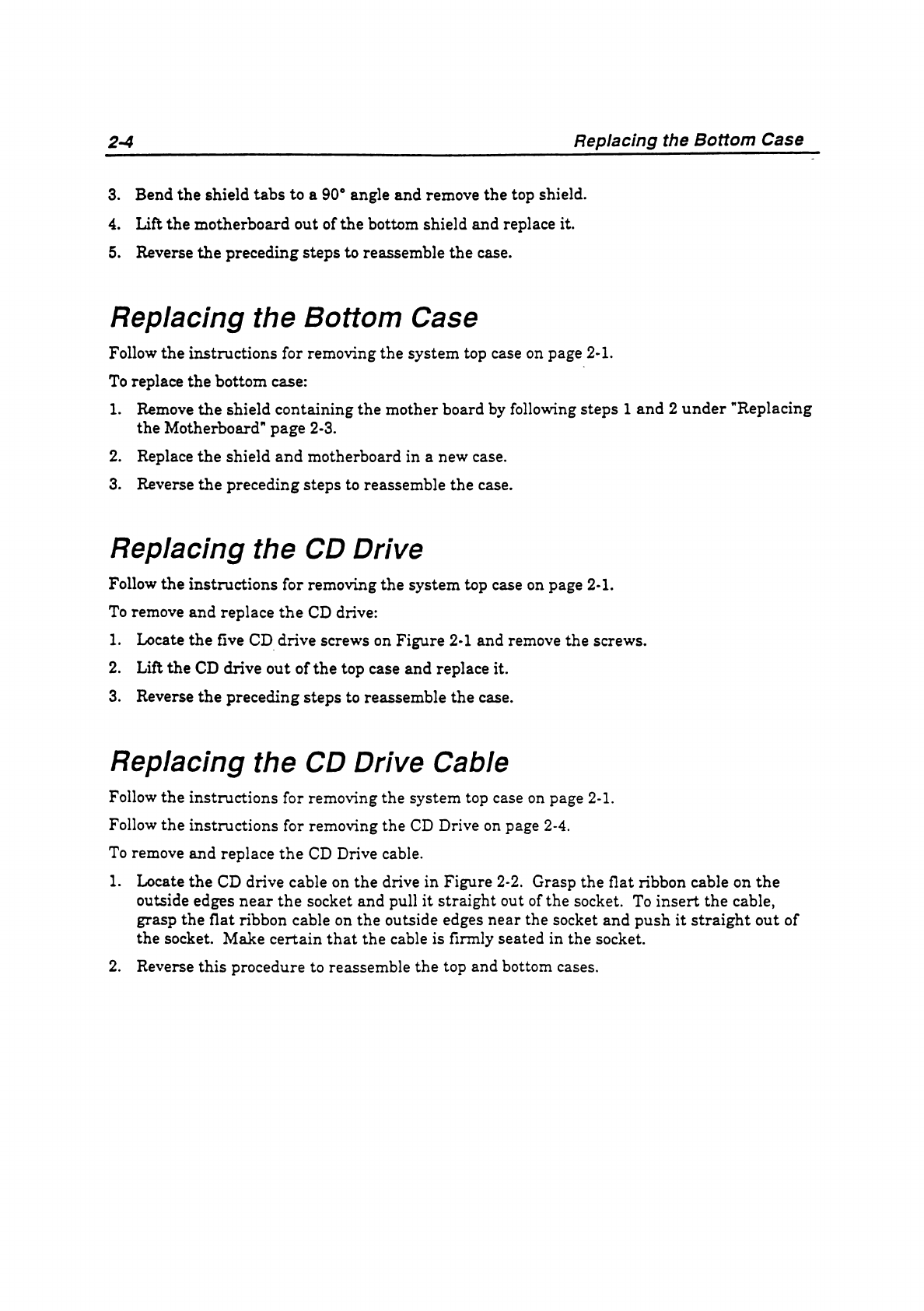

2-4 Replacing the Bottom Case
3. Bend the shield tabs to a 90° angle and remove the top shield.
4. Lift the motherboard out of the bottom shield and replace it.
5. Reverse the preceding Steps to reassemble the case.
Replacing the Bottom Case
Follow the instructions for removing the System top case on page 2-1.
To replace the bottom case:
1. Remove the shield containing the mother board by following steps 1 and 2 under "Replacing
the Motherboard" page 2-3.
2. Replace the shield and motherboard in a new case.
3. Reverse the preceding steps to reassemble the case.
Replacing the CD Drive
Follow the instructions for removing the System top case on page 2-1.
To remove and replace the CD drive:
1. Locate the five CD drive screws on Figure 2-1 and remove the screws.
2. Lift the CD drive out of the top case and replace it.
3. Reverse the preceding steps to reassemble the case.
Replacing the CD Drive Cable
Follow the instructions for removing the System top case on page 2-1.
Follow the instructions for removing the CD Drive on page 2-4.
To remove and replace the CD Drive cable.
1. Locate the CD drive cable on the drive in Figure 2-2. Grasp the flat ribbon cable on the
outside edges near the socket and pull it straight out of the socket. To insert the cable,
grasp the flat ribbon cable on the outside edges near the socket and push it straight out of
the socket. Make certain that the cable is flrmly seated in the socket.
2. Reverse this procedure to reassemble the top and bottom cases.

Replacing the LED Board 2-5
Replacing the LED Board
Follow the instructions for removing the System top case on page 2-1.
1. Locate the two LED board screws on Figure 2-2 and remove the screws.
2. Lift the LED board out of the top case and replace it.
3. Reverse the preceding steps to reassemble the case.
Replacing the LED Board Cable
Follow the instructions for removing the System top case on page 2-1.
To remove and replace the LED board cable connected to the LED board:
1. Grasp the connector by the outside edges and pull it straight up and out of the socket.
2. Reverse the preceding steps to replace the cable.
Replacing the Hinge and Case Top Lid
To remove and replace the case top lid:
1. Locate the hinge pin screw illustrated in Figure 2-3 and remove the screw.
Figure 2- . Hinge and Case Lid

2-6 Replacing the Hinge and Case Top Lid
2. Remove the hinge pin. If necessaiy, use a needle-nose pliers to work the hinge pin out of
the hinge.
3. Locate the two hinge screws illustrated in Figure 2-3 and remove the screws.
4. Remove the hinge.
5. Replace the lid with the attached chucking mechanism.
. Reverse the preceding Steps to reassemble the case top lid.

Chapter
Installing ROM Upgrade
A ROM chip Upgrade can enhance the functionality of the Amiga CD^ System.
Before You Begin
When removing and replacing the ROM chip:
• Tum off the power on your System.
• Disconnect all extemal cables from your System unit.
• Remove the System unit cover, as explained in Chapter 2.
• Remove the motherboard from the shield case, as explained in Chapter 2.
• Follow the instructions in this chapter to install ROM Upgrade Option.
Installing the ROM Upgrade
When replacing the ROM chip:
1. Locate the chip on the motherboard, as illustrated in Figure 3*1.

-2 Installing the ROM Upgrade
CD Drive Cable Socket
Figure -1. ROM Chip Location
2. Remove the ROM chip using a chip pulling tool.
3. Locate the U notch on the end of the ROM socket, as illustrated in Figure 3-1.
4. Locate the U notch on the end of the new ROM chip. Orient the chip above the socket.
5. Align the legs on the chip with the holes in the socket.
. Insert the chip in the socket. Press firmly, but do not force.
7. Reassemble the System by reversing the Steps on page 3-1.
