CONCORD Eye-Q 4060 AF User manual

LANGUAGES
ENGLISH................................................................................................................1
FRANÇAIS ............................................................................................................7
DEUTSCH ............................................................................................................13
ESPAÑOL ............................................................................................................19
ITALIANO ............................................................................................................25
DUTCH ................................................................................................................31
4060 QS Guide (512878-02) 7/10/03 8:08 PM Page 2

1
CAMERA OVERVIEW
Top/Front
Bottom/Back
1
5
6
7
8
9
10
11
2
3
4
A
AWB
⁄ ⁄
A
AWB
⁄ ⁄
12 18
19
20
21
23
24
22
25
26
13
14
15
16
17
A
AWB
⁄ ⁄
A
AWB
⁄ ⁄
1. Power Switch
2. Shutter Button
3. Flash
4. Lens/ Lens Door
5. Viewfinder
6. Flash Sensor
7. Red-eye Reduction
LED/Self-Timer LED
8. Microphone
9. Mini-USB port
10. TV-Out port
11. Macro Mode Switch
12. Flash Ready LED
13. Viewfinder
14. Auto-Focus LED
15. LCD
16. Tripod Socket
17. Battery/Memory
Card Door
18. Mode Switch
19. Reset Button
20. Joystick/OK button/
Zoom button/Flash
button
21. MENU Button
22. Speaker
23. LCD On/Off Button
24. Wrist Strap Holder
25. Memory Card Slot
26. Battery Compartment
This Quick Start Guide provides a quick reference for operating your
new digital camera. Refer to the User’s Guide, which can be found on
the CD-ROM and a hard copy in your Concord Eye-Q 4060AF box, for
detailed instructions on how to use all of your camera’s features. Before
using the camera, make sure to read all safety instructions and
precautions outlined in the User’s Guide.
QUICK START GUIDE
ENGLISH
4060 QS Guide (512878-02) 7/10/03 8:08 PM Page 1

2
CAMERA OVERVIEW
F
I
J
L
M
N
A
B
C
D
E
K
H
G
A
AWBWB
07 ⁄ 04 ⁄ 03 02:40PM
4M
N
28/45
A
AWBWB
07 ⁄ 04 ⁄ 03 02:40PM
4M
N
28/45

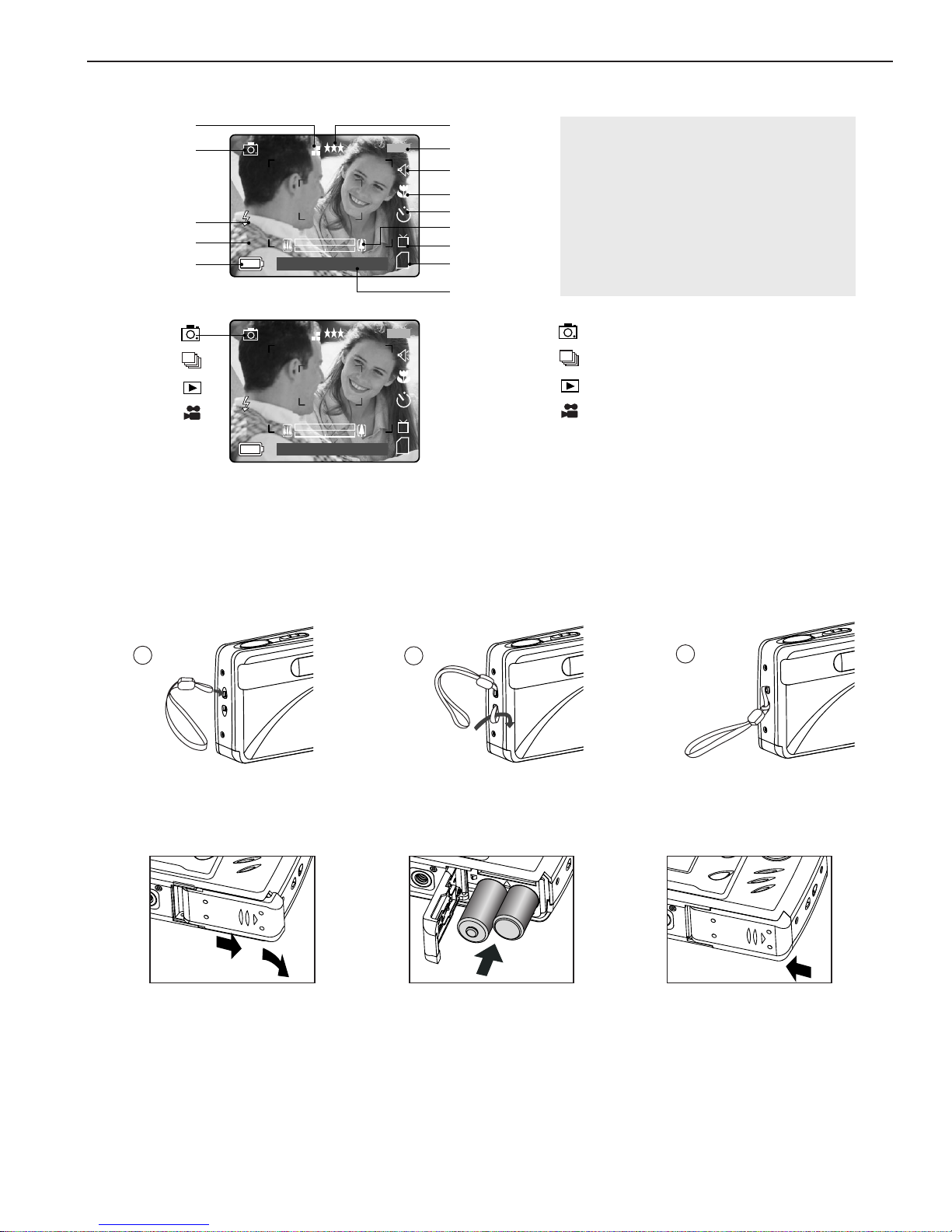

LCD ICONS
A. Resolution
B. Camera Mode
C. Flash
D. White Balance
E. Battery Level
F. Image Quality
G. Frame Counter
H. Sound
I. Macro
J. Self-Timer
K. Zoom Bar
L. TV Option
M. Memory
N. Date / Time
Attaching the Wrist Strap
Please attach the wrist strap to prevent dropping the camera.
LOADING THE BATTERIES
The camera can use 2x AA alkaline, lithium or NiMH rechargeable batteries.
1. Open the Battery/Memory Card door. (fig.1.1)
•Slide the door in the direction of the arrow, and lift it open.
2. Insert the batteries according to the polarity indicators on the top edge of the battery compartment. (fig.1.2)
3. Shut the Battery/Memory Card door by sliding it in the opposite direction of the arrow marked on it, and
close it securely. (fig.1.3)
1
2
3
fig.1.1 fig.1.2 fig.1.3
: Single Shot
: Continuous Shot
: Review
: Video Clips
A
AWB
⁄ ⁄
A
AWB
⁄ ⁄
4060 QS Guide (512878-02) 7/10/03 8:08 PM Page 2

3

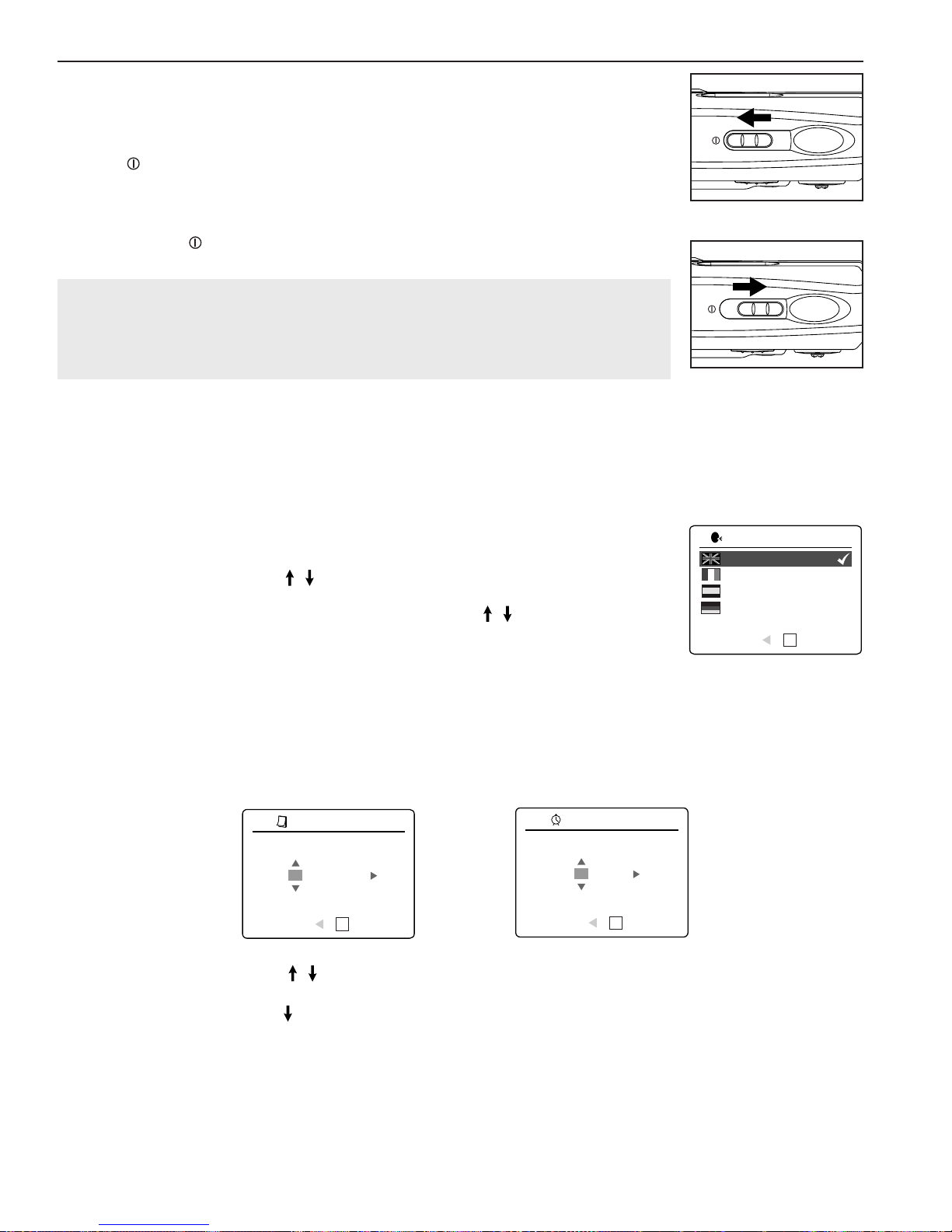

GETTING STARTED

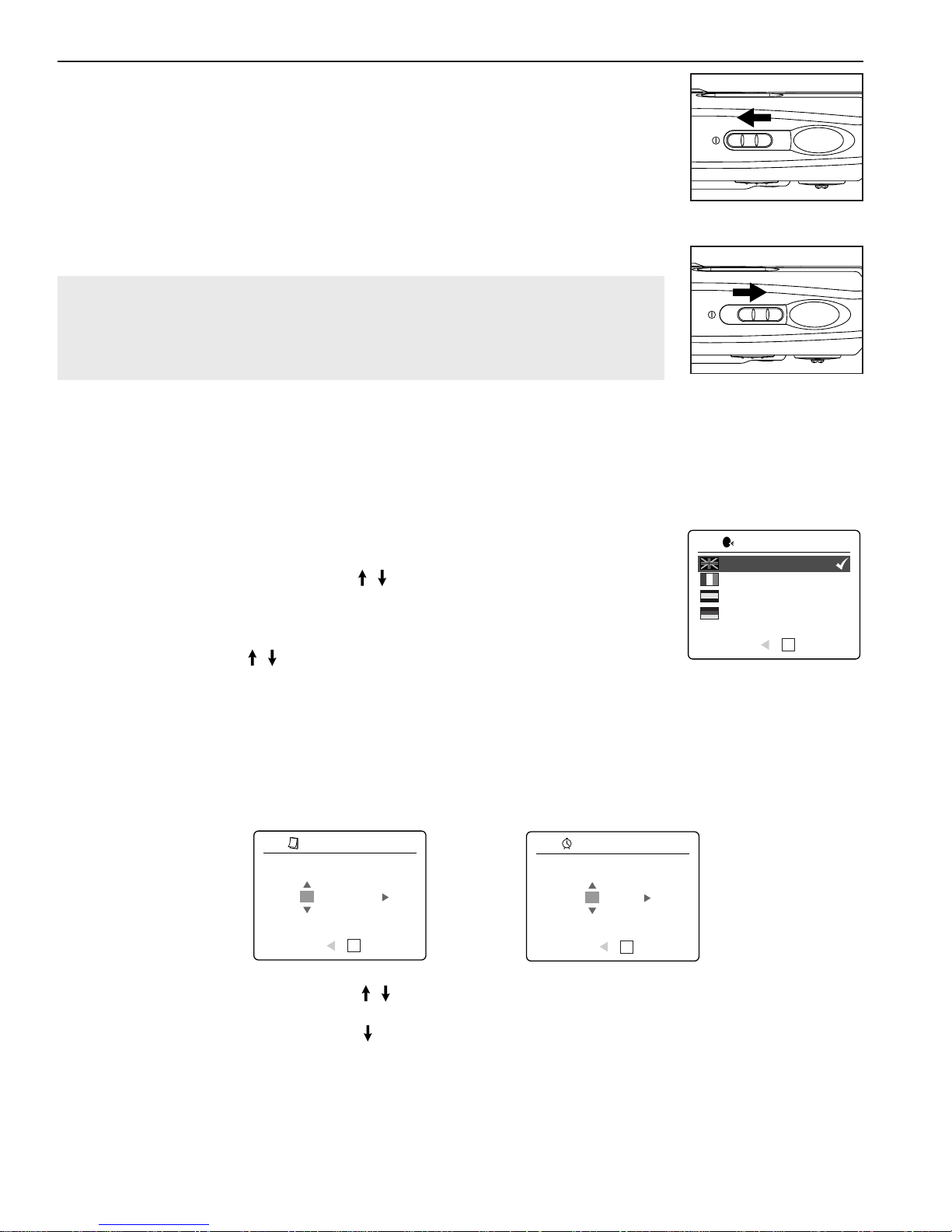

TURNING THE CAMERA ON AND OFF
The Power Switch is located on the top of the camera.
1. Slide the Power Switch toward the ( ) icon to power the camera on. (fig.1.1)
•The lens cover will open.
•The LCD will turn on automatically.
2. To turn the camera off, slide the Power Switch away from ( ). (fig.1.2)
Note:
To extend battery life, the camera will automatically power off after 60 seconds of
inactivity. Press the shutter button to power the camera back on.
SETTING THE LANGUAGE
When the camera is powered on for the first time, the Language, Date and Time menus will appear.
1. Turn the camera on.
•The Language Setup screen will appear on the LCD.
2. Press the joystick to highlight the language you would like to use.
3. Press the OK button by pressing the joystick in to select.
4. The next screen will read “Are You Sure?” press the joystick to select No
or Yes.
5. Press the OK button to select.
•If you select No, you will return to the Language select screen.
•If you select Yes, all menu screens will be displayed in the new language.
SETTING THE DATE AND TIME
1. Press the joystick to change the option in the blinking position until you reach the desired number.
2. Press the joystick to highlight the other options.
•The option will blink when it is selected.
3. Repeat steps 1 and 2 to change the date and time setting.
4. Press the OK button.
fig.1.1 Camera On
fig.1.2 Camera Off
English
Français
Español
Deutsch
RETURN SET
LANGUAGE OPTION
OK
⁄ ⁄
28 SEC
⁄ ⁄
28 SEC
A
AWB
⁄ ⁄
AWB
⁄ ⁄
ADJUST DATE
1
OK
01 ⁄ 01 ⁄ 2003
RETURN SET
⁄ ⁄
28 SEC
⁄ ⁄
28 SEC
A
AWB
⁄ ⁄
AWB
⁄ ⁄
ADJUST TIME
OK
01:01AM
RETURN SET
⁄ ⁄
28 SEC
⁄ ⁄
28 SEC
A
AWB
⁄ ⁄
AWB
⁄ ⁄
4060 QS Guide (512878-02) 7/10/03 8:08 PM Page 3

4
GETTING STARTED / TICKING PICTURES
INTERNAL MEMORY/INSERTING THE MEMORY CARD
The camera has 16MB internal memory that can be used right away. The camera can also use secure digital
(SD) memory cards (not included) to store images and video clips.
1. Open the Battery/Memory Card door.
•Slide the door in the direction of the arrow marked on it, and lift it open. (fig.1.1)
2. Insert the memory card as indicated by the diagram. (fig.1.2)
•Please insert the card in straight, not on an angle.
3. Shut the Battery/Memory Card door by sliding it in the opposite direction of the arrow marked on it, and
close it securely. (fig.1.3)
TAKING A PICTURE
TAKING A PICTURE WITH THE VIEWFINDER OR LCD
1. Turn the camera on.
2. Set the camera to ( ) Camera Mode and make sure the Macro Mode Switch is set to the ( ) Distant
Mode. (fig.1.1)
3. Frame the subject in the viewfinder or LCD.
4. Press the shutter button half-way to activate the auto-focus until the green AF LED lights up. (fig.1.2)
5. Press the shutter button fully to capture the image. (fig.1.3)
SETTING THE FLASH
1. Press the joystick toward ( ) repeatedly until the desired indicator appears on the LCD.
fig.1.1 fig.1.2 fig.1.3
fig.1.1 fig.1.3
fig.1.2
⁄ ⁄
28 SEC
⁄ ⁄
28 SEC
A
AWB
07 ⁄ 04 ⁄ 03 02:40PM
4M
N
28/45
AWB
⁄ ⁄
⁄ ⁄
28 SEC
⁄ ⁄
28 SEC
A
AWB
⁄ ⁄
AWB
07 ⁄ 04 ⁄ 03 02:40PM
4M
N
28/45
4060 QS Guide (512878-02) 7/10/03 8:08 PM Page 4

5
TICKING PICTURES / DELETE ONE FILE
TAKING A VIDEO CLIP
To record a video clip:
1. Slide the Mode Switch to ( ) Video Clip Mode.
2. Position the subject in the viewfinder or LCD.
3. Press the shutter button fully to capture a continuous video clip.
4. To stop recording, press the shutter button again.
Note: There is a time limit for each video clip. The time will vary depending on the amount of available
memory space. The alloted amount of recording time will appear on the top right hand corner of the
screen. The video clip capture will stop automatically when it reaches its time limit.
Video Clip Information
Resoluton: QVGA (320 x 240)
Frame rate: 30fps
File Format: AVI (Motion Picture)
Note: The Flash Ready LED will turn red when the camera is storing the video clip. Do not open the
battery door or turn the camera off while recording, or the video clip may not be stored.
DELETE ONE FILE
1. Slide the Mode Switch towards ( ).
2. When Delete File is highlighted, press the joystick to enter the Delete File
submenu.
3. In the Delete File menu, press the joystick when Delete One is highlighted.
4. The next screen will display the stored pictures and video clips as thumbnails.
Press the joystick , , , to highlight the file you want to delete.
5. Press the OK button to select.
6. The next screen will read "Are You Sure?" press the joystick or to
highlight No or Yes.
7. Press the OK button to select.
•If No is selected, no change will be made, and you will return to the Delete One thumbnail view.
•If Yes is selected, the selected file will be deleted.
⁄ ⁄
28 SEC
07 ⁄ 04 ⁄ 2003 02:40
Press Shutter to Record
28 SEC28 SEC
A
AWB
⁄ ⁄
AWB
⁄ ⁄
DELETE FILES
THUMBNAIL
SETUP
RETURN SELECT
REVIEW
⁄ ⁄
28 SEC
⁄ ⁄
28 SEC
A
AWB
⁄ ⁄
AWB
⁄ ⁄
MENU DELETE
OK
⁄ ⁄
28 SEC
⁄ ⁄
28 SEC
A
AWB
⁄ ⁄
AWB
⁄ ⁄
Are You Sure?
No
Yes
SELECT
OK
⁄ ⁄
28 SEC
⁄ ⁄
28 SEC
A
AWB
⁄ ⁄
AWB
⁄ ⁄
DELETE ONE
DELETE ALL
RETURN SELECT
DELETE FILES
⁄ ⁄
28 SEC
⁄ ⁄
28 SEC
A
AWB
⁄ ⁄
AWB
⁄ ⁄
4060 QS Guide (512878-02) 7/10/03 8:08 PM Page 5

6

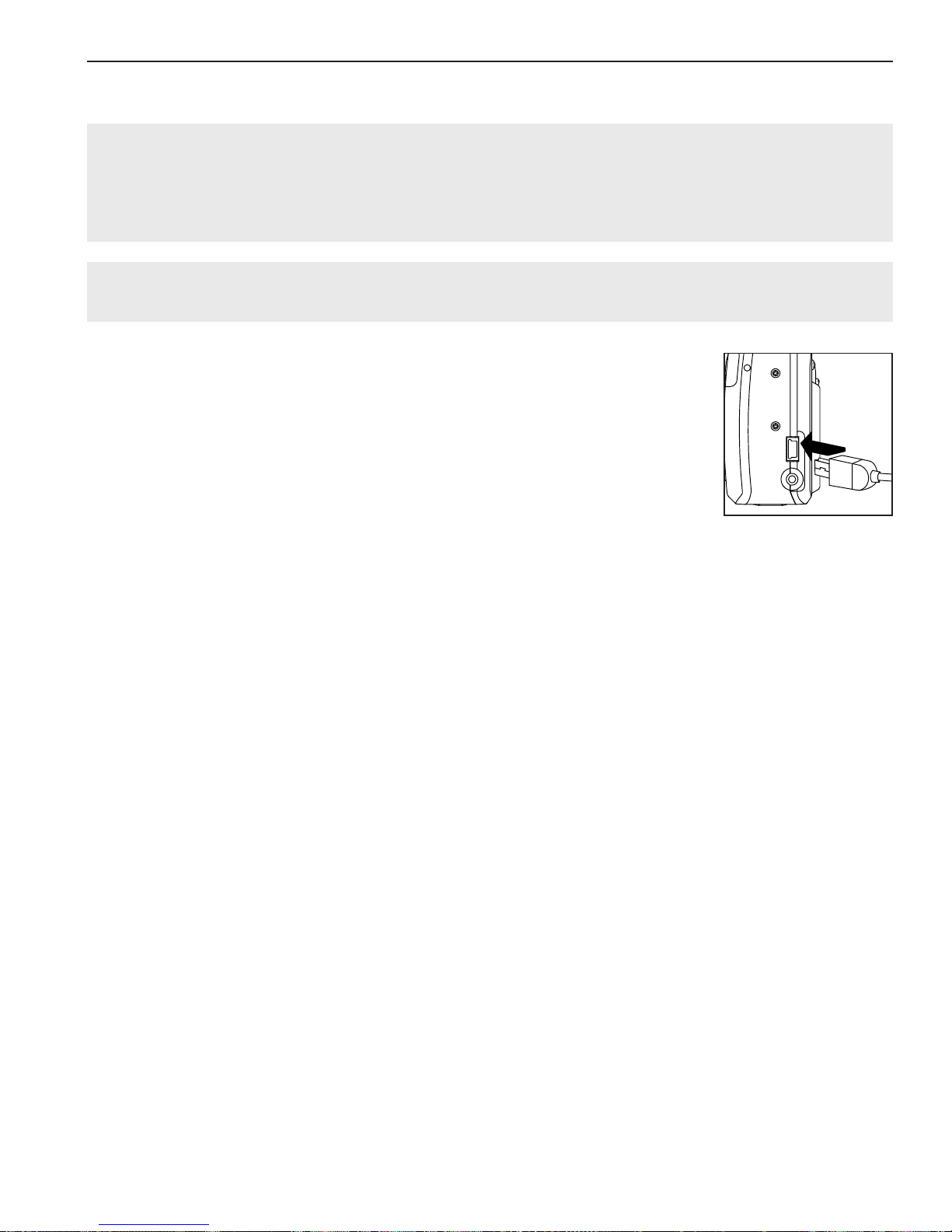

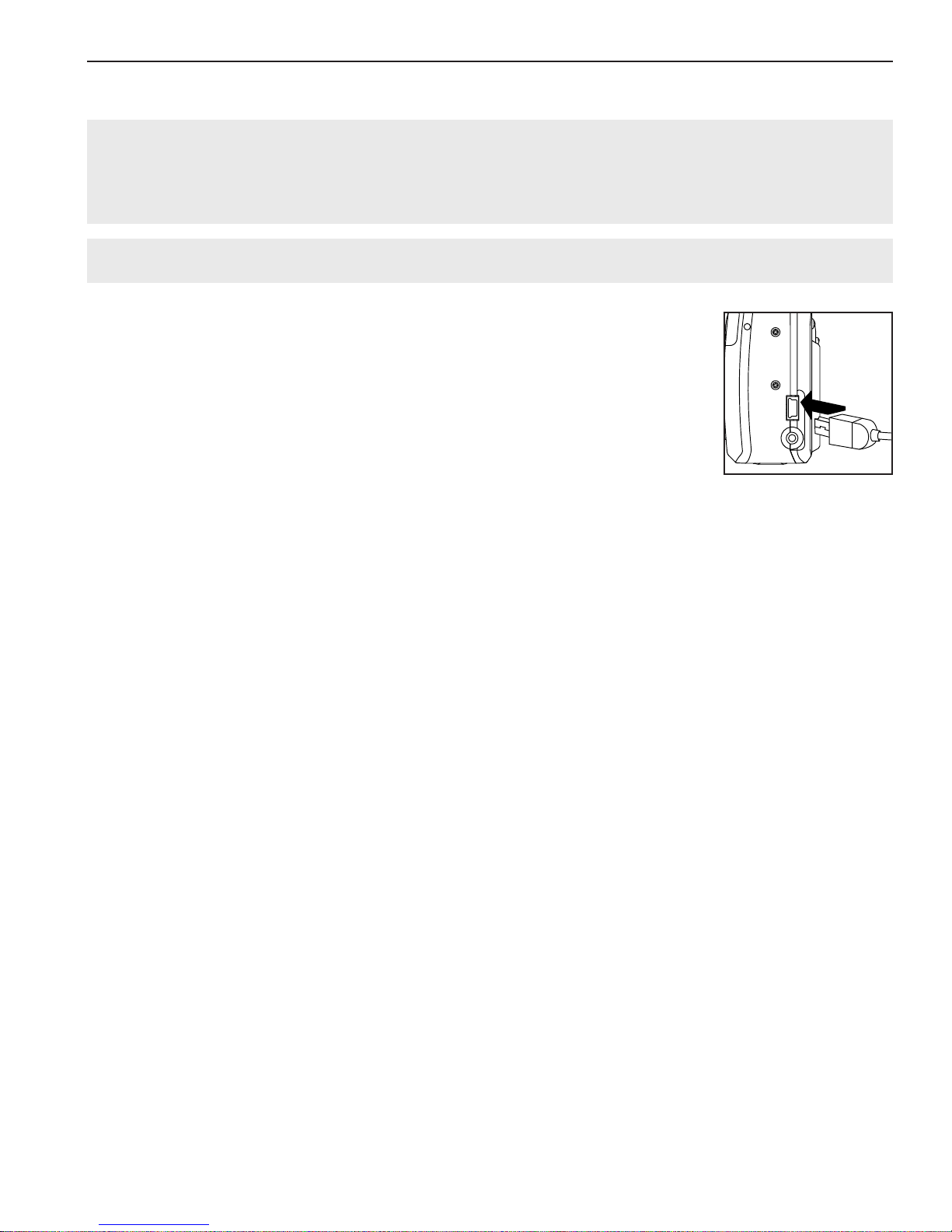

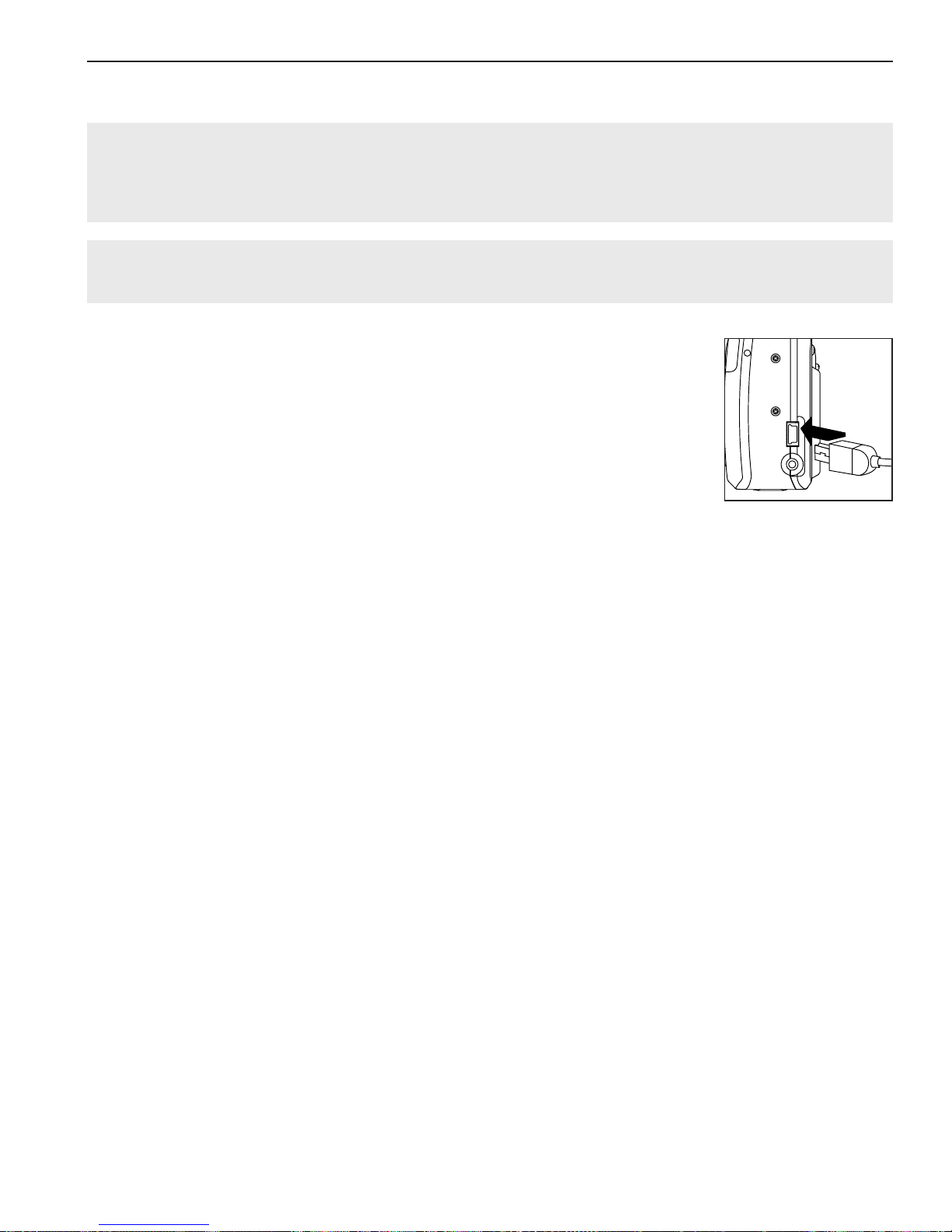

CONNECTING THE CAMERA TO THE COMPUTER
DOWNLOADING PICTURES AND VIDEO CLIPS ONTO YOUR COMPUTER
Note: Windows 98/98SE users must install the camera driver first. Windows 2000 users must install
DirectX in order to view video clips on the computer. Please refer to the Installation Guide section on page
34 in the User's Guide for more information on installing the drivers and other software found on the CD-
ROM.
Caution: Do not insert or remove the memory card when the camera is connected to the computer.
Downloading files from the camera:
•Internal memory: Do not insert the memory card.
•Memory Card: Insert the memory card.
FOR WINDOWS USERS
1. Connect the camera to the computer.
2. Double-click on My Computer>Removable Disk>DCIM>100CD_4060.
•The stored pictures (JPG) and video clips (AVI) stored in the memory card will
be displayed
3. Click and drag the files into a directory in your computer to save them.
•To select all files, click Edit > Select all.
FOR MACINTOSH USERS
1. Connect the camera to the computer.
After a few moments, the external hard drive “untitled” will appear on the desktop.
2. Double-click on untitled>DCIM>100_4060.
•The stored pictures (JPG) and video clips (AVI) stored in the memory card will be displayed.
3. Drag and drop the image you want to save in the computer.
•To select all files, click Edit > Select all.
Concord, Concord Eye-Q and the Concord Eye-Q logo are registered trademarks or trademarks of Concord Camera Corp., in the United States
and/or other countries. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States
and/or other countries. Mac and Macintosh are registered trademarks or trademarks of Apple Computer, Inc. in the U.S. and other countries. All
other brands and product names are either registered trademarks or trademarks of their respective owners.
4060 QS Guide (512878-02) 7/10/03 8:08 PM Page 6

7
Les références de ce guide de démarrage rapide vous permettent
d’utiliser rapidement votre nouvel appareil digital. Pour des explications
plus détaillées sur toutes les caractéristiques de votre appareil, veuillez
lire le guide de l’utilisateur qui se trouve sur le CD-ROM situé dans le
coffret du Concord Eye-Q 4060AF. Avant d’utiliser l’appareil, veuillez lire
toutes les instructions de sécurité et de précaution décrites dans ce
guide.
GUIDE DE DEMARRAGE RAPIDE

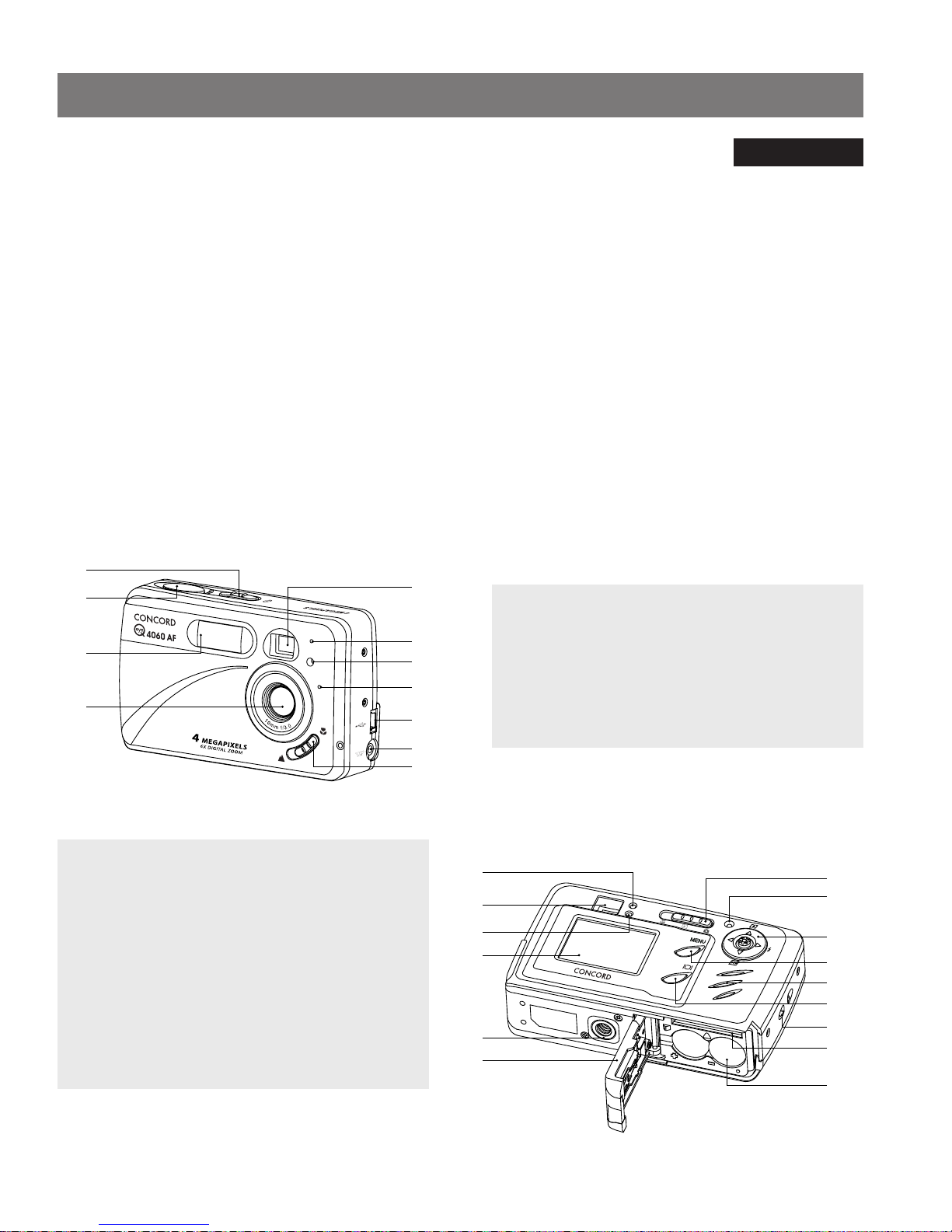

VUE D’ENSEMBLE DE L’APPAREIL PHOTO
Vue du haut/devant
Vue du dessous/ derrière
1. Bouton de mise en
marche
2. Bouton de l’obturateur
3. Flash
4. Objectif et couvre-
objectif
5. Viseur
6. Capteur du flash
7. DEL du retardateur /
de du réducteur des
yeux rouges
8. Microphone
9. Port USB
10. Port Vidéo
11. Commutateur de
mode Macro
12. DEL de flash
13. Viseur
14. DEL auto-focus
15. LCD
16. Écrou du trépied
17. Porte d’accès aux
piles et à la carte
mémoire
18. Cadran de sélection
de mode
19. Bouton de remise à
zéro
20. Bouton de navigation/
bouton OK/ bouton
zoom/bouton Flash
21. Bouton du menu
22. Haut-parleur
23. Interrupteur
arrêt/marche de
l’ACL
24. Dragonne
25. Logement de la carte
mémoire
26. Compartiment à piles
1
5
6
7
8
9
10
11
2
3
4
A
AWB
⁄ ⁄
A
AWB
⁄ ⁄
12 18
19
20
21
23
24
22
25
26
13
14
15
16
17
A
AWB
⁄ ⁄
A
AWB
⁄ ⁄
FRANÇAIS
4060 QS Guide (512878-02) 7/10/03 8:08 PM Page 7

8
VUE D’ENSEMBLE DE L’APPAREIL PHOTO

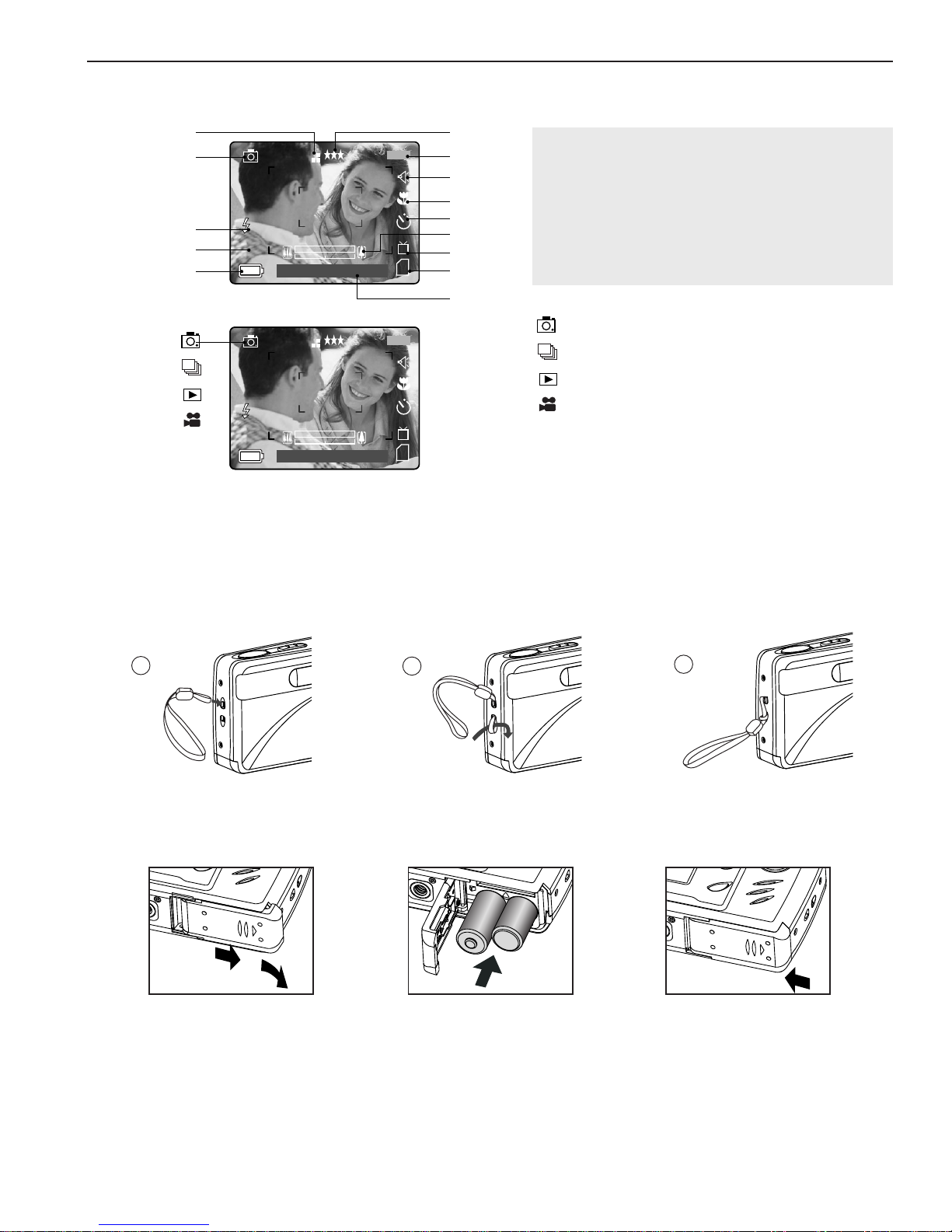

Fixation de la dragonne
Pour éviter d’échapper l’appareil, veuillez attacher la dragonne.
CHARGEMENT DES PILES DANS L’APPAREIL
Pour utiliser l’appareil photo numérique, vous pouvez utiliser 2 piles alcalines, au lithium ou rechargeables.
1. Ouvrez la porte d’accès aux piles et à la carte mémoire. (fig.1.1)
•Pour ouvrir, déplacer le volet dans le sens indiqué par la flèche et le soulever.
2. Insérer les piles selon les indicateurs de polarité sur la partie supérieure du logement des piles. (fig.1.2)
3. Bien fermer le volet de la carte mémoire et des piles en le déplaçant dans le sens opposé de la flèche.
(fig.1.3)
1
2
3
fig.1.1 fig.1.2 fig.1.3
ICÔNES DE L’AFFICHAGE À CRISTAUX LIQUIDES
A. Résolution
B. Mode Caméra
C. Flash
D. Équilibrage de blancs
E. Piles
F. Qualité
G. Compteur de fichiers
H. Son
I. Macro
J. Retardateur
K. La barre du zoom
L. Option TV
M. Mémoire
N. Date / Heure
: Photo Individuelle
: Photos en rafale
: Visonnage
: Séquences vidéo
F
I
J
L
M
N
A
B
C
D
E
K
H
G
A
AWBWB
07 ⁄ 04 ⁄ 03 02:40PM
4M
N
28/45
A
AWBWB
07 ⁄ 04 ⁄ 03 02:40PM
4M
N
28/45
4060 QS Guide (512878-02) 7/10/03 8:08 PM Page 8
