ZOOM and Rotation
19pcs 40W 4-in-1
User Manual
KEEP THIS MANUAL FOR FUTURE NEEDS
1 / 14

1. Unpacking
Thank you for choosing our fixture. For your own safety, please read this manual
before installing the device. This manual covers the important information on
installation and applications. Please install and operate the fixture with following
instructions. Meanwhile, please keep this manual well for future needs.
This fixture is made of a new type of high temperature strength of engineering
plastics and cast aluminum casing with nice outlook. The fixture is designed and
manufactured strictly following CE standards, complying with international standard
DMX512 protocol. It’s available independently controlled and linkable with each other
for operation. And it is applicable for large-scale live performances, theater, studio,
nightclubs and discos.
4-IN-1 LEDs(RGBW) which features high brightness and stability. Please
carefully unpack it when you receive the fixture and check whether it is damaged
during the transportation. And please check whether the following items are included
inside the box:
Moving Head---------One Signal Cable----One
Hanging Bracket-----Two Power Cable----One
Safety Cable---------one User Manual----One
2 / 14

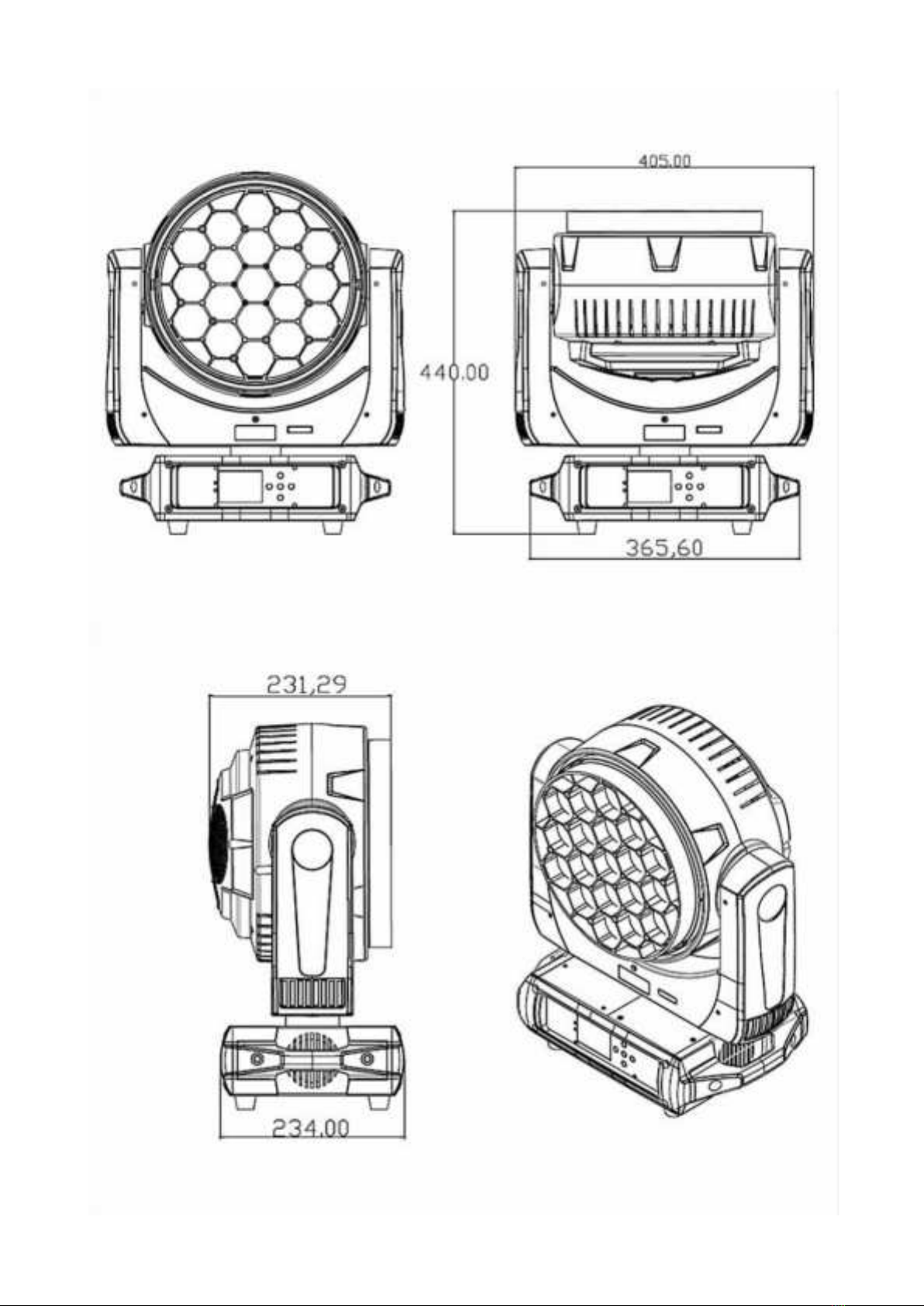

2. Product dimension
3 / 14

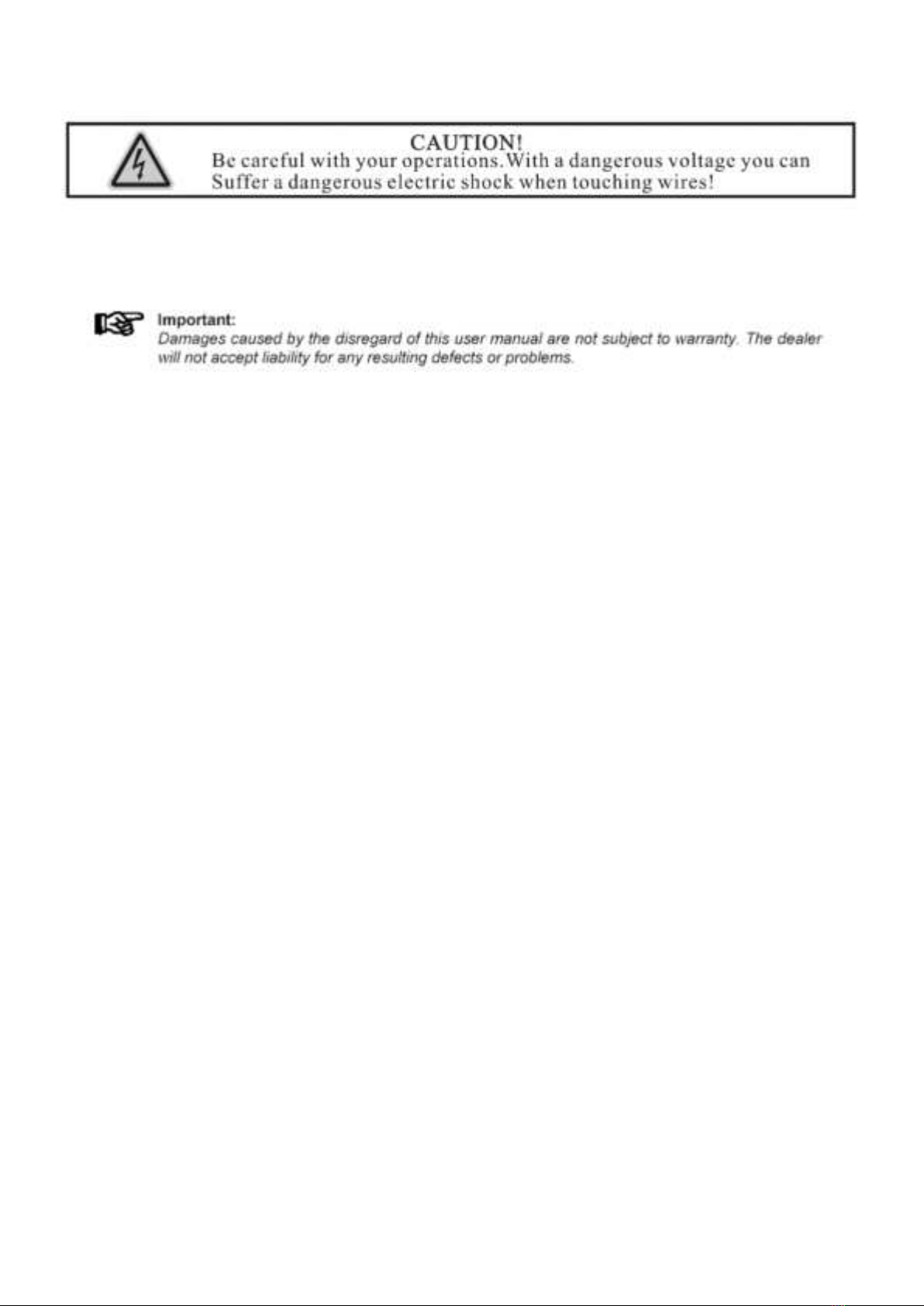

3. Safety Instructions
This device has left the factory in perfect condition. In order to maintain this condition
and to ensure a safe operation, it is absolutely necessary for the user to follow the
safety instructions and warning notes written in this user manual.
If the device has been exposed to temperature changes due to environmental
changes, do not switch it on immediately. The arising condensation could damage the
device. Leave the device switched off until it has reached room temperature.
This device falls under protection-class I. Therefore it is essential that the device be
earthed.
The electric connection must carry out by qualified person.
The device shall only be used with rate voltage and frequency.
Make sure that the available voltage is not higher than stated at the end of this
manual.
Make sure the power cord is never crimped or damaged by sharp edges. If this would
be the case, replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning it.
Only handle the power cord by the plug. Never pull out the plug by tugging the power
cord.
During initial start-up some smoke or smell may arise. This is a normal process and
does not necessarily mean that the device is defective, it should decrease gradually.
Please don't project the beam onto combustible substances.
Fixtures cannot be installed on combustible substances, keep more than 50cm
distance with wall for smooth air flow, so there should be no shelter for fans and
ventilation for heat radiation.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively
replaced by the manufacturer or his service agent or a similar qualified person in order
to avoid a hazard.
4 / 14

4. Operation Instructions
-The fixture is for beam wash and effect use.
-Don’t turn on the fixture if it’s been through severe temperature difference like after
transportation because it might damage the light due to the environment changes. So
make sure to operate the fixture until it is in normal temperature.
-This light should be keep away from strong shaking during any transportation or
movement.
-Don’t pull up the light by only the head, or it might cause damages to the mechanical
parts.
-Don’t expose the fixture in overheat, moisture or environment with too much dust
when installing it. And don’t lay any power cables on the floor. Or it might cause
electronic shock to the people.
-Make sure the installation place is in good safety condition before installing the fixture.
-Make sure to put the safety chain and check whether the screws are screwed properly
when installing the fixture.
-Make sure the lens are in good condition. It’s recommended to replace the units if
there are any damages or severe scratch.
-Make sure the fixture is operated by qualified personnel who knows the fixture before
using.
-Keep the original packages if any second shipment is needed.
-Don’t try to change the fixtures without any instruction by the manufacturer or the
appointed repairing agencies.
-It is not in warranty range if there are any malfunctions from not following the user
manual to operate or any illegal operation, like shock short circuit, electronic shock,
lamp broke, etc.
5. Mounting and Installation
Cautions: For added protection mount the fixtures in areas outside walking paths,
seating areas, or in areas were the fixture might be reached by unauthorized
personnel.
Before mounting the fixture to any surface, make sure that the installation area can
hold a minimum point load of 10 times the device’s weight.
Fixture installation must always be secured with a secondary safety attachment, such
as an appropriate safety cable.
5 / 14

Never stand directly below the device when mounting, removing, or servicing the
fixture from a
periodic safety inspection of all installation material and the fixture. If you lack these
qualifications, do not attempt the installation yourself. Improper installation can result in
bodily injury.
Be sure to complete all rigging and installation procedures before connecting the main
power cord to the appropriate wall outlet.

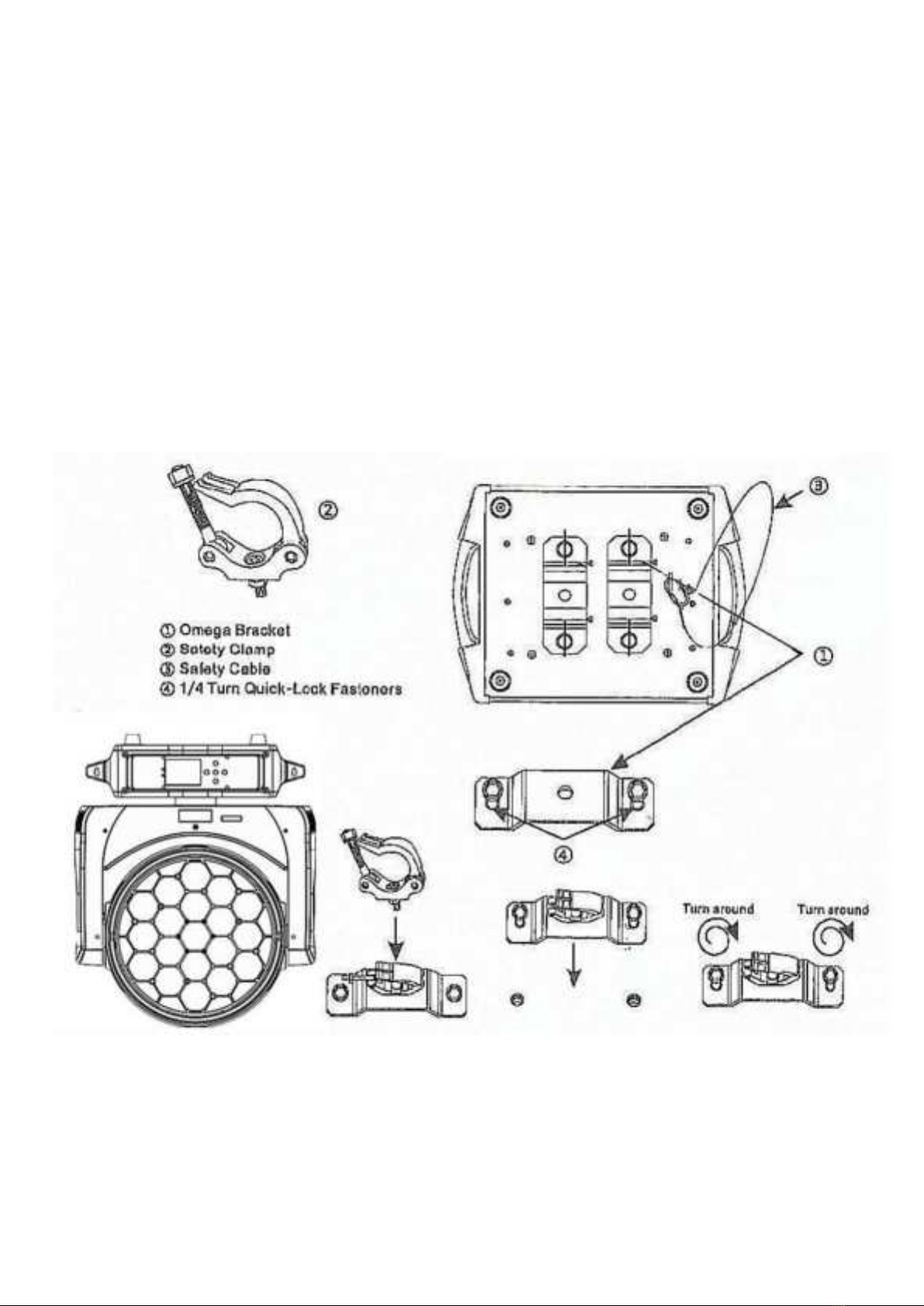

Clamp Mounting: The product provides a unique mounting bracket assembly that
integrates the bottom of the base, the included “Omega Bracket,” and the safety cable
rigging point in one unit (see the illustration below). When mounting this fixture to truss
be sure to secure an appropriately rated clamp to the included omega bracket using a
M10 screw fitted through the center hole of the “omega bracket”. As an added safety
measure be sure to attached at least one properly rated safety cable to the fixture
using on of the safety cable rigging point integrated in the base assembly
Regardless of the rigging option you choose for our fixture, always be sure to secure
your fixture with a safety cable. The fixture provides a built-in rigging point for a safety
cable on the hanging bracket as illustrated above. Be sure to only use the designated
rigging point for the safety cable and never secure a safety cable to a carrying handle.
6 / 14

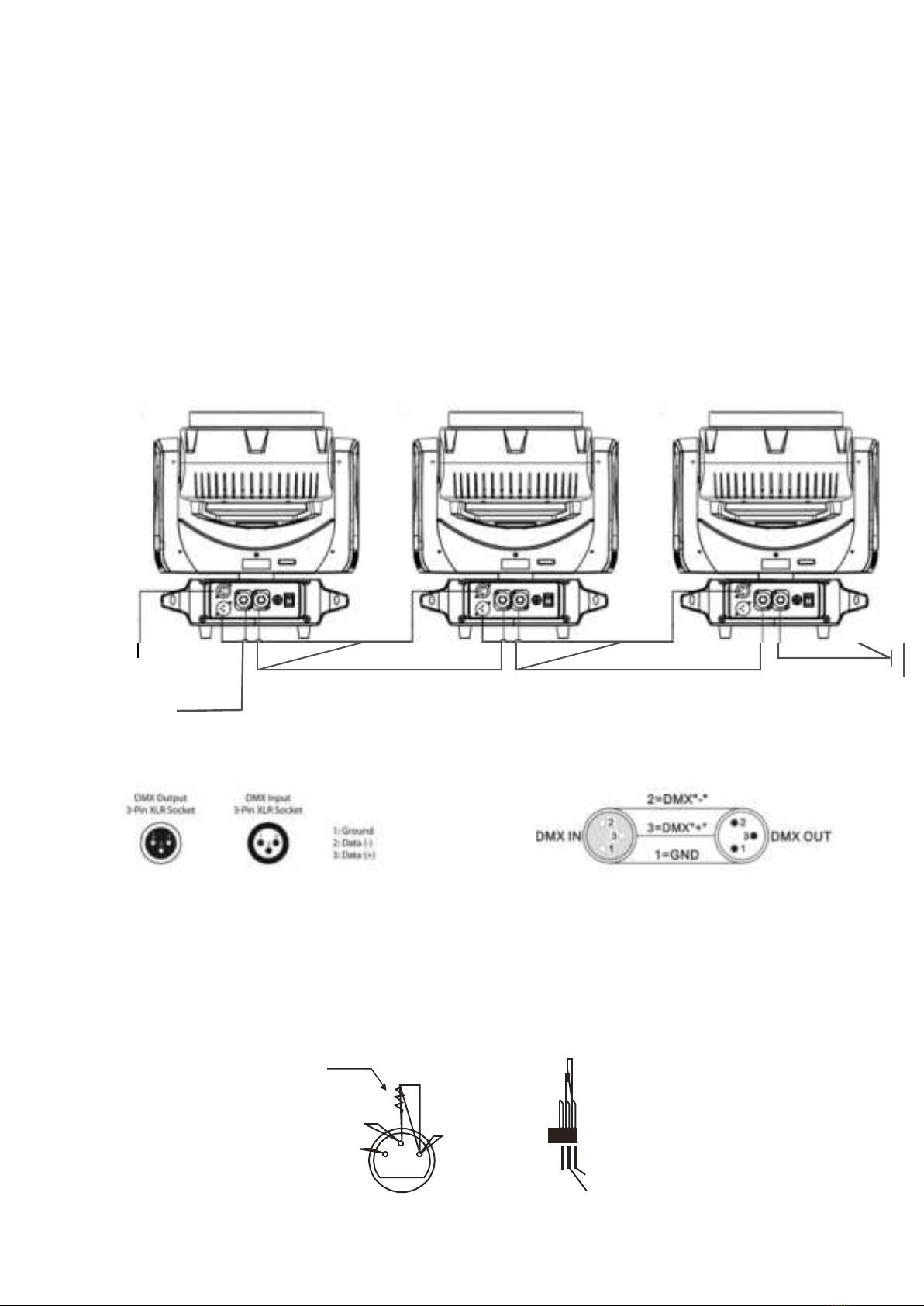

6. DMX-512 control connections
Connect the provided XLR cable to the female 3-pin XLR output of your controller and
the other side to the male 3-pin XLR input of the moving head. You can chain multiple
Moving heads be connected together through serial linking. The cable needed should be
two core, screened cable with XLR input and output connectors. Please refer to the
diagram below.
DMX-512 connection with DMX terminator
DMX IN
POWER IN
For installations where the DMX cable has to run a long distance or is in an electrically
noisy environment, such as in a discotheque, it is recommended to use a DMX
terminator. This helps in preventing corruption of the digital control signal by electrical
noise. The DMX terminator is simply an XLR plug with a 120 Ωresistor connected
between pins 2 and 3,which is then plugged into the output XLR socket of the last fixture
in the chain. Please see illustrations below.
120Ω
2
3 1
PIN 3
PIN 2
7 / 14

7
2
. DMX Channels
2 channels mode
CH
Function
DMX
Details
1
Pan
Pan movement control
2
Pan fine
0-255
Pan fine control
3
Tilt
0-255
Tilt movement control
4
Tilt fine
0-255
Pan fine control
5
Pan/Tilt speed
0-255
Speed from fast to slow
6
ZOOM
0-255
Zoom
7
LENS rotation
0-127
0 to 60 degree
128-191
Unlimited clockwise rotation from fast to slow
192-255
Unlimited anticlockwise rotation from fast to slow
8
Dimmer
0-255
0-100 linear dimmer from dark to bright
9
Strobe
0-3
No function, Light off
4-200
Strobe with the same step from slow to fast
201-255
Random strobe from slow to fast
10
R
0-255
1-100% Red linear dimmer from dark to bright
11
G
0-255
1-100% Green linear dimmer from dark to bright
12
B
0-255
1-100% Blue linear dimmer from dark to bright
13
W
0-255
1-100% White linear dimmer from dark to bright
14
Color
temperature
0-255
Linear color temperature control
15
Marco
0-255
Marco color change
16
Static effect
0-9
No function
10-84
Each 5 DMX value is a kind of static effect(15 kinds)
85-255
16th kind of effect
17
Dynamic effect
0-9
No function
10-199
Each 5 DMX value is a kind of dynamic effect(38 kinds)
200-255
39th kind of effect
18
Dynamic effect
speed
0-127
Anti-clockwise rotate from fast to slow, operate against 17 CH
128-255
Clockwise rotate from slow to fast, operate against 17 CH
19
LED ring strobe
0-3
No function, Light off
4-250
LED ring strobe
251-255
No function, Light on
20
LED ring macro
0-51
Macro color
52-255
Dynamic effect, every 4 DMX channel is one kind of effect,
totally 51 kinds
21
Macro speed
0-255
LED ring macro effect from slow to fast
22
Reset
0-239
No function
240-255
Reset with 5 seconds
8 / 14

9 / 14
2
6
channels
mode
CH
Function
DMX
Details
1
Pan
Pan movement control
2
Pan fine
0-255
Pan fine control
3
Tilt
0-255
Tilt movement control
4
Tilt fine
0-255
Pan fine control
5
Pan/Tilt speed
0-255
Speed from fast to slow
6
ZOOM
0-255
Zoom
7
LENS rotation
0-127
0 to 60 degree
128-191
Unlimited clockwise rotation from fast to slow
192-255
Unlimited anticlockwise rotation from fast to slow
8
Dimmer
0-255
0-100 linear dimmer from dark to bright
9
Strobe
0-3
No function, Light off
4-200
Strobe with the same step from slow to fast
201-255
Random strobe from slow to fast
10
R
0-255
1-100% Red linear dimmer from dark to bright
11
G
0-255
1-100% Green linear dimmer from dark to bright
12
B
0-255
1-100% Blue linear dimmer from dark to bright
13
W
0-255
1-100% White linear dimmer from dark to bright
14
Color
temperature
0-255
Linear color temperature control
15
Marco Color
0-255
Marco color change
16
Static effect
0-9
No function
10-84
Each 5 DMX value is a kind of static effect(15 kinds)
85-255
16th kind of effect
17
Dynamic effect
0-9
No function
10-199
Each 5 DMX value is a kind of dynamic effect(38 kinds)
200-255
39th kind of effect
18
Dynamic effect
speed
0-127
Anti-clockwise rotate from fast to slow, operate against 17 CH
128-255
Clockwise rotate from slow to fast, operate against 17 CH
19
Background R
0-255
Background color Red dimmer
20
Background G
0-255
Background color Green dimmer
21
Background B
0-255
Background color Blue dimmer
22
Background W
0-255
Background color White dimmer
23
LED ring strobe
0-3
No function, Light off
4-250
LED ring strobe
251-255
No function, Light on
24
LED ring macro
0-51
Macro color
52-255
Dynamic effect, every 4 DMX channel is one kind of effect,
totally 51 kinds
25
Macro speed
0-255
LED ring macro effect from slow to fast
26
Reset
0-239
No function
240-255
Reset with 5 seconds

10 / 14
36
Channels
mode
CH
Function
DMX
Details
1
Red
0-255
Red dimmer
2
Red Fine
0-255
Red fine control
3
Green
0-255
Green dimmer
4
Green Fine
0-255
Green fine control
5
Blue
0-255
Blue dimmer
6
Blue Fine
0-255
Blue fine control
7
White
0-255
White dimmer
8
White Fine
0-255
White fine control
9
CTO
0-255
Color temperature linear control
10
Macro color
0-255
Marco color effect
11
strobe
0-3
No function, Light off
4-103
Strobe with the same step from slow to fast
104-107
No function, light up
108-207
Pulse strobe from slow to fast
208-212
No function, light up
213-251
Random strobe from slow to fast
252-255
No function, light up
12
Dimmer
0-255
0-100 linear dimmer from dark to bright
13
Dimmer Fine
0-255
Dimmer fine control
14
Pan
0-255
Pan movement control
15
Pan Fine
0-255
Pan fine control
16
Tilt
0-255
Tilt movement control
17
Tilt Fine
0-255
Pan fine control
18
Function
0-255
19
Reset
0-250
No function
251-255
Reset with 5 seconds
20
Zoom
0-255
ZOOM
21
LENS Rotation
0-127
0 to 60 degree
128-191
Unlimited clockwise rotation from fast to slow
192-255
Unlimited anticlockwise rotation from fast to slow
22
Shape Selection
0-255
Selecting shape(0-70 workable)
23
Shape Speed
0-255
Shape speed control
24
Shape Fade
0-255
Shape fade
25
Shape R
0-255
Shape in Red color
26
Shape G
0-255
Shape in Green color
27
Shape B
0-255
Shape in Blue color
28
Shape W
0-255
Shape in White color
29
Shape Dimmer
0-255
Shape dimmer 0-100%
30
Background Dimmer
0-255
Background dimmer 0-100%
31
Shape Transition
0-255
Shape change
32
Shape Offset
0-255
Shape offset
33
Foreground strobe
0-255
Foreground strobe control
34
Background strobe
0-255
Background strobe control
35
Background selection
0-255
Background selection
36
Frequency
0-255
Shape and frequency selectable

11 / 14
78C
h
annels
mode
CH
Function
DMX
Details
1
Red
Value
Red dimmer
2
Red Fine
0-255
Red fine control
3
Green
0-255
Green dimmer
4
Green Fine
0-255
Green fine control
5
Blue
0-255
Blue dimmer
6
Blue Fine
0-255
Blue fine control
7
White
0-255
White dimmer
8
White Fine
0-255
White fine control
9
CTO
0-255
Color temperature linear control
10
Macro Color
0-255
Marco color
11
strobe
0-3
No function, Light off
4-103
Strobe with the same step from slow to fast
104-107
No function, light up
108-207
Pulse strobe from slow to fast
208-212
No function, light up
213-251
Random strobe from slow to fast
252-255
No function, light up
12
Dimmer
0-255
0-100 linear dimmer from dark to bright
13
Dimmer Fine
0-255
Dimmer fine control
14
Pan
0-255
Pan movement control
15
Pan Fine
0-255
Pan fine control
16
Tilt
0-255
Tilt movement control
17
Tilt Fine
0-255
Pan fine control
18
Function
0-255
Revered channel, no function at this moment
19
Reset
0-250
No function
251-255
Reset with 5 seconds
20
Zoom
0-255
Zoom
21
Zoom Rotation
0-127
0 to 60 degree
128-191
Unlimited clockwise rotation from fast to slow
192-255
Unlimited anticlockwise rotation from fast to slow
22
Red dimmer 1
0-255
LED 1 red dimmer
23
Green dimmer 1
0-255
LED 1 green dimmer
24
Blue dimmer 1
0-255
LED 1 blue dimmer
25
Red dimmer 2
0-255
LED 2 red dimmer
26
Green dimmer 2
0-255
LED 2 green dimmer
27
Blue dimmer 2
0-255
LED 2 blue dimmer
……
………
………
………
…
………
………
………
76
Red dimmer 19
0-255
LED 19 red dimmer
77
Green dimmer 19
0-255
LED 19 green dimmer
78
Blue dimmer 19
0-255
LED 19 blue dimmer

12 / 14
channel
8.Display
instruction
Addre
001-512
DMX
Sound
System
Setup
Run Mode
Channel
Auto 1
Auto 2
22CH
26CH
mode
Invert Pan
36CH
78CH
ON
OFF
ON
Invert Tilt
OFF
ON
Hall Croct
OFF
MENU
ON
Encoder Crct
OFF
ON
Signal keep
OFF
On
Screen Saver
Off
Auto
Invert
Screen
ON
OFF
Update
Slave
ON
Off
EN
Language
中⽂中⽂
eac
h
Load Default
Don’tchange
control
Manual
PAN
TILT
Focus
ROTATION
Motor
Calibration
Balance-Red
Balance-Green
Balance-Blue
Balance-White
the data unless
it’
…………

9. Key Features
Voltage: AC100V～240V 50-60HZ
Power: 320W
LED Source: 19x40W high power RGBW 4 in 1 LEDs
Zoom: 6-60°
Strobe: 0-25Hz
Control Mode: DMX512,Sound-actived,Master/slave
DMX Channels: 22/26/36/78 four channel mode
Dimmer: 0-100% linear dimmer
Pan: 540°+16 bit fine
Tilt: 220°+16 bit fine
Display: LCD colorful display
IP: IP20
Fixture dimension: 405*234*440mm
N.W:15.2 Kg
G.W: 18.7 Kg
Package dimension: 62*39*51 CM (1pc/ctn)
Special Points.
1. Each LED can be controlled individually. With unique honeycomb designed lens
2. The front lens can rotate without limitation in forward and reverse direction to
create amazing effects
3. Can be used as beam, wash or effect light use (Kaleido effects)
4. With a extra LED ring for eye-candy effect，LED ring with macro effect
13 / 14

14 / 14
extend the life time, we suggest a
to the lights.
to avoid the weakneness of the lights
fan each week.
prevent the poor contact of circuit
Please use a moist, lint- free cloth.
parts inside the device. Please
you need any spare
dealer
10. Maintenance and Cleaning
The following points have to be considered
1. All screws for installing the devices
and installation spots
and must not be corroded. 2. There must
fixationslenses,
moved parts must not show any traces
4. The electric power supply cables must
sediments.
Further instructions depending on the
a skilled installer and any safety problems
or
(cei ling,
of
inst
all
at
during
parts
not be
wearing not
show
ion
have
the inspection:
of the device have to be tightly
connectedn, trussing). 3. Mechanically
any deformations on the housing, color
suspensio
and must not rotate with unbalances.
any damage, material fatigue or
spot and usage have to be adhered by
to be removed.
and
week
electrical
condition,
device.
no serviceable
instructions”.Should
local
the
your
In order
regular
1)
Clean
dueto
accumulation
2)
Clean
3) Adetailed
sure
that
from
overheating.
We recommend
Never
use
refer to
parts,
please
make the lights in good
condition
inside and outsidelens each
of dust.
electric check by
approved
engineer each three
month, make
circuit contacts are in
good
a frequent cleaning of
alcohol or solvents.There
are
instructions under “Installation
order genuine parts
from
to
clea
ning
the
the
the
th
e
