Contrec 515 User manual

Model 515 Flow Computer
Operation Manual
Application LM02
Single Tank Level Monitor
for
Analog Level Sensors
28 April 2021

Model 515 Level Monitor - Operation Manual
© Contrec Ltd 2021
The instructions given herein cover the general description, installation, operation and maintenance of the subject
equipment. Contrec Ltd reserves the right, without prior notice, to make engineering refinements that may not be
reflected in this manual.
Should any questions arise which cannot be answered specifically by this manual, they should be directed to
Contrec Ltd for further detailed information and technical assistance.
Contrec Ltd will not accept any liability for either direct or consequential damages resulting from the use or
misapplication of the contents of this manual.
Part of the software embedded in this product is eCos - Embedded Configurable Operating System, a trademark of
Red Hat. Portions created by Red Hat are Copyright © 1998, 1999, 2000 Red Hat, Inc.
(http://www.redhat.com). All rights reserved
The software in this product was in part provided by Red Hat and any express or implied warranties, including, but
not limited to, the implied warranties of merchantability and fitness for a particular purpose are disclaimed. In no
event shall the author be liable for any direct, indirect, incidental, special, exemplary, or consequential damages
(including, but not limited to, procurement of substitute goods or services; loss of use, data, or profits; or business
interruption) however caused and on any theory of liability, whether in contract, strict liability, or tort (including
negligence or otherwise) arising in any way out of the use of this software, even if advised of the possibility of such
damage.
Contrec Ltd
Riverside, Canal Road, Sowerby Bridge,
West Yorkshire HX6 2AY UNITED KINGDOM
Tel: [phone]
Email: [email protected]
Website: www.contrec.co.uk
Contrec Systems Pty Ltd
5 Norfolk Avenue Ringwood, Melbourne 3134 AUSTRALIA
Tel: [phone]
Email: [email protected]
Contrec - USA, LLC
916 Belcher Drive Pelham AL 35124 USA
Tel: [phone] Fax: [phone]
Email: [email protected]
Publication No: 515-LM02-OM - 28 April 2021

515 LM02 - 28 April 2021 iii
Safety Notice
The information in this safety notice is for the prevention of injury to personnel and
damage to the instrument.
The manufacturer assumes no liability for injury or damage caused by misuse of the
instrument or for modifications made to the instrument.
This document must be consulted in all cases where the following “Caution” safety symbol is
used :
Qualified Personnel
The instrument must be installed, operated and serviced by persons who have been properly
trained and authorised. Personnel must read and understand this manual prior to installation and
operation of the instrument. Refer to section 3 for further information regarding permitted
maintenance operations. The safety of any system incorporating the equipment is the
responsibility of the assembler of the system.
Static Hazard
The 500 series flow computer uses high speed CMOS circuitry which is sensitive to static
damage. The user should observe accepted safety practices for handling electronic devices,
especially during servicing. Once the unit is installed, grounded and interconnected, the chances
of static damage are greatly reduced.
Voltage Hazard
Before connecting power to the instrument, ensure that the supply voltage for the AC or DC
input is suitable. The AC voltage rating is as stated on the instrument rating plate. Personnel
should take all due care to avoid electric shock. For safe operation it is essential to connect a
mains safety earth to the A.C. power inlet. Do not operate at altitudes above 2000m.
Welding Hazard
Do not perform electric welding in close proximity to the instrument or its interconnecting
cables. If welding in these areas must be performed, disconnect all cables from the instrument.
Failure to do so may result in damage to the unit.
Moisture Hazard
To avoid electrical faults and corrosion of the instrument, do not allow moisture to remain in
contact with the instrument. Operate only in a clean, dry and pollutant-free environment.
Operating & Storage Temperature
Operating: If a heater is being used, DO NOT isolate the instrument in temperatures below
-20°C.
Storage: DO NOT store the equipment below -20°C.
515 LM02 - 28 April 2021

i v 515 LM02 - 28 April 2021
Disconnection Device
When powered from a mains supply this unit requires the provision of a suitable mains isolation
device, capable of interrupting both poles of the supply and meeting your local wiring
regulations, to be suitably located and easily accessible near to the installed instrument. It must
be marked as the disconnecting device for the equipment. It must be suitably rated with respect
to the cross sectional area of the supply conductors.
Instrument Disposal
Contrec instrumentation should not be thrown into the general waste system.
If within EU member states, this instrument should be disposed of according to
the guidelines set by the WEEE (Waste Electrical and Electronic Equipment)
directive 2012/19/EU. If outside of the EU, this equipment should be
responsibly disposed of according to local and national regulations for EEE
(Electrical and Electronic Equipment).
By not discarding of this product along with other house hold waste you are
preserving natural resources and reducing waste sent to landfill and incinerators.
Remove batteries and dispose of separately (see Disposal of Batteries) before disposal of
Contrec instrumentation.
Disposal of Batteries
Batteries have an environmental impact. Safe and responsible disposal should
be undertaken.
In all EU member states, as per Directive 2006/66/EC, batteries must not be
thrown away with general waste. Contact your local environmental authority
for information regarding disposal or recycling of used batteries, alternatively
they can be returned directly to Contrec Ltd. for disposal.
Please Contact Contrec Ltd before returning batteries for disposal.
Explanation of IEC Symbols Used
You should familiarise yourself with the following symbols which are used both within this
manual and on the instrument itself.
This document must be consulted in all cases where the following “Caution” safety
symbol is used.
DC Input (DC).
AC Input (AC).
Protective Earth Terminal.

v
1 Introduction
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Calculations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Displayed Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Main Menu Variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Isolated Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Relay Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Software Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Analog Input Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Specifications
Specification Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3 Installation & Maintenance
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Cleaning and Decontamination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Panel Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Rear Panel Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Terminal Designations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Terminal Wiring Insulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Relay Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Mains Power Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Analog Input Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Logic Input Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4-20 mA Output Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Logic Output Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Control Relays (Alarms) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
RC Network for Interference Suppression . . . . . . . . . . . . . . . . . . . . . . 15
Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
COM-1 RS-232 Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
COM-2 RS-485 Port Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
COM-2 Ethernet Port Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Mains Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Earthing and Shielding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Disconnection Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Maintenance Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Battery Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Battery Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Contents
515 LM02 - 28 April 2021

v i 515 LM02 - 28 April 2021
4 Operation
Normal Operation Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Default Variable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Status LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Front Panel Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Main Menu Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Detail and Basic Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Data Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Model Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Alarms Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Operation of Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5 Instrument Calibration
Calibration View Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Calibration Set Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Changing the Instrument Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Program Backup & Reports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Backup via 500 Series Program Manager . . . . . . . . . . . . . . . . . . . . . . 31
Printing Configuration Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Upload and Clone of Application Software . . . . . . . . . . . . . . . . . . . . . 31
Calibration Menu Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Instrument Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Units of Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Time Settings and Data Logging . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
General Setup Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Test Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
System Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Warning Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Alarm Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
6 Communications
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Hardware Interconnection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Simple ASCII Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Requests Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Instrument Responses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Corrupted or Invalid Requests . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Modbus RTU Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
List of Data Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Printer Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Types of Printouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

515 LM02 - 28 April 2021 vii
Printer Data Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Appendix A Glossary
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Appendix B Model Numbers
Product Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Custom Version Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Application Information Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Appendix C Units of Measurement
Available Units of Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Appendix D Ethernet Port & Setup
Ethernet Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Router Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Configuring DataMod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

viii 515 LM02 - 28 April 2021

i x515 LM02 - 28 April 2021
List of Figures
1 Typical Application Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 500 Series Instrument Panel Mounting . . . . . . . . . . . . . . . . . . . . . . . 7

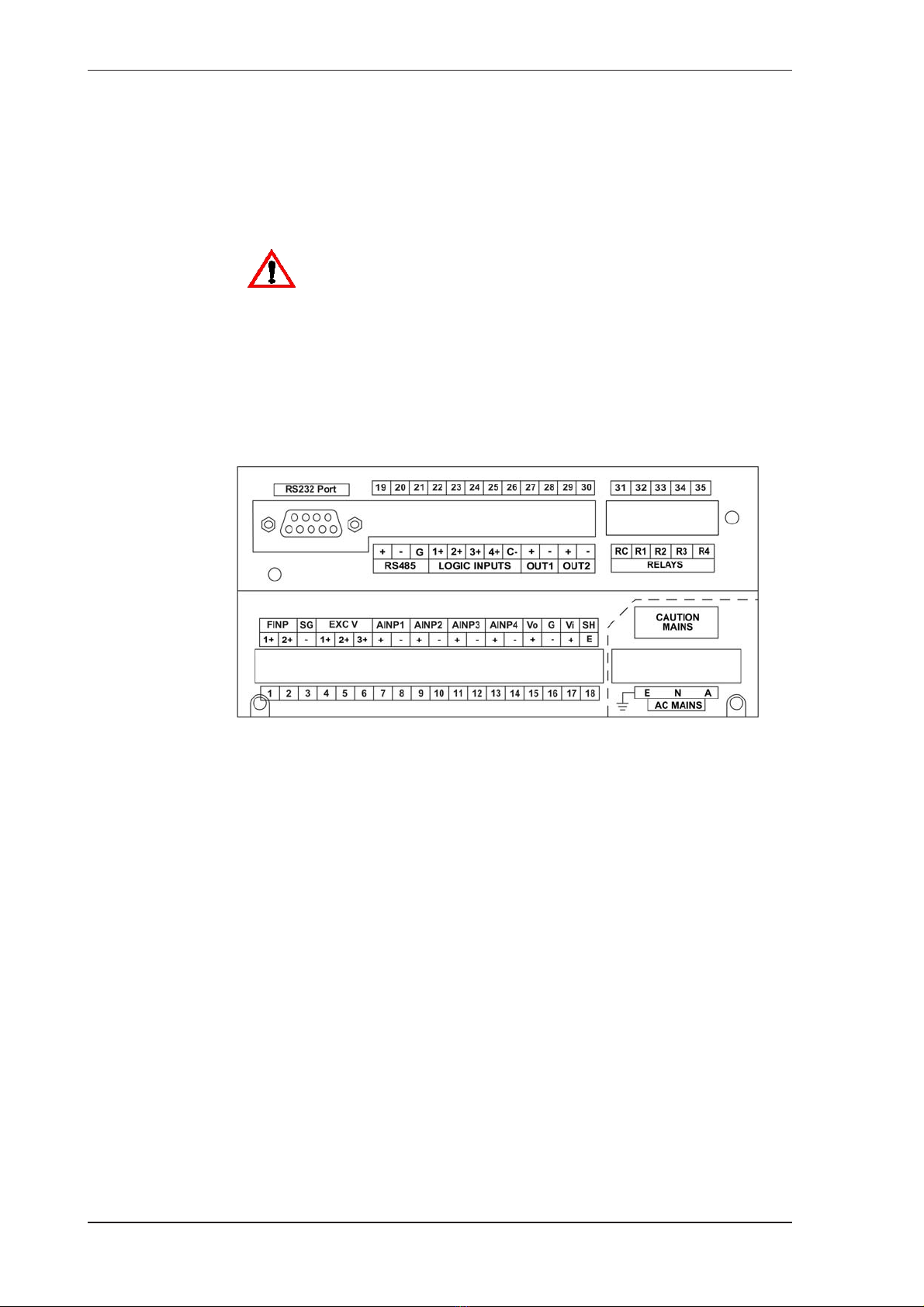

3 Rear Panel Connections - Original . . . . . . . . . . . . . . . . . . . . . . . . . 8
4 Rear Panel Connections - New RS-485 Version . . . . . . . . . . . . . . . . . . 9
5 Rear Panel Connections - New Ethernet Version . . . . . . . . . . . . . . . . . . 9
6 Externally Powered Voltage Transmitter . . . . . . . . . . . . . . . . . . . . . 11
7 Internally Powered Voltage Transmitter . . . . . . . . . . . . . . . . . . . . . 12
8 Externally Powered Current Loop . . . . . . . . . . . . . . . . . . . . . . . . . 12
9 Internally Powered Current Loops . . . . . . . . . . . . . . . . . . . . . . . . 12
10 Output 4-20 mA Connection Diagram . . . . . . . . . . . . . . . . . . . . . . . 13
11 Output Logic Connection Diagram . . . . . . . . . . . . . . . . . . . . . . . . 14
12 Relay Connection Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
13 RS-485 Interface Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
14 Logged Data Display Methods . . . . . . . . . . . . . . . . . . . . . . . . . . 22
15 Calibration Menu Tree Sheet 1 . . . . . . . . . . . . . . . . . . . . . . . . . . 32
16 Calibration Menu Tree Sheet 2 . . . . . . . . . . . . . . . . . . . . . . . . . . 33
17 RS-232 Cable Connections to a Computer . . . . . . . . . . . . . . . . . . . . 51
18 RS-485 Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

x 515 LM02 - 28 April 2021

1
Chapter 1
Introduction
Features
•20 point level to volume strapping table
•Level control output
•Accepts level and pressure (product head) sensors
•Density correction available for pressure level sensors
•Provides volume to mass conversion via density value
•Freely assignable alarms for high or low levels
•Selection of Detail or Basic main menu to suit operator and application
•Selection of second language and user tags
•RTC logging with over 1000 entries.
•4-20 mA retransmission
•RS232 and RS485 or Ethernet (optional) serial ports
•Modbus RTU, Printer and other serial port protocols
•Front panel adjustment of 8-24 V DC output voltage
•Backlit display
Overview
The 515 LM02 application monitors and measures the level of product in a
single tank. The instrument uses the 4-20mA signal from a wide range of
level sensors, including pressure transmitters, ultrasonic sensors and
capacitance probes.
The level monitor provides a 20 point strapping table and product density
for level to volume and volume to mass conversions. The instrument can
display Volume, Percentage Full and Mass as well as Level. Relay alarms
are freely assignable as high or low alarms and an open collector output is
provided for programmable level control.
A sub-menu gives full details of alarm status and can offer direct access to
change the alarm setpoints. The instrument also has density correction
available for pressure level sensors to cater for a deviation in product
density.
515 LM02 - 28 April 2021

Introduction
2 515 LM02 - 28 April 2021
Calculations
The following equations identify the derivation of some of the displayed
variables. If your interest is more in the operation of the instrument, you can
skip this section and allow the instrument to take care of the calculations.
Calculations are based on the analog input signal representing the product
level in the tank.
level = (Lmax-Lmin) A + Lmin
volume = (Vmax - Vmin) A* + Vmin
mass = volume density
where:
A = normalised input signal with
density correction.
A* = A for linear tanks.
A* = f(A) for non-linear tanks.
f(A) = level to volume normalised
strapping table.
Displayed Information
The front panel display shows the current values of the input variables and
the results of the calculations.
The instrument can be supplied with a real-time clock for data logging of
over 1000 entries of the variables as displayed on the main menu.
Main Menu Variables
Refer to Available Units of Measurement on page 74 for the list of
available units.
Main Menu
Variables
Default
Units
Variable
Type
Product Volume m3Rate
Product Level m Rate
Volume Full % % Rate
Product Mass kg Rate

Introduction
515 LM02 - 28 April 2021 3
Communications
There are two communication ports available as follows:
•COM-1 RS232 port
•COM-2 RS485 or Ethernet Port (optional)
All types of ports can be used for remote data reading, while RS232 and
RS485 serial ports can be used for printouts and for uploading and
downloading of the application software to the instrument.
Isolated Outputs
The opto-isolated outputs can re-transmit any main menu variable. The type
of output is determined by the nature of the assigned variable. Totals are
output as pulses and rates are output as 4-20 mA signals. One output is
standard, a second output is available as an option.
Relay Outputs
The relay alarms can be assigned to any of the main menu variables of a rate
type. The alarms can be fully configured including hysteresis. Two relays
are standard with an additional two available in the advanced option.
Software Configuration
The instrument can be programmed to suit the particular application needs
and the flexible I/O can be assigned as required. Program settings can be
changed either via the front panel (depending on assigned access levels) or
via the 500 Series Program Manager (500-PM software).
The 500-PM software is a free comprehensive configuration tool and
resource centre that can be used to further tailor an instrument to suit
specific application needs including units of measurement, custom tags and
text, access levels and more.
The software is a Windows based program that is freely available from the
download section of the Contrec website. The program can be used to create
a custom version of an existing application to be saved for backup purposes
and/or to generate a PDF of configuration report for record keeping.
The instrument stores all set-up parameters, totals and logged data in non-
volatile memory with at least 30 years retention.
Analog Input Types
The analog input for this application is fixed to accept a 4-20mA signal.

Introduction
4 515 LM02 - 28 April 2021
Figure 1 Typical Application Diagram
Approvals
This instrument conforms to the EMC-Directive of the Council of European
Communities 2014/30/EU, the LVD safety directive 2014/35/EU and the
following standards:
•EN61326:2013 Electrical equipment for measurement, control and
laboratory use – EMC requirements: Industrial Environment.
•EN61010:2010 Safety requirements for electrical equipment for
measurement, control, and laboratory use.
In order to comply with these standards, the wiring instructions in Chapter 3
- Installation & Maintenance must be followed.
FCC Declaration
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, might cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference, in which case the user
will be required to correct the interference at his own expense.
Properly shielded and grounded cables and connectors must be used in order
to meet FCC emission limits. Contrec Ltd is not responsible for any radio or
television interference caused by using other than recommended cables and
connectors or by unauthorized changes or modifications to this equipment.
Unauthorized changes or modifications could void the user's authority to
operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device might not cause harmful
interference, and (2) this device must accept any interference received,
including interference that might cause undesired operation.
Level
Transmitter
Analog
Input
L

5
Chapter 2
Specifications
Specification Table
Operating Environment
Temperature +5 °C to +40 °C (standard - no coating)
-20 °C to +60 °C (with conformal coating)
-30 °C to +60 °C (ExD housing with heater)
Humidity 0 to 95% non condensing (conformal
coating)
5% to 85% non condensing (no coating)
Power Supply 100-240 V AC (+/-10%) 50-60 Hz (+/-
10%) or 12-28 V DC
Consumption 10 W (max) Overvoltage category II
Protection Sealed to IP65 (Nema 4X) when panel
mounted
Dimensions
(panel option)
147 mm (5.8") width
74 mm (2.9") height
170 mm (6.6") depth (behind the panel)
Display
Type Backlit LCD with 7-digit numeric display
and 11-character alphanumeric display
Digits 15.5 mm (0.6") high
Characters 6 mm (0.24") high
LCD Backup Last data visible for 15 min after power
down
Update Rate 0.3 second
Non-volatile Memory
Retention > 30 years
Data Stored Setup, Totals and Logs
Approvals
Interference compliance
Enclosure IECEx, ATEX and CSA approved
enclosures available for hazardous areas
Real Time Clock (Optional)
Battery Type 3 volts Lithium button cell
- For Issue 7 option card, type CR2450N
manufactured by Renata only
- For conformal coated ‘C’ version, type
BR2032 manufactured by Panasonic only
- For non-conformal coated versions, type
BR2032 and CR2032 manufactured by
Panasonic or Sony
Battery Life 5 years (typical)
Analog Input (General)
Overcurrent 100 mA absolute maximum rating
(30mA for 4-20mA inputs)
Update Time < 1.0 sec
Configuration 4-20 mA, 0-5V and 1-5V input
Non-linearity Up to 20 correction points (some inputs)
4-20 mA Input
Impedance 100 Ohms (to common signal ground)
Accuracy 0.05% full scale (20 C)
0.1% (full temperature range, typical)
0-5 or 1-5 Volts Input
Impedance 10 MOhms (to common signal ground)
Accuracy 0.05% full scale (20 C)
0.1% (full temperature range, typical)
Logic Inputs
Signal Type CMOS, TTL, open collector, reed switch
Overvoltage 30V maximum
Relay Output
No. of Outputs 2 relays plus 2 optional relays
Voltage 250 volts AC, 30 volts DC maximum
(solid state relays use AC only)
Current 3A maximum - mechanical relays
1.5A maximum - solid state relays
Communication Ports
Ports COM-1 RS-232 port
COM-2 RS-485 or Ethernet port (optional)
Baud Rate 2400 to 19200 baud
Parity Odd, even or none
Stop Bits 1 or 2
Data Bits 8
Protocols ASCII, Modbus RTU, Modbus TCP/IP
(Ethernet Port), Printer
Transducer Supply
Voltage 8 to 24 volts DC, programmable
Current 70 mA @ 24 V, 120 mA @ 12 V maximum
Protection Power limited output
515 LM02 - 28 April 2021

Specifications
6 515 LM02 - 28 April 2021
Important: Specifications are subject to change without notice.
Isolated Output
No. of Outputs 2 configurable outputs
Configuration Pulse/Digital or 4-20 mA output
Pulse/Digital Output
Signal Type Open collector
Switching 200 mA, 30 volts DC maximum
Saturation 0.8 volts maximum
4-20 mA Output
Supply 9 to 30 volts DC external
Resolution 0.05% full scale
Accuracy 0.05% full scale (20C)
0.1% (full temperature range, typical)

7
Chapter 3
Installation & Maintenance
Installation Instructions
The safety of any system incorporating the equipment is the responsibility
of the assembler of the system and should be installed such that there is no
risk of impact damage.
This instrument is intended for fixed installation only, e.g. within a panel or
cabinet, and is not intended for desktop use. It is not suitable for outdoor use
unless fitted into an appropriate outdoor enclosure with a minimum type 3,
IP54, rating. The instrument has a ‘Pollution degree II’ rating.
Cleaning and Decontamination
For general maintenance or to clean an instrument suitable for return to a
service centre for repair or inspection, use only a damp cloth and mild
detergent. Do not use abrasive cleaners or high pressure water jets. An
instrument must be decontaminated before returning. The marking label can
be cleaned with 35% Isopropanol or mild detergent.
Panel Mounting
The instrument should be located in an area with a clean, dry atmosphere
that is also relatively free of shock and vibration.
The standard mounting procedure is panel mounting in a cutout that is
139 mm wide by 67 mm high. Two side clips secure the unit into the panel.
Figure 2 shows the panel mounting requirements for the 515 instrument.
Figure 2 500 Series Instrument Panel Mounting
145 mm
Side View
22 mm
70 mm
67 mm
139 mm
25 mm
66 mm
Min. 189 mm
Panel Cut-out
Front
Panel
74 mm
Mounting Clip
138 mm
147 mm
Rear Connectors Top View RS232
Port
515 LM02 - 28 April 2021

Installation & Maintenance
8 515 LM02 - 28 April 2021
Electrical Connection
Rear Panel Connections
Note: Depending on the specification and age of the instrument,
there are different versions of the upper option card. Ensure the instrument
is wired as per the correct terminal designation printed on the rear of the
instrument bezel and below.
Figure 3 shows the connections on the original rear panel of the instrument
where relays 1 to 4 (terminals 32-35) share a single Relay Common
(terminal 31). Note: The 5 way relay terminal block is GREEN.
Figure 3 Rear Panel Connections - Original
On the newer rear panel option cards the instrument relays 1 and 2
(terminals 32-33) share Relay Common 1-2 (terminal 31) and relays 3 and
4 (terminals 34-35) share Relay Common 3-4 (terminal 36).
Note: On these option cards the 6 way relay terminal block is ORANGE.
Figure 5 shows the new option card with the RS-485 port (terminals 19-21).

Installation & Maintenance
515 LM02 - 28 April 2021 9
Figure 4 Rear Panel Connections - New RS-485 Version
Figure 5 shows the new option card with the optional Ethernet port in place
of RS-485 port (terminals 19-21).
Figure 5 Rear Panel Connections - New Ethernet Version

Installation & Maintenance
1 0 515 LM02 - 28 April 2021
Terminal Designations
Terminal Wiring Insulation
Terminal 1-30 are all rated at <35Vdc and wiring with basic insulation is
adequate.
Use copper conductors only.
Relay Wiring
Relay terminals are 31-35 or 31-36 depending on the version of option card
fitted. When controlling circuits powered by mains, or voltages >35Vdc, it
is necessary to use UL/CSA approved cabling with supplementary
insulation and a current capacity suitable for the connected circuit.
(0.75mm², 6A current capacity is sufficient).
Use copper conductors only. The maximum current must be <5A as stated
in the Specifications.
Terminal Label Designation Comment
1 FINP 1+ Frequency Input 1+ Not used
2 FINP 2+ Frequency Input 2+ Not used
3 SG - Signal ground
4 EXC V 1+ Excitation Term 1+ Not used
5 EXC V 2+ Excitation Term 2+ Not used
6 EXC V 3+ Excitation Term 3+ Not used
7AINP1 + Analog Input ch 1 (+) Level Input
8 - Analog Input ch 1 (-)
9AINP2 + Analog Input ch 2 (+) Not used
10 - Analog Input ch 2 (-)
11 AINP3 + Analog Input ch 3 (+) Not used
12 - Analog Input ch 3 (-)
13 AINP4 + Analog Input ch 4 (+) Not used
14 - Analog Input ch 4 (-)
15 Vo + 8-24 volts DC output Overload protected
16 G - DC Ground
17 Vi + DC power input DC power in 12-28V
18 SH E Shield terminal
E
AC
MAINS
E Mains ground AC power in 100-
240VAC
N N Mains neutral
A A Mains active
19 RS485
COM-2
port
+ RS485 (+) Optional RS485 port may
be replaced by Ethernet
port.
20 - RS485 (-)
21 G RS485 ground
22
LOGIC
INPUTS
1+ Switch 1
23 2+ Switch 2
24 3+ Switch 3
25 4+ Switch 4 CAL Switch – In field
access protection
26 C- Signal ground
27 OUT1 + Output ch 1 (+)
28 - Output ch 1 (-)
29 OUT2 + Output ch 2 (+)
30 - Output ch 2 (-)
31
RELAYS
RC Relay Common 1-2 Term 31 - Common 1-4
on legacy option card
32 R1 Relay 1
33 R2 Relay 2
34 R3 Relay 3
35 R4 Relay 4
36 RC Relay common 3-4 Term36onlyavailableon
new style option card
RS232 COM-1 port 9-pin serial port
Terminal Label Designation Comment
