CONVECTAIR IMPRESARIO 7630-C16 Manual

EXCEPTIONALLY RADIANT
INSTALLATION &
OPERATING INSTRUCTIONS
(READ CAREFULLY BEFORE ANY OPERATION - DOCUMENT TO BE KEPT BY END USER)
IMPRESARIO – TOWEL DRYER
MODEL NUMBER : 7630-C16
MODEL NUMBER: 7625-C12
421AA2559 109266/12

Page 2
Dear owner,
Congratulations on the purchase of this premium electric heater. CONVECTAIR develops
and produces the highest quality heating products in the electrical industry.
To obtain the best results and the ultimate in performance and comfort, please take a
moment to read the installation, operation and maintenance instructions detailed in this
manual.
1. - QUICKSTART GUIDE page 3
2. - SPECIFICATIONS page 4
3. - RECOMMENDED SET-UP page 4
4. - INSTALLATION AND MOUNTING page 6
5. - ELECTRICAL CONNECTION page 8
6. - OPERATING INSTRUCTIONS page 9
7. - MAINTENANCE AND ADVICE page 12
8. - TROUBLESHOOTING page 13

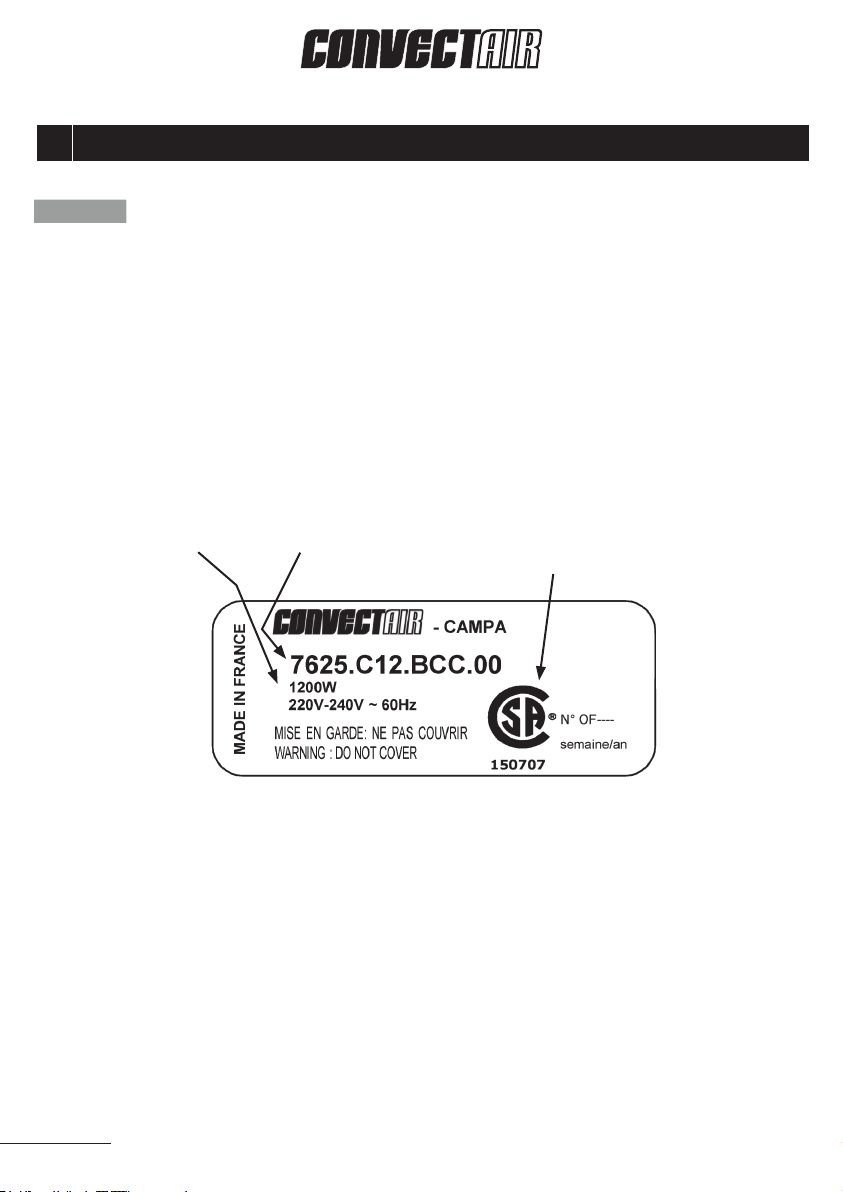

9. - IDENTIFICATION OF YOUR HEATER page 14
WARRANTY AND REGISTRATION Back Cover
TABLE OF CONTENTS
INTRODUCTION

Page 3

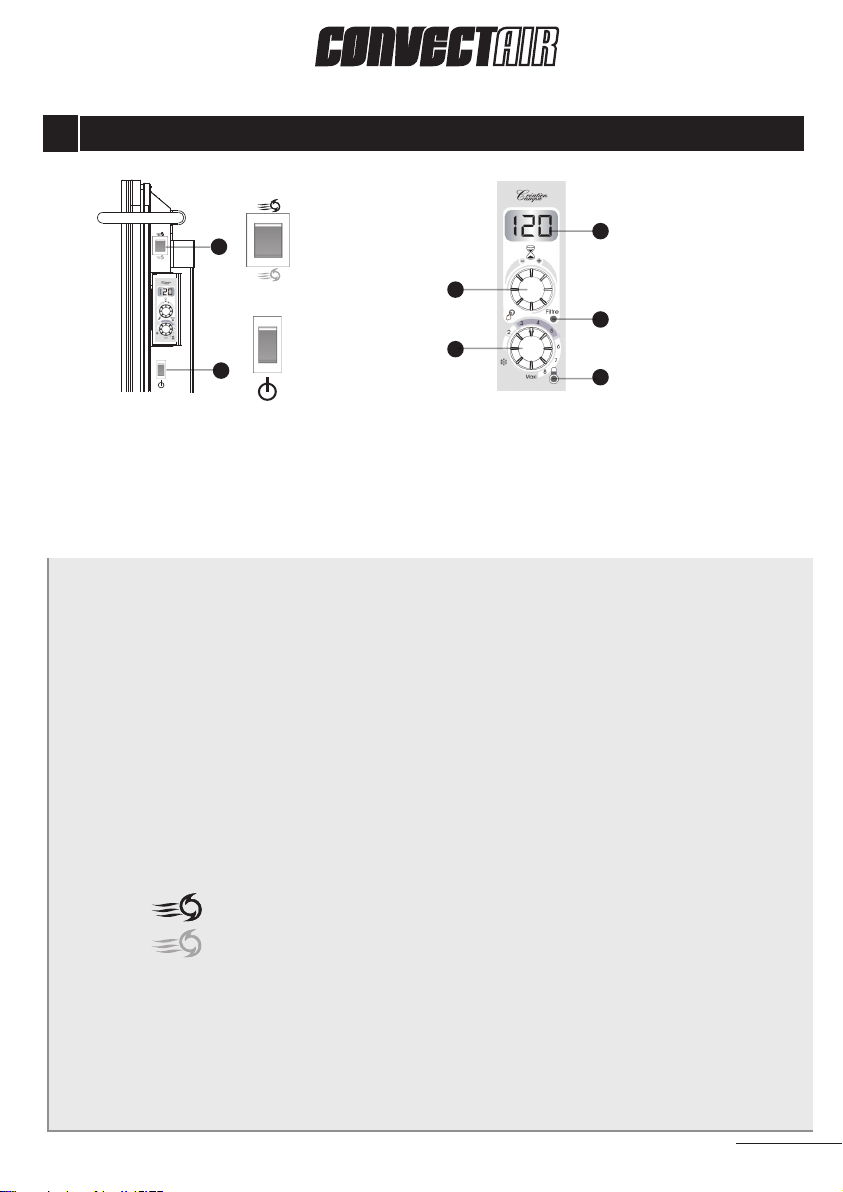

QUICKSTART GUIDE
1
C
D
E
F
G
1
0
A
B
I
A- Warm or ambiant air selector
B- ON / Standby switch
C- Timer LCD display
D- Timer adjustment knob and push-start
E- Blocked filter indicator
F- Temperature adjustment knob
G- Heating indicator
Electrical requirements : 220-240 V
Install a 2 in. x 3 in. wall junction box, positioned within the space defined by the wall
bracket. Lowest fixing hole of wall bracket should be at 714 mm (28 1/8”) from the floor
(page 5 Fig. A).
Installing and connecting the heater : (pages 4-8).
To turn the heater ON : Press ON/Standby switch (“B”).
To set the temperature : Turn the Temperature adjustment knob (“F”) to raise or to lower the
temperature setting (page 10).
To use the fast-heat or ventilation timer :
Select the timer mode with the selector switch (“A”) :
Position 1 : Maximum heat output (radiant and fan-forced)
Position 2 : Fan-forced (ambiant air only)
To set the duration : turn the Timer adjustment knob (“D”) (0 à 120 min, factory setting is 20 min).
To start or to stop the timer, press knob (“D”) (page 10).
Troubleshooting : (page 13).
To contact CONVECTAIR : (Back Cover).
I
I

Page 4
SPECIFICATIONS
RECOMMENDED SET-UP
2
3
Model number Description Capacity Voltage Current draw
7625-C12 Impresario Towel Dryer, glass front
panel, two towel bars. 1200W 220-240V,
60Hz 5A
7630-C16 Impresario Towel Dryer, lava stone
front panel, two towel bars 1600W 220-240V,
60Hz 7A
PLEASE NOTE : Your heater must be installed in accordance with national and local codes and
CONVECTAIR recommends an installation by a qualified electrician.
CAUTION DO NOT COVER THE FRONT PANEL OR TOP OF THE HEATER - USE THE TOWEL BARS WHEN
DRYING CLOTHES OR LINEN
• Do not position the heater below an electrical receptacle.
• Your heater must be installed so that the control panel is out of reach from anyone in the
bath-tub or in the shower. Do not install over a bath-tub or spa.
• Do not install the heater behind a door, furniture or other obstacles, or in front of an air
exhaust vent.
• Keep combustible materials such as curtains, away from the heater.
• Your heater is equipped with a heating element that may reach high temperatures. Do not
install or operate in the presence of gasoline, paint solvents or other flammable products.
• Maintain the minimum required clearances (height from floor, distances from side walls or
furniture, drapes, etc).
Optional setback system (sold separately) :
Your IMPRESARIO can be fitted with the optional CONVECTAIR Programmer Modules
to program temperature setbacks in periods of prolonged absence, providing the
same comfort and more savings. For more information, contact your electrical
contractor or dealer, or call CONVECTAIR (see Back Cover).

Page 5

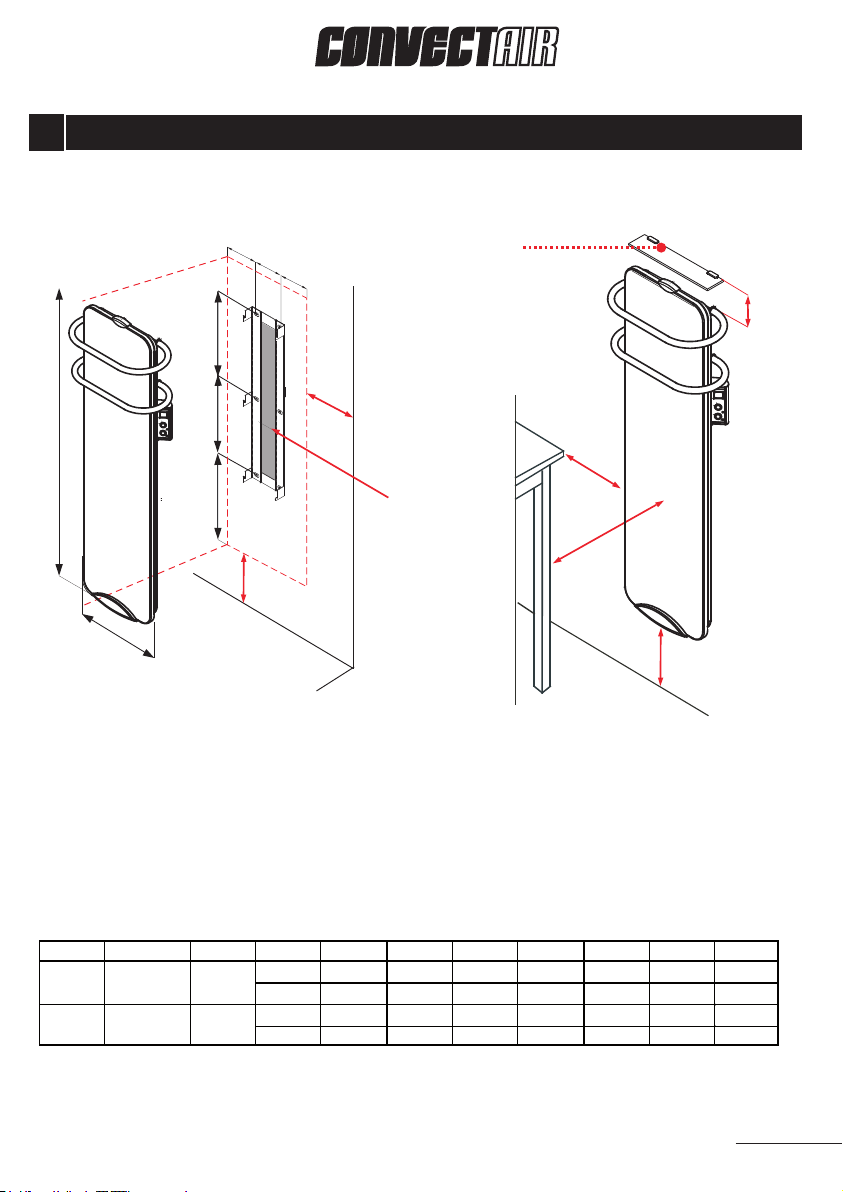

Fig.A:
Minimum clearances:
750 mm
(30 in)
150 mm
(6 in)
200mm
(8 in)
Shelf or curtains
200 mm (8 in)
Minimum
Référence Puissance Intensité Poids ABCDE
16 Kg 1202 mm 352 mm 140 mm 265 mm 106 mm
7625-C12
7630-C16
1200W
1600W
5A
35 lbs 47 1/2 po. 13 7/8 po.
40 Kg 1514 mm 427 mm 215 mm 505 mm 106 mm
7A
88 lbs 59 1/2 po. 16 3/4 po.
8 1/2 po.
10 3/8 po.
19 7/8 po.
4 1/8 po.
4 1/8 po.
F
514 mm
514 mm
20 1/4 po.
20 1/4 po.
5 1/2 po.
Reference Capacity Current Weight ABCDE F
G
265 mm
325 mm
10 1/2 po.
12 3/4 po.
G
16 Kg 1202 mm 352 mm 140 mm 265 mm 106 mm
7625-C12
7630-C16
1200W
1600W
5A 35 lbs 47 1/2 in. 13 7/8 in.
40 Kg 1514 mm 427 mm 215 mm 505 mm 106 mm
7A
88 lbs 59 1/2 in. 16 3/4 in.
8 1/2 in.
10 3/8 in.
19 7/8 in.
4 1/8 in.
4 1/8 in.
514 mm
514 mm
20 1/4 in.
20 1/4 in.
5 1/2 in.
265 mm
325 mm
10 1/2 in.
12 3/4 in.
E
F
E
C
D
G
200 mm (8 in)
To access controls
200 mm (8 in.)
Minimum
Wiring installation area.
A
B
Wall Bracket
INSTALLATION HEIGHT :
20 cm (8 in.)
MINIMUM CLEARANCE IN
FRONT OF HEATER :
75 cm (30 in.)
750 mm
(30 in)
150 mm
(6 in)
200mm
(8 in)
Shelf or curtains
200 mm (8 in)
Minimum
Référence Puissance Intensité Poids ABCDE
16 Kg 1202 mm 352 mm 140 mm 265 mm 106 mm
7625-C12
7630-C16
1200W
1600W
5A
35 lbs 47 1/2 po. 13 7/8 po.
40 Kg 1514 mm 427 mm 215 mm 505 mm 106 mm
7A
88 lbs 59 1/2 po. 16 3/4 po.
8 1/2 po.
10 3/8 po.
19 7/8 po.
4 1/8 po.
4 1/8 po.
F
514 mm
514 mm
20 1/4 po.
20 1/4 po.
5 1/2 po.
Reference Capacity Current Weight ABCDE F
G
265 mm
325 mm
10 1/2 po.
12 3/4 po.
G
16 Kg 1202 mm 352 mm 140 mm 265 mm 106 mm
7625-C12
7630-C16
1200W
1600W
5A 35 lbs 47 1/2 in. 13 7/8 in.
40 Kg 1514 mm 427 mm 215 mm 505 mm 106 mm
7A
88 lbs 59 1/2 in. 16 3/4 in.
8 1/2 in.
10 3/8 in.
19 7/8 in.
4 1/8 in.
4 1/8 in.
514 mm
514 mm
20 1/4 in.
20 1/4 in.
5 1/2 in.
265 mm
325 mm
10 1/2 in.
12 3/4 in.
E
F
E
C
D
G
200 mm (8 in)
To access controls
200 mm (8 in.)
Minimum
Wiring installation area.
A
B
Wall Bracket
750 mm
(30 in)
150 mm
(6 in)
200mm
(8 in)
Shelf or curtains
200 mm (8 in)
Minimum
Référence Puissance Intensité Poids ABCDE
16 Kg 1202 mm 352 mm 140 mm 265 mm 106 mm
7625-C12
7630-C16
1200W
1600W
5A
35 lbs 47 1/2 po. 13 7/8 po.
40 Kg 1514 mm 427 mm 215 mm 505 mm 106 mm
7A
88 lbs 59 1/2 po. 16 3/4 po.
8 1/2 po.
10 3/8 po.
19 7/8 po.
4 1/8 po.
4 1/8 po.
F
514 mm
514 mm
20 1/4 po.
20 1/4 po.
5 1/2 po.
Reference Capacity Current Weight ABCDE
F
G
265 mm
325 mm
10 1/2 po.
12 3/4 po.
G
16 Kg 1202 mm 352 mm 140 mm 265 mm 106 mm
7625-C12
7630-C16
1200W
1600W
5A 35 lbs 47 1/2 in. 13 7/8 in.
40 Kg 1514 mm 427 mm 215 mm 505 mm 106 mm
7A
88 lbs 59 1/2 in. 16 3/4 in.
8 1/2 in.
10 3/8 in.
19 7/8 in.
4 1/8 in.
4 1/8 in.
514 mm
514 mm
20 1/4 in.
20 1/4 in.
5 1/2 in.
265 mm
325 mm
10 1/2 in.
12 3/4 in.
E
F
E
C
D
G
200 mm (8 in)
To access controls
200 mm (8 in.)
Minimum
Wiring installation area.
A
B
Wall Bracket
RECOMMENDED SET-UP (continued)
3

Page 6
INSTALLATION AND MOUNTING
4
- Remove the mounting bracket by loosening and sliding the locking knob (Fig. B).
- Respect all mimum clearances (page 5 Fig. A).
- Position the bracket on the wall, making sure it is properly oriented and that the bottom
fastening hole is at 714 mm (28 1/8 in.) from the floor.
- Check that the bracket is leveled and mark the 6 fixing holes.
- Install the appropriate wall anchors and fasten the mounting bracket with 6 screws. Maxi-
mum screw size : 5,5mm (7/32 in.).

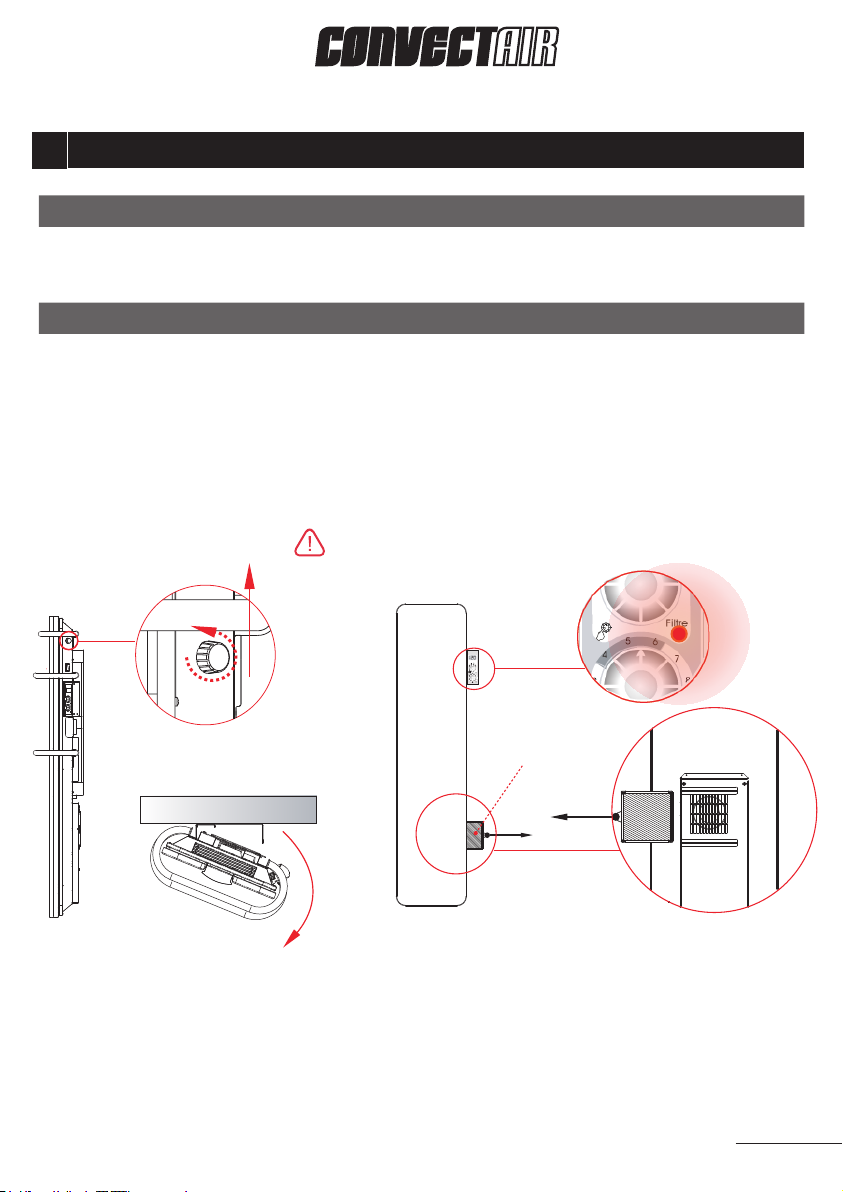

Fig.B Bracket locking mechanism
Attention:
The bracket locking mechanism
serves as a child safety lock.
To use the heater safely, insure
that it is properly locked at all
time.
CAUTION
Because of the heavy weight of this heater, particular care must be taken when handling and installing it. Use
screws and anchors adapted to the wall type and weight of the heater.

Page 7
- Position the towel bar over the top of the heater (Fig. 1).
- Slide the two mounting tabs into position (Fig. 2).
- There are two towel bar locations above the thermostat and an optional third one below
(Fig. 3).
- To install a towel bar below the thermostat, slide it in position from below the heater (Fig. 3).
INSTALLATION AND MOUNTING (continued)
4
Fig. 1
Fig. 2
Fig. 3
Optional third
towel bar.

Page 8
ELECTRICAL CONNECTION
5
CONVECTAIR recommends that the heater be installed by a qualified electrician and in
accordance with national and local codes.
A standard rectangular junction box must be installed in the wall, prior to electrical hookup.
The box must be of appropriate size to receive the necessary electrical connections and the
7 cm x 11,5 cm (2 3/4 in. x 4 in.) cover that is supplied with the heater.
CAUTION This heater must be connected to a 220-240 Volt (60 cycles) circuit.
1- Connect the ground wire (C) to the green conductor (G) from the heater (see Fig. C).
2- Connect the two line wires to the red (R) and black (B) conductors from the heater.
3- The purple conductor with a plastic seal (PW) is only to be used when connecting the hea-
ter to a central CONVECTAIR Programmer (for more informations, contact CONVECTAIR by
calling1 800 463-6487 or online at www.convectair.com).
4- Carefully place all conductors in the wall junction box.
5- Position the heater in front of the bracket and insert the bracket tabs into the back panel
of the heater.
6- Slowly swing the heater towards the wall until it locks into position on the bracket.
7- Tighten the bracket locking knob (Fig. B page 6).
CAUTION
To prevent short circuits and electrical shocks, turn the power off at the main panel before installing or repairing
the heater. If the power cord of the appliance is damaged, it must be replaced by CONVECTAIR or an approved
service depot to avoid any danger
Fig. C: Connection diagram - Respect wire coding
HEATER
RR
RR
RR
WW
BB
BB
BB
BB
GG
GG
CC
CC
P=PURPLE R=RED B=BLACK G=GREEN C=COPPER W=WHITE PW=PILOT WIRE
P W P W
WITH the use of a pilot wire (PW)
Installation
in Canada
Installation
in Canada
Installation
in U.S.A
Installation
in U.S.A
WITHOUT the use of a pilot wire (PW)
POWER LINE
HEATER
HEATER HEATER
POWER LINE POWER LINE POWER LINE
P
PPP

Page 9
OPERATING INSTRUCTIONS
6
C
D
E
F
G
1
0
A
B
I
Heat / Ambient air selector
On / Stanby switch
Timer display
0-120 minutes
Timer adjustment and
start button
Blocked filter light
Temperature adjustment
knob
Heating indicator light
Fig. D Fig. E
MODES OVERVIEW
Your Impresario towel dryer has three different operating modes:
MODE 1 : Radiant heat only
Controlled by the thermostat.
MODE 2 : Full power, radiant and fan-forced heat
Radiant heat controlled by the thermostat and fan-forced heat controlled by timer.
MODE 3 : Summer towel-drying
Fan-forced ambiant air controlled by timer.
Throughout the heating season, your CONVECTAIR heater stays warm and maintains a constant temperature
in the room.
During cold spells, it is normal for the heater to become hotter. Young children should be
cautioned about this and be supervised when they are in the heater vicinity.

Page 10
OPERATING INSTRUCTIONS
1. Place the On/Stanby switch to I (“B” page 9 Fig. D) and select on the Heat/Ambient
air selector (“A” page 9 Fig. D).
2. Briefly press the Timer knob (“D” page Fig. E). The screen displays : 20 min (factory setting),
the timer starts and the heater goes in fan-forced mode. To change the timer duration (adjus-
table from 0 to 120 min.), turn the timer knob right or left to get the desired duration. To save
the desired timer duration, press the timer and hold for 3 or 4 seconds until the display flashes.
This timer setting will appear the next time the timer is started.
3. The timer will stop automatically at the end of the set timer duration. It can also be stopped
at any time by briefly pressing the timer knob.
1. Place the On/Stanby switch to I (“B” page 9 Fig. D) and select on the Heat/Ambient
air selector (“A” page 9 Fig. D).
2. Start the timer for the desired duration.
1. Place the On/Stanby switch to I (“B” page 9 Fig. D).
2. Close all doors to the room where the heater is located and turn the temperature
adjustment knob (“F” page 9 Fig. E) to MAX (Fig. 4).
3. Wait until the room reaches the desired comfort level, then slowly turn back the temperature
setting knob (Fig. 5) until the Heat indicator light (“G” page 9 Fig. E) turns off.
4. Turn the temperature knob back up VERY SLOWLY (Fig.6) until the Heating indicator (“G”
page 9 Fig. E) turns back on. The temperature is now set.
Fig. 4 Fig. 5 Fig. 6
Maxi
C
o
m
f
o
r
t
Z
o
n
e
D
e
s
i
r
e
d
t
e
m
p
e
r
a
t
u
r
e
RADIANT HEAT ONLY
FULL POWER, RADIANT AND FAN-FORCED HEAT
2
1
SUMMER TOWEL-DRYING
3
OPERATING INSTRUCTIONS (continued)
6
