CONVECTAIR 7392 ECP Technical specifications

WARRANTY CONDITIONS
What the warrranty covers:
All defective material and manufacturing defects.
Length of warranty after initial purchase:
2 years on parts and labour.
What Convectair will do:
Pay the repair costs in an authorized repair centre, or at the company’s discretion, provide replacement.
Assume freight charges to ensure return to customer.
Service center:
To find the service centre nearest you, contact Convectair by dialing 1-800-463-6478.
Purchase receipt:
For any repair or replacement covered by this warranty, you need proof of purchase. please keep your
original invoice.
Miscellaneous costs:
Cost of transport to service centre, pick-up and reinstallation of the defective item shall, in every case, be
at customer’s expense, and shall be his responsibility.
What the warranty DOES NOT COVER.
All damage resulting from faulty installation, misuse, negligence or abuse, accidents, acts of God, or any
other circumstance that is beyond Convectair’s control. This also applies to all repairs carried out without
Convectair’s supervision. in addition, Convectair may not be held responsible for any damage caused to
personal property or real estate caused directly or indirectly by our products, even when such damage is
due to a fault or defect in these appliances.
In keeping with our ongoing commitment to research and development, we reserve the right to change product specifications without notice.

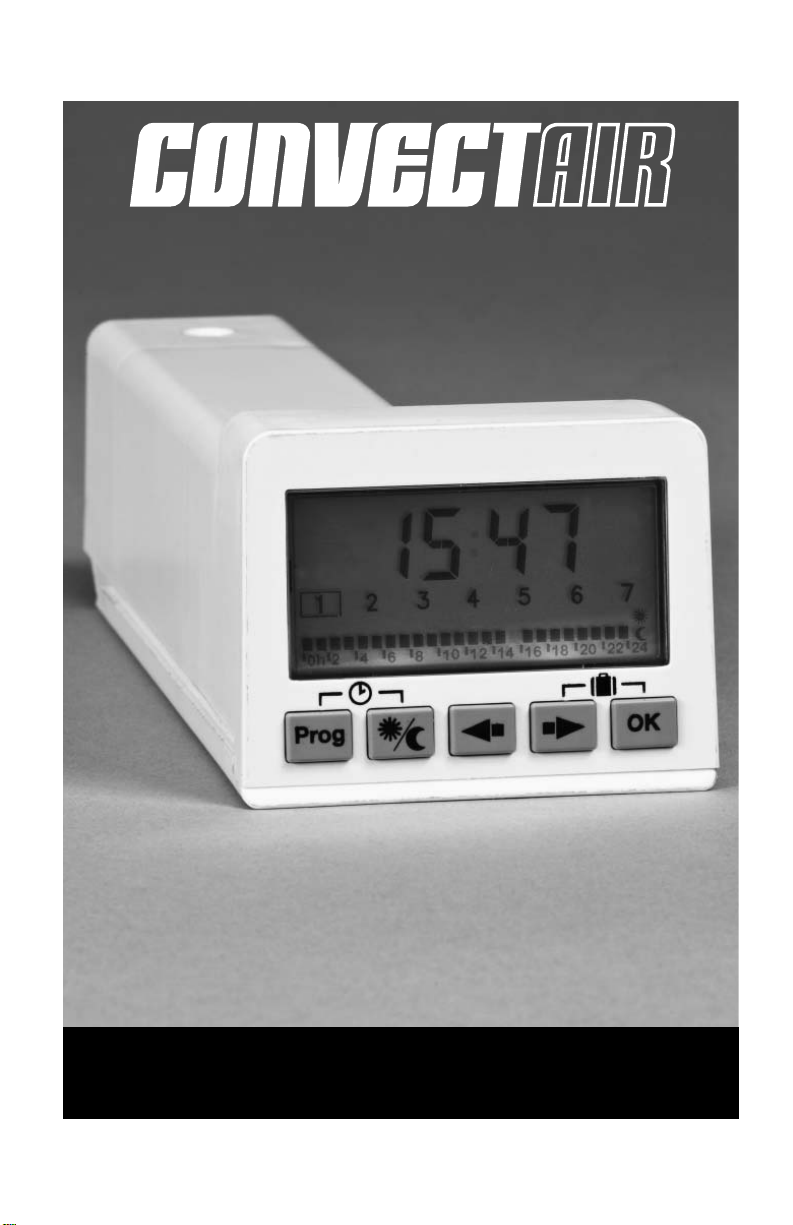

PROGRAMMER MODULE
USINGAPILOT WIRE
30, Carre Sicard, Sainte-Therese (Quebec), CANADAJ7E 3X6
Telephone : [phone] Fax: [phone]
Email: [e-mail]
www.convectair.com
IMPORTANT
More information on the Programmer’s required installation prior to use at:
www.convectair.com/install
Installation & Operating Instructions
Document to be read and kept by the user.

2. 7.
1 - OVERVIEW
Introduction: We thank you for choosing Convectair’s premium electric heating products and
we congratulate you on the purchase of this Programmer. To obtain the best results and the ul-
timateinperformanceand comfort,please takea momentto readthe installationand operation
instructions detailed in this manual.
• This programmer can be used on heaters fitted with a compatible receptacle.
- For a list of compatible heaters visit www.convectair.com/install
• The digital screen display allows you:
- to visualize the time, the day, the current heating status (comfort, economy or frost-pro-
tection), and the current program on an hour by hour basis;
- to set the time, the day, a program or confirm a selection.
• Technical features:
- Tension: 240 V
-After a complete charge, the battery supply will last for a full 24 hours.
• Programmer settings:
- Comfort (room temperature as set on the heater)
- Economy (setback a desired amount of degrees from the Comfort settings, for short
absences or night time)
- Frost-protection (maintains a minimum of 7°C or 46°F for prolonged absences)
• The Programmer module can control up to 20 other Convectair heaters.
- While charging (20 minutes), Comfort is the only signal that can be sent
on the pilot wire.
In case the electric supply is cut for more than 24 hours, the programs are saved but time and day
arelostandshouldbesetagain.Thescreendisplaysa flashing 00:00.Afterchargingfor20minutes,
the heater will be operating according to Monday’s program at 00:00AM (until the day and time are
reset).
5 - WARNINGS
Manual override:
It’s possible to override the heating status without touching the Programmer module. On the heater,
select another heating position:
- Comfort
- Economy
- Frost-protection
- Stop
When the Programmer module controls a number of heaters through the pilot wire, this procedure
enablestheoccupanttooverrideanindividualheaterwhiletherestoperatesaccordingtothe current
program.
To return to the programmed settings, switch back to the Prog position .
- Should the back light not activate, leave the cassette programmer in the slot
to charge.
- When the cassette is not in the slot, the screen may switch off after a while.
Press on any button in order to re-activate. If light does not come back, insert
the cassette programmer into the slot.
IMPORTANT:
IMPORTANT:
- To plan your installation and connect heaters to this Programmer visit
www.convectair.com/install
- When the Programmer stays without power for a long period,
reset the time and day.
- The pilot wire must NOT be grounded.
-This Programmer module needs to be charged for 20 minutes, in the slot located on
the control panel of the heater, prior to its first use.After a complete charge, the battery
supply will last for a full 24 hours.
-TheProgrammermodulecanbeprogrammedwheninsertedintotheheateroroutofthe
control panel slot, when fully charged.
- Prior to use, make sure you remove the protective film that covers the display and the
Quick Reference Guide located on the Programmer module.

3.
6.
b) Individual or zone heating configuration.
Zone heating configuration:
One cassette programmer can operate several hea-
ters using the pilot wire. Connect the pilot wire of the
heater fitted with the Programmer module (master) to
the pilot wire of the other heaters (slaves) as shown
on the picture.
Set all heaters to Prog mode. The ‘‘slaves’’ heaters
will operate according to the program on the ‘‘master’’
heater and constitute a comfort zone.
Comfort and Economy temperatures need to be
adjusted on each heater link with a pilot wire to the
‘‘master’’heater.
Using 2 Programmer modules it is possible to have 2
separate comfort zones.
WARNING
- You must not install 2 Programmer modules
units in the same comfort zone.
- It is imperative to respect the connection pola-
rities of all heaters of one zone.
L1 L2 Programmer
GROUND
L1
L2
L2
L1
PILOT WIRE
(Purple)
Heater fitted
with a Programmer
Other heaters in
the comfort zone.
(20 maximum)
CONNECTOR
MAIN
PANNEL.
)
(Black)
(Red)
(Black)
(Red)
Master heater
Slave heater
Slave heater
Pilot wire (Purple)
PILOT WIRE
OK
Prog
PROG
1 2 3 4 5 6 7
There are 4 pre-programmed groups of days:
• 1 - 2 - 3 - 4 - 5 - 6 - 7
• 1 - 2 - 3 - 4 - 5
• 6 - 7
• 1 - 2 - 4 - 5
Note: In these group of days, Monday = 1, and so on.
Copying a program on a group of days:
ou
ou
ou
- Using a small screwdriver, press on the clip
and lift the cover of the slot (on the right hand
side next to the control panel) and insert the
Programmer module.
- Select the Prog position on the thermostat.

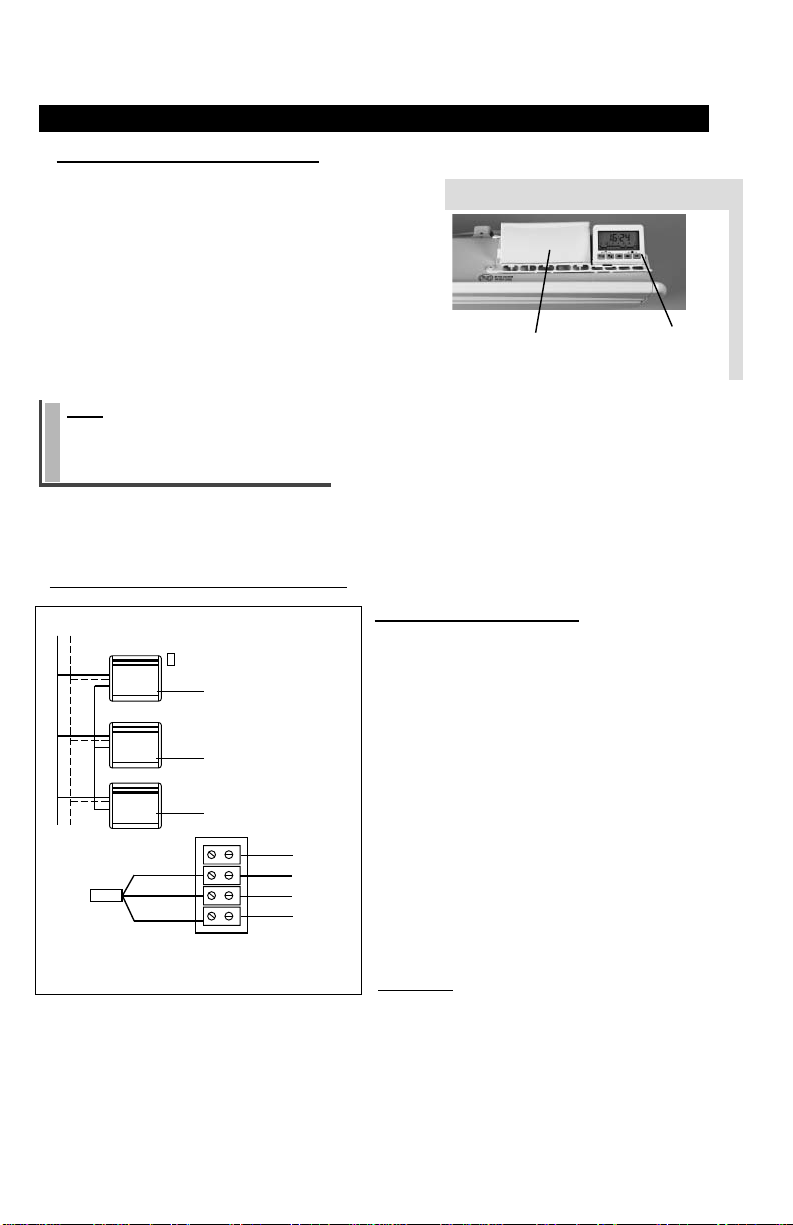

2 - INSTALLATION & CONFIGURATION
Note: For optimal results the Program-
mer module should remain permanent-
ly in the slot of the control panels.
Control panel Slot designed
to receive the
Programmer
module.
a) Inserting the module into the heater:
Location
OK
Prog
PROG
6 7
OK
Prog
PROG
1 2 3 4 5
OK
Prog
PROG
1 2 4 5
Press Prog .
Select the day you want to copy the program from
using and and press OK to validate.
The program you want to copy is shown.
Press OK to validate.
Press for 3 seconds.
Select the group of days on which you want
to copy the program using and and
press OK for 3 seconds.
The program is copied and appears on the screen.
Press OK to validate.
Exit by pressing Prog .

4. 5.
- Day setting: select the day by pressing and 
and press OK to validate.
1 = Monday 2 = Tuesday 3 = Wednesday
4 = Thursday 5 = Friday 6 = Saturday
7 = Sunday
HEURE
OK
Prog
10:40
PM
HEURE
OK
Prog
12:40AM
OK
Prog
T01
OK
Prog
0h 2 4 6 8 10 12 14 16 18 20 22 24
1 2 3 4 5 6 7
12:40
OK
Prog
1 2 3 4 5 6 7
PROG
OK
Prog
0h 2 4 6 8 10 12 14 16 18 20 22 24
PROG
0:h
1 2 3 4 5 6 7
OK
Prog
0h 2 4 6 8 10 12 14 16 18 20 22 24
PROG
0:h
1 2 3 4 5 6 7
OK
Prog
PROG
1 2 3 4 5 6 7
4 - OPERATION

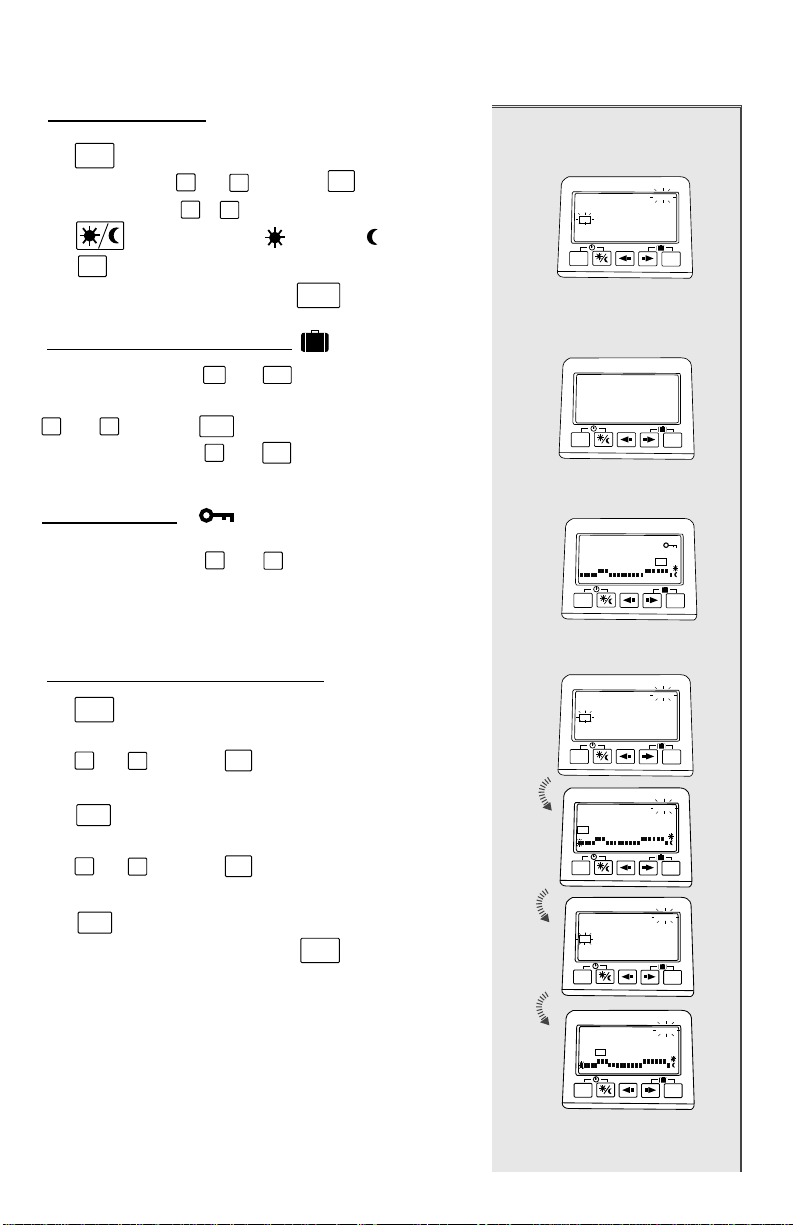

c) Setting up frost-protection mode:
Simultaneously press on and OK for 3 seconds.
Select the number of days desired (from 1 to 99) by pressing
and and press OK to validate.
Simultaneously press on and OK for 3 seconds
to desactivate.
Press Prog .
Select the day you want to copy the program from
using and and press OK to validate.
The program you want to copy is shown.
Press OK to validate.
Select the day on which you want to copy the program
using and and press OK for 3 seconds.
The program is copied and appears on the screen.
Press OK to validate.
Select another day or exit by pressing Prog .
e) Copying a program from another day:
b) Customize a program:
Press Prog .
Select the day using and and press OK to validate.
Select the hour using et .
Press to choose between Comfort or Economy.
Press OK to validate your changes.
Select another day or exit by pressing Prog .
OK
Prog
1 2 3 4 5 6 7
PROG
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 8h 17h à 23h
7h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
de 1 à 5
de 6 à 7
- The Programmer is now ready to be used using its default
setting (see picture).
HEURE
OK
Prog
00:00
a) Clock settings:
Press simultaneously on Prog and for 3 seconds.
Choose between a 12h or a 24h AM/PM display.
- Hour setting: adjust the hour by pressing and 
and press OK to validate.
- Minutes setting: adjust minutes by pressing and 
and press OK to validate.
d) Child lock setting:
Simultaneously press on and for 3 seconds.
Akey appears on the screen.
To unlock, repat the same operation.
Individual heating configuration:
Only the heater fitted with the Programmer
module will follow the selected program.
Connect the pilot wire to an empty / unused
terminal.
L1 L2 Programmer
GROUND
L1
L2
L2
L1
PILOT WIRE
(Purple)
Heater with
Programmer
CONNECTOR
MAIN
PANEL
)
(Black)
(Red)
(Black)
(Red)
OK
Prog
24 H
OK
Prog
12 H
AM
PM

4. 5.
- Day setting: select the day by pressing and 
and press OK to validate.
1 = Monday 2 = Tuesday 3 = Wednesday
4 = Thursday 5 = Friday 6 = Saturday
7 = Sunday
HEURE
OK
Prog
10:40
PM
HEURE
OK
Prog
12:40AM
OK
Prog
T01
OK
Prog
0h 2 4 6 8 10 12 14 16 18 20 22 24
1 2 3 4 5 6 7
12:40
OK
Prog
1 2 3 4 5 6 7
PROG
OK
Prog
0h 2 4 6 8 10 12 14 16 18 20 22 24
PROG
0:h
1 2 3 4 5 6 7
OK
Prog
0h 2 4 6 8 10 12 14 16 18 20 22 24
PROG
0:h
1 2 3 4 5 6 7
OK
Prog
PROG
1 2 3 4 5 6 7
4 - OPERATION
c) Setting up frost-protection mode:
Simultaneously press on and OK for 3 seconds.
Select the number of days desired (from 1 to 99) by pressing
and and press OK to validate.
Simultaneously press on and OK for 3 seconds
to desactivate.
Press Prog .
Select the day you want to copy the program from
using and and press OK to validate.
The program you want to copy is shown.
Press OK to validate.
Select the day on which you want to copy the program
using and and press OK for 3 seconds.
The program is copied and appears on the screen.
Press OK to validate.
Select another day or exit by pressing Prog .
e) Copying a program from another day:
b) Customize a program:
Press Prog .
Select the day using and and press OK to validate.
Select the hour using et .
Press to choose between Comfort or Economy.
Press OK to validate your changes.
Select another day or exit by pressing Prog .
OK
Prog
1 2 3 4 5 6 7
PROG
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 8h 17h à 23h
7h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
de 1 à 5
de 6 à 7
- The Programmer is now ready to be used using its default
setting (see picture).
HEURE
OK
Prog
00:00
a) Clock settings:
Press simultaneously on Prog and for 3 seconds.
Choose between a 12h or a 24h AM/PM display.
- Hour setting: adjust the hour by pressing and 
and press OK to validate.
- Minutes setting: adjust minutes by pressing and 
and press OK to validate.
d) Child lock setting:
Simultaneously press on and for 3 seconds.
Akey appears on the screen.
To unlock, repat the same operation.
Individual heating configuration:
Only the heater fitted with the Programmer
module will follow the selected program.
Connect the pilot wire to an empty / unused
terminal.
L1 L2 Programmer
GROUND
L1
L2
L2
L1
PILOT WIRE
(Purple)
Heater with
Programmer
CONNECTOR
MAIN
PANEL
)
(Black)
(Red)
(Black)
(Red)
OK
Prog
24 H
OK
Prog
12 H
AM
PM

3.
6.
b) Individual or zone heating configuration.
Zone heating configuration:
One cassette programmer can operate several hea-
ters using the pilot wire. Connect the pilot wire of the
heater fitted with the Programmer module (master) to
the pilot wire of the other heaters (slaves) as shown
on the picture.
Set all heaters to Prog mode. The ‘‘slaves’’ heaters
will operate according to the program on the ‘‘master’’
heater and constitute a comfort zone.
Comfort and Economy temperatures need to be
adjusted on each heater link with a pilot wire to the
‘‘master’’heater.
Using 2 Programmer modules it is possible to have 2
separate comfort zones.
WARNING
- You must not install 2 Programmer modules
units in the same comfort zone.
- It is imperative to respect the connection pola-
rities of all heaters of one zone.
L1 L2 Programmer
GROUND
L1
L2
L2
L1
PILOT WIRE
(Purple)
Heater fitted
with a Programmer
Other heaters in
the comfort zone.
(20 maximum)
CONNECTOR
MAIN
PANNEL.
)
(Black)
(Red)
(Black)
(Red)
Master heater
Slave heater
Slave heater
Pilot wire (Purple)
PILOT WIRE
OK
Prog
PROG
1 2 3 4 5 6 7
There are 4 pre-programmed groups of days:
• 1 - 2 - 3 - 4 - 5 - 6 - 7
• 1 - 2 - 3 - 4 - 5
• 6 - 7
• 1 - 2 - 4 - 5
Note: In these group of days, Monday = 1, and so on.
Copying a program on a group of days:
ou
ou
ou
- Using a small screwdriver, press on the clip
and lift the cover of the slot (on the right hand
side next to the control panel) and insert the
Programmer module.
- Select the Prog position on the thermostat.
2 - INSTALLATION & CONFIGURATION
Note: For optimal results the Program-
mer module should remain permanent-
ly in the slot of the control panels.
Control panel Slot designed
to receive the
Programmer
module.
a) Inserting the module into the heater:
Location
OK
Prog
PROG
6 7
OK
Prog
PROG
1 2 3 4 5
OK
Prog
PROG
1 2 4 5
Press Prog .
Select the day you want to copy the program from
using and and press OK to validate.
The program you want to copy is shown.
Press OK to validate.
Press for 3 seconds.
Select the group of days on which you want
to copy the program using and and
press OK for 3 seconds.
The program is copied and appears on the screen.
Press OK to validate.
Exit by pressing Prog .

2. 7.
1 - OVERVIEW
Introduction: We thank you for choosing Convectair’s premium electric heating products and
we congratulate you on the purchase of this Programmer. To obtain the best results and the ul-
timatein performanceand comfort,please takea momentto readthe installationand operation
instructions detailed in this manual.
• This programmer can be used on heaters fitted with a compatible receptacle.
- For a list of compatible heaters visit www.convectair.com/install
• The digital screen display allows you:
- to visualize the time, the day, the current heating status (comfort, economy or frost-pro-
tection), and the current program on an hour by hour basis;
- to set the time, the day, a program or confirm a selection.
• Technical features:
- Tension: 240 V
-After a complete charge, the battery supply will last for a full 24 hours.
• Programmer settings:
- Comfort (room temperature as set on the heater)
- Economy (setback a desired amount of degrees from the Comfort settings, for short
absences or night time)
- Frost-protection (maintains a minimum of 7°C or 46°F for prolonged absences)
• The Programmer module can control up to 20 other Convectair heaters.
- While charging (20 minutes), Comfort is the only signal that can be sent
on the pilot wire.
In case the electric supply is cut for more than 24 hours, the programs are saved but time and day
arelostandshouldbesetagain.Thescreendisplaysa flashing 00:00.Afterchargingfor 20 minutes,
the heater will be operating according to Monday’s program at 00:00AM (until the day and time are
reset).
5 - WARNINGS
Manual override:
It’s possible to override the heating status without touching the Programmer module. On the heater,
select another heating position:
- Comfort
- Economy
- Frost-protection
- Stop
When the Programmer module controls a number of heaters through the pilot wire, this procedure
enablesthe occupant to overrideanindividualheaterwhiletherestoperatesaccordingtothe current
program.
To return to the programmed settings, switch back to the Prog position .
- Should the back light not activate, leave the cassette programmer in the slot
to charge.
- When the cassette is not in the slot, the screen may switch off after a while.
Press on any button in order to re-activate. If light does not come back, insert
the cassette programmer into the slot.
IMPORTANT:
IMPORTANT:
- To plan your installation and connect heaters to this Programmer visit
www.convectair.com/install
- When the Programmer stays without power for a long period,
reset the time and day.
- The pilot wire must NOT be grounded.
-This Programmer module needs to be charged for 20 minutes, in the slot located on
the control panel of the heater, prior to its first use.After a complete charge, the battery
supply will last for a full 24 hours.
-TheProgrammermodulecanbeprogrammedwheninsertedintotheheateroroutofthe
control panel slot, when fully charged.
- Prior to use, make sure you remove the protective film that covers the display and the
Quick Reference Guide located on the Programmer module.

WARRANTY CONDITIONS
What the warrranty covers:
All defective material and manufacturing defects.
Length of warranty after initial purchase:
2 years on parts and labour.
What Convectair will do:
Pay the repair costs in an authorized repair centre, or at the company’s discretion, provide replacement.
Assume freight charges to ensure return to customer.
Service center:
To find the service centre nearest you, contact Convectair by dialing 1-800-463-6478.
Purchase receipt:
For any repair or replacement covered by this warranty, you need proof of purchase. please keep your
original invoice.
Miscellaneous costs:
Cost of transport to service centre, pick-up and reinstallation of the defective item shall, in every case, be
at customer’s expense, and shall be his responsibility.
What the warranty DOES NOT COVER.
All damage resulting from faulty installation, misuse, negligence or abuse, accidents, acts of God, or any
other circumstance that is beyond Convectair’s control. This also applies to all repairs carried out without
Convectair’s supervision. in addition, Convectair may not be held responsible for any damage caused to
personal property or real estate caused directly or indirectly by our products, even when such damage is
due to a fault or defect in these appliances.
In keeping with our ongoing commitment to research and development, we reserve the right to change product specifications without notice.
PROGRAMMER MODULE
USINGAPILOT WIRE
30, Carre Sicard, Sainte-Therese (Quebec), CANADAJ7E 3X6
Telephone : [phone] Fax: [phone]
Email: [e-mail]
www.convectair.com
IMPORTANT
More information on the Programmer’s required installation prior to use at:
www.convectair.com/install
Installation & Operating Instructions
Document to be read and kept by the user.

7392 ECP/RCP SYSTEM PROGRAMMER
INSTALLATION AND PROGRAMMING INSTRUCTIONS

0
7392 ECP/RCP SYSTEM PROGRAMMER
1) PRESENTATION.......................................................................................................................................1
A)OPERATING OPTIONS
QUICK START............................................................................................................................................2
A) PLANNING YOUR INSTALLATION
B) THE FIRST INSTALLATION
C) SET THE PROGRAM
D) SET THE HOME CODE
E) SET THE RECEIVERS ADDRESS
F) TEST TIME
3) INSTALLATION AND CONNECTIONS......................................................................................................5
A) INSTALLATION
B) CONNECTING HEATERS TO A PROGRAMMER MODULE
C) BASIC PRINCIPLES
4) OPERATION.............................................................................................................................................7
A) SETTING OF THE CLOCK
B) ASSIGNING PROGRAMS
5) OTHER FEATURES..................................................................................................................................8
A) FROST PROTECTION MODE
B) MANUAL BYPASS
C) IN CASE OF A POWER FAILURE
6) LOCKING THE PROGRAMMER MODULE...............................................................................................9
7) PROGRAMMING EXAMPLE.....................................................................................................................9

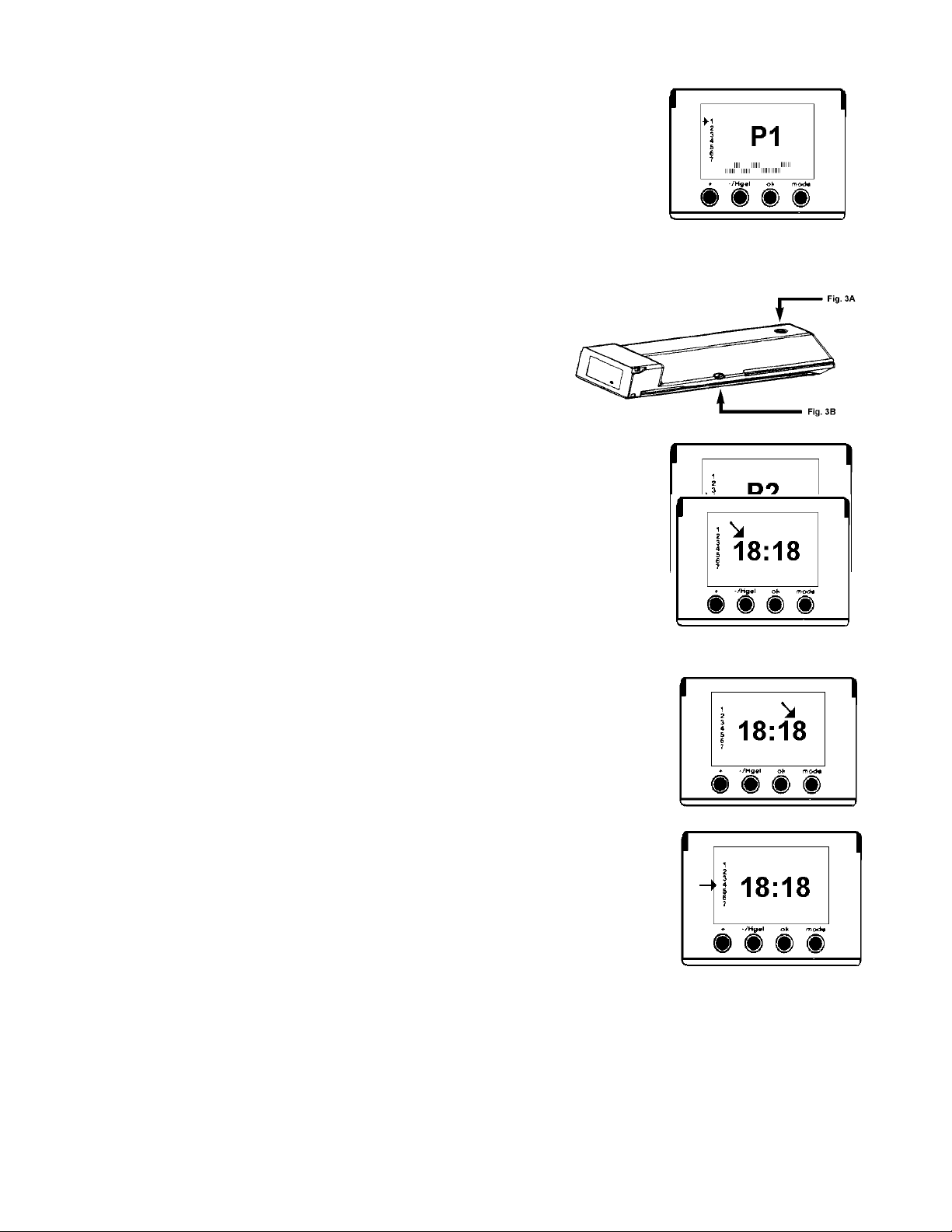

A) SETTING THE TIME AND DAY
B) PROGRAMMING EXAMPLE WITH PRE-SELECTED PROGRAMS
C) CHOOSE A CUSTOMIZED PROGRAM
D) INDIVIDUAL PROGRAMMING
E) EXAMPLE OF A ZONE CONFIGURATION

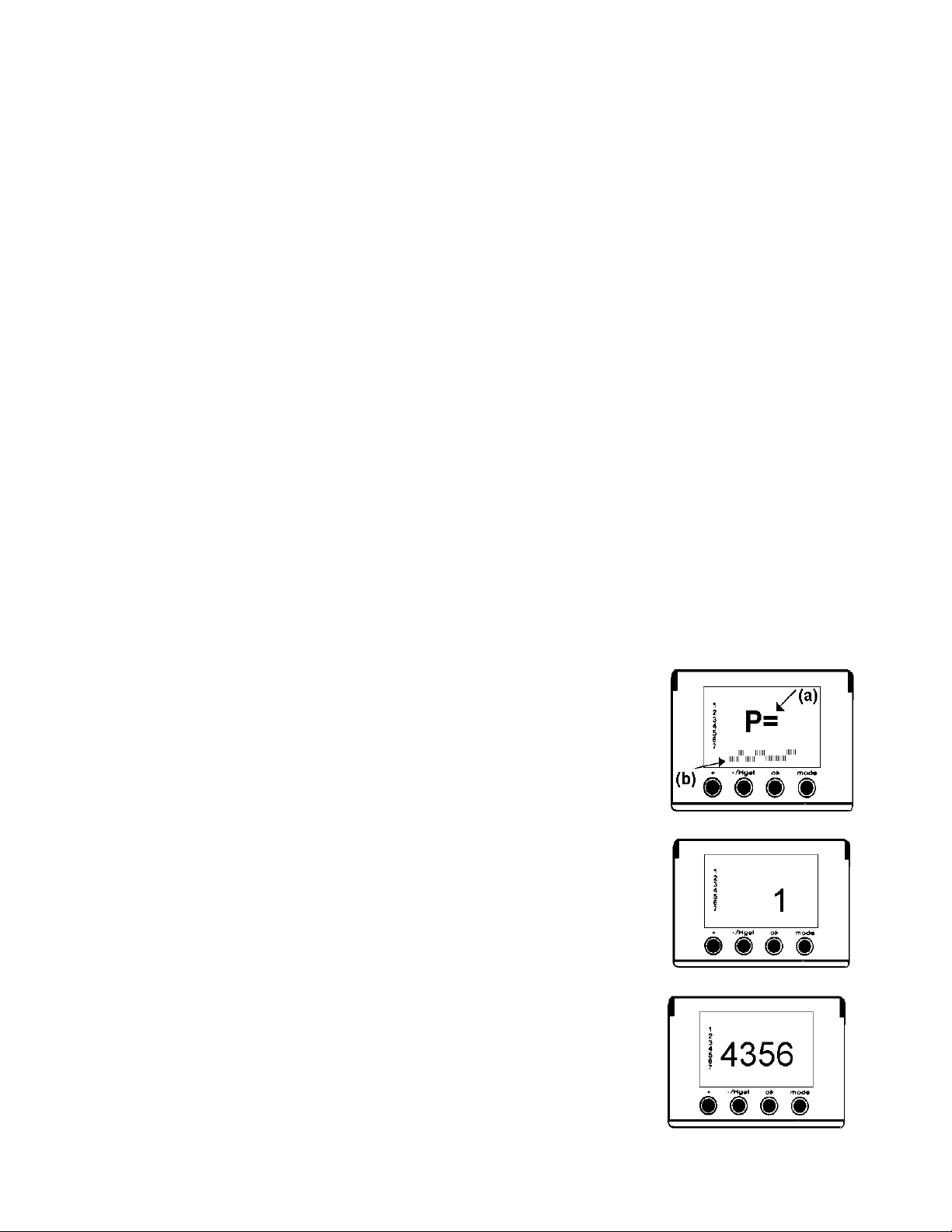

F) HOME CODE PROGRAMMING
G) ASSIGNING A ZONE
H) EXAMPLE OF A CONFIGURED ZONE
8) TESTING THE SYSTEM.........................................................................................................................12
9) TROUBLESHOOTING ............................................................................................................................12
10) ERROR CODES....................................................................................................................................12
11) WARRANTY..........................................................................................................................................13
12) REPAIR CENTERS...............................................................................................................................13
13) FAQ’S....................................................................................................................................................13
