Converters.TV 438 User manual

HDMI Amplifier Equalizer
ID# 438
Operation Manual

Introduction
Using a standard HDMI cable to transmit high definition audio/video
at a long distance will result in digital degradation. Our HDMI Amplifier
E ualizer can correct digital error and provide 8 dB input e ualization to
compensate for cable transmission loss, it will eliminate digital noise
(sparkles) to ensure you to receive perfect HDTV picture after long cable
transmission.
Features
* Provides 8 dB input e ualization to compensate for long HDMI cable
loss.
* Extend cable reach to 40 meters- 20 meters from the source to
the e ualizer plus 20 meters from the e ualizer to the projector,
TV/monitor.
* Maintains high HDMI single link video resolution up to UXGA/1080p.
* HDCP compliant.
* Plug and play, easy to install.
* Can be powered directly from the cable.
However it is recommended to use external power adaptor
for long cable application.
* HDMI is backward compatible with DVI,
The unit will work with either DVI or HDMI.
Operating Functions
and ontrols

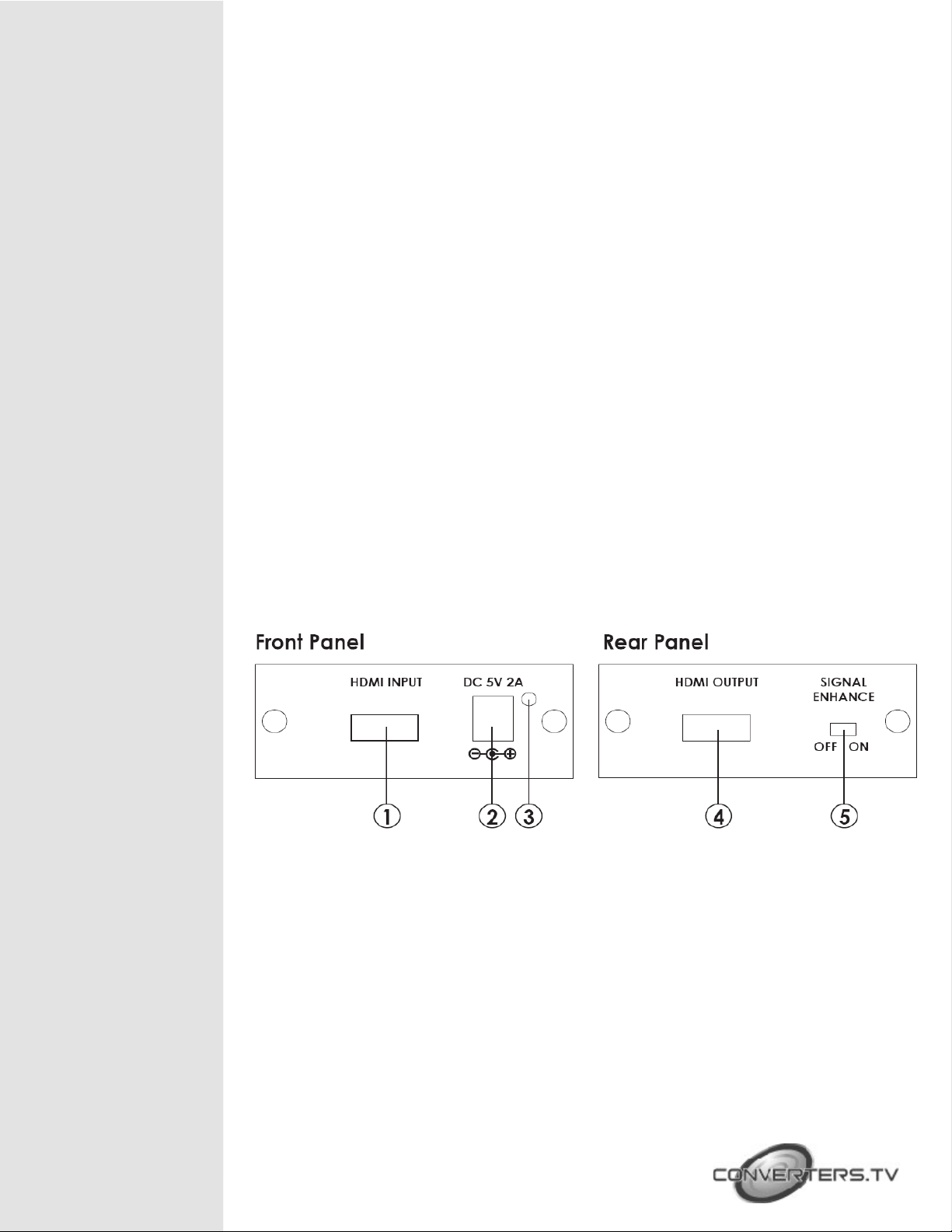

Front Panel
1. HDMI Input: Connects to the HDMI output connector of your
source e uipment.
2. DC power plug.
3. Power LED.
4. HDMI output: Connects to the HDMI input connector of your
display unit.
5. Signal Enhance: After long distance transmission you can press this
button to enhance the signal.

HDMI Connector Pin Assignment
Specifications
Compliant with HDMI 1.2
HDCP is compliant with HDCP 1.1 downward compatible to HDCP 1.0
HDCP pass through.
Operation frequency : Up to 165MHz
HDMI data rate: 1.65Gbps(single link)
Input/Output resolutions:
PC: VGA, SVGA, XGA, SXGA, UXGA up to 165MHz
HD: 480i/576i, 480p/576p, 720p, 1080i, 1080p
Dimension: 72(D)x 76(W)x 30(H)mm
Power: 5V 2A center-positive
Note: Connect the long HDMI cable from the source to the input of HDMI
Amplifier Equalizer and place the box next to your display.
onnection and
Installation
