Conway Cairon T 5.0 User manual

2
Warranty (warranty conditions)
1 Warranty (warranty conditions)
With the purchase of this bicycle, you have purchased a high quality product. We are therefore able to offer you the following guarantee
which is effective from the date of purchase:
On aluminium frames and unsprung aluminium forks: 5-year guarantee for frame and fork breakage
On steel frames and unsprung steel forks: 5-year guarantee for frame and fork breakage
On carbon frames and carbon forks without suspension: 3-year guarantee for frame and fork breakage
During the guarantee period, product defects are resolved by replacement or repair at no charge. Guarantee repair services may be
carried out only by a bicycle dealer specified by us.
The guarantee is only valid for the first owner and cannot be transferred to a subsequent owner.
Proof of purchase (invoice/dated sales document identifying the bicycle) is required for this.
The guarantee is invalidated if the bike is used for races and competitions.
This guarantee covers complete bikes, which have been fully assembled and adjusted by a dealer we have authorised.
This warranty becomes void if the inspection intervals are not observed, the bicycle is used other than as intended, incorrectly repaired,
rebuilt or modified.
Text: Copyright of Hermann Hartje KG, Hoya. Reproduction without our consent is prohibited.

3

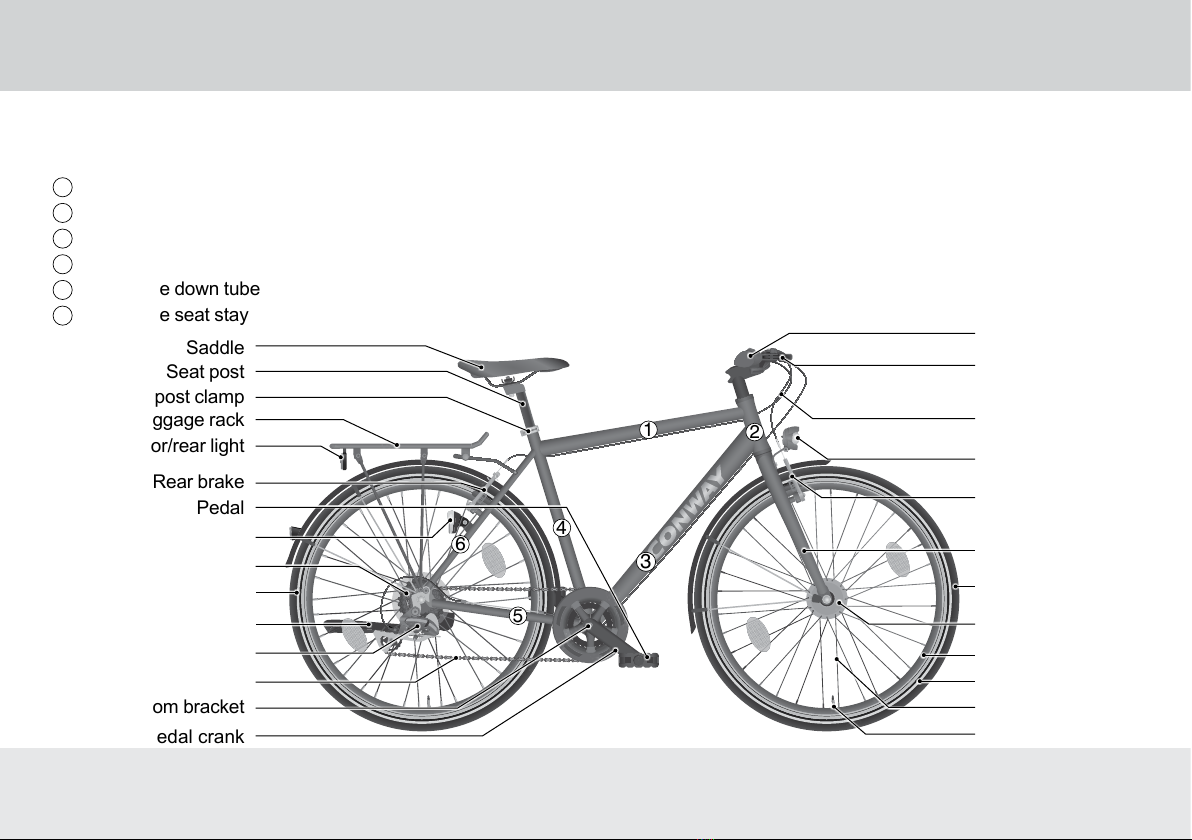

Bicycle part terms
2 Bicycle part terms
Note: The figure may vary depending on your bicycle model or
the selected configuration. Read the special notes regarding your
configuration in the respective chapters.
Frame:
1
Top tube
2
Head tube
3
Down tube
4
Seat tube
5
Rear frame down tube
6
Rear frame seat stay
1
2
4
6
5
3
Bottom bracket
Pedal crank
Saddle
Seat post
Seat post clamp
Luggage rack
Reflector/rear light
Reflector/rear light
Rear brake
Pedal
Rear wheel
Prop stand
Gear shift system
Chain
Rear wheel hub
Handlebars
Hand brake levers
Brake and gear cables
Headlight
Front brake
Front wheel fork
Front wheel
Front-wheel hub
Rim
Reflective strips
Spoke
Valve

4
Table of contents
1 Warranty (warranty conditions) . . . . . . . . . . . . .2
2 Bicycle part terms. . . . . . . . . . . . . . . . . . . . . . . .3
3 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
3.1 General notes and information. . . . . . . . . . . . . . 8
3.1.1 Reading the user manual. . . . . . . . . . . . . . . . . . . . 8
3.1.2 Validity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.1.3 Categorisation of warning notes . . . . . . . . . . . . . . 9
3.2 Proper use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.3 Road traffic . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
3.3.1 Bicycle helmet . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.3.2 Handlebar extensions . . . . . . . . . . . . . . . . . . . . . 12
3.3.3 Additional regulations . . . . . . . . . . . . . . . . . . . . . 13
3.4 Modifications . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.5 Residual risks . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4 Basic information . . . . . . . . . . . . . . . . . . . . . . .15
4.1 Symbols and terms. . . . . . . . . . . . . . . . . . . . . . 15
4.1.1 Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.1.2 Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.1.3 Written labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.1.4 Units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.2 Direction of rotation for screws. . . . . . . . . . . . . 16
4.3 Torques. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.4 Sitting position . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.5 Wear. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.6 Carbon components. . . . . . . . . . . . . . . . . . . . . 19
4.7 Protection against theft. . . . . . . . . . . . . . . . . . . 19
4.8 Permissible total weight . . . . . . . . . . . . . . . . . . 19
4.8.1 Determining unladen weight . . . . . . . . . . . . . . . . 20
4.8.2 Calculating the total weight . . . . . . . . . . . . . . . . . 20
4.9 Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.10 Before you start riding . . . . . . . . . . . . . . . . . . 21
4.11 Inspection instructions . . . . . . . . . . . . . . . . . . 22
4.12 After an accident . . . . . . . . . . . . . . . . . . . . . . 23
4.13 Cleaning and servicing. . . . . . . . . . . . . . . . . . 23
5 Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
5.1 Checking the condition of the brakes . . . . . . . . 27
5.2 Brake lever configuration . . . . . . . . . . . . . . . . . 28
5.3 Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . 28

5
Table of contents
5.4 Rim brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
5.4.1 Basic information . . . . . . . . . . . . . . . . . . . . . . . . . 29
5.4.2 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
5.4.3 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
5.5 Disc brakes. . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
5.5.1 Basic information . . . . . . . . . . . . . . . . . . . . . . . . . 34
5.5.2 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
5.5.3 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
5.6 Coaster brakes. . . . . . . . . . . . . . . . . . . . . . . . . 39
5.6.1 Basic information . . . . . . . . . . . . . . . . . . . . . . . . . 39
5.6.2 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
5.6.3 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
6 Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
6.1 Basic information . . . . . . . . . . . . . . . . . . . . . . . 41
6.2 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
6.2.1 Sidewall dynamo . . . . . . . . . . . . . . . . . . . . . . . . . 43
6.2.2 Hub dynamo . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
6.3 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
6.3.1 Vertical mounting . . . . . . . . . . . . . . . . . . . . . . . . . 44
6.3.2 Horizontal setting . . . . . . . . . . . . . . . . . . . . . . . . . 44
7 Gear shift system . . . . . . . . . . . . . . . . . . . . . . .45
7.1 Derailleur gears . . . . . . . . . . . . . . . . . . . . . . . . 46
7.1.1 Basic information . . . . . . . . . . . . . . . . . . . . . . . . . 46
7.1.2 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
7.1.3 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
7.2 Gear hub . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
7.2.1 Basic information . . . . . . . . . . . . . . . . . . . . . . . . . 51
7.2.2 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
7.2.3 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
8 Tensioning chains. . . . . . . . . . . . . . . . . . . . . . .56
8.1 Basic information . . . . . . . . . . . . . . . . . . . . . . . 56
8.2 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
8.2.1 Eccentric chain tensioner. . . . . . . . . . . . . . . . . . . 56
8.2.2 Chain tensioner on the dropout . . . . . . . . . . . . . . 57
9 Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
9.1 Pedal drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
9.1.1 Basic information . . . . . . . . . . . . . . . . . . . . . . . . . 59
9.1.2 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
9.1.3 Checking the condition of the pedal drive . . . . . . 59

6
Table of contents
9.2 Chain drive system. . . . . . . . . . . . . . . . . . . . . . 60
9.2.1 Basic information . . . . . . . . . . . . . . . . . . . . . . . . . 60
9.2.2 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
9.2.3 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
9.3 Belt drive system . . . . . . . . . . . . . . . . . . . . . . . 61
9.3.1 Basic information . . . . . . . . . . . . . . . . . . . . . . . . . 61
9.3.2 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
9.3.3 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
10 Other components . . . . . . . . . . . . . . . . . . . . .63
10.1 Handlebars. . . . . . . . . . . . . . . . . . . . . . . . . . . 63
10.1.1 Basic information . . . . . . . . . . . . . . . . . . . . . . . . 63
10.1.2 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
10.1.3 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
10.2 Saddle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
10.2.1 Basic information . . . . . . . . . . . . . . . . . . . . . . . . 67
10.2.2 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
10.3 Luggage rack . . . . . . . . . . . . . . . . . . . . . . . . . 70
10.3.1 Basic information . . . . . . . . . . . . . . . . . . . . . . . . 70
10.3.2 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
10.4 Luggage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
10.5 Bell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
10.5.1 Basic information . . . . . . . . . . . . . . . . . . . . . . . . 73
10.5.2 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
10.5.3 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
10.6 Prop stand . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
10.6.1 Basic information . . . . . . . . . . . . . . . . . . . . . . . . 73
10.6.2 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
10.6.3 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
10.7 Frame lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
10.7.1 Close the frame lock . . . . . . . . . . . . . . . . . . . . . 74
10.7.2 Open the frame lock. . . . . . . . . . . . . . . . . . . . . . 74
10.8 Quick-release levers . . . . . . . . . . . . . . . . . . . 75
10.8.1 Basic information . . . . . . . . . . . . . . . . . . . . . . . . 75
10.8.2 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
10.8.3 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
10.9 Suspension . . . . . . . . . . . . . . . . . . . . . . . . . . 77
10.9.1 Suspension fork . . . . . . . . . . . . . . . . . . . . . . . . . 77
10.9.2 Suspension seat posts. . . . . . . . . . . . . . . . . . . . 81
11 Wheels and tyres . . . . . . . . . . . . . . . . . . . . . .83
11.1 Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

7
Table of contents
11.1.1 Basic information . . . . . . . . . . . . . . . . . . . . . . . . 83
11.1.2 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
11.2 Tyres and valves. . . . . . . . . . . . . . . . . . . . . . . 84
11.2.1 Basic information . . . . . . . . . . . . . . . . . . . . . . . . 84
11.2.2 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
12 Storage and disposal . . . . . . . . . . . . . . . . . . .88
12.1 Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
12.2 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
12.2.1 Disposing of the packaging . . . . . . . . . . . . . . . . 89
12.2.2 Disposing of lubricants and cleaning products . 89
12.2.3 Disposing of tyres and inner tubes. . . . . . . . . . . 89
12.2.4 Disposing of the bicycle . . . . . . . . . . . . . . . . . . . 89
13 Inspection report . . . . . . . . . . . . . . . . . . . . . .91
14 Bicycle passport . . . . . . . . . . . . . . . . . . . . . . .93
15 Handover document. . . . . . . . . . . . . . . . . . . .95
15.1 Dealer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
15.2 Customer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
16 Legal notice . . . . . . . . . . . . . . . . . . . . . . . . . .96

8
Safety
3 Safety
3.1 General notes and information
3.1.1 Reading the user manual
Read all warnings and notes in this user manual with care
before you operate the bicycle for the first time.
Keep the manual to hand so that it is available at all times.
Include the user manual when passing the bicycle on to
third parties.
3.1.2 Validity
This user manual is valid for bicycle models from 2018 onwards:
Depending on the bicycle model, your bicycle or e-bike (pedelec)
may not be approved for use on public roads. To check if your bicy-
cle or e-bike is approved for road usage, consult Fig. “Road Traffic
Licensing Regulation stickers” or “Lighting equipment”.
Bicycles or e-bikes that are not approved for road usage under
German Road Traffic Licensing Regulations are labelled accord-
ingly on the seat tube or down tube (see Fig. “Road Traffic Licens-
ing Regulation stickers”).
• Use the Road Traffic Licensing Regulation stickers or Light-
ing equipment figures to check if your bicycle or e-bike model
is approved for road usage (see Chapter “Road traffic” on
page 11).
E-bikes (pedelecs) also have a supplementary user manual for
the motor.
Fig.: Road Traffic Licensing Regulation stickers (example)
This bike is not suitable
for use on public roads
as it is not equipped in
accordance with local
traffic regulations.
Fig.: Lighting equipment (example)
1 Headlight with
reflector (white)
2 Reflective strips (white)
3 Reflectors on the pedal
(yellow)
4 Side reflectors (yellow)
5 Rear light with
reflector (red)
5
1
2
4
3

9
Safety
3.1.3 Categorisation of warning notes
The warning notes are intended to draw your attention to poten-
tial hazards. Your complete attention is required when reading the
warning notes; the statements must be understood completely.
Failure to follow a warning note may result in injury to yourself or
other persons. The warning notes alone cannot prevent dangers.
Follow all warning notes to avoid risks when using the bicycle.
There are warning notes in the following categories:
WARNING
This key word designates a hazard with a moderate
degree of risk which may lead to death or severe injury if
unheeded.
CAUTION
This key word designates hazard with a low degree of risk,
which may result in minor or moderate injury if unheeded.
NOTICE
This key word warns of possible damage to property.
3.2 Proper use
WARNING
Danger for children or for individuals with insufficient
knowledge or abilities!
Risk of accident and injury!
• Please use the bicycle only if you are fully acquainted
with the operation of the bicycle and all of its functions.
• Do not allow persons with reduced physical, sensory or
mental abilities or a lack of experience or knowledge to
use the bicycle.
• Do not allow children to play with the bicycle.
• Do not allow children to clean, maintain or service the
bicycle.
WARNING
Children have insufficient knowledge and skills.
Risk of suffocation!
• Do not allow children to play with the packaging
wrapper. Children may get caught in it when playing
and suffocate.

10
Safety
WARNING
Braking distances can be increased or the bicycle could
slip on bends, e.g. when riding in wet conditions or where
the riding surface is very dirty.
Risk of accident and injury!
• Adapt the manner in which you ride to the weather con-
ditions and road surface conditions.
WARNING
Component breakages caused by improper usage.
Risk of accident and injury!
• The bicycle should only be used for the intended pur-
pose as described.
CAUTION
Risk of trapping body parts due to the bicycle’s moving
parts.
Risk of injury!
• Wear tight-fitting clothing on the legs.
• Ensure no loose straps are hanging down, e.g. shoe-
laces or jacket belts.
CAUTION
Slipping due to improper footwear.
Risk of injury!
• Wear shoes with non-slip soles.
CAUTION
Insufficient control of the bicycle.
Risk of injury!
• Hold on to both handlebar grips firmly with both hands
while riding.
• Always remain ready to brake.
• Never ride one-handed or with no-hands.
NOTICE
Increased wear and breakage of components caused by
improper use of your bicycle.
Risk of damage!
• Do not use your bicycle to jump over ramps or mounds
of earth.
• Do not ride over steps or other types of ledges,
e.g. kerbs or rocks.
• Do not ride through deep water.

11
Safety
Neither the manufacturer nor the specialist dealer will accept lia-
bility for damage which occurs due to improper use, which does
not comply with the intended purpose. Only use the bicycle in the
manner described in this user manual. Any other use is deemed
improper and may cause accidents, serious injuries or damage to
the bicycle itself.
The warranty is rendered void in the event of improper use of the
bicycle.
The bicycle is intended for use by one person, for whom the bicycle
has been adjusted to provide the correct sitting position according
to their body size.
The bicycle is intended for use on paved roads and paths. In light
terrain, e.g. on gravel tracks or field and forest paths, it can be
used with caution. The wheels must have constant contact with
the ground. Any use in rough terrain can cause the bicycle to fail.
The bicycle is not intended to be subjected to above-average strain
during use; e.g. the use of the bicycle in racing or competitive
events is not considered to be in accordance with its intended use.
3.3 Road traffic
WARNING
Improper use or use for purposes other than those origi-
nally intended.
Risk of accident and injury!
• Only use the bicycle in public road traffic if it is equipped
in accordance with the road traffic regulations in the
respective country.
• Be aware of and follow the applicable national and
regional regulations regarding road traffic.
WARNING
No head protection.
Risk of injury!
• Wear a suitable bicycle helmet when riding your bicycle.
WARNING
Poor visibility to other road users.
Risk of accident and injury!
• Wear light-coloured clothing with reflective elements
when riding your bicycle.

12
Safety
WARNING
Not paying sufficient attention to the road traffic.
Risk of accident and injury!
• Do not allow yourself to become distracted by other
activities when riding your bicycle, e.g. by switching the
lights on.
• Do not use mobile devices when riding your bicycle, e.g.
smartphones or MP3 players.
• Do not ride your bicycle if you have consumed alcohol,
narcotics or medication which may impair your ability
to ride.
Note: Dirt roads and forest tracks are also part of the road traffic
network, as are private areas of land if these are accessible to the
public.
• Seek information regarding the relevant applicable road traffic
regulations for your respective country or the region, e.g. from
the Ministry of Transport.
• Ensure that you regularly obtain information regarding
changes to the content of the regulations currently in force.
• Ride in such a way that nobody suffers injury, is endangered,
incapacitated or disturbed.
• Use the cycle routes intended for bicycles according to
regulations.
3.3.1 Bicycle helmet
• For your safety: Wear a bicycle helmet even if you are not
required to do so by law.
• Laws and regulations may change at any time. Check regu-
larly for updates about regulations for your respective country
or region.
• Wear a suitable bicycle helmet which has been tested in
accordance with DIN EN 1078 standards and bears the CE
seal of conformity.
3.3.2 Handlebar extensions
WARNING
Extended braking distance due to greater distance to the
brake levers.
Risk of accident and injury!
• Familiarise yourself with the handlebar extensions and
how to reach over to the brake levers.
• Drive with extra foresight when using handlebar
extensions.

13
Safety
3.3.2.1 Bar ends
The use of bar ends in road traffic is fraught with risks. The path of
the hands to the brake levers is longer and can lead to accidents
in dangerous situations.
Bar ends are additional handles at the end of the standard handle-
bars, which can be used to adopt a better riding position, e.g. on
particularly steep ascents.
3.3.2.2 Triathlon handlebar attachment
Triathlon handlebar attachments are used in order to be able to
adopt an aerodynamic position in triathlons or time trials on a road
bike, for example.
Triathlon handlebar attachments may only be retrofitted to racing
bikes without motor assistance.
Triathlon gear levers are often located at the end of the handlebars.
The brake levers are at the end of the basic handlebar. When the
racing bike is ridden in an aerodynamic position, the brake levers
are out of the rider's direct gripping distance.
• Get familiar with the handling of a triathlon handlebar attach-
ment and how to reach over to the brake levers away from
traffic.
• Exclude other sources of danger, such as unpractised use
of clipless pedals, when practising handling the handlebars.
• Adapt the way you ride to suit the changed handling of the
bicycle.
Fig.: Triathlon handlebar attachment (exemplary)
1 Gear lever 2 Brake lever
1
2
3.3.3 Additional regulations
For use in road traffic, bicycles must be equipped with two brakes,
which operate independently of one another, and a bell.

14
Safety
3.4 Modifications
WARNING
Changes to the bicycle or incorrectly selected spare parts
can cause the bicycle to malfunction.
Risk of accident and injury!
• Only use original spare parts.
3.5 Residual risks
Despite the observance of all safety and warning notes, use of the
bicycle is still associated with several unforeseeable residual risks,
some examples are listed below:
– Misconduct of other road users
– Unforeseeable material defects or material fatigue can lead to
breakages or failure of components
• Try to anticipate the actions of others and ride defensively.
• Before each ride, you should check your bicycle for cracks,
changes in colour or other signs of damage.
• Before each ride, check that all safety-related components
work properly, e.g. the brakes.
• After a fall or accident, ask your specialist dealer to thoroughly
check your bicycle for damage.

15
Basic information
4 Basic information
4.1 Symbols and terms
4.1.1 Symbols
First Instructions for steps to be performed in a particular order
begin with a number.
• Steps to be performed in no particular order beginwith a
bullet point.
– Dashes are used to denote lists.
Note: Supplementary notes regarding steps to be performed or
use.
4.1.2 Terms
Dynamo: The term “dynamo” refers to a magnet-based generator
used to power bicycle lighting.
Threadless handlebar stem: The term “threadless handlebar
stem” is used to differentiate from quill stems.
Dropout: Connection between the rear frame seat stays and the
rear frame chain stays. The rear wheel’s axle is tightly screwed
into the dropout.
Brake arm: Contrary to the standard, the lever that is mounted
on the rear frame down tube as the counter bearing of the coaster
brake is referred to as the brake arm.
Brake lever: Contrary to the standard, the brake lever is the lever
that is attached to the handlebars to operate the rim or drum brake
and/or disc brake.
Pressure point (hydraulic brake): The position of the brake lever
at which the brake begins to have a braking effect.
Lock-out: Mechanism to lock the suspension fork in place.
Pedal drive: Assembly consisting of pedal, pedal crank, bottom
bracket and chain wheel.
Sag: The compression of the suspension system that takes place
simply as a result of the rider’s bodyweight.

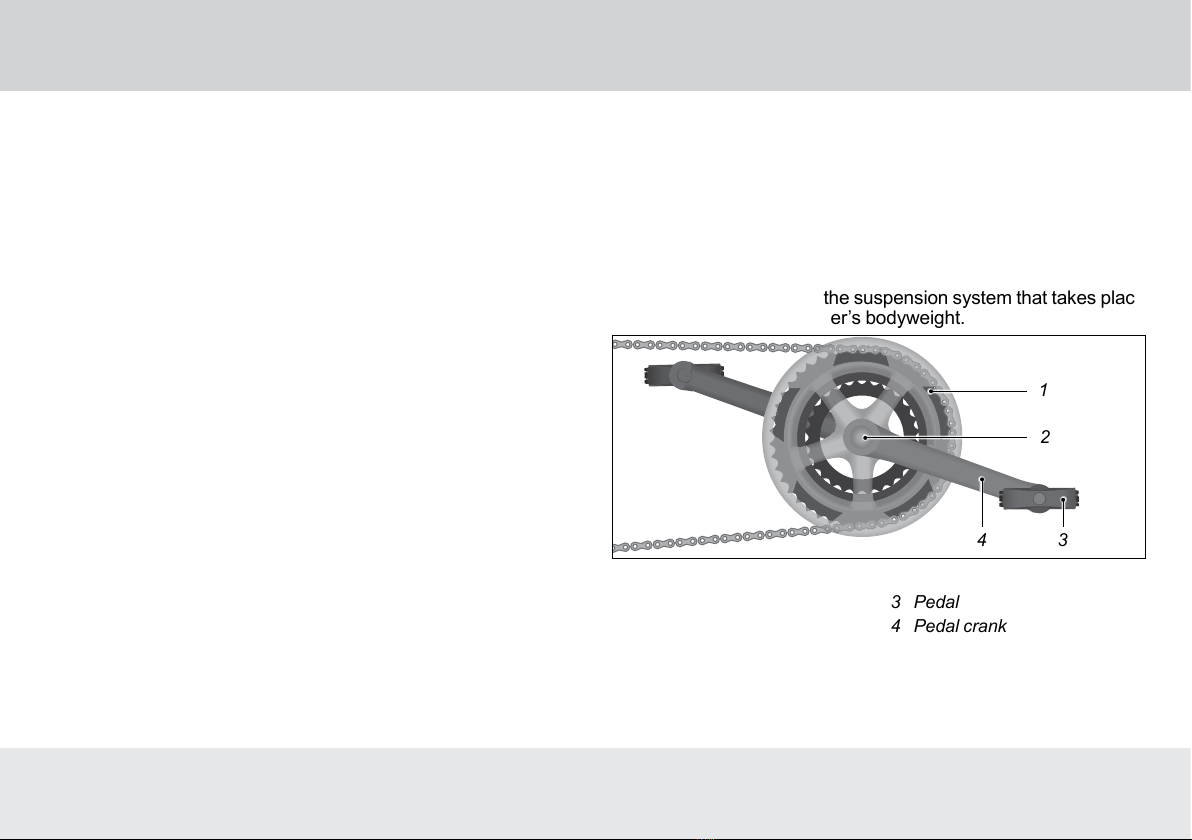

Fig.: Pedal drive
1 Chain wheel
2 Bottom bracket
3 Pedal
4 Pedal crank
3
2
1
4

16
Basic information
4.1.3 Written labels
The italic font is used for picture captions and references in the
text.
4.1.4 Units
Unit Meaning Unit for
1/min Per minute Revolutions per minute
Bar Bar Pressure (obsolete)
gGram Weight (= kg/1000)
kg Kilogram Weight (= gx1000)
kPa Kilopascal Pressure
Nm Newton meter Torque
psi pound per square inch Pressure (USA, obsolete)
"Inch Length (USA); 1 inch = 2.54 cm
4.2 Direction of rotation for screws
• Tighten screws, axles and nuts by turning them in a clockwise
direction.
Note: If there are any deviations to this rule, a note will be included
in the appropriate chapter, indicating the change in direction.
Please observe the respective notes.
4.3 Torques
WARNING
Material fatigue caused by incorrect tightening of screwed
connections.
Risk of accident and injury!
• Do not use the bicycle if you notice any loose screwed
connections.
• Screwed connections must be properly tightened with a
torque wrench and the correct torque level.
The correct torques must be observed in order to correctly tighten
screwed connections. This requires the use of a torque wrench
with a corresponding range of adjustment.
• If you do not have any experience with using torque wrenches,
you should ask your specialist dealer to check your screwed
connections.
• Individual bicycle components are labelled with information
about the appropriate torques or with markings showing inser-
tion depths. You must make sure to observe these specifica-
tions and markings.
This table does not list all components. Torque specifications are to
be used as basic values and do not apply to carbon components.

17
Basic information
• Please ask for more information about other components and
their corresponding torques or read the enclosed instruction
manual for these components.
Screw connection Torque in Nm
Pedal crank (steel/aluminium) 30 / 40
Pedal 30
Axle nut front / rear (15 mm) 25 / 35
Saddle (adjustment screw) M6 / M8 14 / 20
Seat post clamp M5 / M6 5 / 10
Clamping screw on dropout M6 6 / 8
Clamping screw on dropout and slider 7
Brake and gear lever on the handlebars 3
Quill handlebar stem
(expander bolt on the shaft stem) 8
Threadless handlebar stem
(shaft clamp / handlebar clamp) 4 / 5
4.4 Sitting position
CAUTION
Muscle tension and joint pain due to an incorrectly
adjusted sitting position.
Risk of injury!
• Ask your specialist dealer to adjust your sitting position
correctly.
CAUTION
Limited accessibility to operating controls on the handle-
bar due to an incorrect sitting position.
Risk of accident and injury!
• Ask your specialist dealer to adjust your sitting position
correctly.
The optimal sitting position depends on the frame size of the bicy-
cle, the physical size of the rider and the settings of the handlebars
and the seat. Specialist knowledge is required to adjust the bicycle
to an optimal sitting position.
The optimal sitting position can also depend on the use of the
bicycle, e.g. if it is predominantly used for sports.
The key features of an optimal sitting position are:
– If a pedal is at the top, the knee angle of the upper leg and the
arm angle is 90°. The lower leg is slightly bent (see Fig. “Key
features of an optimum sitting position”, left).
– If one pedal is in front, the knee should be located above the
axle of the front pedal (see Fig. “Key features of an optimum
sitting position”, right).
– The arms are relaxed and slightly bent outwards (not shown
in the picture below).
– The back is not perpendicular to the seat post.

18
Basic information
90°
90°
90°

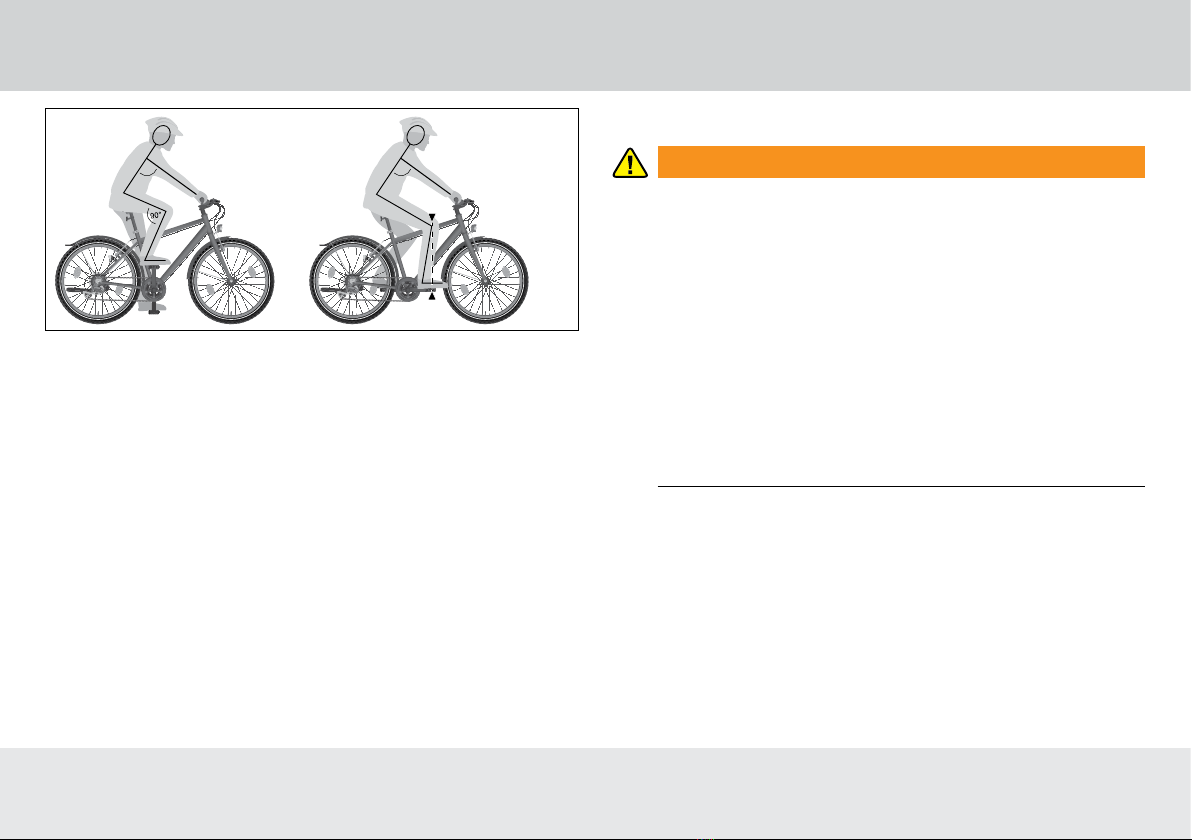

Fig.: Key features of an optimal sitting position
If the optimal sitting position cannot be achieved by adjusting the
seat and the handlebars, on many bicycle models it is possible to
replace the relevant components.
If selling or passing the bicycle on to another person, this can be
an option to enable continued use of the bicycle.
• If the sitting position cannot be optimally adjusted,
ask your specialist dealer to fit components with different
measurements.
4.5 Wear
WARNING
Malfunction caused by excessive wear and tear, material
fatigue or loose screwed connections.
Risk of accident and injury!
• Check the condition of your bicycle regularly.
• Do not use the bicycle if you notice excessive wear or
loose screwed connections.
• Do not use the bicycle if you notice any cracks,
distortions or changes in colour.
• If you notice any signs of excessive wear and tear,
loose screwed connections, distortion, cracks or col-
our changes, you should get your specialist dealer to
inspect your bicycle immediately.
As with all mechanical components, bicycle components are sub-
ject to wear. High levels of strain and improper use exacerbate
wear. Different materials wear out at different rates.
Only a specialist dealer is able to assess wear on components
made of aluminium, carbon or composite materials.

19
Basic information
Heavy blows, shocks and excessive tension can cause damage
to frames, forks and wheels made of carbon and composite mate-
rials. The inner structure of the materials undergoes detrimental
changes without showing any visible signs.
• Consult your specialist dealer about the wearing parts of your
bicycle.
• Regularly check the condition of all wearing parts.
• Maintain the wearing parts on a regular basis.
4.6 Carbon components
WARNING
Invisible cracks and distortion of carbon components.
Risk of accident and injury!
• Always get carbon components checked over by a spe-
cialist dealer after falls, overloading and heavy impacts.
NOTICE
Increased wear and tear caused by incorrect care and
maintenance of carbon components.
Risk of damage!
• Do not allow carbon components to come into contact
with grease and oil.
4.7 Protection against theft
• Protect your bicycle against theft.
• For models with a frame lock: If you are not able to keep watch
over your bicycle, lock it up using the frame lock.
Note: For effective protection against theft, use a chain lock or
steel cable lock and attach the bicycle to a fixed object, e.g. to a
bicycle stand.
The frame lock does not provide sufficient protection against theft.
4.8 Permissible total weight
Permissible total weight:
– Rim size, children's bike, 20 inches: 45 kg
– Rim size, children's bike, 24 inches: 60 kg
– Rim size, children's bike, 26 inches: 80 kg
– Rim size 26 inches: 130 kg
– Rim size 27.5 inches: 130 kg
– Rim size 28 inches: 130 kg
– Rim size 29 inches: 130 kg
Possible deviations from the permissible gross weights (see Chap-
ter “Bicycle passport” on page 94).
• If you own an e-bike, read the separate user manual on its
drive system to learn the permissible total weight.

20
Basic information
4.8.1 Determining unladen weight
• Determine the unladen weight of your bicycle by weighing it,
with all optional extra equipment attached as appropriate.
Note: For the best results, the weight should be determined using
a hanging scale. If necessary, ask your specialist dealer to deter-
mine the unladen weight of your bicycle.
4.8.2 Calculating the total weight
The actual total weight is calculated as follows:
Bicycle + rider (incl. rucksack) + baggage = total weight
Luggage includes saddle bags and baskets.
4.9 Transport
NOTICE
Incorrect use of bike racks.
Risk of damage!
• Only use approved bicycle racks with which the bicycle
can be transported in an upright position.
• Find out how to use a bicycle rack, e.g. by consulting
your specialist dealer.
• Secure the bicycle properly to prevent it from slipping
and falling off.
Depending on the bicycle model, a transport restraint for the disc
brakes is included in the bicycle’s packaging.
• Ask your specialist dealer to explain how to use the transport
restraint.
• Use the transport restraint when transporting the bicycle.
• Transport the bicycle in an upright position.
