ConXeasy S603 User manual

S603 Wall Mount
Powered Loudspeakers
Exclusive provider of
ConXeasy™ Audio Products

2Steljes Audio . ConXeasy S603 User Guide
CONTENTS
Important Safety Instructions......................... 3
Control Panel ............................................... 4
Rear Panel .................................................... 5
Remote Control............................................. 6
Connecting Your Speakers............................. 7
Bluetooth Function........................................ 8
Use with iPod/MP3 Player.............................. 9
Connect TV, DVD, Console, PC...................... 10
Use With Docking Station .............................. 11
Remote Learning Function........................ 12-13
Instructions of Mounting Bracket................... 14
Limited Warranty ......................................... 15
Specifications............................................... 16
S603
Wall Mount Powered Loudspeakers

Steljes Audio . ConXeasy S603 User Guide 3
SafETy INSTruCTIONS
CauTION
rISk Of ElECTrIC ShOCk dO NOT OpEN!
SAFETY INSTRUCTIONS
• Do not use this product near water or
moisture
• Do not place the unit on sloped or unstable
surfaces as the unit may fall off or tip over.
• Clean only with a dry cloth. Unplug this
product from the wall outlet
• Do not attempt to service this product
yourself.
• Opening or removing covers may expose
you to dangerous voltages or other
hazards.
• Please contact the manufacturer to be
referred to an authorized service center
near you.
• Place the unit on a solid surface.
• Do not block any ventilation openings.
• To prevent risk of fire or electric shock,
avoid over loading wall outlets,
• Do not put it in a closed bookcase or
cabinet that may keep air from flowing
through its ventilation openings.
• Do not let objects or liquids enter the
product.
• Protect the power cord from being walked
on or pinched, particularly at plugs and the
point where they exit from the product.
READ BEFORE OPERATING EQUIPMENT
Read all the instructions carefully before
using the unit and keep them for future
reference. Check that the voltage selector
is switched to the correct position for your
country.

4Steljes Audio . ConXeasy S603 User Guide
1. Red LED indicator light (Standby)
2. Green LED indicator light (Normal)
3. Blue LED indicator light (Bluetooth mode)
4. Input source selector

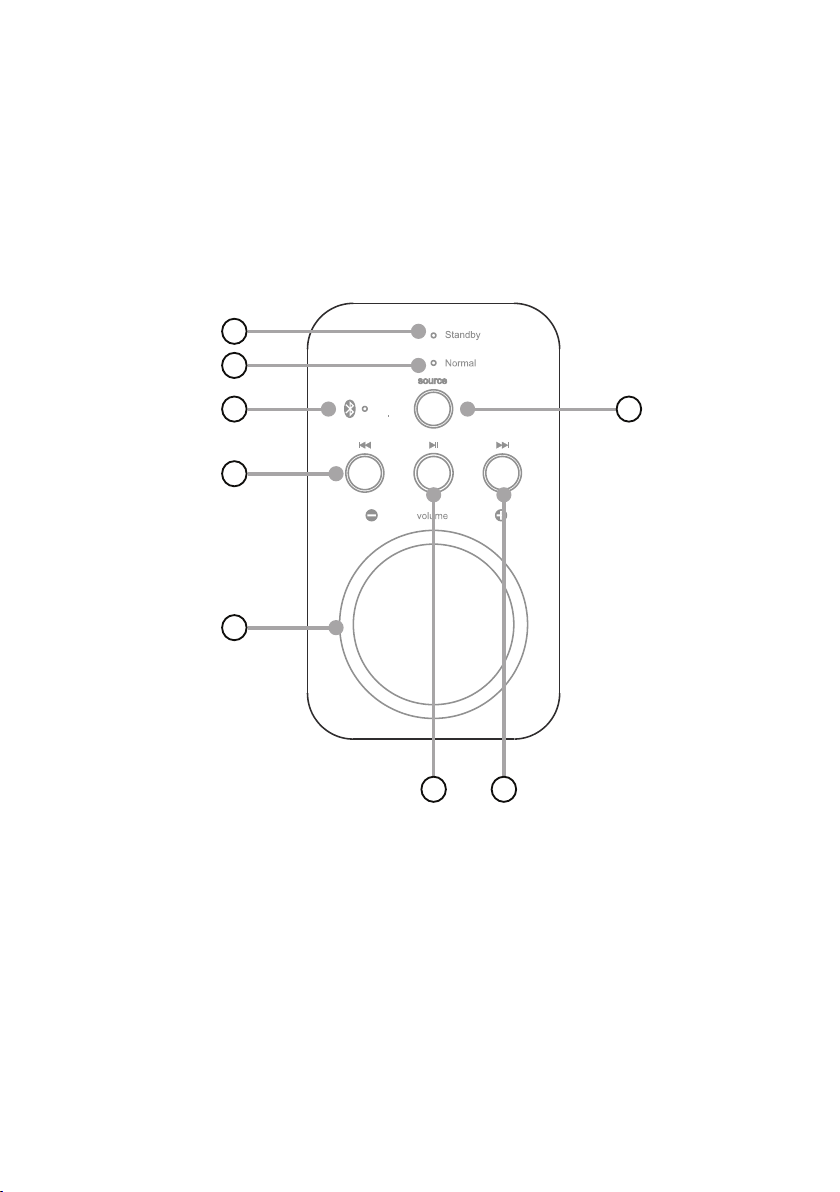

CONTrOl paNEl
DC 16V IN
Power consumption 60W
OUTPUT TO
SPEAKER
(RIGHT)
SUB OUT
Serial Number:
S603
3.5IN
RCA IN
1
2
3 4
5
6
7 8
5. PREV
6. Volume adjust
7. Play/pause
8. NEXT

Steljes Audio . ConXeasy S603 User Guide 5
9. Power ON/OFF
10. Power supply input
11. Aux in (For right/left RCA stereo plugs,
from CD/DVD player, TV etc.)

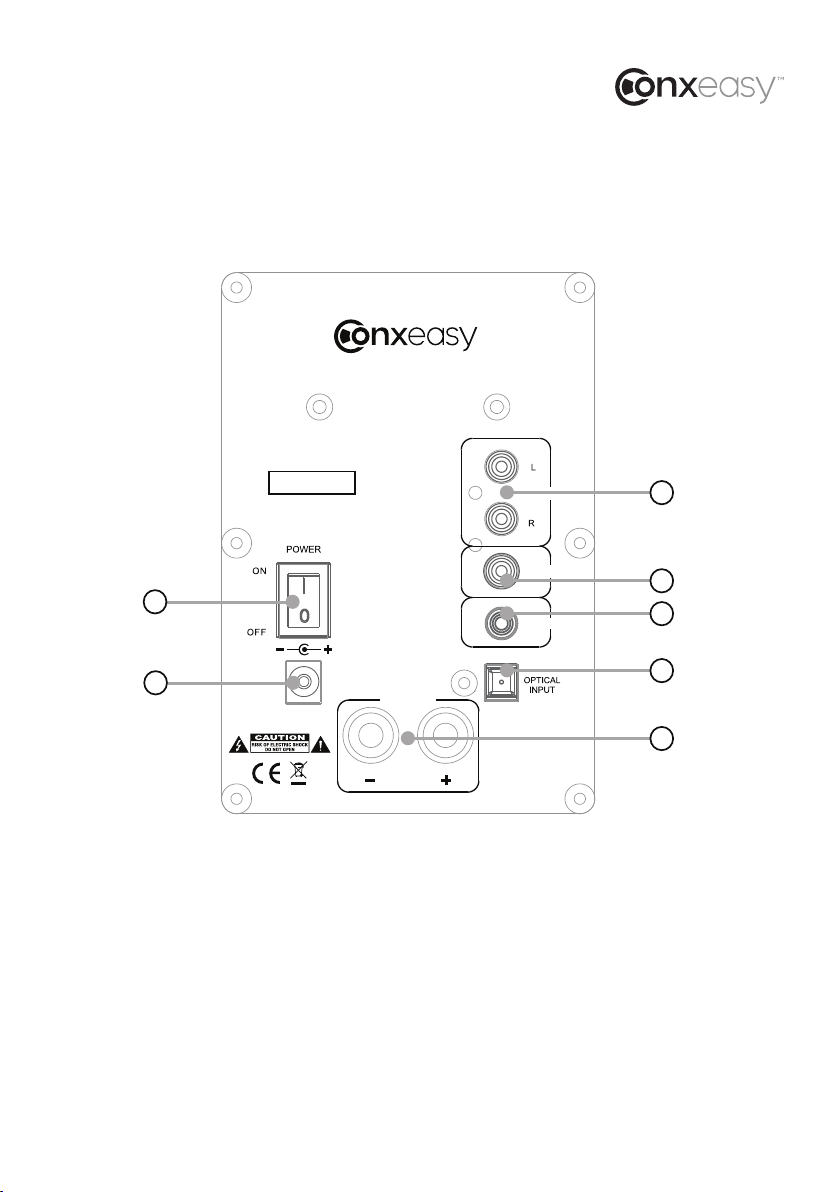

rEar paNEl
DC 16V IN
Power consumption 60W
OUTPUT TO
SPEAKER
(RIGHT)
SUB OUT
Serial Number:
S603
3.5IN
RCA IN
9
10
11
15
12
13
14
12. 3.5 mm audio in
13. Optical audio in
14. Speaker output
15. Sub out

6Steljes Audio . ConXeasy S603 User Guide
rEmOTE CONTrOl
1. Standby ON/OFF mode
2. Previous
3. Bluetooth input mode
4. RCA input mode
5. Volume
Volume decrease (-)
Volume increase (+)
6. Mute ON/OFF mode
7. Play/pause
8. Optical input mode
9. 3.5mm input node
10. Next
1
2
3
4
5
9
10
8
7
6

Steljes Audio . ConXeasy S603 User Guide 7

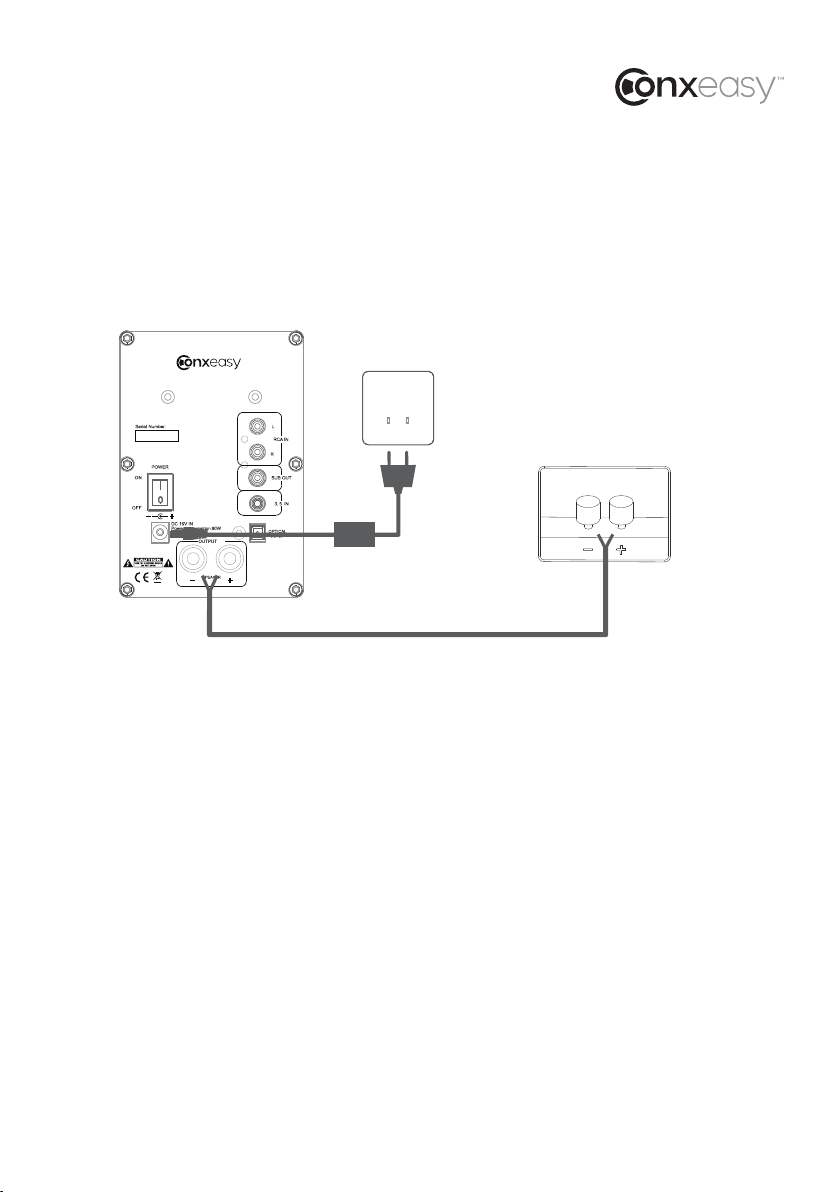

CONNECTINg yOur SpEakErS
STEP 1
Connect the RED(+) and BLACK(-) terminals from the left speaker to the corresponding terminals
on the right speaker using the included speaker cable. Insulation on cable must be stripped on all
ends.
Note: Because this system is self-powered, do not connect the speaker terminals to the speaker
outputs of a stereo receiver.
STEP 2
Connect the power cord into the left speaker and the other end into the wall outlet.
TO
(RIGHT)
S603
Back of active speaker
Back of passive speaker

8Steljes Audio . ConXeasy S603 User Guide
BluETOOTh fuNCTION
Paring bluetooth devices with ConXeasy S603 Active speakers.
If you have a Bluetooth audio device and wish to connect it with ConXeasy S603 Active speakers,
you should follow the procedure below:
1. Power on ConXeasy S603 Active speakers and select Bluetooth settings/function on the audio
device, Wait a few seconds, to let devices go into Bluetooth mode.
2. Select Bluetooth input option by remote control, indicator light will turn blue and flash. If
there is any problem, please turn off other Bluetooth devices.
3. Please use your Bluetooth device to search the Bluetooth device named “ConXeasy S603”, If a
pairing code is needed, enter“0000”or“1234”.
4. If pairing is successful, indicator will turn blue, pairing is now finished.
5. Once paired, the same Bluetooth device will work again with no need to pair again.
OPERATION BLUETOOTH FUNCTION
1. Connect your Bluetooth device as above.
2. Select Bluetooth input mode by remote control, or select Bluetooth input mode using “Source”
on control panel. When in Bluetooth input mode, blue light will be on.
3. If your bluetooth device supports the AVRCP agreement, you can use your remote control to
select “ PLAY/PAUSE / PREV / NEXT ”

Steljes Audio . ConXeasy S603 User Guide 9

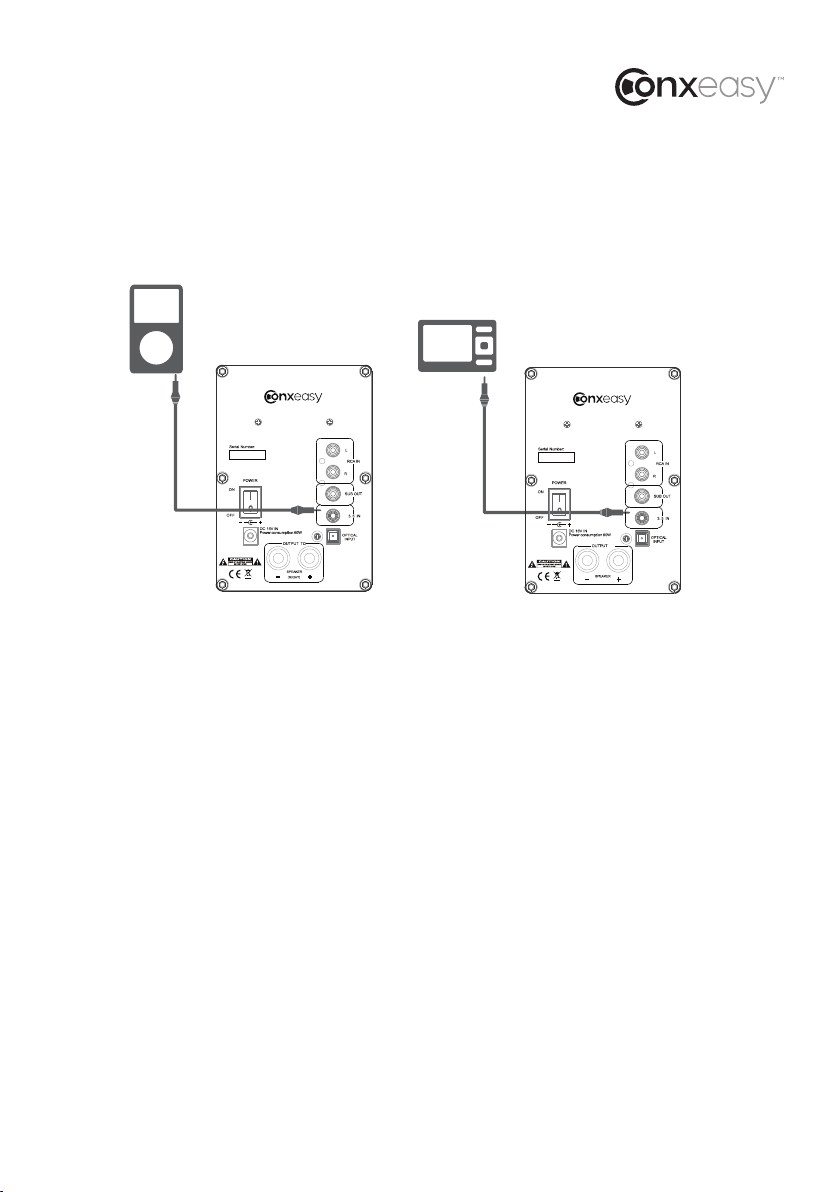

uSE wITh IpOd / mp3 playEr
CONFIGURATION A (for use with iPod):
Connect the 3.5mm mini jack audio cable from iPod headphone jack to the AUDIO IN jack on the
rear panel of ConXeasy S603.
CONFIGURATION B (all products with 3.5mm mini jack outputs):
Connect the STEREO INPUT L/R from any audio source with RCA L/R audio outputs.
Connect the 3.5mm mini jack audio cable from 3.5mini jack output to the AUDIO IN jack on the
rear panel.
ATTENTION: When connecting audio cables the power switch be turned OFF.
After connecting all cables the power can be turned ON and the system is now ready to use.
S603
TO
(RIGHT)
S603
AB

10 Steljes Audio . ConXeasy S603 User Guide
CONNECT TV, dVd, CONSOlE, pC
TO
(RIGHT)
S603
S603
CONFIGURATION A (TV,DVD,CD-RCA stereo plugs):
Connect the RCA L/R to your TV,DVD etc. and the RCA L/R to the Stereo Input on rear panel of
the ConXeasy S603.
Note that most newer TV remotes can control the ConXeasy S603 active speaker volume if
connected to variable TV audio out.
CONFIGURATION B (PC):
Connect the mini jack to your PC and the RCA L/R to the Stereo Input on rear panel of the
ConXeasy S603.
AB

Steljes Audio . ConXeasy S603 User Guide 11
rEmOTE lEarNINg fuNCTION
SETUP LEARNING FUNCTION
1. Choose a secondary remote control you
want to control the ConXeasy S603 active
speaker.
2. Turn on the S603 active speaker.(Green
LED turns ON after flashing)
3. Learn Source input:
a) Press Source input, until Standby LED
turn on.(ConXeasy S603 active speaker is
now in learning mode)
b) Press Source input, Standby red LED
turns off
c) On the secondary remote control, press
any button you want to control Source
input. Normal green LED flashes twice and
turns on.
d) Learning function for Source input
completed.
4. Learn Volume up:
a) Press Source input, until Standby red
LED turn on.( ConXeasy S603 active
speaker is now in learning mode)
b) Turn on volume knob clockwise, Standby
red LED turns off.
c) On the secondary remote control, press
any button you want to control Volume up.
Normal green LED flashes twice and turns
on.
d) Learning function for Volume up
completed.
Introduction: Use a remote control, which is compliant with RC5,NEC and coded format, to learn
from the speaker. It can learn on the 3 functions: Vol+, Vol-, Source input select.
Note: Use the buttons on the control panel and not on the remote control, when setting up the
learning functions.
continued...

12 Steljes Audio . ConXeasy S603 User Guide
5. Learn Volume down:
a) Press Source input, until Standby red
LED turn on.( ConXeasy S603 active
speaker is now in learning mode)
b) Turn on volume knob counter-clockwise,
Standby red LED turns off.
c) On the secondary remote control, press
any button you want to control Volume
down. Normal green LED flashes twice and
turns on.
d) Learning function for Volume down
completed.
Note: When the product is in standby mode,
simply press the Vol +/- or the Source buttons
and the unit will switch on.
6. The secondary remote control can now be
used to control the ConXeasy S603
active speaker.
Standby Red LED
Normal Green LED
Source Input
Volume Control
rEmOTE lEarNINg fuNCTION

Steljes Audio . ConXeasy S603 User Guide 13
INSTruCTIONS fOr mOuNTINg BraCkET
Ax 2
Dx 2
Cx 4
Bx 2
Ax 6 C x 10 D x 6
* Instructions are aguide only and
prior to install an quali ed installer
should be consulted
*Instructions are a guide only and prior to
installation, a qualified installer should be
consulted.

14 Steljes Audio . ConXeasy S603 User Guide
LIMITED WARRANTY
This product had been designed and
manufactured to the highest quality
standards; however, should you encounter
any problems with this product please
contact your local dealer or your country
distributor.
This limited warranty is valid for the original
owner for a period of one year from the date
of purchase, it is not transferable.
What is covered by the limited warranty:
The limited warranty covers all production
and material defects of the product, except
for the specifics stated below.
What is not covered by the limited
warranty:
Damage caused by packing and transport.
Defects caused by accidents, misuse, normal
wear and tear, mis-maintenance, voltage
variation and overloading.
Damage caused by incorrect installation or
operation. Damage caused by modification
or repair by a non-authorized service centre
and use of non-original spare parts.
Other damage due to conditions beyond the
supplier’s control such as fire, rain, war and
other force majeure events.
How to claim parts or repair under warranty:
To have your product serviced under
warranty, you must contact the dealer from
whom the product was purchased.
You will need to produce this warranty
booklet completed and stamped by your
dealer on the date of purchase.
Alternatively, you will need the original sales
invoice or other proof of ownership and date
of purchase.
The supplier is liable only to repair or replace
defective parts of products and the supplier
is not responsible for indirect losses or
damage arising from the use of the product.
Transportation costs for servicing are not
covered by the warranty.
A service repair or replacement cannot
exceed the value of the product under
warranty; in no event shall the supplier be
responsible or liable for special, incidential,
consequential or indirect damage.
lImITEd warraNTy

Steljes Audio . ConXeasy S603 User Guide 15
NOTES

S603 SpECIfICaTIONS
INpuTS
Bluetooth : A2DP audio
3.5mm stereo mini-jack : 500 mV RMS full scale input
Aux : RCA input : 500 mV or 2V RMS full scale input TBD
Optical : SPDIF format, Toslink compatible, Stereo only,
Up to 96 KHz sample rate at up to 24 bit PCM data
SpEakErS
1 x 1-inch Tweeter
1 x 3-inch Woofer
amplIfIErS
Class-D power-stages
60W capability@<10% THD+N
Nominal Imp / Sensitivity: 4ohm / 83±2dB
Nominal /Max Power: 2x30W / 2x 50W
Frequency Response: 70-20KHz
SIgNal prOCESSINg
NCPA 110P AE Engine DSP
aC pOwEr
External 16V 3.7A (60W) 220/11/ AC input
kEyS
Power
Source
Volume Dial
Play/Pause, Skip back, Skip forward
INdICaTOrS
Red/Green/Blue LED for channel indicator
gENEral
Operating Temperature: 5 oC - 40 oC (32 oF - 104 oF)
Power Requirements: AC 230 - 240V - 50Hz
Steljes Audio reserves the right to change specifications without notice. Images and
photos are for illustration only and actual product may vary. E&OE.
Exclusive provider of
ConXeasy™ Audio Products
