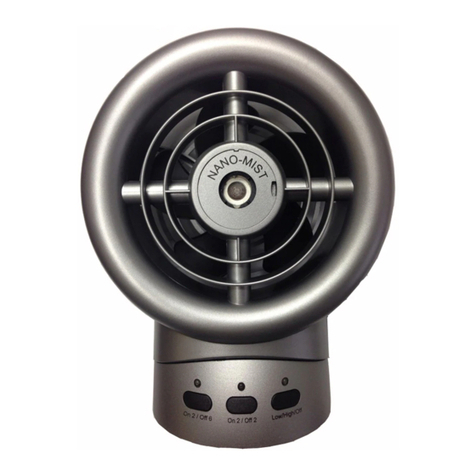

Cool mate 2-in-1 User manual

7
For long-lasting enjoyment
of this product, please read the
following and become familiar
with your CoolMate fan.
Congratulations on the purchase
of your new CoolMate Fan!
Dripless Indoor Misting Fans
1. CoolMate Fan 2. Pole top clip mount 3. Adjustable Pole
4. Floor Stand base 5. Base Screw 6. A/C cord 7. Funnel-Filter
8. Aromatherapy Attachment (note: clip styles may vary from model to model)
Included In the Box
Place fan on table top, level surface or stand
1. Using funnel-filter, fill the fan’s internal water tank with tap water
(Do NOT overfill) 2. Plug AC cord into fan and wall 3. Select mist
setting HI or LOW 4. Select fan speed setting HI or LOW
2-In-1 versatility! CoolMate’s unique design allows you to place it on a
table top or other flat surface, or on its adjustable stand!
Dripless operation! CoolMate’s mist is virtually “dry” and never leaves
a puddle . The world’s ONLY misting fans suitable for indoor use!
Fan oscillates – wider coverage. CoolMate’s 2-in-1 fan oscillates
90° making it an effective spot cooling solution for 1 or more people.
Aromatherapy attachment - A unique feature! For a refreshing,
cool breeze with a pleasant aroma such as Lavender, try adding drops of
Essential Oils to the fan’s aromatherapy attachment.
Save electricity! Use your fan to “spot cool,” or as a supplement to your
existing A/C system and save on your next electricity bill.
No hose-hookup necessary. CoolMate fan’s have an internal water
tank. Fill it and enjoy up to 8 hours of refreshing mist (on LOW MIST setting).
Reusable Funnel-Filter included. Refill the fan with tap water using
ONLY the reusable funnel-filter (included). The filter reduces the mineral
content of tap water to ensure long lasting, maintenance free operation.
CoolMate 2-in-1 Features
Place the fan ON
or OFF the stand!
3
1
2
2-in-1
Unit #18, 170 Wilkinson Road, Brampton, Ontario CA, L6T 4Z5
Need Assistance? Call Us First!
Toll Free: U.S. and Canada 1-866-793-7874
Email: [email protected]
1
2
4
5
6
4
3
8
Quick Start Guide

What Makes CoolMate Great?
It creates a microscopic mist so ultra-fine it evaporates almost immediately
once in contact with the breeze of the fan. CoolMate misting heads are
dripless making the fans suitable for indoor use.
Do not tamper with or remove mist head.
Doing so may cause permanent damage. If mist head becomes damaged
beyond repair, DO NOT return product to store. Please call Toll Free: U.S.
and Canada 1-866-793-7874.
Is your fan NOT creating mist?
It may be for one of the following reasons:
1. Water level too low SOLUTION: When water level reaches approx.
5%, the misting function will stop automatically to protect the mist head. Please
refill fan’s internal water tank and re-push HI or LOW mist setting.
2. Air lock SOLUTION: If fan previously ran out of water before the
misting function was turned OFF, an air lock may have formed in the system. To
remedy, gently but firmly shake the fan to unblock the water passages.
3. Water tank is empty SOLUTION: Refill tank using funnel-fliter
supplied with your fan. DO NOT over fill.
4. Mineral deposit on Nano-Mist Generator misting head
SOLUTION: Gently swab misting head with ONLY cotton tip swab dipped in
commercial solutions noted for removing mineral deposits (e.g. CLR) or plain
white vinegar. Repeat gentle swabbing several times for thorough cleaning.
Basic Trouble Shooting
Unit #18, 170 Wilkinson Road, Brampton, Ontario CA, L6T 4Z5
2-In-1 Ocsillating Fan Basic Parts/Operation Basic Parts/Operation
1. OSCILLATION Setting: Press for ON, press again for OFF
2. LOW MIST setting: 6-second mist control (mist on for 2
seconds, off for 6 seconds)
3. HI MIST setting: 2-second mist control (mist on for 2 seconds,
off for 2 seconds)
4. SPEED setting: Press once for LOW, press twice for HIGH, press
3 times for OFF
5. Refilling Cap (Add water until full directly through the (supplied)
funnel-filter into the fan’s internal water tank. DO NOT spill water on the
fan motor. DO NOT submerge fan to refill. UNPLUG fan when refilling
6. Misting Head ( the Nano-Mist Generator misting head is
computer controlled, DO NOT TOUCH and please handle with care )
7. AC Power cord direct connection 110V, 6 ft. (1.8 m) length
8. Pole Top “Clip-mount” Slide and lock fan to stand
9. Up/Down Twist-control for adjusting stand height
10. Floor stand base unit secures with single screw (supplied)
8
9
10
7
DO NOT ADD OILS TO INTERNAL
WATER TANK – APPLY ONLY TO
AROMATHERAPY ATTACHMENT
UNIQUE!
Aromatherapy
Create a scented and relaxing
cool and refreshing breeze
Add drops of your favorite
Essential Oils (e.g. Lavender) to
create a cool and scented
theraputic breeze.
Here’s how to do it ...
6
1. Turn fan OFF
2. Remove Attachment from
back of fan and add several
drops of your favourite
Essential Oil to the fabric
3. Return Attachment to
back of fan and turn fan ON
Important!
3
4
5
IMPORTANT
Note: attach
pole to base
with screw (supplied)
Add water until full directly through the (supplied)
funnel-filter into the fan’s internal water tank. DO
NOT spill water on the fan motor. DO NOT sub-
merge fan to refill. UNPLUG fan when refilling
1
2
11
11. Funnel-Filter filters tap water for refilling fan’s internal water tank
Toll Free: U.S. and Canada 1-866-793-7874
Email: [email protected]
CoolMate’s secret is its patented
“Nano-Mist Generator” misting
head with hundreds of tiny holes
controlled by a micro-chip.
Need Assistance or Replacement Parts?
Call Us First!
