CoolAutomation CoolMasterNet User manual

Universal HVAC Bridge
CoolMasterNet
Quick Installation Guide

Read these Safety Precautions carefully to ensure correct installation.
This manual classifies precautions into WARNING and CAUTION.
WARNING
Only qualified personnel must carry out the installation work.
Ask your dealer or technical representative to install the unit.
Any deficiency caused by your own installation may result in an electric shock or fire.
All electrical work must be performed by a licensed technician, according to local regulations and in
accordance with the instructions in the installation manual.
Any lack of electric circuit or any deficiency caused by installation may result in an electric shock or fire.
Do not relocate or reinstall the CoolMasterNet by yourself.
Any deficiency caused by your own re-installation may result in an electric shock or fire.
Make sure that all wiring is secured, that specified wires are used and that no external forces act on
terminal connections or wires. Improper wiring connections or installation may produce heat and
result in fire.
Before touching electrical parts, turn off the unit.
To dispose of this product, consult your dealer.
Failure to follow WARNING is very likely to result in such grave consequences
as death or serious injury
Warning

CAUTION
Do not allow children to play with the CoolMasterNet and supervise them not to get access to the
appliance.
CoolMasterNet is not to be used by persons with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge.
Do not disassemble, modify or repair the CoolMasterNet.
Any deficiency caused by your modification or repair may result in an electric shock or fire.
Never let the CoolMasterNet to get wet.
Water can cause damage to the CoolMasterNet, and may cause an electric shock or fire.
Do not use flammable materials (e.g. hairspray or insecticide) near the
CoolMasterNet.
Do not clean the CoolMasterNet with organic solvents such as paint thinner. The use of organic
solvents may cause cracking, damaging the CoolMasterNet, causing electrical shock or fire.
Do not apply AC110V or AC220V to the CoolMasterNet. The maximum voltage that can be applied to
the unit directly is 24V DC.
If damaged CoolMasterNet can generate heat and cause a fire.
Failure to follow CAUTION may result in serious injury or property damage,
and in certain circumstances, may result in a grave consequence.
Caution

DO NOT INSTALL THE COOLMASTERNET IN THE FOLLOWING LOCATIONS:
a) Where a mineral oil mist or oil spray or vapor is produced, for example, in a kitchen.
Plastic parts may deteriorate and fall off or result in water leakage.
b) Where corrosive gas, such as sulfurous acid gas, is produced.
Corroding copper pipes or soldered parts may result in refrigerant leakage.
c) Near machinery emitting electromagnetic waves.
Electromagnetic waves may disturb the operation of the CoolMasterNet and cause the unit to
malfunction.
d) Where flammable gas may leak, where there is carbon fiber or ignitable dust suspensions in the
air, or where volatile flammable such as thinner or gasoline are handled.
Operating the CoolMasterNet in such conditions can cause a fire.
e) High temperature area or directly flamed point.
Heating and/or fire can occur.
f) Moist area, where there is exposure to water.
If water enters the inside of the CoolMasterNet, it may cause electric shock and electrical components
may fail.
Failure to follow CAUTION may result in serious injury or property damage,
and in certain circumstances, may result in a grave consequence.
Caution

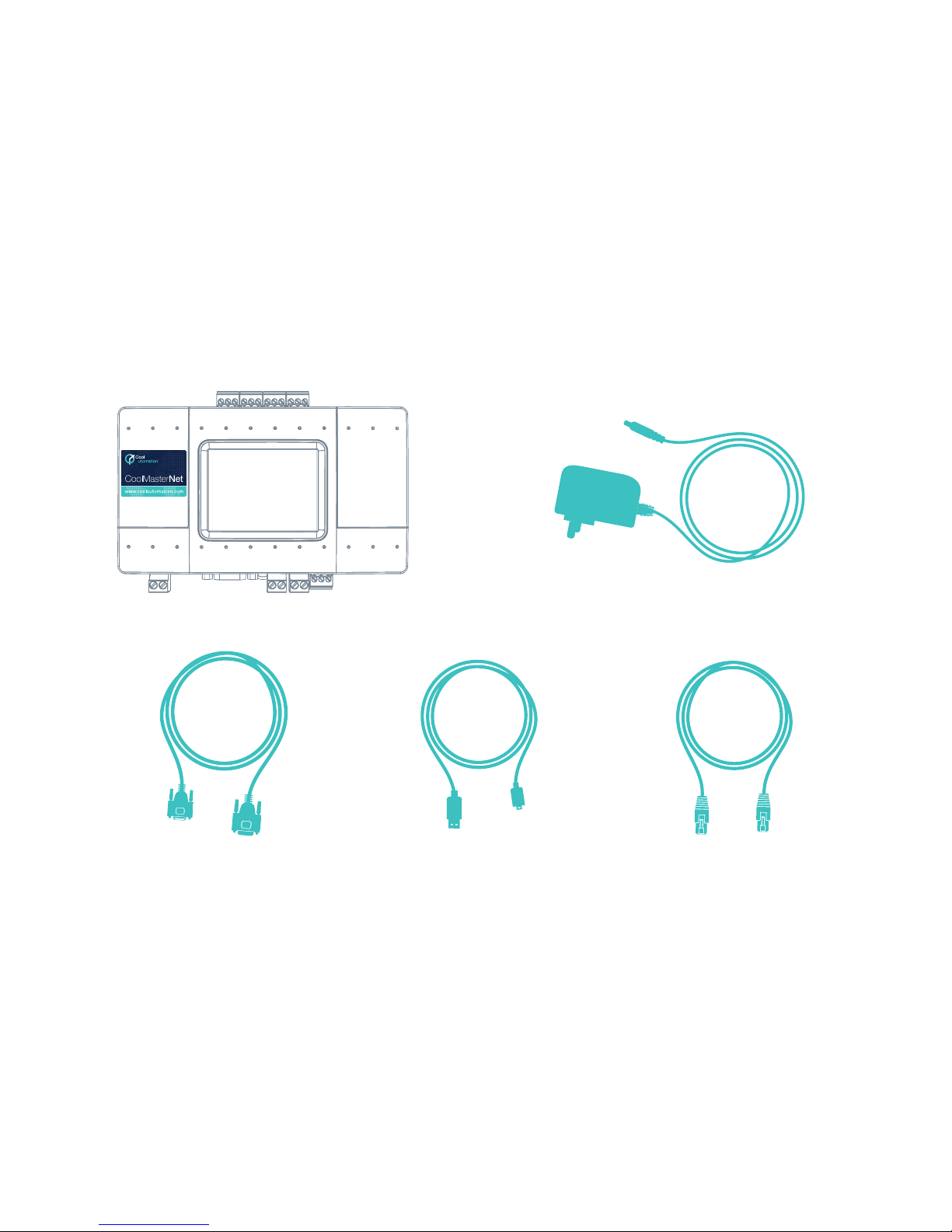

What’s in the box
CoolMasterNet AC Power supply adapter
100V-240V 50/60hz to 12V
1 USB-Mini USB
cable
1 Ethernet
cable
1 RS232 DB9
Male to Female
cable
Optional

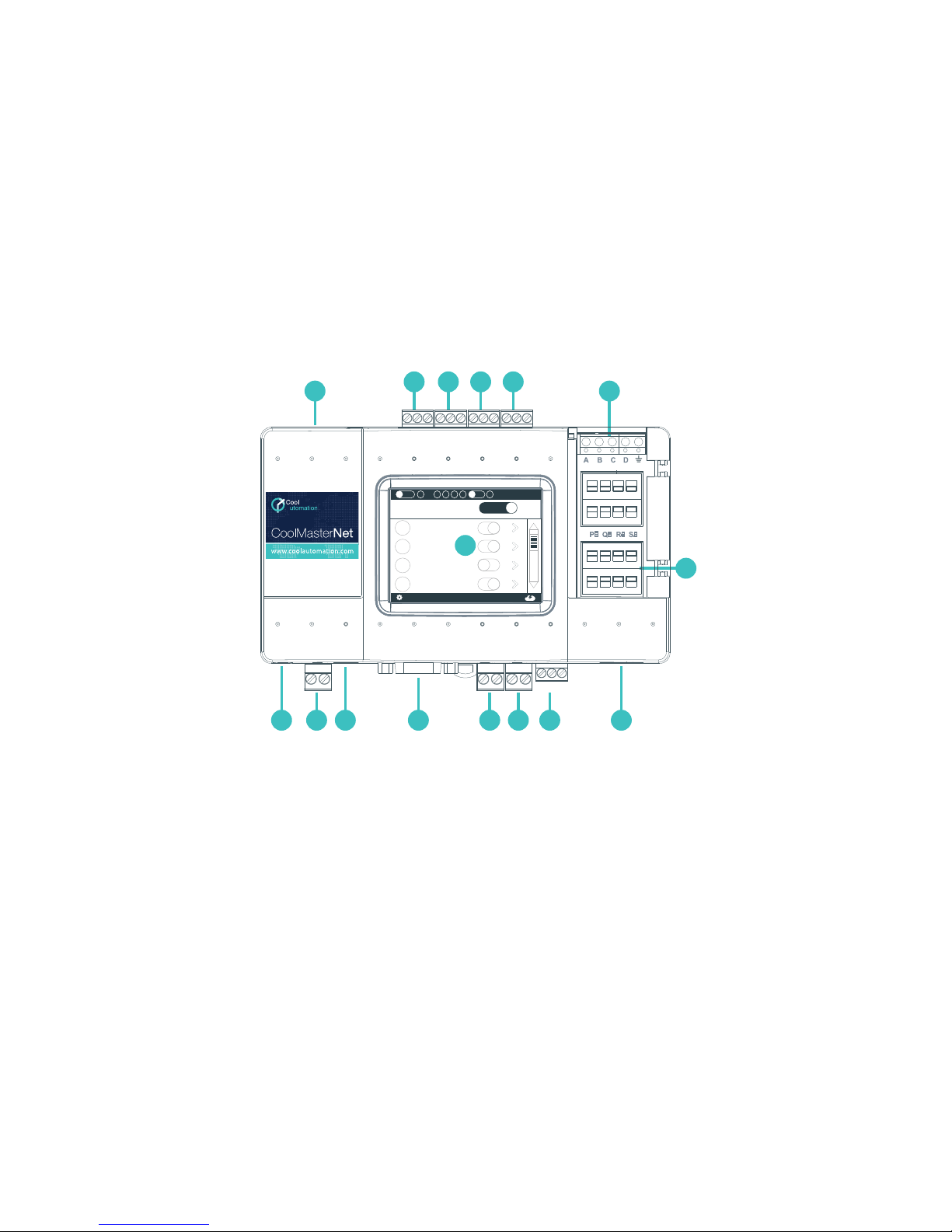

L8 — HVAC Line 8 (USB Host)
 Power
 Power Plug
RS232 Port
L1 — HVAC Line 1
L2 — HVAC Line 2
 RS485
Ethernet Port
GPIOs
L7 — HVAC Line 7
L6 — HVAC Line 6
L5 — HVAC Line 5
L4 — HVAC Line 4
 USB Device Port
 DIP Switches P, Q, R, S
LCD Touch Screen
1 2 3 4 5 6 7 8
15
13 12 11 10
14 9
16
All Units
21 L1.101
23 L1.102
25 L1.103
25 L7.101
MACADDR00001
L6 L8L5L4L3L2
192.168.0.1
DK 9/10 LG 128
All Off
CoolMasterNet
Universal HVAC bridge for the integration of Home Automation / BMS and HVAC.

2015
Universal HVAC Bridge
CoolMasterNet
L5L4L8 L6 L7
L1 L2
PRO
®
INPUT: 9-24v DC, 350 mA
OUTPUT: 100 mA
PIN
S/N
MAC
CoolRemote
000000000001
AABBCCDDEE
2015
Universal HVAC Bridge
CoolMasterNet
L5L4L8 L6 L7
L1 L2
PRO
®
INPUT: 9-24v DC, 350mA
OUTPUT: 100mA
PIN
S/N
MAC
CoolRemote
000000000001
AABBCCDDEE
2015
Universal HVAC Bridge
CoolMasterNet
L5L4L8 L6 L7
L1 L2
PRO
®
INPUT: 9-24v DC, 350mA
OUTPUT: 100mA
PIN
S/N
MAC
CoolRemote
000000000001
AABBCCDDEE
LG
Type label with Configuration sticker
A preconfigured label example:
configured for LG on L7
2015
Universal HVAC Bridge
CoolMasterNet
L5L4L8 L6 L7
L1 L2
PRO
®
INPUT: 9-24v DC, 350 mA
OUTPUT: 100 mA
PIN
S/N
MAC
CoolRemote
000000000001
AABBCCDDEE
Preconfigured CoolMasterNet
GR
LG
SM
MD
TR
KT
MH
LG
Mitsubishi Heavy
Gree
Samsung
Midea
Trane
Kentatsu
Type label
Configuration stickers for HVAC line L7
This label uniquely identifies the manufacturer’s
configuration of CoolMasterNet.
Located on the back of the enclosure.
FJ
Fujitsu
Configuration stickers for HVAC line L8
ME
HT
TO
PN
DK
PRO
PRO
PRO
Daikin
Mitsubishi Electric
Panasonic (Sanyo)
Toshiba
Hitachi
Configuration stickers for HVAC line L1
Optional Support for service and diagnostics functions.
LG
PRO

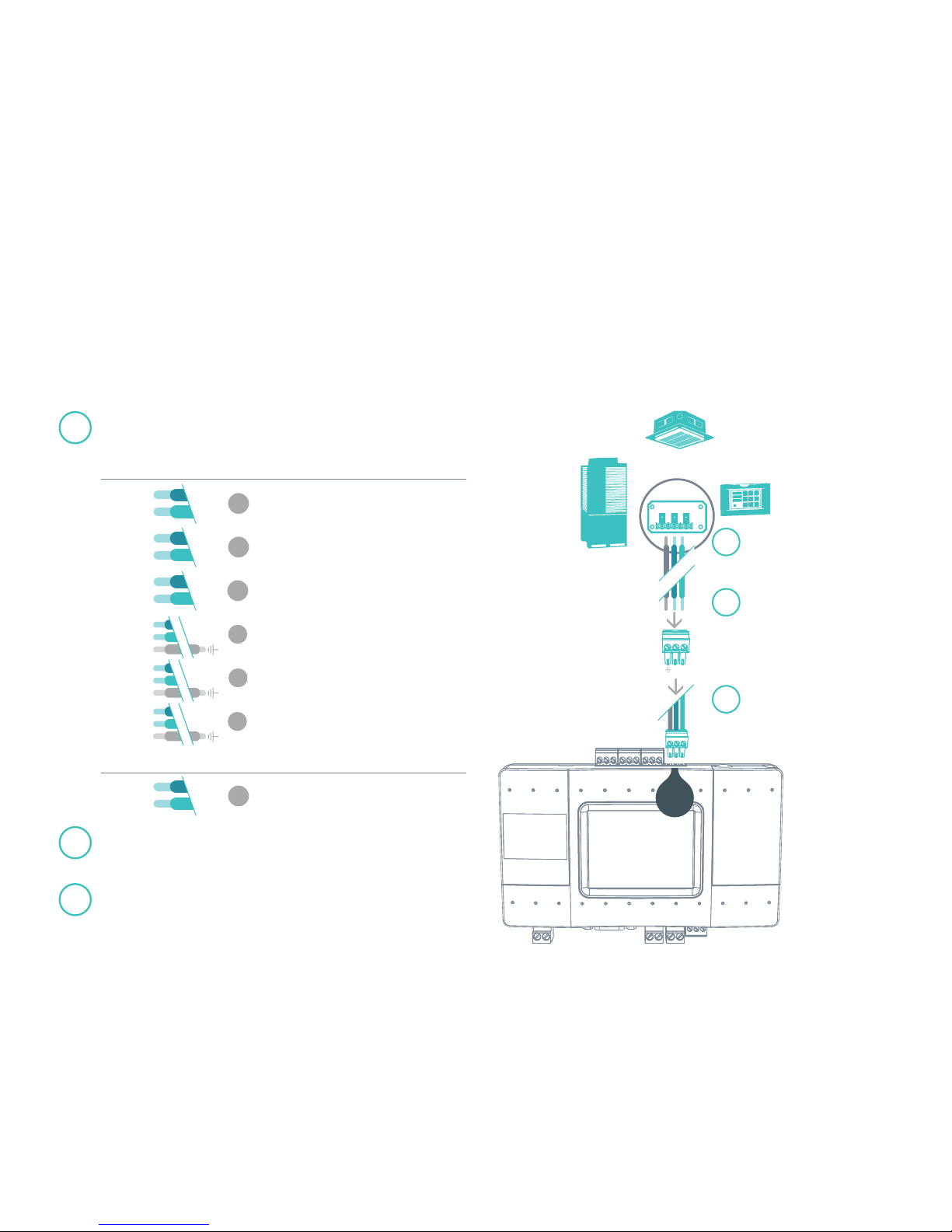

HVAC connectivity — on L1
1
2
F1
F2
M1
M2
U1
U2
U1
U2
1
2
Daikin
(Max. 64 indoor units)
Mitsubishi Electric
(Max. 50 indoor units)
Panasonic (Sanyo)
(Max. 64 indoor units)
Toshiba
(Max. 64 indoor units)
Hitachi
(Max. 64 indoor units)
DK
ME
HT
TO
PN
HVAC Communication Terminals
Connect to the communication
terminals on the HVAC equipment:
Connecting to the line plug
Secure the cables in the L1 line plug.
3Plugging to the CoolMasterNet
Insert the plug in to the CoolMaster L1 socket
How to connect CoolMasterNet to HVAC
HVAC communication terminal’s names*
* For Heat Recovery systems the
connection is at outdoor units only.
** Polarity is not required on the HVAC
communication line.
HVAC Terminal
1
2
3
L1

HVAC connectivity — on L7
LG
(Max. 128 indoor units)
Gree
(Max. 16 indoor units)
Samsung
(Max. 64 indoor units)
Midea
(Max. 64 indoor units)
Trane
(Max. 64 indoor units)
Kentatsu
(Max. 64 indoor units)
A
B
R1
R2
3
2
1
How to connect CoolMasterNet to HVAC
1
2
HVAC Communication Terminals
Connect to the communication terminals on the HVAC:
Connecting to the line plug
Secure the cables in the L7 line plug.
3Plugging to the CoolMasterNet
Insert the plug in to the CoolMaster L7 socket.
HVAC outdoor only
Mitsubishi Heavy
(Max. 128 indoor units)
A
B
HVAC indoor or outdoor
HVAC Terminal
A B
L7
MH
X
Y
E
X
Y
E
X
Y
E
InterA
InterB
GR
LG
SM
KT
TR
MD

HVAC connectivity — on L8
1
2
X1
X2
Fujitsu
(Max. 128 indoor units)
FJ
HVAC Communication Terminals
Connect to the communication
terminals on the HVAC equipment:
Connecting to the Echelon adapter
4Plug in to the CoolMasterNet L8
Insert the USB cable in to the L8 USB host.
How to connect CoolMasterNet to HVAC
HVAC communication terminal’s names*
* For Heat Recovery systems the
connection is at outdoor unit only.
Echelon U10 USB Network Interface (TP/FT-10)
adapter is required for connecting to Fujitsu VRF.
(Not supplied by CoolAutomation)
3Connect Echelon via USB Extension cable
Connect the USB Extension cable (A-Male to A-Female)
to the Echelon adapter. (Not supplied by CoolAutomation)
HVAC Terminal
2
4
1
3
L8

-12

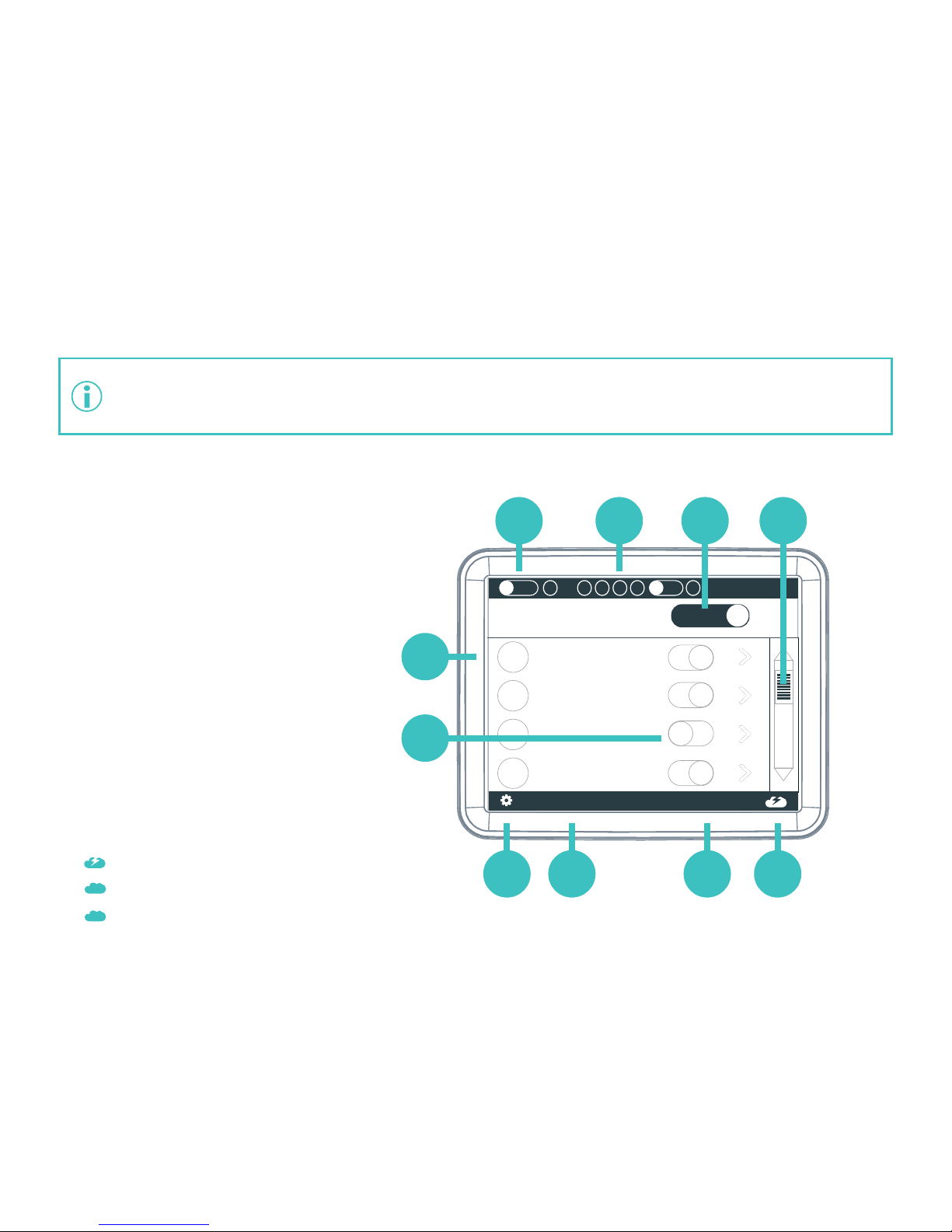

 Active HVAC line (DK 9/10) (Groups/Units)
 Inactive HVAC line
 All ON/OFF operation button
Scrollbar
 Connected indoor unit with it’s address and
SetPoint temperature indication.
 Indoor unit operation button (on/off)
 Service settings button
CoolMasterNet MAC address
CoolMasterNet IP address
 CoolRemote connectivity status
Connected - Communicating
Connected - Idle
Disconnected - with error code
CoolMasterNet installation complete
Universal HVAC bridge for the integration of Home Automation / BMS and HVAC.
CoolMasterNet Unit screen
After successful installation, units screen will show
all the detected indoor units and their statuses.
To download the latest firmware www.coolautomation.com/support/coolmasternet
Fimware update FAQ www.coolautomation.com/support/faq/coolmasternet
All Units
21 L1.101
23 L1.102
25 L1.103
25 L7.101
MACADDR00001
L6 L8L5L4L3L2
192.168.0.1
DK 9/10 LG 128
All Off
87
23 41
5
6
9 10

Home Automation, BMS & CoolRemote
EthernetRS485RS232
How to connect CoolMasterNet to Home Automation and BMS systems
Router
Internet
CoolRemote AppHome Automation / BMS
Ethernet

Power supply
Option A Option B
100V-240V AC
50/60hz
Direct DC power supply
AC Power supply adapter
(Included in the Box)
Direct DC power supply from
local electrical panel
12V DC 12V-24V DC
How to connect CoolMasterNet to power supply

2015
Universal HVAC Bridge
CoolMasterNet
L5L4L8 L6 L7
L1 L2
PRO
®
INPUT: 9-24v DC, 350 mA
OUTPUT: 100 mA
PIN
S/N
MAC
CoolRemote
000000000001
AABBCCDDEE
2015
Universal HVAC Bridge
CoolMasterNet
L5L4L8 L6 L7
L1 L2
PRO
®
INPUT: 9-24v DC, 350 mA
OUTPUT: 100 mA
PIN
S/N
MAC
CoolRemote
000000000001
AABBCCDDEE
2015
Universal HVAC Bridge
CoolMasterNet
L5L4L8 L6 L7
L1 L2
PRO
®
INPUT: 9-24v DC, 350mA
OUTPUT: 100mA
PIN
S/N
MAC
CoolRemote
000000000001
AABBCCDDEE
2015
Universal HVAC Bridge
CoolMasterNet
L5L4L8 L6 L7
L1 L2
PRO
®
INPUT: 9-24v DC, 350 mA
OUTPUT: 100 mA
PIN
S/N
MAC
CoolRemote
000000000001
AABBCCDDEE
2015
Universal HVAC Bridge
CoolMasterNet
L5L4L8 L6 L7
L1 L2
PRO
®
INPUT: 9-24v DC, 350mA
OUTPUT: 100mA
PIN
S/N
MAC
CoolRemote
000000000001
AABBCCDDEE
2015
Universal HVAC Bridge
CoolMasterNet
L5L4L8 L6 L7
L1 L2
PRO
®
INPUT: 9-24v DC, 350mA
OUTPUT: 100mA
PIN
S/N
MAC
CoolRemote
000000000001
AABBCCDDEE
Please connect the device to the Internet for successful registration and setup
CoolRemote App
 Register your username (email) and password
to remotely control & monitor all your HVAC units.
 Go to:
https://coolremote.net/register
 Enter CoolMasterNet S/N number
and PIN code, printed on the sticker.
 Register your username (email) and password
to remotely control & monitor all your HVAC units.
Option A - Automatic Option B - Manual
 Scan the QR code from the type label
To auto fill-in all the CoolMasterNet details for
CoolRemote App.
How to create a CoolRemote account

Mounting on a DIN rail
Pull the lock
Secure the rail in place
Slide under the mount feet
Secure the rail in place
2015
Universal HVAC Bridge
CoolMasterNet
L5L4L8 L6 L7
L1 L2
PRO
®
INPUT: 9-24v DC, 350mA
OUTPUT: 100mA
PIN
S/N
MAC
CoolRemote
000000000001
AABBCCDDEE
2015
Universal HVAC Bridge
CoolMasterNet
L5L4L8 L6 L7
L1 L2
PRO
®
INPUT: 9-24v DC, 350mA
OUTPUT: 100mA
PIN
S/N
MAC
CoolRemote
000000000001
AABBCCDDEE

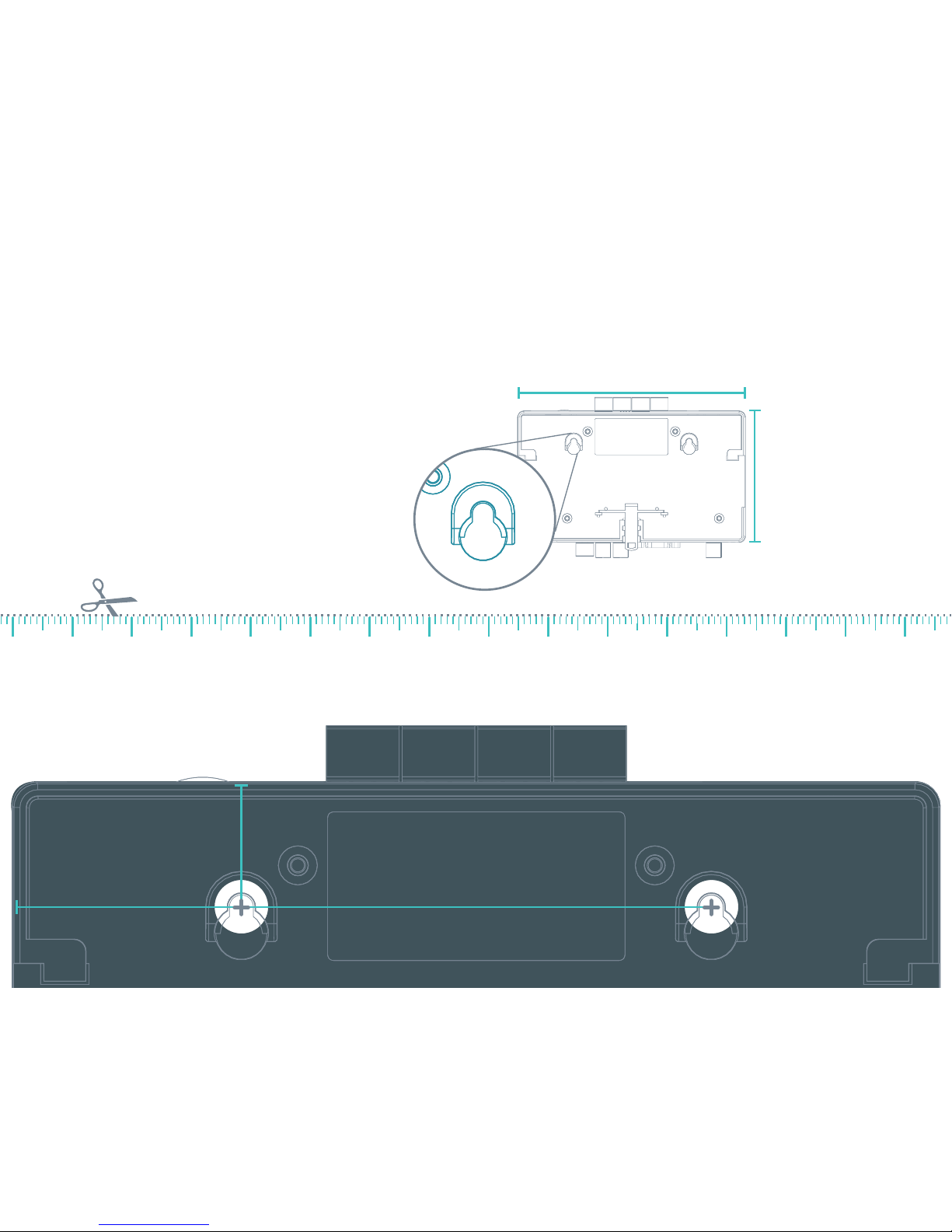

How to mount



Mounting on wall
How to mount with screws
1:1 scale mounting template for wall screws
10 2 3 4 5 6 7 8 910 11 12 13 14 15
For mounting the CoolMasterNet
with wall screws, please see attached
template with 1:1 dimensions.
156mm
90mm
Universal HVAC Bridge
CoolMasterNet
L5L4 L6 L7
L1 L2
®
INPUT: 9-24v DC, 350mA
OUTPUT: 100mA
PIN
S/N
283B96000001
CoolRemote
2014
AABBCCDDEE
Distance between two mounting holes
21 mm
38.5 mm 79 mm

Changing the dip switches , while DC voltage is present on L1,
may damage the CoolMasterNet.

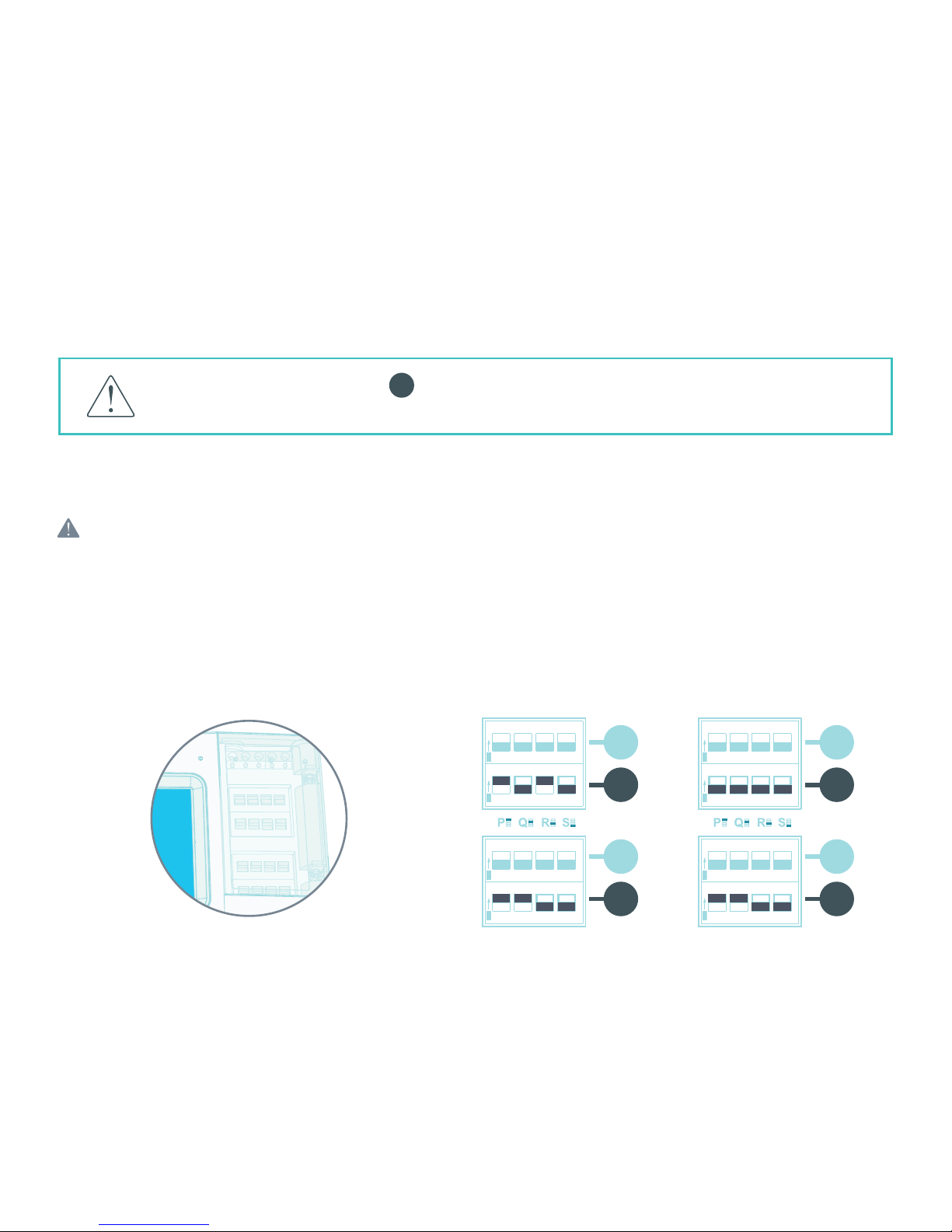

Non-VRV HVAC configuration
For Daikin/Mitsubishi Electric Non—VRV/VRF equipment, DC voltage supply by CoolMasterNet might be
required for proper operation.
Make sure CoolMasterNet is disconnected from power and HVAC line.
 Measure DC voltage on HVAC communication line L1
 If no DC voltage. Daikin 14-16V DC, Mitsubishi 28-30V DC, change the dip switches as shown below
 Turn ON the power for CoolMasterNet and connect it to HVAC line.
How to configure None-VRV system
1234
1234
O
N
O
N
1234
1234
O
N
O
N
P
Q
R
S
Daikin Non-VRV Mitsubishi Non-VRV
1234
1234
O
N
O
N
1234
1234
O
N
O
N
P
Q
R
S
S

HVAC systems setup on L1
L1 Daikin
1234
1234
O
N
O
N
1234
1234
O
N
O
N
P
Q
R
S
Panasonic (Sanyo)
1234
1234
O
N
O
N
1234
1234
O
N
O
N
P
Q
R
S
Toshiba
1234
1234
O
N
O
N
1234
1234
O
N
O
N
P
Q
R
S
Hitachi
1234
1234
O
N
O
N
1234
1234
O
N
O
N
P
Q
R
S
Mitsubishi Electric
1234
1234
O
N
O
N
1234
1234
O
N
O
N
P
Q
R
S

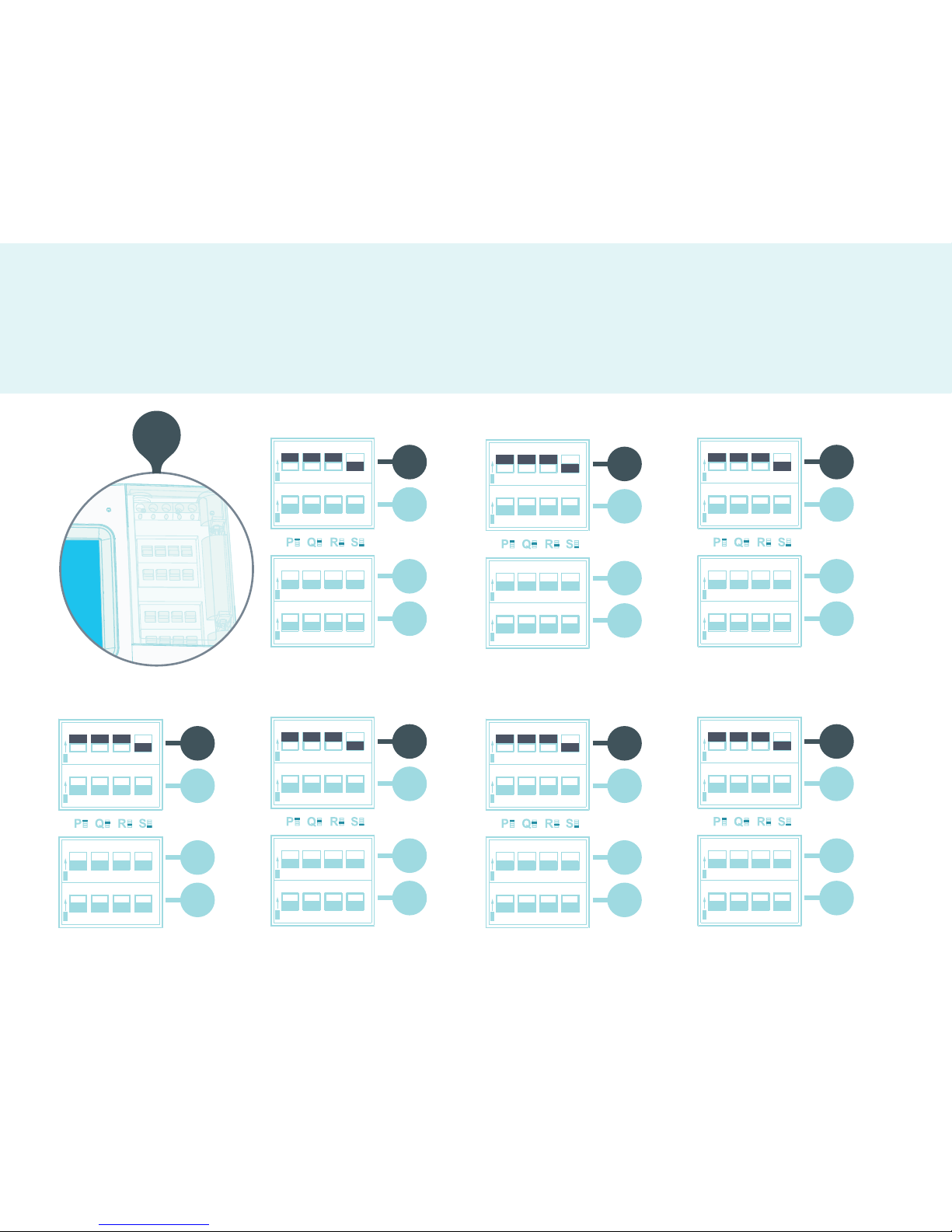

Appendix: Dip switches setup for VRV/VRF HVAC system on L1

LG
1234
1234
O
N
O
N
1234
1234
O
N
O
N
P
Q
R
S
Trane
1234
1234
O
N
O
N
1234
1234
O
N
O
N
P
Q
R
S
Kentatsu
1234
1234
O
N
O
N
1234
1234
O
N
O
N
P
Q
R
S
Samsung
1234
1234
O
N
O
N
1234
1234
O
N
O
N
P
Q
R
S
Gree
1234
1234
O
N
O
N
1234
1234
O
N
O
N
P
Q
R
S
Midea
1234
1234
O
N
O
N
1234
1234
O
N
O
N
P
Q
R
S
Mitsubishi Heavy
1234
1234
O
N
O
N
1234
1234
O
N
O
N
P
Q
R
S
HVAC systems setup on L7
Appendix: Dip switches setup for VRV/VRF HVAC system on L7
L7
