Coolster QG-210 User manual

QG-210
www.coolster.com

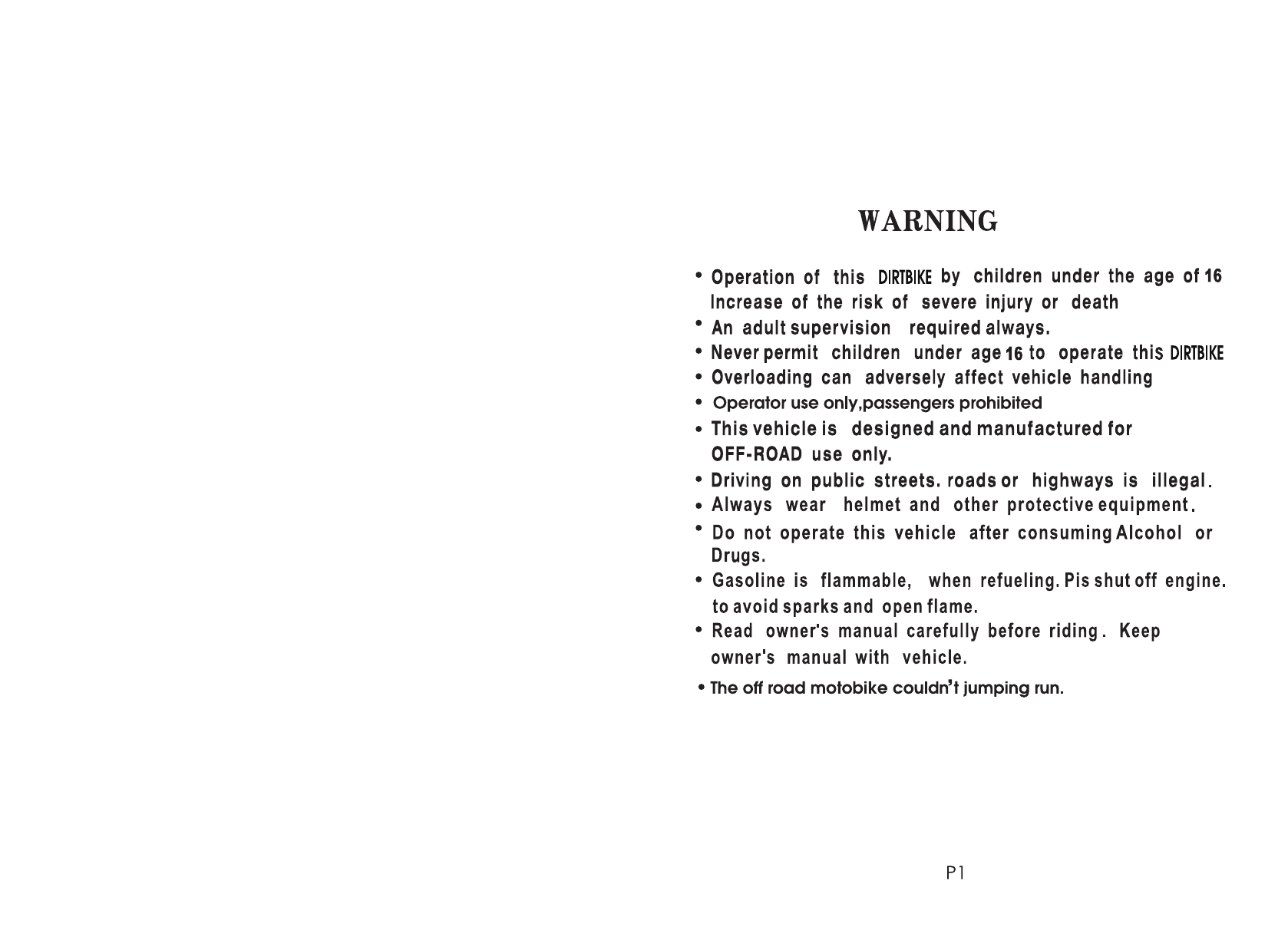

● because after running and the exhaust muffler very hot,
vehicles should be parked in child care and others not
likely to encounter places.

P3
P2
Thank you very much optional selection of this OFF ROAD
MOTOBIKE
The sport utility vehicle is based on market demand,
production of a comprehensive survey. We hope that it will
bring you driving pleasure.
Please read Dian Aberdeen before driving the manual,
because it will help you understand the sport utility
vehicle which the structure, operation and maintenance of
basic knowledge, while you keep off-road vehicles are in
good condition and safe driving will be very useful.
The non-road vehicle use, and never-in the streets,
sidewalks and motor vehicles driving along.
Drivers must be over 16 years of age, driving the need
for skilled personnel and adequate comprehension,
intelligence and judgment to safely control driving. And
accompanied by a guardian.
It will bring unparalleled freedom feelings. In order
to achieve the best performance, the vehicle must always
reach the correct maintenance. As driver, you should be
recognized for your good health, so that you do not
fatigue in the best condition you were under control.
Medication, drugs, drink, unable to ride, especially
alcohol, this will increase the possibility of personal
distress.
Liquor very dangerous, even a small amount.
Travel must be good quality bull wearing safety
helmets, gloves, put on their boots and put on their long
colorful protective clothing. (Both to protect
themselves, but also aroused the attention of others)
When traveling to other vehicles and pedestrians who
FOREWORD GUIDELINES ON SAFE DRIVING
1, when approaching corners or bends to reduce speed.
Upon the completion of turn, may gradually increase the
speed.
2, when crossing the vehicles parked in front of, to be
very careful. Because the driver of the vehicle may be
invisible to you and the door opened, the forward block in
your way.
3, Brake Lining may Motorcycle rinsing wetting lose
If you have any questions regarding your warranty rights
and responsibilities,you should contact the Maxtade
Warranty Department at 1-626-228-0251

P5
P4

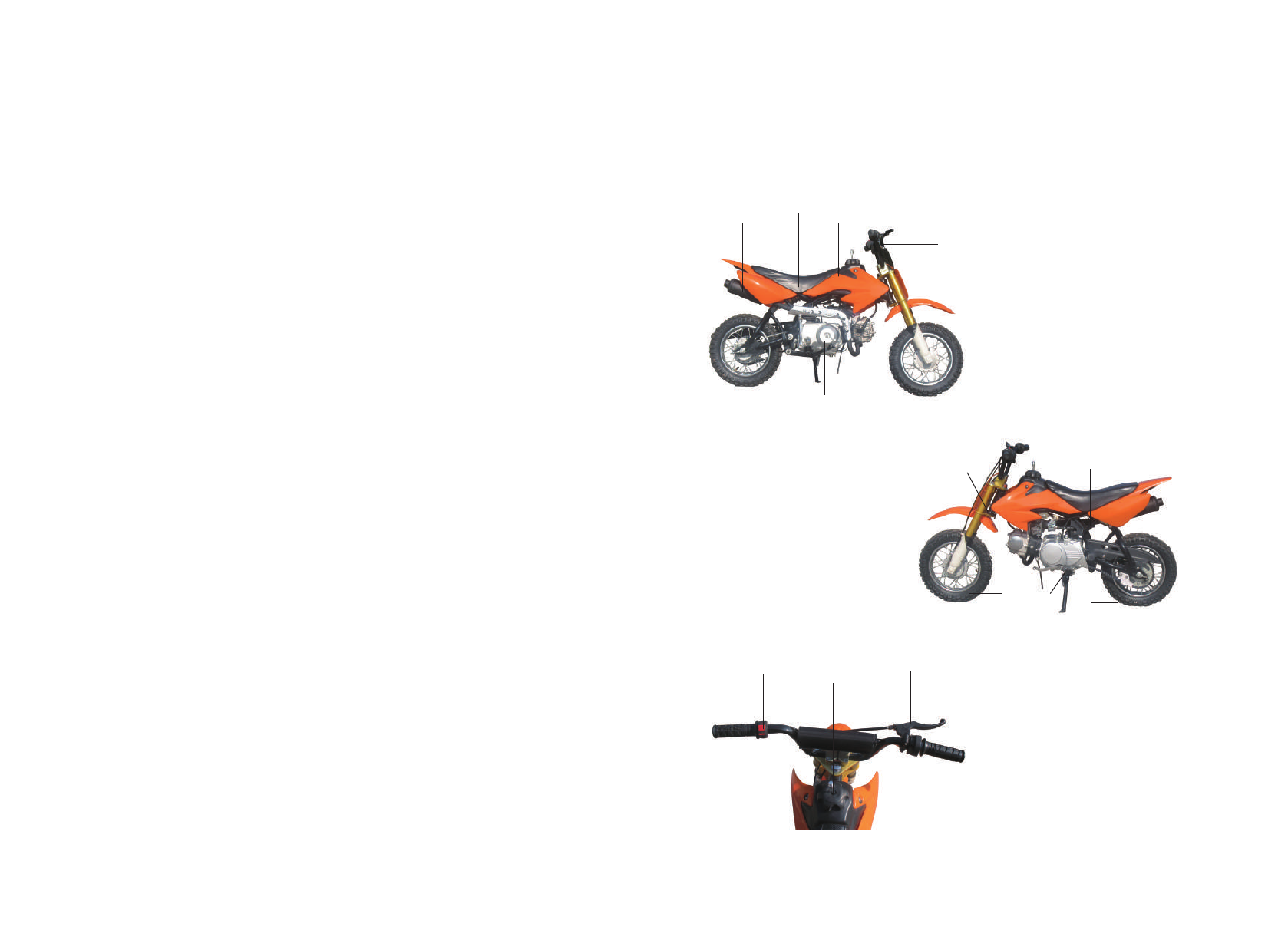

DESCRIPTION
(1) (2) (3)
(4)
(5)
(6)
(7)
(8) (9)
(10)
(11) (12) (13)
(1)Ｍuffler
(2)Ｓeat
(3)Plastic body
(4)Handlebar
(5)Engine
(6)Front shock absorption
(7)Gear lever
(8)Front wheel
(9)Rear wheel
(10)Rear shock absorption
(11)Switch
(12)Fuel box
(13)Front brake operate bar
Pay attention to your
security.........................................
.
Safe driving
guidelines.......................................
.............
Description......................................
................................
DIRTBIKES
recognition......................................
.............
Control
Table of Contents
P1
P3
P5
P6
P7
P11
P15
P18
P32
P35
P44
P45

P7
P6

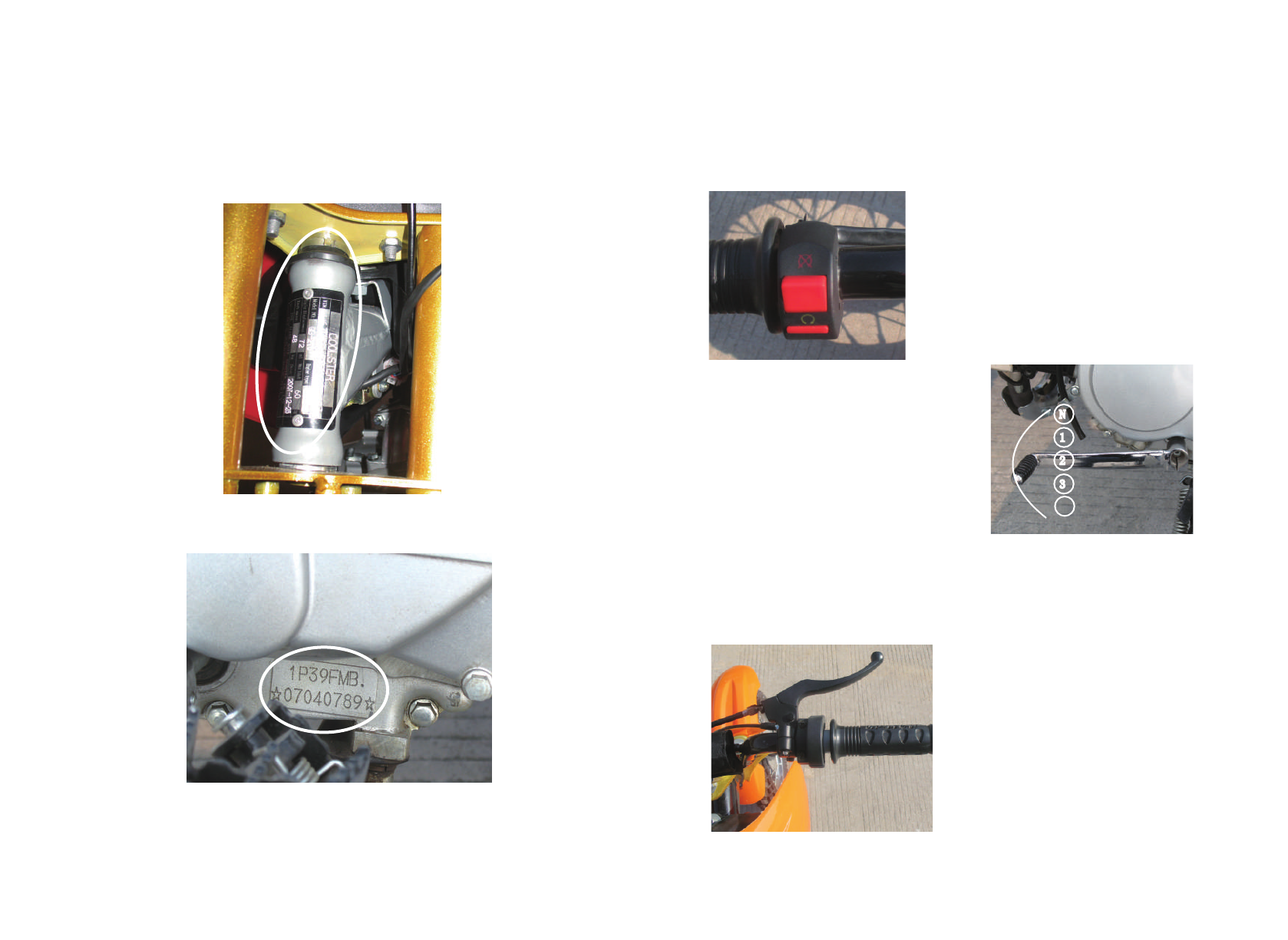

OFF ROAD DIRTBIKE RECOGNITION
VIN plate number and product
Engine model and serial number
CONTROL FUNCTION
1、The ignition switch
2、The Bike is used automatic
centrifugal clutch, shift
operation is relatively
simple, as long as by pegging
the throttle to stall with
their feet on up. The car
stalls non-circulating
system; Downward stamping on the order as follows:
the free - 1 stall - 2 files - 3 stalls - 4 stalls;
If the premium must be way back into low-grade hook.
3、The front wheel brake
handle: front-wheel brake
handle in the right hands.
To handle its direction
pinch Rafah as a
front-wheel brake.
N
1
2
3
4

P9
P8
4、The rear brake pedal: rear-wheel brake pedal at
the right side of the car. Riding next to the brake
pedal to the rear brake .
5、The fuel Cover: Note: the fuel Cover
mouth ventilation can not plug.

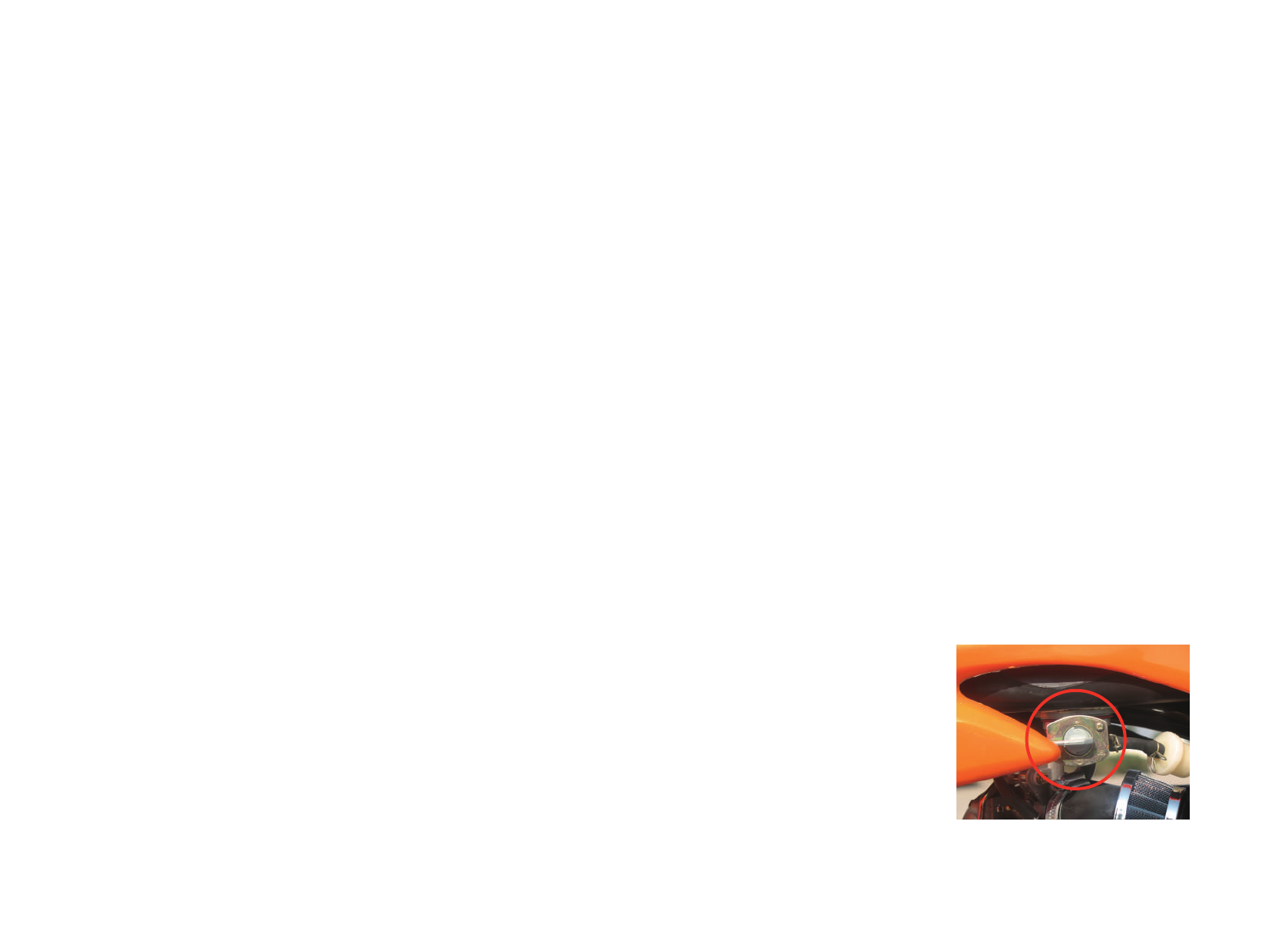

6、the fuel valve: the fuel valve in the fuel filter
will supply fuel from the fuel tank to the
carburetor. Fuel valve has three locations.
Disconnect : fuel will
not flow. When the
engine is not running,
always will be back to
handle the position.
Connected : fuel flow
carburetor. Lane will
usually handle this
position at home.
Reserves : reserve fuel
flow carburetor. When
driving, Spent fuel can
be moved to the handle
position.

P11
P10
7、Choke:Resistance
carburetor throttle in the
left arm. Starting cold
engine needs a concentration
of combustible gas concrete.
In such circumstances, will
be impacted throttle arm
moving down. After preheating the engine will pull
rod to the original starting position.
8、Starter: Under starter
pedal to the left engine
rotational direction,
riding with their feet
gently under starter until
gears meshing. Then under
the smooth and powerful
ride to Starter.
BEFORE THE INSPECTION OPERATION
Prior to the use of the car, should check the following
Item Normal checks
Brake
inspection operation, status and freedom
itinerary. If necessary, should be adjusted.
Brake Performance confirm whether the
good work can be checked out at low
speed.
accelerator
Check whether the smooth operation of
the accelerator. If necessary, should be
conducted lubrication / adjustment.
Chain - driven
chain of lax inspection and state. If
necessary, should be adjusted.
Tire / wheel c hecks tire pressure, wear, damage and
the rate of take-up of the round.
Transmission and
brake pedal shaft
inspection operation is smooth and, if
necessary, should be conducted
lubrication.
BrakeandClutch mani
pulation of the
handle shaft
operation of inspection, if necessary,
should be conducted lubrication.
Parts/ Fasteners
inspection of all parts and fasteners . If
necessary, should be carried out
Tightening / adjustment.
Fuel tank
inspection of the fuel oil / if necessary,
should be enough fuel
Warning: ● If the item prior to use in adverse conditions,
should be repaired prior to use.

P13
P12
DRIVERS MUST
Fuel: fuel compartment confirm the adequacy of fuel.
Warning:
● Do not add fuel tank drive. Otherwise, and in the
subsequent heating and fuel inflation, the fuel will
overflow.
Fuel spillage should be avoided in the hot engine
Recommended fuel: 90 "petrol
Fuel tank capacity:
Total: 3.5L
Storage：1.2L

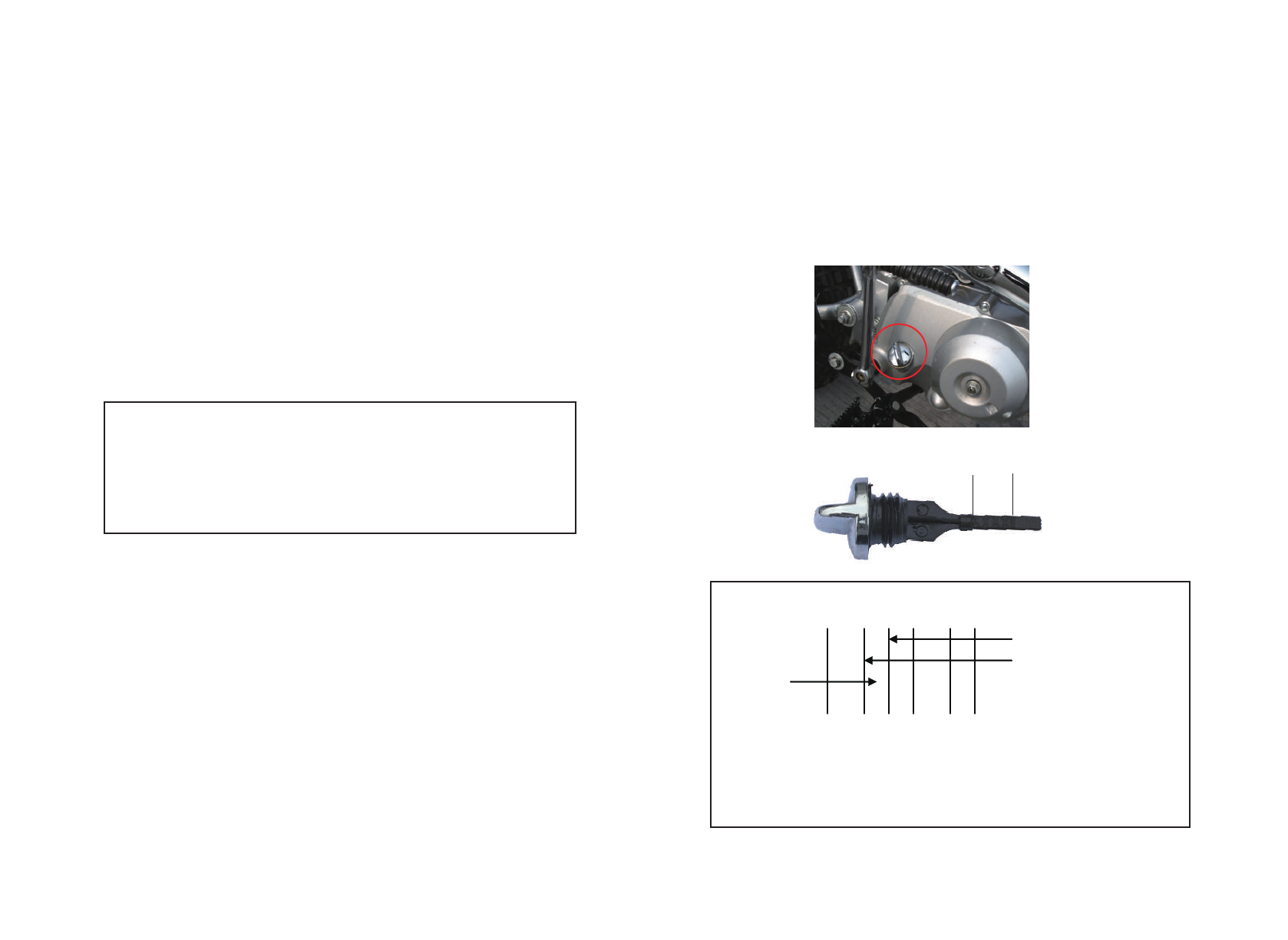

Oil confirm whether oil at the designated place.
1、 the maximum oil level.
2、the lowest of oil.
Recommended oil
-20°
-10°0°10° 20°30°C
SAE 20W40 SF Engine oil
SAE 10W30 SF Engine oil
SAE 5W30 SF Engine oil
Oil:
Total: 0.9 L
Regular replacement of oil: 0.8 L
Oil Filtersreplacement: Doesdeformation,damage
.
1 2
Oil :

P15
P14
Tires
1. Tire pressure
Before the cars in operation, should always
check and adjust tire pressure. (Tires Barometer)
2. Tire Inspection
Before the cars in operation, should check the
tires. If excessive tire wear, to be replaced.
Warning:
● use of the tire wear is dangerous to travel.
Important elements operation and rides
Cold Start and engine preheating
Size Pressure
Front tire 2.50-10 10～24psi
Rear tire 2.50-10 10～24psi
Note: This car has used to control the operation of brake
motor starter switch. Only in pinch engine brake handle on
when to start. We had closed choke before delivery.
1, will be off to the operation by switching positions.

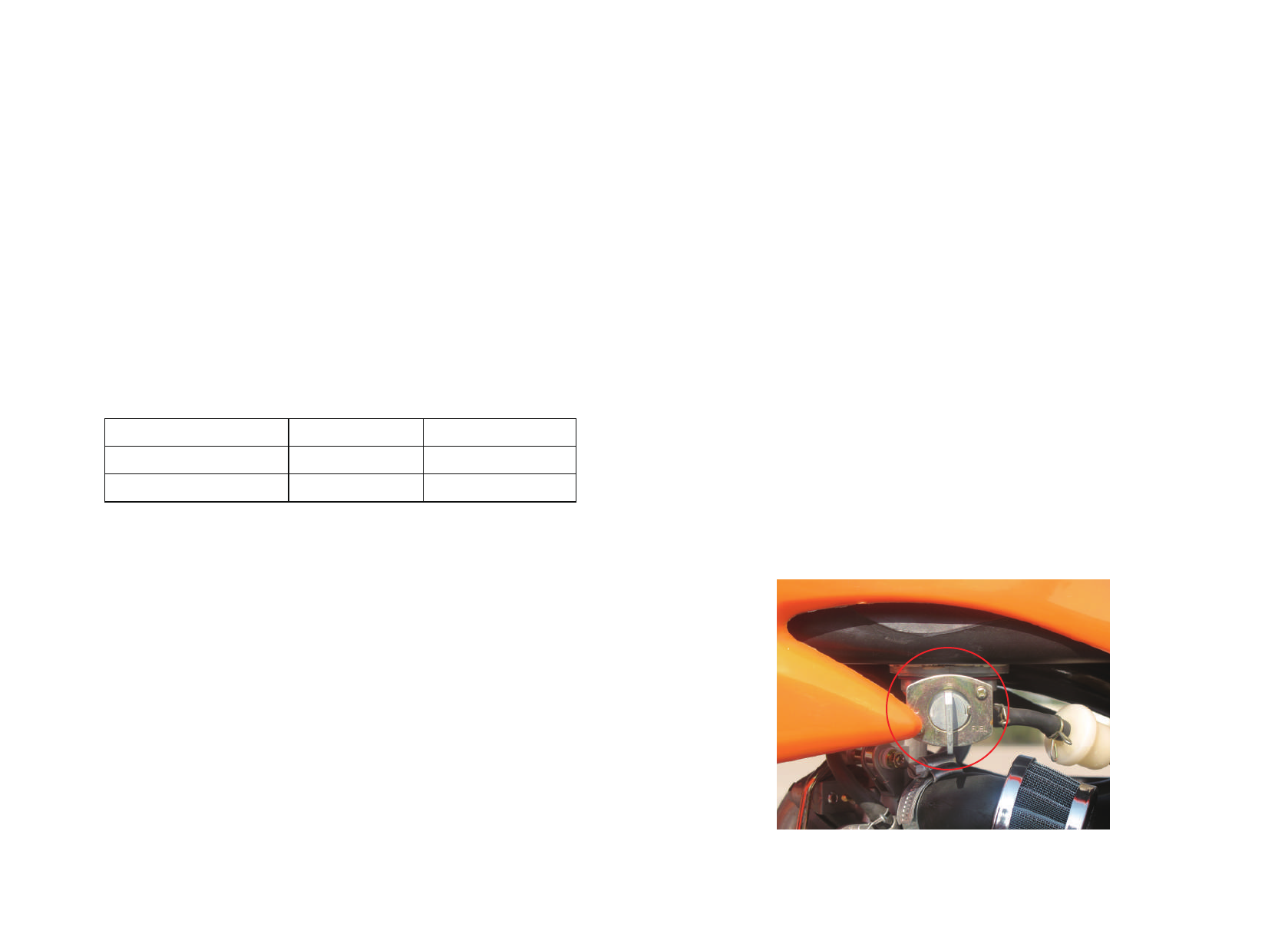

2、 the fuel valve turn to: "See flow picture"
position.
3、 will be redeployed to the free stalls position.
4、press the start switch.
5、will be under starter pedal to the left engine
direction of rotation, using footsteps tread gently
under starter until gears meshing. Smooth riding and
then forced under the engine to start.
6、the resistance after heat engine throttle arm

P17
P16
Hot engine starter
When the engine has been preheated, then you do not
need closure resistance throttle.
The engine stalls and accelerated change
Note: This car using automatic clutch manner.
1、 the first advance stalls gear.
2、 ease gradually to open the throttle, clutch at
the same time gradually relax control handle.
3、when the speed fast enough, we will enter a
higher gear stalls stalls, closed throttle, while the
rapid manipulation clenched clutch handle. Then
promote the second stall gear.
4、open the throttle and clutch control handle will
gradually relax.
5、repeat the above process, can enter into a
higher gear stalls.
The commissioning Engine
1,0 ~ 150 km:
Operation and avoid prolonged refueling over
1 / 4 throttle position. An hour after the operation
should cease engine to cool 5 to 10 minutes. Should
often transform the speed and the car stalls.
2,150 ~ 500 km:
Operation to avoid refueling over 1 / 2
throttle position. At any time, should not be used
Full Throttle operation of this vehicle.
3500 ~ 1000 km:
To avoid refueling over 3 / 4 throttle
position.
4,1000 km long and more:
Full throttle operation should be avoided.
Avoid low-grade high-speed engine work.
Note: When traveling to the 300 km ~ 500km, the oil
must be replaced.
As the car had not been installed Odometer to
0-1000 km from the motorcycle mileage during your
life is very important for the period. Because the
engine is new and in the meantime we must avoid
prolonged Full Throttle or any situation that could
be the super-engine overheating.
Parking
Warning:
● because after
running and the exhaust
muffler very hot,
vehicles should be
parked in child care and
others not likely to
encounter places.

P19
P18
Regular maintenance and minor repairs
Periodic inspection and emphasize peace and
lubrication and the car will at the best and most
effective work state.
Note: If you are not familiar with this vehicle
maintenance services, the work should be COOLSTER
maintenance station.
Regular maintenance / lubrication
Item Notes
Running
-- in1000
km or
one
month
Initial
3000km
O r three
monthe s
every
3000km
O r three
monthe s
Spark
plug
heck their state. When
necessary, should be
cleaned or replaced.
☆ ☆ ☆
A ir filter
Cleaning. If necessary,
should be replaced.
☆☆☆
carbutato
r
Idle checks starting
operation. If necessary,
should be adjusted.
☆ ☆
☆
Fuel pipe
*
Check whether the fuel
for cracks or damage
there.If necessary,
should be replaced.
☆ ☆ ☆
O il filter*
Check the status. If
necessary, should be
replaced.
☆ ☆
Engine oil
The replacement. (In
the engine prior to
release oil preheating)
300km
and
1000km
the first
replace
ment
☆ ☆
Engine oil
filter*
Cleaning. If necessary,
adjust or replace
☆
Tire/wheel
Check tire pressure /
balance / Wearstate /
poor place,if
repair or
necessary,
replacement
☆ ☆
Front
wheel
bearing*
Bearing components
check whether
loosening / damaged.
If damaged, and
should be replaced
**
☆ ☆ ☆
R ear
wheel
bearing*
Bearing components
check whether
loosening / damaged.
If damaged, and
should be replaced.
**
☆ ☆

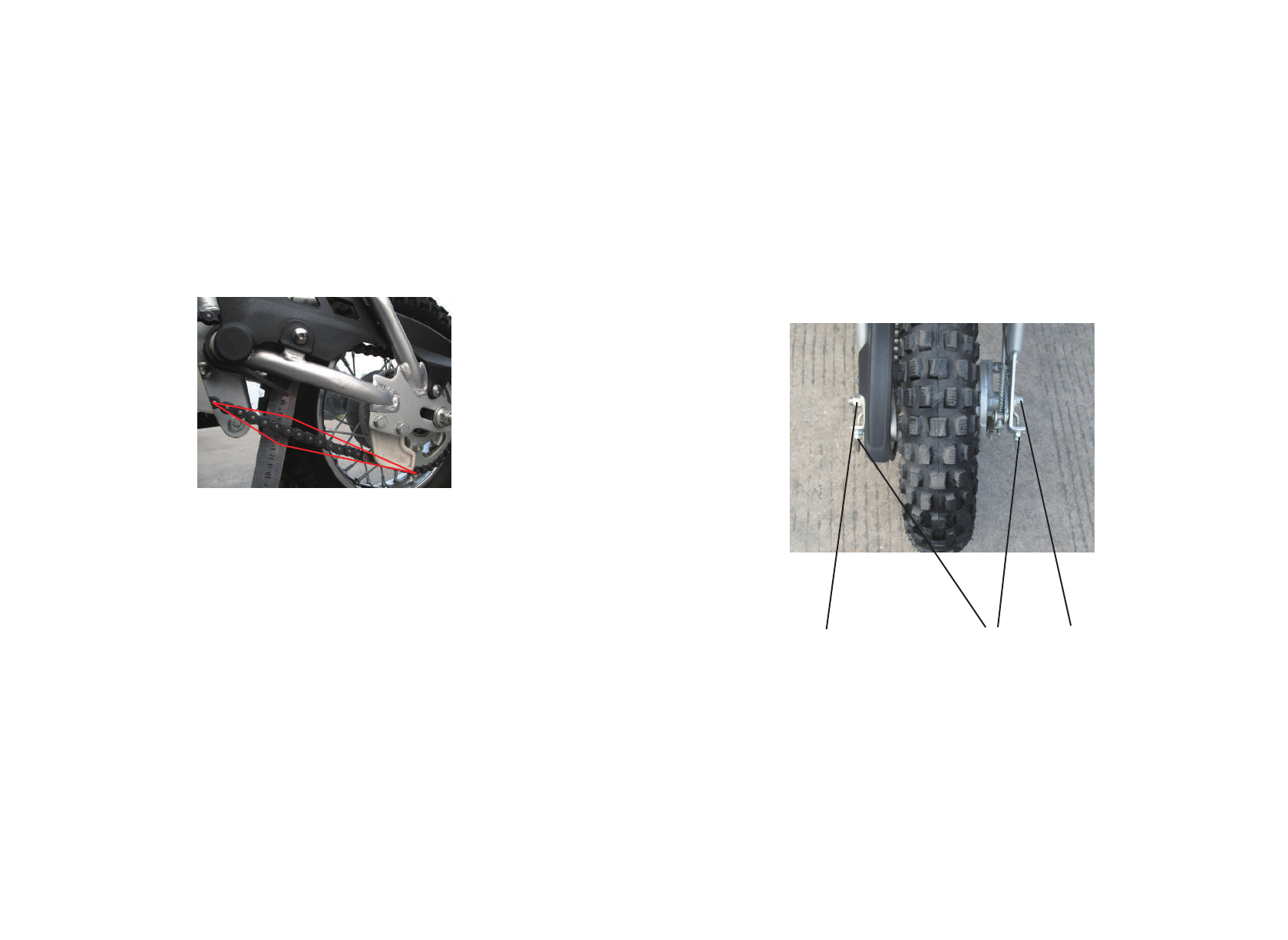

Ch ain- dri
Check chain
☆☆☆
*: We propose that these items should be COOLSTER
repair station for maintenance services.
**: Medium weight wheel bearing grease.
Parts/fastners
Check all the parts and
fasteners. Necessary
correction should be
carried out.
☆☆☆

P21
P20
Parts / Fasteners
Prior to the use of the car, should always check with
the parts and fasteners tight degrees. We suggest that
these projects should be carried out irregular
inspections. (I asked, after the demolition of the
self-locking nut Please replacement of the self-locking
Correspondence tables fastening torque
S crew
size
Fightenin
gtorque
N ·M
Standard
torque
N ·M
S crew
size
Fightening
torque
N ·M
S tandard
torque
N ·M
M5 4.5-6.0
5M10 37-79 60
M6 8-12 9M12 73 -115 99
M8 16 -26
23 M14 146 -205 180
Oil
C. The oil should be located at the highest and the lowest
among the oil-marker. If the oil level low, should be enough
oil to rise to the oil-appropriate.
2, oil and oil filter replacement of the replacement.
(Photo)
A. Engine preheater minutes.
B engine will stop. In an engine oil was placed
underneath.
C. discard release oil bolts, release oil. Put oil may
moderate shaking body to be inside the engine from
impurities.
D. installed release oil bolts, and then full of engine
oil. Tightening oil Cypriots.
I. Starting engine and a few minutes to preheat. Preheat
should check whether there are oil spills. If it appears that
1 2
1, the measurement of oil
A. Engine preheater minutes.
B. When the engine stopped operating, hold on a few
minutes later, the oil Cypriots will be removed after the
oil-observation.
Screw release oil
The refueling

P23
P22
Warning:
● Do not join any chemical additives. Also lubricating
oil clutch, clutch slipping and additives will.
Note: In the replacement of oil, must be in accordance
with the following method to check oil pressure.
1, removed the cylinder covered with oil release bolts.
2, starter motors, and keep them idle until the oil
outflow from caving hole. If no one minute after the oil
outflow or unusual phenomenon, should stop the engine
running to the nearest COOLSTER dealer or repair shop for
repair.
Carburetor adjustment
Carburetor is a key part of the car, the need for fine
adjustment. Most adjustments should be entrusted with the
expertise and experience COOLSTER dealers or repair shops.
1. Connect speed LAU
2. Speed Festival through idle screw on the carburetor,
idling provisions set to rotate within the raise into the
engine speed, to a decrease in engine speed from.
Standard Idle:
1500 ± 150 to / min
Idle adjustment
Air Filters
Filters should carry out regular checks, cleaning. If
necessary, replaced.
Screw release oil
Screw idling

P25
P24
Spark Plug inspection
Note: In adjusting the throttle cable free trip before,
we must adjust engine idling.
Through rotational regulator to adjust throttle cable,
it can lead to throttle the right hand free Filed doors
itinerary.
Free trip:
2 to 5 mm
Model: NGK
Clearance: 0.6 ~ 0.7 mm
Torque: 12.5 N •M
The spark plug is an important engine parts, and easy to
check. The state can spark plug of the engine that state.
The normal riding in the car, in the center electrode
white ceramic insulators around the ideal color is
appropriate. Brown. Do not attempt to self-diagnosis of
any fault, and should be sent to COOLSTER the car dealer
or repair shop. You must be regularly removed and examined
spark plugs, as heat and carbon deposition will spark
plugs slowly breakdown and ablation. If the electrode
ablation too seriously, we must use the provisions of its
spark plugs will be replaced.
Before installing the spark plug, the regulation should
be used to measure the thickness electrode gap, if
necessary, will be adjusted to space requirements value.
Note: If you have not installed when the spark plug
torque wrench, torque correct estimation method is
tightening its hand to exceed 1 / 4 to 1 / 2 laps.
The throttle cable adjustment
1, loosen lock nut.
2, Hin into a regulator or until attaining the free
trip.
Locked nut
Adjuster
0.6-0.7mm

P27
P26
The front wheel brake adjustment The rear brake adjustment
The front wheel brake handle free trip for 10 ~ 15 mm
1, loosen lock nut
2, rotation cable length regulator, screw or screw into
the appropriate date and up.
3, tighten the lock nut.
When the brake handle and can not be used to appropriate
requests, please COOLSTER commissioned by the dealer or
repair shop to adjust brake shoes.
Locked nut
Adjuster
Adjuster
The brake pedal will be rear-wheel brake pedal-free
itinerary adjusted to 20 ~ 30 mm. Rod rotate clockwise
direction by the regulator will reduce the trip, according
to the direction of rotation was 10,000 against the
increase itinerary.
Note: 1, whenever the chain was adjusted, or discard the
rear wheels, and then re-installed, it must inspect the
rear brake pedal adjustments.
Adjuster

P29
P28
Driving chain relaxation of inspection
Note: rotating wheel several times to identify the most
compact location of the chain. When the chain in the most
compact position, check or adjust chain relaxation.
The normal relaxation of 15 to 25 mm. If relaxation
beyond 25 mm should be adjusted.
The drive chain adjustment
4、in the adjustment, must tighten all loosen the parts.
5、in the adjustment, the chain must tighten regulation
of the fixed screws and nuts.
Note: chain relaxation too small engines and other key
will zero overloading. Relaxation should be made to
maintain the prescribed limit scope.
Setscrew Adjuster Setscrew
1、loosen the rear brake adjuster.
2、 loosen after the axle nut.
3、For tensioning chain, the chain by rotating clockwise
direction on the M6 regulator anti-retreat-pine nut . If
required relax chain, according to the direction of
rotation 10,000 anti-chain adjuster on the M6 and the
prevention of anti-retreat Pine Nut . Forward and rear
axle into. The same should be fully rotate the regulator
of the M6 and the prevention of anti-retreat Pine Nut ,
Pian would maintain coaxial.

P33
P32
1、In order to keep the car clean and protect the
surface appearance of the painting, electroplating,
should regularly or irregularly its cleansing. When
cleaning, use of external surface water irrigation, rush
soil. Use a soft cloth or sponge dip cleaning liquid
bubble gently cleans the outer surface, to avoid residual
gravel surface and paint scratches electroplating layer.
Finally reuse water for irrigation.
2、Attention:
● washing, to avoid using the high-pressure water
erosion under parts:
(1)off switch;
(2) The exhaust pipe muffler exports;
(3) air filter inlet
After the car wash thoroughly dry, and then start
engine, running for a few minutes. Finally repeatedly
braking performance brake inspection and adjustment until
braking performance standards so far.
Special Note: in the hot engine, the first will not
wash. Engine room temperature with the same question again
when cleaning. If water pressure caused the brake, the
former damping seals and electrical parts Loss.
CLEANING
If the park does not need to use a long time, in order
to maintain a good state of the car, you please address
the following methods:
1)、 select the right parking place. The location should
have security, ventilation, moisture-proof, anti-freezing
conditions.
2)、 for engine lubricants.
3)、 in the fuel tank and the carburetor fuel release
all net, oil stored properly. Note: Do not overlook the
release carburetor net residual oil. Otherwise, no need
for a long time, the surface of the plastic fuel
carburetor of holes to plug, re-use of the car when
trouble.
Warning: volatile fuel in the fuel emissions, the
engine must be stopped operating in the ventilation good
place to prohibit smoking ban on the use of open flame and
sparks objects.
4)、In order to prevent cylinder rust, we should adopt
the following measures:
Remove spark plugs, A Spoonful (15 ~ 20 m) from the
clean engine oil into the cylinder spark plug hole with a
piece of cloth spark plug holes starter motors, mobile
number to Detroit from top to bottom so that the oil in
the cylinder wall are cloth. Finally, the spark plugs and
spark plug cap installed.
5)、Battery demolition down, stored in antifreeze,
STORAGE

P35
P34
two weeks an additional charge.
6) wash and dry your car, paint waxing to all, to all
chrome painted on the surface antirust oil.
7) to inflatable tires, tire pressure up to the required
standard air pressure. After stopping the car will be
good, with shelves or pieces of wood and other wheels will
be boosted so that the wheel does not contact with the
ground.
8) will cover the car to prevent the dust down. Do not
use plastic sheeting to things such as gas-tight coverage,
AFTER THE RE-USE STORAGE
1) Remove the guards cover the car, clean the body. If
placed more than four months, the need for replacement of
engine oil.
2) add fuel to the fuel tank.
3) all of the pre-inspection lane.
4) before traveling during the next regular session, a
choice open, pedestrian areas for less performance
DEVANNING ASSEMBLY
2、Open the carton
3、Take out dirt bike 4、Take out plastic
5、Install rear shock
1、Packing carton
4、Pick parts out
6、Instal handle bar
1. Vehicles should be solidly fixed on the
transporters, there should be effective rain preventing
measures, without bumps and damaged phenomenon happen.
2. The packing carton shall not be tilted on the way
of delivery.
Transport
.

P37
P36
DEVANNING ASSEMBLY
7、Install front fender 8、Take out fixer of front shock
4、Take out plastic 10、Install front wheel
11、Install decorator of front shock
9、Install front wheel
12、Cut fixer of pedal
13、Finished installation
DEVANNING ASSEMBLY
F
