INSTALLATION AND OPERATING INSTRUCTIONS
Stainless Steel
Built-in 4 Function Fan Oven
and Electric Hob pack
CZ55525
These products may differ from the ones illustrated but the installation and operation procedure remains the same

Contents
Introduction 3
Unpacking 3
Before installation 3
Combined or Separate installation 4
Location 4
Housing dimensions 5
Electricity supplies 6

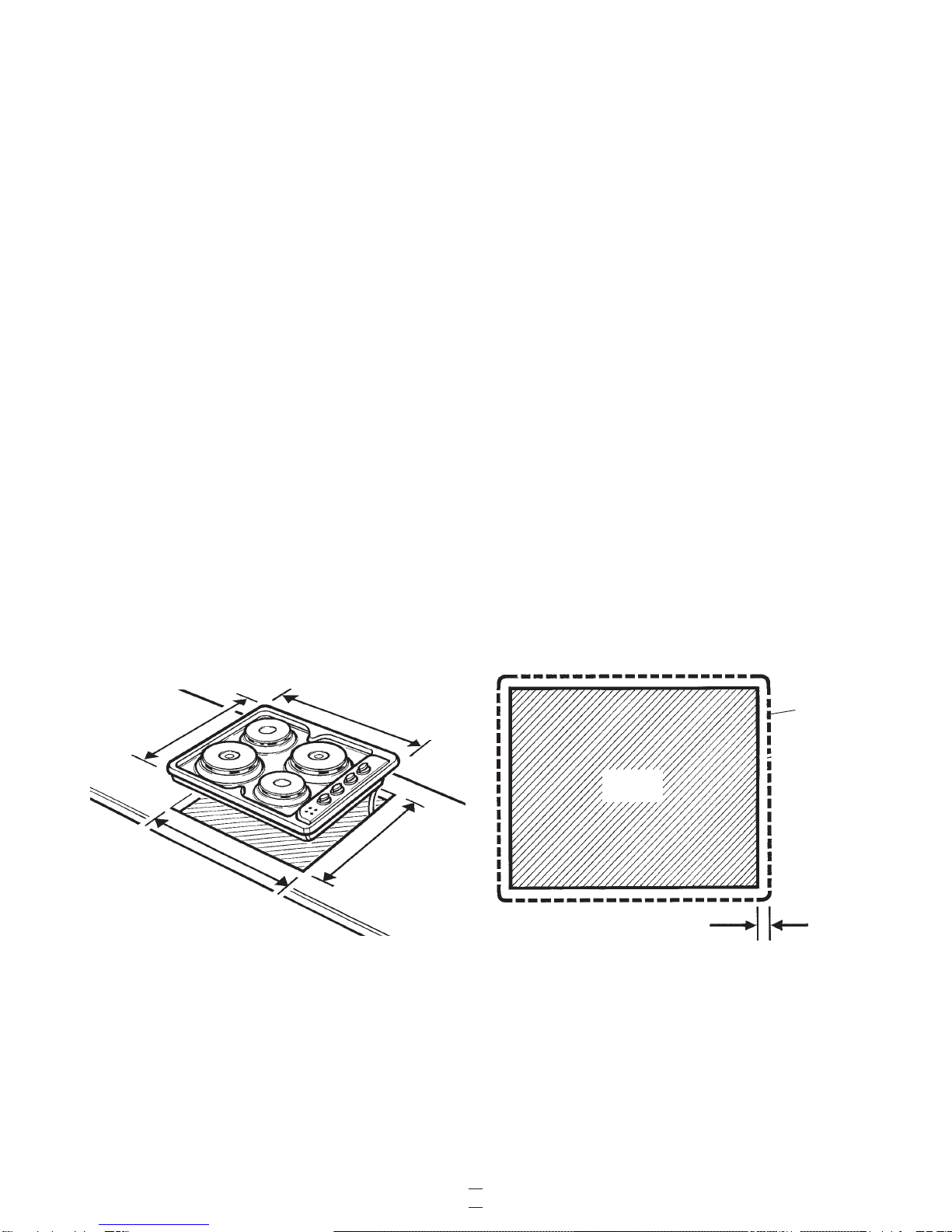

Hob cut-out 7

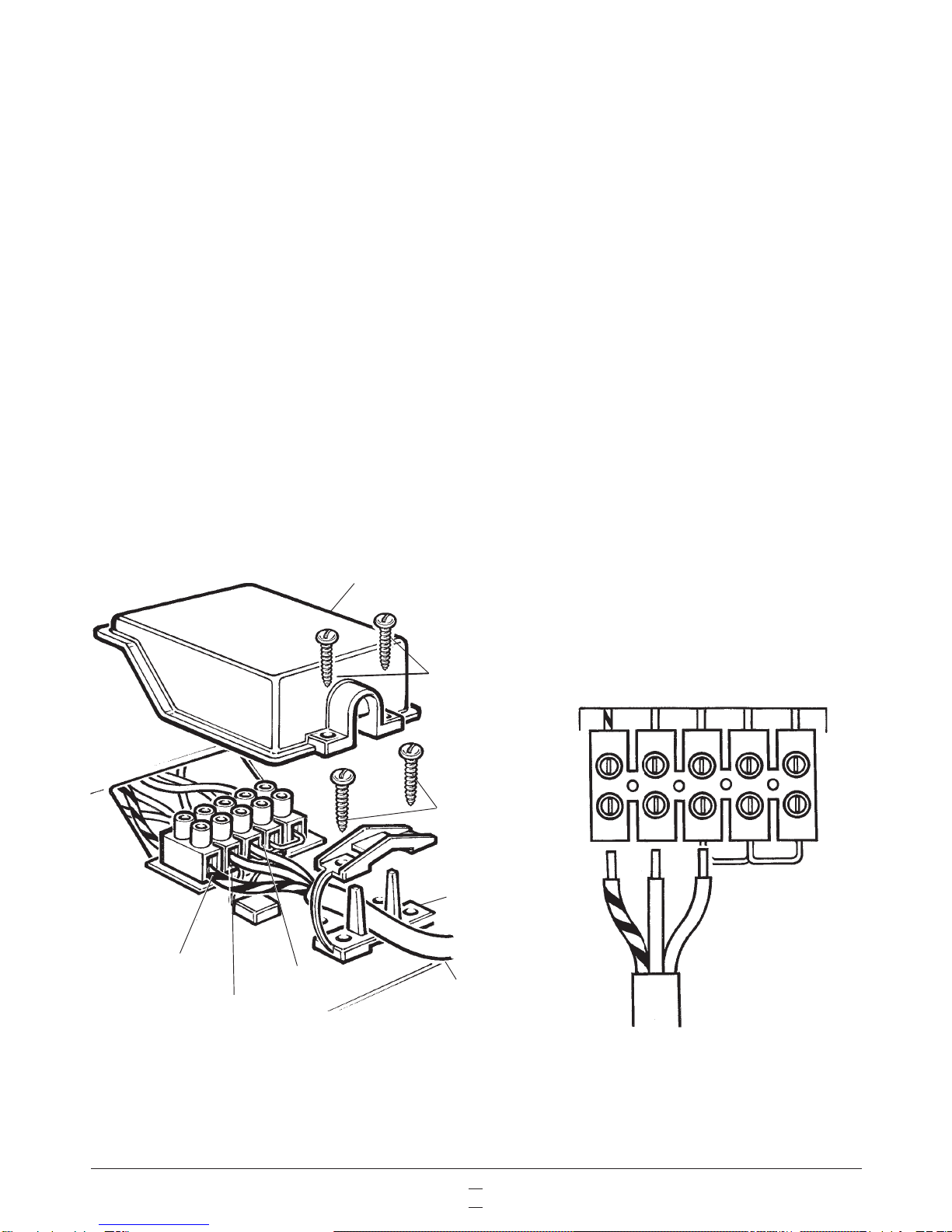

Hob electrical connection 8
Fitting the Hob 9
Fitting the Oven 10
Oven and hob preparation 10
Safety notes 11
Using the hob 12
Fire safety 12
Using the oven 13
Using the grill 14
Care of the hob 15
Cleaning the hob 15
Cleaning the oven 15
Cleaning the glass oven door 16
Changing the oven lamp 16
Mains lead replacement 17

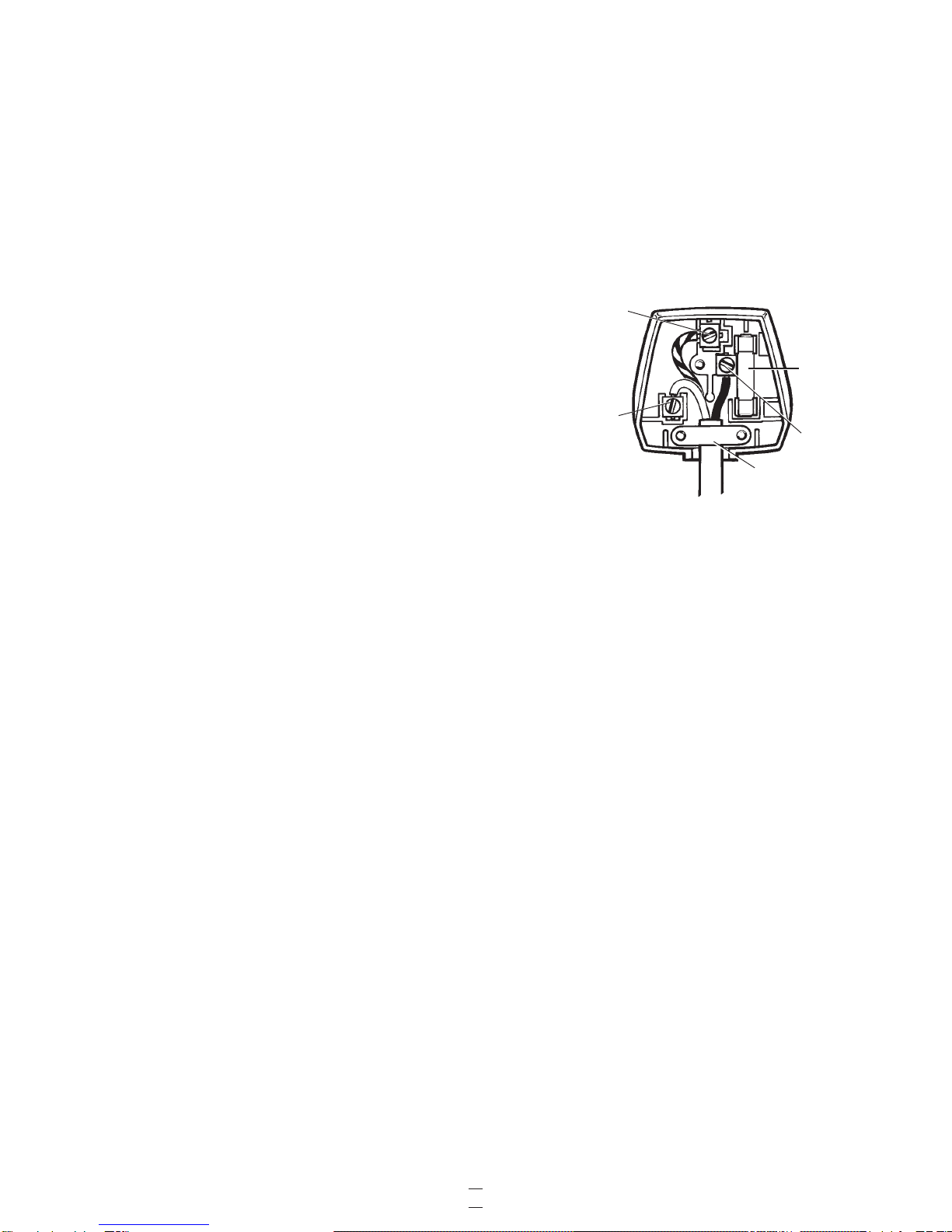

Plug replacement 17
For best cooking results 18
Troubleshooting guide 19
Customer Helpline Back page
Specification Back page
Safe product disposal Back page

3
Introduction
This quality oven and hob have been designed to provide trouble-free service provided they are installed
and maintained correctly. Both units are for domestic use only.
Please read these instructions carefully before installing or using your appliances. It is advisable to keep
your purchase and installation receipts with these instructions in a safe place for future reference. Included
is some important safety information, guidelines and recommendations to enable you to safely use your
oven and hob.
These appliances have been tested and certified to meet all applicable UK electrical and safety standards.
The hob must only be installed by a qualified electrician. The appliances must only be repaired by qualified
electricians or authorised service personnel. If not repaired properly you could be putting yourself and
others in danger. It will also invalidate the guarantee.
If you have any questions or need assistance please telephone the Helpline on 0844 871 0011.
When contacting the Helpline please have model numbers to hand.The oven’s model number is shown on
the data label which is visible by opening the door.The hob’s number is shown on the data label on the
underside of the casing.
Unpacking
Carefully remove all the packaging and lift out the appliances and accessories, watching out for sharp
edges.
Remove any tape or packing material used for transit, including any material inside the oven.
Check the appliances for any damage. If either unit has been damaged do not use it and contact the
retailer from whom the appliance was bought.
Retain the packaging until the units have been installed, removing it from the area of installation and
keeping it out of the reach of children.
Dispose of all the packaging in accordance with your local authority guidelines as well as any old appliance
that is being replaced – see safe oven disposal section.
Before installation
Before any installation work can be carried out a number of requirements must be met.
Make sure that you or your installer are familiar with all the relevant building and fire regulation
requirements before choosing the location of your appliance.
This appliance must be installed in accordance with the instructions to validate the guarantee.
Refer to the “Location” section for minimum clearances and safe placement of your appliances

4
Combined or Separate Installation
Figure 2 - separate installation
There are two installation options for this oven and hob pack:
1. Oven and hob combined in a single housing unit under a worktop, as shown in Figure 1.
2. Oven and hob installed separately into individual housing units as shown in Figure 2.
Before deciding on the position of your appliances, please read the ‘location’ and ‘housing dimensions’
sections that follow..
Figure 1 - combined installation
Location
Avoid installing the oven or hob next to a fridge, freezer or boiler.
It is best if the hob is surrounded by work surface, giving safe space to rest a hot pan and space to turn
handles so that they do not protrude into the walkway or become too hot over a neighbouring hotplate.
Hob clearance space
Certain minimum clearances must be allowed for when planning the unit’s location (Figure 3):
Beneath the work surface, allow the required clearance
for appliances or units to be installed below.
There should be an open space above the hob to
allow kitchen odours to disperse. A cooker hood may
be installed to either absorb or extract the odours.The
distance between the hob and the hood must not be
less than 650mm (Figure 3).
The distance between the hob and the back edge of
the worktop should be no less than 50mm (Figure 3).
Leave adequate clearance between the hob and
adjacent cupboards (no less than 150mm.)
To ensure that the hob is properly supported, the
distance between the hob cutout and the worktop end
should be no less than 60mm (Figure 3).
Ensure a gap of not less than 400mm between the
hob surface and overhanging cupboards. Figure 3 - minimum clearances (hob)
650mm
MIN
150mm MIN
50mm
60mm MIN
400mm
MIN

5
Safety Requirements
Ensure that the surrounding material is heat resistant and non-combustible.
The electricity supply must be routed near to the installation (see page 6).
There must not be any plugs, wires or sockets in the wall directly above or behind the hob.
Housing dimensions
Before starting the installation process, it is important to check that the appliances will fit into the units they
will be housed in. These dimensions apply equally to combined or separate installations.
Hob
The hob must be installed into a work surface, fitted with an opening cut into the surface so that the top
plate sits flush with the surface. It can be fitted above the oven, or separately, but in either case It is best
positioned directly above a 600mm wide fitted kitchen cabinet (Figure 4).
Oven
The oven can be installed into a housing unit of the correct dimensions, either below a worktop, or into a
separate floor standing unit. (Figure 5).
Location continued

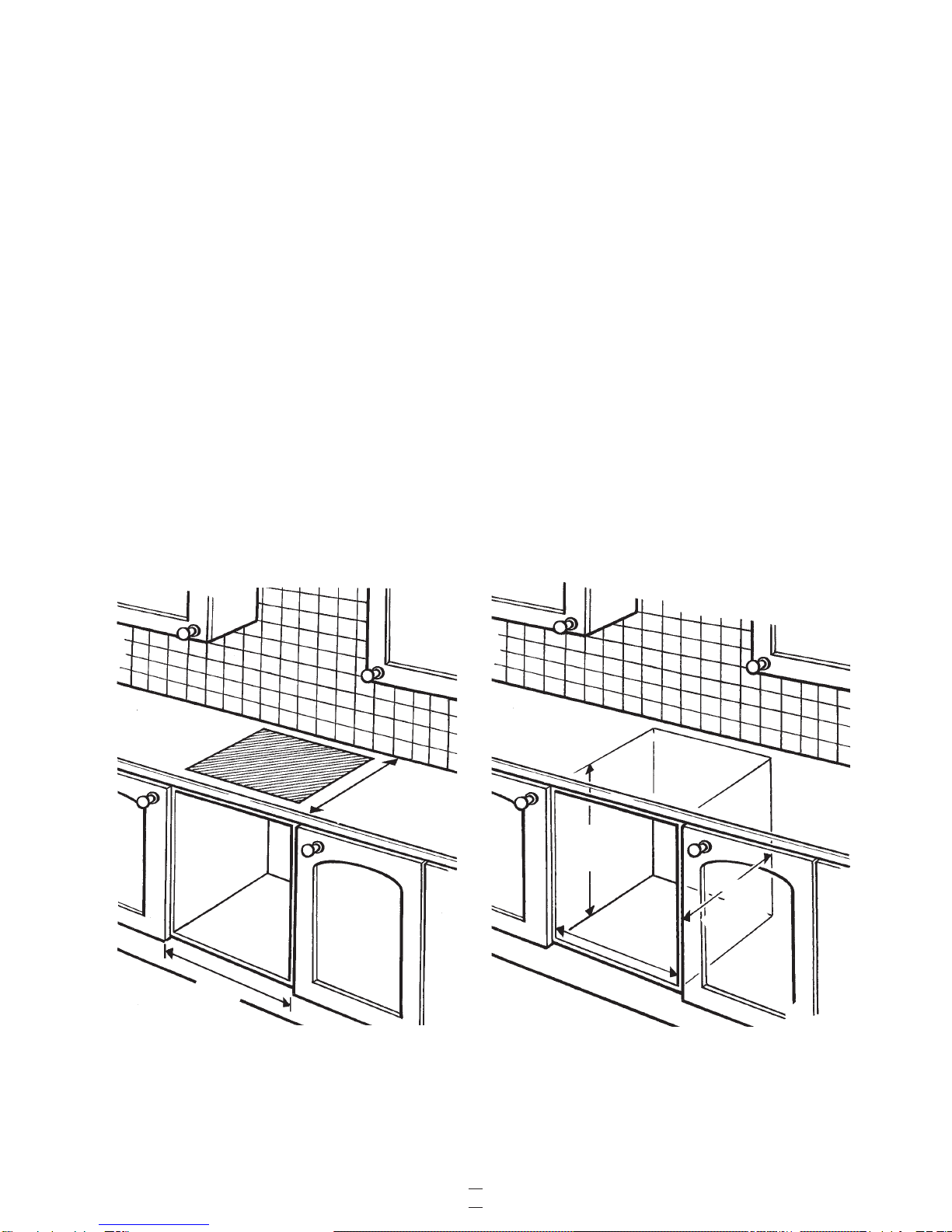

Figure 5 - oven housing dimensions
585mm
HEIGHT
MIN
565mm ±2
WIDTH
560mm
DEPTH
Figure 4 - hob housing dimensions
600mm
600mm MIN
