COPLAR BCA-LG-01 User manual

O
Op pe er ra at to or r’ ’s sM Ma an nu ua al lo of f
B
Br
ru us sh hC Cu ut tt te er rA At tt ta ac ch hm me en nt t
Thank you for buying our Gardening tools.
SAVE THIS MANUAL FOR FUTURE REFERENCE
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
BCA-LG-01

- 2 -
TABLE OF CONTENTS
Safety Rules 3-4
Assembly 5-6
Operation 7
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

- 3 -
SAFETY RULES
FEAD ALL INSTRUCTIONS
GENERAL SAFETYRULES
1 For sate operation, read and understand all instructions before using the brush cutter. Follow all safety
instructions. Failure to follow all safety instructionslisted below may result in serious personal injury.
2 Do not allow children or untrained individuals to use this unit.
3 Never start or run the engine in a closed or poorly ventilated area; breathing exhaust fumes can kill.
4Clear the work area before each use. Remove all objects such as stones, broken glass, nails, wire or which string
may be thrown or become entangled in the string head or blade.
5 Wear full eye and hearing protection whileoperating this unit.
6 Wear heavy long trousers, boots and gloves. Do not wear loose fitting clothing, shorts, jewellery of any kind, or
go barefoot.
7Secure long hair so it is above shoulder level to prevent entanglement in any moving parts.
8 Keep all bystanders, children and pets at lest 15 m (50 ft) away.
9 Do notoperate this unit when you aretired, ill or under the influence of alcohol, drugs of medication.
10 Do notoperate in poorlighting.
11 Keep firm footing and balance. Do not overreach. Overreaching may result in loss of balance or
exposure to hot surfaces.
12 Keep all parts of your body away from any moving part.
13 Inspect the unit before each use for loose fasteners, fuel leaks etc. Replace any damaged parts before use.
14 The string head or blade will rotate during power head adjustments.
15 It has been reported that vibrations from hand-held tools may contribute to a condition called Raynaud’s
Syndrome in certain individuals. Symptoms may include tingling, numbness and blanching of the fingers,
usually apparent upon exposure to cold. Hereditary factors, exposure to cold and dampness, diet, smoking and
work practices are all thought to contribute to the development of these symptoms. It is not known at present
what, if any, vibrations or extent of exposure may contribute to the condition. There are measures that can be
taken by the operator to possibly reduce the effects of vibration:
(1) Keep your body warm in cold weather. When operating the unit, wear gloves to keep the hands and wrists
warm. It is reported that cold weather is a major factor contributing to Raynaud’s Syndrome.
(2) After each period of operation, exercise to increase blood circulation.
(3) Take frequent work breaks. Limit the amount of exposure per day.
(4) Keep the tool well maintained, fasteners tightened and worn parts replaced.
If you experience any of the symptoms of this condition, immediately discontinue use and see your doctor about
these symptoms.
16 Mix fuel outdoors where there are no sparks or flames. Wipe up any fuel spillage. Move 9 m (30 ft) away from
refueling site before starting engine.
17 Stop the engine and allow to cool before refueling or storing the unit.
18 Allow the engine to cool; empty the fuel tank and secure the unit from moving before transporting in a vehicle.
WARNING:
D
o not attempt to operate the Brush Cutter until you have read thoroughly and understan
d
completely all instructions, safety rules etc contained in this manual. Failure to comply may result
in accidents involving fire, electric shock or serious personal injury. Save operator’s manual an
d
review frequently for continuing safe operation, and instructing others who may use this tool.
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

- 4 -
SAFETY RULES
SPECIFIC SAFETY RULES FOR STRIMMER USE
1. Replace string head if cracked, chipped or damaged in any way. Be sure the string head or blade is properly
installed and securely fastened. Failure to do so can cause serious injury.
2. Make sure all guards, straps, deflectors and handles are properly and securely attached.
3. Use only the manufacturer’s replacement string in the cutting head. Do not use any other cutting attachment.
4. Never operate unit without the grass deflector in place and in good condition.
5. Maintain a firm grip on both handles while trimming. Keep string head below waist level. Never cut with the
string head located over 76 cm (30 in) or mote above the ground.
SPECIFIC CAFETY RULES FOR BRUSHCUTTER AND BLADE USE
1. After engine stops, keep rotating blade in heavy grass or pulpy weeds until it stops.
2. Do notoperate the brush cutter unless the blade guard is firmly secured in place and in good condition.
3. Use heavy gloves while installing or removing blades.
4. Always stop the engine and remove the sparking plug wire before attempting to remove any obstruction caught or
jammed in the blade or before removing and installing the blade.
5. Do not attempt to touch or stop the blade when it is rotating.
6. A coasting blade can cause injury while it continues to spin after the engine is stopped or throttle trigger released.
Maintain proper control until the blade has completely stopped rotating.
7. Replace any damaged blade. Always make sure blade is installed correctly and securely fastened before each use.
Failure to do so may cause serious injury.
8. Use only the manufacturer’s replacement blade intended for use on this brush cutter. Do not use any other blade.
9. The blade is suited for cutting pulpy weeds and vines only. Do not use for any other purpose. Never use the blade
to cut woody brush.
10. Exercise extreme caution when using the blade with this unit.Blade thrust is the reaction which may occur when
the spinning blade contacts anything it cannot cut. This contact may cause the blade to stop for an instant and
suddenly “thrust” the unit away from the object that was hit. This reaction can be violent enough to cause the
operator to lose control of the unit. Blade thrust may occur without warning if the blade snags, stalls or binds. This
is more likely to occur in areas where it is difficult to see the material being cut. For cutting ease and safety,
approach the weeds being cut from the right to the left. In the event that an unexpected object or woody stock is
encountered, this could minimize the blade thrust reaction.
11. Never cut any material over 13 mm (1/2 in.) diameter.
12. Always wear the shoulder strap when using the brush cutter and adjust to a comfortable operating position.
Maintain a firm grip on both handles while cutting with a blade. Keep the blade away from body and below waist.
Never use the brush cutter with the blade located 76 cm (30 in) or more above the ground level.
13. Cover the blade with blade protector before storing the unit or during transport. Always remove the blade protector
before using the unit.If not removed, the blade protector could become a thrown object as the blade begins to turn.
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

- 5 -
ASSEMBLY

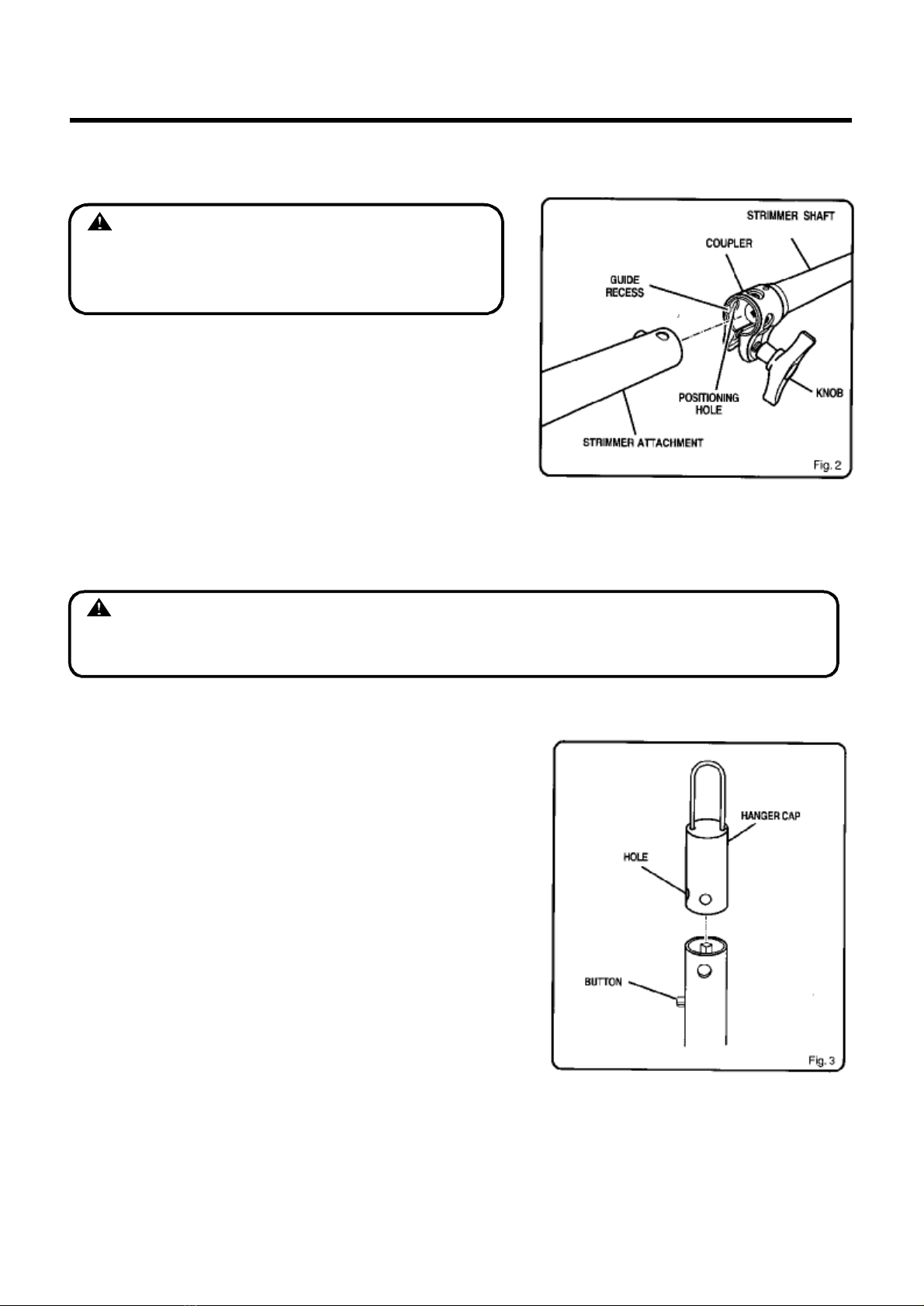

ATTACHING THE POWER HEAD TO THE TRIMMER ATTACHMENT
See Figure 2.
The trimmer attachment connects to the power head by means of a
coupler device.
1. Loosen the knob on the coupler of the power head shaft and
remove the end cap from the attachment.
2. Push in the button located on the trimmer attachment shaft.
Align the button with the guide recess on the power head
coupler and slide the two shafts together. Rotate the trimmer
attachment shaft unit the button locks into the positioning hole.
NOTE: If the button does not release completely in the positioning hole< the shafts are not locked into place.
Slightly rotate from side to side unit the button is locked into place.
3. Tighten the knob securely.
REMOVING THE ATTACHMENT FROM THE POWER HEAD
For removing or changing the attachment:
1. Loosen the knob.
3. Push in the button and twist the shafts to remove and separate
ends.
ATTACHMENT THE STORAGE HANGER
See Figure 3.
There are two ways to hang your attachment for storage.
1. To use the hanger cap, push in the button and place the
hanger cap over end of the lower end attachment shaft.
Slightly rotate the cap from side to side unit the button
locks into place.
2. The secondary hole in the attachment shaft can also be
used for hanging.
WARNING:
N
ever attach or adjust any attachment while power head i
s
running. Failure to stop the engine can cause serious
personal injury.
WARNING:
Be certain the knob is fully tightened before operating equipment; check it periodically for tightness during use
to avoid serious injury.
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

- 6 -
ASSEMBLY

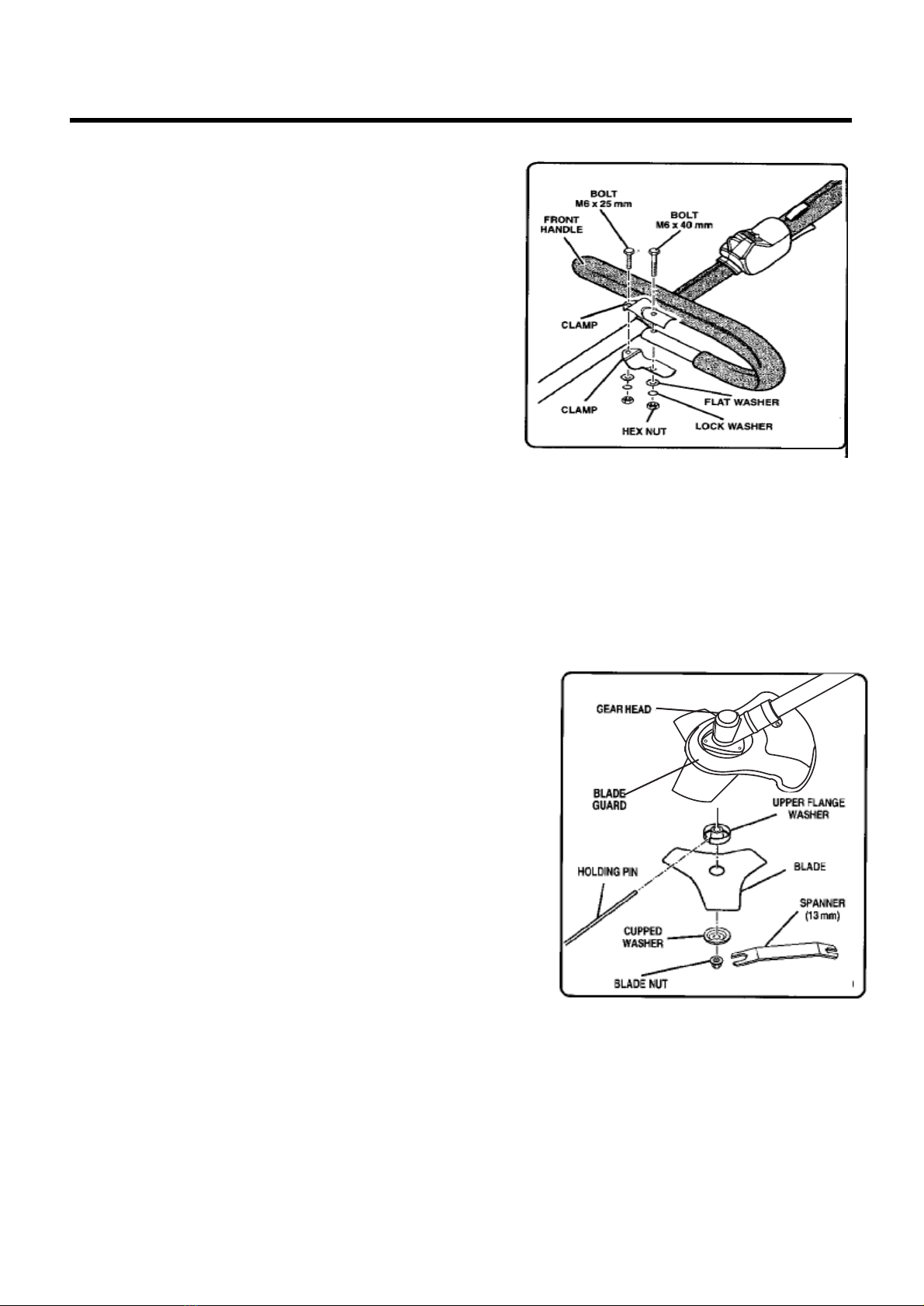

ATTACHMENT THE J-HANDLE
See Figure 4.
The J-handle included with the tiller attachment provide a
barrier to assist the operator in maintaining a safe
distance from the rotating tines, if the power head to
which the trimmer attachment will be mounted does have
such a handle, install the provide handle.
1. Hold the top and bottom clamp snugly in position on
the shaft housing so that handle will be located to the
operator’s left.
2. Insert the end of the handle between the clamp .
3. Align the belt holes and push the long bolt (M6 x
40mm) through the handle side.
4. Place short bolt (M6 x 25mm) through opposite side of clamp; insert flat washer, lock washer and
hex nuts to hold the assembly in place.
5. After assembly is complete, adjust the position of the handle for best balance and comfort.
6. Tighten first the long bolt and then the short bolt.
BLADE GUARD
1. Attach the blade guard to the mounting bracket; install the four screws (10-24 x 3/4 in) from the top
of the mounting bracket through the blade guard and into the threaded mounting plates.
2. Using the torque wrench supplied, tighten all four screws
securely.
INSTALLING THE BLADE
See Figure 5.
1. Place the upper flange washer over the gear shaft with the
hollow side towards the blade guard.
2. Center the blade on the upper flange, making sure the
blade sits flat. Install the cupped washer with the raised
center away from the blade. Install the blade nut. The
blade turns anticlockwise from the operator’s position.
3. Place the holding pin through the slot in the upper flange
washer and the hole in the gear head. Using the 13 mm
(1/2in) spanner supplied, turn the blade nut anticlockwise.
4. Tighten nut securely.
Fig.4
Fig.5
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com

- 7 -
OPERATION

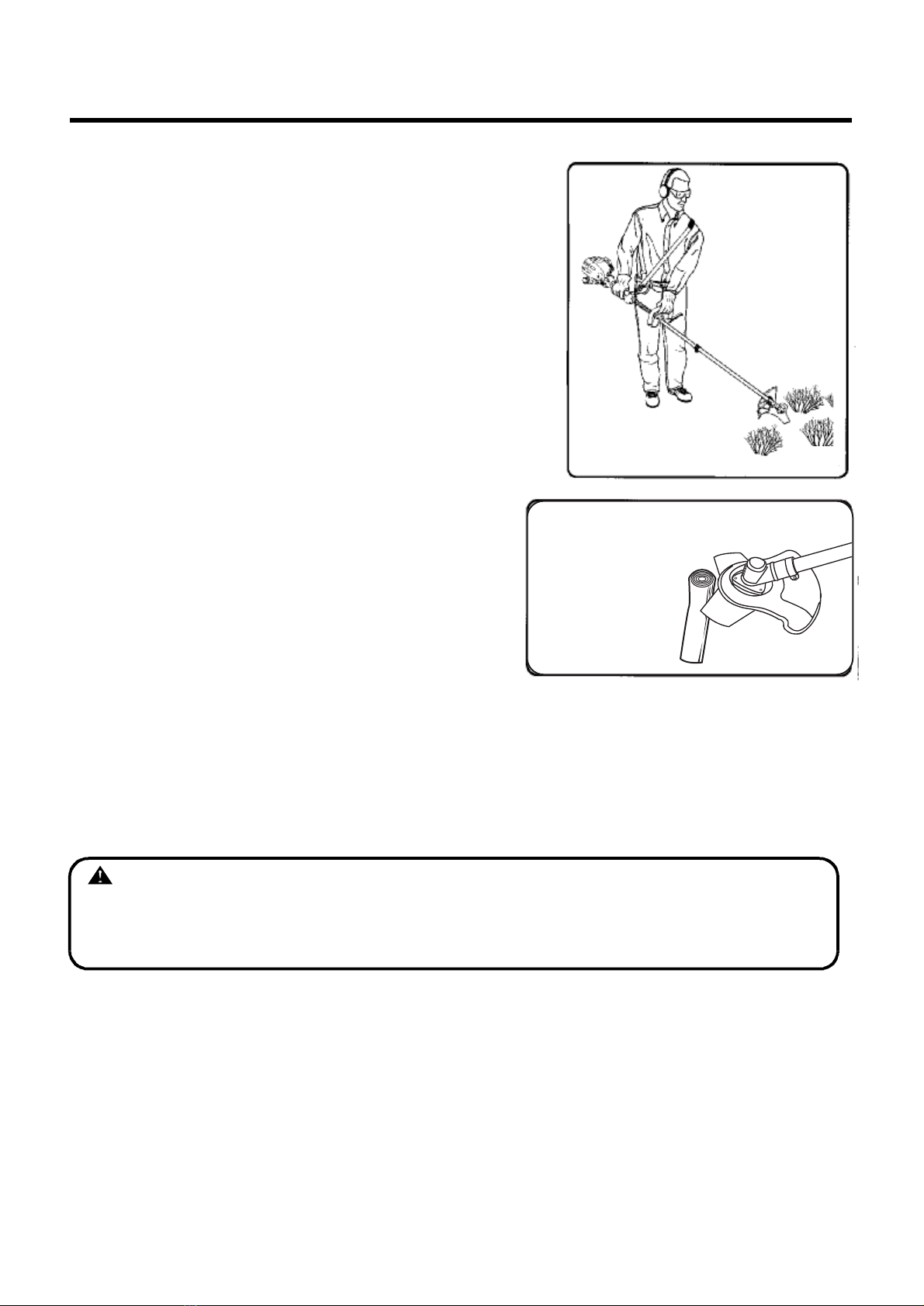

OPERATING THE BRUSHCUTTER
Hold the brush cutter with the right hand on the rear handle and the
left hand on the from handle. Keep a firm grip with both hands while
in operation. Brush cutter should be held at a comfortable position
with the trigger handle about hip height. Maintain your grip and
balance on both feet.
Position yourself so that you will not be drawn off balance by the
kick-back reaction of the cutting blade.
Adjust the shoulder strap to position the brush cutter at a comfortable
operating position and to ensure that the shoulder strap will reduce the
risk of operator contact with theblade. See Figure 6.
Exercise extreme caution when using the blade with this unit. Blade
thrust is the reaction which may occur when the spinning blade
contacts anything it cannot cut. This contact may cause the blade to
stop for an instant, and suddenly “thrust” the unit away from the
object that was hit. This reaction can be violent enough to cause
the operator to lose control of the unit. Blade thrust may occur
without warning if the blade snags, stalls, or binds. This is more
likely to occur in areas where it is difficult to see the material
being cut. For cutting ease and safety, approach the weeds being
cut from the right to the left. In the event that an unexpected
object or woody stock is encountered, this could minimize the
blade thrust reaction.See Figure 7.
BLADE
The blade is suited only for pulpy weeds and vines. When the blade becomes dull, it can be turned over
to extend the life of the blade. Do not sharpen the blade.
CUTTING TECHNIQUE – BLADE
1. Always hold brush cutter with both hands when operating. Use a firm grip on both handles.
2. Maintain your grip and balance on both feet. Position yourself so that you will not be drawn off
balance by the kick-back reaction of the cutting blade.
3. Inspect and clear the area of any hidden objects such as glass, stones, concrete, fencing, wire, wood,
metal etc.
4. Never use blades near footpaths, fencing posts, buildings or other immovable objects.
5. Never use a blade after hitting a hard object without first inspecting it for damage. Do not use if any
damage is detected.
6. The unit is used as a scythe, cutting from the fight to the left in a broad sweeping action from side to
side.
WARNING:
E
xtreme care must be taken when using blades to insure safe operation. Read the safet
y
information for safe operation using the blade. Refer to “Specific Safety Rules for Brush cutte
r
and Blade Use” earlier in this manual.
Fig.6
Fig.7
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
APPROACH THE WEEDS BEING
CUT FROM THE RIGHT.THE
WEEDS WILL BE CUT AGAINST
TH LEFT SIDE OF THE BLADE
GUARD.
Fig.7
