Operator’s Manual
1696899 Brush Cutter - 82V Attachment
1696899-
1
82V
Complemento -
Ma
1696899
Manuale per l’operatore
1
Acceso
1
1696899
it
hr
fi
et
es
el
de
da
cs
bg
fr
ru
ro
sk
sl
ar
tr
sv
lt
lv
nl
no
pt
Not for
Reproduction

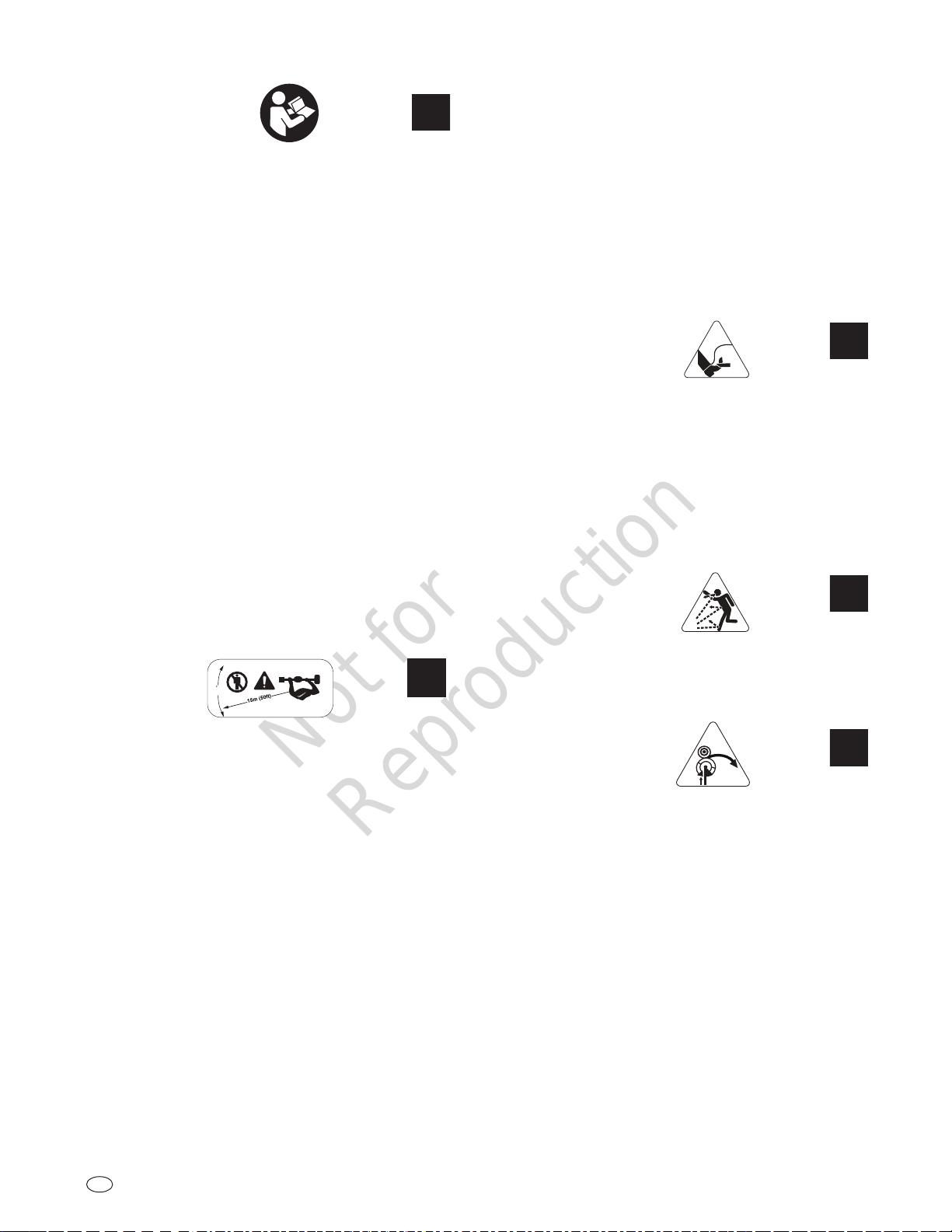

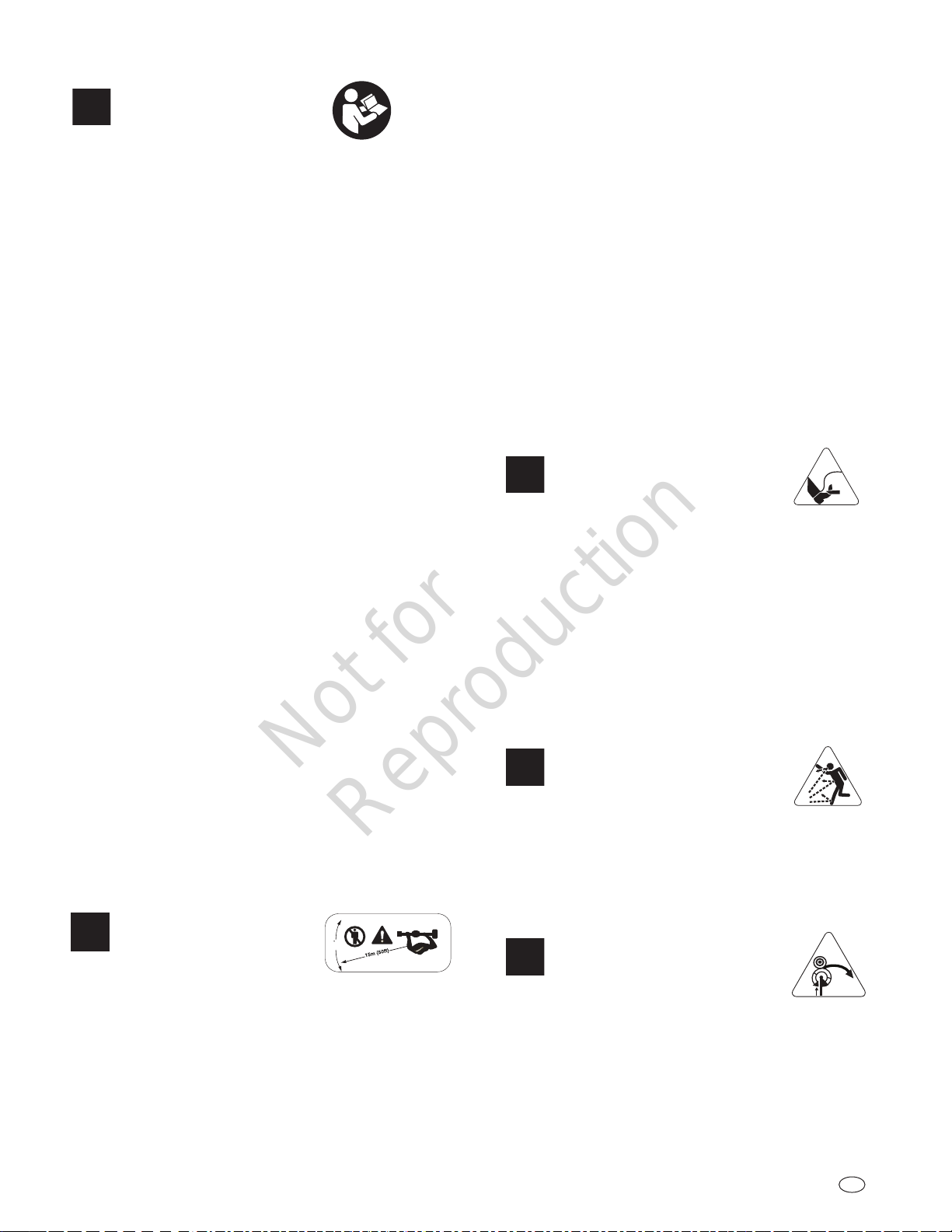

Safety information about hazards that
can result in personal injury.
Read the directions for use of brush
cutter before operating the machine.
Thrown objects hazard - Wear eye
protection.
Noise hazard - Wear ear protection.
Wear safety gloves and boots.
Protect the machine from rain and
damp environments.
Blade thrust hazard - Risk of a loss of
control of the unit if the blade contacts
a solid object it can not cut.
Cutting hazard from the blade - Keep
hands and feet away from the blade.
Thrown objects hazard - The blade
can throw objects if it contacts them.
All bystanders must be kept at least
50 ft (15m) away from machine.
Manual Contents:
....................... 2
........................... 2
........................ 4
................................ 4
................................ 4
.................................. 4
.............................. 5
.......................... 5
................................. 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
The illustrations in this document are representative.The
unit may vary from the images displayed. LEFT and RIGHT
are referenced from the operator’s position.
exceptions, or alternatives to the procedures given.
All language translations of this document are derived from
This
manual contains safety information to make you aware of
the hazards and risks associated with the product and how
to avoid them. It also contains important instructions that
should be followed during the initial set-up, operation, and
maintenance of the product.
It is important that you read and understand these instructions
before attempting to start or operate this equipment.

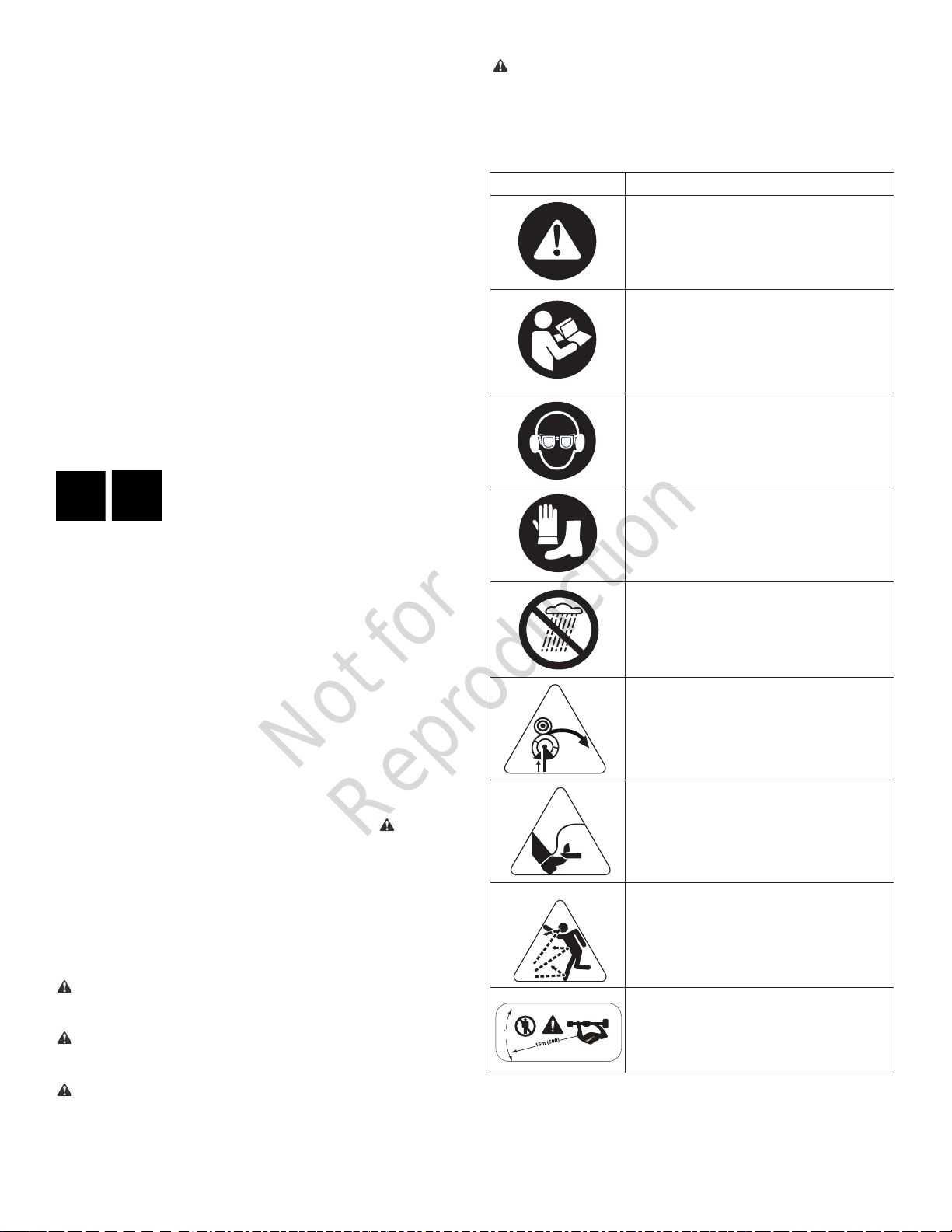

The safety alert symbol
about hazards that can result in personal injury. A signal
word (DANGER, WARNING, or CAUTION) is used with the
alert symbol to indicate the likelihood and the potential
severity of injury. In addition, a hazard symbol may be used
to represent the type of hazard.
indicates a hazard which, if not avoided, will
result in death or serious injury.
indicates a hazard which, if not avoided,
could result in death or serious injury.
CAUTION indicates a hazard which, if not avoided,
could result in minor or moderate injury.
NOTICE indicates an action that could result in damage to
the product.
This product can expose you to chemicals including
lead and lead compounds, which are known to the State
of California to cause cancer and birth defects or other
reproductive harm. For more information go to www.
P65Warnings.ca.gov.
360
2
Not for
Reproduction
Do not operate the brush cutter attachment before reading
all Safety and Handling sections.
• Stay alert.Watch what you are doing when operating a
power tool. Do not operate the brush cutter under the
influence of alcohol, drugs or medication or when you
are tired or sick.
• Do not operate the brush cutter for any other purpose
except that for which it is intended.
• Use only manufacturer’s genuine recommended
replacement parts and accessories.
•
The operation of any power tool can result in foreign
objects being thrown into your eyes, which can result in
severe eye damage. Always wear safety glasses with side
shield. Always wear nonslip safety shoes, ear muffs and
gloves.
• Know the brush cutter controls and learn how to stop
operating the unit quickly in an emergency by releasing
the “ON / OFF” switch.
• Before using the brush cutter, make sure that the blade
assembly is not worn or damaged.
• Dress properly. Do not wear loose clothing or jewelry or
long hair which can be caught in moving parts.
• Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust. Power tools can create sparks which may ignite
the dust or fumes.
• Operate only in daylight or good artificial light. Never
operate in bad weather, especially when there is a risk
of lightning.
• Keep your work area clean and well lit.
Bystanders must be kept at least 50 ft (15 m) away from
cutting head during operation.
• Stop the machine immediatedly if approached.
• Be careful when turning or swinging the unit.
• Look before turning or changing direction.
• Walk with the brush cutter. Never run.
• To maintain full control of the brush cutter, keep a proper
footing at all times with your weight evenly balanced
over both feet and never over reach. Use both hands
when operating the brush cutter.
• Always keep the handle dry and free from oil and
grease.
• Do not force the brush cutter. Always use the correct
tool for your application.
• Do not use the brush cutter if the switch does not turn it
ON and OFF.
• Store idle power tools out of the reach of children.
Do not allow persons unfamilar with the power tool or
these instructions to operate the power tool.
• Keep all body parts, especially hands away from moving
parts when the brush cutter is running.
• Always stop the brush cutter and remove battery if the
following conditions apply:
- before clearing any blockage.
- before assemblying, checking, cleaning or working on
the unit.
- whenever leaving the brush cutter unattended.
- If the unit becomes jammed.
This tool is capable of throwing objects that could result in
serious injury.
• Inspect the work area and remove stones, pieces of
metal or other objects that could be thrown.
Blade Thrust is a sudden movement of the cutting head
when it contacts an object , it can not cut through. Blade
Thrust can lead to a loss of control of the tool which could
result in serious injury to the operator or bystanders.
• Use caution when cutting near solid objects such as
rocks, trees or posts.
360
en
3
Not for
Reproduction
()
1Insert brush cutter pole into pole on power head.
2Press button on pole to allow power head pole to lock
into place.
Tighten knob on power head pole.
When transporting or storing the brush cutter, always
remove the battery. Proper handling of the brush cutter will
reduce the risk of personal injury from the cutter blades.
3
1
2
B
A
Figure 1
Figure 2
ABrush cutter attachment
BDebris guard
()
1. Remove the existing auxiliary handle from the pole.
2. Slide clamp () over rubber sleeve ().
3. Slide pole through the auxiliary handle ().
4. Slide washer (F) over the pole.
5.
Insert two screws (C) through holes in handle extension ()
.
6. Line up holes in handle extension () with holes in
auxiliary handle and holes in clamp . Attach
handle extension to auxiliary handle and the pole using
screws (C) and nuts on the clamp, with the distance no
less than 15cm from the coupling.Tighten with a wrench.
Make sure the direction of the auxiliary handle is opposite
to the blade.
Figure 3
C
F
4
Not for
Reproduction
Periodically check the brush cutter for misalignment,
binding of moving parts, breakage of parts and any other
condition that may affect the brush cutter operation. If
damaged, have the unit repaired before use.
Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to bind
and are easier to control.
All maintenance, repair and inspection work should be
performed by an authorized service center.
Refer to the following table for routine maintenance.
start
Visual inspection
• •
Inspect and
check assembly
•
Check •
Retighten • •
The following chart lists problems, causes and corrective
actions if your brush cutter does not operate properly. If
these do not correct the problem, contact an authorized
service center.
Drive cables not engaged. Disconnect the poles; make sure the drive cables engage
as poles are connected.
Dull cutting blades. Replace the blade assembly.
Loose fasteners. Tighten fasteners.
en
5
Not for
Reproduction
0010
Reference Only
0020
Reference Only
0026
0025
0024
0023
0021
0022
0014
0011
0012
0013
Reference Only
0030
0031
0032
0033
0036
0034
0035

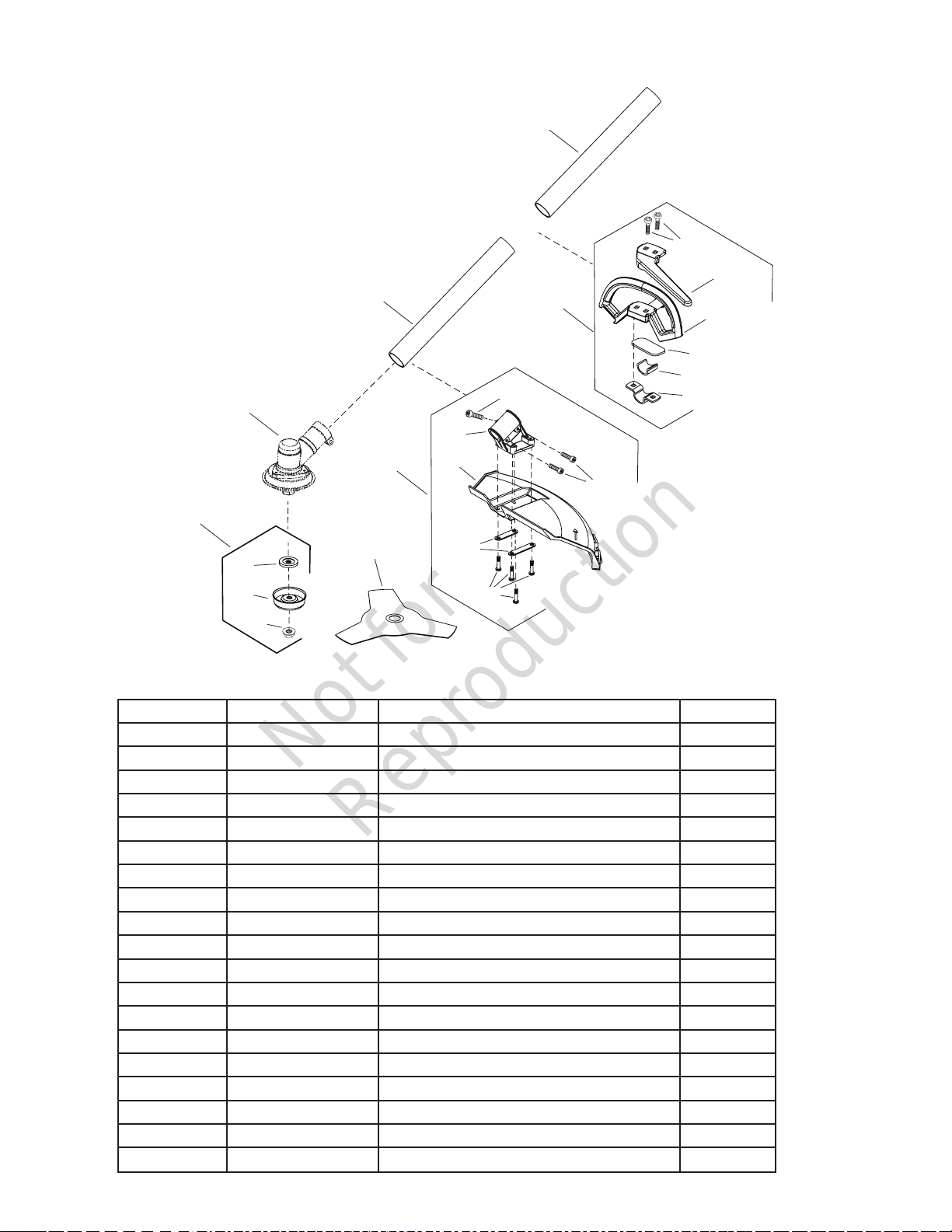

ITEM NO. PART NO. DESCRIPTION QTY
0010 771012 COUPLING 1
0011 ----- PLATE, PRESSURE 1
0012 ----- CUP 1
0013 ----- NUT, M10-1.25 1
0014 84003805 BLADE ASSEMBLY 1
0020 771013 GUARD ASSEMBLY 1
0021 ----- CAPSCREW, M5-14 1
0022 ----- CAPSCREW, M5-20 2
0023 ----- CLAMP 1
0024 ----- GUARD 1
0025 ----- PLATE 2
0026 ----- BOLT, M5-20 4
0030 771520 KIT, HANDLE 1
0031 ----- SCREW 2
0032 ----- HANDLE, AUXILIARY 1
0033 ----- HANDLE 1
0034 ----- PAD 1
0035 ----- CLAMP 1
0036 ----- RUBBER RING 1
6
Not for
Reproduction
Briggs & Stratton warrants that, during the warranty period specified below, it will repair or replace, free of charge, any part that is defective in material or workmanship
or both.Transportation charges on product submitted for repair or replacement under this warranty must be borne by purchaser.This warranty is effective for and is
subject to the time periods and conditions stated below. For warranty service, find the nearest Authorized Service Dealer in our dealer locator map at www.snapper.
com.The purchaser must contact the Authorized Service Dealer, and then make the product available to the Authorized Service Dealer for inspection and testing.
.
Some states or countries do not allow limitations on how long an implied warranty lasts, and some states or countries do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation and exclusion may not apply to you.This warranty gives you specific legal rights and you may also have
other rights which vary from state to state or country to country.**
** In Australia - Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable loss or damage.You are also entitled to have the goods repaired or replaced if the goods fail to be
of acceptable quality and the failure does not amount to a major failure. For warranty service, find the nearest Authorized Service Dealer in our dealer locator map at
BRIGGSandSTRATTON.COM, or by calling 1300 274 447, or by emailing or writing to salesenquir[email protected], Briggs & Stratton Australia Pty Ltd, 1
Moorebank Avenue, NSW, Australia, 2170.
The warranty period begins on the date of purchase by the first retail or commercial consumer. “Consumer use” means personal residential household use by a retail
consumer. “Commercial use” means all other uses, including use for commercial, income producing or rental purposes. Once a product has experienced commercial use, it
shall thereafter be considered as a commercial use product for purposes of this warranty.
To ensure prompt and complete warranty coverage, register your product on-line at www.onlineproductregistration.com.
Save your proof of purchase receipt. If you do not provide proof of the initial purchase date at the time warranty service is requested, the manufacturing date of the product
will be used to determine the warranty period. Product registration is not required to obtain warranty service on Briggs & Stratton products.
Warranty service is available only through Snapper Authorized Service Dealers.This warranty covers only defects in materials or workmanship. It does not cover damage
caused by improper use or abuse, improper maintenance or repair, or normal wear and tear.
- The proper, intended use of this product is described in the Operator’s Manual. Using the product in a way not described in the Operator’s
Manual or using the product after it has been damaged will not be covered under this warranty. Warranty coverage will also not be provided if the serial number on the
product has been removed or the product has been altered or modified in any way, or if the product has evidence of abuse such as impact damage or water/chemical
corrosion damage.
- This product must be maintained according to the procedures and schedules provided in the Operator’s Manual, and serviced or
repaired using genuine Briggs & Stratton parts or equivalent. Damage caused by lack of maintenance or use of non-original parts is not covered by warranty.
- Like most mechanical devices, your unit is subject to wear even when properly maintained.This warranty does not cover repairs when normal
use has exhausted the life of a part or the equipment. Maintenance and wear items such as filters, belts, cutting blades, and brake pads (except engine brake pads) are not
covered by warranty due to wear characteristics alone, unless the cause is due to defects in material or workmanship.
This warranty excludes damage due to accident, abuse, modifications, alterations, improper servicing, freezing or chemical deterioration. Attachments
or accessories that were not originally packaged with the product are also excluded.This warranty does not include used, reconditioned, second-hand, or demonstration
equipment or engines.This warranty also excludes failures due to acts of God and other force majeure events beyond the manufacturer’s control.
Item Consumer Use
Accessory/Attachment/Equipment 36 months None
80025908_EN Rev A
en
7
Not for
Reproduction
1550
360
3
ar
Not for
Reproduction
1550
4
4
4
4
5
5
6
7
.www.P65Warnings.ca.gov
360
2
Not for
Reproduction
5
ar
Not for
Reproduction
3(
1
3
3
1
2
1
2
(
1
2
3
4
.5
.
(
6
15
3
4
Not for
Reproduction
Briggs & Stratton
www.snapper.com
.
**
Briggs & Stratton[email protected]1300 274 447BRIGGSandSTRATTON.COM
.Australia Pty Ltd, 1 Moorebank Avenue, NSW, Australia, 2170
.www.onlineproductregistration.com
.Briggs & Stratton
Snapper
Briggs & Stratton
36
80025908_AR Rev A
7
ar
Not for
Reproduction
0010
Reference Only
0020
Reference Only
0026
0025
0024
0023
0021
0022
0014
0011
0012
0013
Reference Only
0030
0031
0032
0033
0036
0034
0035
0010771012100111001210013100148400380510020771013100211002220023100241002520026400307715201003120032100331003410035100361
6
Not for
Reproduction
....................... 2
................ 2
......................... 4
.............................. 4
................................... 4
.............................. 4
.................. 5
5
........................... 6
................................ 7
ЛЯВОДЯСНО
ЗАБЕЛЕЖКА
360
2
Not for
Reproduction
•
(ON / OFF).
360
bg
3
Not for
Reproduction
()
1
2
3
1
2
B
A
A
B
()
).
).
5.
C
)
.
)
C
C
F
4
Not for
Reproduction
• •
•
•
• •
bg
5
Not for
Reproduction
0010
Reference Only
0020
Reference Only
0026
0025
0024
0023
0021
0022
0014
0011
0012
0013
Reference Only
0030
0031
0032
0033
0036
0034
0035
0010 771012 1
0011 ----- 1
0012 ----- 1
0013 ----- 1
0014 84003805 1
0020 771013 1
0021 ----- 1
0022 ----- 2
0023 ----- 1
0024 ----- 1
0025 ----- 2
0026 ----- 4
0030 771520 1
0031 ----- 2
0032 ----- 1
0033 ----- 1
0034 ----- 1
0035 ----- 1
0036 ----- 1
6
Not for
Reproduction
80025908_BG Rev A
.
.**
**
NSW, Australia, 2170.
bg
7
Not for
Reproduction
sluchu.
vysoké boty.
15 m od stroje.
...................... 2
....................... 2
.............................. 4
................................... 4
................................. 4
............................... 4
................................... 5
.......................... 5
.............................. 6
................................... 7
LEVÁ a PRAVÁ
jsou zobrazeny z pozice obsluhy.
Tento návod
POZOR
UPOZORNĚNÍ ukazuje na situaci, která by mohla vést k
P65Warnings.ca.gov.
360
2
Table of contents
Languages:
Other Briggs & Stratton Brush Cutter manuals
Popular Brush Cutter manuals by other brands
STERWINS
STERWINS ETHT2-50.3 Safety instructions
Swisher
Swisher ZTR51RC owner's manual
Fieldmann
Fieldmann FZS 5003 B manual
Dolmar
Dolmar MS-260 U, MS-330 U, MS-430 U, MS-230 C, MS-260 C, MS-330... instruction manual
Stanley
Stanley SPS-900 Original instructions
Kubota
Kubota KBC26-RS Owner's/operator's manual
Tonino Lamborghini
Tonino Lamborghini PB 33SB TL Translation of the original operating instructions
Stiga
Stiga B 26 JA Operator's manual
Patriot
Patriot TBC 261D Operating and maintenance instructions
Tanaka
Tanaka Trimmer/Brushcutter TBC-202 parts catalog
Zenoah
Zenoah BCX2600S Owner's/operator's manual
Titan
Titan TTT817GBC instructions
