Cornwell Tools CAT355HD User manual

CAT355HD 1 rev. 02/05/16
Operating Instructions • Warning Information • Parts Breakdown
CAT355HD
1/2"Dr.
Heavy Duty
Reversible Air Drill
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• leadfromlead-basedpaints,
• crystallinesilicafrombricksandcementandothermasonry
products, and
• arsenicandchromiumfromchemically-treatedlumber.
Your risk from these exposures varies, depending on how often you do this
type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those
dust masks that are specially designed to filter out microscopic particles.
Chuck Size ...........................1/2"
Rated Horsepower ................. 0.5 h.p.
Max. Torque...................... 8.1 ft-lbs
Free Speed ....................... 800 RPM
Average Air Consumption ........... 3.4 cfm
Sound Pressure Level ................82 dBA
Vibration Level M/S2................0.4 M/S2
Overall Length.......................8.66"
Weight ............................2.9 Lbs
Air Inlet ......................... 1/4" NPT
Minimum Hose Size ................3/8" HD
Side Handle Included (yes/no) ............Yes
Recommended Air Pressure ............90 psi
SPECIFICATIONS
Copyright © Professional Tool Products, 2016
All rights reserved
ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
ALWAYS WEAR
HEARING
PROTECTION
AVOID
PROLONGED
EXPOSURE TO
VIBRATION
WARNING
WARNING

CAT355HD 2 rev. 02/05/16

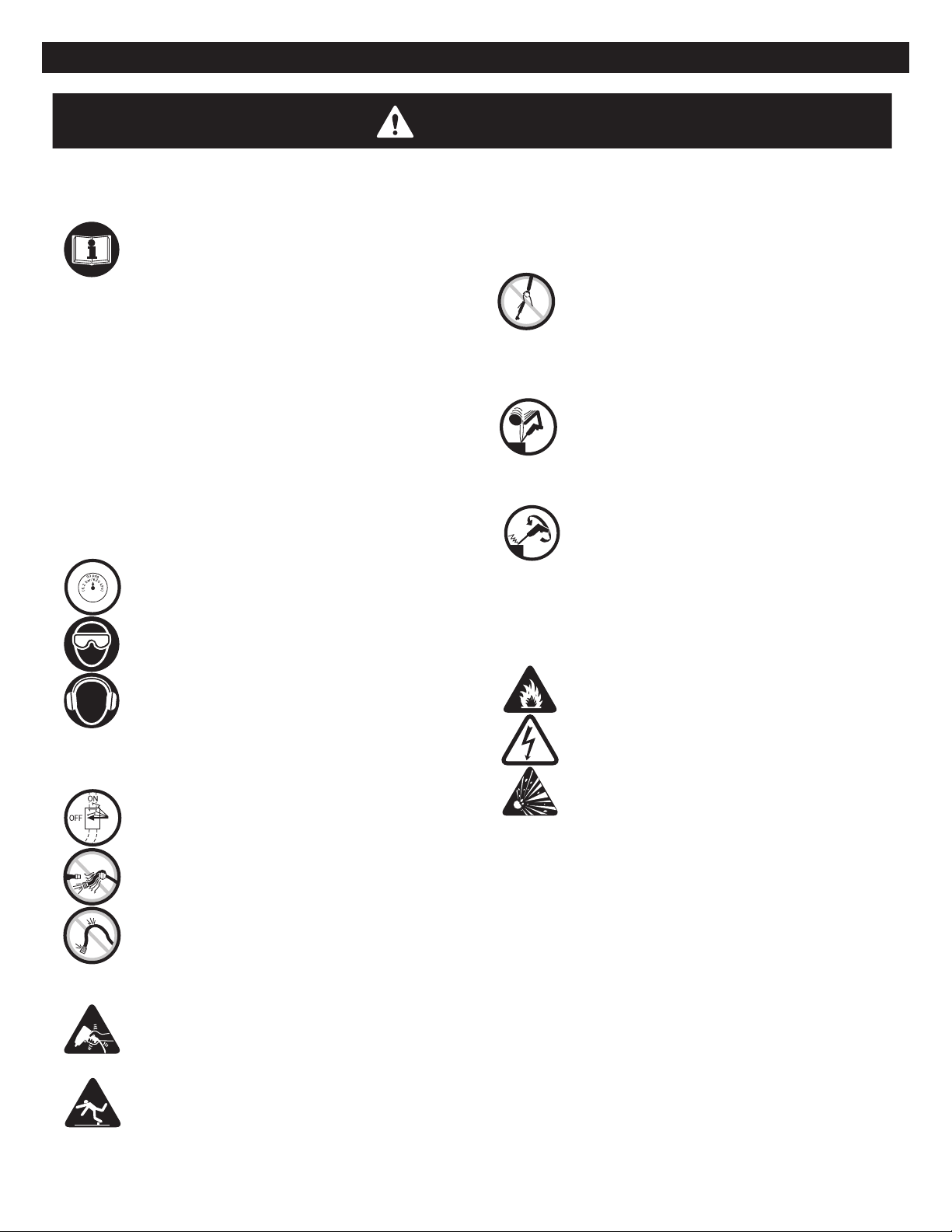

WARNING - FOLLOW THESE RULES FOR SAFE OPERATION!
FAILURE TO OBSERVE THESE WARNINGS COULD RESULT IN INJURY.
WARNING
THIS INSTRUCTION MANUAL CONTAINS
IMPORTANT SAFETY INFORMATION.
READ THIS INSTRUCTION MANUAL CAREFULLY
AND UNDERSTAND ALL INFORMATION BEFORE
OPERATING THIS TOOL.
• Read and understand all instructions. Failure to follow
 all instructions listed below, may result in electric
 shock, fire, explosion and/or serious personal injury.
 It is the responsibility of the owner to make sure all
 personnelreadthismanualpriortousingthetool.Itis
 also the responsibility of the tool owner to keep this
 manual intact and in a convenient location for all to
 see and read. If the manual or product labels are lost
 ornotlegible,contactCornwellToolsforreplacements.
 If the operator is not fluent in English, the product
 and safety instructions shall be read and discussed
 withtheoperatorintheoperator's native language by
 thepurchaser/ownerorhisdesignee,makingsurethat
 theoperatorcomprehendsitscontents.
• Always operate, inspect and maintain this tool in
 accordancewithAmericanNationalStandardsInstitute
 SafetyCodeofPortableAirTools(ANSIB186.1)andany
 otherapplicablesafetycodesandregulations.
• For safety, top performance and maximum durability of
 parts, operate this tool at 90 psig; 6.2 bar max air
 pressurewith3/8"diameterairsupplyhose.
• Always wear impact-resistant eye protection when
 operatingorperformingmaintenanceonthistool(users
 andbystanders).
• High sound levels can cause permanent hearing loss.
 Alwaysusehearingprotectionasrecommendedbyyour
 employer an OSHA regulations while using this tool
 (usersandbystanders).
• Keepthetoolinefficientoperatingcondition.
• Operators and maintenance personnel must be
 physicallyabletohandlethebulk,weightandpowerof
 thistool.
• Airunderpressurecancausesevereinjury.Neverdirect
 airatyourselforothers.Alwaysturnofftheairsupply,
 drainhoseofairpressureanddetachtoolfromairsupply
 before installing, removing or adjusting any accessory
 onthistool,orbeforeperforminganymaintenanceon
 this tool. Failure to do so could result in injury. Whip
 hoses can cause serious injury. Always check for
 damaged,frayedorloosehosesandfittings,andreplace
 immediately.Donotusequickdetachcouplingsattool.
 Seeinstructionsforcorrectset-up.
• Keeptooloutofreachofchildren.
• Airpoweredtoolscanvibrateinuse.Vibration,repetitive
 motions or uncomfortable positions over extended
 periodsoftimemaybeharmfultoyourhandsandarms.
 Discontinue use of tool if discomfort, tingling feeling or
 painoccurs.Seekmedicaladvicebeforeresuminguse.
• Slipping, tripping and/or falling while operating air
 tools can be a major cause of serious injury or
 death. Be aware of excess hose left on the walking
 orworksurface.
• Keep body working stance balanced and firm. Do
 notoverreachwhenoperatingthetool.
• Placethetoolontheworkbeforestartingthetool.Donot
 pointorindulgeinanyhorseplaywiththistool.
• Anticipate and be alert for sudden changes in motion
 duringstartupandoperationofanypowertool.
• Do not carry tool by the hose. Protect the hose from
 sharpobjectsandheat.
• Tool shaft may continue to rotate briefly after
 throttle is released. Avoid direct contact with
 accessories during andafter use. Gloves will
 reducetheriskofcutsorburns.
• Keep away from rotating end of tool. Do not wear
jewelry or loose clothing. Secure long hair. Scalping
 can occur if hair is not kept away from tool and
 accessories. Choking can occur if neckwear is not
 keptawayfromtoolandaccessories.
• Do not use (or modify) the tool for any other purpose
 thanthatforwhichitwasdesignedwithoutconsulting
 themanufacturer'sauthorizedrepresentative.
• Drillbitscanbindsuddenlyandcauserotationofthe
 work piece or tool, causing injury to arms and/or
 shoulders.Enoughtorqueisgeneratedtocausefalls.
 Always use sharp bits. Use less downward pressure
 atbreakthrough.
• Never use dull, chipped or damaged accessories.
 Never cool a hot accessory in water as brittleness
 and early failure can result. Accessory breakage or
 tooldamagemayresultfromprying.Takesmallerbites
 toavoidgettingstuck.
• UseaccessoriesrecommendedbyCornwellTools.
• Donotlubricatetoolswithflammableorvolatileliquids
 suchaskerosene,dieselorjetfuel.
• Thistoolisnotinsulatedagainstelectricshock.
• Thistoolmustnotbeusedinexplosiveatmospheres.
• Servicing and repairs should only be made by an
 authorizedservicecenter.
• Donotforcetoolbeyonditsratedcapacity.
• Donotremoveanylabels.Replacedamagedlabels.
• Thisproductmaycontainoneormorechemicalsknown
 to the State of California to cause cancer and birth
 defects or other reproductive harm. Wash hands
thoroughly after handling.
• Failure to heed these warnings may result in personal
 injuryand/orpropertydamage.

CAT355HD 3 rev. 02/05/16
TROUBLESHOOTING
Other factors outside the tool may cause loss of power or erratic action.
Reduced compressor output, excessive drain on the air line, moisture or
restrictions in air pipes or the use of hose connections of improper size or poor
conditions may reduce air supply. If outside conditions are in order, and the
tool still performs erratically, disconnect tool from hose and take tool to your
nearest Cornwell authorized service center.
OPERATION
Locate center of new hole by using a center punch. Place drill bit tip in punch
mark. Hold drill square with work and start motor. Apply steady, even pressure.
Do not force. Too much pressure can cause bit to break or overheat. Too little
pressure will keep bit from cutting and cause it to overheat. Reduce pressure
just before bit cuts through the work. When bit has penetrated work and is
spinning freely, take it from the work while the motor is running, then turn off
drill. If the drill jams in the work, release throttle immediately.
Disconnect the drill before removing bit and determining cause of
trouble. Do not attempt to free the bit by starting and stopping the motor.
WARRANTY COVERAGE
Cornwell Quality Tools Company (“Cornwell”) warrants this product against defects in material and workmanship for a period of ONE (1) YEAR
from the date of original retail purchase. Subject to the conditions and limitations set forth below, Cornwell will, at its option, either repair or replace any part of
the product(s) that proves defective by reason of improper workmanship or materials.
This warranty does not cover any damage to this product that results from accident, abuse, misuse, natural or personal disaster, or any unauthorized disassembly,
repair, or modification. Repairs, disassembly and modification are only authorized to be made by Cornwell or a Cornwell Authorized Warranty Center.
WARRANTY SERVICE
In order to have your tool repaired, return the tool to any Cornwell Authorized Warranty Center, freight prepaid. Please include a copy of your
proof of purchase and a brief description of the problem. The tool will be inspected and if any part or parts are found to be defective in material or
workmanship, they will be repaired free of charge, and the repaired tool will be returned to you freight prepaid.
EXCLUSIONS AND LIMITATIONS
THIS WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL
OR WRITTEN, EXPRESS OR IMPLIED. CORNWELL SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, TO THE EXTENT PERMITTED BY
APPLICABLE LAW, ANY WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF CORNWELL CANNOT LAWFULLY DISCLAIM IMPLIED
WARRANTIES UNDER THIS LIMITED WARRANTY, ALL SUCH IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.
IN NO EVENT SHALL CORNWELL BE LIABLE TO THE PURCHASER OR TO THE USER OF A CORNWELL PRODUCT FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES BASED UPON BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, TORT, OR ANY OTHER LEGAL THEORY. SUCH DAMAGES INCLUDE, WITHOUT
LIMITATION, EXPENSES, LOST REVENUES, LOST SAVINGS, LOST PROFITS, OR ANY OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM THE
PURCHASE, USE OR INABILITY TO USE THE CORNWELL PRODUCT.
Some states do not allow the exclusion or limitation of incidental or consequential damages or exclusions or limitation on the duration of implied warranties or
conditions, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary
by state.
Repair kits and replacement parts are available for many Cornwell products, regardless of whether or not the product is still covered by a
warranty plan.
Cornwell Quality Tools Company
667 Seville Road • Wadsworth, OH 44281-1094

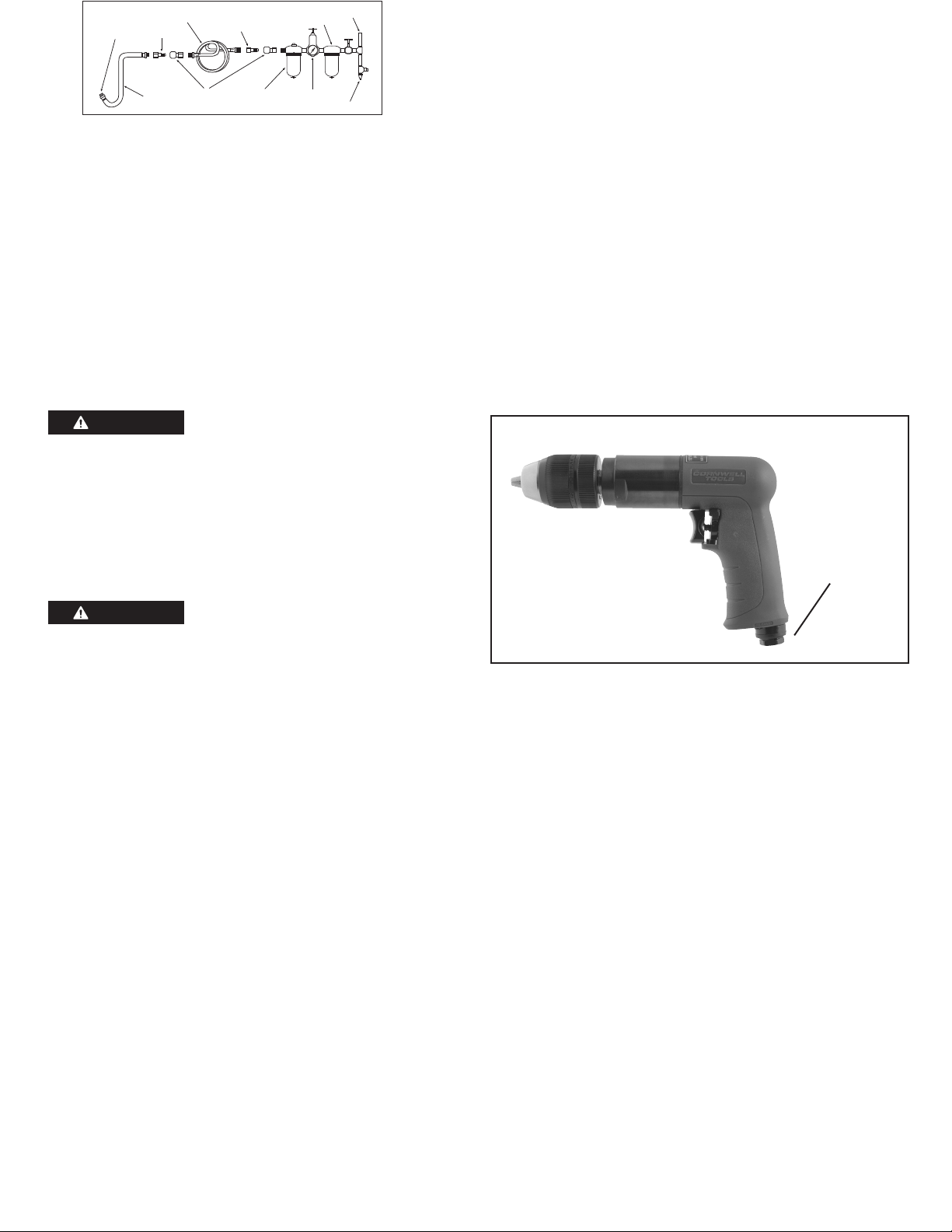

Figure 2
Air Inlet
Drain Daily
RegulatorOilerQuick CouplerLeader
Hose
Nipple
Do Not Install
Quick Coupling
Here
Nipple
Filter
Air Supply
Whip Hose
AIR SUPPLY
Tools of this class operate on a wide range of air pressures.
It is recommended that air pressure measures 90 psig at the tool with the trig-
ger fully depressed and no load applied to the tool. Higher pressure (over 90
psig; 6.2 bar) raises performance beyond the rated capacity of the tool, which
will shorten tool life and could cause injury.
Always use clean, dry air. Dust, corrosive fumes and/or water in the air line will
cause damage to the tool. Drain water from air lines and compressor prior to
running tool daily. Clean the air inlet filter screen weekly. The
recommended hookup procedure can be viewed in the above figure.
The air inlet used for connecting air supply has standard 1/4" NPT. Line pres-
sure should be increased to compensate for unusually long air hoses (over 25
feet). Minimum hose diameter should be 3/8" I.D. and fittings should have the
same inside dimensions and be tightly secured. Ensure an accessible emer-
gency shut off valve has been installed in the air supply line and make others
aware of its location.
Ensure an accessible emergency shut off valve has been installed in the air
supply line and make others aware of its location.
LUBRICATION
Lubricate the air motor daily with high quality air tool oil. If no air line oiler is
used, run 1/2 oz. of oil through the tool. The oil can be squirted into the tool air
inlet or into the hose at the nearest connection to the air supply, then run the
tool. A rust inhibitive oil is acceptable for air tools.
After an air tool has been lubricated, oil will discharge through the exhaust port
during the first few seconds of operation. The exhaust port must be covered
with a towel before applying air pressure to prevent serious injury.
WARNING
WARNING

CAT355HD 4 rev. 02/05/16
PARTS BREAKDOWN - CAT355HD
Ref. # Item # DESCRIPTION QTY.
1 RS757254P01 Motor Housing 1
2 RS723502 Pin 1
3 RS355HD03 Air Inlet 1
4 RS282704 Trigger 1
5 RS355HD05 Valve Stem 1
6 RS355HD06 Valve Bushing 1
7 RS233A07 O-Ring (4.8x1.9) 1
8 RS24009 O-Ring (15.5x1.5) 1
9 RS76209 O-Ring (12x1.6) 1
10 RS355HD10 Reverse Lever 1
11 RS79511 Motor Gasket 1
12 RS79514 End Plate 1
13 RS21114 Ball Bearing (626ZZ) 2
14 RS355HD14 Rear End Plate 1
15 RS355HD15 Rotor 1
16 RS78716 Rotor Blade 5
17 RS355HD17 Pin (2.5x57) 1
18 RS78718 Cylinder 1
19 RS79519 Front End Plate 1
20 RS70420N Pinion Gear 1
21 RS79421N Center Gear 1
22 RS79522 Internal Gear 2
Ref. # Item # DESCRIPTION QTY.
23 RS355HD23 Planet Gear (Incl. #25) 6
24 Pin (Incl. w/ #26 & 32) 6
25 Needle Bearing (Incl. w/ #23) 6
26 RS79426N Work Spindle (Incl. #24) 1
27 RS221RA32 Ball Bearing (6002ZZ) 2
28 RS25536A Clamp Nut 1
29 RS182729A Washer 1
30 RS25535A 1/2" Industrial Keyless Chuck 1
31 RS355HD31 Screw (M5x30) 1
32 RS79427N Reduction Spindle (Incl. #24) 1
33 RS723533 Exhaust Diffuser 1
34 RS43007 Screw (M3x8L) 2
35 RS355HD35 Damping Material 2
36 RS182740 Handle 1
37 RS355HD37 Retainer 1
38 RS79408N Valve Spring 1
64 RS723564 Decoration Ring 1
65 RS433545 O-Ring (15.7x1.7) 1
69 RS24050 Valve Seat 1
70 RS24051 Valve 1
71 RS24052 Spring 1
Not Shown: RSCAT355HDWL Warning Label
