CAT4150 / CAT4150G 05/29/18
CAT4150
CAT4150G
Super Duty
1/2" Dr. Composite
Impact Wrench
Operating Instructions • Warning Information
• Parts Breakdown
WARNING
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this
type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those
dust masks that are specially designed to filter out microscopic particles.
Breakaway Torque........................1,200 Ft./Lbs.
Maximum Applied Torque ................... 800 Ft./Lbs.
Working Torque Range ..................50 - 550 Ft./Lbs.
Free Speed ................................ 7,500 RPM
Air Inlet ....................................1/4" NPT
Minimum Hose Size........................... 3/8" I.D.
Average Air Consumption ...................... 4.9 CFM
Overall Length .................................6-7/8"
Weight ........................................4 Lbs
Sound Pressure Level .........................97.3 dBA
SPECIFICATIONS
Copyright © Professional Tool Products, 2018
All rights reserved
ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
ALWAYS WEAR
HEARING
PROTECTION
AVOID PROLONGED
EXPOSURE TO
VIBRATION
WARNING

CAT4150 / CAT4150G 2 05/29/18
FAILURE TO OBSERVE THESE WARNINGS COULD RESULT IN INJURY.
THIS INSTRUCTION MANUAL CONTAINS
IMPORTANT SAFETY INFORMATION.
READ THIS INSTRUCTION MANUAL CAREFULLY
AND UNDERSTAND ALL INFORMATION BEFORE
OPERATING THIS TOOL.
• It is the responsibility of the owner to make sure all
personnel read this manual prior to using this air tool.
It is also the responsibility of the air tool owner to keep
this manual intact and in a convenient location for all
to see and read. If the manual or product labels are
lost or not legible, contact Cornwell for replacements.
If the operator is not fluent in English, the product and
safety instructions shall be read to and discussed
with the operator in the operator's native language by
the purchaser/owner or his designee, making sure
that the operator comprehends its contents.
• Always operate, inspect and maintain this tool in
accordance with American National Standards
Institute Safety Code of Portable Air Tools (ANSI
B186.1) and any other applicable safety codes
and regulations.
• For safety, top performance and maximum durability
of parts, operate this tool at 90 psig: 6.2 bar max air
pressure with 3/8" diameter air supply hose.
• Always wear impact-resistant eye protection when
operating or performing maintenance on this tool
(users and bystanders).
• Always wear hearing protection when using this tool
(users and bystanders). High sound levels can cause
permanent hearing loss. Use hearing protection as
recommended by your employer or OSHA regulation.
• Keep the tool in efficient operating condition.
• Operators and maintenance personnel must be
physically able to handle the bulk, weight and
power of this tool.
• Keep tool out of reach of children.
• Air under pressure can cause severe injury. Never
direct air at yourself or others. Always turn off the
air supply, drain hose of air pressure and detach
tool from air supply before installing, removing or
adjusting any accessory on this tool, or before
performing any maintenance on this tool. Failure
to do so could result in injury.Whip hoses can cause
serious injury.Always check for damaged, frayed or
loose hoses and fittings, and replace immediately.
Do not use quick detach couplings at tool. See
instructions for correct set-up on page 4.
• Air powered tools can vibrate during use.Vibration,
repetitive motions or uncomfortable positions over
extended periods of time may be harmful to your
hands and arms. Discontinue use of tool if discomfort,
tingling feeling or pain occurs. Seek medical advice
before resuming use.
• Place the tool on the work before starting the tool.
Do not point or indulge in any horseplay with this tool.
• Note direction of rotation BEFORE operating this tool.
• Slipping, tripping and/or falling while operating air tools
can be a major cause of serious injury or death. Be aware
of excess hose left on the walking or work surface.
• Keep body working stance balanced and firm. Do not
overreach when operating the tool.
• Anticipate and be alert for sudden changes in motion
during start up and operation of any power tool.
• Do not carry tool by the hose. Protect the hose
from sharp objects and heat.
• Tool shaft may continue to rotate briefly after throttle
is released.Avoid direct contact with accessories
during and after use. Gloves will reduce the risk of
cuts or burns.
• Keep away from rotating end of tool. Do not wear
jewelry or loose clothing. Secure long hair. Scalping
can occur if hair is not kept away from tool and
accessories. Choking can occur if neckwear is not
kept away from tool and accessories.
• Impact wrenches are not torque control devices.
Fasteners with specific torque requirements must
be checked with suitable torque measuring
devices after installation with an impact wrench.
• Do not lubricate tools with flammable or volatile
liquids such as kerosene, diesel or jet fuel.
• This tool is not insulated against electric shock.
• This tool must not be used in explosive atmospheres.
• Do not force tool beyond its rated capacity.
•Use only impact sockets or accessories. Do not use
hand sockets or accessories.
• Use accessories recommended by Cornwell Tools.
• Do not use (or modify) the tool for any other
purpose than that for which it was designed
without consulting the manufacturer's authorized
representative.
• Do not remove any labels. Replace any damaged labels.
• Failure to heed these warnings may result in serious or
fatal personal injury and/or property damage.
WARNING
WARNING: This product can expose you to
chemicals including nickel, which is known to the
State of California to cause cancer and birth defects
or other reproductive harm. For more information
go to www.P65Warnings.ca.gov.

CAT4150 / CAT4150G 3 05/29/18
PARTS BREAKDOWN - CAT4150 / CAT4150G
REF. # ITEM # DESCRIPTION QTY REF. # ITEM # DESCRIPTION QTY
101 RS4150101 Hammer Case 1 402 RS2125423 Trigger B 1
102 RS1761103 Hmmer Case Bushing 1 403 RS2125402 Sprint Pin 1
103 RS1761104 Socket Retainer 1 404 RS3125403 Trigger Bushing 1
104 RS4135104 O-Ring 1 405 RS4150405 Pusher Spring 1
105 RS1761106 Anvil 1 406 RS2125405 Regulator A 1
106 RS1761109 Hammer Frame 1 407 RS4135407 Lever 1
107 RS1761108 Hammer 2 408 RS2125407 Reverse Valve 1
108 RS1761107 Hammer Frame Pin 2 409 RS1735313 Ball (2.5mm) 2
110 RS4135110 Packing-Hammer Case 1 410 RS1077410 Spring 1
111 RS1837220 Hammer Case Grease Fitting 1 411 RS2125415 O-Ring 1
112 RS4135112 Spring Pin 1 412 RS1734414 O-Ring 1
201 RS4150201 Housing - Blue 1 413 RS2125411 Regulator 1
201 RS4150201G Housing - Green 1 414 RS2125412 Spring 1
202 RS4150202 Handle Grip 1 415 RS4135415 Spring Pin 1
203 RS4135203 Half Round Hd. Hex. Bolt 4 417 RS4150417 Trigger Tip 1
204 RS2125204 Hex. Soc. Hd. Bolt 1 418 RS1735410 O-Ring 2
301 RS221RA32 Bearing (6002ZZ) 1 419 RS2125418 Air Inlet 1
302 RS4135302 Front Bearing Plate 1 420 RS4150420 Latch Pin 1
303 RS4135303 Bolt Assembly 3 422 RS1735408 Exhaust Deflector 1
304 RS4135304 Rotor Blade 7 423 RS1735411 Tap Bolt 1
305 RS4135305 Rotor 1 424 RS4150424 E-Clip 1
306 RS4135306 Cylinder Unit 1 425 RS1735403 Seal 1
307 RS227B25 Bearing (6001ZZ) 1 426 RS1735404 Bushing 1
308 RS4135308 O-Ring 1 427 RS1735405 Tip Valve 1
309 RS4135309 Gasket-Cylinder 1 428 RS4150428 Spring 1
310 RS2125310 Packing-Cylinder 1 RSCAT4150PLK Product Label Kit for CAT4150 1
401 RS2125401 Trigger A 1 RSCAT4150GPLK Product Label Kit for CAT4150G 1
(Not Shown) - Tune-up kit, RS4150TK, including: 103, 104, 110, 304 (7), 308, 309, 310, 411, 412, 418 (2), and 425.
101
102 103
104 105 106
107 108
110 A
A
B
B
203
204
418
419
425
426
427
428
420
422
423
202
424
310
417
415
414
409
410
407
406
401
402
413
412
411
408
405
404
403
201
309
308
107
307
306
305
304
112
302
111
303
301

CAT4150 / CAT4150G 4 05/29/18

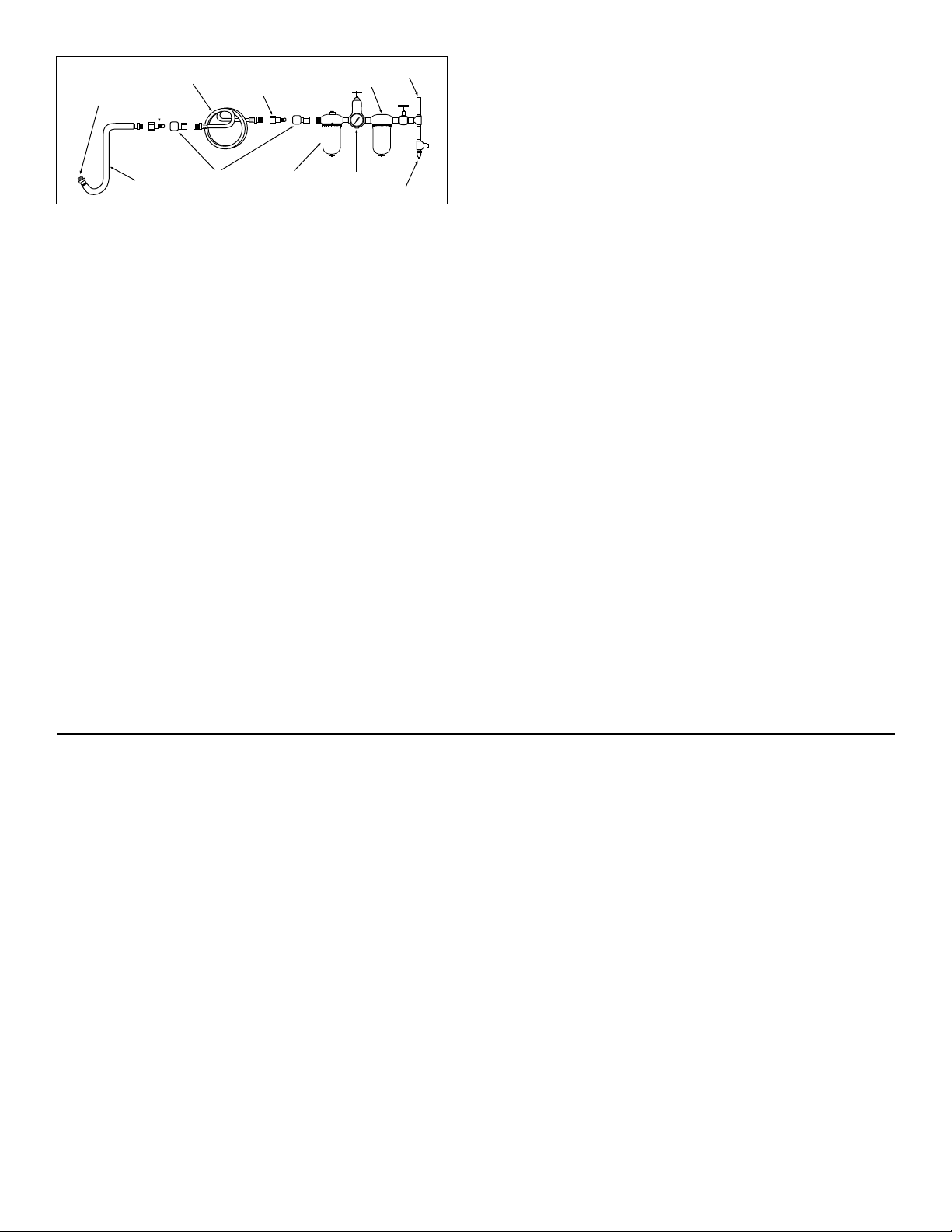

Drain Daily
RegulatorOilerQuick CouplerLeader
Hose
Nipple
Do Not Install
Quick Coupling
Here
Nipple
Filter
Air Supply
Whip Hose
AIR SUPPLY
Tools operate on a wide range of air pressures. It is recom-
mended that air pressure of these tools measures 90 psig at the
tool with the trigger fully depressed and no load applied to the
tool. Higher pressure (over 90 psig; 6.2 bar) raises performance
beyond the rated capacity of the tool, which will shorten tool life
and could cause injury.
Always use clean, dry air. Dust, corrosive fumes and/or water in the
air line will cause damage to the tool. Drain water from air lines
and compressor prior to running tool. Clean the air inlet filter screen
weekly. The recommended hookup procedure can be viewed in the
above figure.
The air inlet used for connecting air supply has standard 1/4" NPT.
Line pressure should be increased to compensate for unusually long
air hoses (over 25 feet). Minimum hose diameter should be 3/8" I.D.
and fittings should have the same inside dimensions and be tightly
secured.
Ensure an accessible emergency shut off valve has been installed in
the air supply line and make others aware of its location.
LUBRICATION
Lubricate the air motor daily with high quality air tool oil. If no air
line oiler is used, run 1/2 oz. of oil through the tool. The oil can be
squirted into the tool air inlet or into the hose at the nearest con-
nection to the air supply, then run the tool. A rust inhibitive oil is
acceptable for air tools.
WARNING: After an air tool has been lubricated, oil will discharge
through the exhaust port during the first few seconds of operation.
The exhaust port must be covered with a towel before applying air
pressure to prevent serious injury.
OPERATION
Alwaysturnofftheairsupply,drainhoseofairpressureanddetach
tool from air supply before installing, removing or adjusting any
accessory on this tool, or before performing any maintenance
on this tool.
This impact wrench is rated at 7/8" SAE bolt size. Rating must be
down graded for spring U bolts, tie bolts, long cap screws, double
depth nuts, badly rusted conditions and spring fasteners as they
absorb much of the impact power. When possible, clamp or wedge
the bolt to prevent springback.
Soak rusted nuts in penetrating oil and break rust seal before
removing with impact wrench. If nut does not start to move in three
to five seconds use a larger size impact wrench. Do not use impact
wrench beyond rated capacity as this will drastically reduce tool life.
The reversing valve is used to change the direction of the tool. When
the valve is out, the tool is in a forward or right hand direction. When
the valve is pushed in, the direction is reverse or left hand.
NOTE: Actual torque on a fastener is directly related to joint hard-
ness, tool speed, condition of socket and the time the tool is allowed
to impact. Use the simplest possible tool-to-socket hook up. Every
connection absorbs energy and reduces power.
TROUBLESHOOTING
Other factors outside the tool may cause loss of power or erratic
action. Reduced compressor output, excessive drain on the air line,
moisture or restrictions in air pipes or the use of hose connections
of improper size or poor conditions may reduce air supply. Grit or
gum deposits in the tool may cut power and may be corrected
by cleaning the air strainer and flushing out the tool with gum
solvent oil or an equal mixture of SAE #10 and kerosene. If outside
conditions are in order, disconnect tool from hose and take tool to
your nearest authorized service center.
WARRANTY
Cornwell Quality Tools Company (“Cornwell”) warrants this product against defects in material and workmanship for a period of TWO (2) YEARS from the date of original retail purchase.
Subject to the conditions and limitations set forth below, Cornwell will, at its option, either repair or replace any part of the product(s) that proves defective by reason of improper
workmanship or materials.
This warranty does not cover any damage to this product that results from accident, abuse, misuse, natural or personal disaster, or any unauthorized disassembly, repair, or
modification. Repairs, disassembly and modification are only authorized to be made by Cornwell or a Cornwell Authorized Warranty Center.
WARRANTY SERVICE
In order to have your tool repaired, return the tool to any Cornwell Authorized Warranty Center, freight prepaid. Please include a copy of your proof of purchase and a brief description
of the problem. The tool will be inspected and if any part or parts are found to be defective in material or workmanship, they will be repaired free of charge, and the repaired tool will
be returned to you freight prepaid.
EXCLUSIONS AND LIMITATIONS
THIS WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN,
EXPRESS OR IMPLIED. CORNWELL SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, TO THE EXTENT PERMITTED BY APPLICABLE LAW, ANY WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF CORNWELL CANNOT LAWFULLY DISCLAIM IMPLIED WARRANTIES UNDER THIS LIMITED WARRANTY, ALL SUCH
IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.
IN NO EVENT SHALL CORNWELL BE LIABLE TO THE PURCHASER OR TO THE USER OF A CORNWELL PRODUCT FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES BASED
UPON BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, TORT, OR ANY OTHER LEGAL THEORY. SUCH DAMAGES INCLUDE, WITHOUT LIMITATION, EXPENSES, LOST
REVENUES, LOST SAVINGS, LOST PROFITS, OR ANY OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM THE PURCHASE, USE OR INABILITY TO USE THE CORNWELL
PRODUCT.
Some states do not allow the exclusion or limitation of incidental or consequential damages or exclusions or limitation on the duration of implied warranties or conditions, so the above
limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary by state.
Repair kits and replacement parts are available for many Cornwell products, regardless of whether or not the product is still covered by a warranty plan.
Cornwell Quality Tools Company
667 Seville Road • Wadsworth, OH 44281-1094
