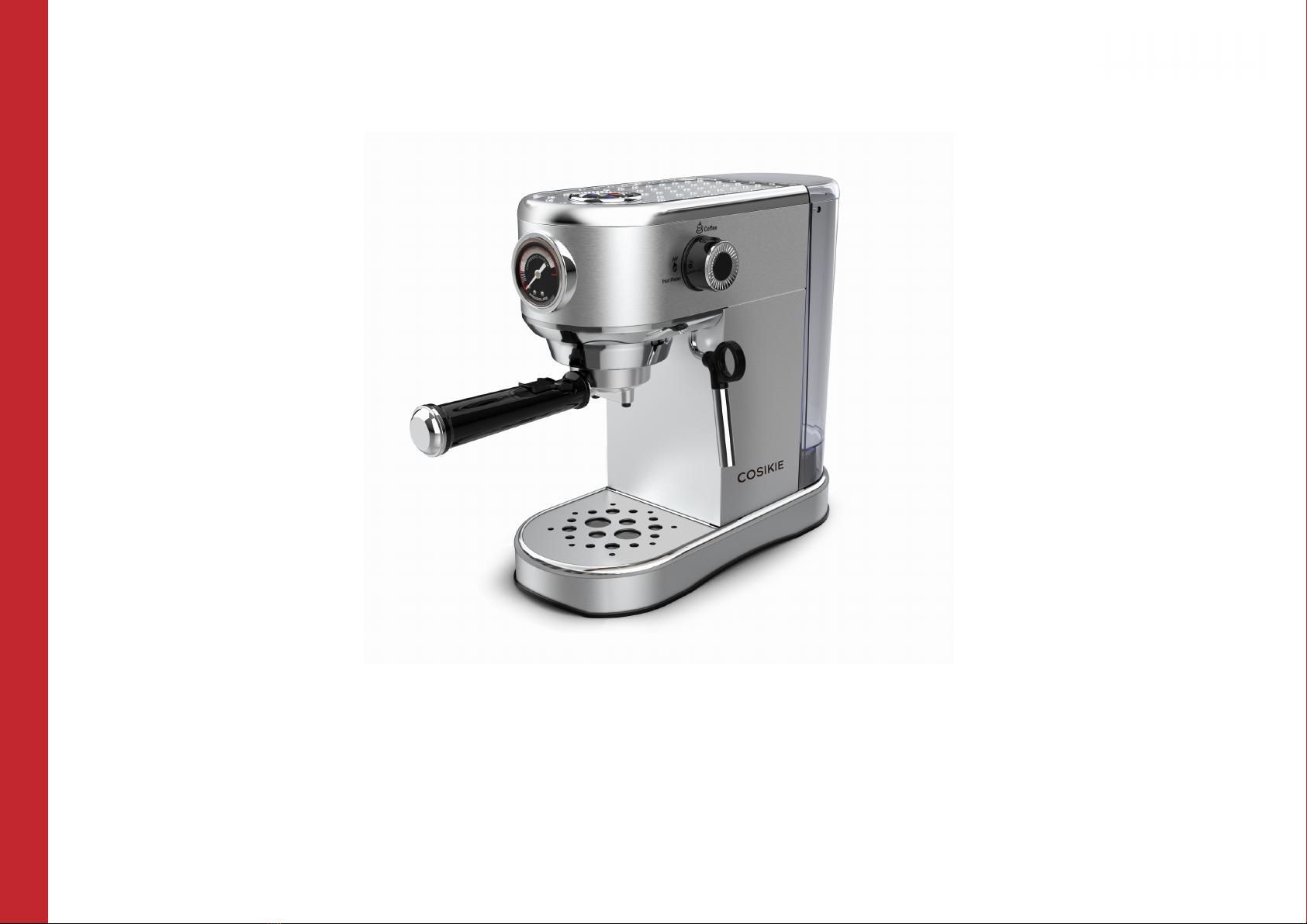

COSIKIE CK-697B User manual

INSTRUCTION MANUAL
Please read this Instruction Manual and the safety instructions before operating the appliance!
Congratulation on your purchase!
This coffee Capsule machine is manufactured with the greatest care. If you look it after properly it will reward you with many years of good service. Before
using your new machine, please read this operating manual carefully, paying particular attention to the safety precautions.
CK-697B
www.cosikie.com

2
Content
Safety precautions
Notes on this operating manual
Unpacking
Starting up
Overview of machine parts and controls
Before using for the first time
Filling/refilling the water tank
Flushing out the machine/internal
piping Capsule type can be used
Energy saving mode
Decalcification
Coffee flow setting
Factory reset
Clean the coffee machine
Matters needing attention
Troubleshooting
Technical data

3
Safety Precautions
Please take time to read these safety precautions carefully before connecting your machine to the power supply. It is essential to follow them
and the operating instructions.
−First read this entire operating manual.
−Danger of electric shock! Never immerse the machine in water or any other liquid.
–Connect only to a properly grounded power point.
–To make sure that the machine is switched off, remove the plug from the power point.
−Always pull out the power plug before:
* Relocating the machine.
* Cleaning or maintenance.
* Long periods of disuse.
−Never clamp or run the power cable over sharp corners or edges.
−Danger of electric shock! Damaged power cables may only be replaced at the customer service centre.
−Danger of electric shock! Never touch the power plug/socket/cable or the machine with damp or wet hands. Never unplug by pulling out the power cable; always
remove the plug.
−If you need an extension cable, make sure it is suitable for your machine (3-pole grounded,
1.5 mm2 conductor cross-section), and lay the cable to avoid tripping.
−Danger of scalding! Never move the machine during operation!
−Never operate the machine without water

4
−Always make sure there is water in water tank not less than minimum level.
−Danger of burning! Never touch very hot parts of the machine (e.g. brew unit during operations).
−Danger of scalding! Do not touch the steam or water jets.
−Danger of scalding! Do not move the operating lever when the machine is still under pressure making Coffee .
−Do not use the machine in case of:
*Faulty operation.
*Damaged power cable.
*After falling or other damage.
*In such cases immediately have the machine checked and repaired if necessary at the customer service centre.
−The machine location must meet the following requirements:
* Choose a dry, stable and level support surface not immediately underneath the power point.
At least 60 cm away from the washbasin and taps.
*Never place on flammable/fusible surfaces or equipment.
* Never place the machine or power cable on or nearer than 50 cm to hot surfaces or open flames.
* Never cover the machine during operation.
−Keep children away from the machine during operation.
–Only use the machine in dry rooms.
–Danger of tripping! Do not let the power cable hang down.
−This machine is only intended for household use.
−Pull out the power plug and allow the machine to cool down completely before cleaning and or Maintenance.
−To prevent damage, never use replacement parts or accessories not recommended by the manufacturer

5
This appliance can be used by children aged from 8 years and above if they have been given
supervision or instruction concerning use of the appliance in a safe way and if they understand
the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord
out of reach of children aged less than 8 years.
Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
This appliance is for household and indoor use only.
The appliance must not be immersed
Caution! There is potential injury from misuse.
Heating element surface is subject to residual heat after use.
Coffee-maker shall not be placed in a cabinet when in use
cleaning and user maintenance shall not be made by children without supervisior.
This appliance is intended to be used in household and similar applications such as:

6
*Staff kitchen areas in shops, offices and other working environments;
*Farm houses;
*By clients in hotels, motels and other residential type environments;
* Bed and breakfast type environments.
Notes On This Operating Manual
This operating manual cannot cover all possible circumstances. For further information or in case of problems not adequately covered in this operating manual, please
contact the service and sales centre.
Please keep this operating manual safe and pass it on to the next user.
Unpacking
−Remove your espresso Capsule coffee machine from its packaging.
−After unpacking, please check that the following parts are included:
1. Water tank
2. Coffee machine
3. Manual
Note:
−Check that your home power supply voltage is the same as marked on the machine rating plate
−Destroy all the plastic bags to prevent danger to children!
Tip: Keep the packaging for transporting the machine (e.g. for removals, servicing, etc.)
Note: You may find a little water remaining in the machine.

7
Component Description
Component description
A Drip tray
B Steam pipe
C Water tank
D Button
E Water tank cover
F Warming plate
G
Rotary Switch
H Pressure gauge
I Brewing handle
ST-695B
ST-695

8
Function Description
Function description
Switch button
Button button
Switch button
Control machine switch function
Coffee function
gear
Turn here when making coffee
Single cup
function key
Press the single cup key, the light flickers slowly, the
machine starts brewing coffee, and the machine
stops automatically after brewing
Steam function gear
Turn here when making steam
Hot water
indicator
The lamp flashes quickly when making
hot water
Hot water function
gear
Turn here when making hot water
Double cup
function key
Press the double cup button, the light flickers
slowly, the machine starts brewing coffee, and the
machine stops automatically after brewing
Steam indicator
The lamp flashes rapidly when steam
is made

9
Preparation Before Startup
The twist key must be turned to this position before starting the
machine

10
Usage Method
The machine must be washed if it is used for the first time or not used for a long time
At least 100 ml hot water should be washed with steam pipe, and then one cup of hot water should be washed in the handle.
brewing cup. The specific washing methods are as follows:
Handle brewing cup washing
1. Place a cup (more than 100ml) above
the waste water tray
2. Press the single or double cup
button and wait for the equipment to
finish flushing,(make sure there is more
than 150 ml of purified water in the
tank)
3. Precautions: before pressing the key,
make sure that the handle brewing cup
has been turned into the machine
1. Press the switch function key
2. Each function indicator flashes and the
machine is warmed up,
3. All indications light up after preheating
Make sure the twist key is turned to this position
Steam pipe flushing
1. Place the cup under the steam pipe (capacity
above 100ml)
2. Turn key from Transposition ,
The steam pipe starts making hot water until it is
100 ml.
Note: Make hot water continuously for 120 seconds.
If the rotary knob does not turn back to the coffee
position, it will automatically stop making hot water.
It is necessary to turn the turning back to the coffee
position and then turn to the hot water
。
Transfer to the handle brewing
cup
1. Lift the water tank cover
2. Add no more than 1.1 liter of
purified water to the water tank
(water temperature not higher
than 35 ℃)
3. Return the water tank
cover
Plug in the corresponding power
supply

11
Brewed Coffee
Make sure the twist key is turned to this position
Add coffee powder to the handle
brewed cup with a coffee spoon
Press the coffee powder with a coffee spoon
Transfer to the handle brewing cup
Brewed coffee
1. Put the cup above the waste water pan (make sure there is more
than 150 ml pure water in the water tank)
2. Press the required amount of coffee button (single or double) until
the brewing is finished. (make sure there is more than 150 ml of
purified water in the tank)
Tip: when the button is pressed, the button light will flash for a few
seconds before brewing. The flash process is in the state of machine
heating, which is normal.

12
Milk Bubble Making
Put the milk cup into the steam pipe, making sure the steam
pipe is immersed in the milk
Pour no less than 50ml pure milk into the cup
After finishing Xinyi milk bubble, Turn key from turn
back , Complete milk bubble making
(make sure there is more than 150 ml of purified water in
the tank)
Note: after 120 seconds of continuous steam blowing, if
the rotary knob does not return to the coffee position, it
will automatically stop steam blowing. It is necessary to
turn the rotor back to the coffee position, and then turn to
the steam position to start steam again
Turn key from Bit to , At this time, the steam
indicator lamp flashes rapidly, and the machine enters the steam
mode. At the beginning, there will be a certain time waiting for the
machine to heat up. This is a normal phenomenon. After heating,
steam will automatically eject foaming milk
Reminder:
Since the machine has just finished making milk bubbles, the
heating body inside the machine is in a high temperature state
To ensure the coffee effect and taste, pl ease do not start the
coffee mode immediately to brew coffee
Treatment:
It can be made by hot water once ，When the heating
body of the machine is cooled down, a certain amount of steam
will be ejected from the steam pipe orifice at the beginning.
When the temperature of the heating body decreases, the
steam will disappear, and only hot water will be ejected. At this
time, the hot water function will be turned off and coffee can be
brewed

13
Hot Water Production
Put the cup into the steam pipe
Turn key from Bit to , At this time, the hot water
indicator flashes rapidly, and the machine enters the hot water mode and
starts to make hot water
After the completion of Xinyi hot water，Turn key from turn
back , Complete hot water production. (make sure there
is more than 150 ml of purified water in the tank)
Note: make hot water continuously for 120 seconds. If the rotary knob
does not turn back to the coffee position, it will automatically stop
making hot water. It is necessary to turn the turning back to the coffee
position, and then turn to the hot water position to start the hot water
again

14
Paper Coffee Brewing
Make sure the twist key is turned to this position
Transfer to the handle brewing cup
Brewed coffee:
1. Put the cup above the waste water pan
2. (make sure there is more than 150 ml pure water in the water tank)
2. Press the required amount of coffee button (single or double) until the
brewing is finished. (make sure there is more than 150 ml of purified
water in the tank)
Tip: when the button is pressed, the button light will flash for a few
seconds before brewing. The flash process is in the state of machine
heating, which is normal.
Put the special cup of coffee paper package into the handle, and then put the coffee
paper package into the cup
Coffee paper cup
Coffee paper bag

15
>15 minutes
Energy saving mode
1. The machine comes with energy saving mode
The machine will turn off automatically after 15 minutes, and all
function indicators will be displayed
2. When the machine is off, press the on key again and restart the
machine again
Energy saving mode setting
At the same time, press and hold the single cup and double cup
buttons, plug in the power supply, and the on-off key lights up
•Press the single cup key, the single cup key light will go out. The
energy saving mode will be cancelled
•Press the single cup key, the single cup key light will be on. The
energy saving mode is enabled
Energy Saving Mode

16
Descaling Mode
Descaling mode function
1 place a cup at the water outlet in front of the machine
2. Put a proper amount of scale remover into the water tank
3. Press and hold the single cup button at the same time and plug in
the power supply
4. When the on key and single cup key lights are on, press the single
cup key to start the descaling function, and the start working time is
120s. Press the small cup key to stop
matters needing attention
When the machine makes no more than 400 cups of coffee, it is
necessary to regularly remove the scale according to the above
functions
Coffee Ration Setting
Single cup time function setting
1 place a cup at the water outlet in front of the machine
2. In standby mode, press and hold the single cup key and the
machine starts to work. The machine starts to brew coffee. When
it is out to Xinyi brewing time, release the button. Single cup time
setting completed (minimum 10s, maximum 90s)
Double cup time function setting
1 place a cup at the water outlet in front of the machine
2. In the standby mode, press and hold the double cup button
and the machine starts to work. The machine starts to brew
coffee. When it is out to Xinyi brewing time, release the button.
Double cup time setting completed (minimum 10s, maximum
90s)

17
Restore Factory Settings
Restore settings
•Press and hold the double cup button, plug in the power
supply, and the power on indicator will flash twice to restore
the factory settings

18
Treatment Method of Machine Without Water
Question 1
In the process of making coffee, due to the lack of water in the water tank and
adding water again, there is air entering into the internal water path, resulting in
no water coming out of the coffee making process.
Processing Method
2. Turn the twist key to , Make sure
there is more than 150 ml of pure water in
the tank
3. Put down a cup with a capacity of more than 100ml under
the steam pipe. Press and hold the switch key when the
machine is off, and the steam pipe will have clear water
until there is water in the cup
1. Shut down the machine first and make sure
that the power is not pulled out

19
Question 2
When the new machine is used for the first time, or it is not used for a long time, the internal
drying of the water pump causes the machine not to discharge water.
Solution: the machine accessories in the "manual air pump" to the machine water.
Processing Method
Turn the twist key to
Insert the air pump into the water inlet hole of the water
tank, and then add appropriate amount of water
Pump water into the machine with an air bar

20
Clean
matters needing attention:
1 do not immerse the coffee machine in water.
2. Before cleaning the machine, make sure to unplug the power cord
3. Do not use strong detergent, sharp objects, brushes and other objects to clean the
coffee machine
Machine cleaning
Handle brewing cup cleaning
