Costa Discovery User manual

49”/59” Three sides Viewing Electric Fire
AC 220-240V 50Hz 1400-1600W
ELECTRIC INSERT FIREPLACE HEATER
OWNERS MANUAL
Model Numbers: BS1250PANO BS1500PANO
WARNING
CAUTION
Read and understand this entire owner’s manual, including all safety
information, before plugging in or using this product. Failure to do so could
result in fire, electric shock, or serious personal injury.
Keep this owner’s manual for future reference. If you sell or give this
product away, make sure this manual accompanies thisproduct.
Costa Discovery & Discovery XL

2
IMPORTANT SAFETY INFORMATION!
WARNING
When using electrical appliances basic precautions should always be followed to reduce the risk of
fire, electric shock and injury to persons, including the following:
⚫Read all instructions before using this heater.
⚫This heater is hot when in use. To avoid burning, do not touch hot surface. If provided, use handles
when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers,
clothes, and curtains at least 1 m from the front of the heater and keep them away from the sides and
rear. In order to avoid overheating, do not cover theheater.
⚫Extreme caution is necessary when any heater is used near children or the infirm and whenever the
heater is left operating and unattended.
⚫Always unplug heater when not in use.
⚫Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been
dropped damaged in any manner, return heater to authorized service facility for examination, electrical
or mechanical adjustment, or repair.
⚫Indoor use only, do not use outdoors.
⚫This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never
locate heater where it may fall into a bathtub or other watercontainer.
⚫Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings.
Arrange cord away from traffic area and where it will not be tipped over.
⚫To disconnect heater, turn controls to off, then remove plug from outlet.
⚫Do not inset or allow foreign objects to enter any ventilation or exhaust opening as this may cause an
electric shock or fire, or damage the heater.
⚫To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft
surfaces, like a bed, where openings many become blocked.
⚫A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, or
flammable liquids are used or stored.
⚫Use this heater only as describes in this manual. Any other use not recommended by the manufacturer
may cause fire, electric shock, or injury to persons.
⚫DANGER-HIGH Temperatures may be generated under certain abnormal conditions. Do not partially or
fully cover or obstruct the front of this heater.
⚫Replacement of the lamps should be done only while the heater is disconnected from the supplycircuit.
⚫This appliance is not intended for use by persons (including children) with reduced physical, sensory or
capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.Children should be
supervised to ensure that they do not play with theappliance.
⚫CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance
must not be supplied through an external switching device, such as a timer, or connected to a circuit that
is regularly switched on and off by the utility.

3
Preparation
Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Parts and
assembly steps are grouped for free-standing or wall-hanging use. Check the parts list to make sure
nothing is missing. Dispose of packaging materials properly. Please recycle whenever possible.
You will need the following tools (not included): Phillips screwdriver; stud finder; level; tape measure;
electric drill; 1/4” wood drill bit,hammer.
Parts and Hardware
A –Fireplace
B –Wood Screws
C –Drywall Anchors
D - Decorative Logset Decorative Pebbles
E - Decorative Crystals
(Small&Big)
F –Remote Control
G –Metal brackets
Specification and Dimension
This product includes a GLASS panel! Always use extreme caution when handling
glass. Failure to do so could result in personal injury or property damage.

4
PRODUCT DIMENSIONS
Model
Number
A
B
C
D
E
F
G
H
I
Discovery
50"
127cm
13"
33.2cm
21.2"
54cm
48.8"
124cm
12.5"
31.7cm
3.5"
9cm
48.6"
123.5cm
15"
38.1cm
7.7"
19.5cm
Discovery XL
60"
152.4cm
13"
33.2cm
21.2"
54cm
58.8"
149.4cm
12.5"
31.7cm
3.5"
9cm
58.6"
148.9cm
15"
38.1cm
7.7"
19.5cm
Installation and Assembly
Your appliance is a recessed and/or mantel installed appliance. Select a suitable location that is
not susceptible to moisture and is away from drapes, furniture and high traffic areas.
NOTE: Follow all National and local electrical codes.
MINIMUM CLEARANCE TO COMBUSTIBLES
Measurements are taken from the glass front.
Bottom
Sides
Back
0"
0"
0"
Top
Top
11.8" (300mm) to mantel
11.8" (300mm) to ceiling
MINIMUM MANTEL CLEARANCES
WARNING
WHEN USING PAINT OR LACQUER TO FINISH THE MANTEL, THE PAINT OR LACQUER MUST BE
HEAT RESISTANT TO PREVENT DISCOLOURATION.

5
Installation for 3 Sided Viewing

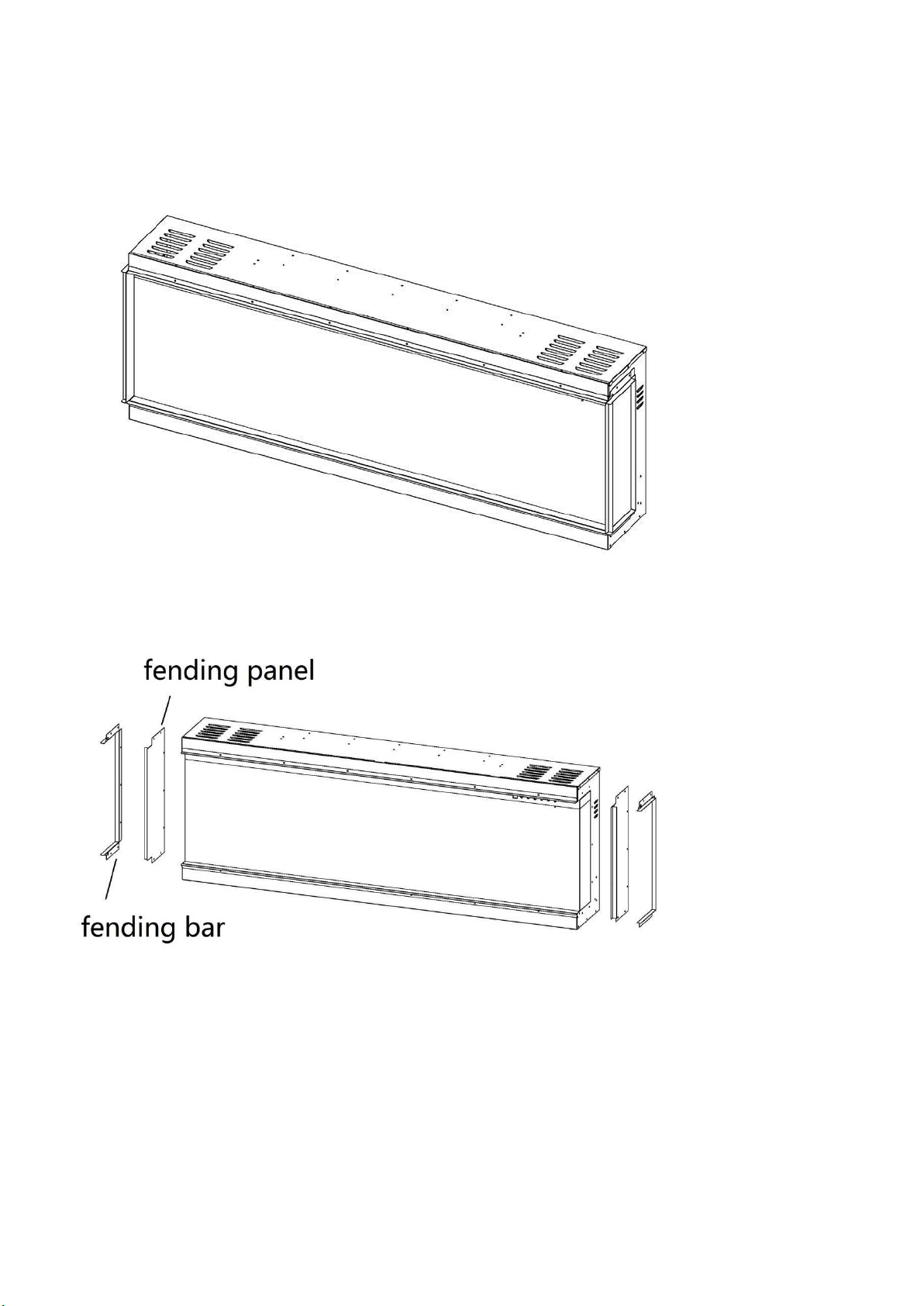

1. The fireplace is fixed with fending bars and panels on the left and right side.

6

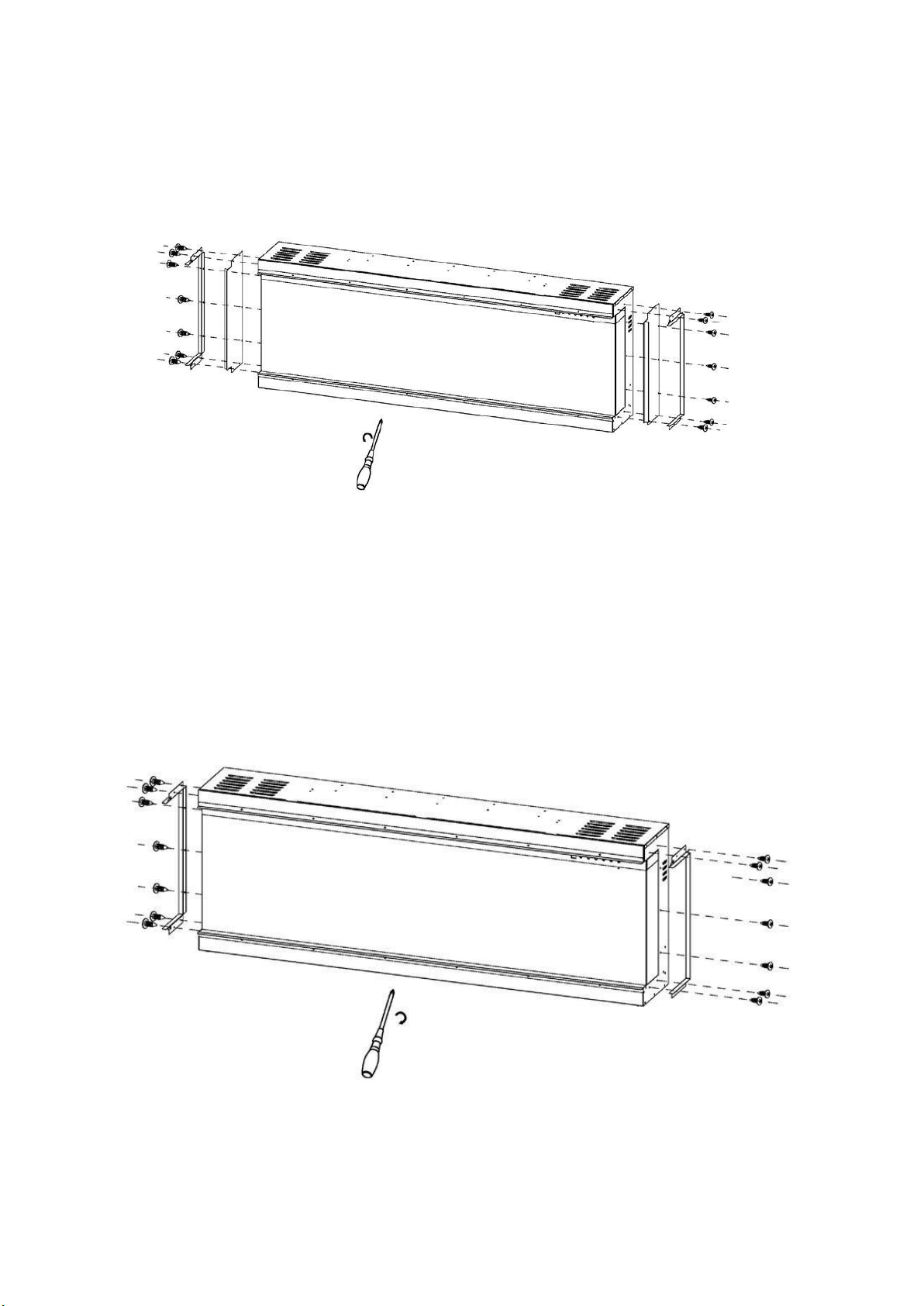

2. Takeoff the fending bars and panels if you want to view the fire from three
sides.
3. Fix back the fending barsafter the panels are removed.

7

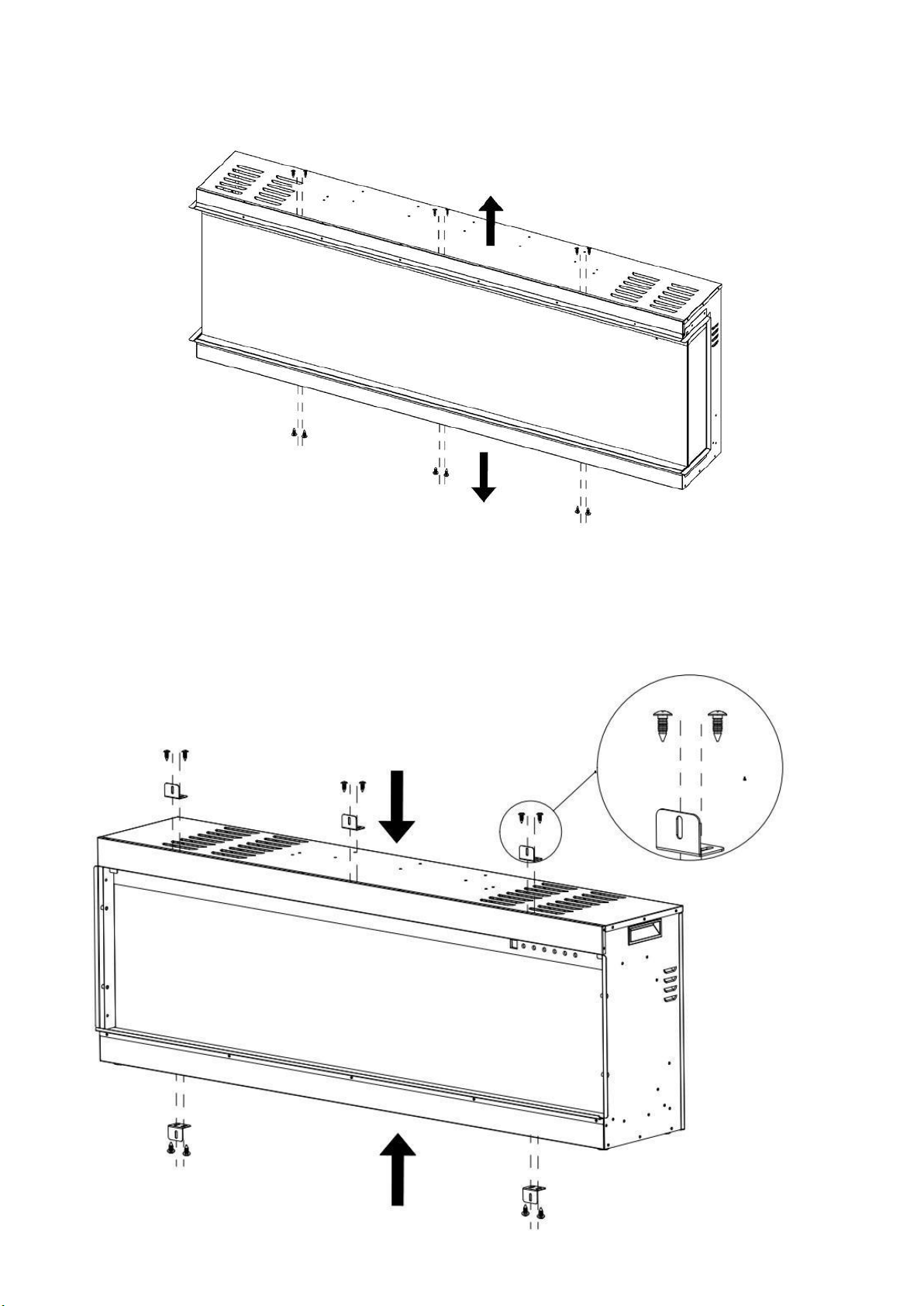

4. Remove the screws from the fireplace as shown in the picturebelow.
5. Fix the brackets with the screws in the previousstep.

8
6. Make an opening for the fireplace according to requested measurement.
Model Number
L
H
D
Discovery
48.8"
124cm
21.5"
54.5cm
13.4"
34cm
Discovery XL
58.8"
149.4cm
21.5"
54.5cm
13.4"
34cm
7. Insert the fireplace into the wall opening. Drive the mounting screws into the
brackets and the wall studs. Plug in and check if the fireplace works properly.
If so, move on to next step.

9
8. Cover the glass panel with protective plastic bag and install plywood or drywall.
9. Decorate the plywood or drywall with glazed tile, wallpaper,etc.

10
Installation for Front and Right Side Viewing

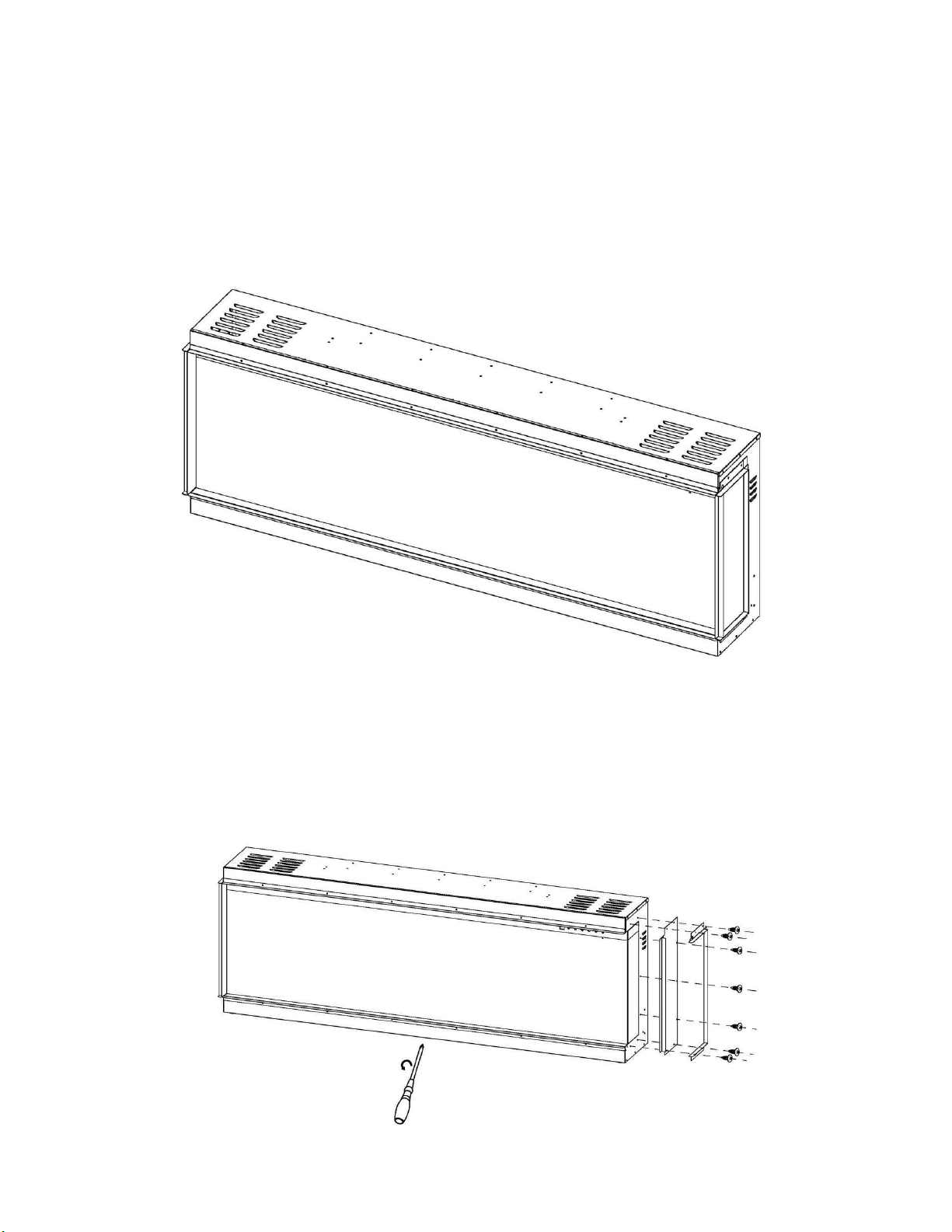

1. To view the fireplace from front and right side, you need to take off the fending panel on
the right side and keep the left side close to awall.
2. Remove the 7 screws on the right side. Take off the fending bar andpanel.

11
3. Fix back the fending bar after the panel is removed.
4. Remove the screws from the fireplace as shown in the picture below.

12
5. Fix the brackets with the screws in the previousstep.
6. Make an opening for the fireplace according to requested measurement.
Model Number
L
H
D
Discovery
48.8"
124cm
21.5"
54.5cm
13.4"
34cm
Discovery XL
58.8"
149.4cm
21.5"
54.5cm
13.4"
34cm

13
7. Insert the fireplace into the wall opening. Drive the mounting screws into the brackets
and the wall studs. Plug in and check if the fireplace works properly. If so, move on to
next step.
8. Cover the glass panel with protective plastic bag and install plywood ordrywall.

14
9. Decorate the plywood or drywall with glazed tile, wallpaper, etc.

15
Installation for Front and Left Side Viewing
1. To view the fireplace from front and left side, you need to take off the fending panel on
the left side and keep the right side close to a wall.
2. Remove the 7 screws on the right side. Take off the fending bar andpanel.

16
3. Fix back the fending bar after the panel is removed.
4. Remove the screws from the fireplace as shown in the picturebelow.

17
5. Fix the brackets with the screws in the previousstep.
6. Make an opening for the fireplace according to requested measurement.
Model Number
L
H
D
Discovery
48.8"
124cm
21.5"
54.5cm
13.4"
34cm
Discovery XL
58.8"
149.4cm
21.5"
54.5cm
13.4"
34cm

18

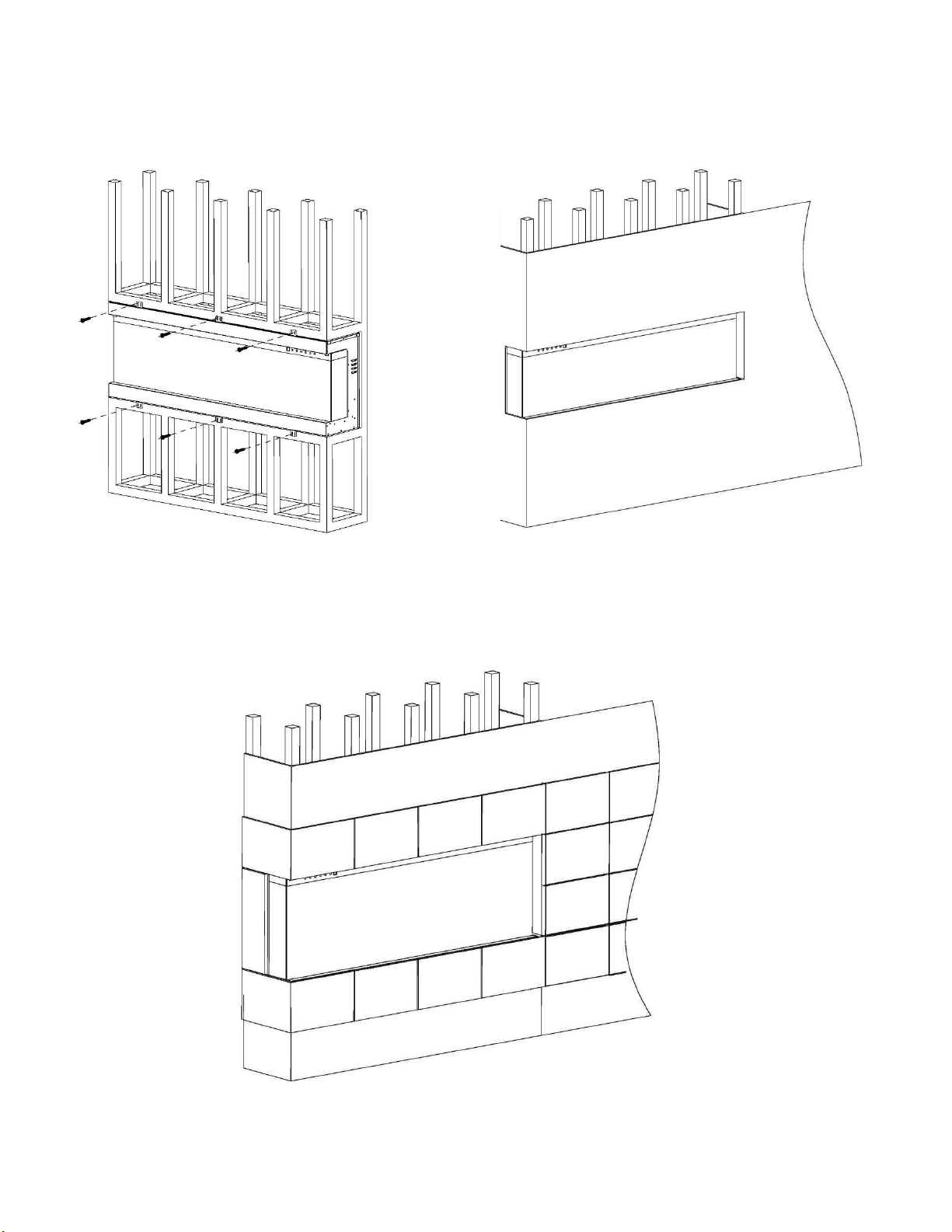

7. Insert the fireplace into the wall opening. Drive the mounting screws into the brackets
and the wall studs. Plug in and check if the fireplace works properly. If so, move on to
next step.
8. Cover the glass panel with protective plastic bag before install plywood ordrywall.
9. Decorate the plywood or drywall with glazed tile, wallpaper, etc.

19
Decorative Crystal & Log Embers Installation
1.Use a screwdriver to take off the 4 screws.(as shown indiagram)
2.Have two people take out the glass panel and move it to a clean soft place
to avoid scratching.

20
3.Place the decorative crystals/pebbles on the media tray. Apply an even layer from
side to side. Figure 1.
Figure 2.
Figure 1.
4. Put the drift wood logs on the surface of all crystals and put the 4 pieces big crystals
between the Gap of each log sets. Figure 2.
5. After placing the all decorative media, insert the glass panel back and fasten screws.
