Owner’s Manual
PASADENA 30" X30" FIRE PIT TABLE
Improper installation, adjustment, alteration, service or maintenance can cause injury or
property damage. Read the owner’s manual thoroughly before installing or servicing this
result causing property damage, personal injury or loss of life.
Save these instructions for future use. If
you are assembling this unit for someone
else, give this manual to him or her and
read and save for the future.

WARNING
Before you assemble or operate this unit, please carefully read this entire manual. Failure to do so
SAFETY INFORMATION
• The installation of this unit must adhere to local codes or either the National Fuel Gas Code, ANSI
Z223. 1/NFPA54, OR CAN/CGA-B149.1, National Gas and Propane Installation Code.
• THIS UNIT IS INTENDED FOR OUTDOOR USE ONLY! This product shall be used outdoors, in a
ventilated space and shall not be used in any enclosed area.
• This unit is to be used with propane gas only! (sold separately)
• Do not attach a remote gas supply to this unit.
• Only use propane gas for this unit.
• This unit is not intended for natural gas.
• Do not use any solid fuel or charcoal for this unit.
•
• LP GAS WARNING: Do not use any more than 1/4in depth lava rocks/pumice stones/LavaGlass™
• If the propane gas tank is leaking gas, you may hear, see, or smell a hiss. Do the following:
• Applying too much propane may result in gas pooling and will not burn. Allow fresh air into the unit
so that the remaining gas may escape.
•
• The max. inlet supply pressure: max. Gas supply 11 in w.c. (2.74kPa)
• Use LP propane tanks with the following dimensions: diameter 12 in, height 18 in.
• You must use a propane tank that has a collar to protect the gas valve.
•
• The tank system must be set up for vapor withdrawal.
• Discontinue use if any part of the propane tank is damaged. Rust and dents may be hazardous and
should be inspected by a gas supplier.
•
•
rocks/pumice stones/LavaGlass ™ could pop out and cause injury. Should any rocks pop out, discard
them.
• Always ensure that lava rocks/pumice stones/LavaGlass™ are completely dry before use. Failure to
do so will cause them to crack or pop.
• Do not operate unit until all parts are fully assembled.
• Do not paint or color any part of this heating unit.
• Unit may be hot while in use, do not attempt to move it while in use.
• Never leave this heating unit unattended while in use.
• This unit is not intended for cooking.
•
• Keep a safe distance to avoid burning skin or clothing.
• Do not sit or rest hands or feet on this heating unit.
•
• Keep all electrical cords and fuel supply hose away from heated surfaces.
• Combustible material should not be within 72 inches of the top of the unit, or within 48 inches
around the entire unit.
Manufacturing Company | Page 2

•

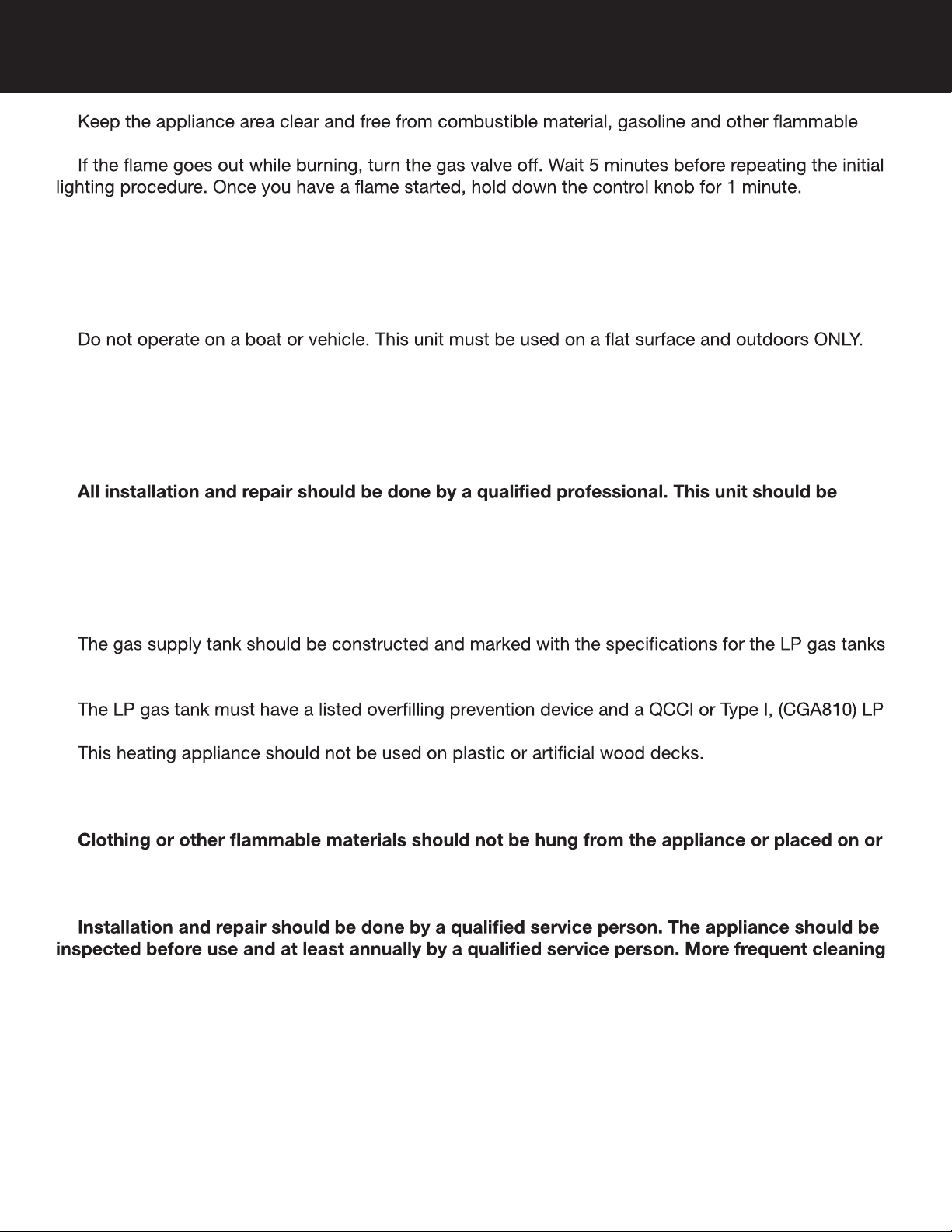

vapors and liquids.
•
• Do not add water into the unit.
• Do not operate unit if any part has been under water. Call a service technician to replace any
damaged parts should this occur.
• Do not disconnect any part while unit is in use.
• Do not store a spare propane tank on or near this unit.
• If the heating unit is indoors, detach the propane tank and leave outdoors.
•
• Always remove protective cover before operating (if applicable).
• Do not set the protective cover over the unit until it is turned off and completely cooled down.
• Check for leaks after not using the unit for long periods of time.
• Children should never operate this unit. Children must be supervised while near this unit.
• Keep gas tank at least 5 feet away from unit when lit. (if external tank)
• The maximum gas supply pressure is 250psi.
•
inspected annually and cleaned regularly.
• Inspect all elements of this heating unit before each use. If there is damage, the burner must be
replaced.
• Keep the hose out from any pathways to eliminate any accidental damage. (if external tank)
• Be aware of the hazards of high temperatures and stay away from the unit to avoid any burns or
injury.
•
of the U.S. Department of Transportation or the National Standard of Canada CAN/CSA-B339, LP gas
tanks, spheres and tubes for Transportation of Dangerous Goods; and Commission.
•
gas tank connection.
•
• Children and adults should be alerted to the hazards of high surface temperatures and should
stay away to avoid burns or clothing ignition.
• Young children should be carefully supervised when they are in the area of the appliance.
•
near the appliance.
• Any guard or other protective device removed for servicing the appliance shall be replaced
prior to operating the appliance.
•
may be required as necessary. It is imperative that the control compartment, burners and
circulating airways of the appliance are kept clean.
IF APPLICABLE:
• Allow heating item to cool completely before placing on lid.
• DO NOT use heating item while lid is installed. Always remove the lid while heating item is in use.
Only use the regulator and hose assembly provided with this unit. Replacement parts must be supplied
directly by Summerville Furnishings Inc.
1-888-897-1222 | Page 3

SAFETY INFORMATION
Inspect the burner before use of this unit. If the burner shows any kind of damage, do not operate
the appliance. For assistance with repair or replacement of the burner or any other parts, calls Summerville
Furnishings, Inc. at 1.888.897.1222
NOTE: You must follow all steps to properly assemble this heating item. Make sure the gas
valve is turned “OFF” before assembling. Do NOT attempt to assemble without proper tools.

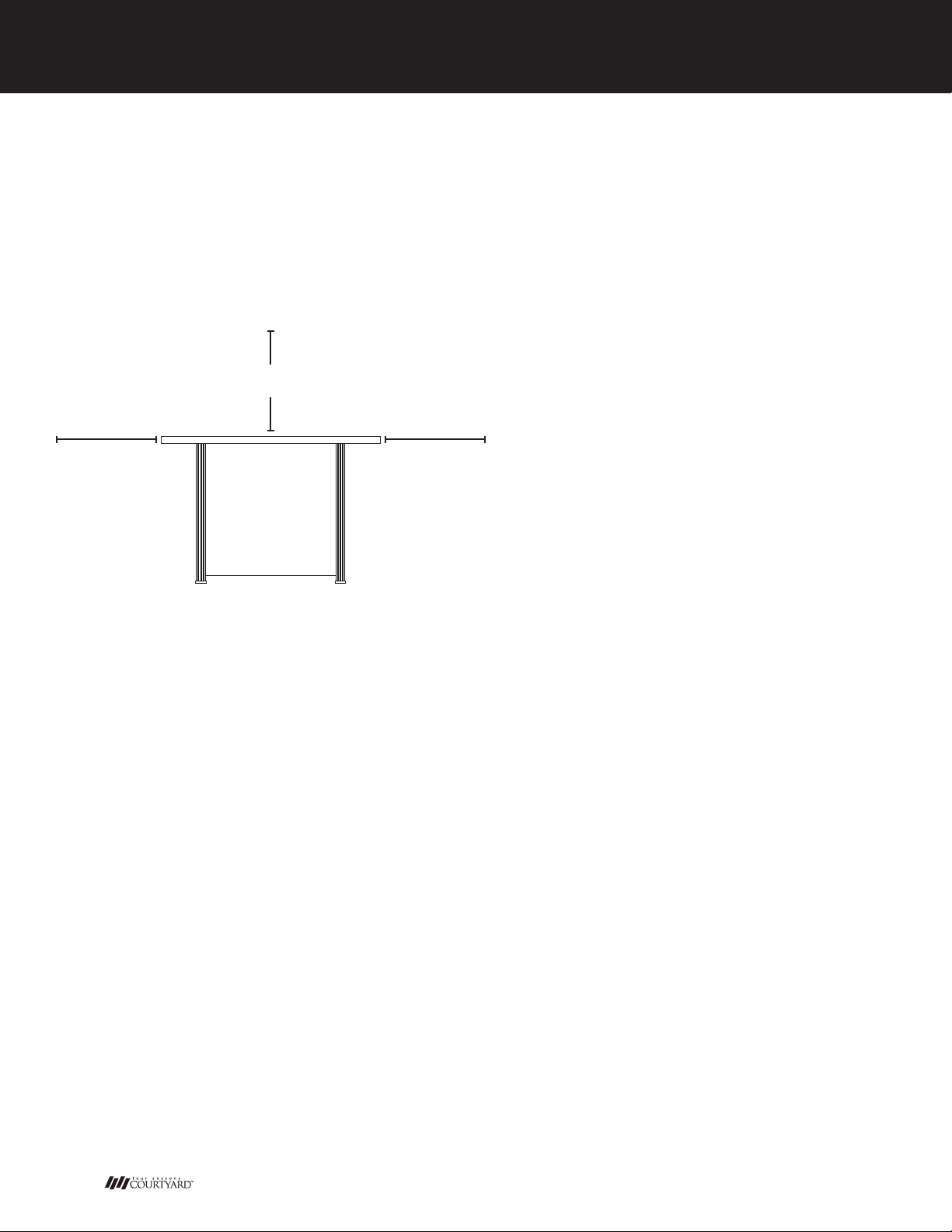

Combustible materials should not be within 72
inches of the top of the unit, or within 48 inches
around the entire unit.
Min. Clearance
48 in. (121.9 cm)
Min. Clearance
72 in. (182.88 cm)
Min. Clearance
48 in. (121.9 cm)
Manufacturing Company | Page 4

AA BB CC DD EE FF
Item Description Qty
AA M6 x 10 Screw 24
BB M6 Nut 12
CC M4 x 8 Screw 1
DD Washer 1
EE Door Knob 1
FF Wrench 1
HARDWARE
Before beginning assembly of this product be sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part appears to be missing or damaged do
not begin assembly of this product and call customer service immediately.
Estimated assembly time: 30 minutes
Tools required for assembly (not included): Phillips Screwdriver
1-888-897-1222 | Page 5

Item Description Qty
A Lid 1
B Table Top 1
C Door 1
D Front Panel 1
E Side Panel 2
F Left Leg 2
G Right Front Leg 1
H Right Back Leg 1
I Metal Stand 1
J Lava Rocks 1 box
K PVC Cover 1
L Battery (AAA) 1
M Control Knob (preassembled) 1
N Guard (preassembled) 1
O Firebowl (preassembled) 1
P Burner (preassembled) 1
Q Electronic Igniter (preassembled) 1

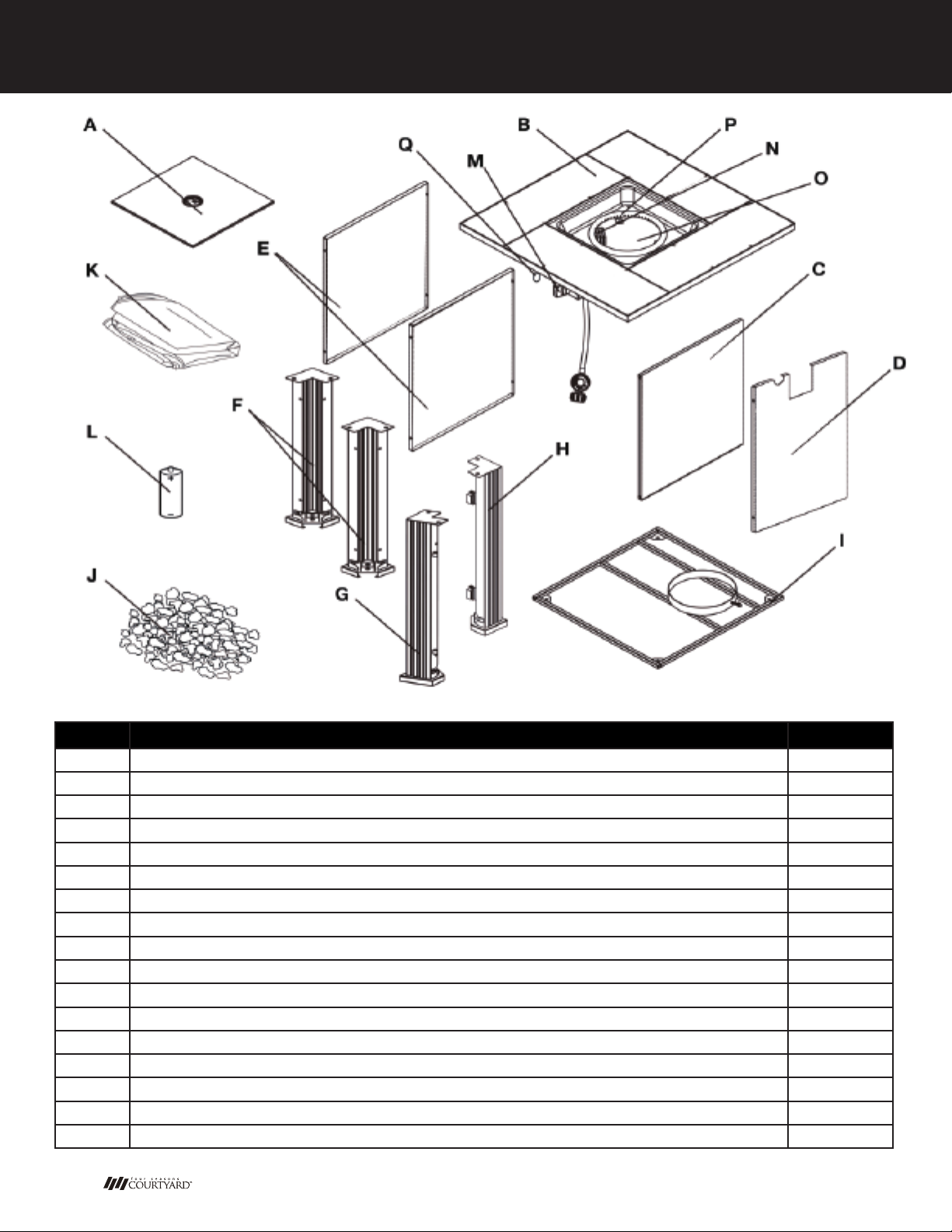

CONTENTS
Manufacturing Company | Page 6

3. Attach the 2 side panels (E) and front panel (D)
to the legs using 12 pcs M6 x 10 screws (AA) and
12 pcs M6 nuts (BB). Tighten with wrench (FF).
F
GH
I
AA
M
ASSEMBLY INSTRUCTIONS
1. Check that the control knob (M) for the gas
supply system is turned to the “OFF” position
before starting any assembly.
2. Attach right front leg (G), right back leg (H) and
2 left legs (F) to the metal stand (I) using 4 pcs
M6 x 10 screws (AA). Tighten with wrench (FF).
1-888-897-1222 | Page 7

ASSEMBLY INSTRUCTIONS

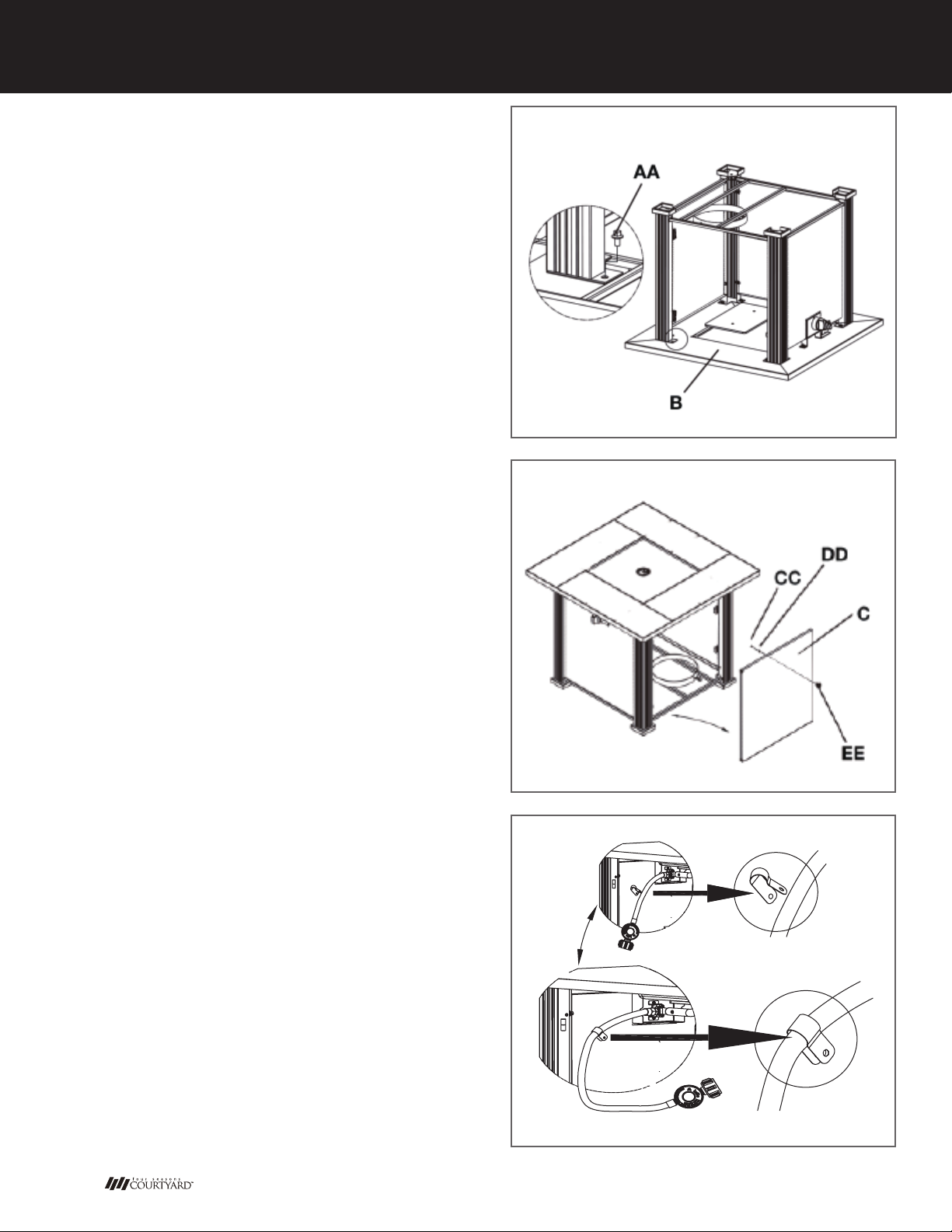

4. Attach steel base to the bottom part of the
table top (B) using 8 pcs M6 x 10 screws (AA).
Tighten with wrench (FF).
5. Insert the door (C) to right front leg and attach
door knob (EE) to the door using 1 M4 x 8 screw
(CC) and 1 washer (DD).
6. Attach hose of regulator tightly to the bracket.
Manufacturing Company | Page 8

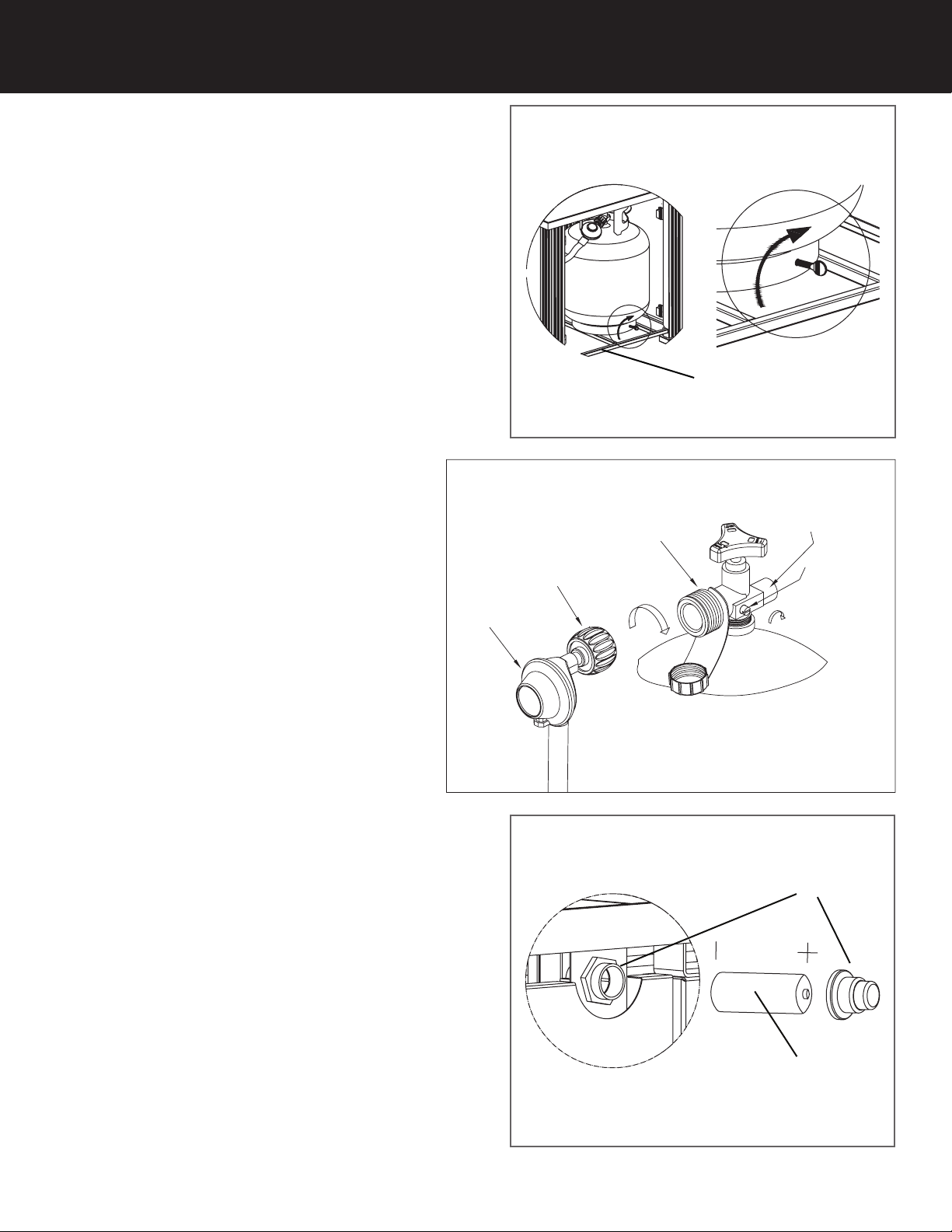

7. Place propane gas tank (not included) into the
metal stand (I). Make sure the gas tank sits on the
metal stand (I) completely. Turn the preassembled
wing screw on the outer part of metal stand (I)
clockwise to secure the propane gas tank tightly.
9. Remove the rubber cap on the electronic igniter
(Q) by unscrewing and slide battery (L) into the
battery slot. Make sure the positive side of the
battery faces outwards. Screw the electronic
igniter cap (Q) over the battery tightly.
CYLINDER VALVE
PRESSURE
RELIEF VALVE
BLEED-OFF
VALVE
BLACK COUPLING NUT
REGULATOR
turn clockwise to connect
turn clockwise
to reseal
8. Turn the cylinder valve on the tank
clockwise to close the propane tank.
Attach the preassembled regulator
from the table top (B) to the cylinder valve
by turning the regulator coupling nut
clockwise. Make sure it is fastened
securely and tighten connections by hand
only.
Q
L
I
1-888-897-1222 | Page 9

ASSEMBLY INSTRUCTIONS

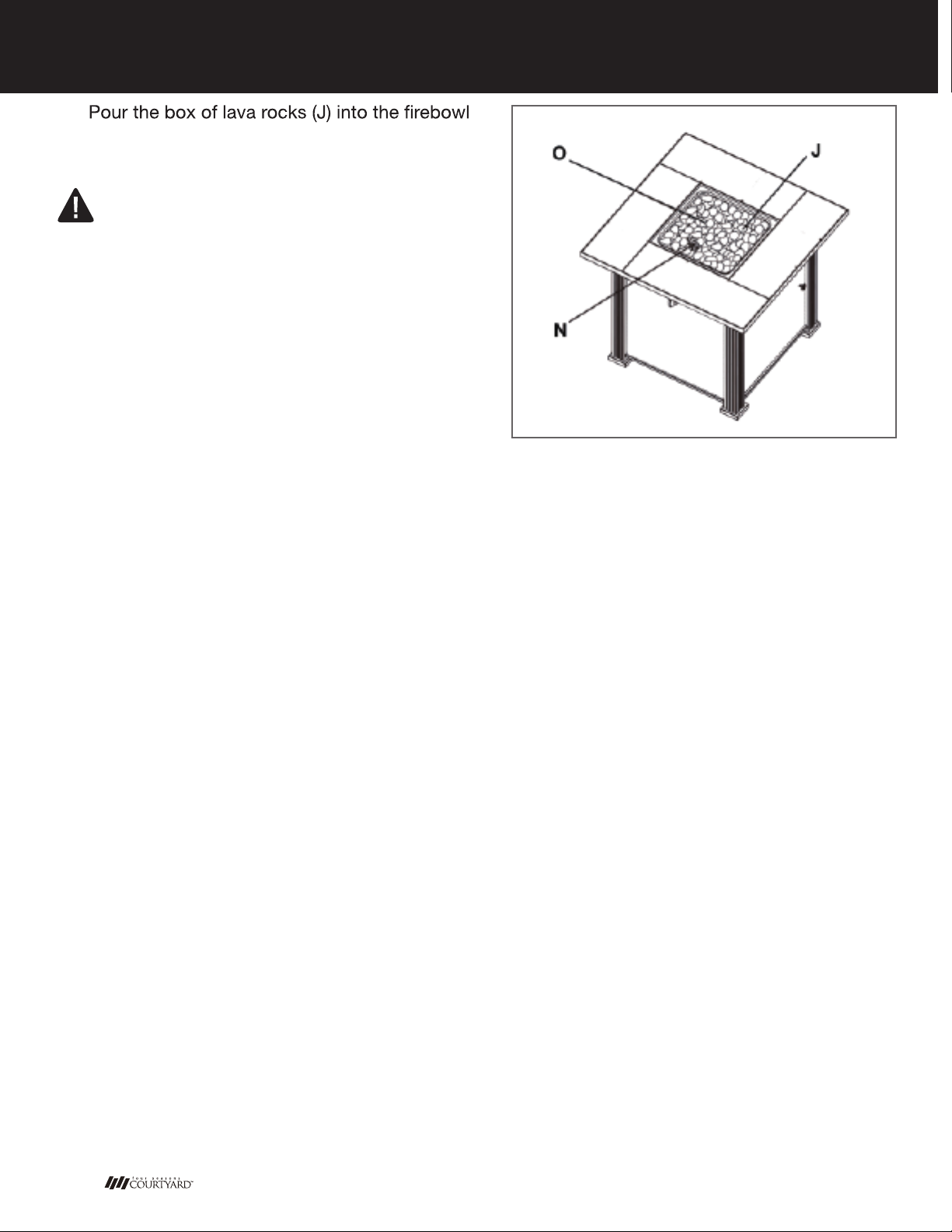

10.
(O).
To ensure proper function, the guard (N) on this
burner (P) should be free of lava rocks at all times.
CAUTION
Manufacturing Company | Page 10

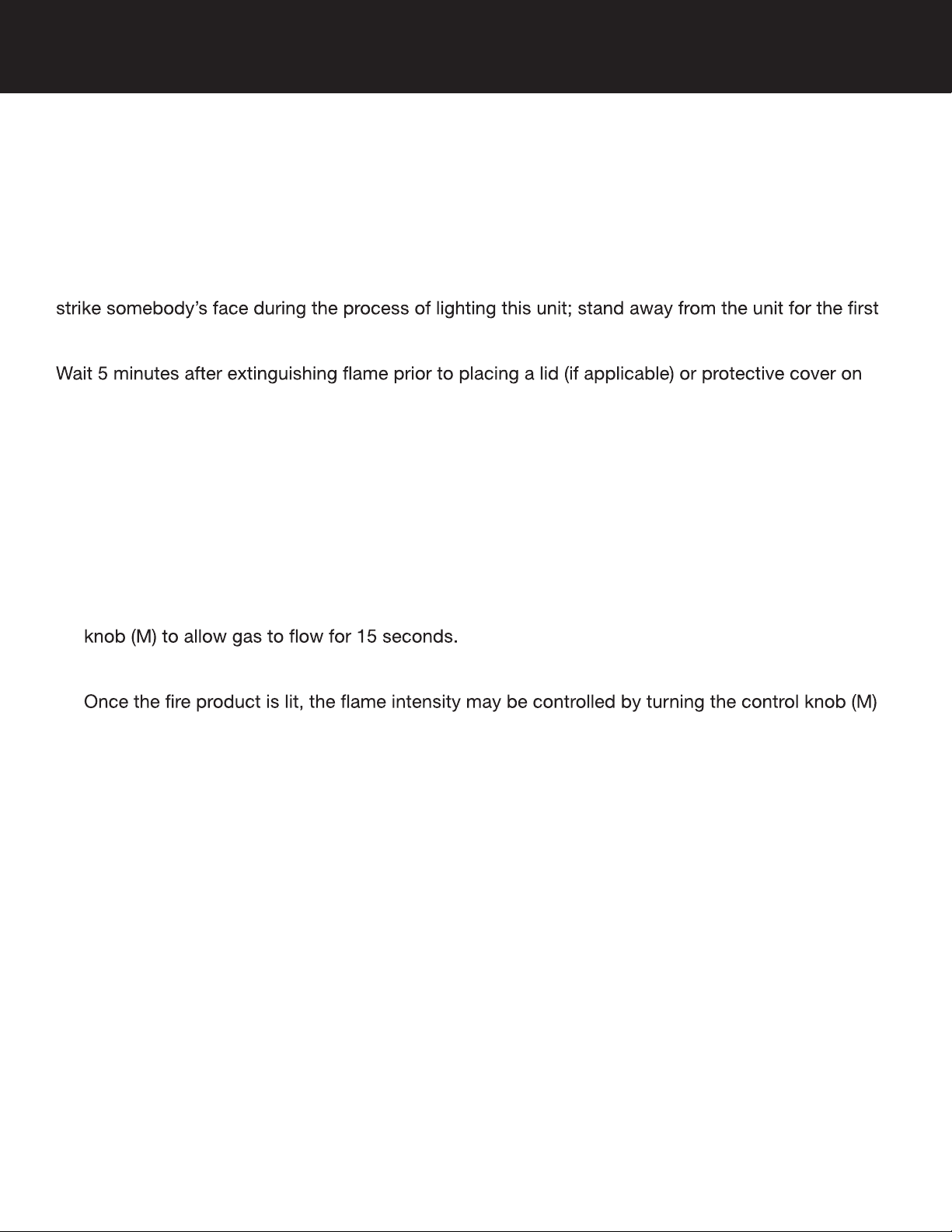

To Light
To Extinguish
Before performing a leak test, be sure that no sparks can occur and you are in a spacious outdoor
area. Connect the propane gas tank to the regulator and turn the valve on the unit to the “off”
position. Brush a soap and water mixture on all connections. Turn the gas supply on; if bubbles
occur on any connection there may be a leak. If you smell gas or a leak is discovered turn the
gas valve off, disconnect propane gas tank and do not use the appliance until the leak is
repaired.
Do not use the heating unit without inspecting the gas hose. If there are signs of wear or abrasion
you must replace the hose (if applicable). Pumice stones/lava rocks/LavaGlass™could pop up and
20 minutes after igniting. Flame height should be a yellow/blue color between 2 - 10 inches in height.
heating item.
1. Make sure the control knob (M) is in the “off” position.
2. Open the door (C) and slowly open the valve on the propane gas tank by turning the knob
counterclockwise.
3. Close the door (C) on the body.
4. Push and hold in the electronic igniter (Q) to create sparks within the electrode, continue to hold.
5. Push in the control knob (M) and turn to the “HIGH” position. Keep holding down the control
6. If ignition doesn’t occur within a few seconds release the control knob (M) and rotate to the
“OFF” position. Wait for 5 minutes for gas to clear and then repeat the above lighting instructions.
7.
between the “LOW” and “HIGH” positions.
1. Turn control knob (M) clockwise to the “HIGH” position; let the knob pop up and continue turning
the control knob (M) to the “OFF” position.
2. Close the cylinder valve on the propane gas tank if you don’t intend to use it for a long time.
OPERATION
1-888-897-1222 | Page 11

MAINTENANCE
• Before performing any maintenance always disconnect propane gas tank.
• Keep the heating item free and clear from combustible materials.
• Visually inspect burner for obstructions and keep tank enclosure free and clear from debris.
• Use a soft brush to get rid of the mild stains, loose dirt and soil after the burner and pumice stones/
lava rocks/LavaGlass
™ are completely cooled down. Wipe down with a soft cloth.
• Harsh weather conditions may cause stubborn stains, discoloration and possibly rust pitting.
• Permanent damage may occur if powder or solvent comes in contact with painted or plastic
components on this heating unit.
• Keep the heating unit stored away from direct sunlight.
• If storing this unit inside, disconnect the propane gas tank from the gas valve.
• Not using manufacturer approved or supplied parts/accessories may result in a defective condition
and void the warranty of this heating unit.
• Always place lid (if applicable) or protective cover on heating item when not in use.
Manufacturing Company | Page 12

TROUBLESHOOTING
Problem Cause Solution
Igniter pin and burner are wet Dry off with a soft cloth
Igniter battery is incorrectly inserted Check which direction the battery is
inserted
Igniter pin is broken Contact Summerville Furnishings, Inc. at
1-888-897-1222 for a replacement part
Contact Summerville Furnishings, Inc. at
1-888-897-1222 for a replacement part
Electrode wire is loose or disconnected Reconnect wire to the igniter box located
inside the table behind the igniter box
Electrode wire is shorting between valve
and igniter pin
No gas flow Check that the gas tank isn’t empty
Regulator isn’t connected securely to the
tank
Tighten regulator connection to the gas
tank
Gas flow is obstructed Check all hoses for kinks and bends
Burner ports are clogged Turn all gas flow connections off. Insert
an opened paperclip (or similar item) into
each of the burner ports to clear them
out.
Flame is obstructed at burner ports Check that all burner ports are free of
any small lava rocks/pumice stones/
LavaGlass™ pieces
Regulator hose is kinked Straighten hose of all bends or kinks
No gas flow Check that the gas tank isn’t empty
Excess flow safety valve has been
activated
Turn the control knob to the ‘off’ position.
Close the tank valve and disconnect
propane gas tank. Turn the control
knob to ‘high’; wait 1 minute. Turn the
control knob back to the ‘off’ position.
Reconnect propane gas tank. Light the
fire unit as indicated in the ‘To Light’
section of this manual.
High or gusting winds Increase flame to ‘high’
No gas flow Check that the gas tank isn’t empty
Excess flow safety valve has been
activated
See ‘sudden drop in gas flow’ above
Heating unit won’t light
Burner won’t light
while using a match
Heating unit emits a lot
of black smoke
Sudden drop in gas
flow
Flame blows out easily
1-888-897-1222 | Page 13

WARRANTY
If you have any questions or concerns, please contact Summerville Furnishings, Inc. at the below
resources:
CONTACT
Toll Free Phone [phone] | Monday - Friday, 8am - 4:30pm PST
Email
The manufacturer warranty will be voided by, and manufacturer disclaims any responsibility for, the
following actions:
•
• Use of any component part not manufactured or approved by Summerville Furnishings, Inc.
• Use and installation other than what is listed in this manual.
Please contact the manufacturer for replacement parts.
Manufacturing Company | Page 14
[email protected]
